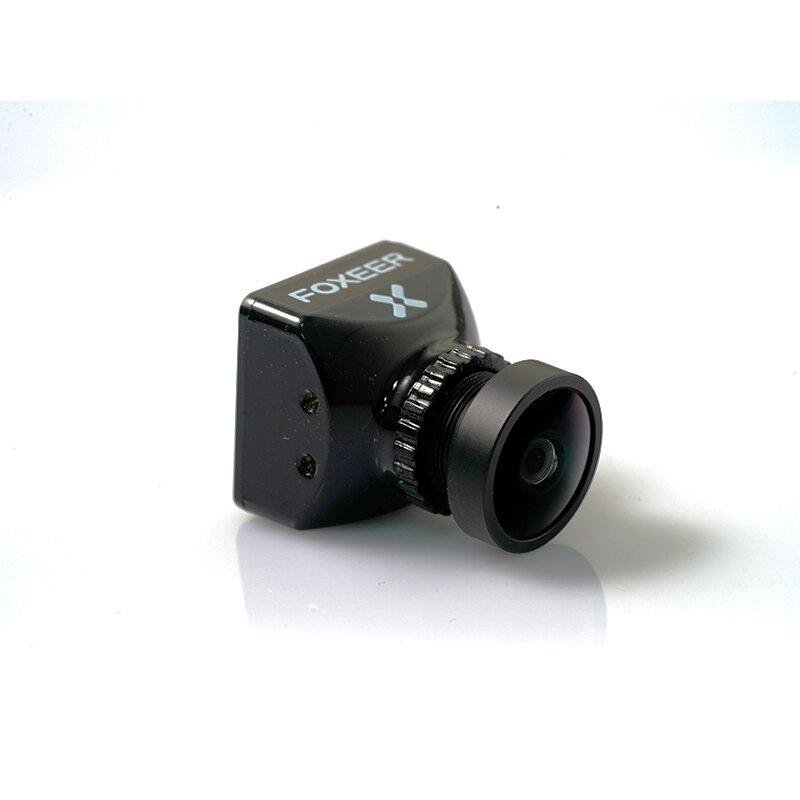

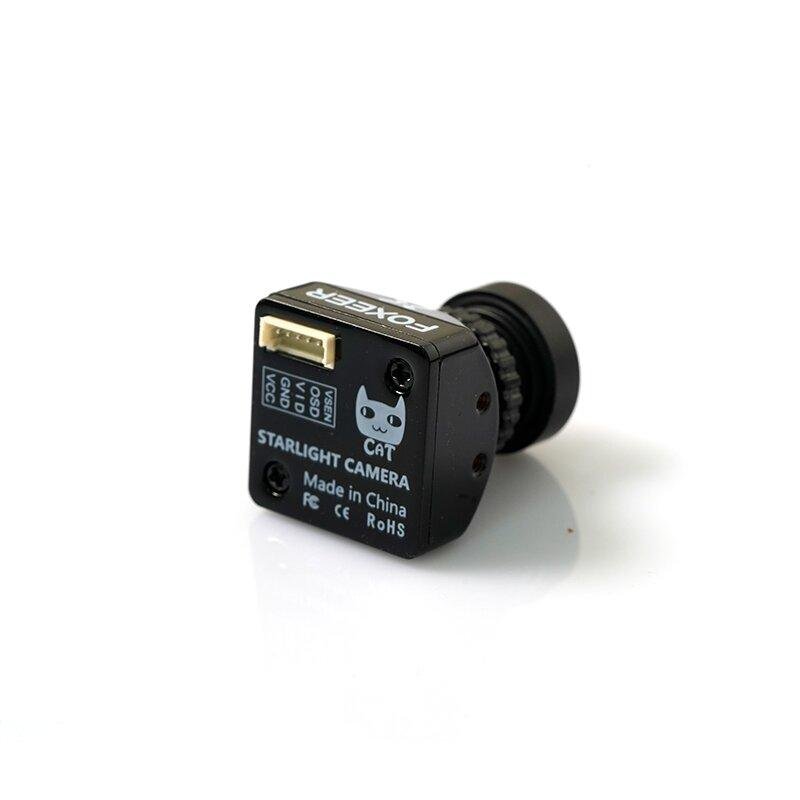

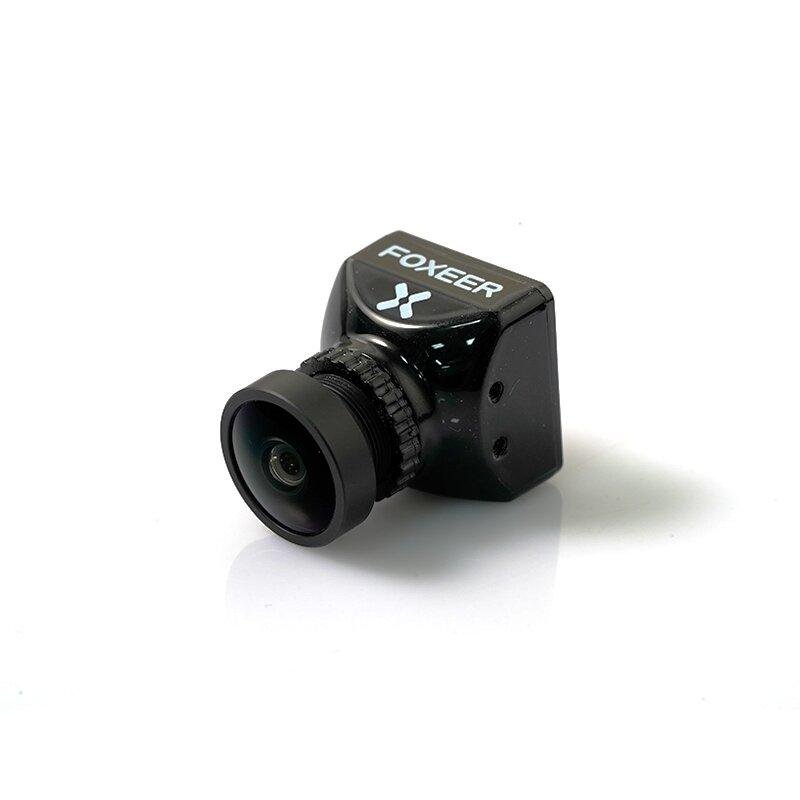

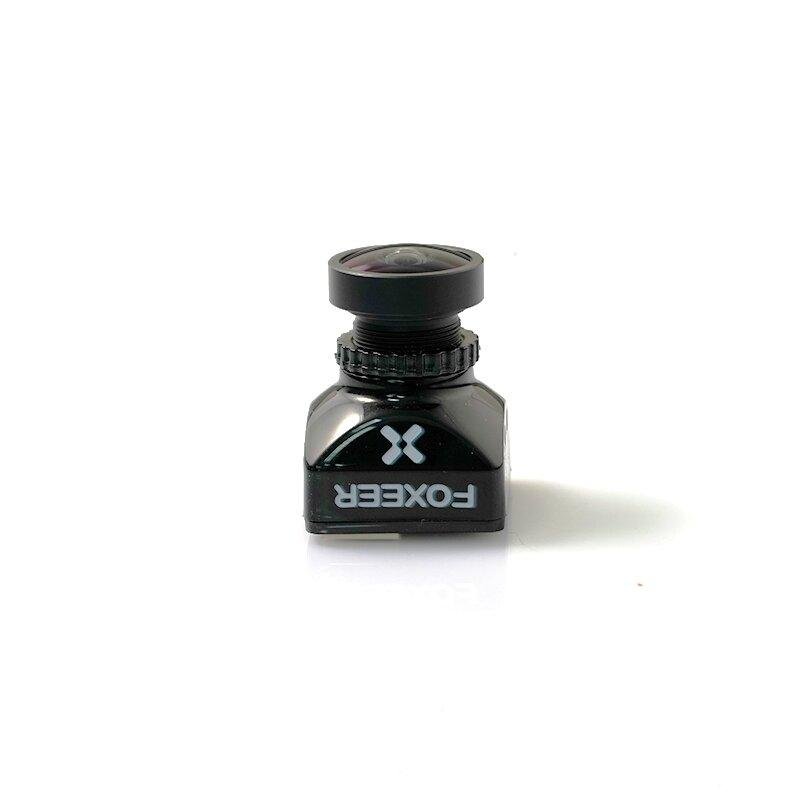

Foxeer Mini Cat 4 1200TVL StarLight FPV Camera

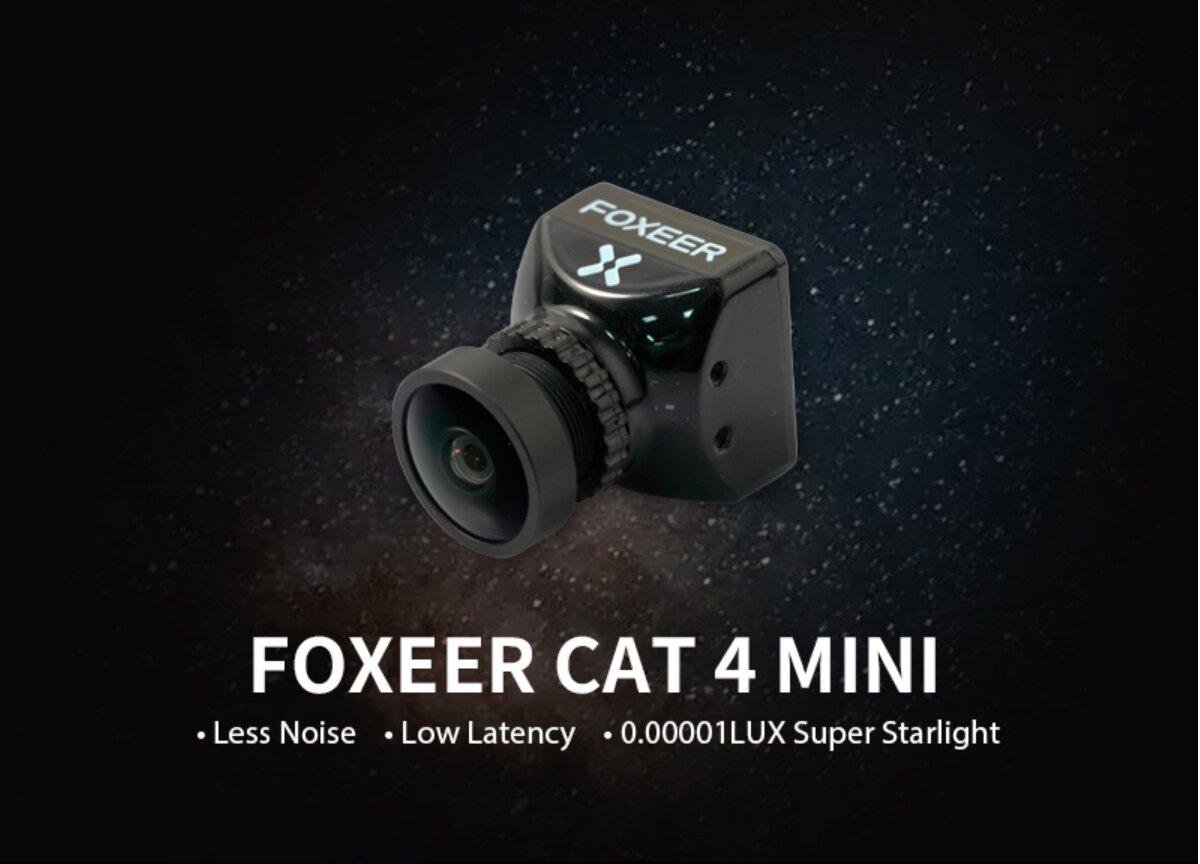

Foxeer Cat 4 Mini is a compact FPV camera with advanced Super Starlight technology, designed to provide high-quality images even in very low light conditions. The camera has an extremely high sensitivity of up to 0.00001 lux, allowing you to see more details in poor light conditions. Lower image noise helps to obtain a cleaner and clearer image, and low latency ensures fast response and precise control during FPV flights.

Specification:

• Sensor type: Sony 1/3″ CMOS sensor;
• Image format: 4:3 / 16:9;
• TV system: PAL / NTSC;
• Resolution: 1200 TVL;
• Lens: M12 2.1 mm, adapted for low light;
• Viewing angle: 4:3: horizontal -95°, vertical -72°, diagonal -120°, 16:9: horizontal -95°, vertical -53°, diagonal -110°;
• Shutter speed: PAL 1/25–1/10,000 s, NTSC: 1/30–1/10,000 s;
• Video output: CVBS analog signal;
• Minimum illumination: 0.00001 lx;
• White balance: Automatic;
• Noise reduction: 3DNR;
• Wide dynamic range: 100 dB;
• Day/Night Mode: EXT/Auto/Color/Black and White;
• Flight OSD: Voltage, camera name, time;
• Supply voltage: 5-20 V;
• Supported languages: English, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese;
• Operating temperature: from –10 °C to +50 °C;
• Storage temperature: from -20 °C to +70 °C;
• Power consumption: 95 ± 15 mA;
• Dimensions: 22 x 22 mm;
• Weight: 11.8 g.

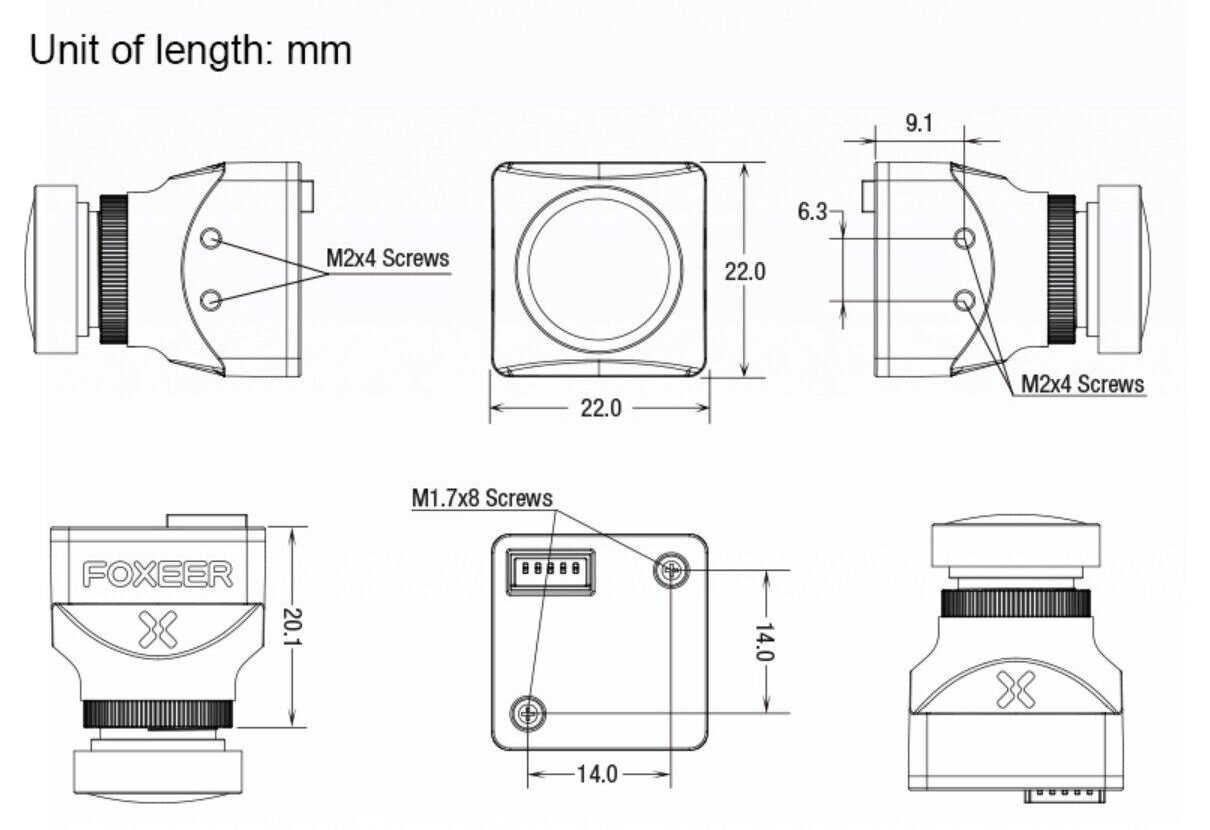

Measurements:

Exclusively optimized for LED lighting.

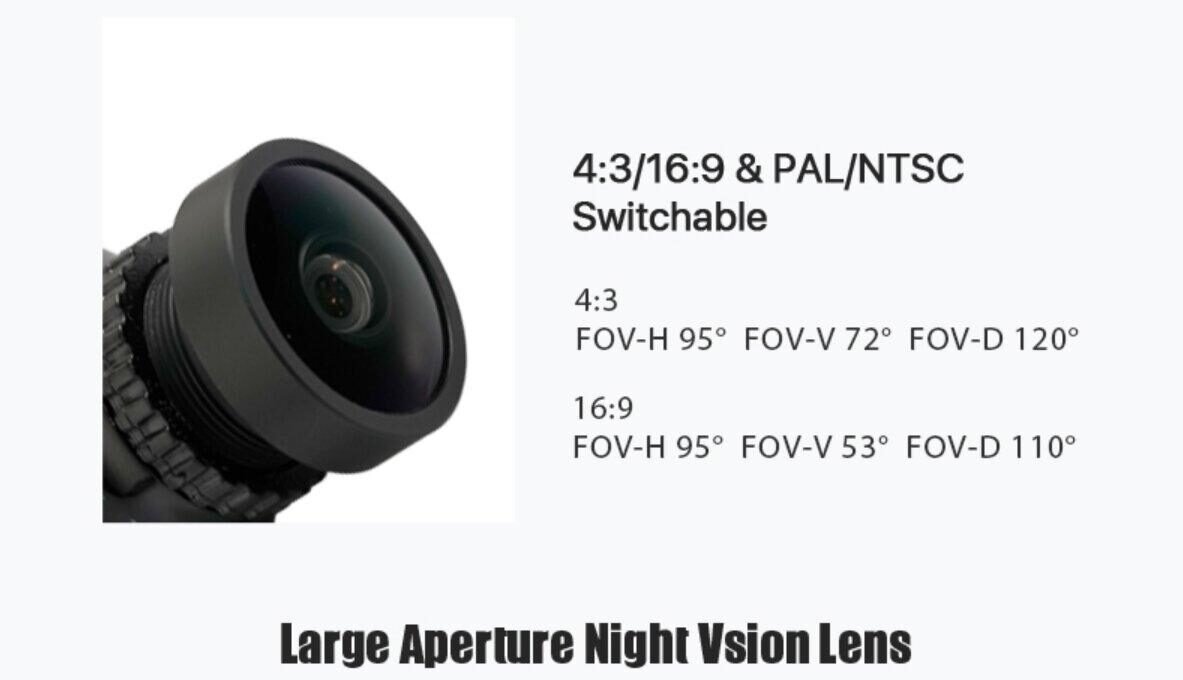

Large aperture night vision lens.

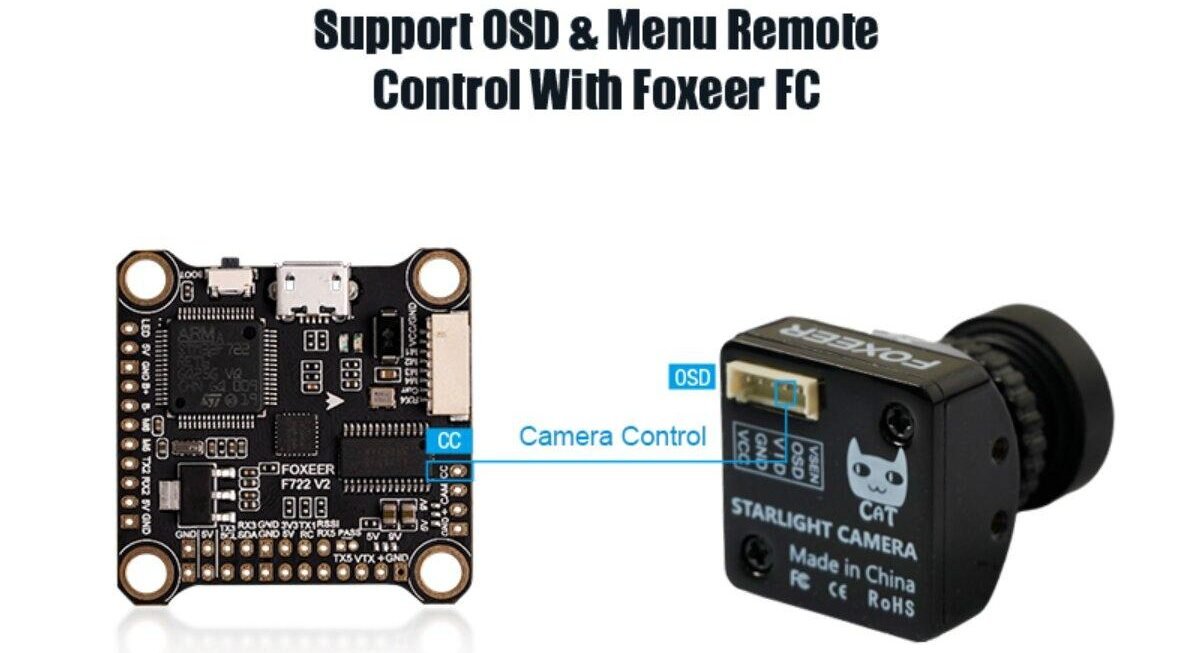

Supports OSD and remote camera menu control using the Foxeer flight controller.

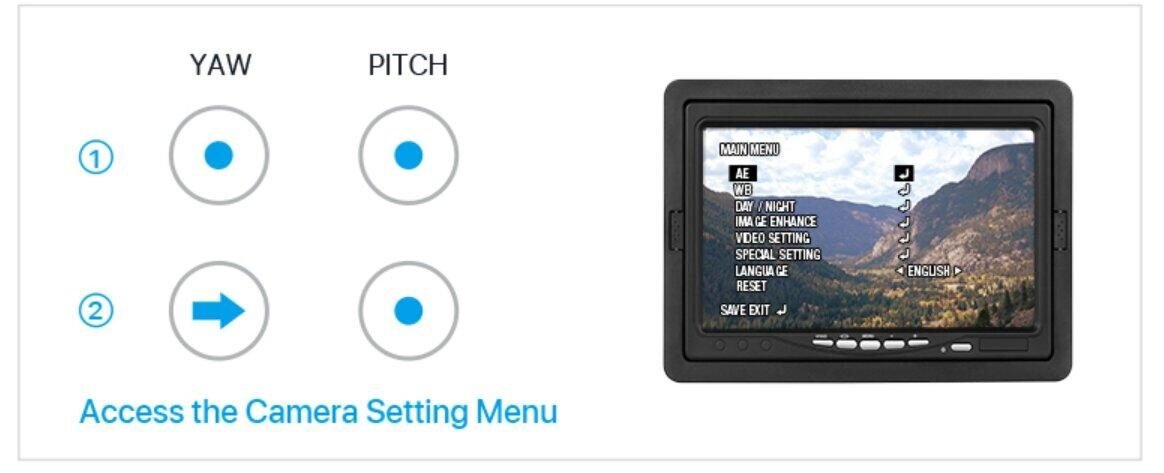

Camera settings menu.

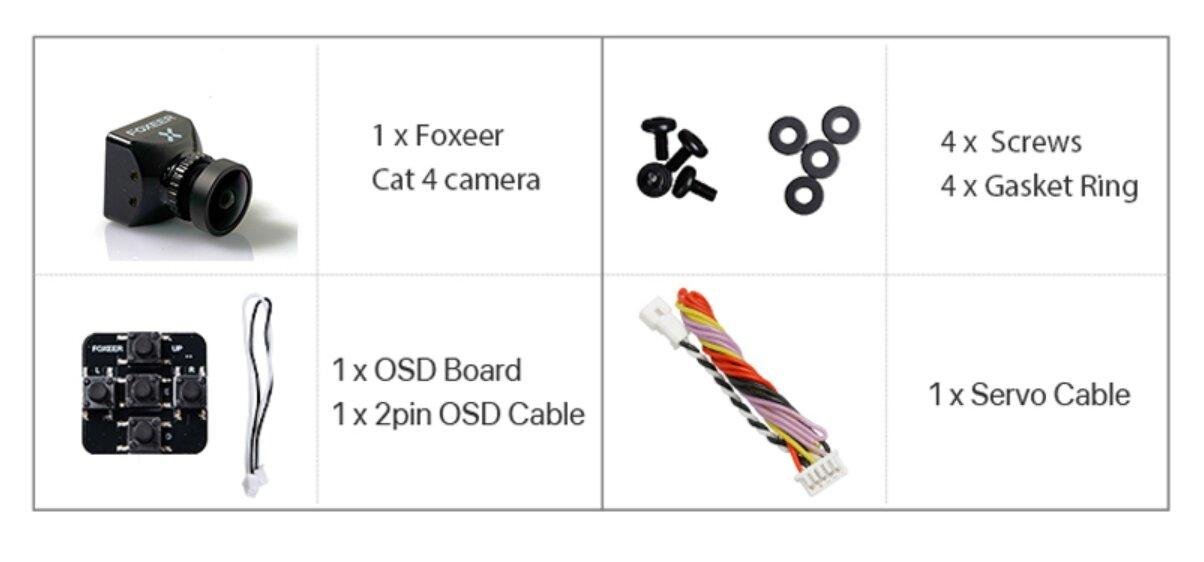

Package:

1x Foxeer Mini Cat 4 1200TVL StarLight FPV Camera;
4x screws;
4x gaskets;
1x OSD board;
1x 2-pin OSD cable;
1x servo cable.
