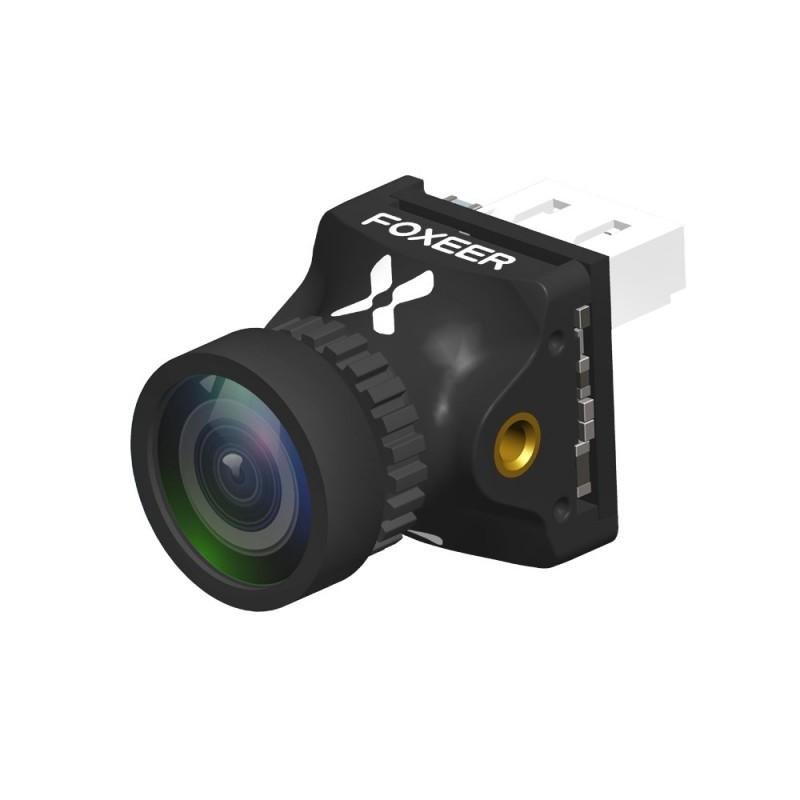

Foxeer Predator 5 Nano FPV Camera

Foxeer Predator 5 Nano is a high-quality analog FPV camera designed for racing and freestyle drones. It features a low video latency of about 4 ms, ensuring fast response during flight. Super WDR technology helps maintain a clear image in both bright sunlight and low-light conditions, and the image flip function allows you to easily adjust the camera to the mounting position. The compact Nano-format body ensures easy installation in small FPV drone frames, making this camera an excellent choice for pilots who value reliable performance and high image quality.

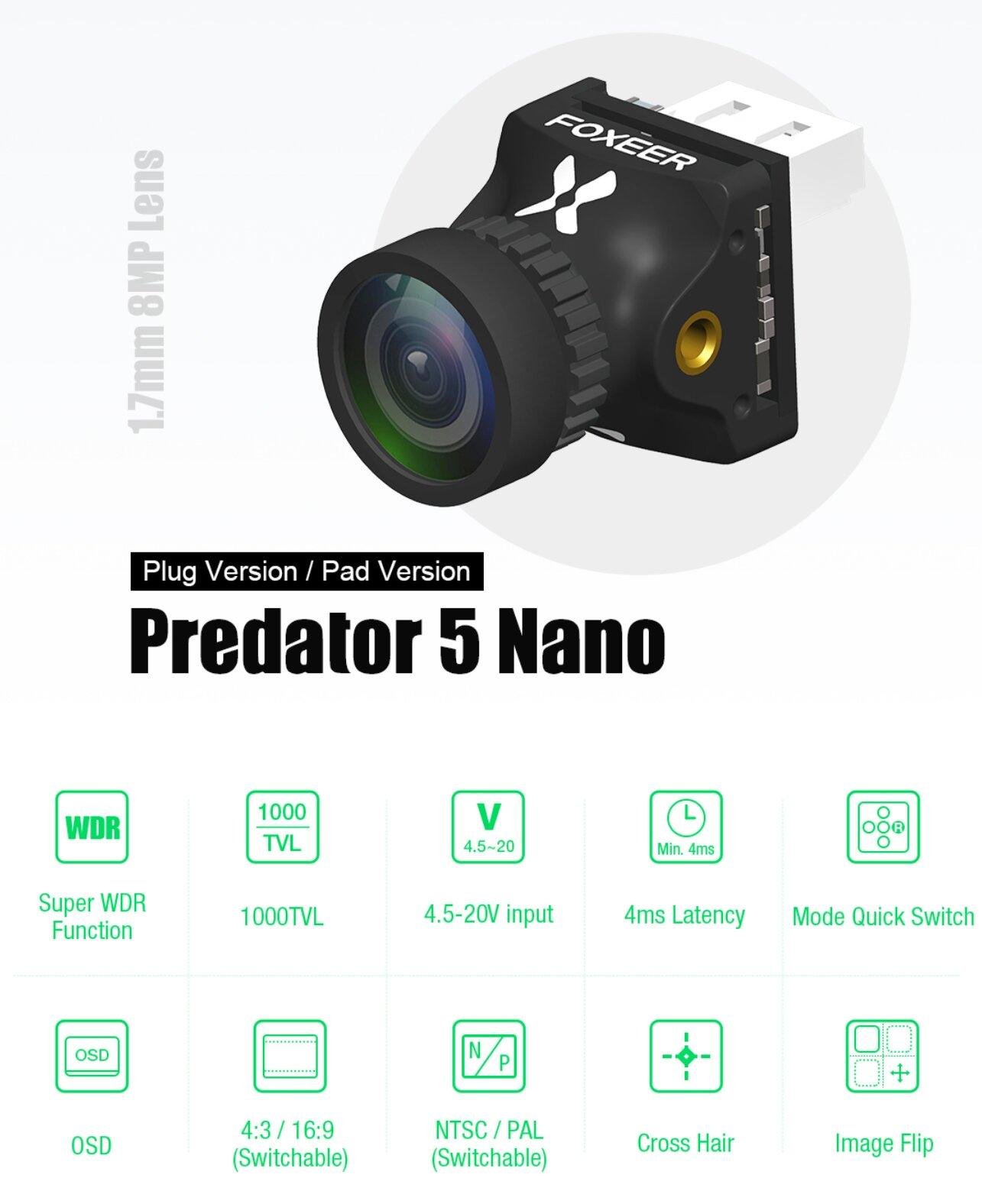

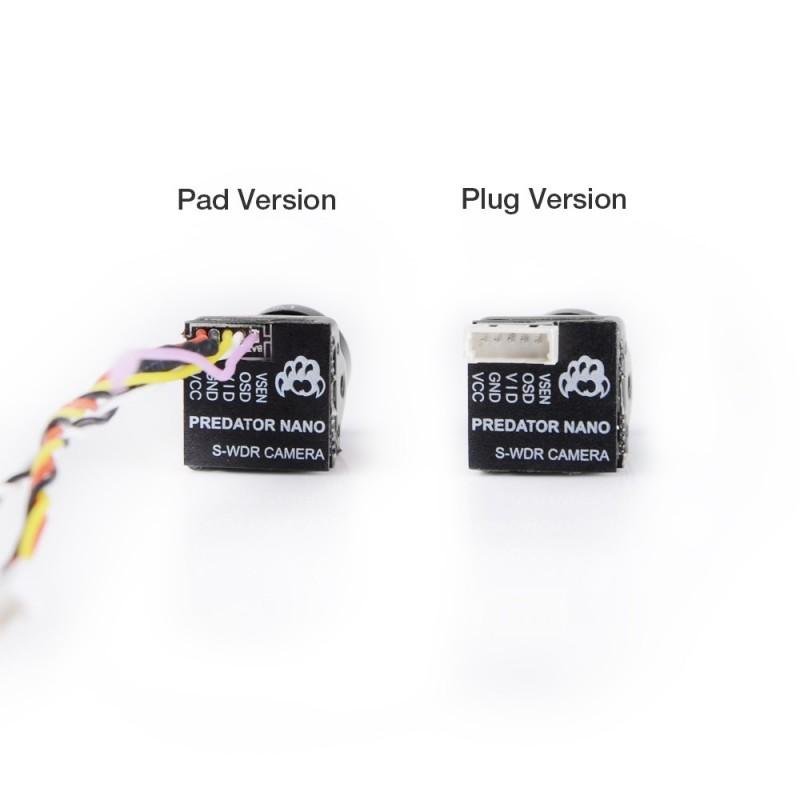

Predator 5 Nano – version with connector:
• Super WDR function;
• 1000TVL resolution;
• 4.5–20 V supply voltage;
• 4 ms delay;
• Quick mode switching;
• OSD;
• NTSC/PAL switching;
• 4:3 / 16:9 switching;
• Crosshair sight;
• Image flipping.

Specification:

• Sensor: Sony 1/3″ CMOS sensor;
• Image format: 4:3 / 16:9;
• TV system: PAL/NTSC switchable;
• Resolution: 1000TVL;
• Shutter speed: PAL 1/25–1/10000 s; NTSC 1/30–1/10000 s;
• Video output: CVBS analog signal;
• Viewing angle: FOV-H: 125° / FOV-D: 155°;
• Shutter mode: Automatic;
• Minimum illumination: 0.01 lx;
• White balance: Automatic;
• Noise reduction: 3DNR / 2DNR;
• WDR: Super WDR;
• Image modes: DAY / CLOUDY / NIGHT / LED;
• Quick mode switching: Long press of the right button allows you to quickly switch between DAY, CLOUDY, NIGHT and LED modes;
• Flight OSD: Voltage/camera name/time/target;
• Image flip: Supported;
• Supply voltage: 4.5–20 V;
• Languages: ENGLISH / DEUTSCH / FRANCAIS / PORTUGUES / ESPANOL / 中文;
• Operating temperature: -10 °C ~ 50 °C;
• Storage temperature: -20°C ~ 70°C;
• Power consumption: 50 mA ±15 % @ DC12 V / 115 mA ±15 % @ DC5 V;
• Dimensions: 14 x 14 mm; 19 x 19 mm with holder;
• Weight: Plug version – 4.8 g;

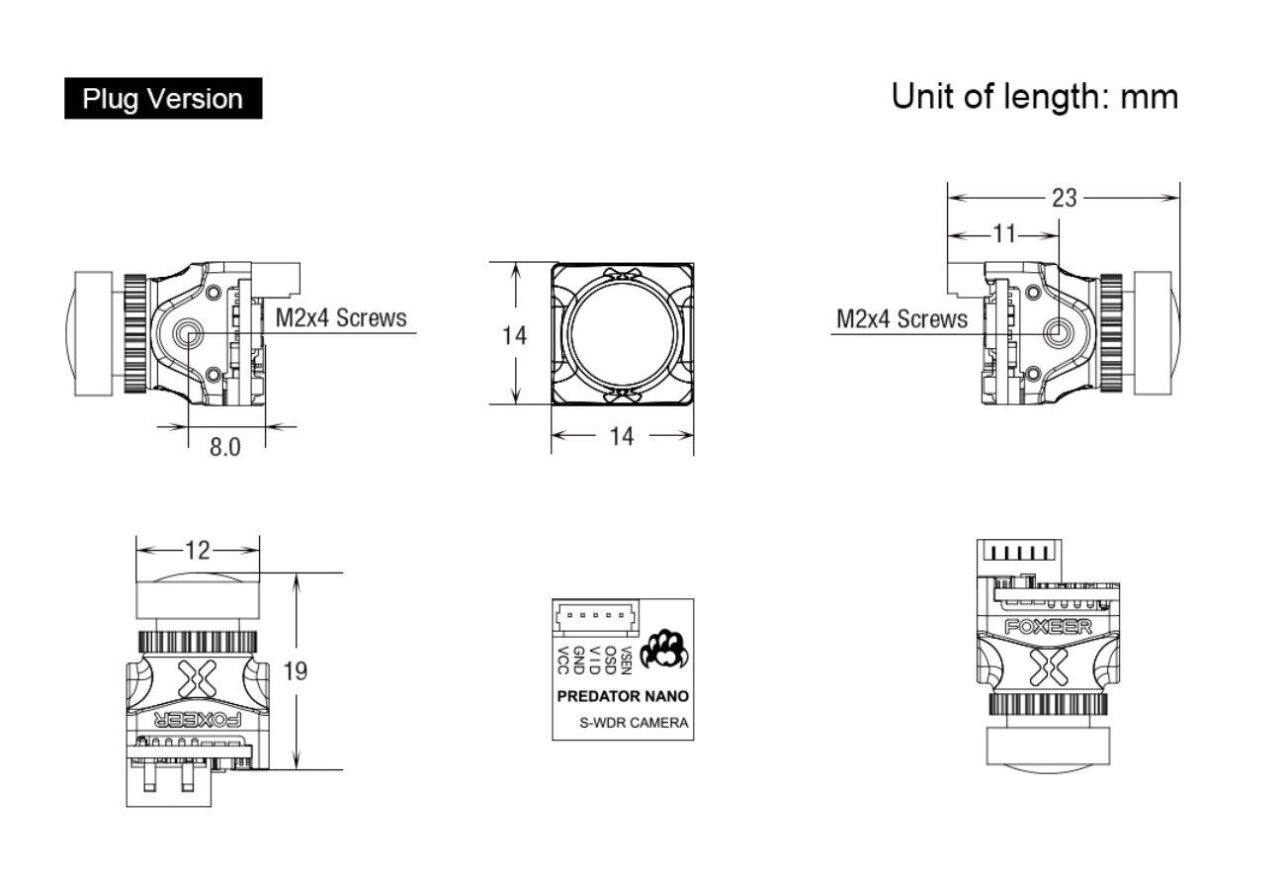

Measurements:

Optimized for LED lighting.

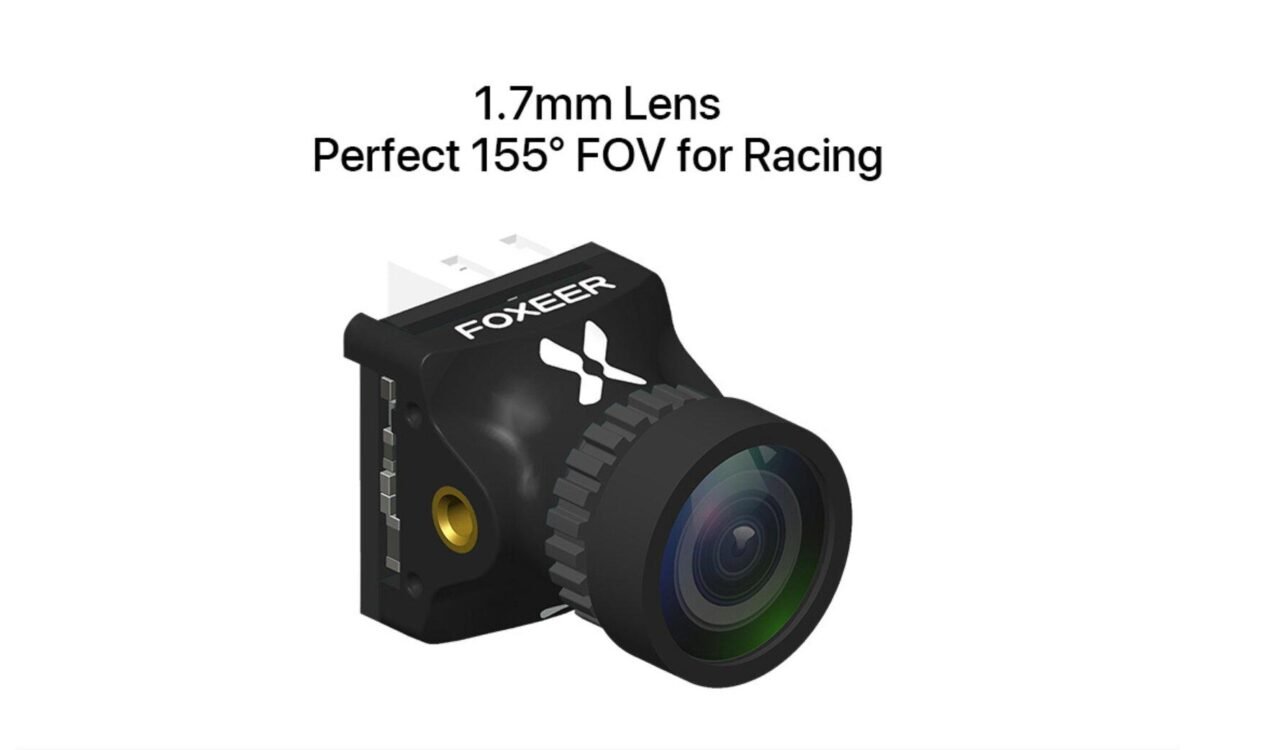

1.7 mm lens with 155° viewing angle, perfect for racing.

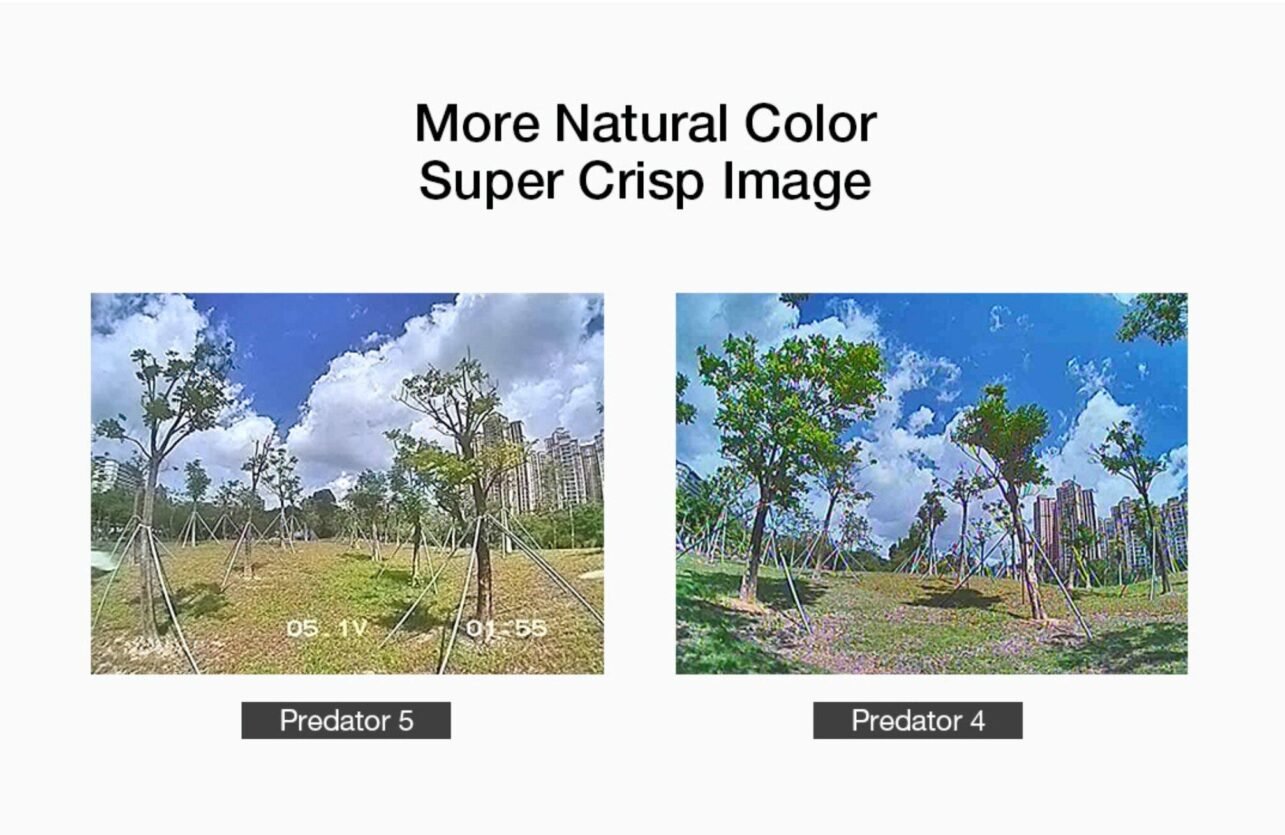

More natural colors and an extremely bright image.

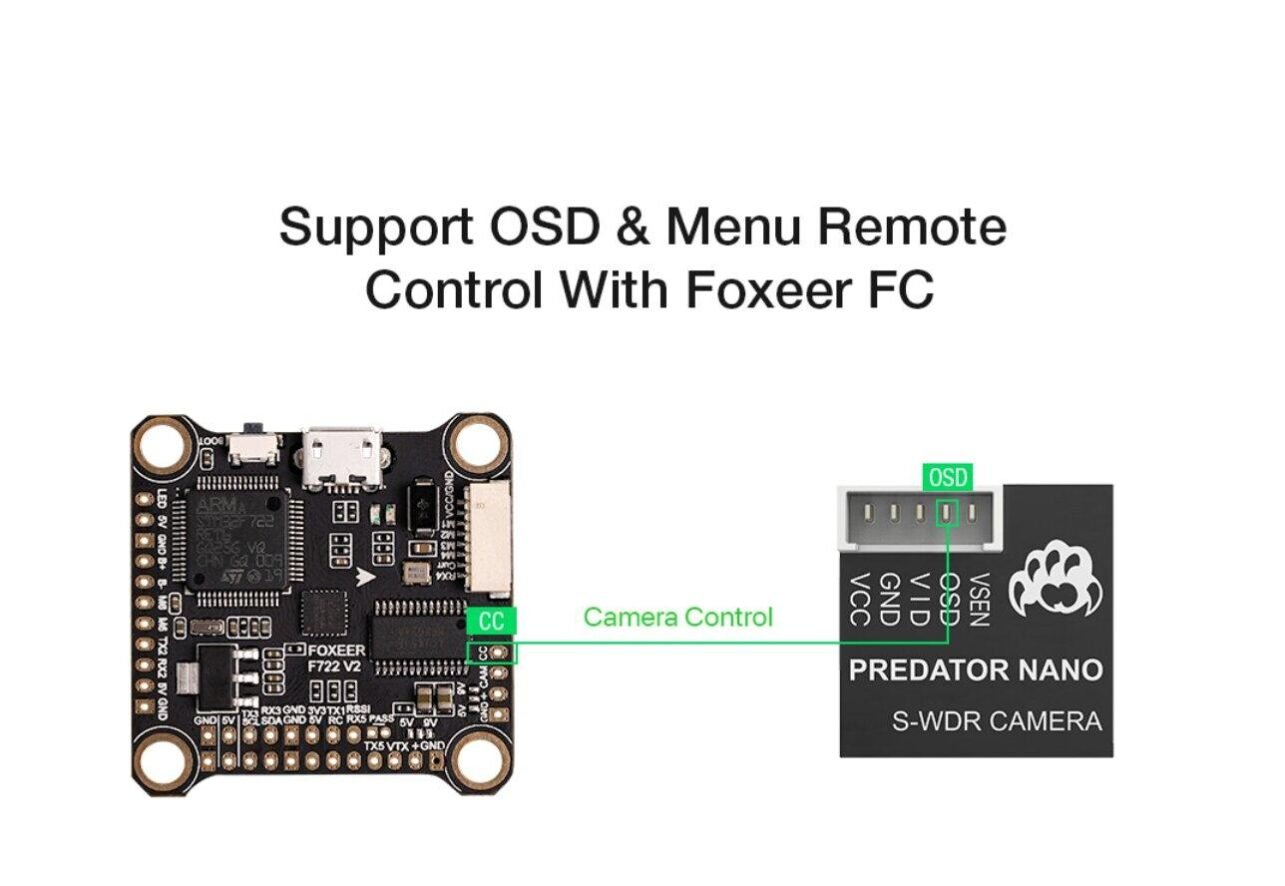

OSD and camera menu control via Foxeer FC.

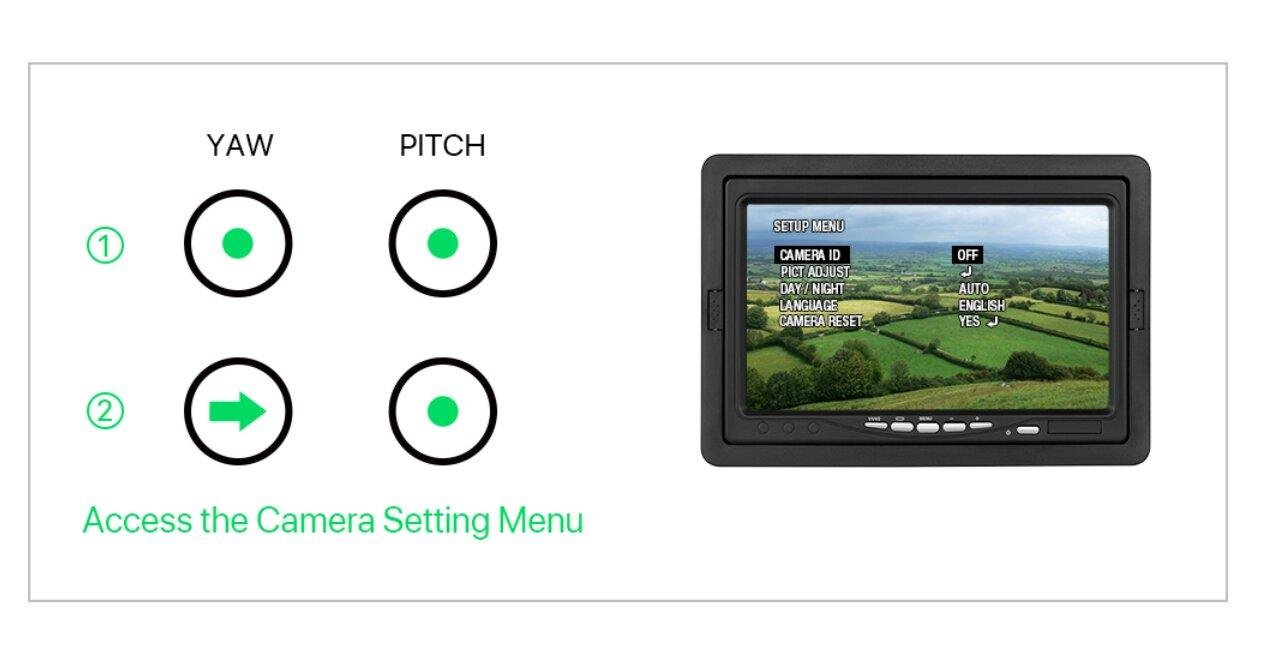

Access the camera settings menu.

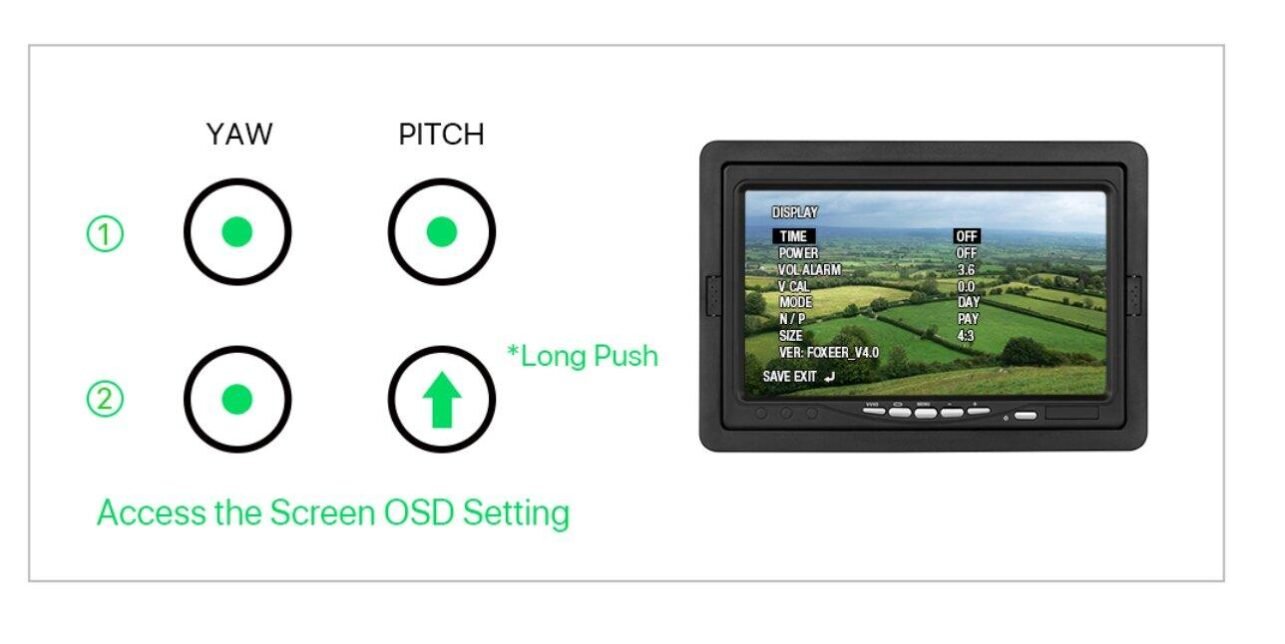

Access the on-screen display (OSD) settings.

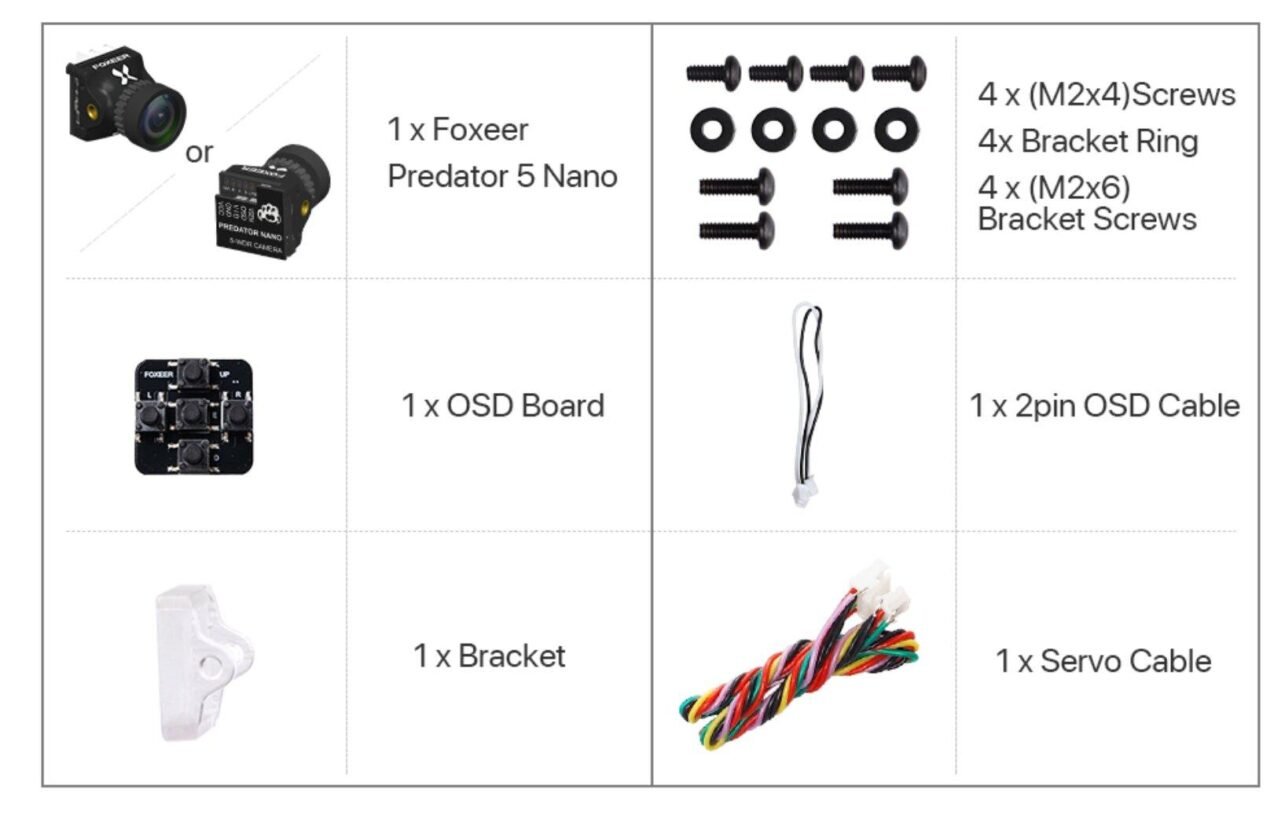

Package:

1x Foxeer Predator 5 Nano;
4x M2×4 screws;
4x mounting rings;
4x M2×6 mounting screws;
1x OSD board;
1x 2-pin OSD cable;

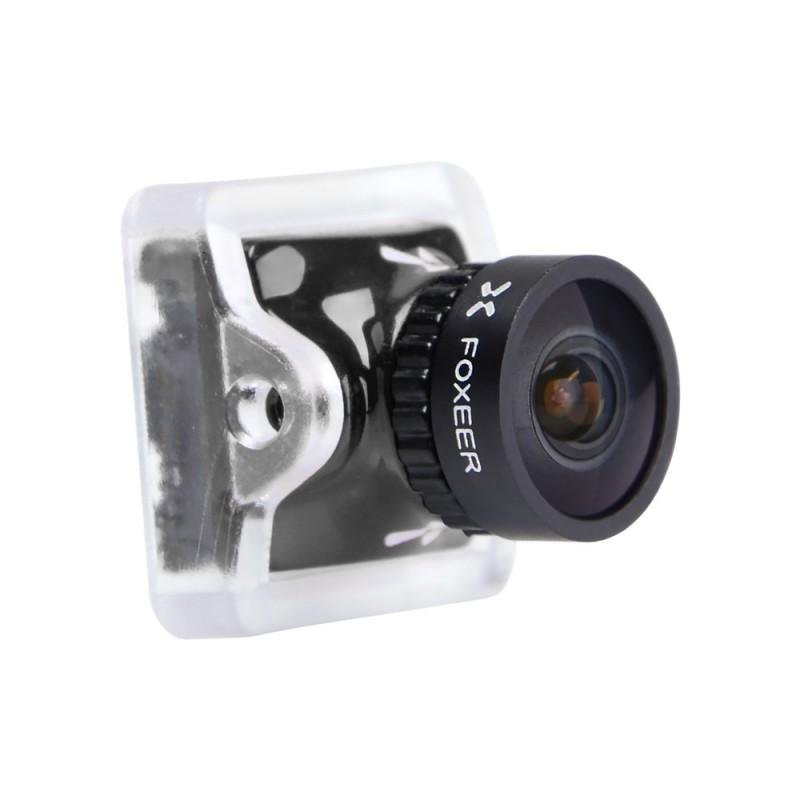

1x mounting bracket;
1x servo cable.
