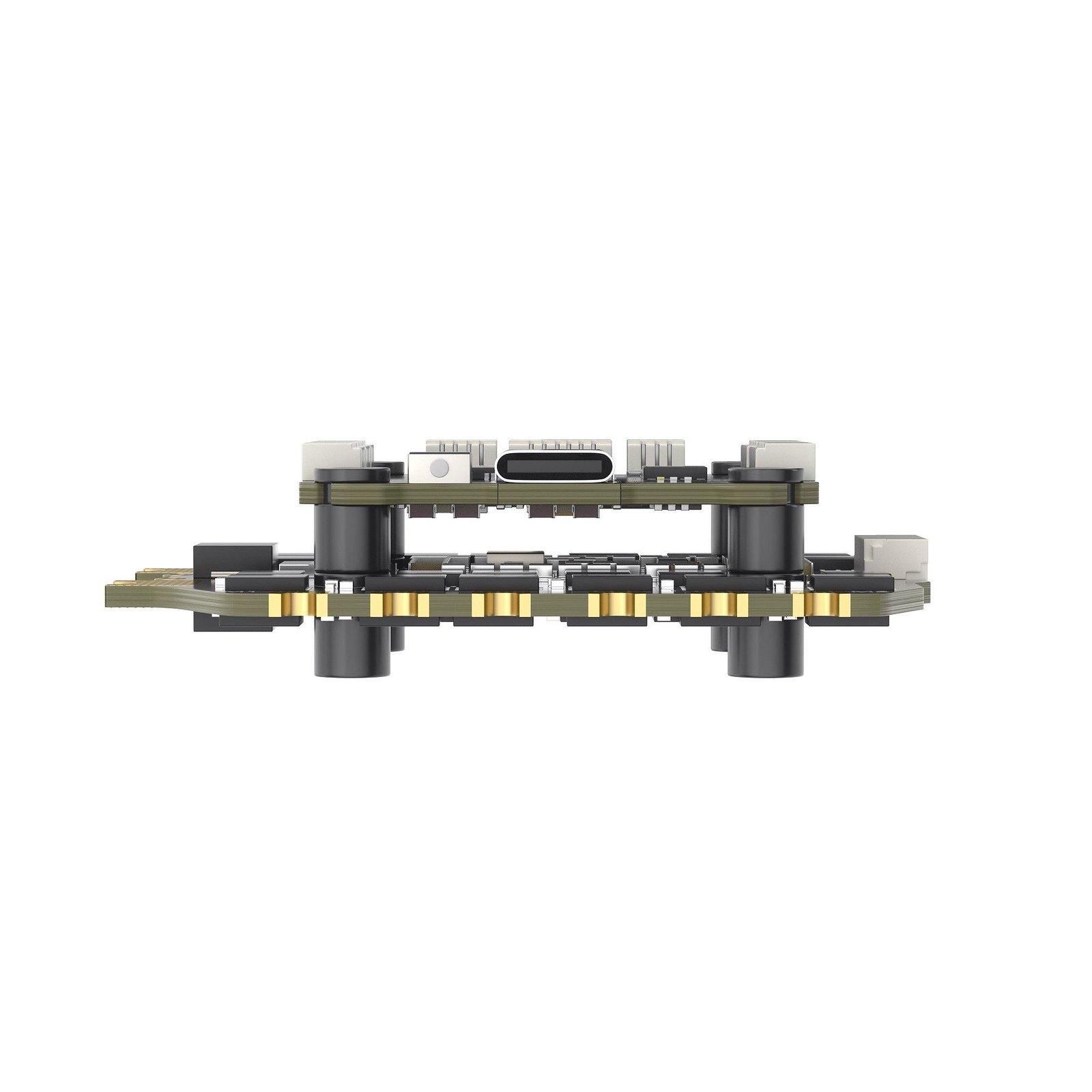

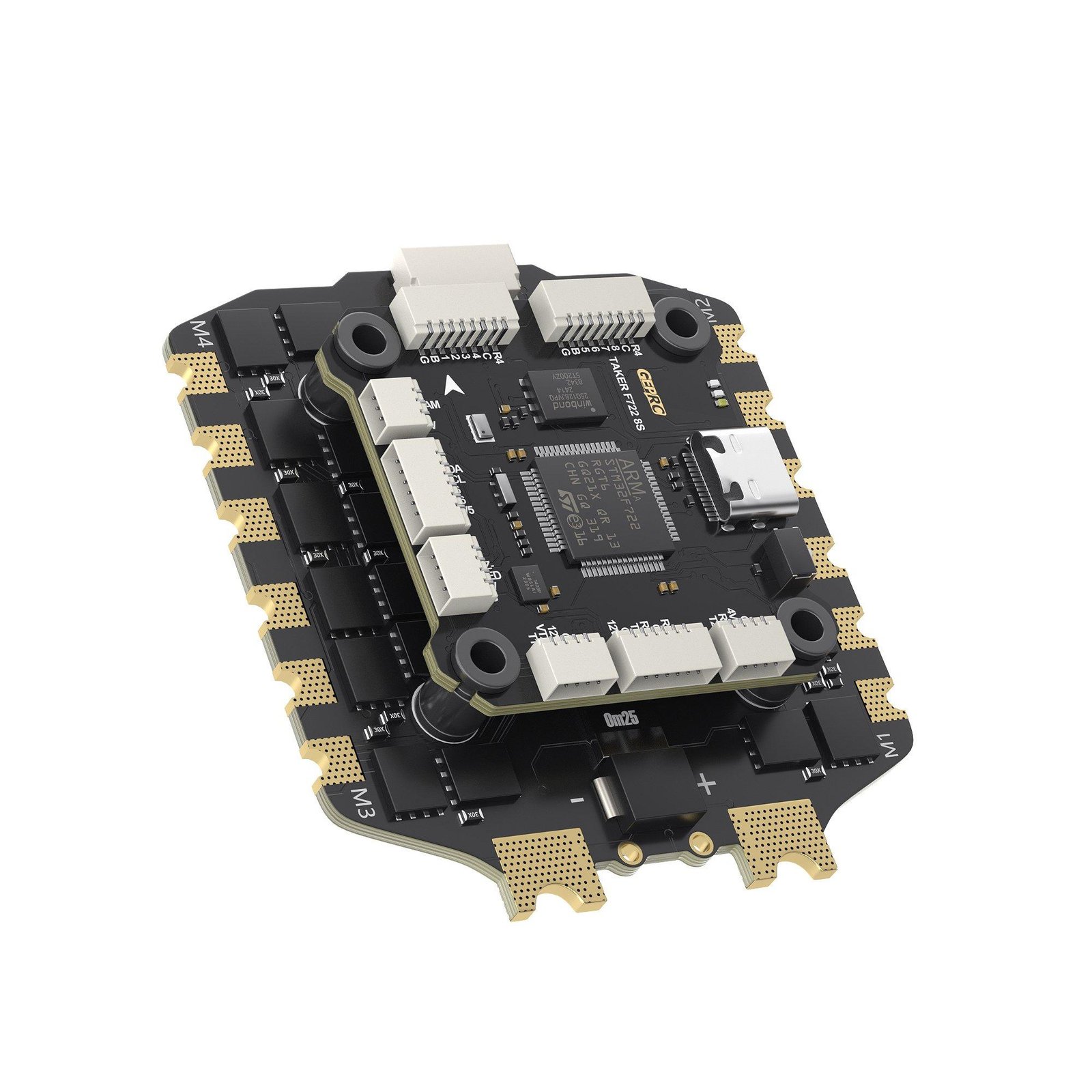

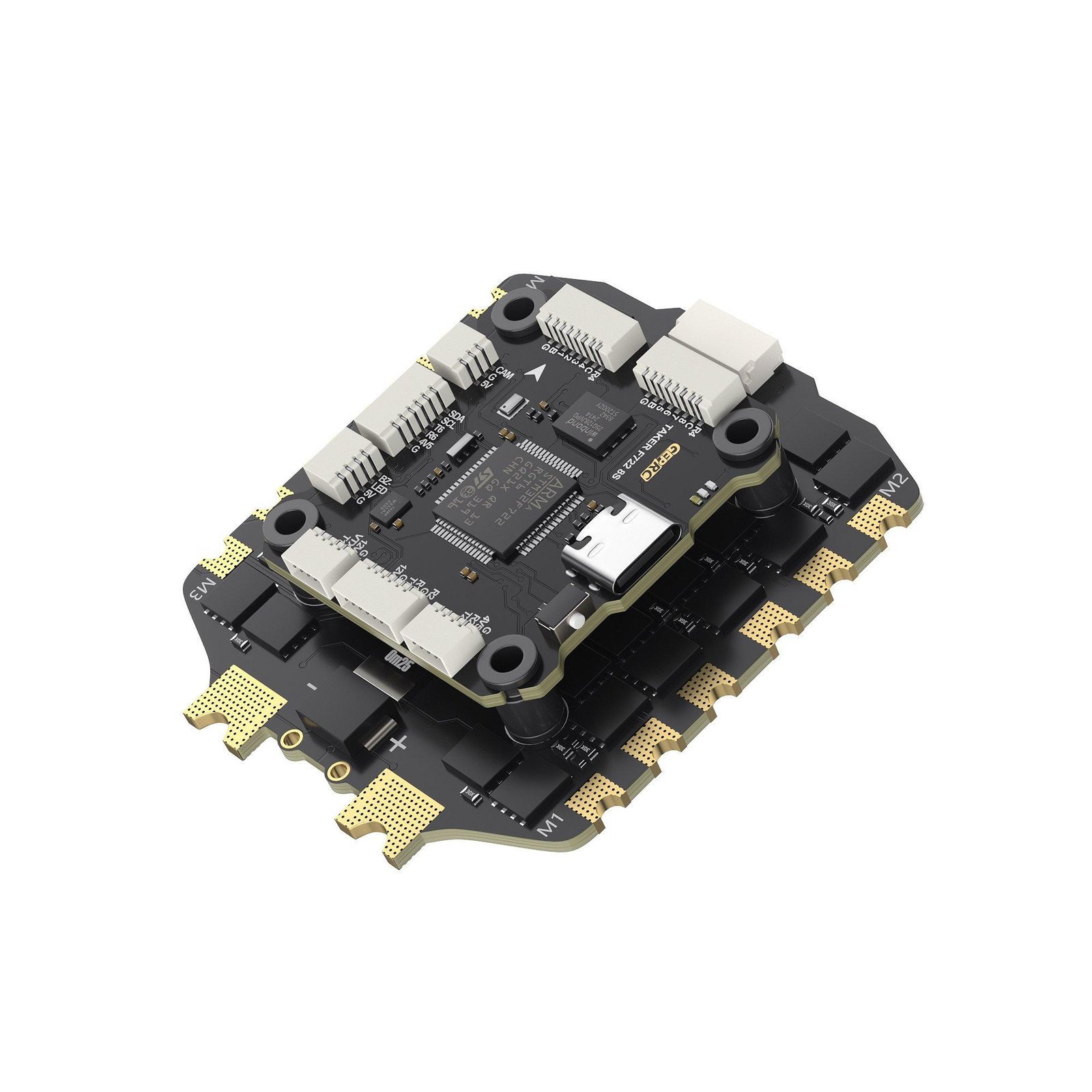

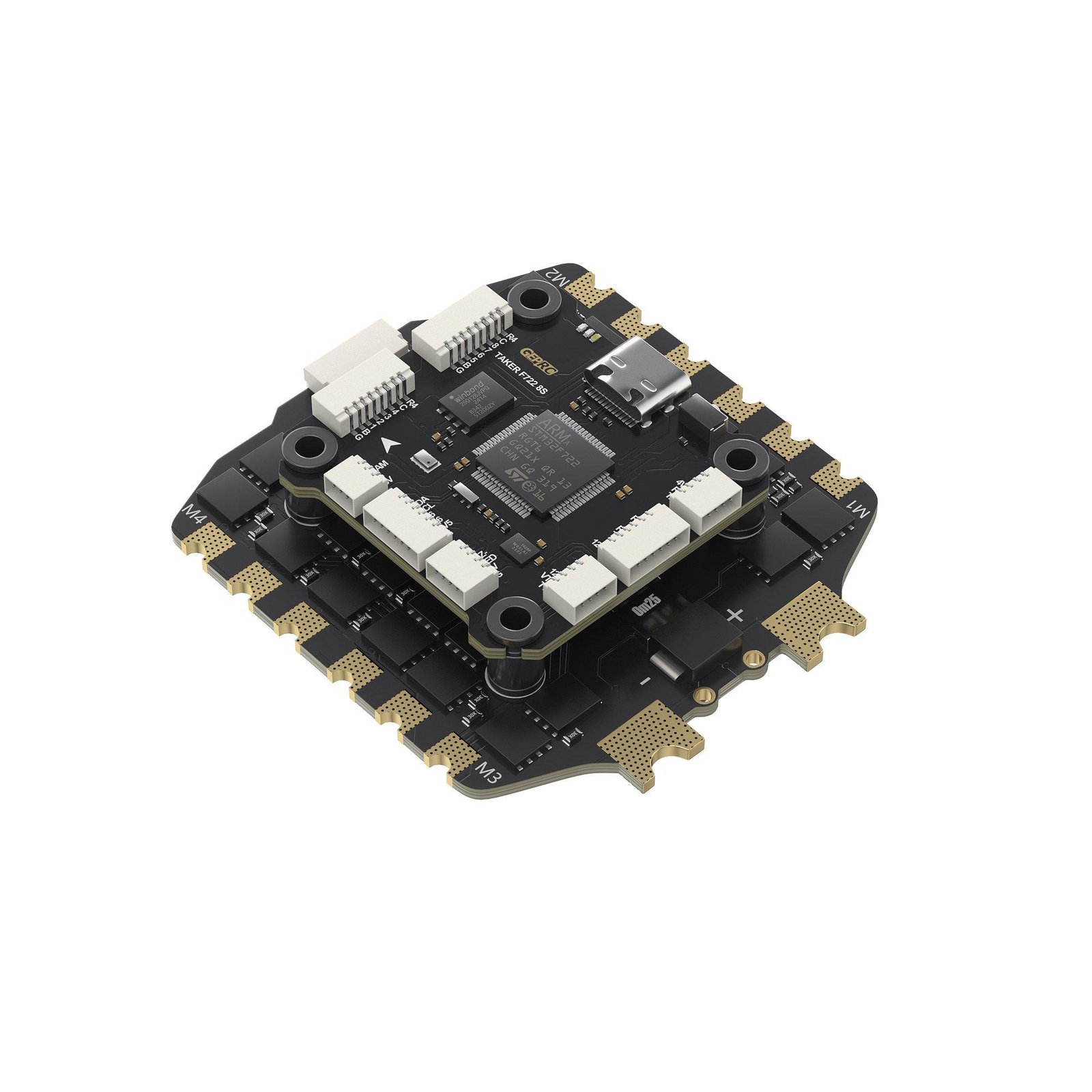

GEPRC TAKER F722 BLS 100A 8S STACK

GEPRC TAKER F722 BLS 100A 8S Stack is a powerful FC and 4-in-1 ESC kit for FPV drones using up to 8S LiPo. The F722 flight controller has an ICM42688-P gyroscope, 16MB Blackbox, barometer, LC filter, and 5V and 12V BEC, while the TAKER H100 ESC supports up to 100A DC current, DShot150/300/600 protocols, and direct connection to the DJI Air Unit.

Features:

• The popular STM32F722 processor is used;
• Integrated latest ICM42688-P gyroscope;
• 16 MB Blackbox internal memory;
• Integrated LC filter;
• Updated USB Type-C connector;
• Ability to directly connect DJI Air Unit;
• Comes with TAKER H100_8S_BLS 100A 4-in-1 ESC, ensuring smooth and stable flight;
• Simple and effective installation with anti-vibration elements ensuring stable gyroscope operation;
• Two independent BECs: 12 V / 3 A and 5 V / 3 A;
• Supports up to 8S LiPo batteries;
• Supports direct connection of up to 8 motors.

Specification:

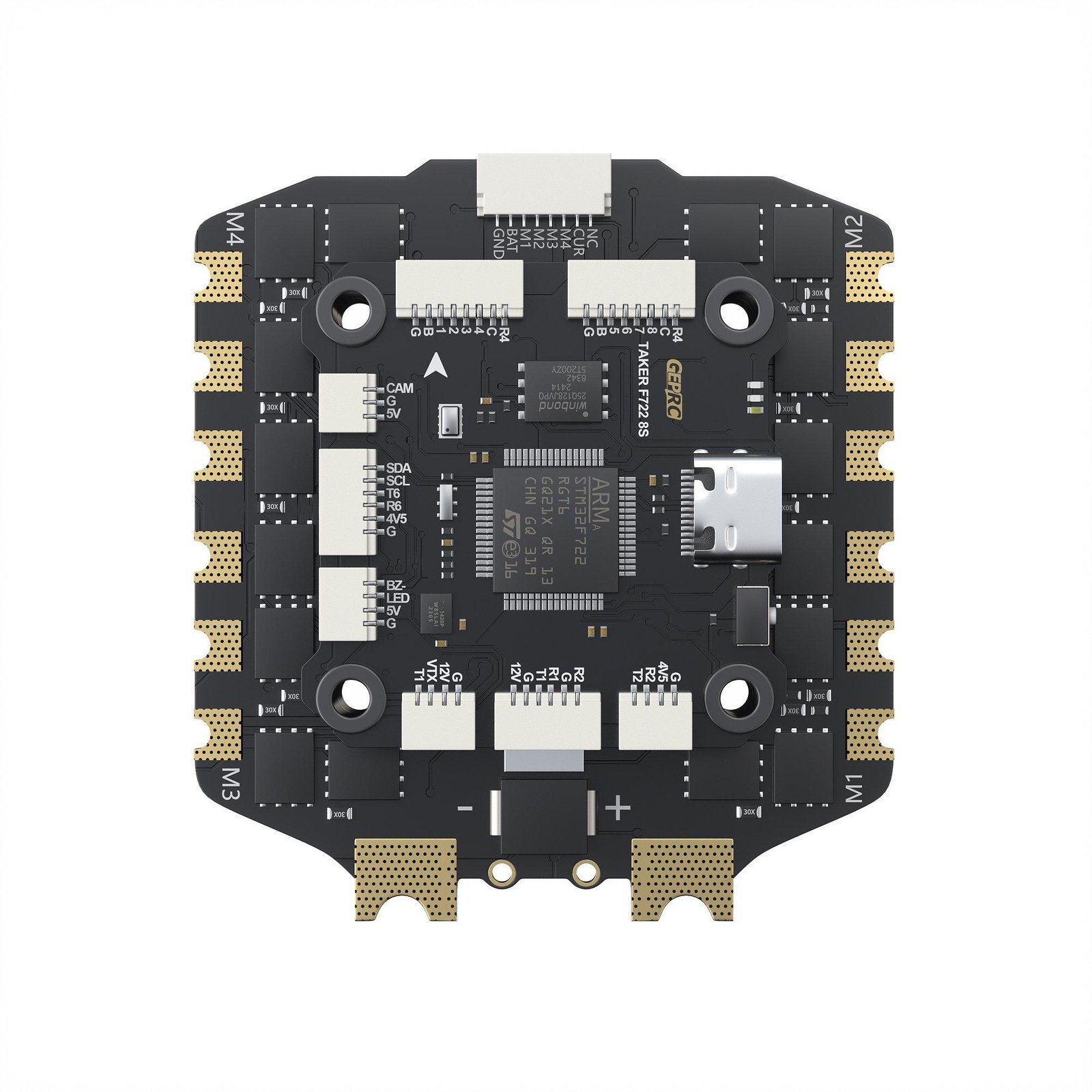

FC:

• Model: TAKER F722 8S Flight Controller:
• Processor: STM32F722;
• Gyroscope: ICM42688-P (SPI);
• DJI Air Unit connector: direct connection;
• Blackbox memory: 16 MB;
• USB connector: Type-C;
• Barometer: supported;
• OSD: BetaFlight OSD with AT7456E chip;
• BEC: 5V/3A and 12V/3A;
• Firmware Target: GEPRC_TAKER_F722_8S;
• Dimensions: 38.5 x 38.5 mm;
• Mounting holes: 30.5 x 30.5 mm;
• Mounting hole diameter: Ø4 mm, with silicone anti-vibration rings – Ø3 mm;
• Input voltage: 3-8S LiPo;
• UART connectors: 6;
• Power filter: integrated LC filter;
• Weight: 8.1 g.

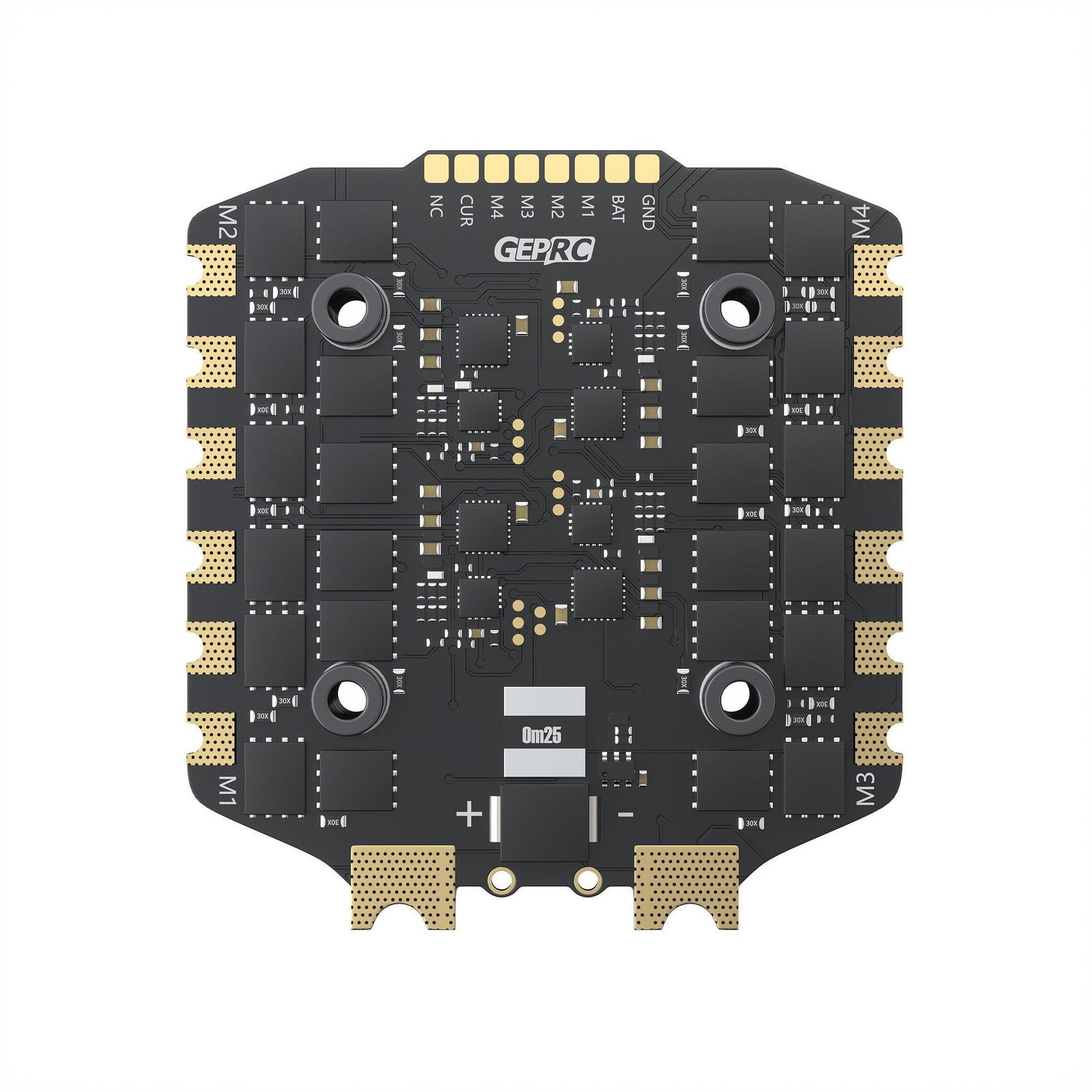

ESC:

• Model: TAKER H100_8S_BLS 100A 4IN1 ESC;
• Input voltage: 3-8S LiPo;
• Current measurement: supported;
• Calibration value: 200;
• Continuous current: 100 A;
• Short-time current: 105 A (5 sec.);
• Supported protocols: DShot150 / DShot300 / DShot600;
• Dimensions: 56.3 x 61.1 mm;
• Mounting holes: 30.5 x 30.5 mm;
• Mounting hole diameter: Ø4 mm, with silicone anti-vibration ring – Ø3 mm;
• Weight: 28.8 g;
• ESC Target: B_X_30.

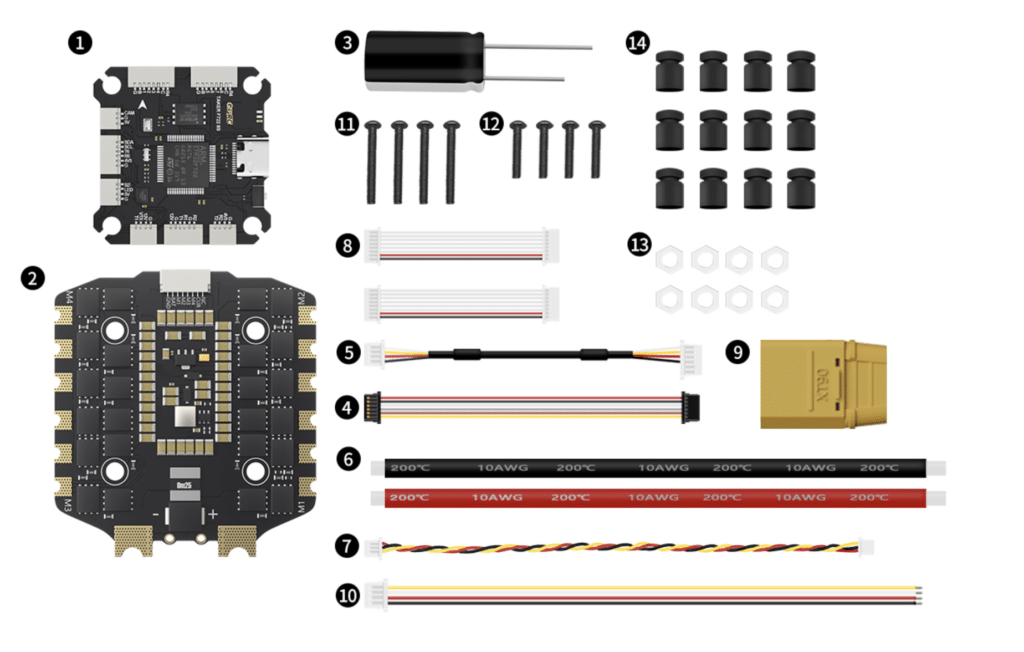

Package:

1x TAKER F722 8S flight controller;
1x TAKER H100_8S_BLS 100A 4-in-1 ESC;
1x Electrolytic capacitor (50 V, 4700 µF);
1x DJI connection cable (SH1.0, 6-pin, 100 mm);
2x FC adapter cables (SH1.0, 8-pin, 30 mm);
1x Receiver silicone cable (SH1.0, 4-pin, 150 mm);
1x Camera connection cable (SH1.0–SH1.25, 3-pin, 135 mm);
1x VTX connection cable (SH1.0, 4-pin–6-pin, 100 mm);
1x XT90 battery connector;
1x Red and black power cable (10AWG, 240 mm);
4x M3×30 screws;
4x M3×25 screws;
8x Nylon M3 nuts;
12x Silicone anti-vibration gaskets (M3).
