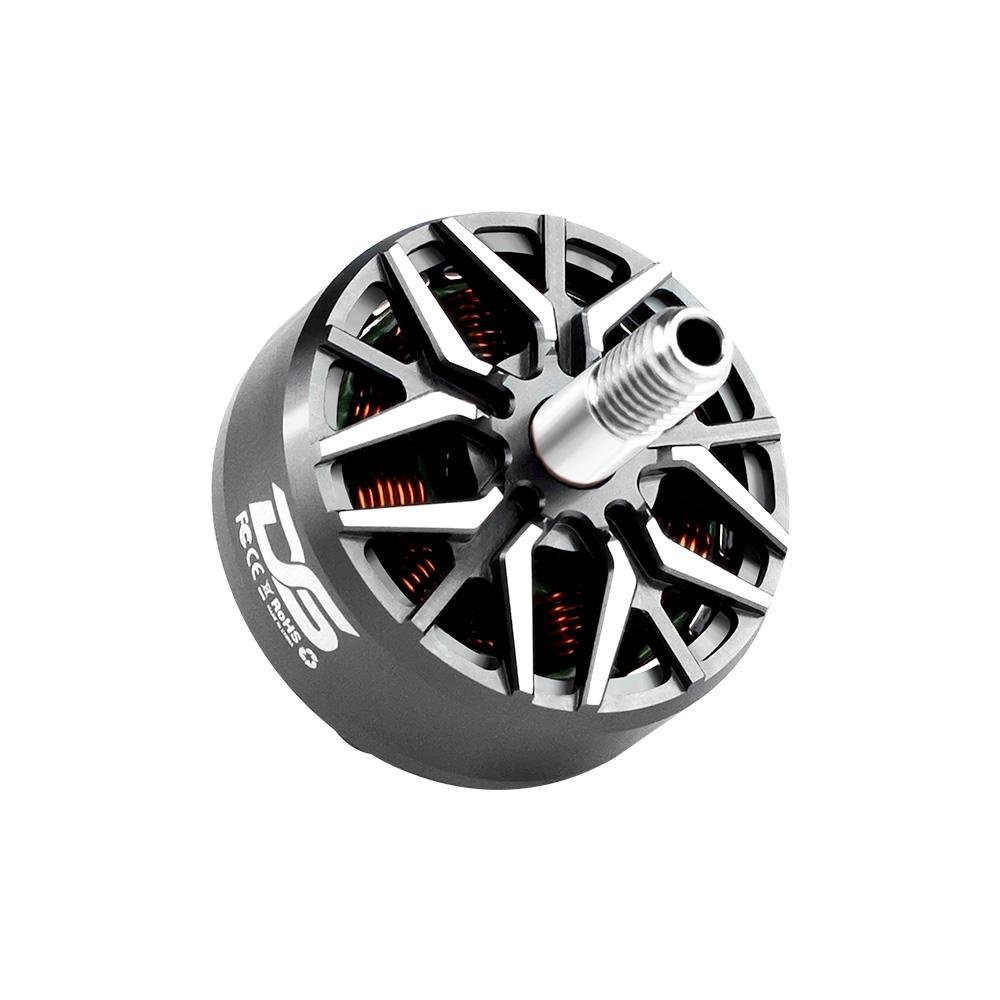

DeepSpace Aether 2207.3 1960KV/2050KV FPV Brushless Motor

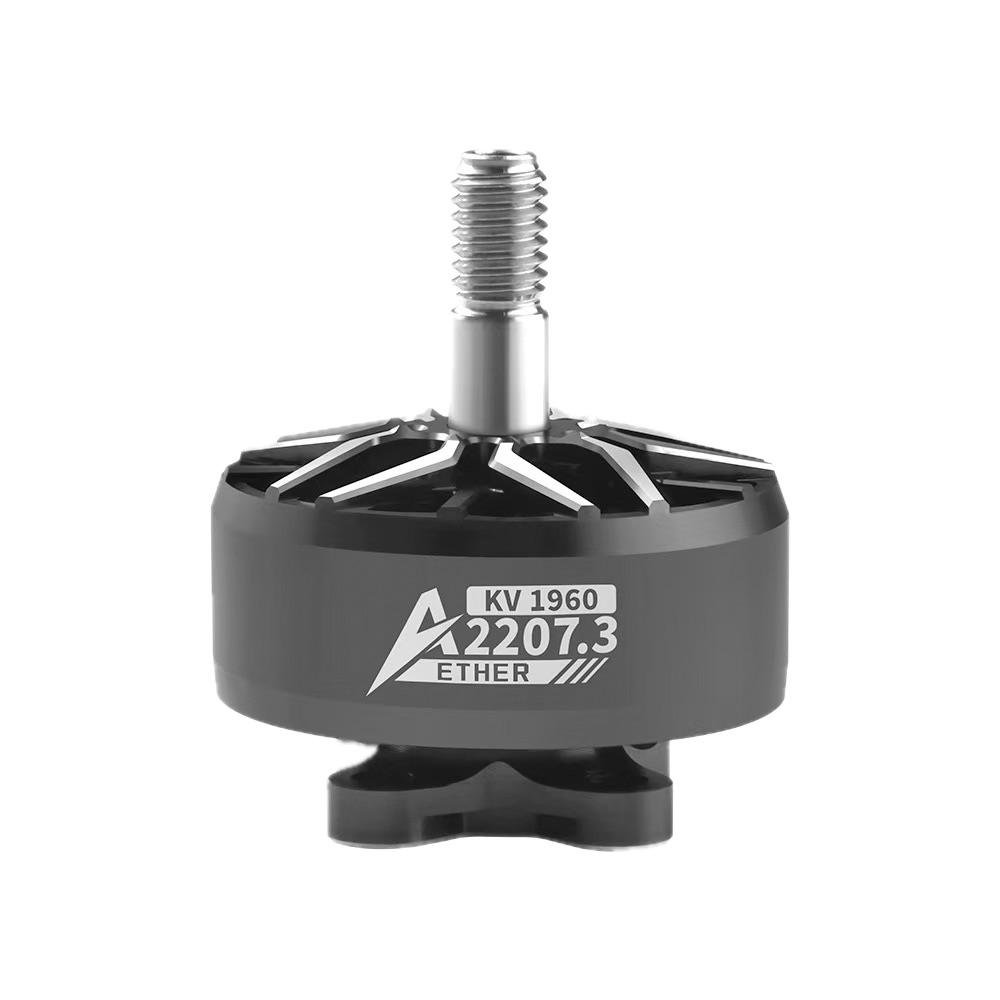

DeepSpace AETHER 2207.3 1960KV is a high-performance brushless motor designed for 5-inch 6S FPV freestyle drones. The robust 7075 aluminum Unibell construction, lightweight titanium alloy shaft, N52H curved magnets and high-quality NMB bearings ensure high thrust, fast response, smooth operation and resistance to intensive flights. The motor has a good balance of power, control and durability, making it perfect for both aggressive and smooth freestyle maneuvers.

Features:

• Designed for 5-inch FPV freestyle drones;
• Suitable for dynamic freestyle and fast racing flights;
• High thrust and fast response to accelerator changes;
• Well-controlled power transfer during sudden maneuvers;
• Unibell design increases the engine's shock resistance;
• Sturdy 7075 aluminum alloy body;
• Lightweight and durable titanium alloy shaft;
• N52H curved magnets provide strong torque;
• High-quality NMB bearings for smooth and reliable operation;
• Optimized for 6S power systems;
• Balanced ratio of power, weight and durability;
• Suitable for both aggressive and smooth freestyle flying styles.

Specification:

1960KV:

KV: 1960KV;
Configuration: 12N14P;
Shaft diameter: 4 mm;
Wires: 20 AWG BLC, 150 mm;
Weight with cables: 35.6 g;
Recommended voltage: 6S LiPo;
Internal resistance: 56.7 mΩ;
No-load current (10 V): 1.00 A;
Maximum power: 996.3 W;
Maximum current: 42.4 A.

2050KV:

KV: 2050KV;
Configuration: 12N14P;
Shaft diameter: 4 mm;
Wires: 20 AWG BLC, 150 mm;
Weight with cables: 35.1 g;
Recommended voltage: 6S LiPo;
Internal resistance: 55.2 mΩ;
No-load current (10 V): 1.13 A;
Maximum power: 1094.1 W;
Maximum current: 46.8 A.

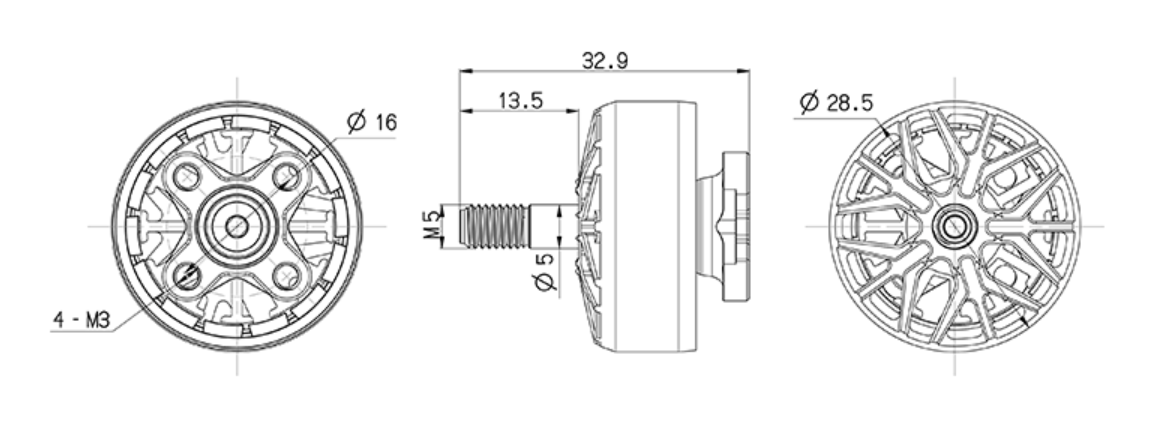

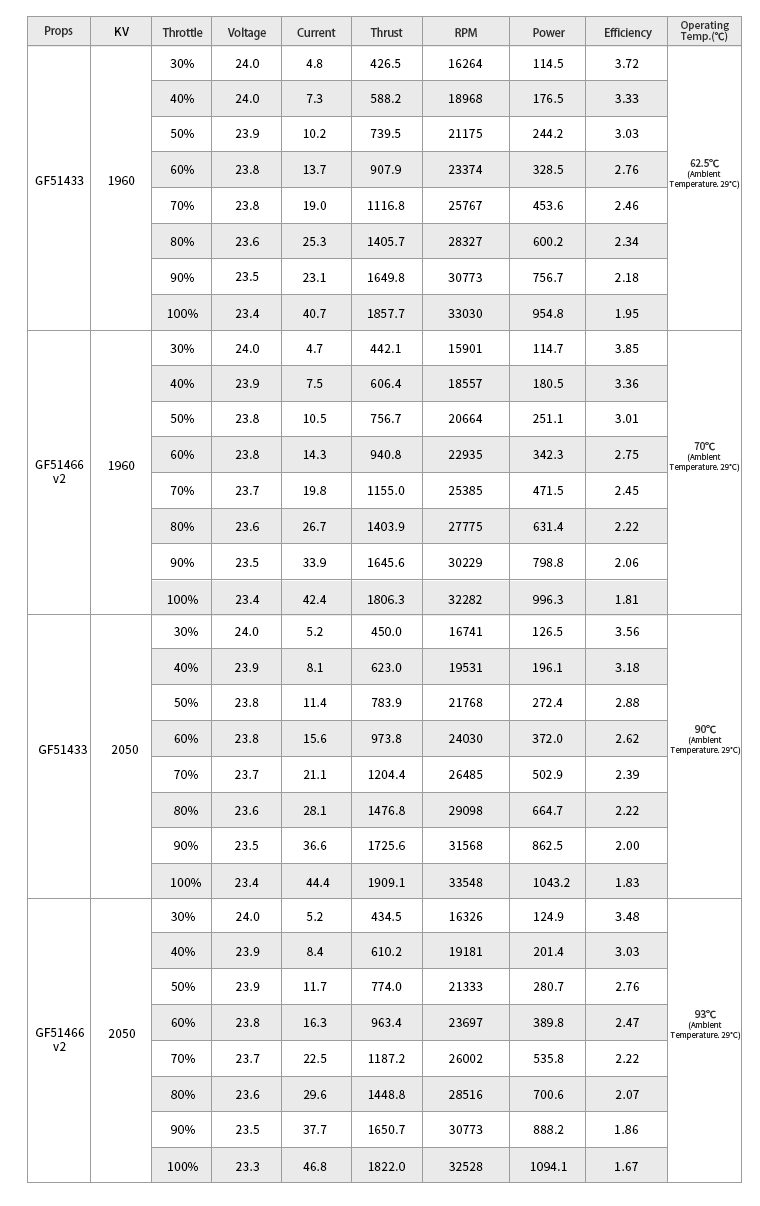

Dimensions / power table:

DeepSpace AETHER 2207.3 motors are available in 1960KV and 2050KV versions, adapted to different flight styles. They are suitable for smooth freestyle, dynamic flights in the forest and between obstacles, high-speed flights and object tracking, as well as cinematic filming. The versatile motor characteristics allow you to choose the desired balance between smooth control and maximum power.

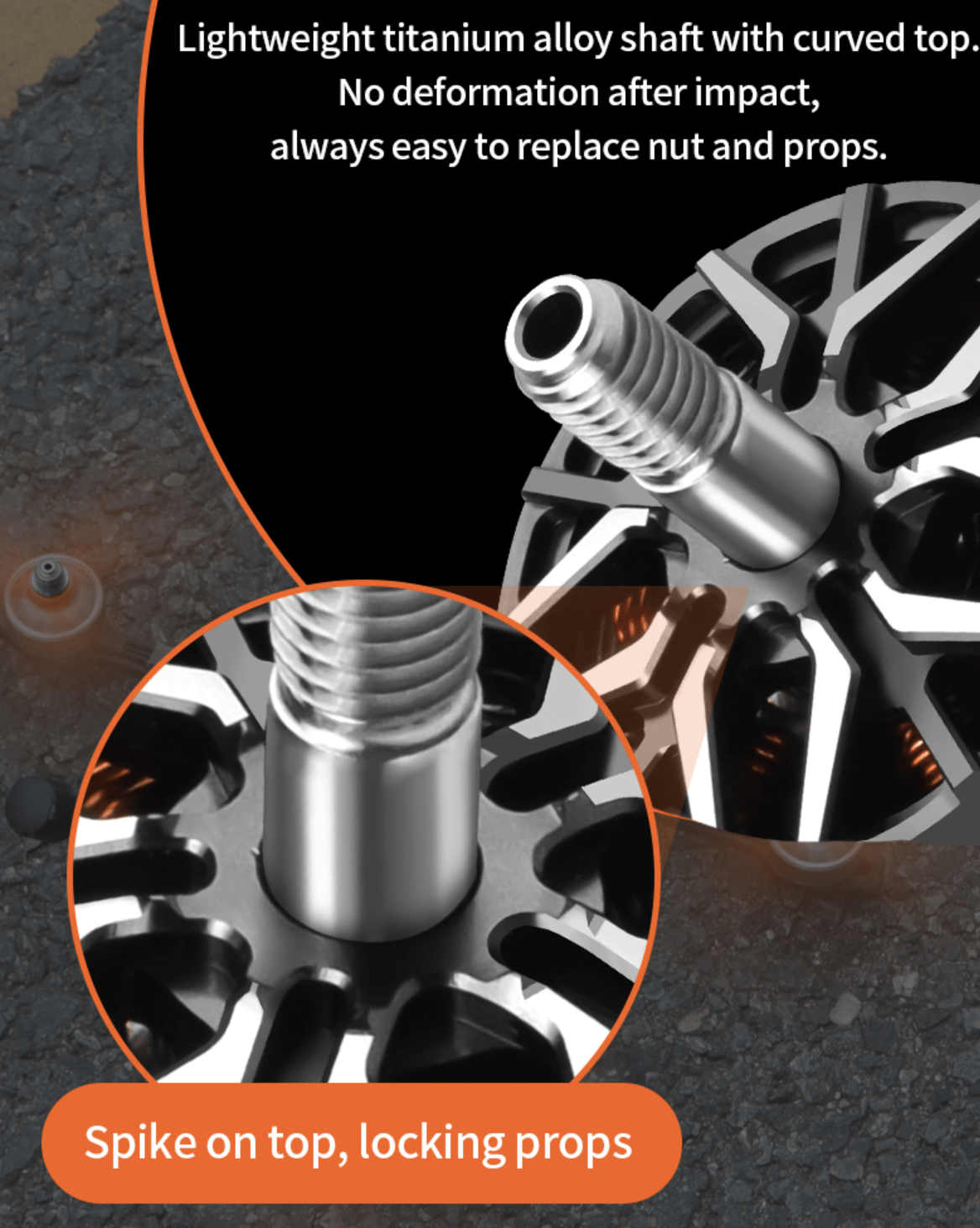

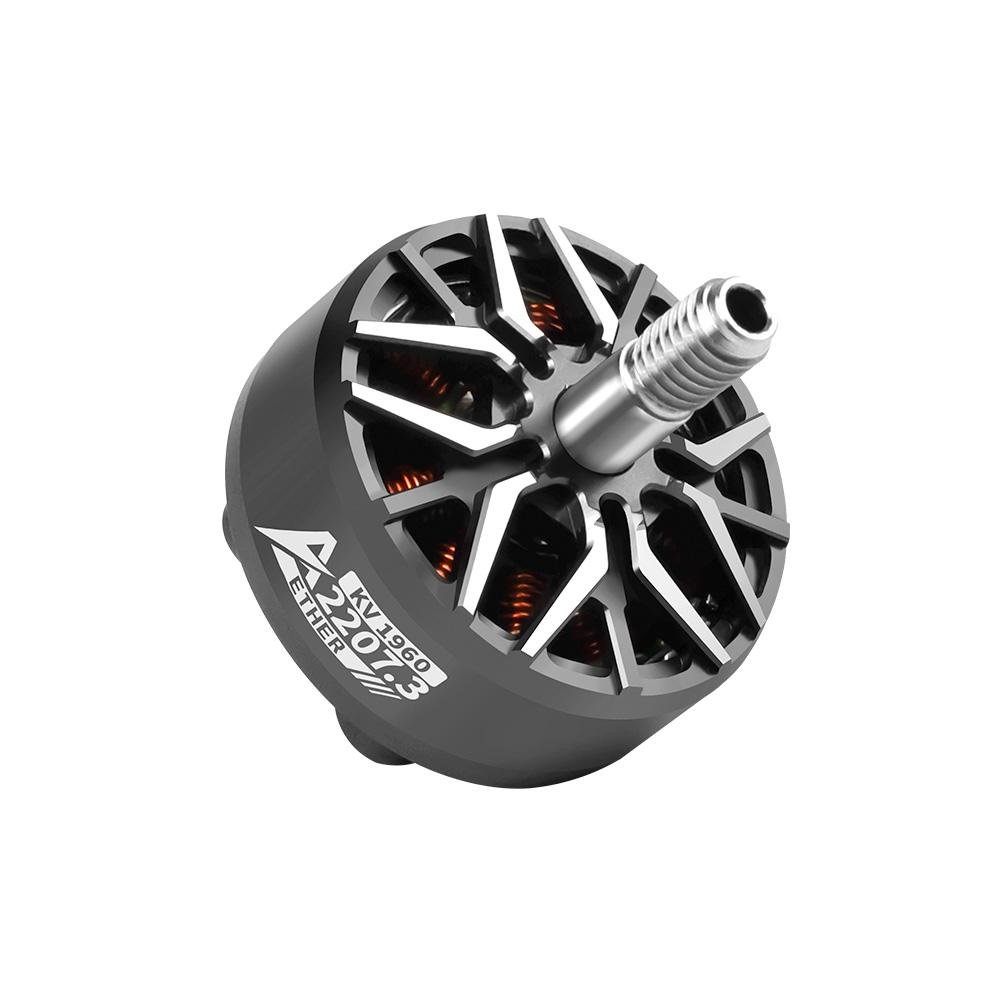

The lightweight titanium alloy shaft with a specially shaped upper part is highly resistant to impact and deformation. The shaft design helps to securely lock the propeller, and after stronger impacts, makes it easier to remove and replace the propeller and mounting nut.

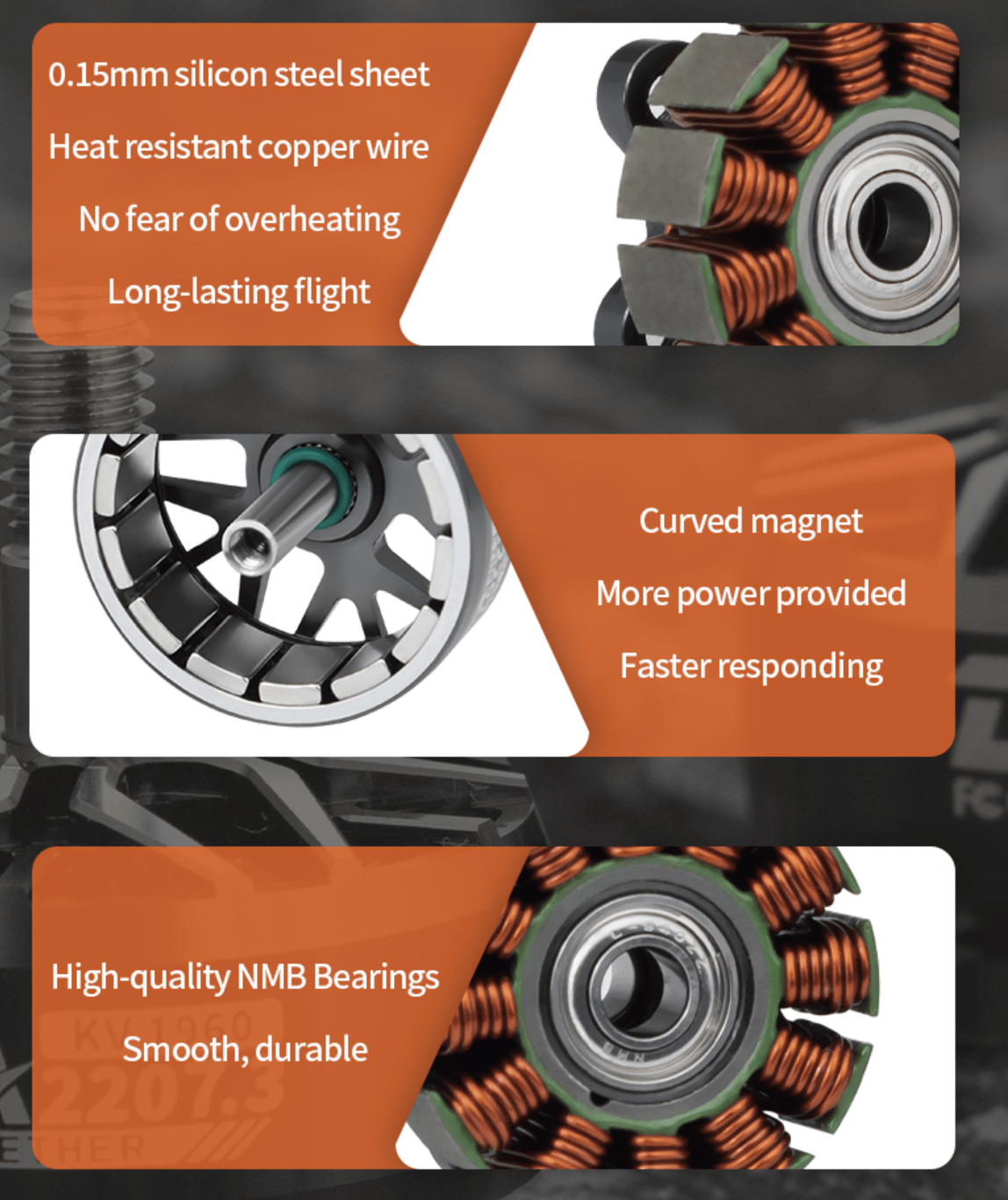

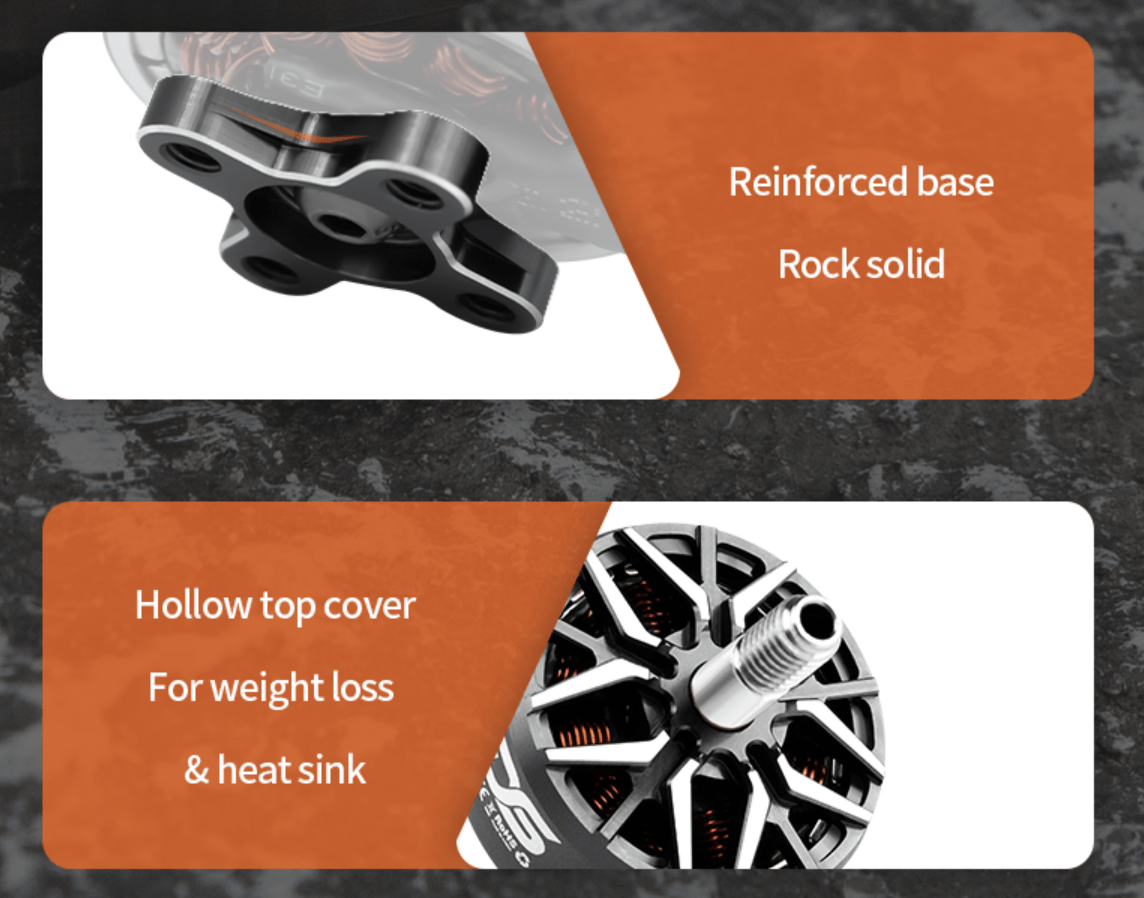

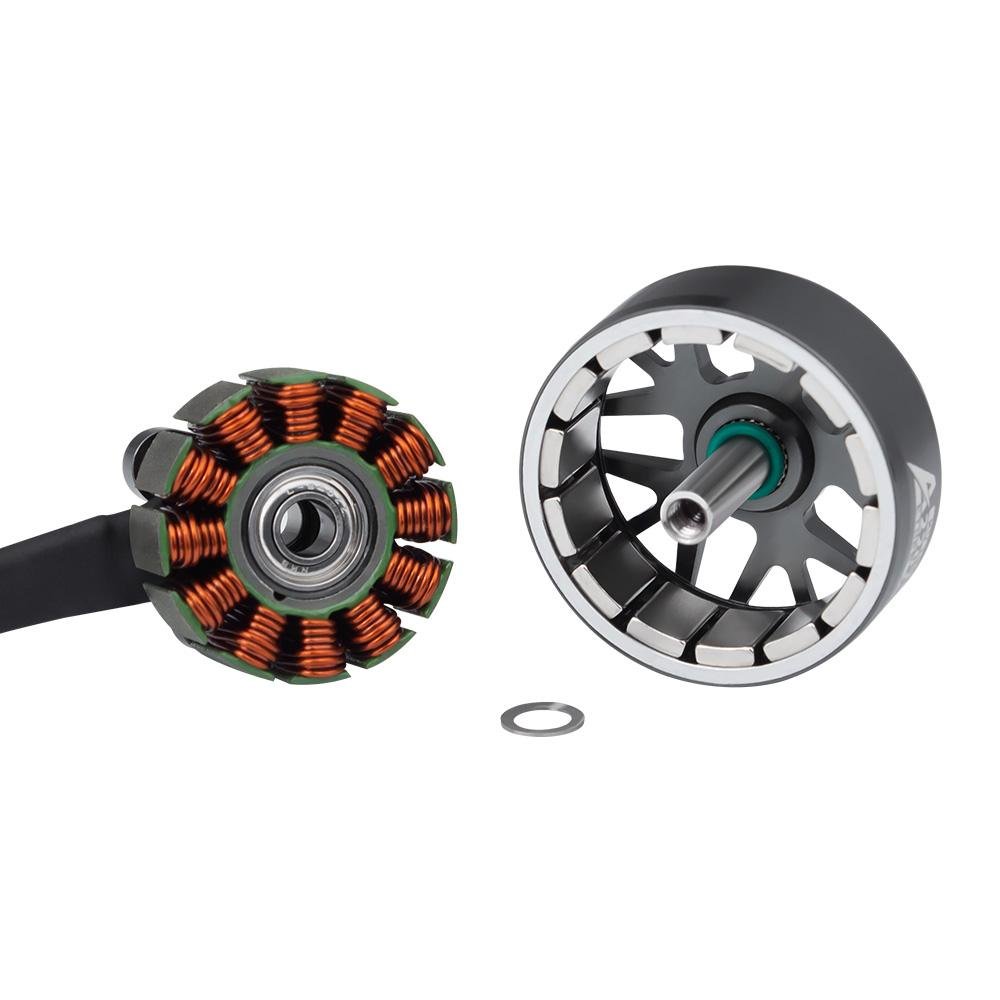

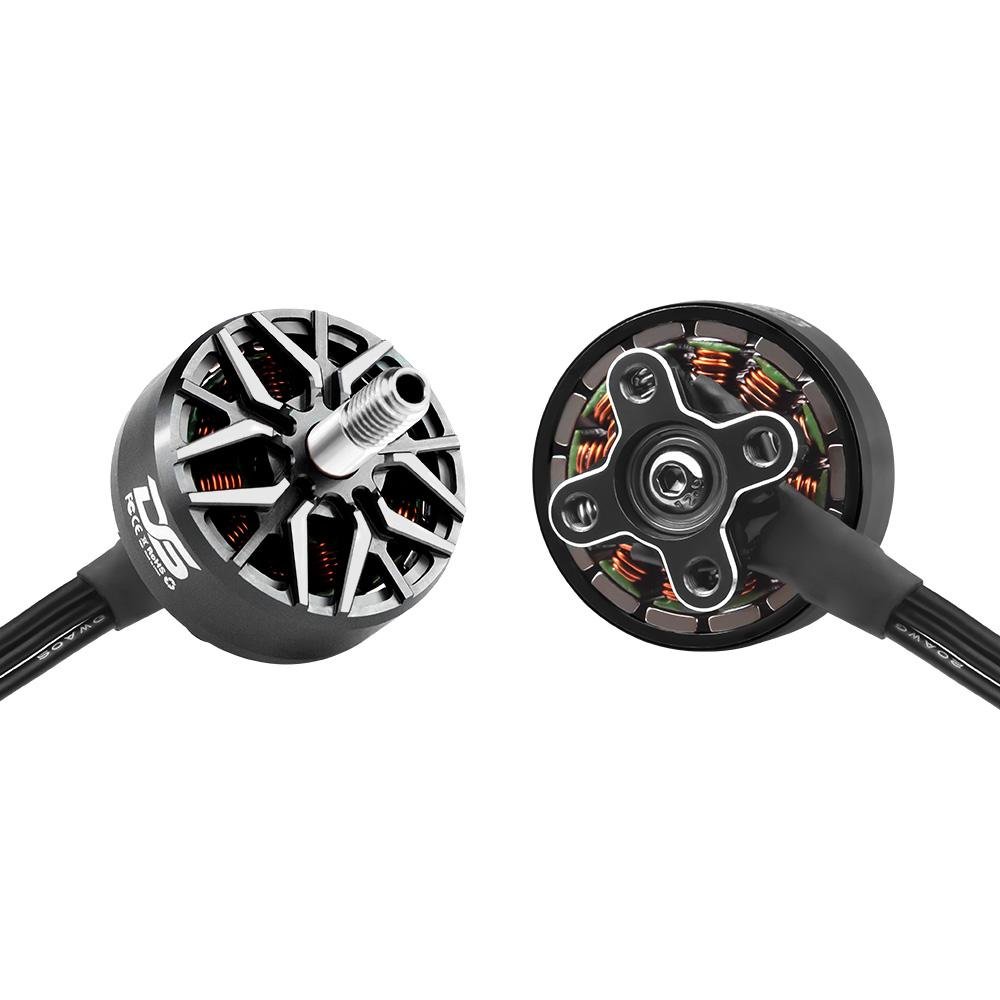

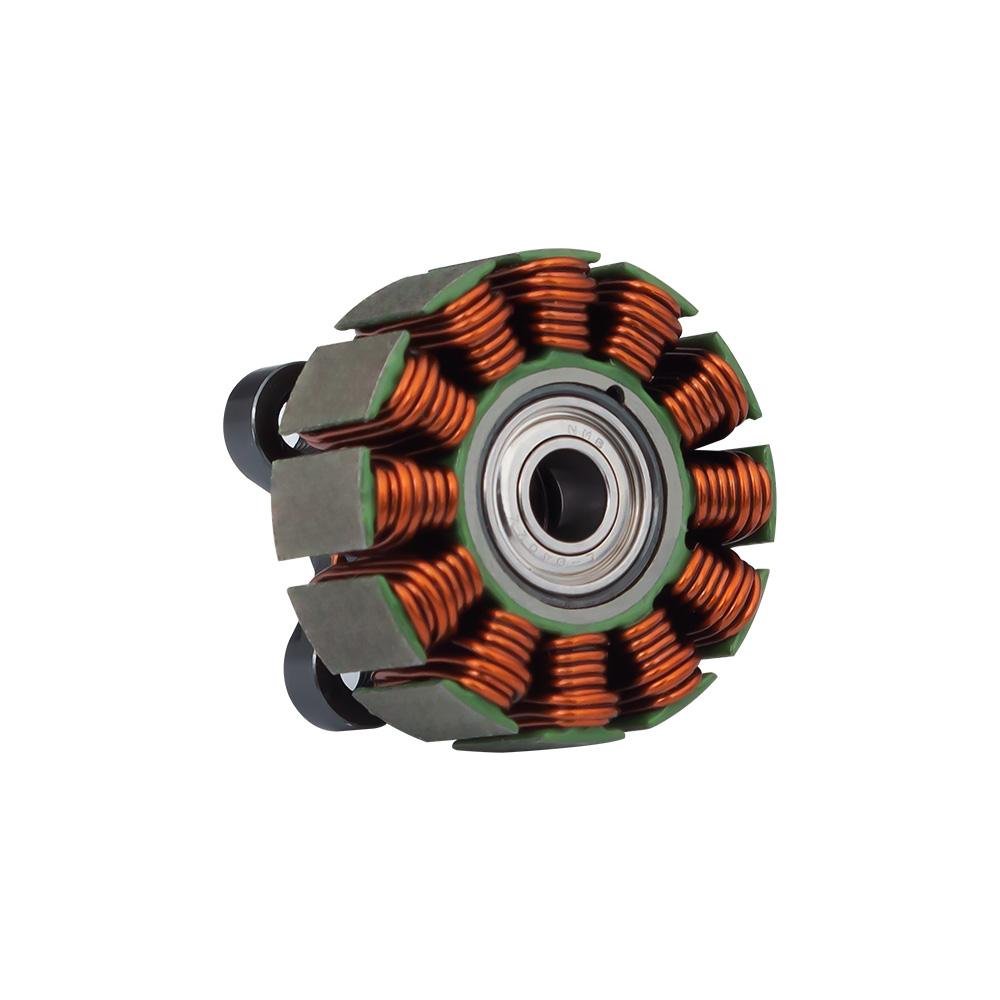

The reinforced motor base provides greater structural rigidity and shock resistance, while the hollow top helps reduce weight and dissipate heat more effectively. 0.15 mm silicon steel stator plates and heat-resistant copper winding help reduce the risk of overheating during intensive flights. Curved magnets provide more power and faster motor response, while high-quality NMB bearings ensure smooth, stable and long-lasting operation.

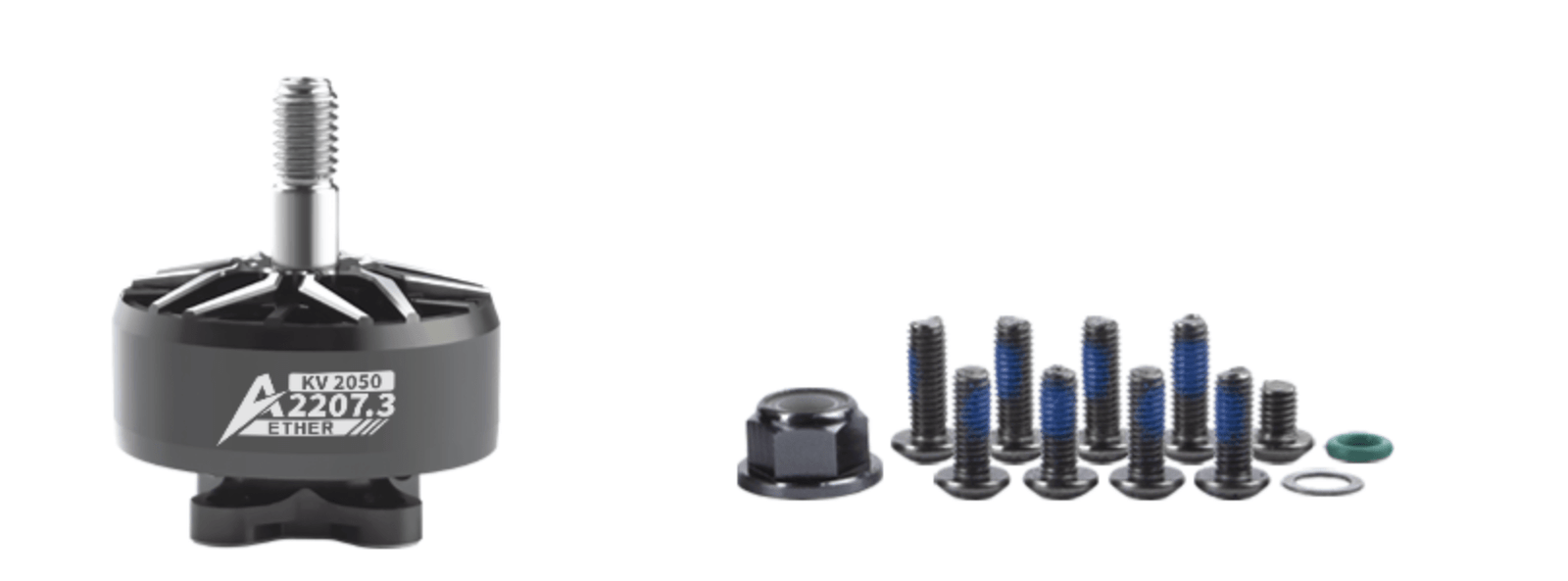

Package:

1x DeepSpace AETHER 2207.3 engine;
1x M5 propeller nut;
8x mounting screws;
1x spacer washer;
1x rubber ring.
