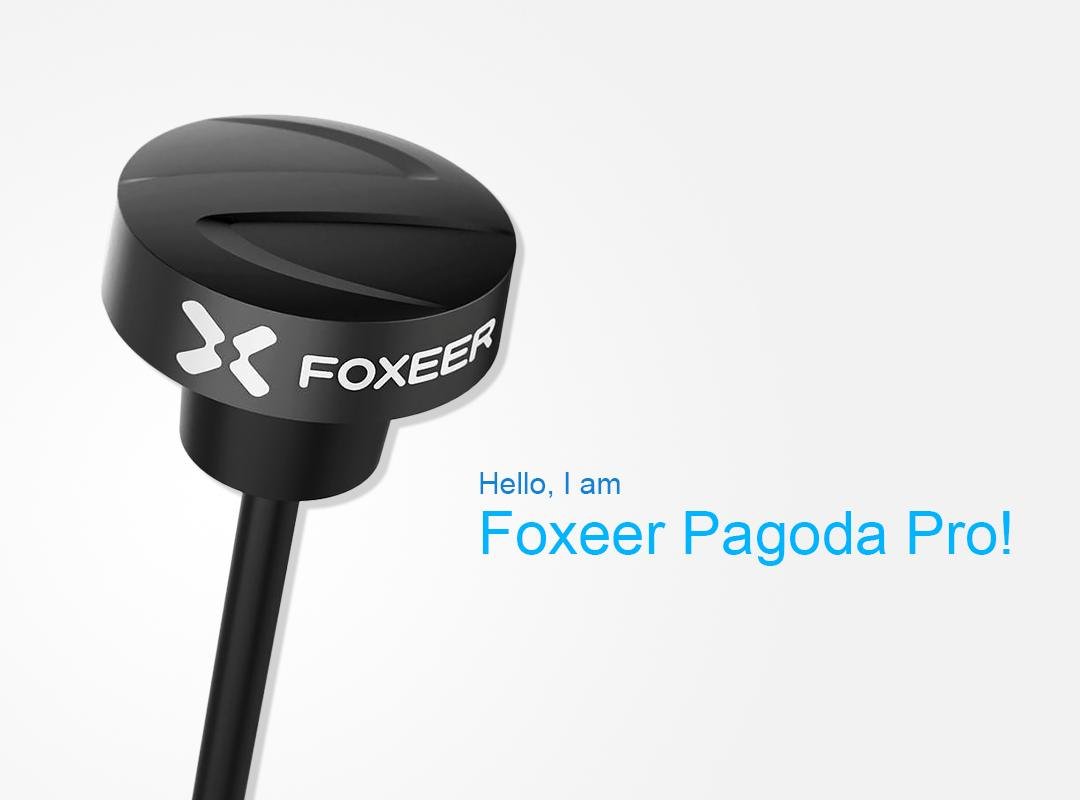

Foxeer Pagoda Pro 5.8G FPV Antenna

Foxeer Pagoda Pro 5.8G RHCP FPV antenna is designed to provide stable and high-quality video signals for various FPV systems. With 3 dBi gain, high efficiency and RHCP polarization, the antenna has good interference immunity and reliable performance. Durable PC+ABS construction ensures durability, and different connection options make it easy to adapt the antenna to your FPV equipment.

Features:

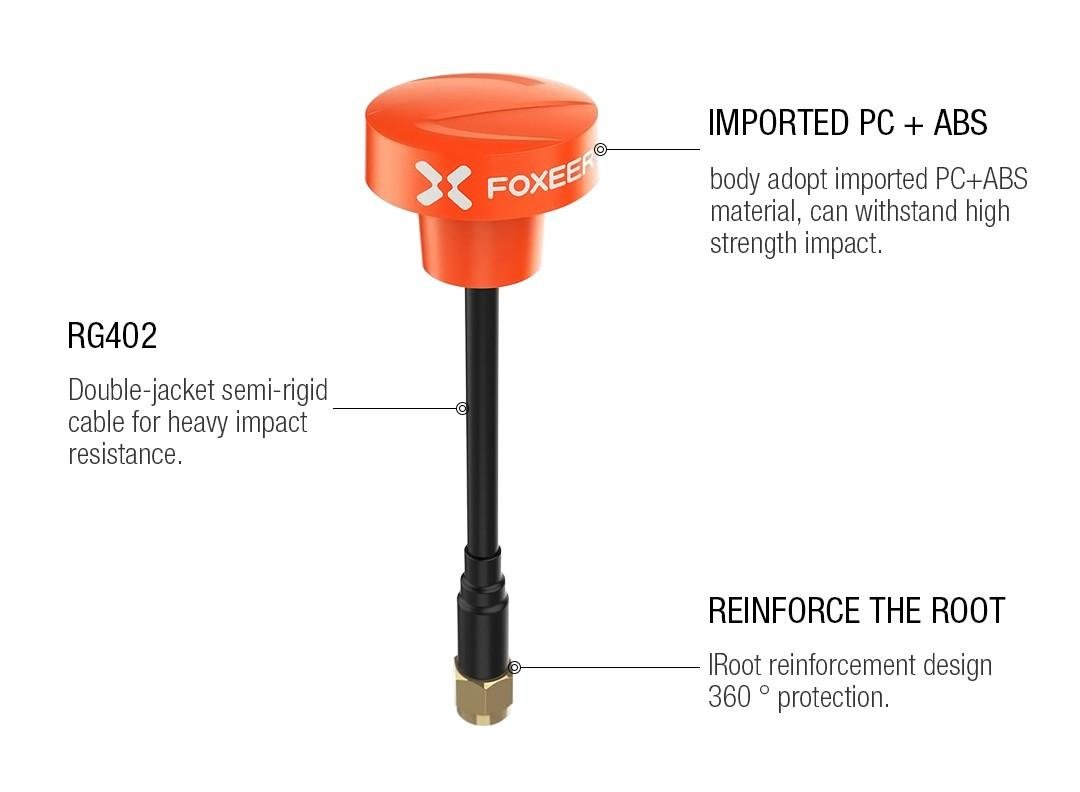

• RG402 semi-rigid cable provides greater resistance to shock and mechanical impact;
• Durable PC+ABS housing withstands higher loads and ensures durability;
• Reinforced antenna base design provides 360° protection and greater resistance to damage;
• Compact design allows easy adaptation of the antenna in various FPV systems;
• RHCP polarization helps ensure a more stable video signal and reduced interference.

Specification:

• Frequency: 5.8 GHz;
• Gain: 3 dBi;
• Axial characteristic: close to 1;
• Frequency band: 5.5–6 GHz;
• Radiant efficiency: 98 %;
• VSWR: <1.22;
• Connectors: SMA / RP-SMA;
• Dimensions: 17 x 23 mm;
• Polarization: RHCP;
• Housing material: PC+ABS;
• Cable: RG402.

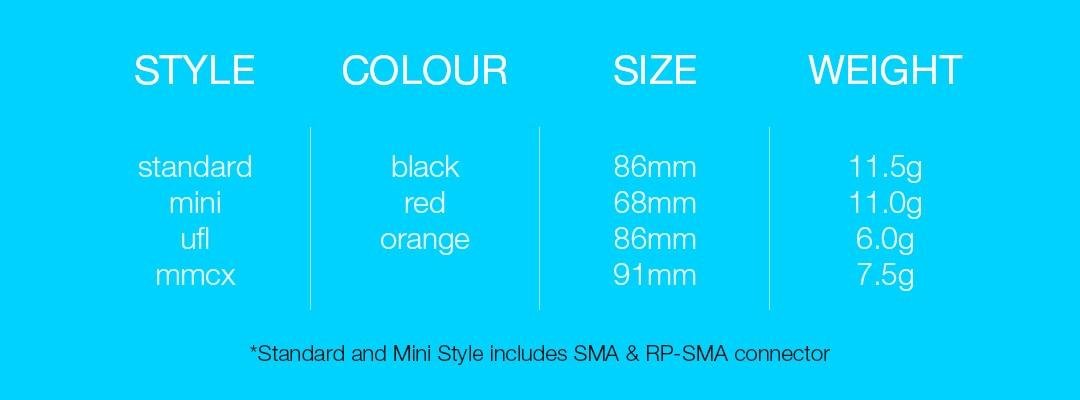

• length: Long SMA / RP-SMA: 86 mm, Short SMA / RP-SMA: 68 mm;
• Weight: Long SMA / RP-SMA: 11.5 g, Short SMA / RP-SMA: 11 g, 15 cm SMA: 14.4 g.

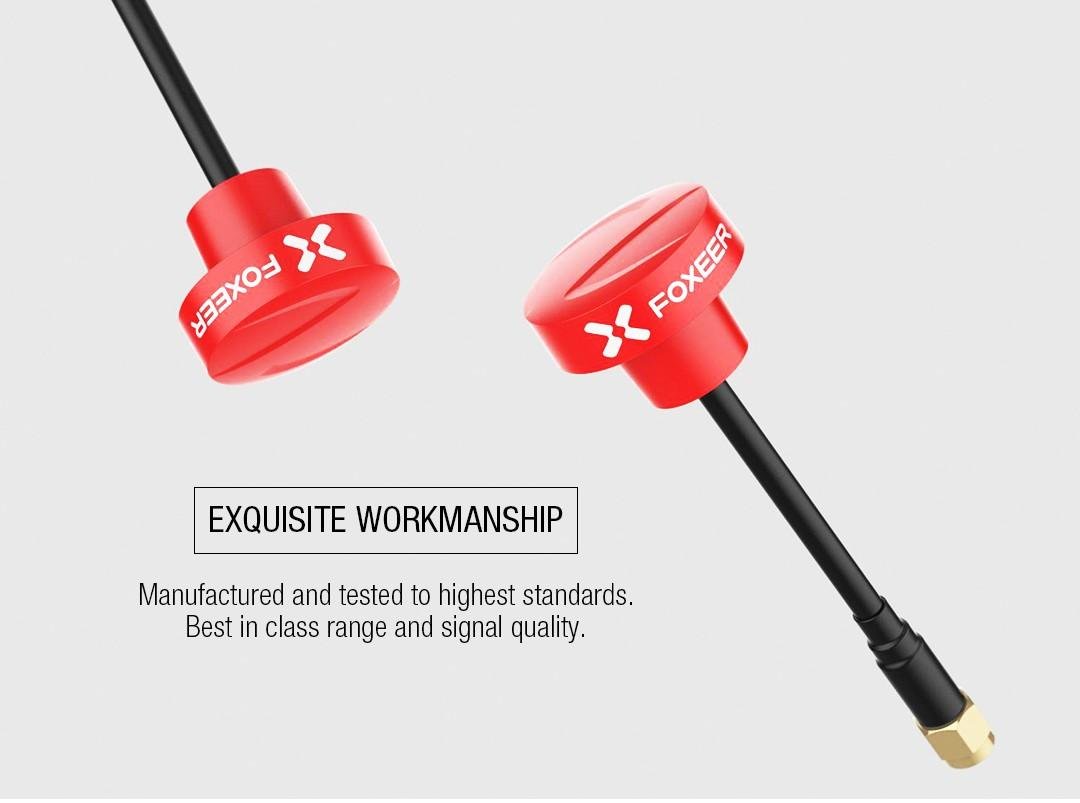

Manufactured and tested to the highest quality standards, ensuring excellent range and impeccable signal quality.

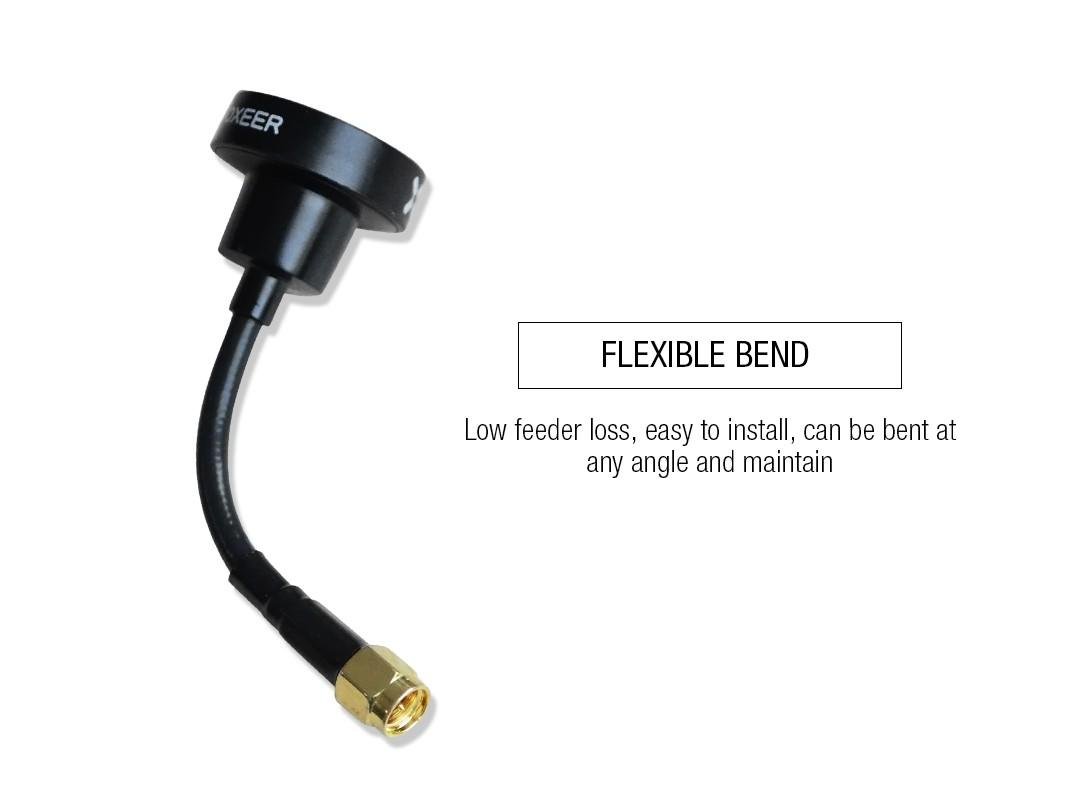

Low signal loss and flexible design make it easy to mount the antenna at any angle.

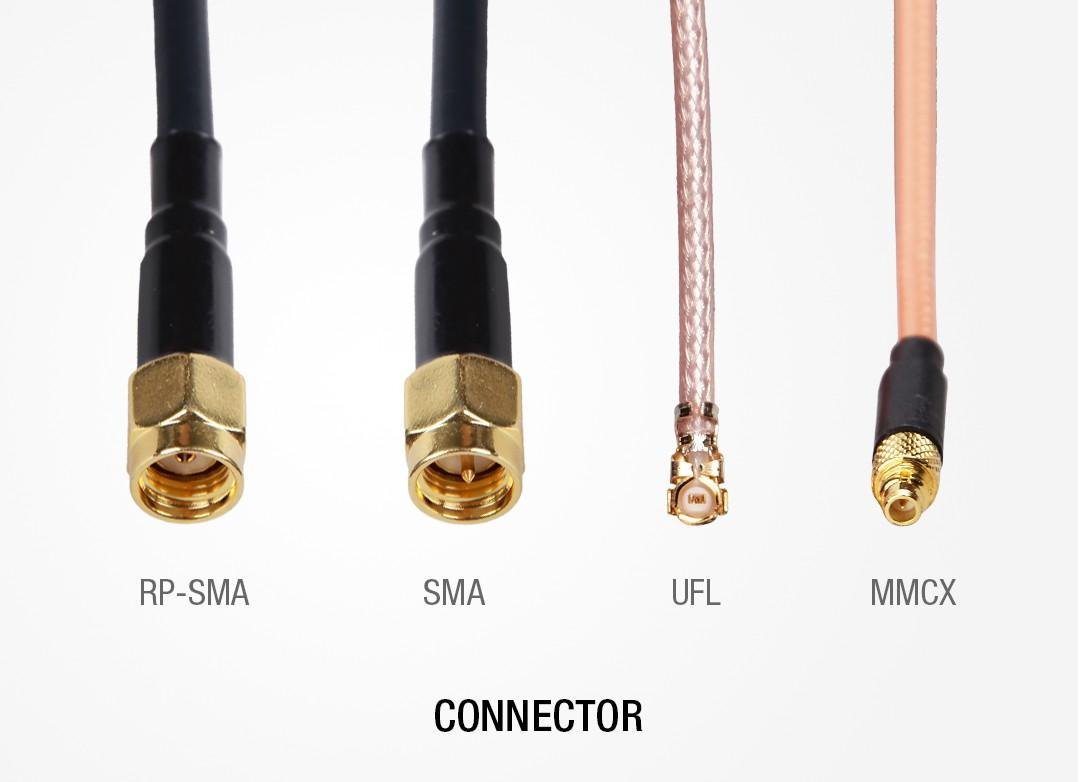

Connectors – RP-SMA, SMA, UFL, MMCX.

Package:

1x Foxeer Pagoda Pro 5.8G FPV Antenna.
