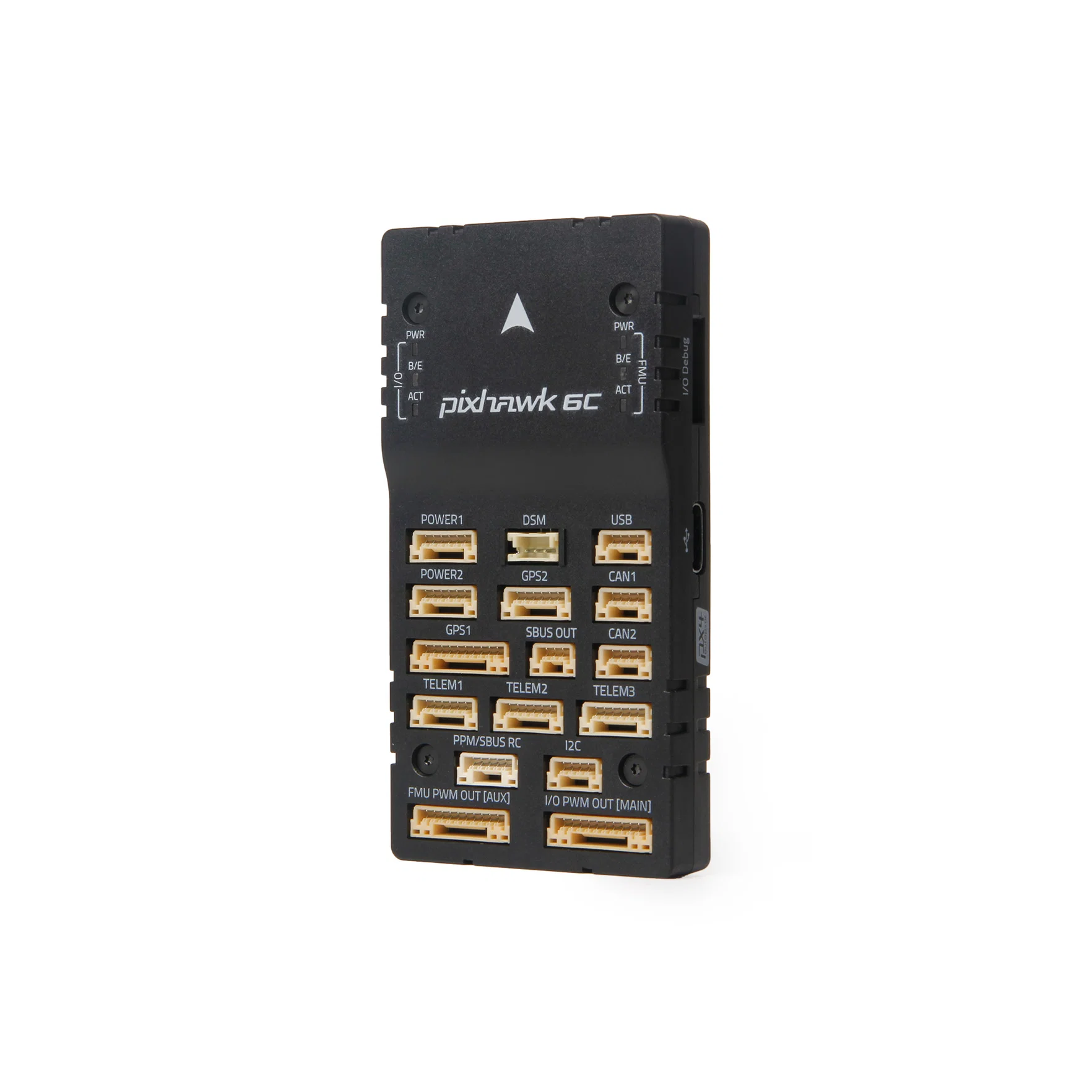

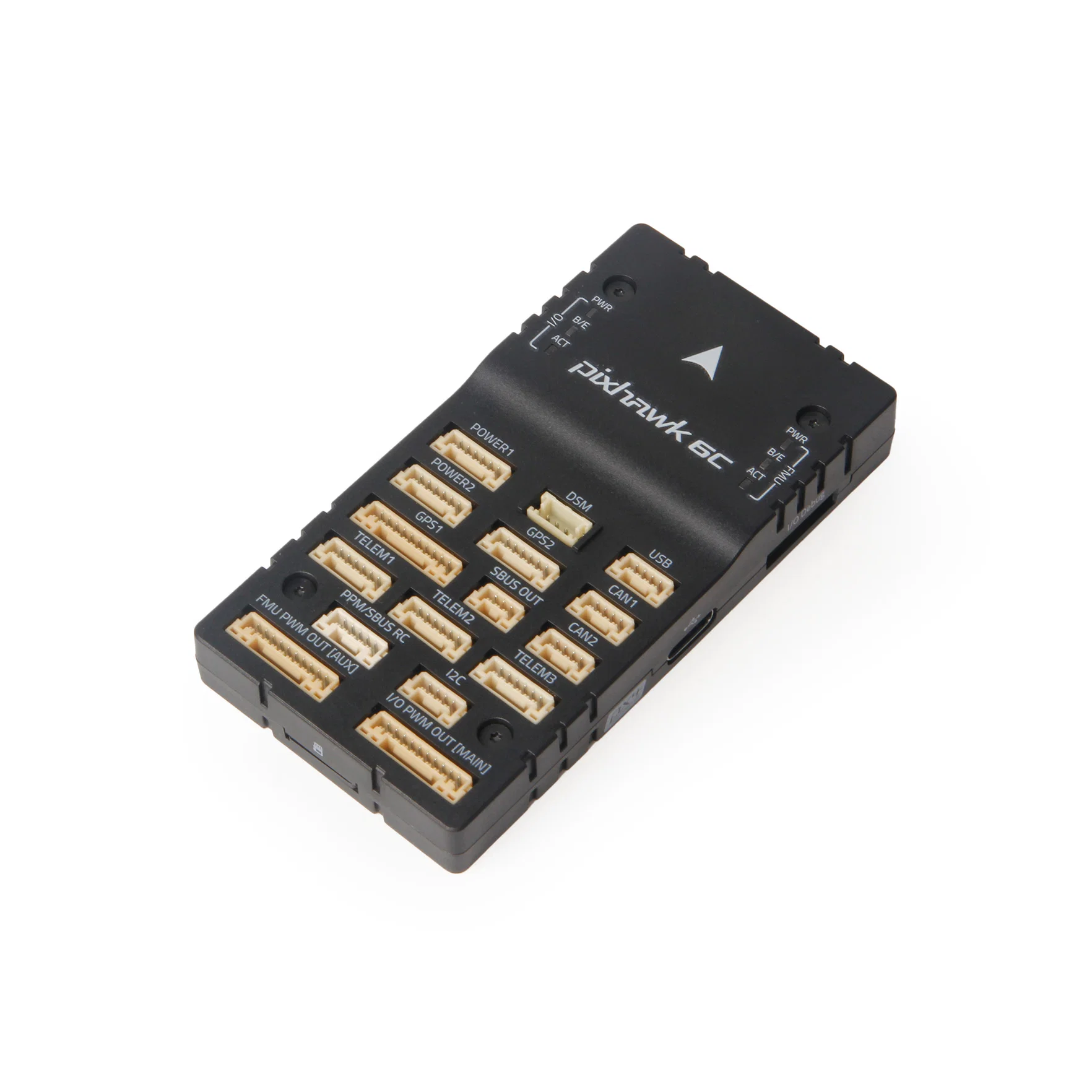

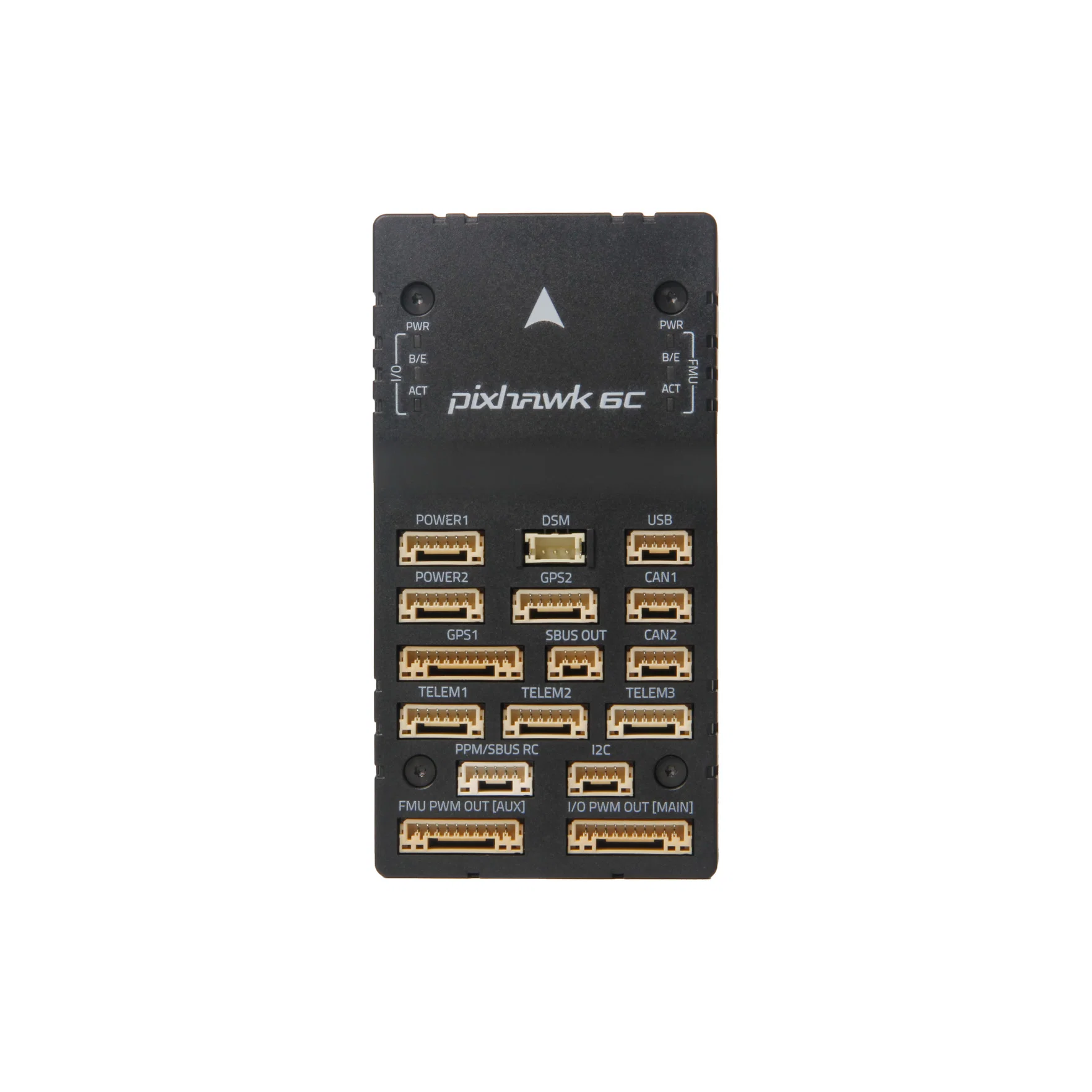

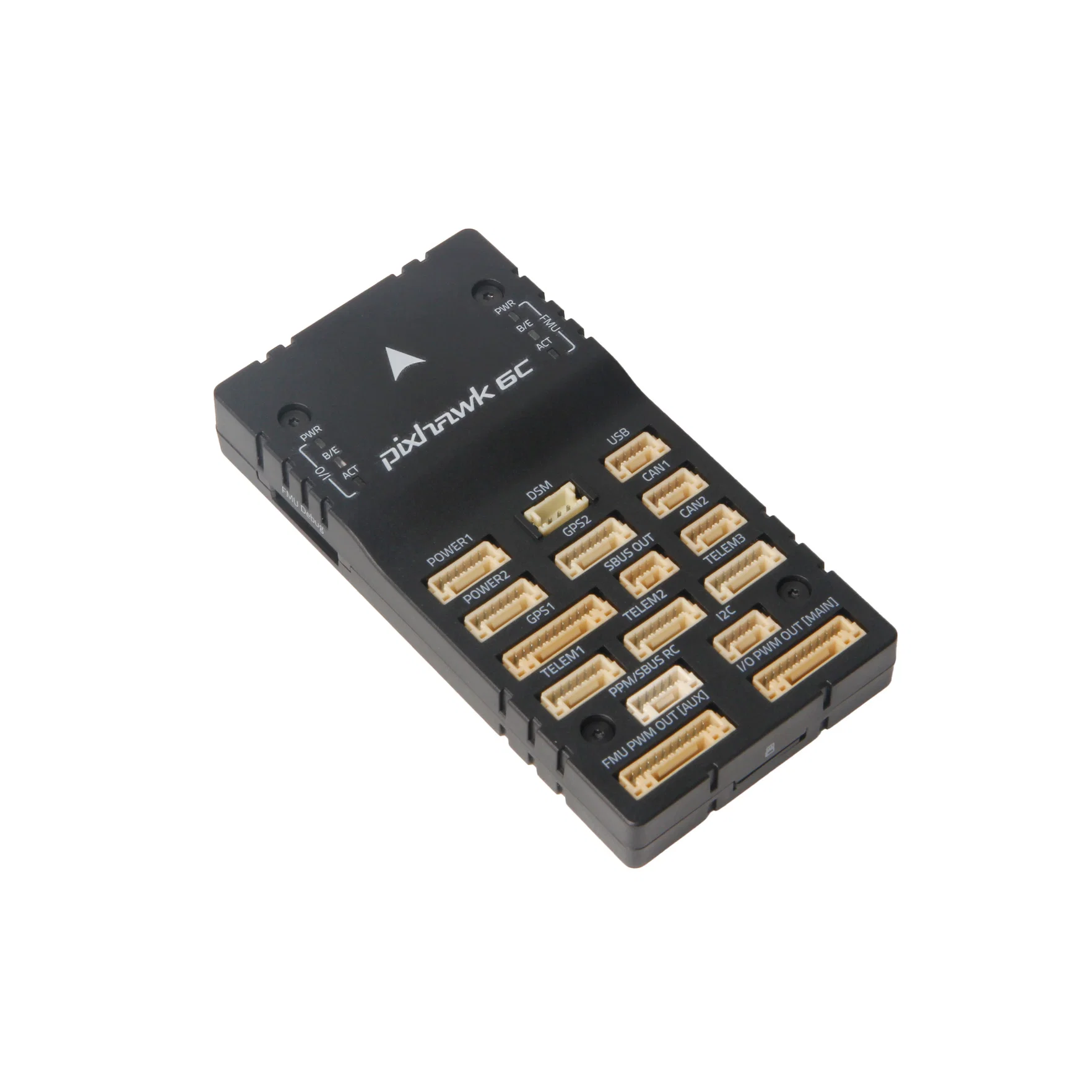

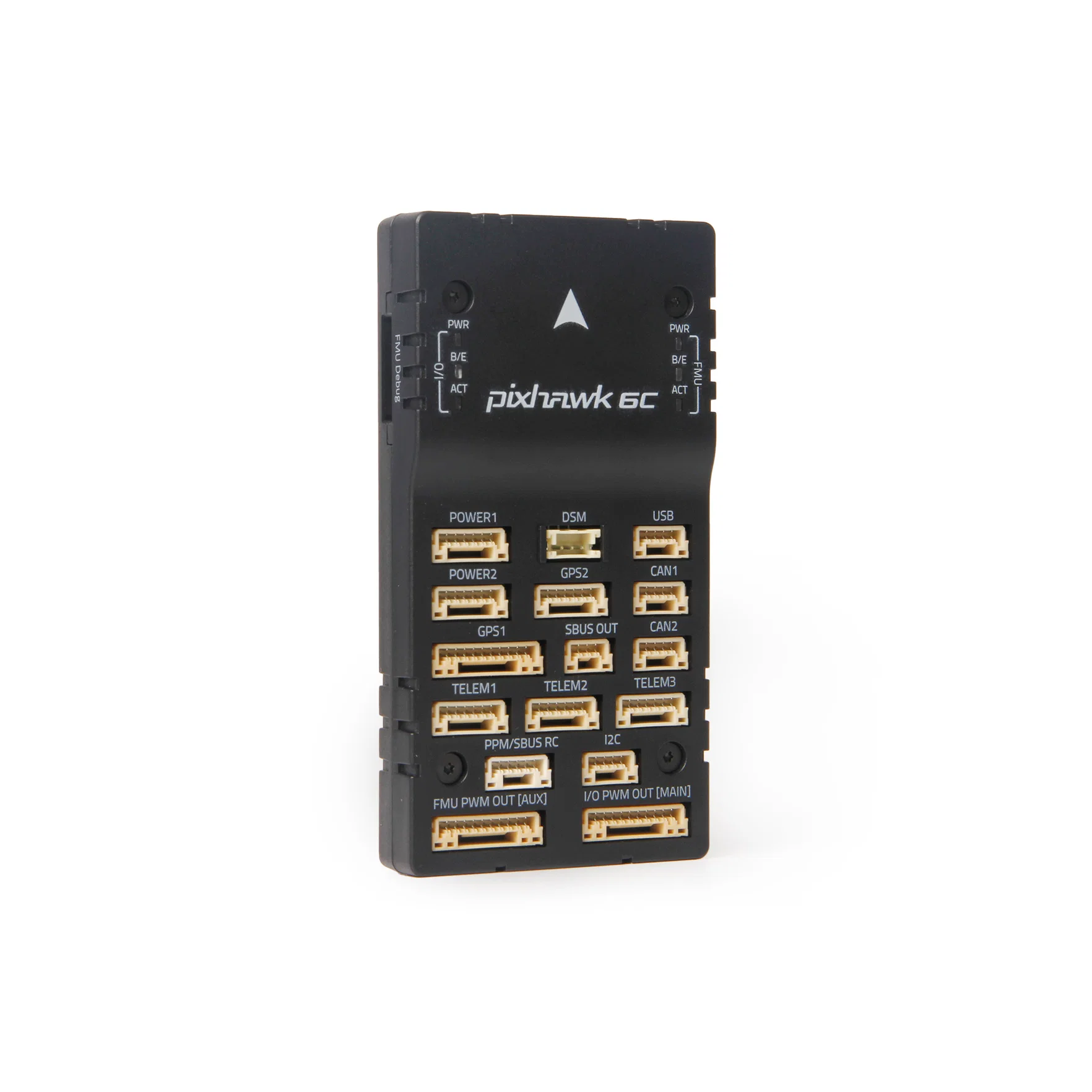

Holybro Pixhawk 6C autopilot flight controller

Pixhawk® 6C (Plastic Case) is the latest generation of open standard flight controller, designed according to Pixhawk® FMUv6C Open Standard and Connector Standard, with pre-installed PX4 software. The controller uses a powerful STMicroelectronics STM32H743 microcontroller with an Arm® Cortex®-M7 core operating at up to 480 MHz, with 2 MB Flash and 1 MB RAM memory. Together with Bosch® and InvenSense® sensors, high accuracy, reliability and IMU redundancy are ensured, making the controller suitable for controlling a variety of autonomous aircraft. The integrated advanced vibration damping system effectively filters high-frequency vibrations and reduces noise, ensuring accurate sensor data and more stable flight. Due to its high computing performance, Pixhawk® 6C allows you to run complex algorithms and models, making it an excellent choice for scientific research, product development and commercial autonomous system applications.

Features:

• Powerful STM32H7 processor operating at up to 480 MHz;
• New economical, low-profile housing design;
• Redundant inertial measurement system (IMU) with Bosch® and InvenSense® sensors;
• Integrated next-generation vibration damping system that filters high-frequency vibrations and reduces noise to ensure accurate sensor data;
• IMU sensors are maintained at optimal operating temperature using integrated heating resistors;
• The 3.3 V or 5 V PWM signal mode is switched at the hardware level (to change the mode, the case must be opened).

Specification:

• Model: Pixhawk® 6C (Plastic Case);
• FMU processor: STM32H743, 32-bit Arm® Cortex®-M7, 480 MHz, 2 MB Flash, 1 MB SRAM;
• IO processor: STM32F103, 32-bit Arm® Cortex®-M3, 72 MHz, 64 KB SRAM;
• Accelerometer/gyroscope: ICM-42688-P;
• Backup accelerometer/gyroscope: BMI088;
• Magnetometer: IST8310;
• Barometer: MS5611;
• Maximum input voltage: 6 V;
• USB power supply voltage: 4.75–5.25 V;
• Servo Rail input voltage: 0–36 V;
• Total maximum current of Telem1 and GPS2: 1.5 A;
• Total maximum current of all other ports: 1.5 A;
• Operating temperature: from -25 °C to +85 °C;
• Dimensions: 84.8 x 44 x 12.4 mm;

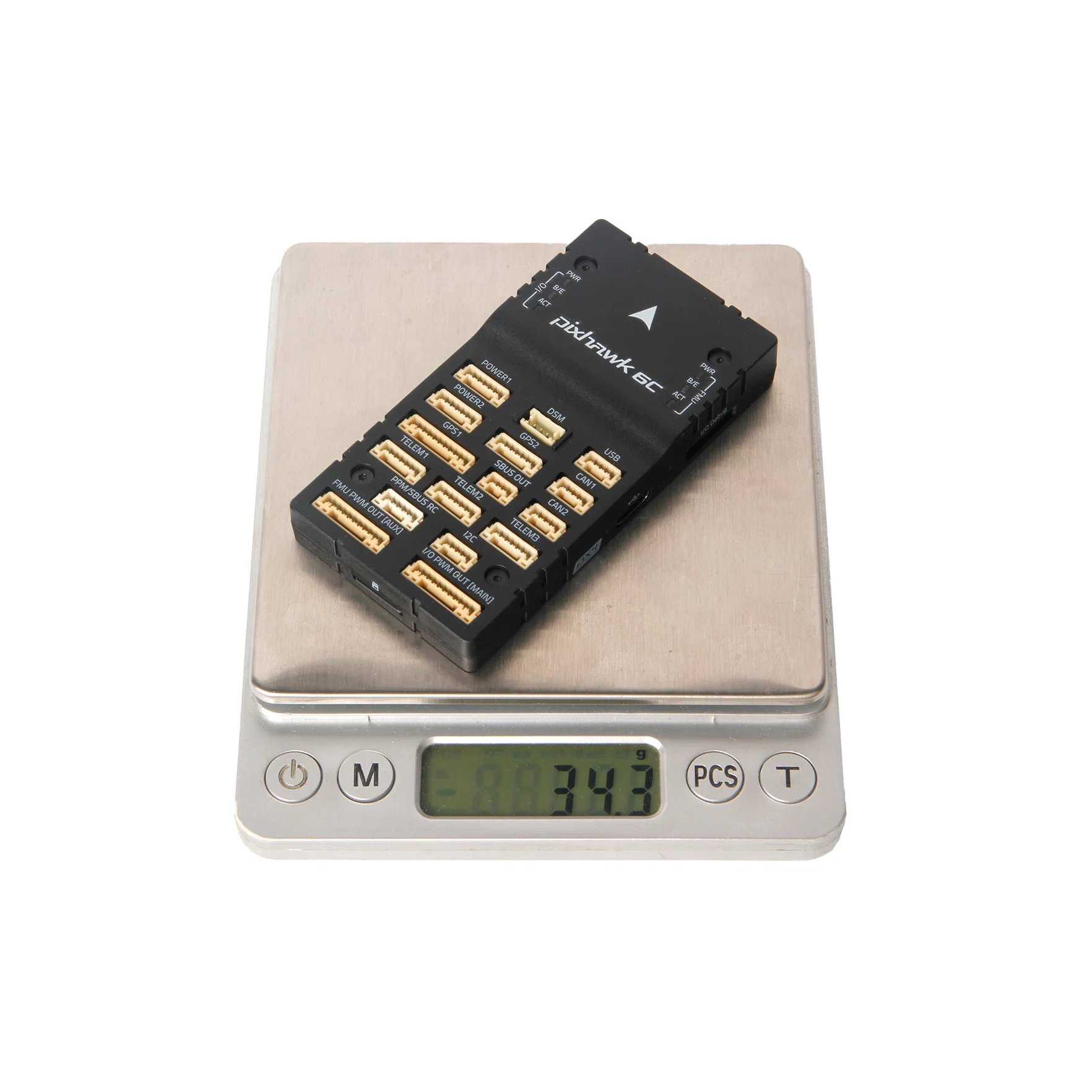

• Weight (plastic body): 34.6 g.

Additionally:

• Technical information: Holybro documentation;
• Software: For the latest information, please visit the supported firmware versions page.

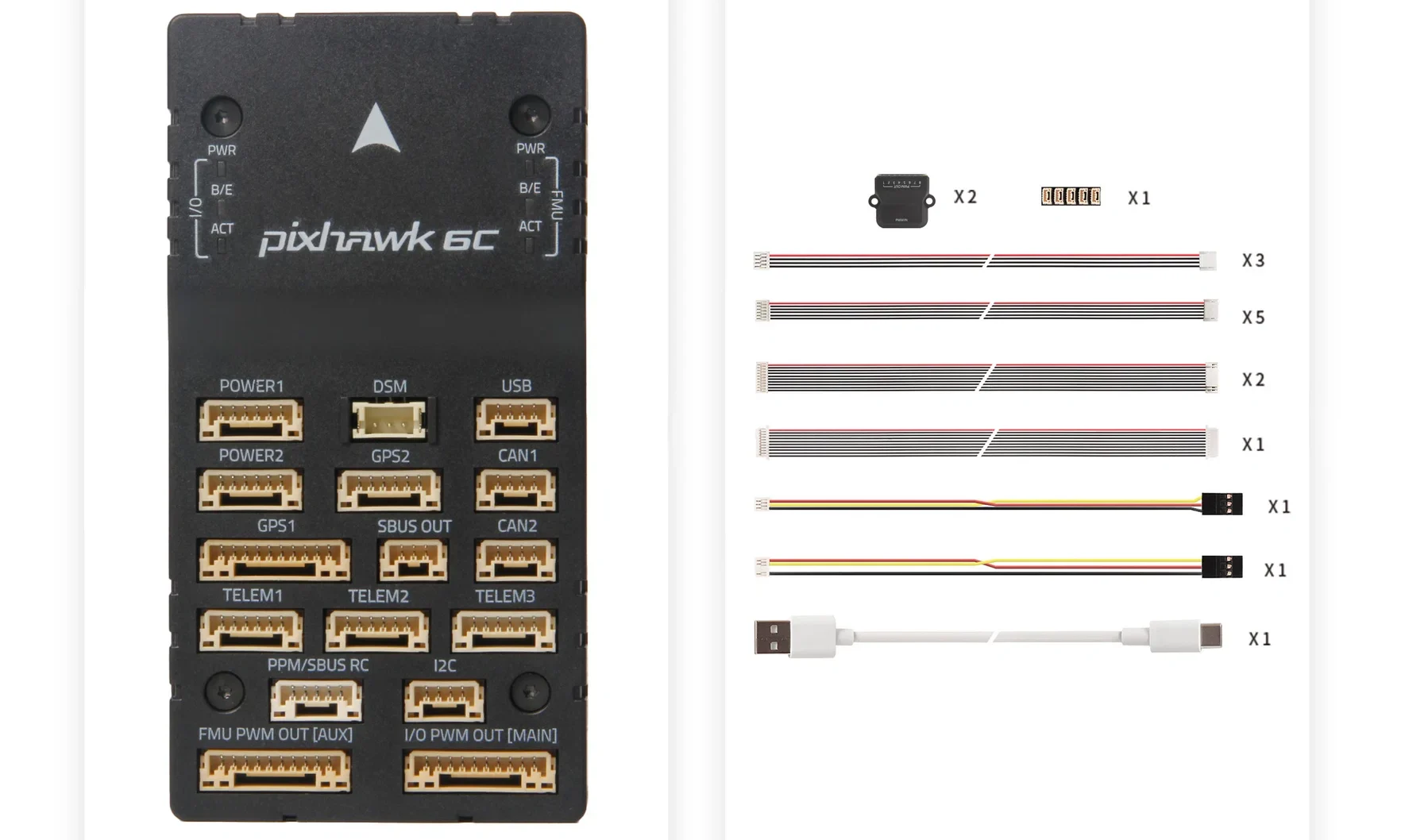

Package:

1x Holybro Pixhawk 6C;
1x wiring kit.
