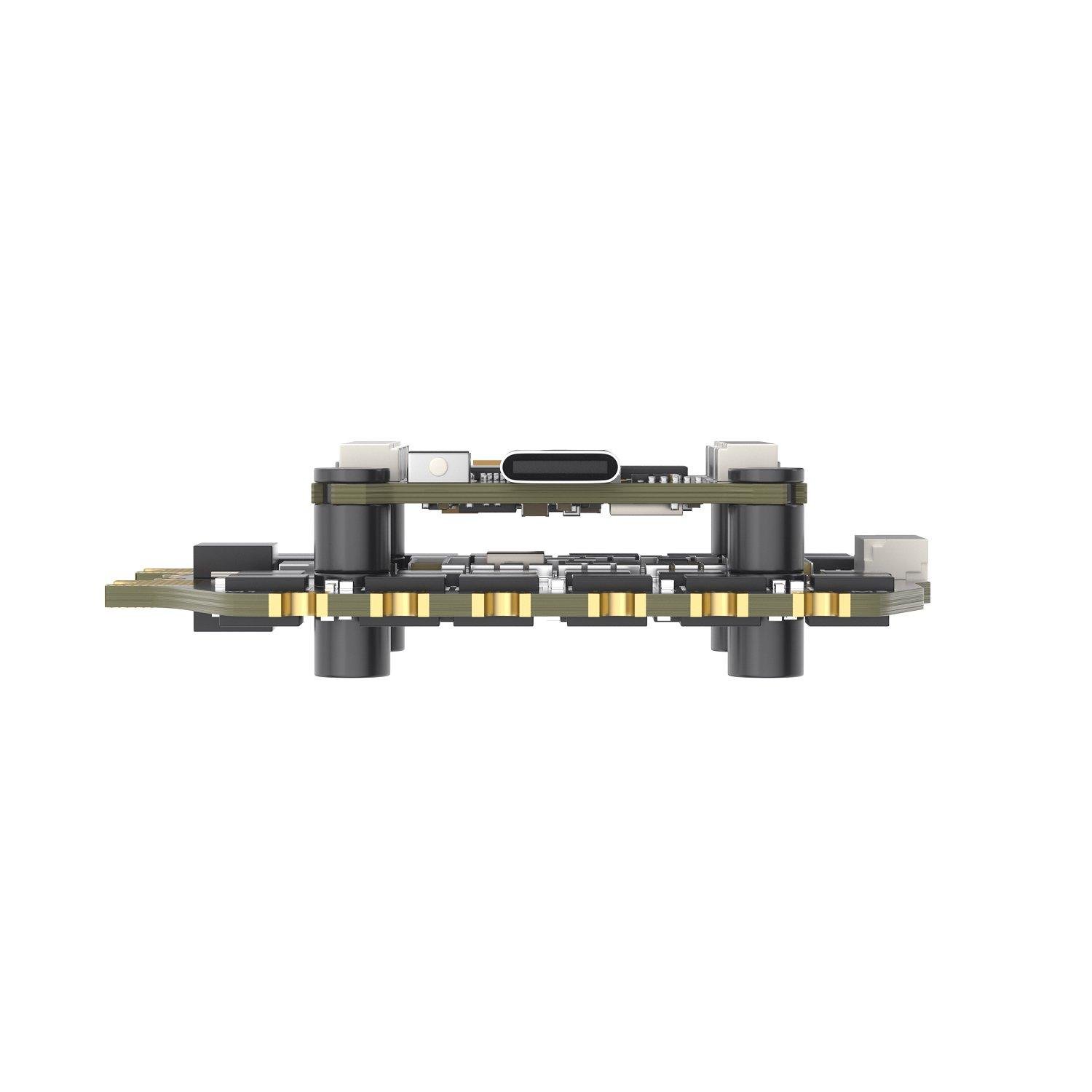

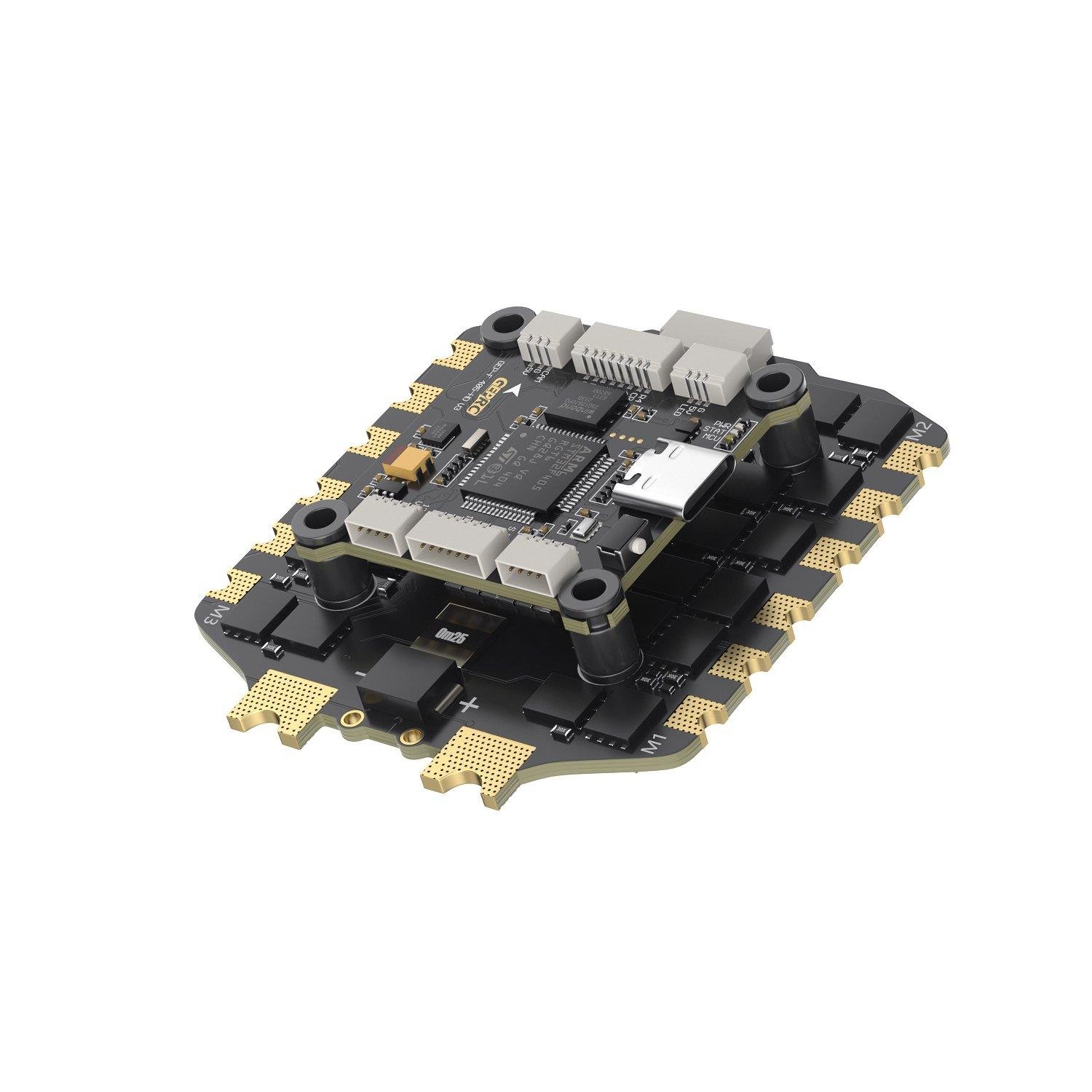

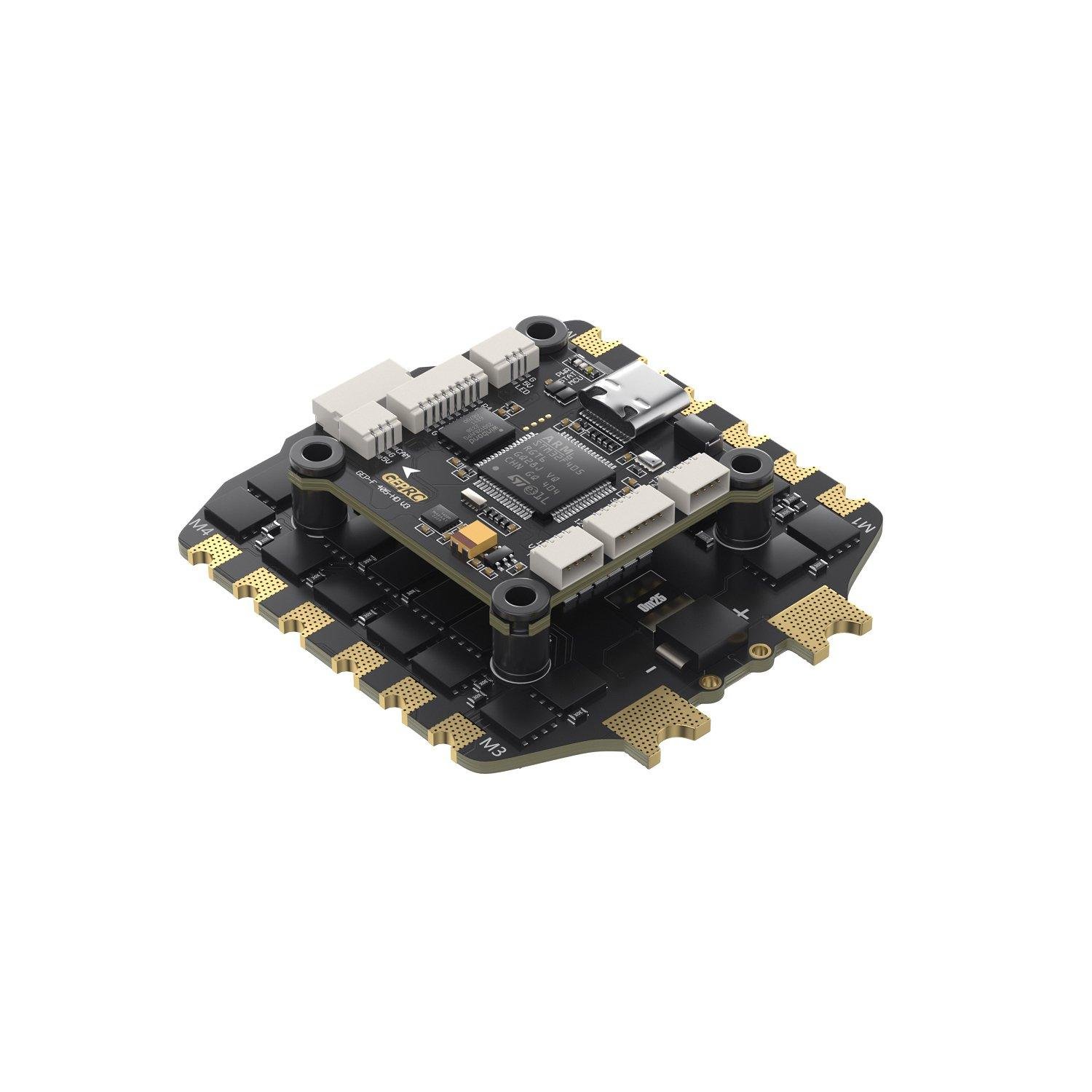

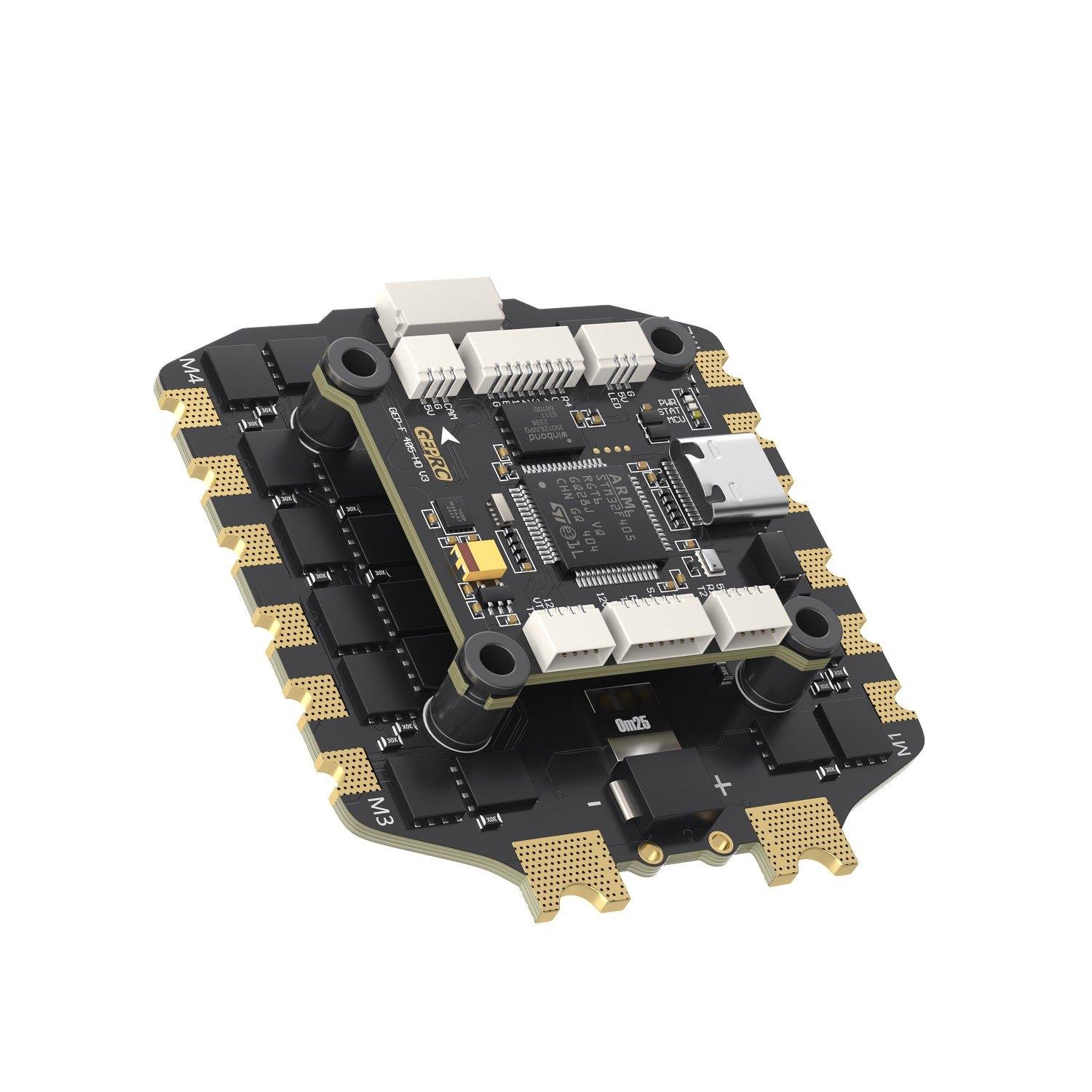

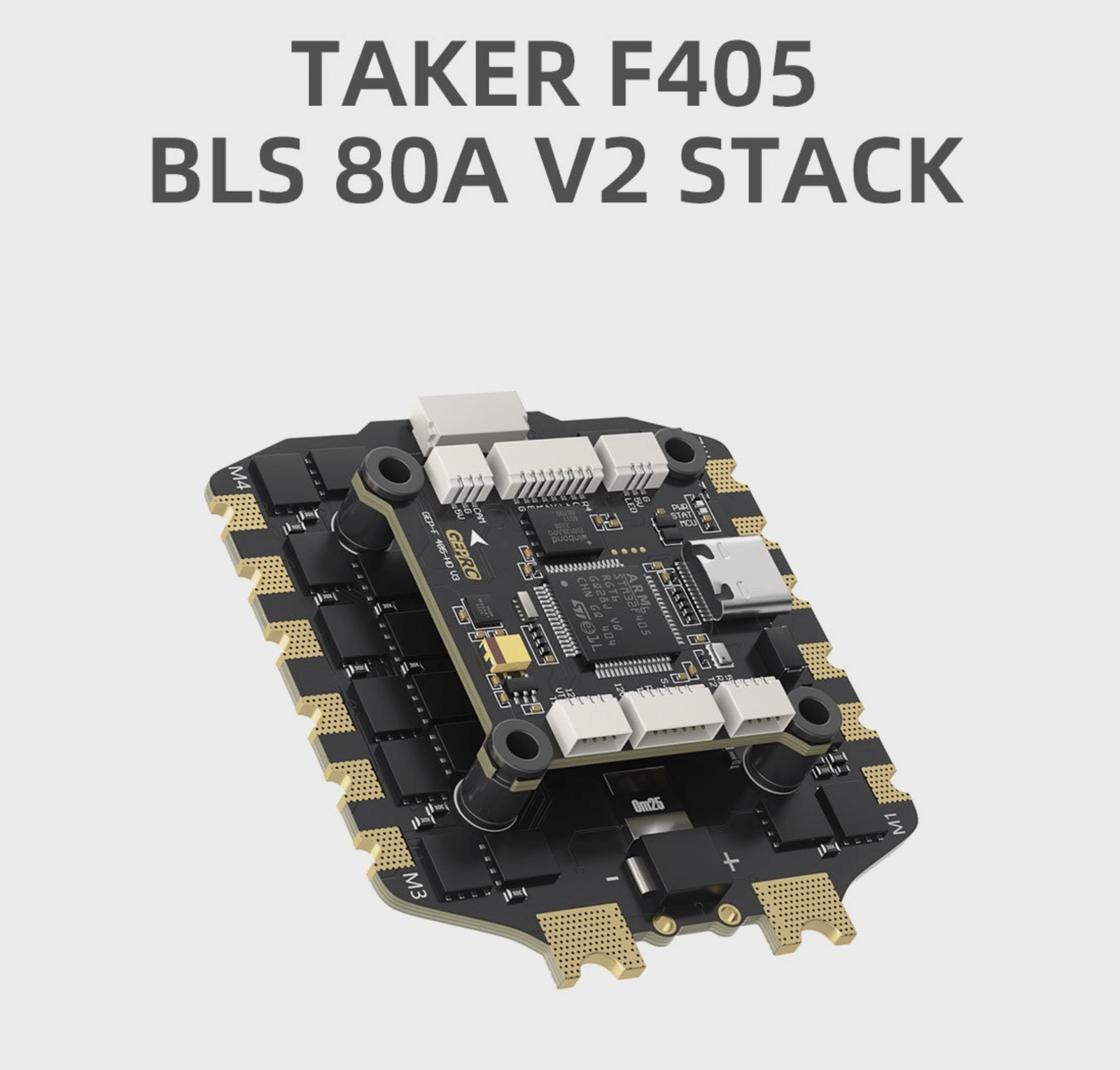

GEPRC TAKER F405 BLS 80A V2 STACK

GEPRC TAKER F405 BLS 80A V2 Stack is a powerful flight controller and 4-in-1 ESC kit for FPV drones with STM32F405 processor, ICM42688-P gyroscope, 16 MB Blackbox memory and 6 UART connectors. The 80 A ESC supports 3-6S LiPo batteries and DShot150/300/600 protocols, while the integrated 5V and 12V BEC and DJI Air Unit connectors make the system easy to install.

Features:

• The popular STM32F405 processor is used;
• Integrated latest ICM42688-P gyroscope;
• 16 MB Blackbox memory;
• Integrated LC filter;
• Updated USB Type-C connector;
• Ability to directly connect DJI Air Unit;
• Comes with TAKER H80_BLS 80A 4-in-1 ESC, featuring dual MOSFETs and designed for high currents;
• Simple installation and anti-vibration elements ensure more stable operation of the gyroscope;
• Two independent BEC outputs: 12 V / 2.5 A and 5 V / 3 A.

Specification:

FC:

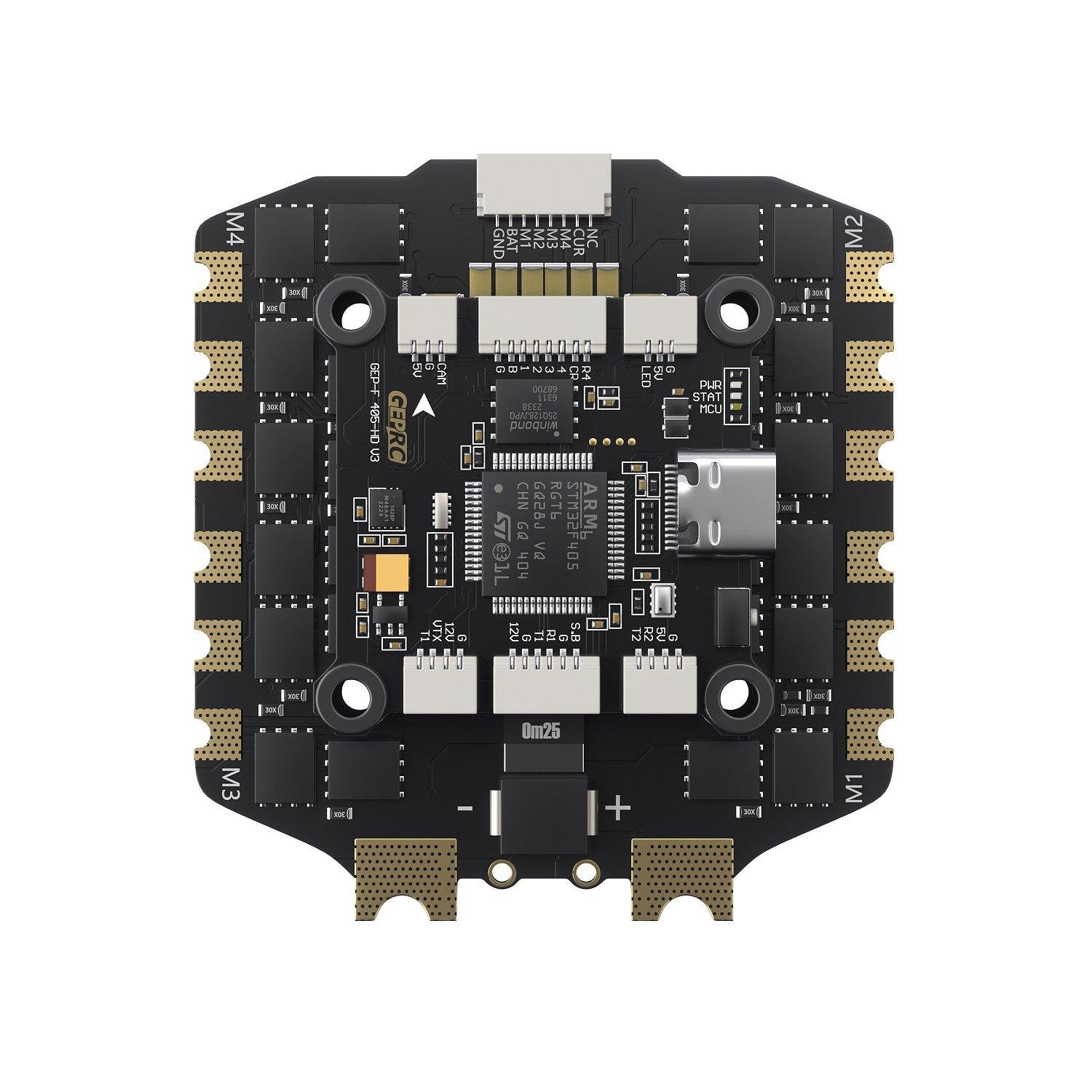

• Model: GEP-F405-HD V3 Flight Controller;
• Processor: STM32F405;
• Gyroscope: ICM42688-P (SPI);
• DJI Air Unit connector: direct connection;
• Blackbox memory: 16 MB;
• Barometer: supported;
• Motor outputs: M1–M6;
• USB connector: Type-C;
• OSD: Betaflight OSD with AT7456E chip;
• BEC: 5V/3A and 12V/2.5A;
• Software: GEPRCF405;
• Dimensions: 37.15 x 37.15 mm;
• Mounting holes: 30.5 x 30.5 mm;
• Supply voltage: 3–6S LiPo;
• UART connectors: 6;
• Power filter: integrated LC filter;
• Weight: 7.3 g.

ESC:

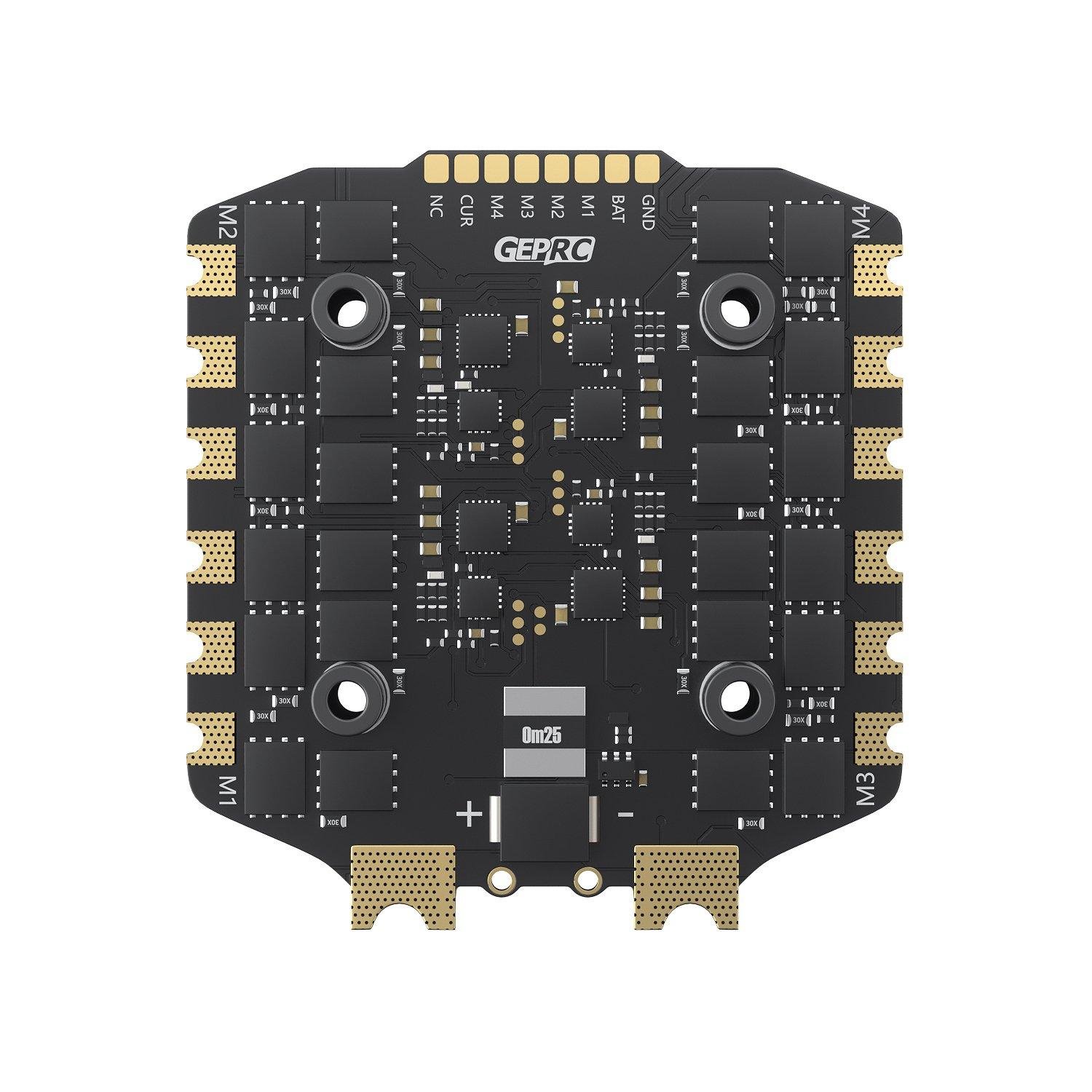

• Model: TAKER H80_BLS 80A 4IN1 ESC;
• Supply voltage: 3–6S LiPo;
• Current measurement: supported;
• Continuous current: 80 A;
• Short-term current: 85 A / 5 s;
• Supported protocols: DShot150 / DShot300 / DShot600;
• Dimensions: 56.3 x 61.1 mm;
• Mounting holes: 30.5 x 30.5 mm;
• Weight: 28.1 g;
• Firmware Target: B_X_30.

Package:

1x GEP-F405-HD V3 flight controller;
1x TAKER H80_BLS 80A 4-in-1 ESC;
1x electrolytic capacitor;
1x DJI connecting cable;
1x FC and ESC connection cables;
1x Receiver connection cable;
1x Camera connection cable;
1x VTX connection cable;
1x Power cords;
1x Mounting screws, nuts and silicone anti-vibration elements.
