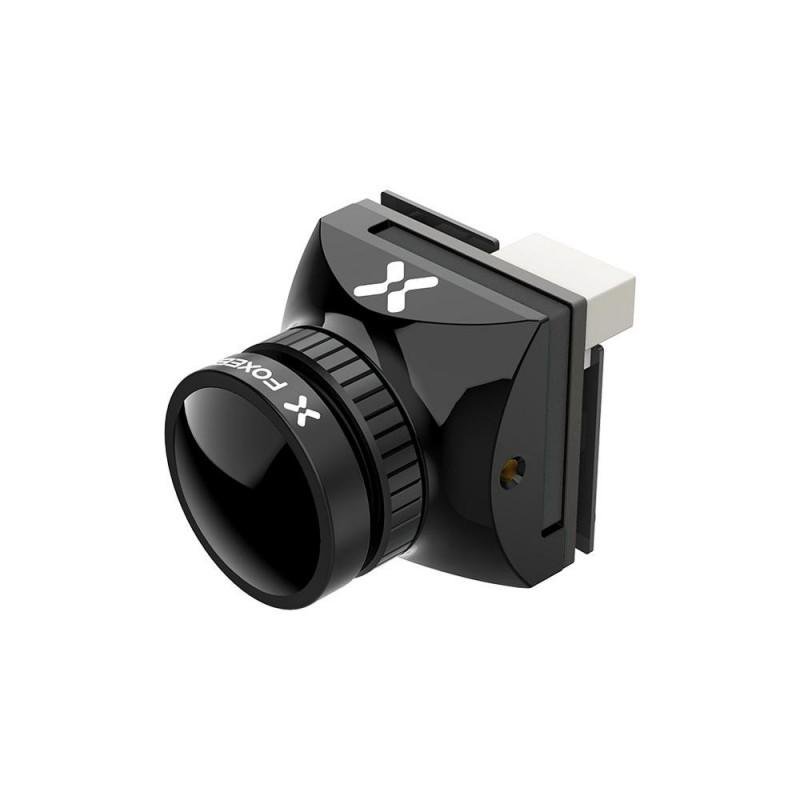

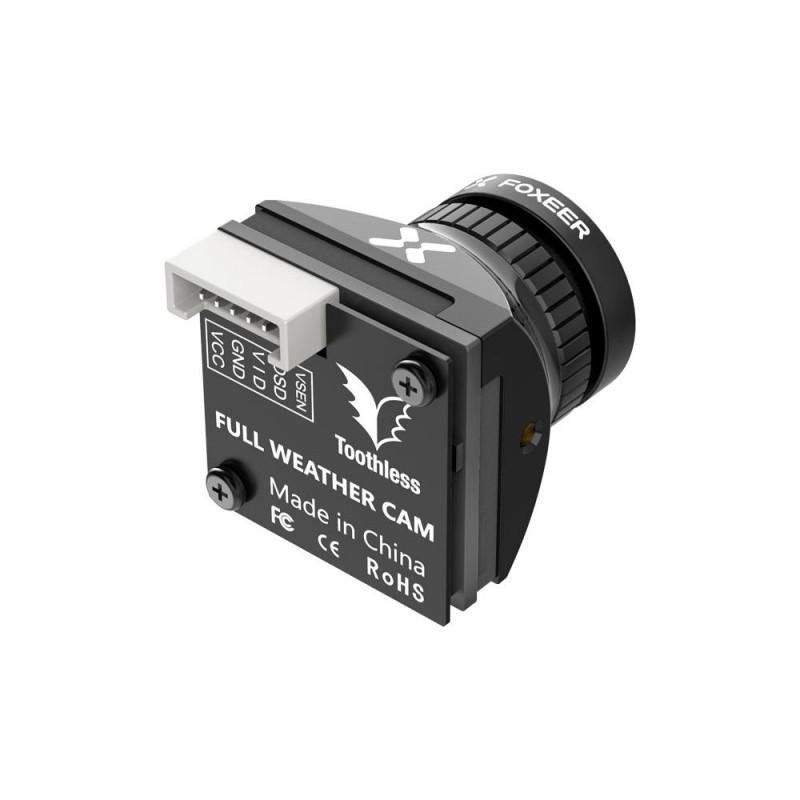

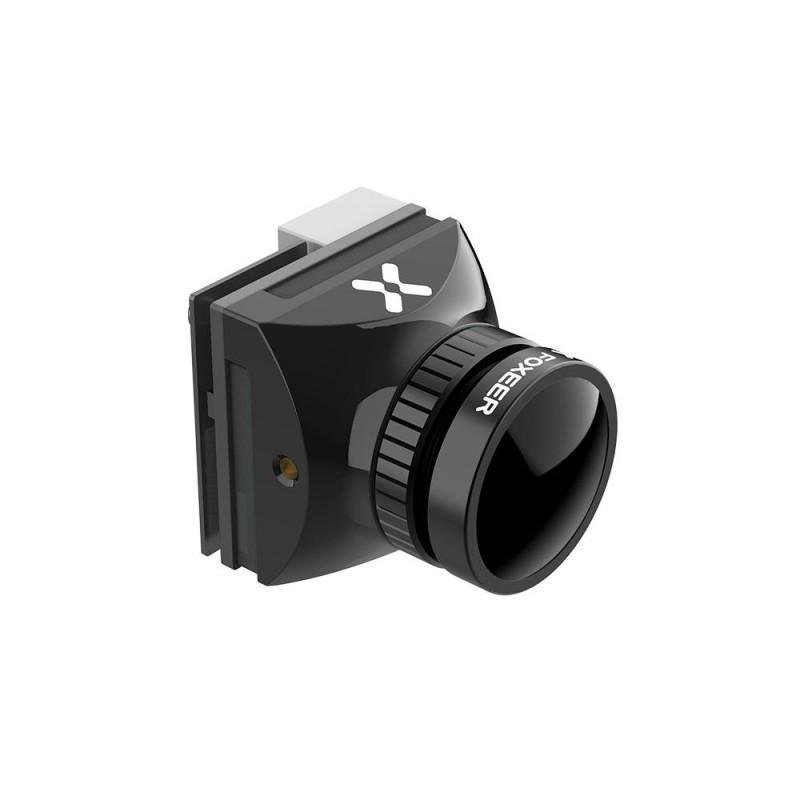

Foxeer Micro Toothless 3 StarLight FPV Night Camera

Specification:

• Sensor type: Sony 1/2″ CMOS;
• Aspect ratio: 4:3 / 16:9 (switchable);
• Video system: PAL / NTSC (switchable);
• Resolution: 1200 TVL;
• Lens: 2.1 mm;
• Field of View (FOV):
4:3 Wide - H: 95°, V: 70°;
4:3 Narrow - H: 75°, V: 55°;
16:9 – H: 95°, D: 50°;
• Shutter speed: PAL 1/25–1/10000 s; NTSC 1/30–1/10000 s;
• Video output: Analog CVBS signal;
• Minimum illumination: 0.0001 lx;
• White balance: Automatic;
• Noise reduction: 3DNR;
• Wide Dynamic Range (WDR): 100 dB;
• Day/Night mode: EXT/Auto/Color/Black and white;
• Flight OSD: Voltage/camera name/time;
• Supply voltage: 5–16 V DC;
• Menu languages: English, Chinese, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese, Greek;
• Operating temperature: from -10 °C to +50 °C (max. 90 % RH);
• Operating humidity: 20–80 %;
• Storage temperature: from -20 °C to +70 °C;
• Power consumption: 80 mA ±15 % (@12 V DC), 170 mA ±15 % (@5 V DC);
• Dimensions: 19 x 19 mm;
• Weight: 8.5 g (without cable).

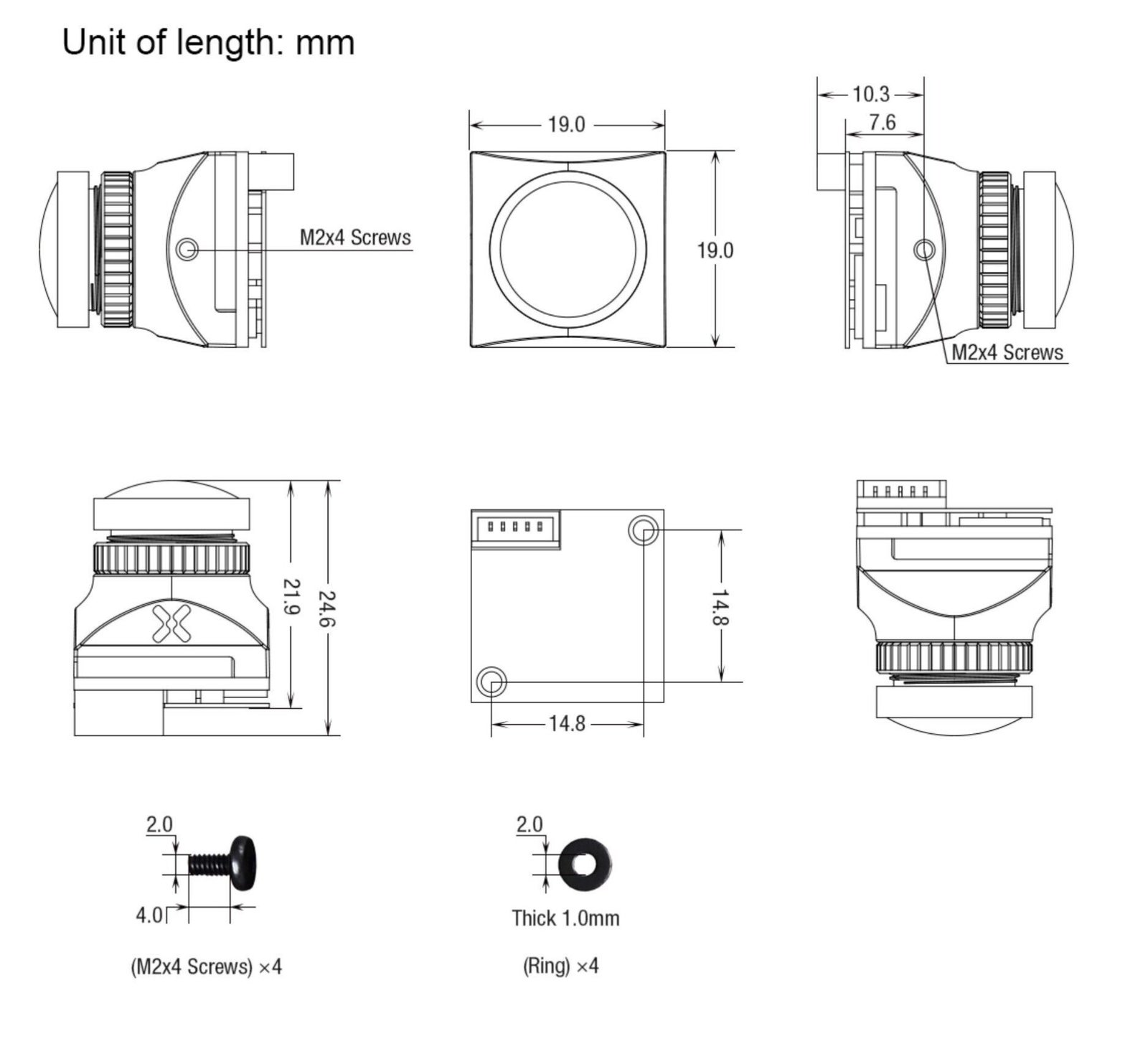

Measurements:

Narrow or Wide field of view. Switchable for Freestyle and Fixed Wing modes.

Large 1/2″ sensor. Better image quality due to more light.

Clear vision day, night and in changing lighting!

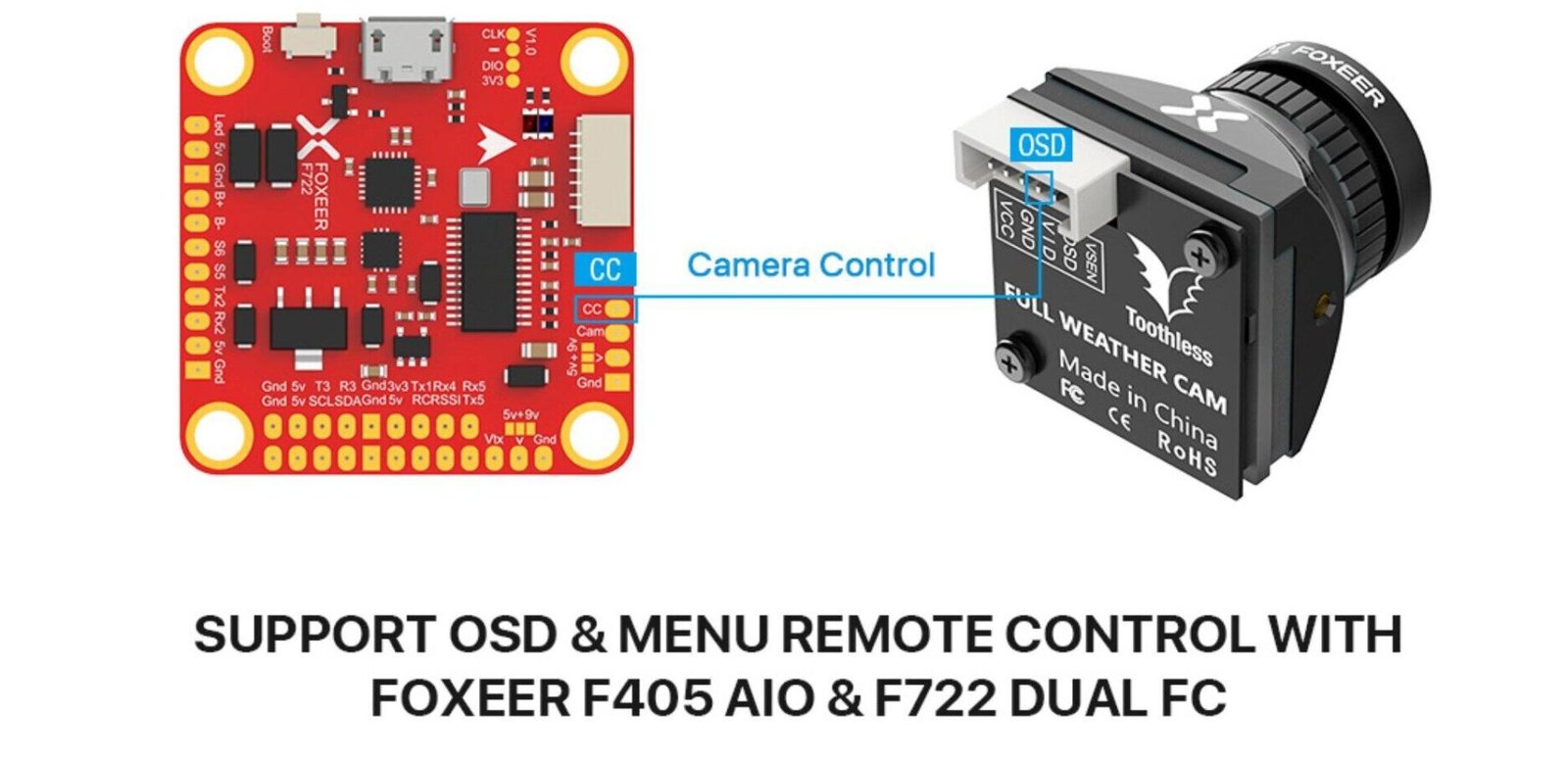

Supports OSD and camera menu control remotely with Foxeer F722 V4 FC ICM42688 DPS310

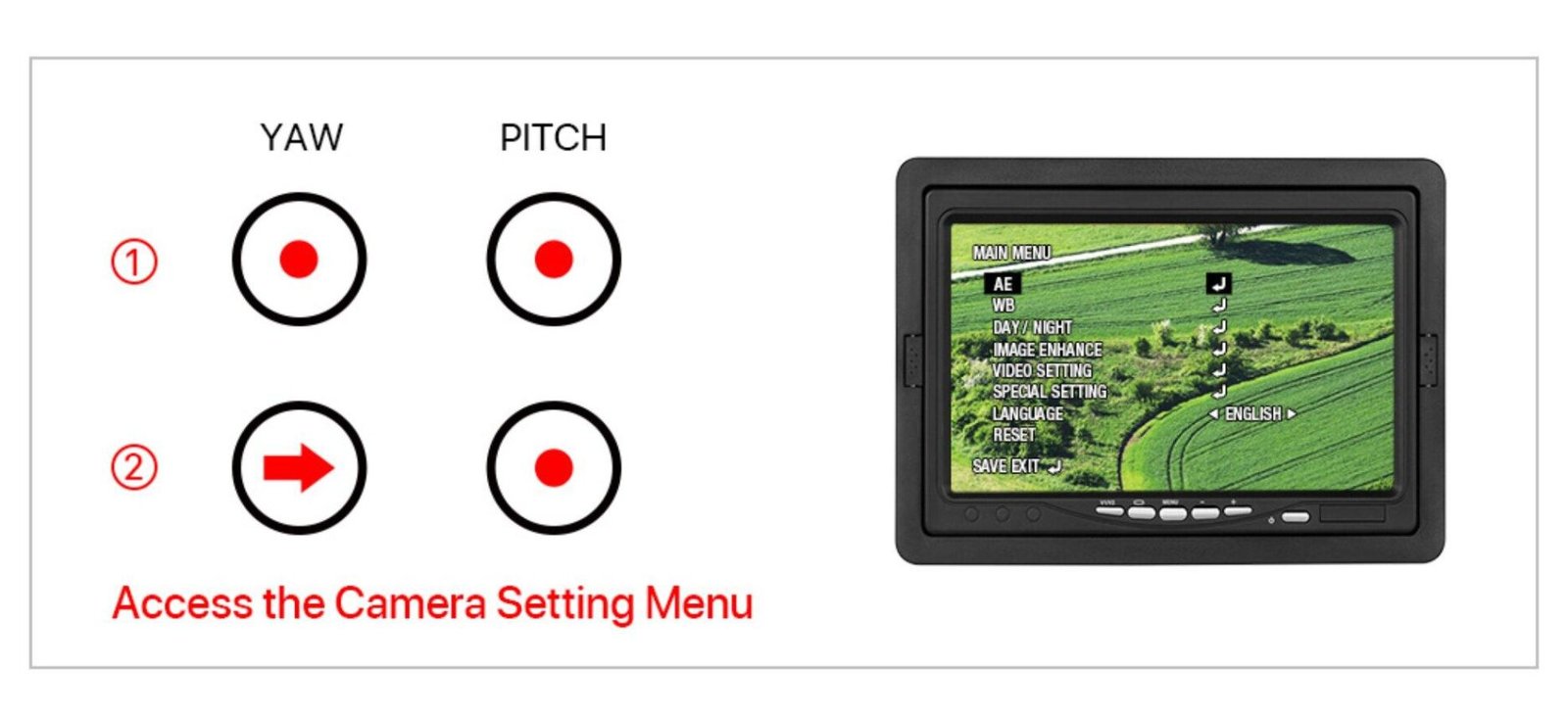

Access the camera settings menu.

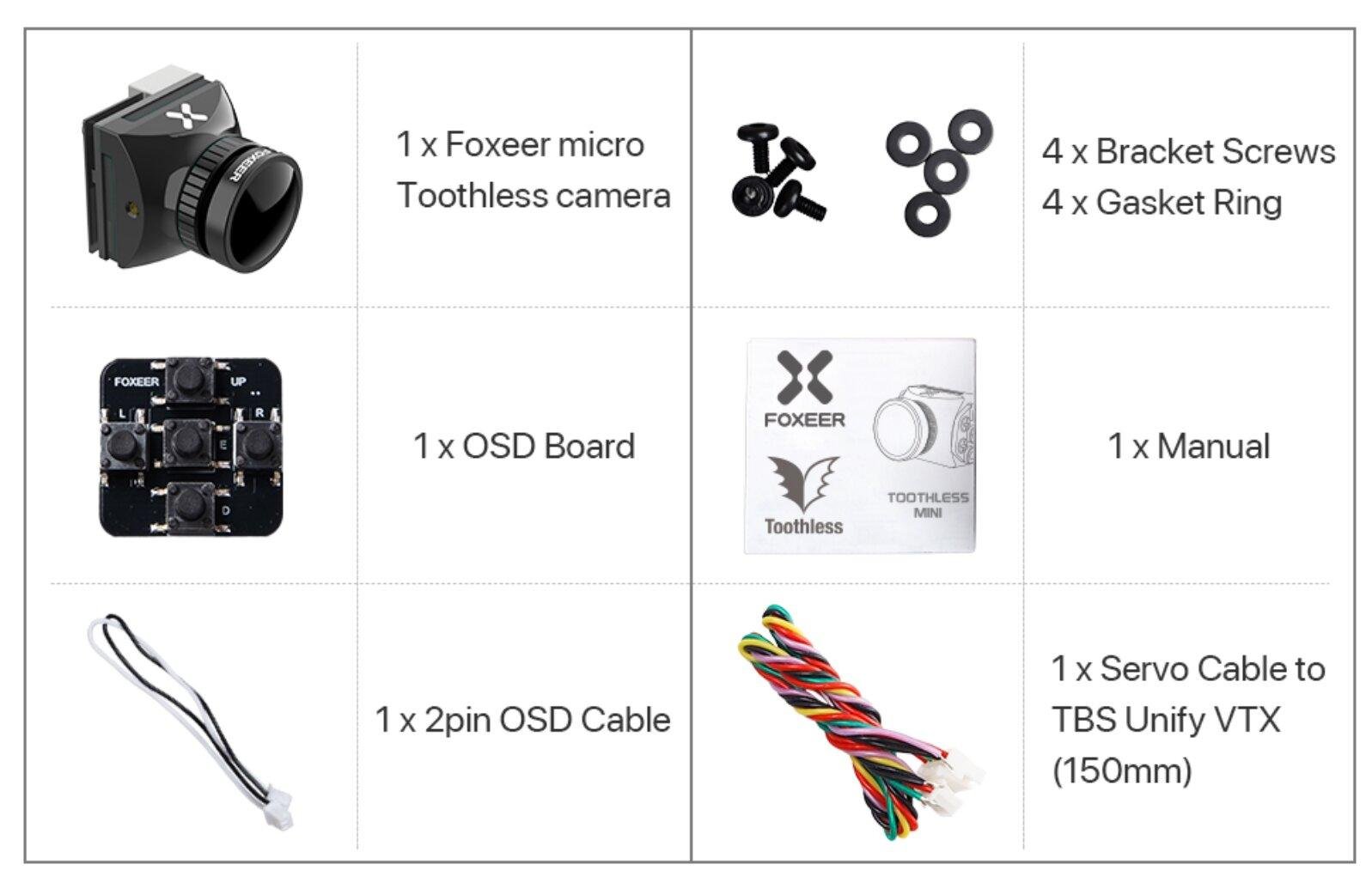

Package:

1x Foxeer Micro Toothless camera;
1x OSD board;
1x 2-pin OSD cable;
4x mounting screws;
4x gasket rings;
1x instruction manual;
1x servo cable to TBS Unify VTX.
