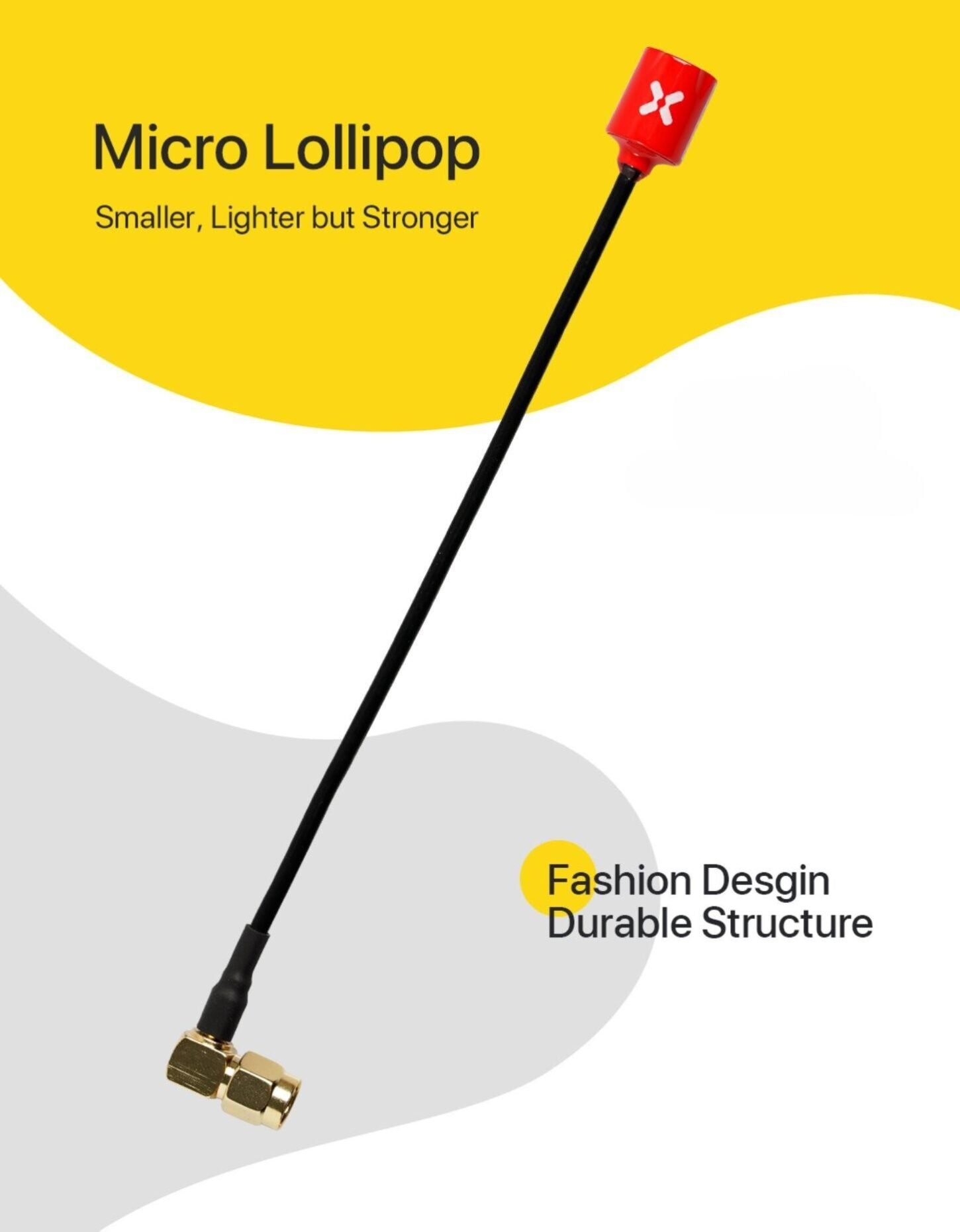

Foxeer Micro Lollipop 15cm 5.8G RHCP FPV Antenna

Foxeer Micro Lollipop 15cm 5.8G RHCP is a high-quality omnidirectional FPV antenna designed for reliable video signal transmission using FPV goggles. The 5.8 GHz frequency, 2.5 dBi gain and RHCP polarization help ensure stable communication and good signal quality during flights. The antenna has an angled SMA connector, a flexible 15 cm body and a sturdy PC+ABS construction, making it easy to install and suitable for various FPV systems.

Specification:

• Frequency: 5.7 GHz;
• Gain: 2.5 dBi;
• Axial ratio: close to 1;
• Frequency band: 5.5-6 GHz;
• Radiant efficiency: 98%;
• SWR: 1.06;
• Connector: angled SMA;
• Dimensions: 11 x 150 mm;
• Cable length: 133 mm;
• Polarization: RHCP;
• Housing material: PC+ABS;
• Cable: SFX086;
• Weight: 9 g.

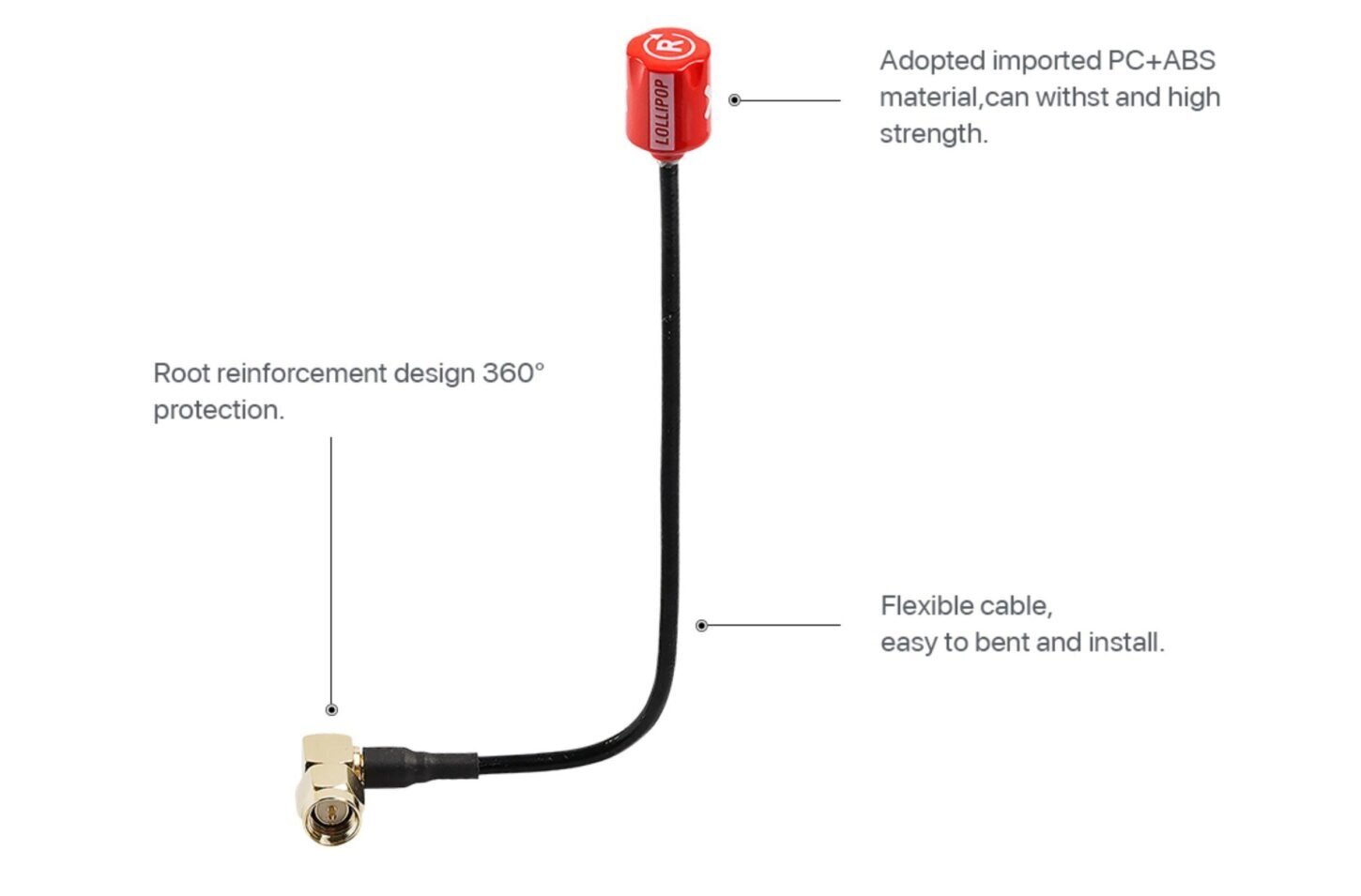

The reinforced antenna base ensures greater resistance, the sturdy PC+ABS construction protects against damage, and the flexible cable allows for easy adjustment of the antenna position and convenient installation.

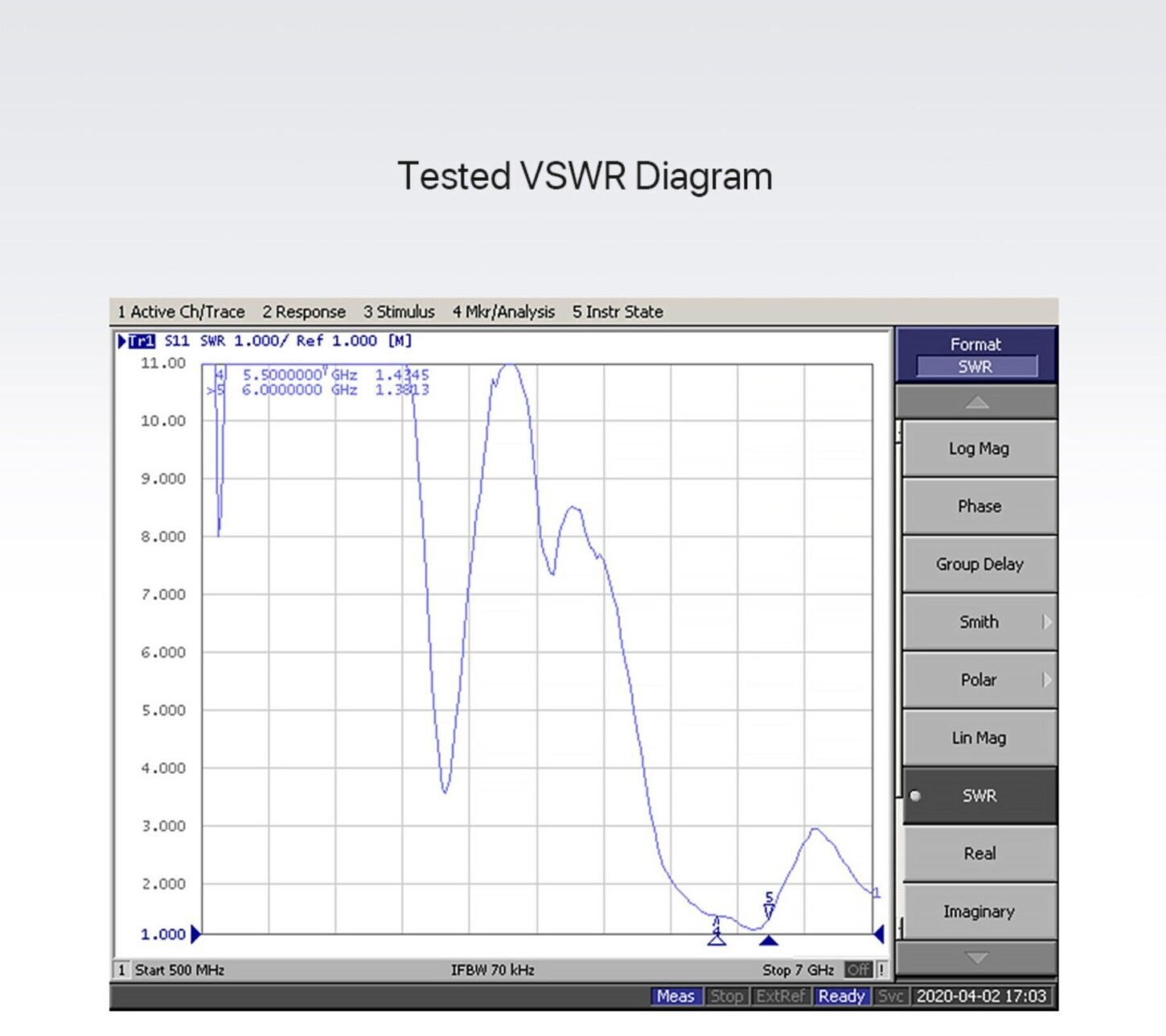

Measured SWR diagram.

Package:

1x Foxeer Micro Lollipop 15cm 5.8G RHCP FPV Antenna.
