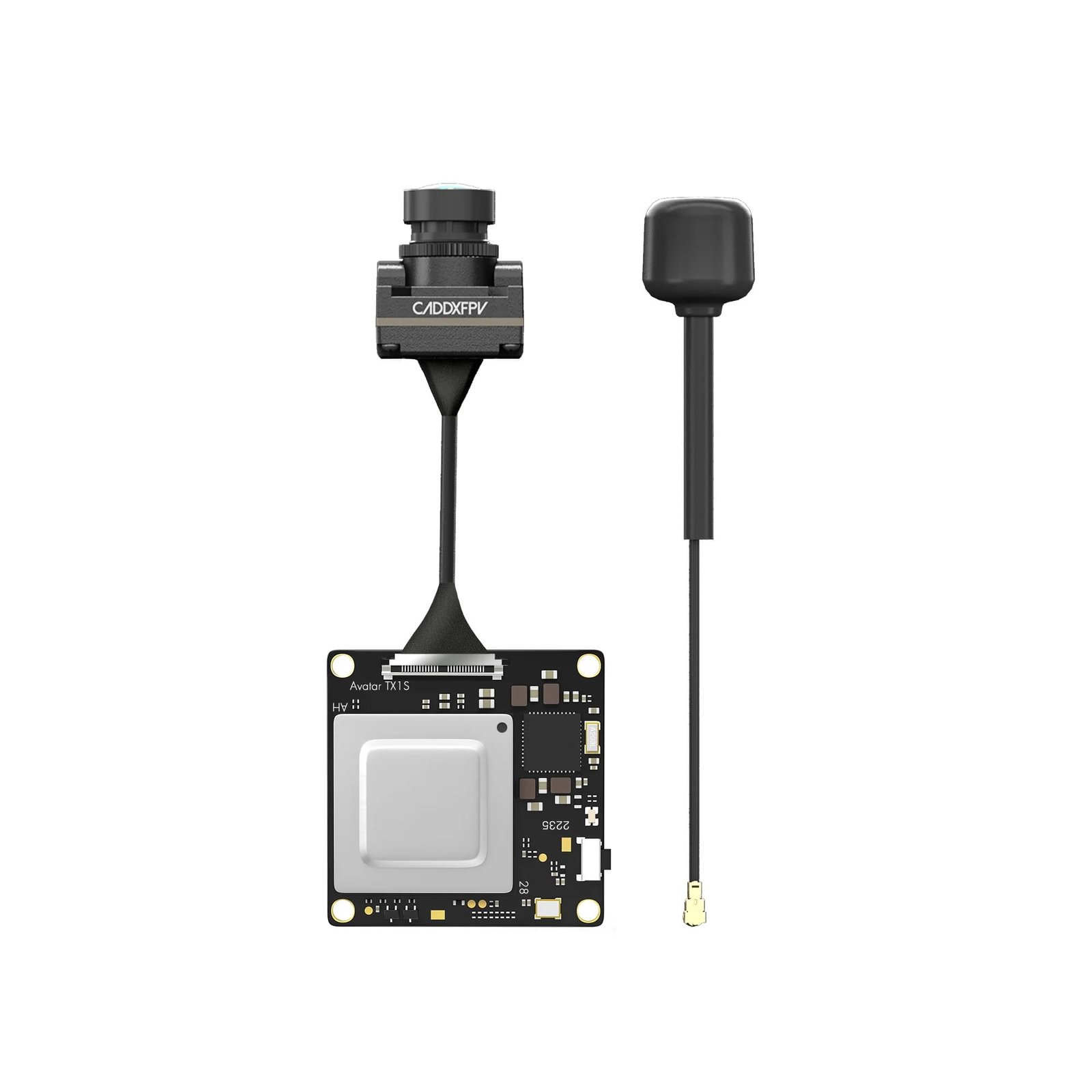

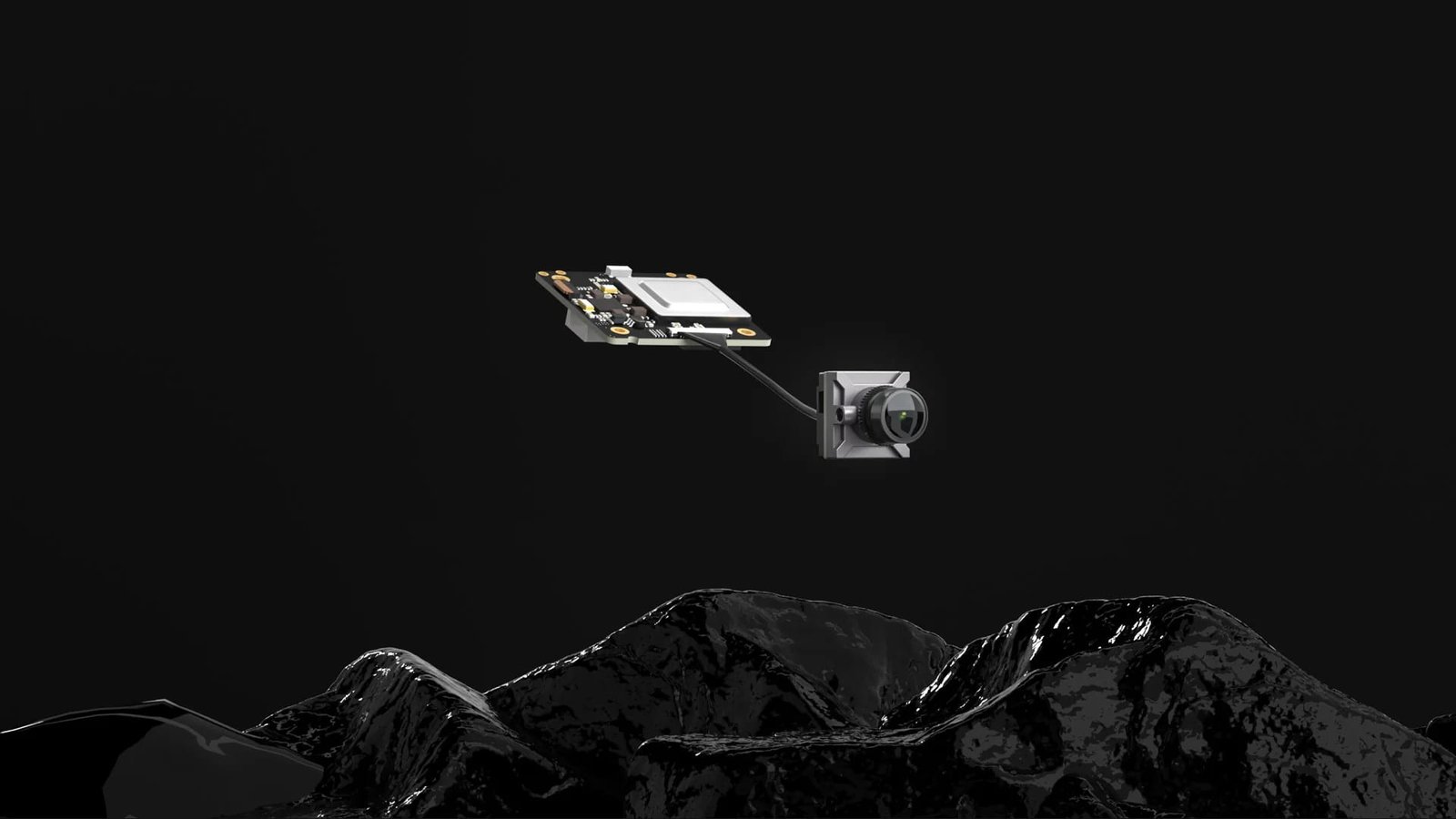

CaddxFPV Walksnail Avatar HD Mini 1s Kit

1080p/60 FPS, 720p/120 FPS The Avatar HD system uses advanced H.265 encoding, which ensures 1080p FPV video quality with ultra-low latency.

Lightweight, weighing just 6.8g, the Avatar Mini 1S VTX is perfect for 75mm whoop drones.

Supports both high and standard frame rate modes; in high frame rate mode, the average latency is 22 ms.

The Avatar Mini 1S VTX has 32GB of built-in memory, allowing you to record 1080p/60 fps or 720p/100 fps/60 fps HD flight footage without interruption.

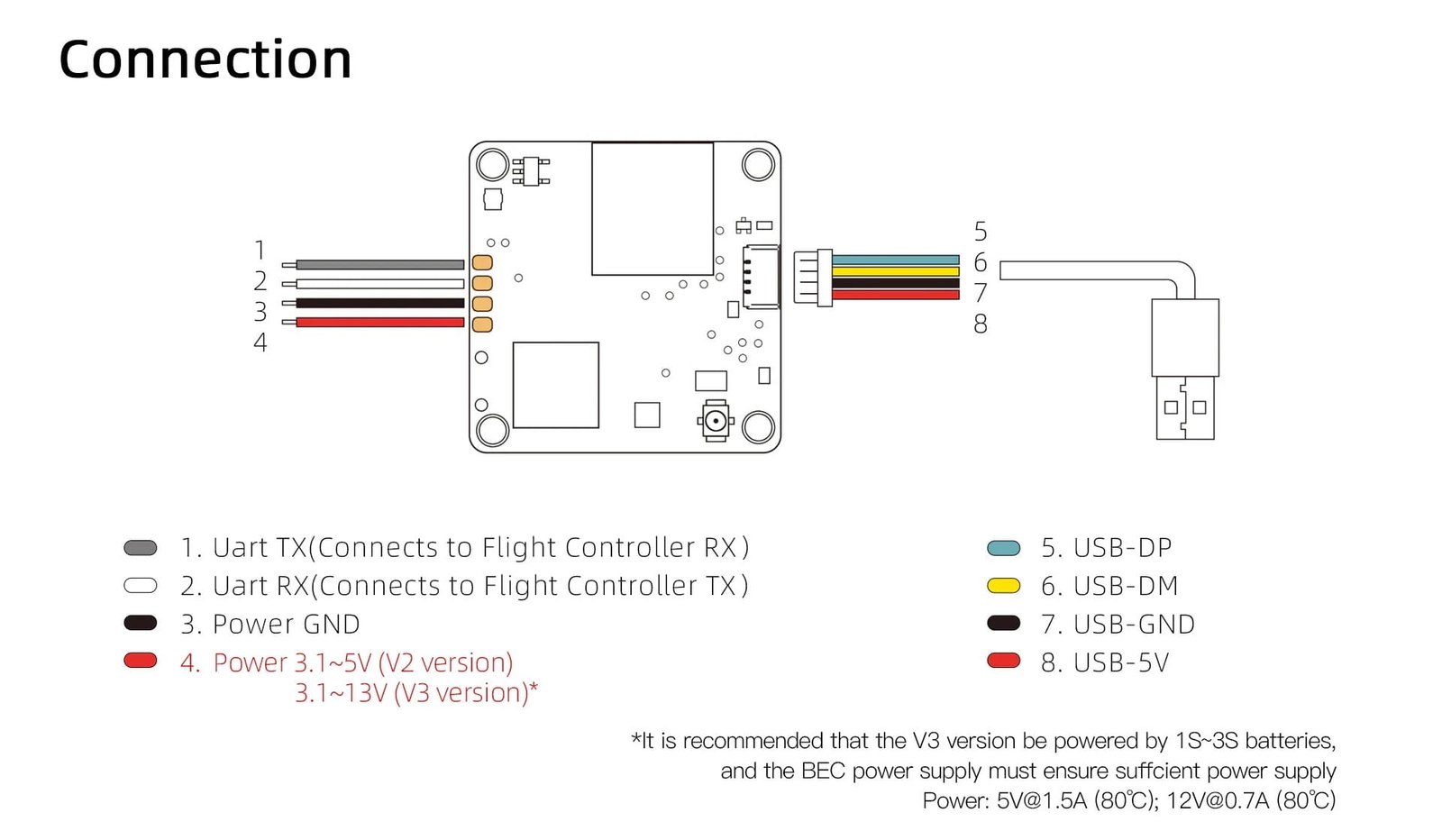

Connection:

Specification:

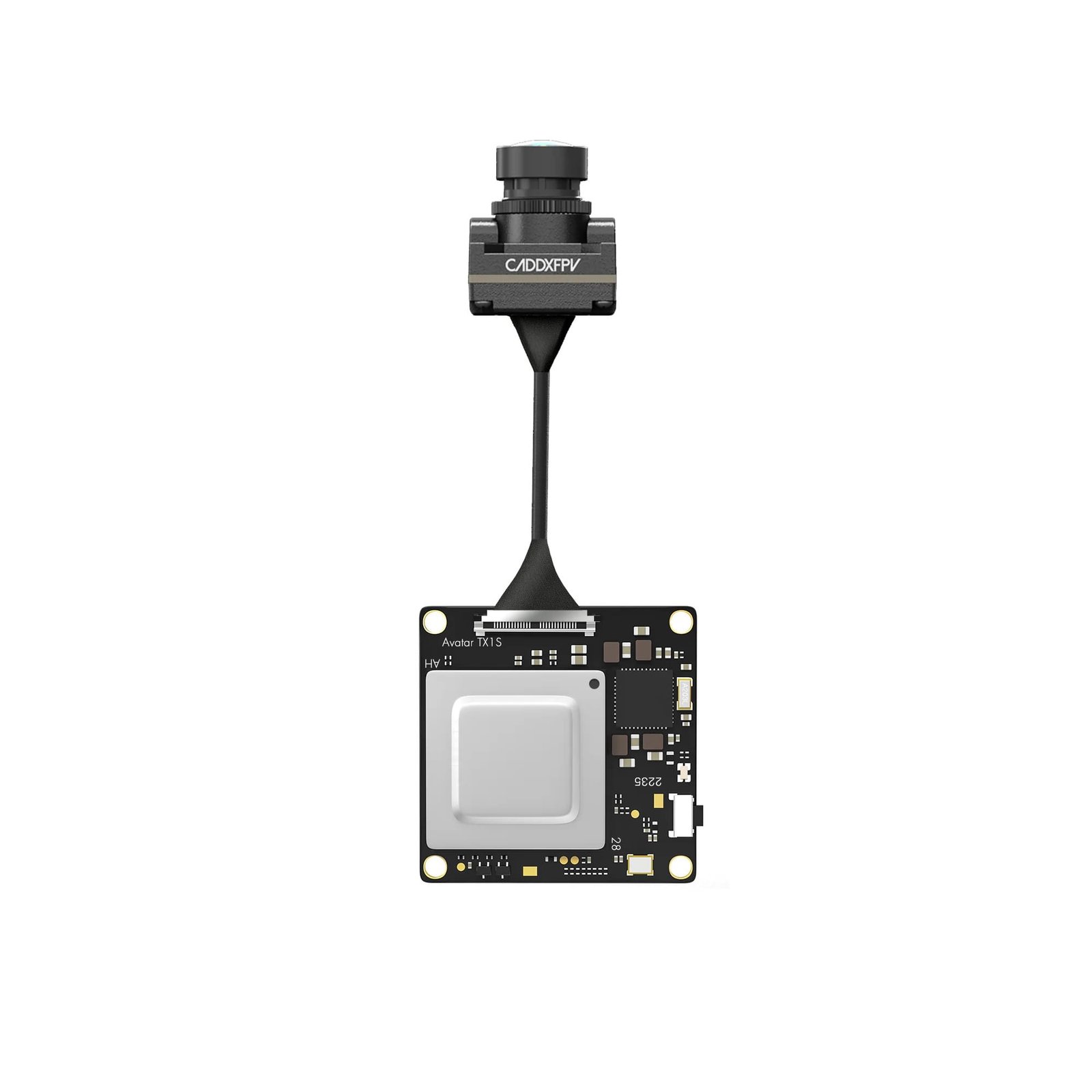

Camera

• Model: Avatar Nano;
• Image sensor: 1/2.7 inch (1 inch);
• Resolution: 1080p / 60fps, 720p / 120fps, 720p / 60fps;
• Aspect ratio: 16:9 / 4:3;
• Lens: 2.1 mm;
• Field of view (FOV): 170°;
• Lens brightness: F2.0;
• Shutter type: Rolling Shutter;
• Minimum illumination: 0.001 Lux;
• Weight: 3.5 g;
• Dimensions: 14 × 14 × 17 mm;
• Coaxial cable length: 55 mm.

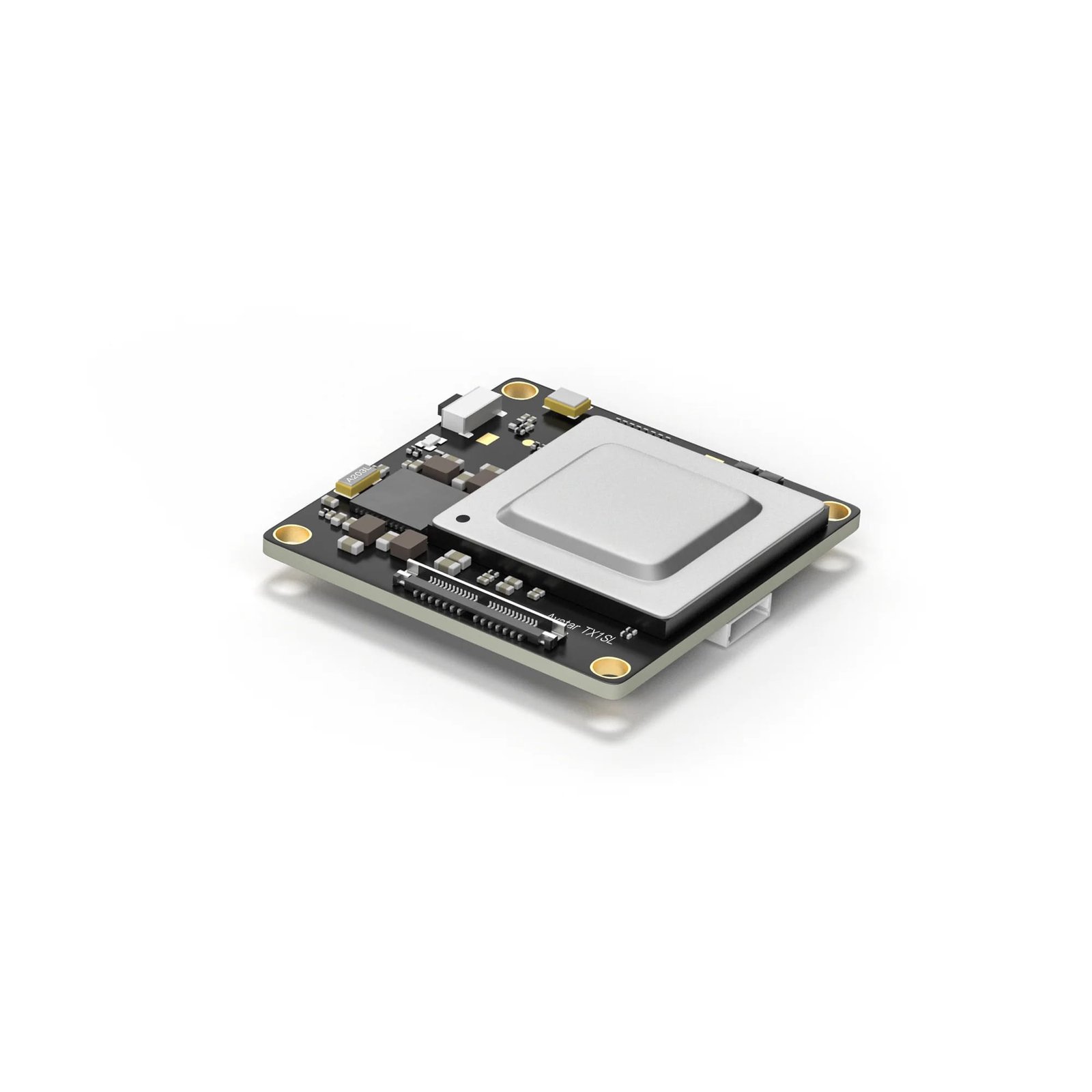

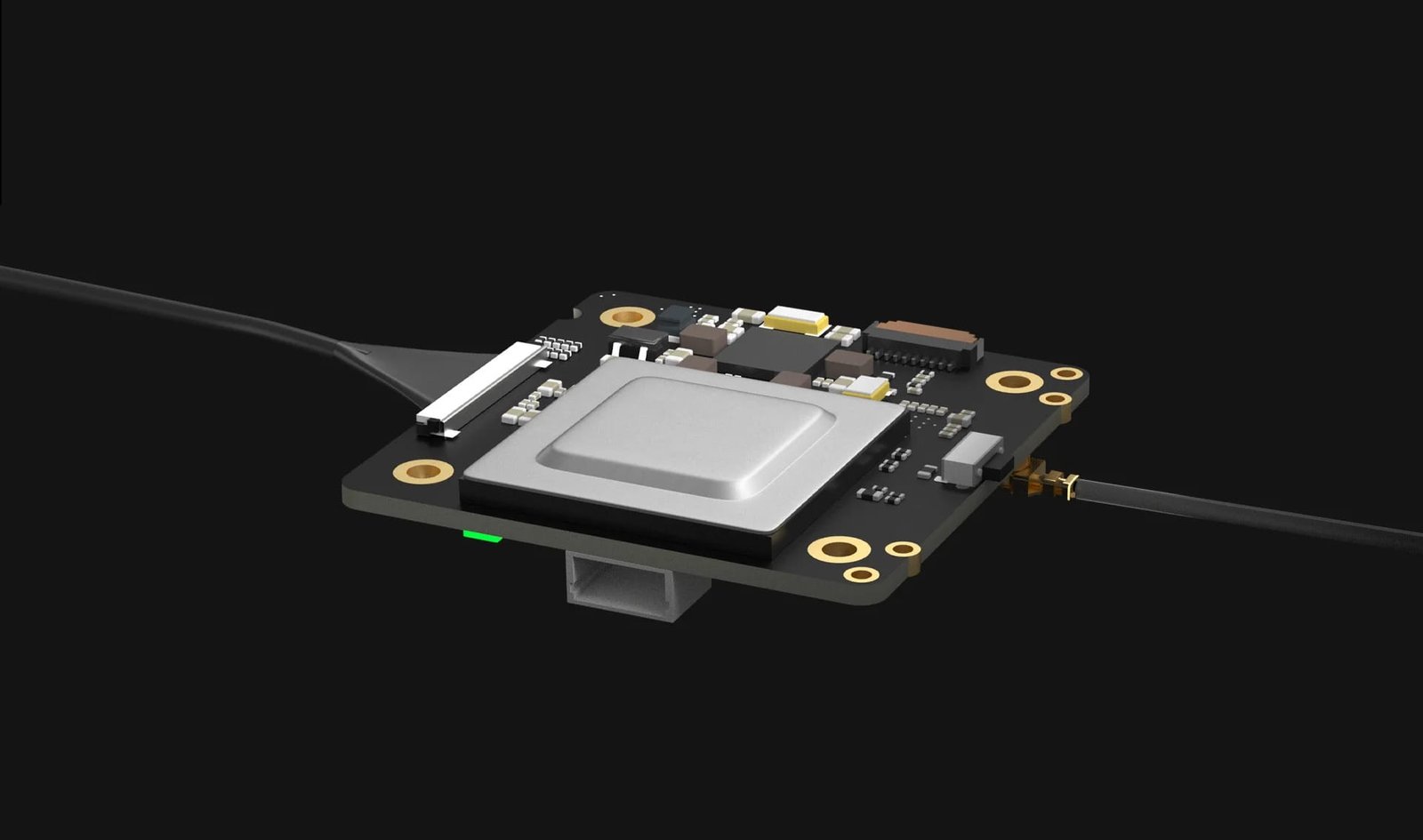

VTX

• Model: Avatar Mini 1S Module;
• Communication frequency: 5.725–5.850 GHz;
• Transmitter power (EIRP): FCC: <25.5 dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm;
• Connectors: JST1.0 × 6 (power), JST0.8 × 4 (USB);

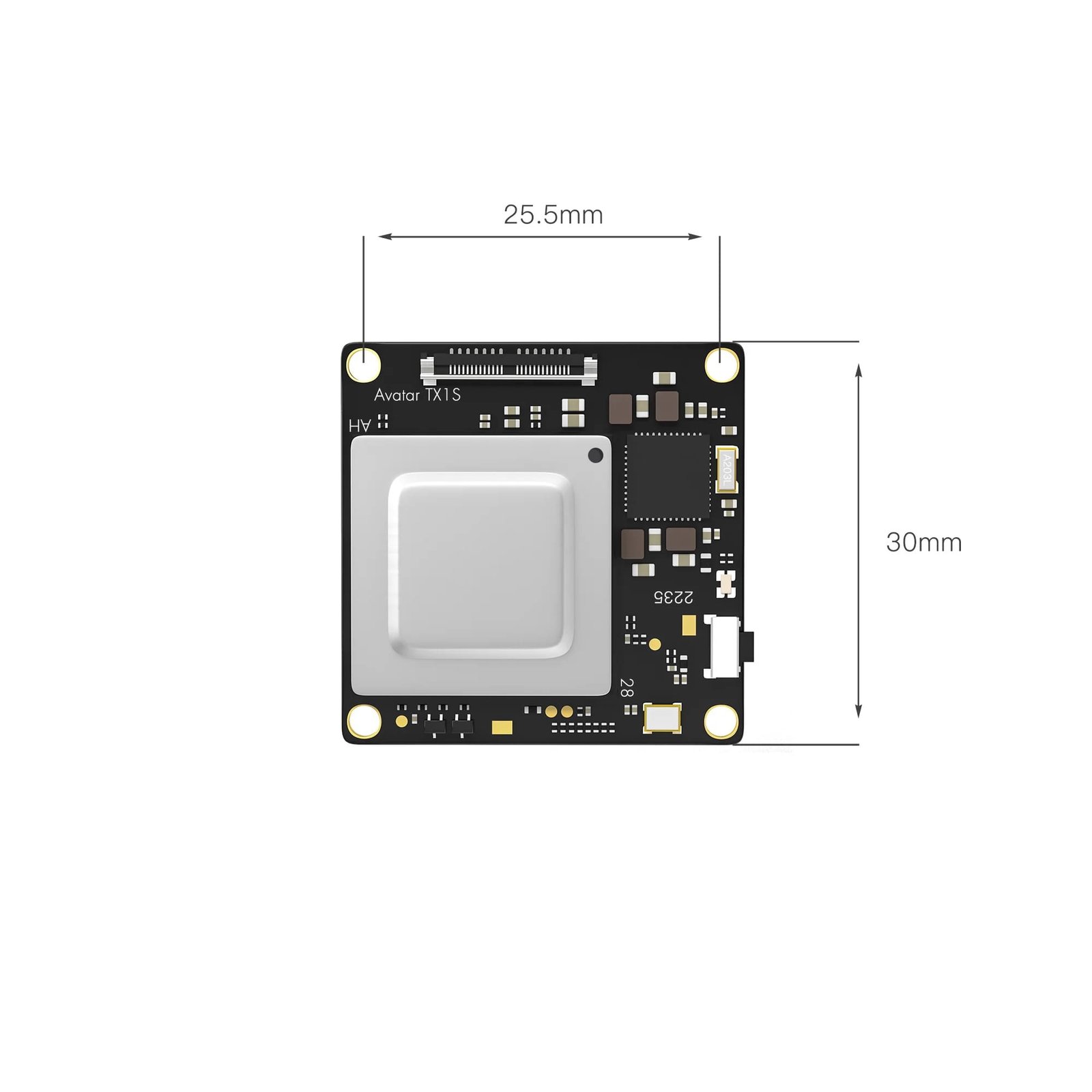

• Mounting holes: 25.5 × 25.5 mm;
• Dimensions: 30 × 30 × 6.5 mm;
• Memory: 8 GB (v2) / 32 GB (v3);
• Recording: 1080p / 720p;
• Weight: 6.8 g;
• Operating temperature: -20–40 °C;
• Number of channels: 8;
• Input voltage: 3.1-5 V (v2) / 3.1-13 V (v3);
• Supported FC systems: Betaflight, iNav, Fettec, KISS, ArduPilot;
• OSD: Canvas mode;
• Bitrate: 25 Mbps / 50 Mbps;
• Average latency: 22 ms;
• Antenna: IPEX.

Antenna

• Polarization: LHCP;
• Frequency band: 5600–6000 MHz;
• Average gain: 1.9 dBi;
• VSWR: <1.5;
• Cable length: 90 mm;
• Input impedance: 50 Ω;
• Interface: IPEX-1;
• Dimensions: 15 mm × 105 mm
• Weight: 2 g.

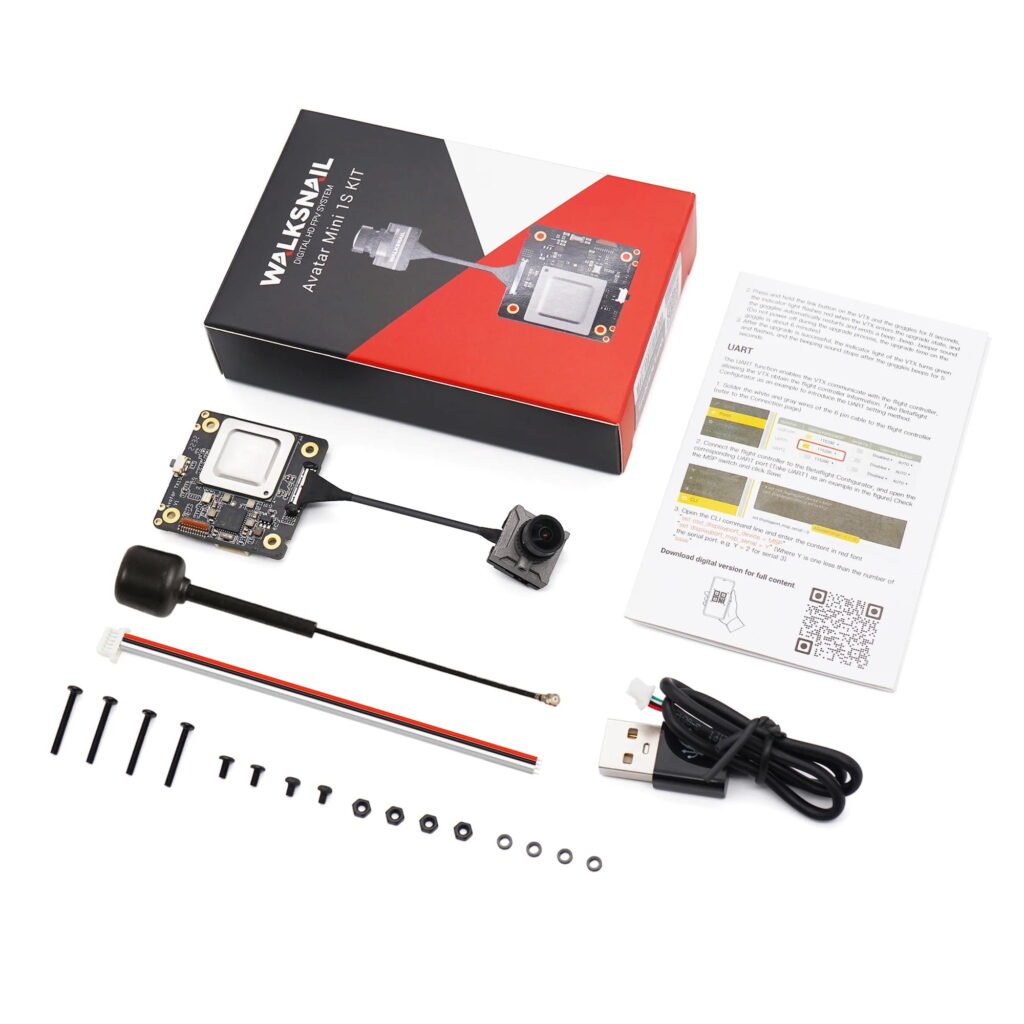

Package:

1x Avatar Mini 1S KIT;
1x 4-pin USB cable;
1x 6-pin power cable;
2x M2 × 3/4 mm screws;
4x M2 × 16mm screws;
4x M2 nuts;
5x 2.1 × 3.4 × 1 mm spacers.
