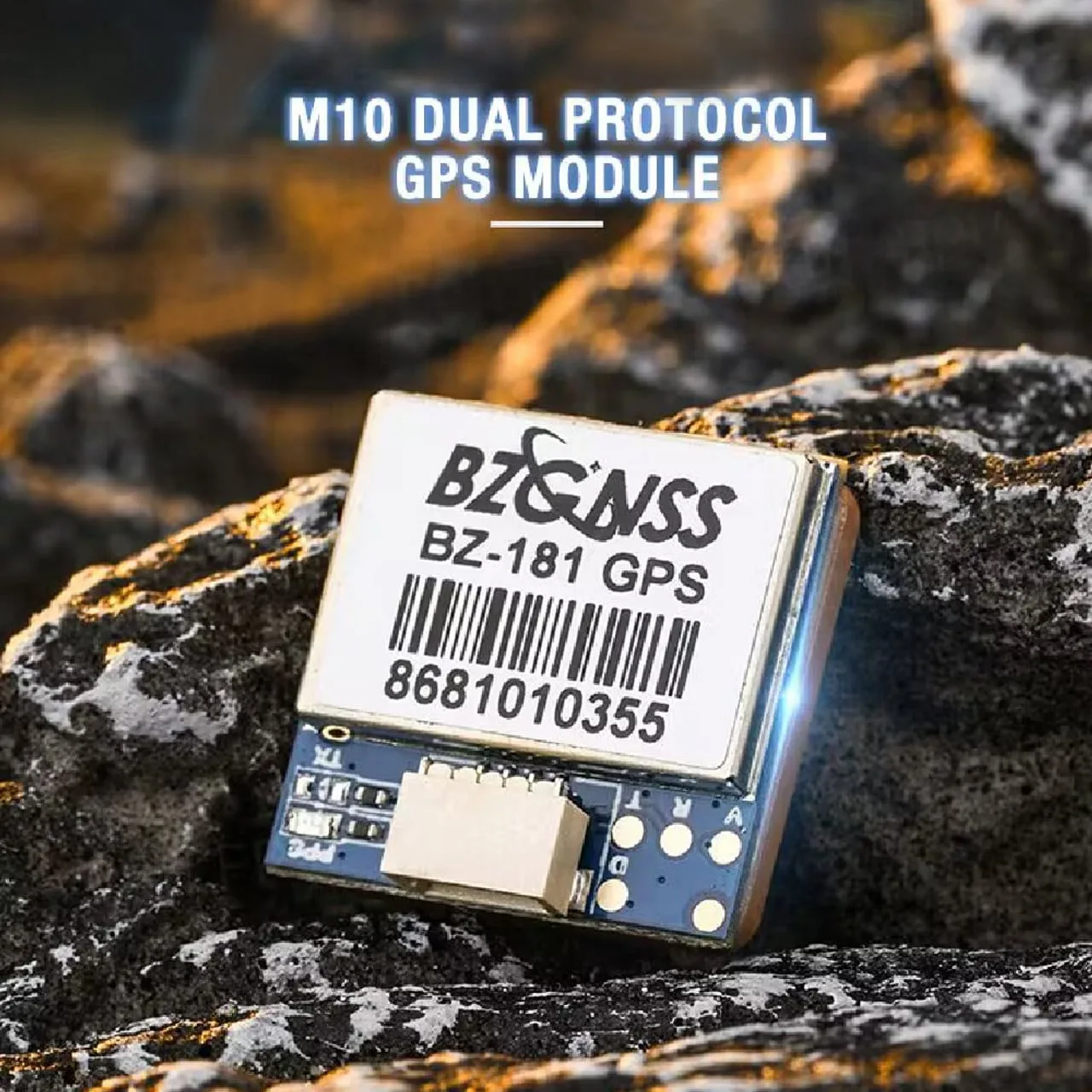

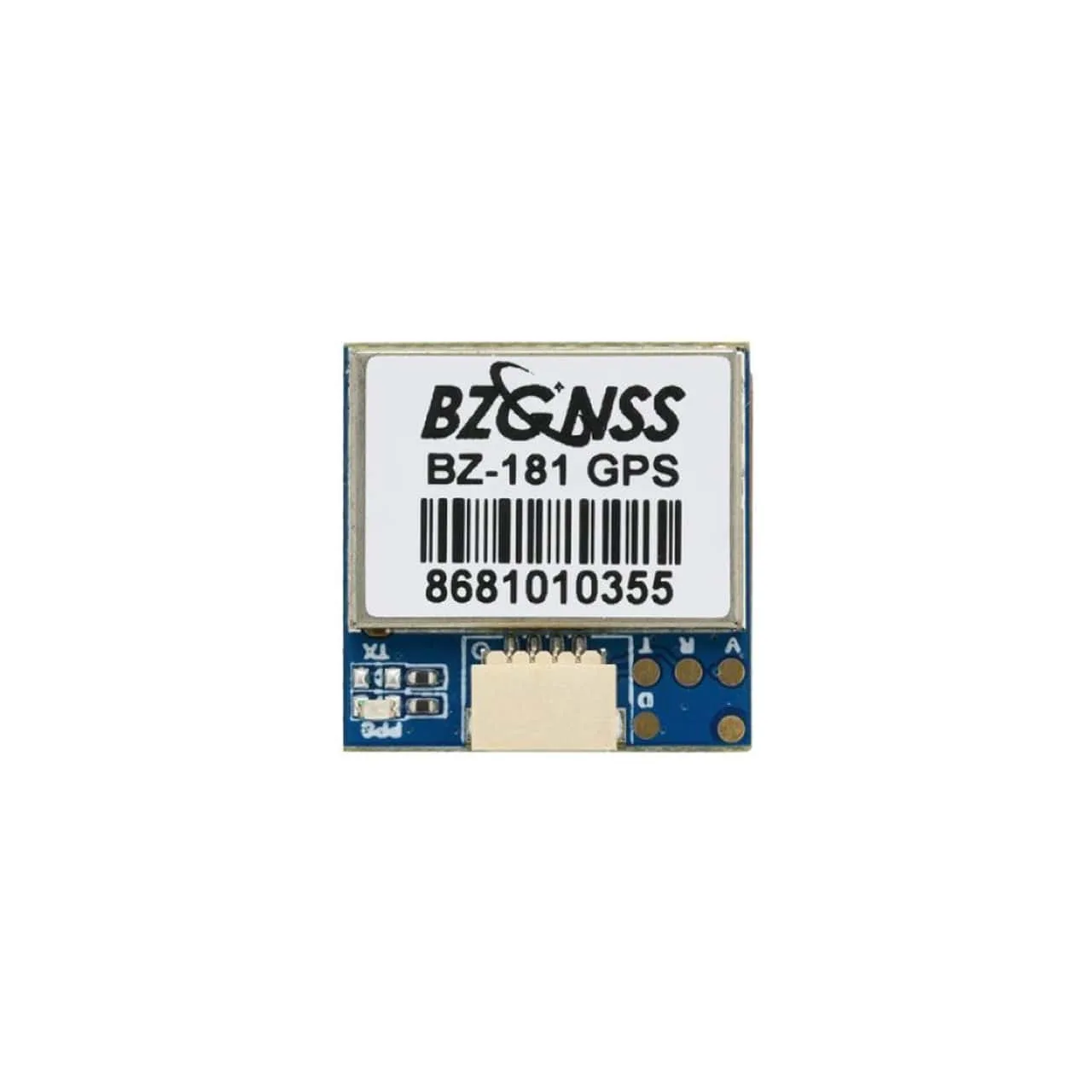

SpeedyBee BZGNSS BZ-181 GPS module

BZGNSS BZ-181 is a reliable GPS module designed to obtain accurate positioning information in various environmental conditions. It is equipped with a powerful antenna that ensures high accuracy, and wide integration capabilities allow this module to be easily applied in navigation and mapping solutions.

Specification:

• Brand: BZGNSS;
• Model: BZ-181;
• Type: GPS module;
• Receiver type: GPS, GLONASS, Galileo, QZSS, SBAS;
• Frequency: L1 band (1575.42 MHz);
• Channels: 72 channels;
• Positioning accuracy: Horizontal: less than 2.5 m (CEP);
• Speed accuracy: Less than 0.1 m/s;
• Time accuracy: ±30 ns;
• Launch time:
Cold start: less than 30 s;
Warm start: less than 5 s;
Hot start: less than 1 s;
• Sensitivity:
Tracking: -167 dBm;
Cold start: -148 dBm;
Hot start: -156 dBm;
• Refresh rate: Up to 10 Hz;
• Supply voltage: 3.3 V - 5 V;
• Power consumption: Less than 30 mA (in continuous tracking mode);

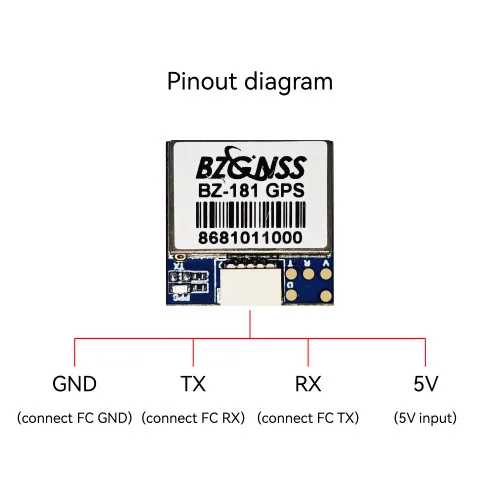

• Interfaces: UART, I2C, SPI;
• Data transfer rate: Configurable, default – 9600 bps;
• Antenna: Integrated ceramic wedge antenna, 25 x 25 mm;
• Dimensions: 25 x 25 x 8 mm;
• Weight: 10 g;
• Operating temperature: -40°C to +85°C;
• Storage temperature: -40°C to +85°C;
• Humidity: 5% RH – 95% RH (non-condensing);
• Mounting type: Surface mount (SMT);
• LED indicators: Power and status LED;
• Certificates: CE, FCC, RoHS;
• Software updates: Available via UART interface;
• Additional features:
Integrated LNA and SAW filter;
Multi-directional signal interference reduction;
A-GPS support;
Support for DGPS and RTK modes.

Package:

1x SpeedyBee BZGNSS BZ-181 GPS
