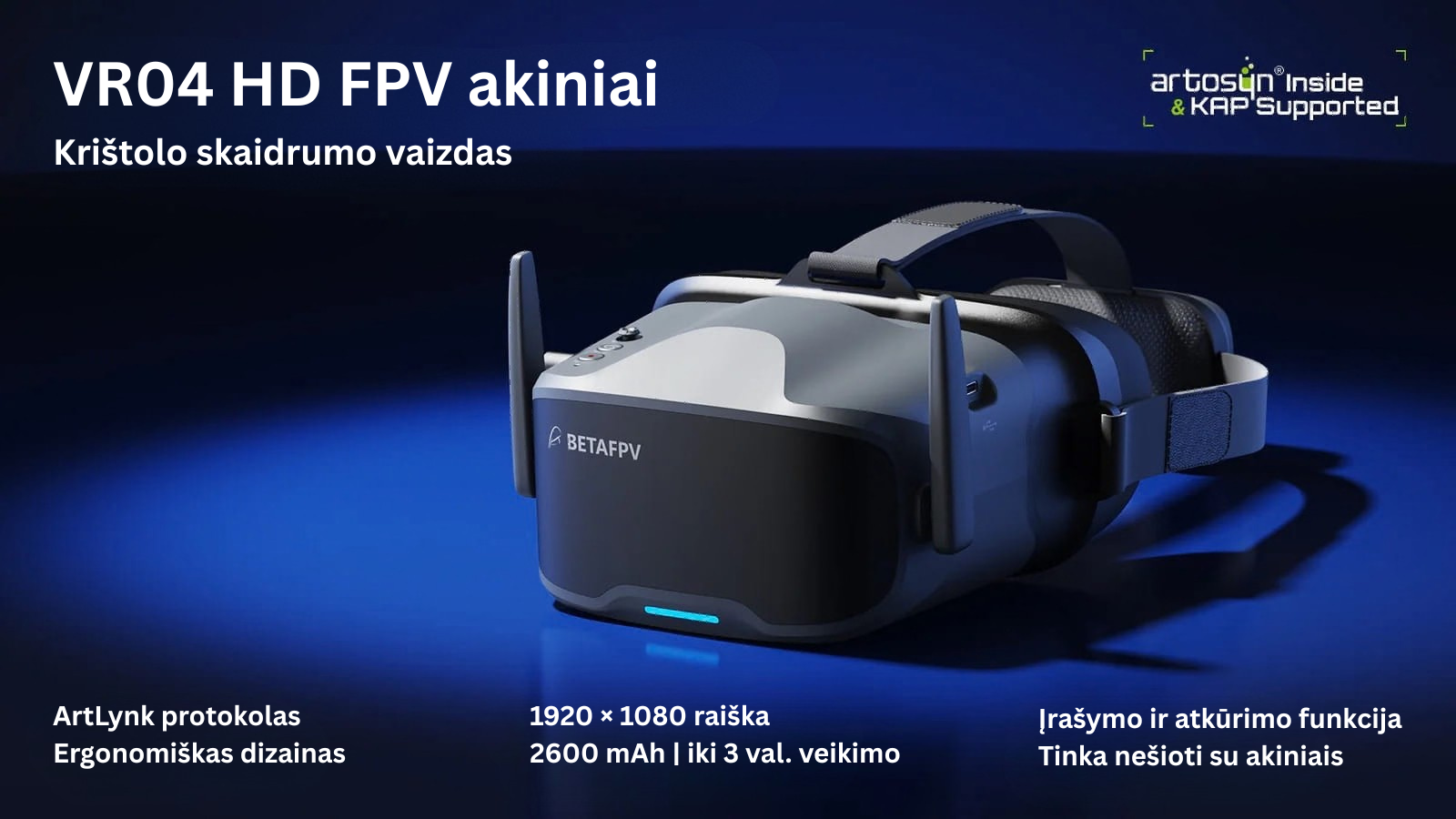

BETAFPV VR04 HD / HD PRO FPV Goggles

The VR04 HD FPV goggles are designed for maximum engagement and comfort. The spacious interior allows for comfortable use with prescription glasses, while the molded padding and soft nose pad effectively block external light. The built-in 2600 mAh battery provides up to 3 hours of operation, and recording allows you to capture HD footage directly to a microSD card. The goggles are compatible with the P1 Air Unit, making them suitable for both individual projects and bind-and-fly models.

Features:

• Suitable for use with prescription glasses;
• Completely blocks light: molded padding and soft nose pad;
• Live video output (VR04 HD Pro): transmit the flight image to an external display and share the flight experience with others;
• Compatible with P1 Air Unit;
• 2600 mAh battery – up to 3 hours of operation;
• HD video recording directly into the glasses.

Specification:

VR04 HD

• Size: 168.8 x 182.1 x 98.5 mm;
• Weight: 400 g ±10 g (without battery);
• Display: LCD;
• Screen size: 4.5 inches;
• Screen resolution: 1920 × 1080;
• Transmission distance: >400 m;
• Bit rate: up to 25 Mbps;
• Battery: 2600 mAh;
• Operating time: about 3 hours;
• Charging port: USB Type-C;
• Memory card: MicroSD (not included), supports FAT32, up to 1 TB;
• Recording resolution: 1080p @ 60 fps.

VR04 HD PRO

• Size: 168.8 x 182.1 x 98.5 mm;
• Weight: 400 g ± 10 g (without battery);
• Display type: LCD;
• Screen size: 4.5″;
• Screen resolution: 1920 × 1080;
• Video transmission distance: >400 m;
• Maximum bitrate: 25 Mbps;
• Battery capacity: 3800 mAh;
• Operating time: about 4 hours in normal mode;
• Charging port: USB Type-C (on the headband battery holder);
• Supported file system: FAT32;
• Memory card: MicroSD (not included): 1 TB;
• Video recording resolution: 1080p / 60 fps.

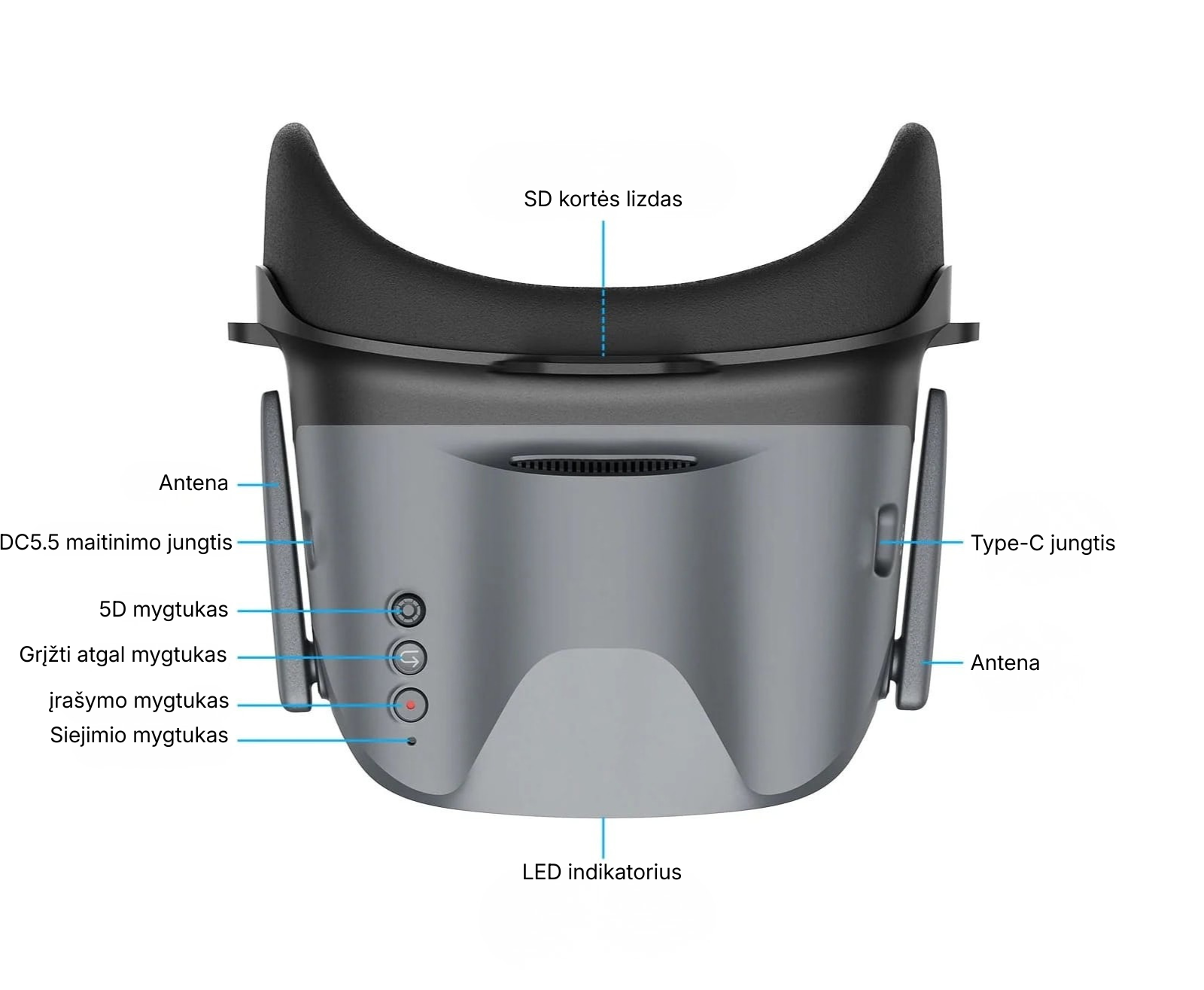

Diagram

VR04 HD

VR04 HD PRO

Comparison table

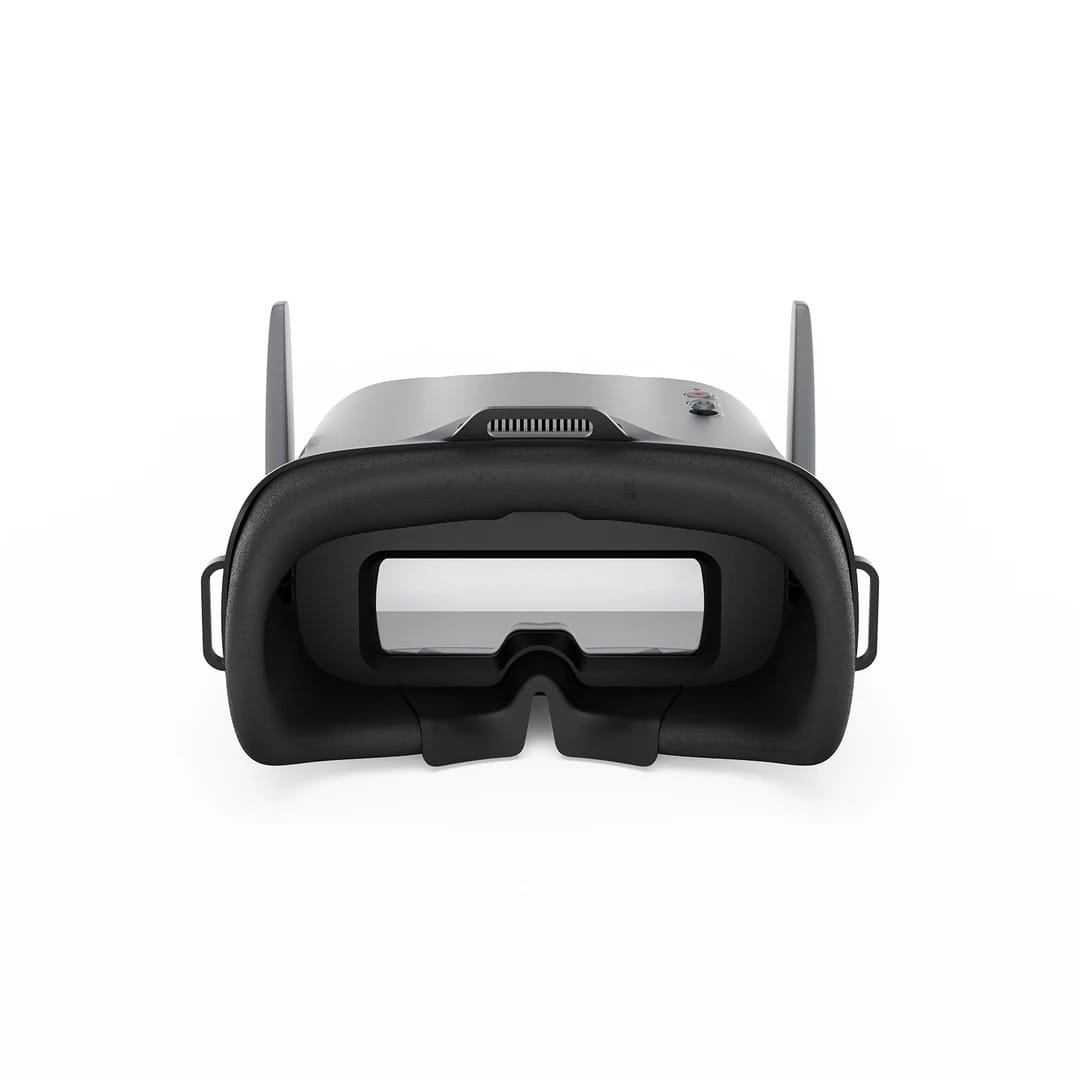

Engagement and comfort

The VR04 HD FPV goggles are designed for comfortable long-term wear. The spacious design allows the FPV goggles to be used with prescription glasses, while the high-quality PU padding and soft silicone nose pad effectively block external light.

Flexibility

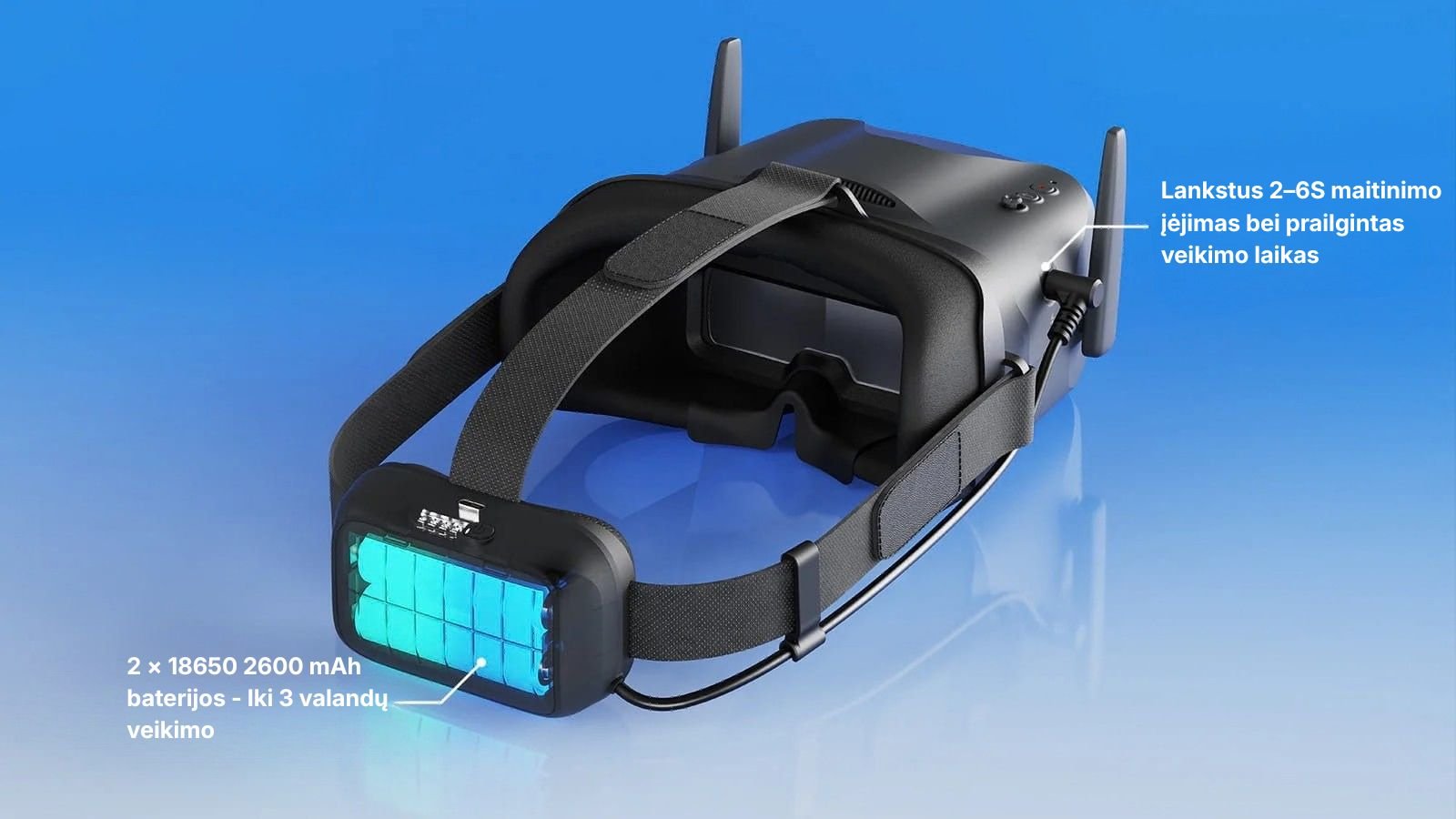

The VR04 HD model is powered by two 2600mAh batteries for up to 3 hours of flight time, while the VR04 HD Pro has two 3800mAh batteries for up to 4 hours of flight time on a single charge. Both models can also be powered directly from any 2-6S whoop battery, making it convenient for longer flight sessions or quick battery swaps.

Video recording

The VR04 HD has a 1920 x 1080 display that delivers sharp images. It also supports 1080p@60fps recording - with the push of a button you can record footage directly to a microSD card (up to 1TB).

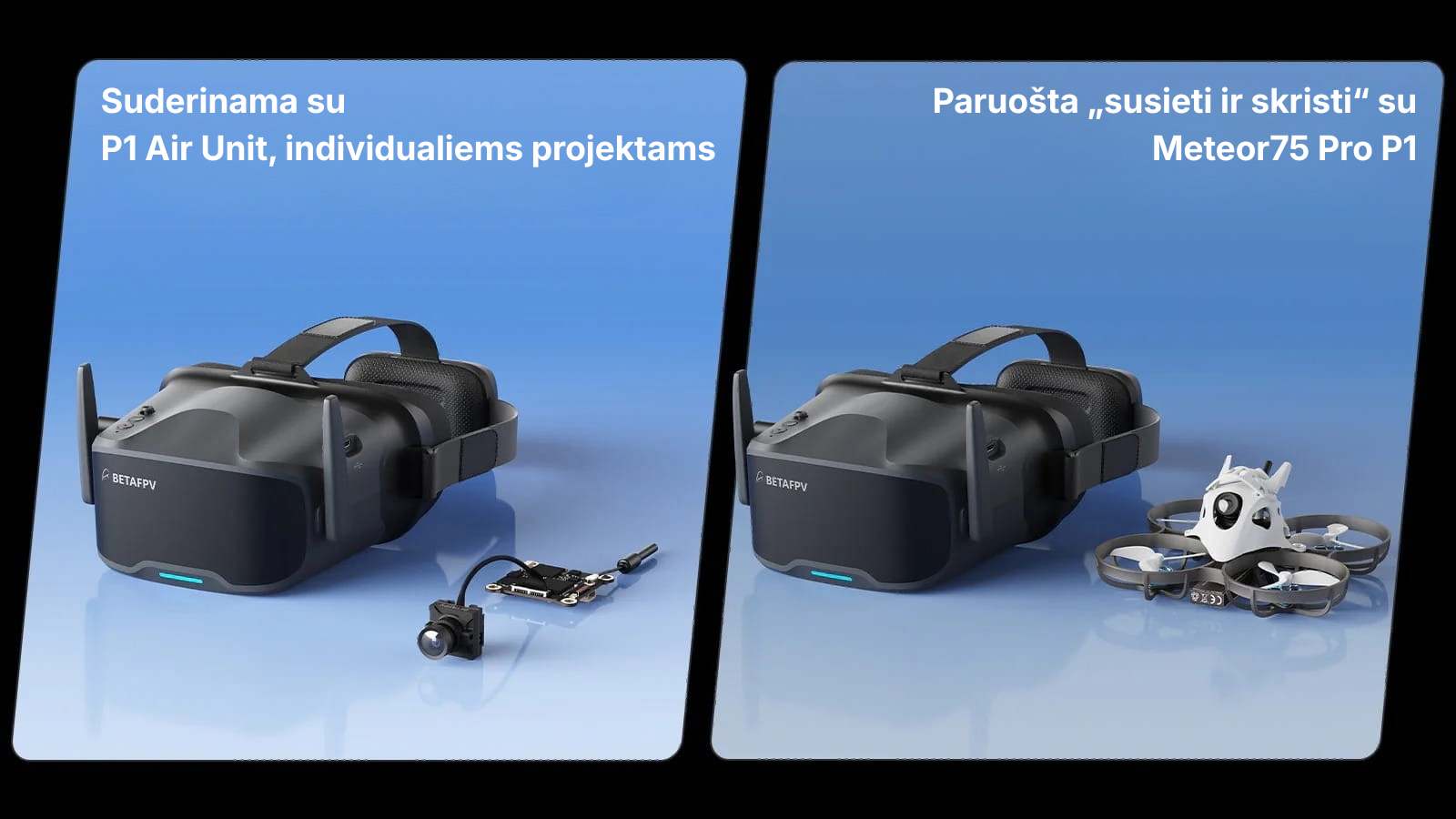

Wide compatibility

The VR04 HD goggles are compatible with the P1 Air Unit, making them perfect for custom drone builds. They also work with ready-made bind-and-fly models like the Meteor75 Pro P1. Whether you build your own or use a ready-made system, you can get stunning HD images as soon as you connect the system.

VR04 HD Pro: Live video output

The VR04 HD Pro features a USB Type-C port that supports direct video transmission via the DisplayPort (DP) protocol. This allows you to transmit flight footage to external displays in real time, view it on a larger screen, or share your flight experience with others.

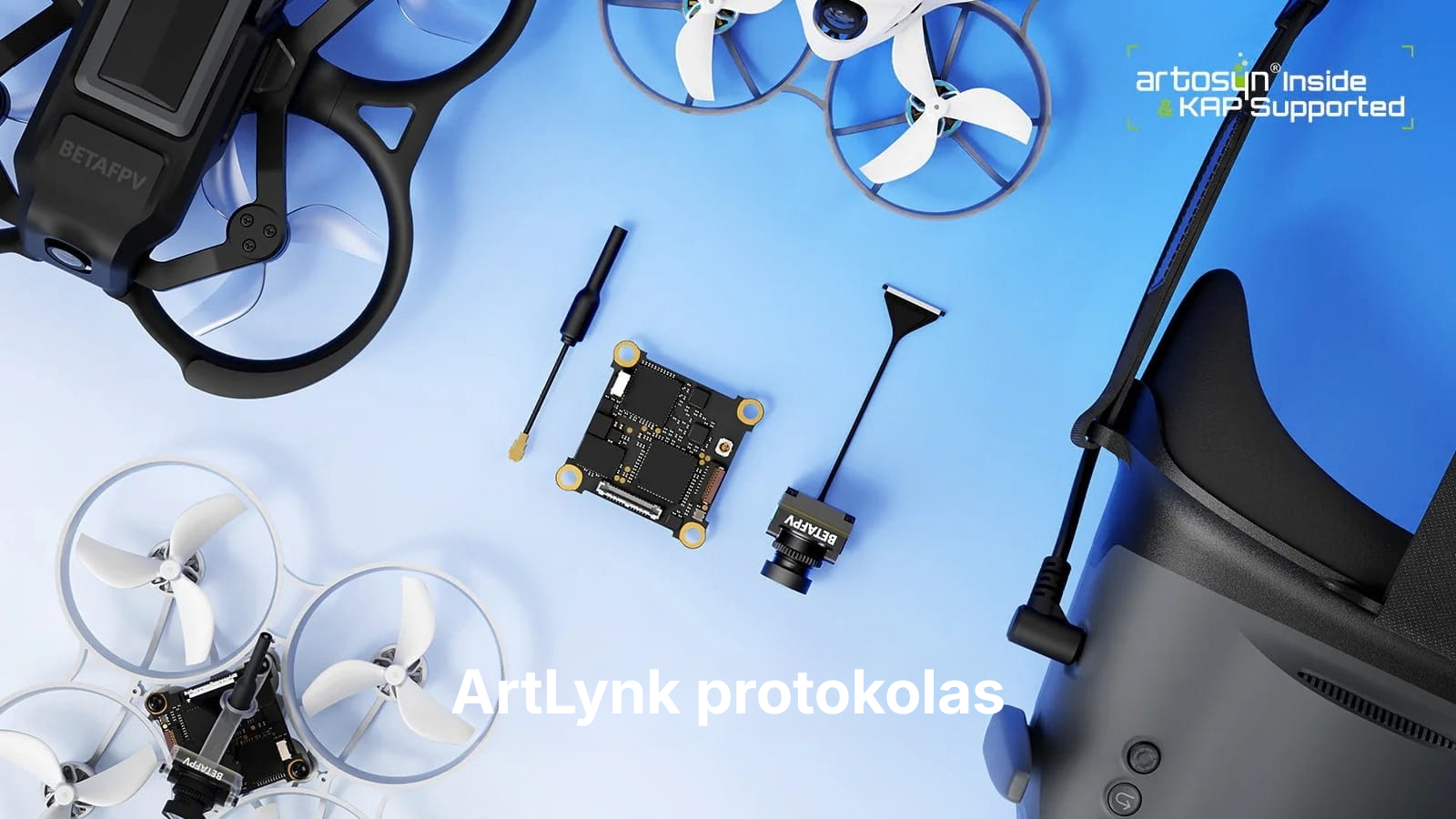

Learn more about the ArtLynk protocol

ArtLynk is a low-latency, long-range digital FPV protocol for drones, offering a more stable connection than analog VTX. It transmits HD video in real time (~60ms latency), ensuring smooth control and a clear FPV image.

Features:

• Artosyn inside + KAP support – Uses the AR803X chip, with KAP technology support, ensuring compatibility between various FPV devices;
• Open ecosystem – ArtLynk is not a single company system – it is used by many FPV manufacturers, so you can choose from a wide range of compatible products;
• Wide Compatibility – Works with VR04 HD, Aquila20 HD, Meteor75 Pro P1, etc.

VR04 HD FPV goggles software.

VR04 HD PRO FPV goggles software.

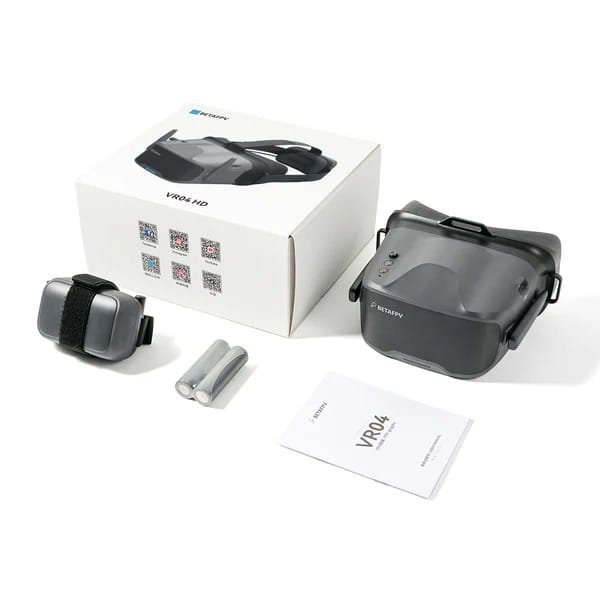

Package:

VR04 HD

1x VR04 HD FPV goggles;
1x Adjustable head strap;
2x 18650 2600mAh batteries;
1x User manual.

VR04 HD PRO

1x VR04 HD PRO FPV goggles;
1x Adjustable head strap;
2x 18650 2600mAh batteries;
1x User manual.
