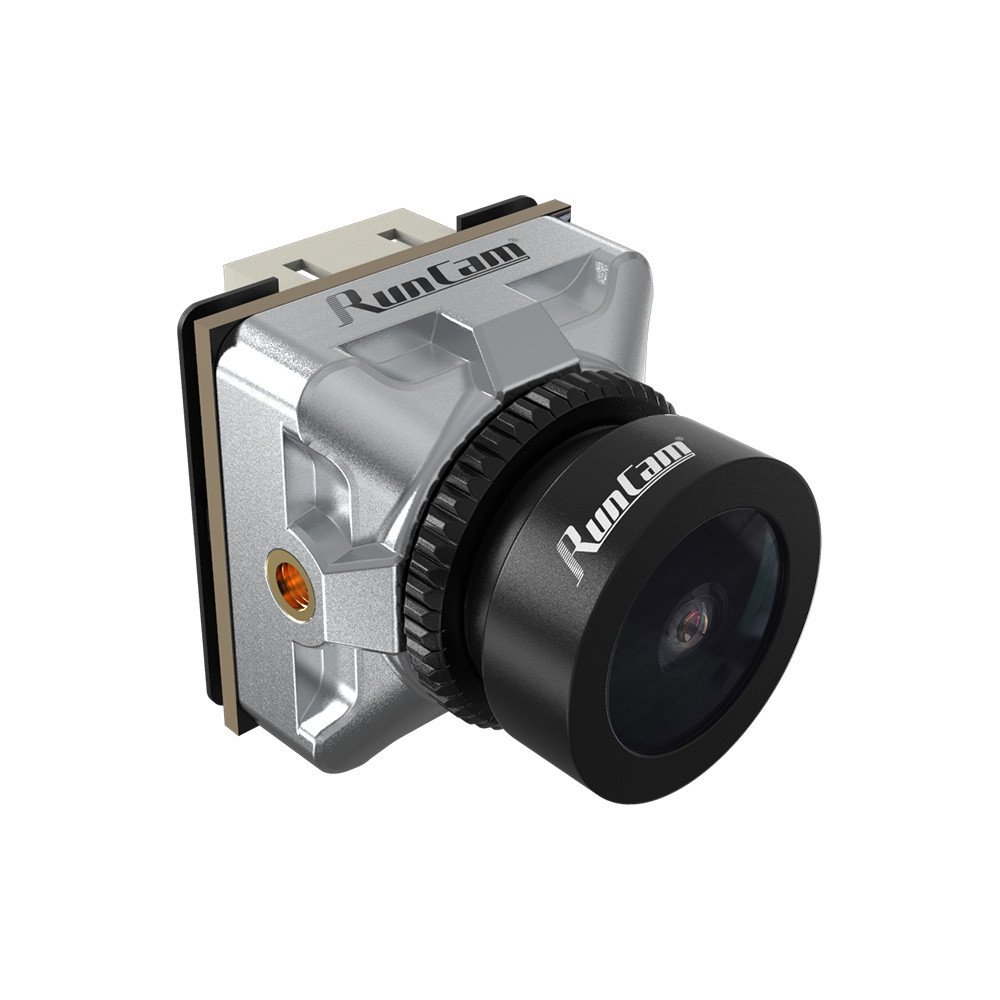

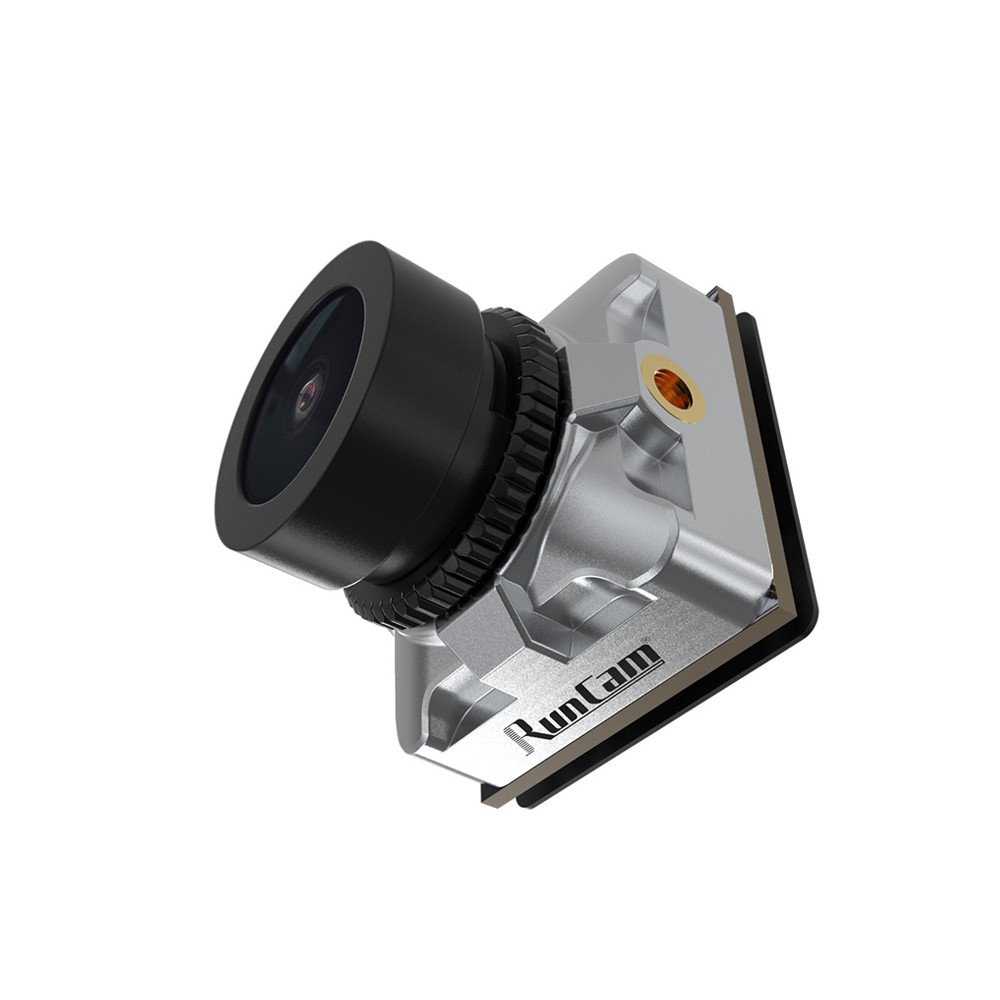

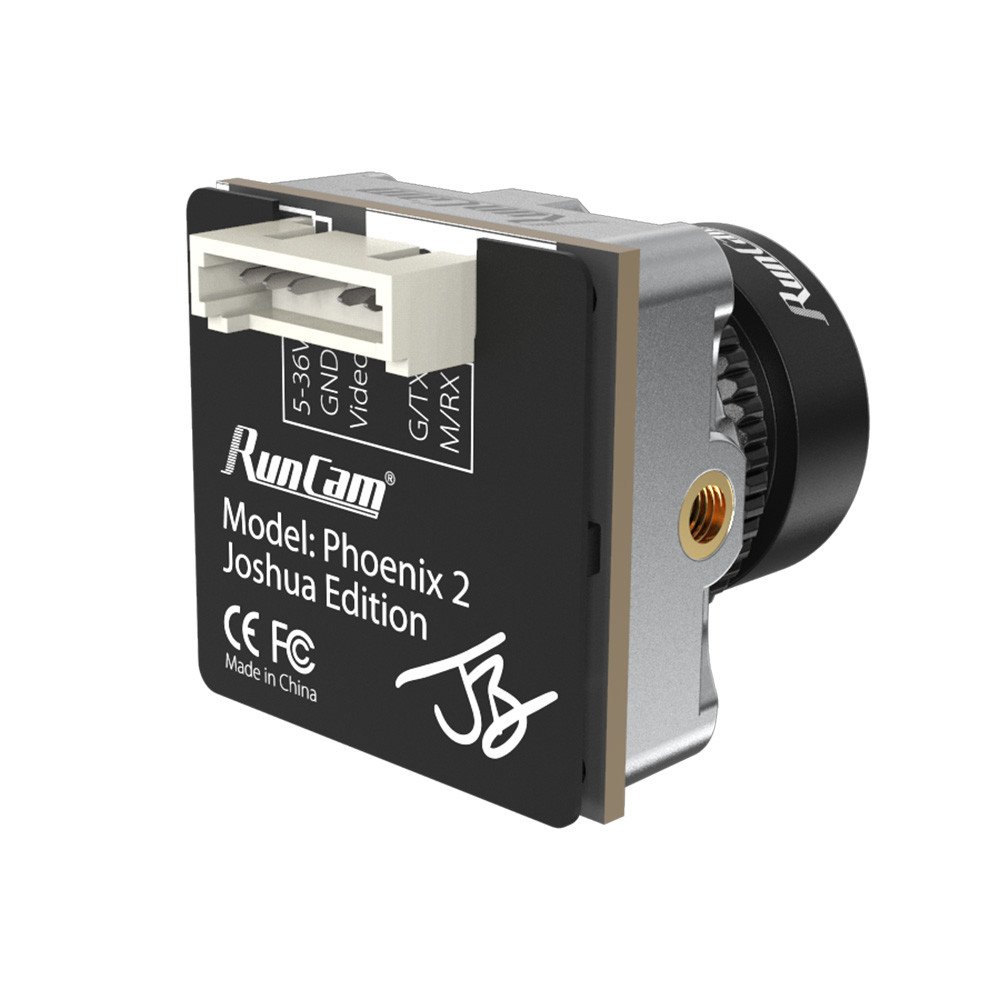

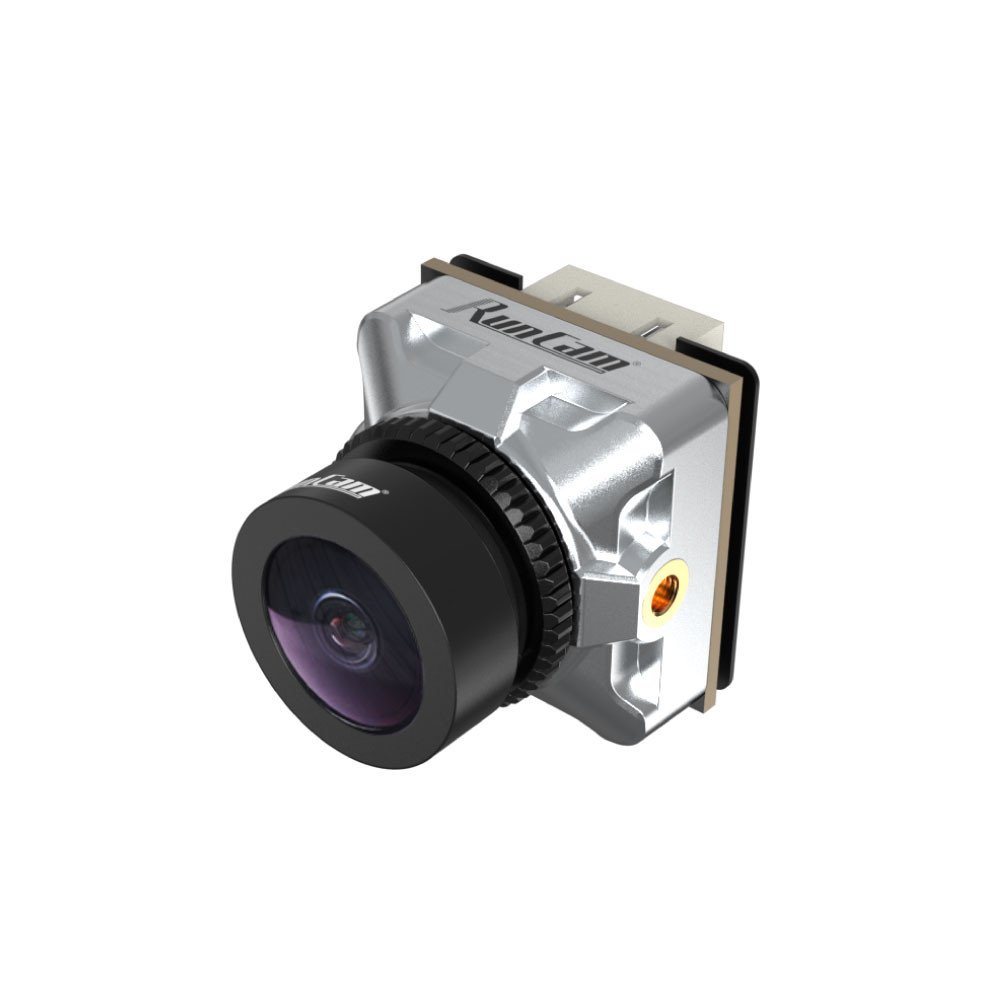

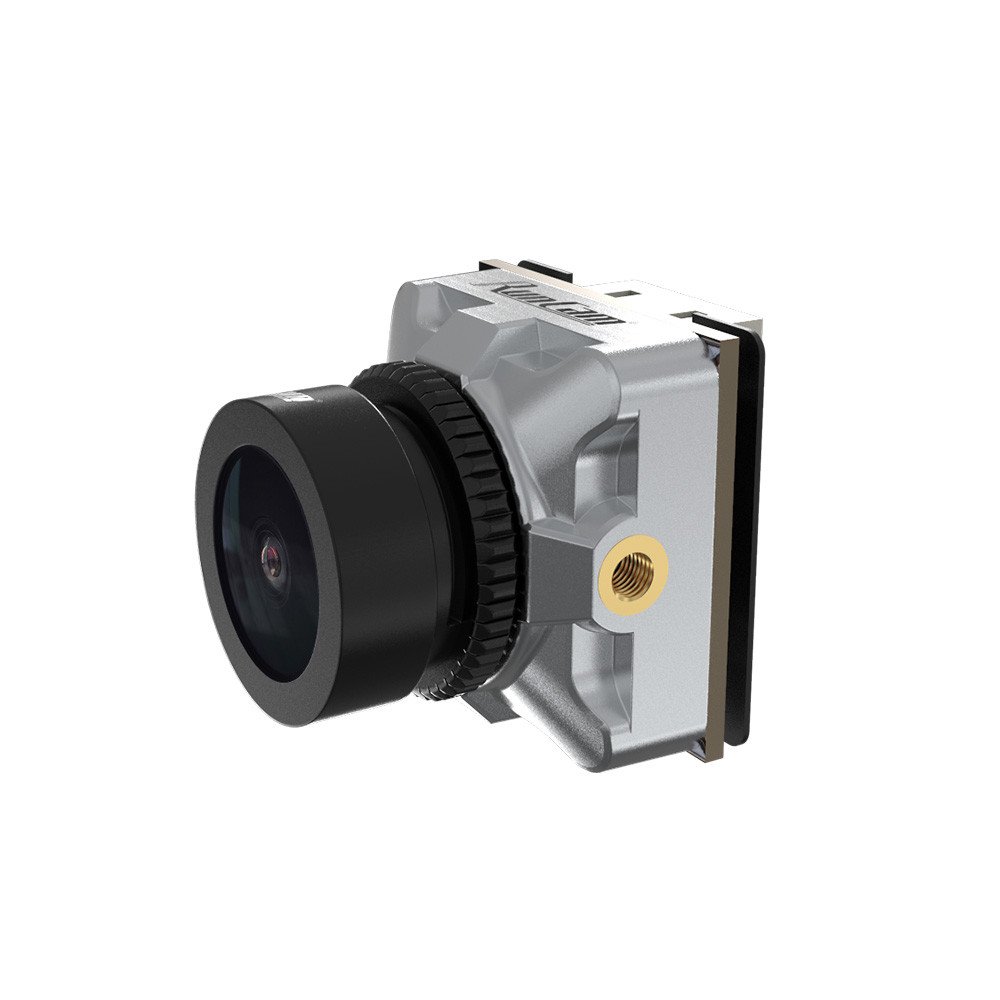

RunCam Phoenix 2 Joshua Edition camera

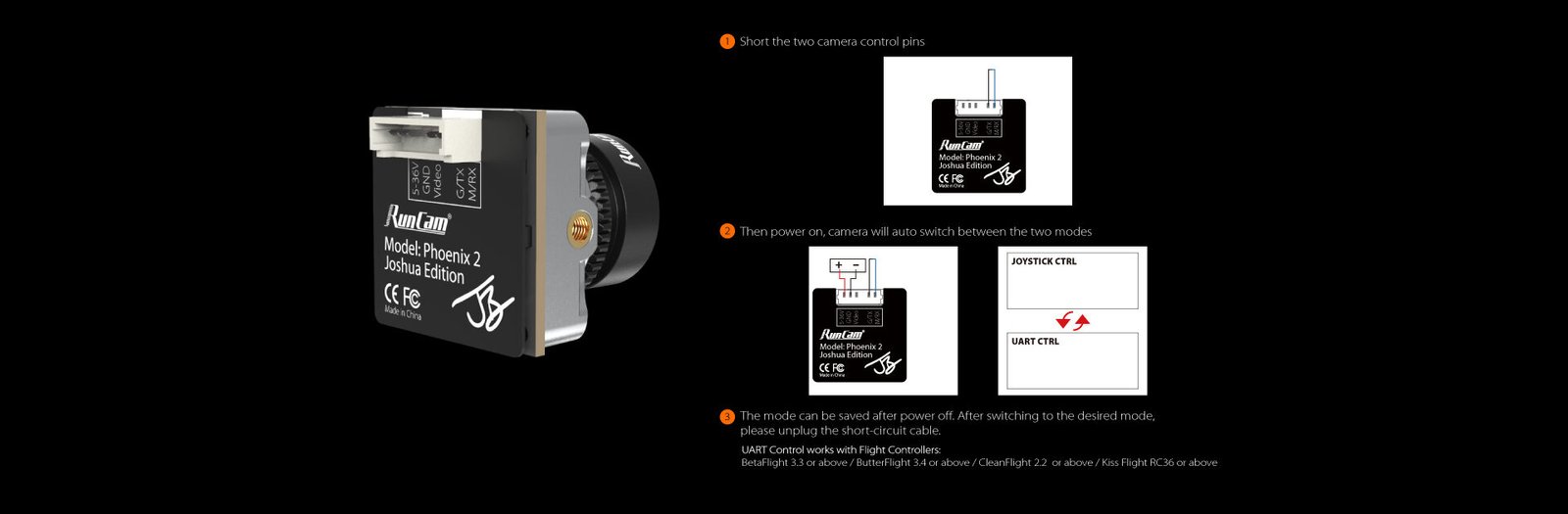

Joshua Edition – UART control version.

The current control mode will be displayed briefly in the upper left corner of the screen.
The default mode is joystick control.

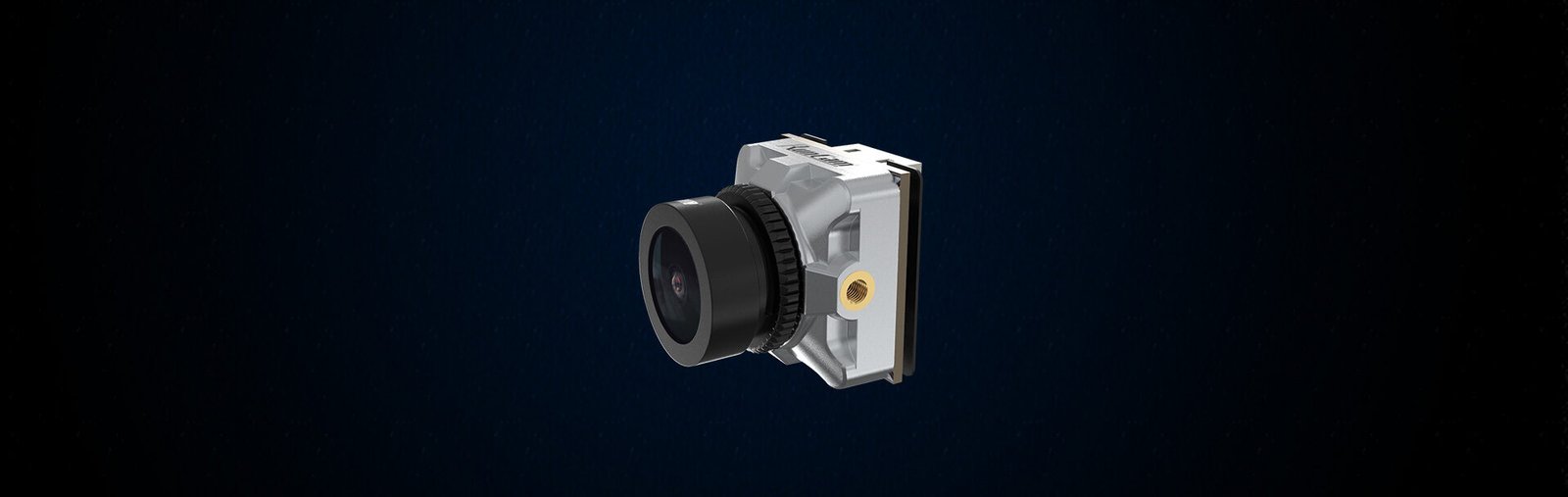

RunCam Phoenix 2 Day & Night freestyle FPV camera

The RunCam Phoenix 2 is a day and night FPV camera with a large 1/2″ image sensor and a wide ƒ/2.0 aperture, ensuring excellent visibility even in low light conditions. The camera features reduced digital image jitter and a clean, sharp image, making it perfect for freestyle flights at any time of day.

Rich and natural colors

An updated processor and high-end 1/2″ image sensor allow the RunCam Phoenix 2 to capture bright, high-definition images with rich yet natural colors, ensuring excellent image quality on every flight.

Improved performance in low light environments

Thanks to its advanced 1/2″ Super Global WDR image sensor, the RunCam Phoenix 2 provides even better low-light vision than the RunCam Eagle, allowing you to fly confidently even at dusk or in challenging lighting conditions.

F/2.0 wide lens with 6-layer glass

A high-quality 6-layer glass lens with an ƒ/2.0 aperture reduces red reflections and purple outlines, so the image remains cleaner, sharper and with more natural colors.

Low video latency

The camera features extremely low video transmission latency, comparable to the RunCam Eagle model, making it perfect for smooth and precise freestyle flights.

Specification:

• Product name: RunCam Phoenix 2 Joshua Edition;
• Image sensor: 1/2″ CMOS;
• Horizontal resolution: 1000 TV lines (TVL);
• Lens: 2.1 mm (M12), FOV 155° (4:3);
• Screen format: 4:3 / 16:9, switchable;
• Mirror Image / Flip: Can be enabled;
• Video signal system: PAL / NTSC, switchable;
• Signal-to-noise ratio (S/N): > 50 dB (AGC off);
• Electronic shutter speed: Automatic;
• Automatic Gain Control (AGC): Automatic;
• Minimum illumination: 0.001 Lux @ F1.2;
• Wide Dynamic Range (WDR): Global WDR;
• Day/night modes: Color/Black and white/External/Auto;
• Menu control: Wired control;
• Power supply: DC 5-36 V;
• Current strength:
200mA @ 5V;
85mA @ 12V;
• Housing material: ABS plastic;
• Net weight: 9 g;
• Dimensions: 19 mm × 19 mm × 19 mm.

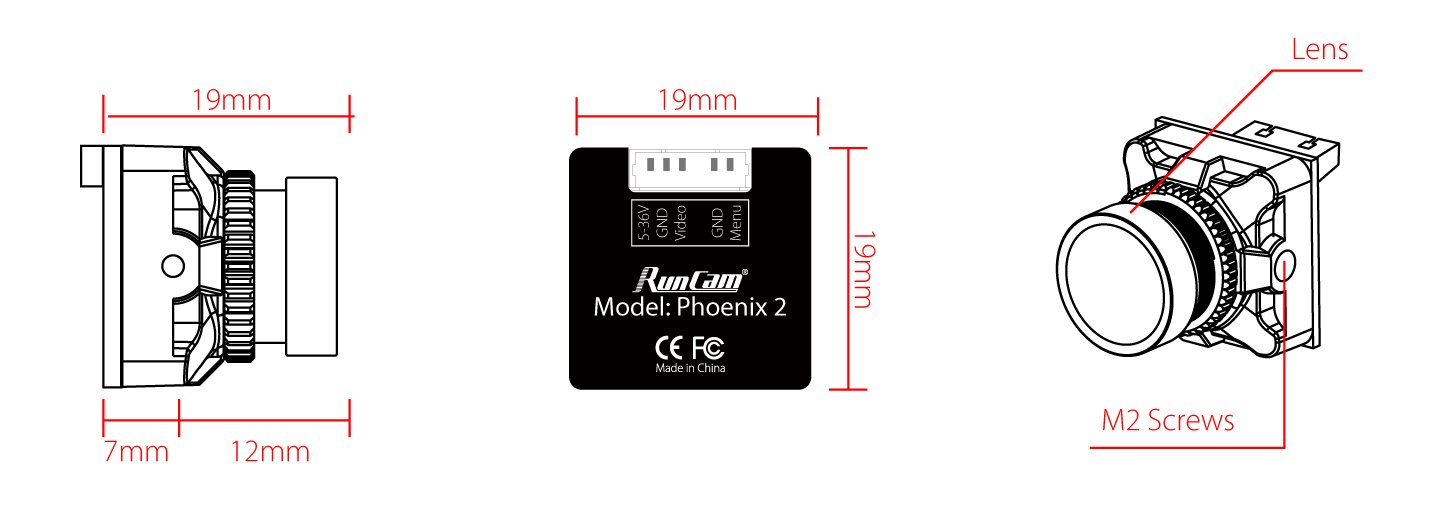

Measurements:

Package:

1 x RunCam Phoenix 2 Joshua Edition camera;
1 x 6-pin FPV silicone cable;
1 x set of mounting screws;
1 x user manual.
