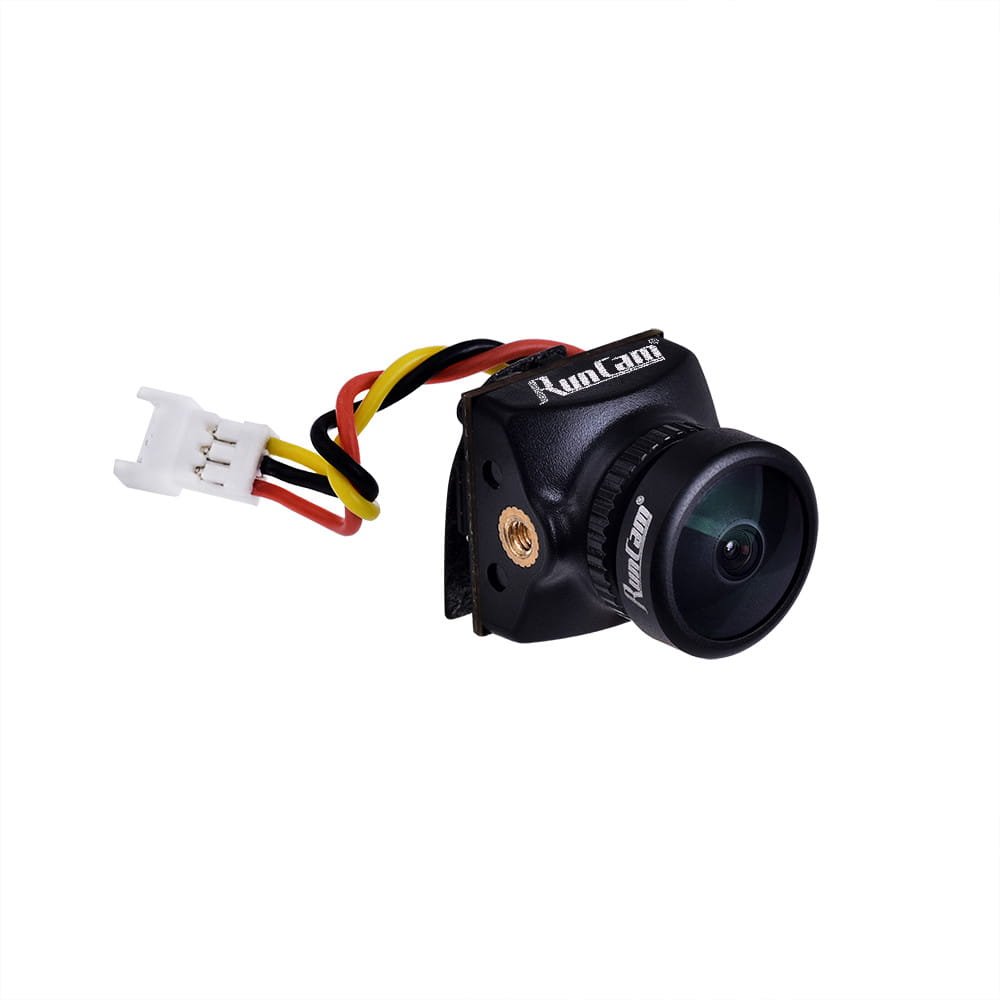

RunCam Nano 2 camera

This compact FPV camera is designed for RC models and drones, where low weight, high image quality and a wide field of view are important. The camera has a 1/3″ CMOS image sensor and 700 TVL resolution, ensuring a clear and detailed image in real time. The lens has a wide viewing angle of 170° (1.8 mm), allowing you to see more details of the track and better orient yourself in space.

Measurements:

Specification:

• Product name: RunCam Nano 2;
• Image sensor: 1/3″ CMOS;
• Horizontal resolution: 700 TV lines (TVL);
• Lens: 1.8 mm (M8), FOV 170°;
• Video signal system: PAL/NTSC (not switchable);
• Signal-to-noise ratio (S/N): > 50 dB;
• Electronic shutter speed: Automatic;
• Automatic Gain Control (AGC): Automatic;
• Minimum illumination: 0.01 Lux @ F1.2;
• Wide Dynamic Range (D-WDR): Automatic;
• Day/night modes: Color image;
• Power supply: DC 3-5 V;
• Current strength:
110mA @ 5V;
120mA @ 3.3V;
• Housing material: ABS plastic;
• Net weight: 3.2 g;
• Dimensions: 14 mm × 14 mm × 16 mm.

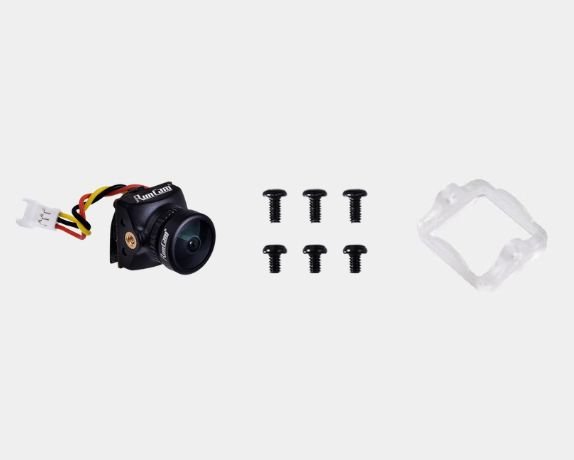

Package:

1x RunCam Nano 2 camera;
1x Mounting bracket;
1x Mounting screws.
