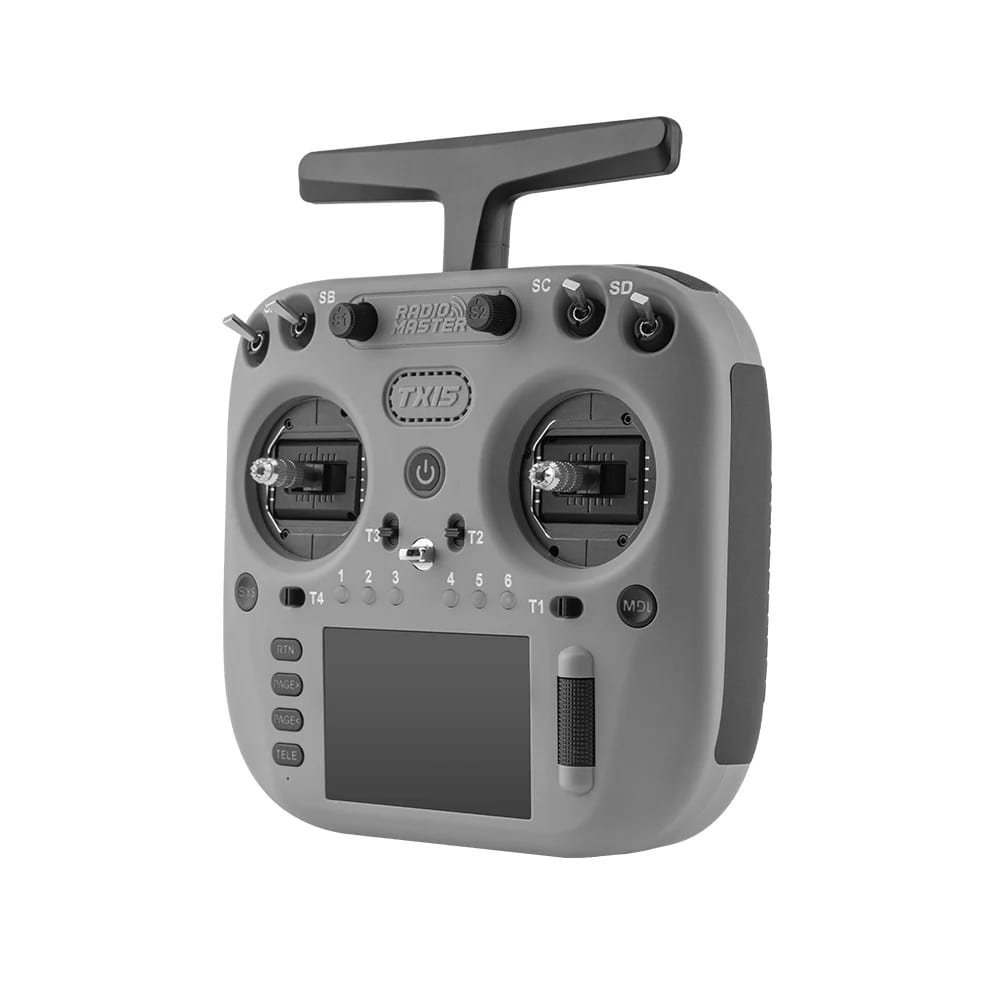

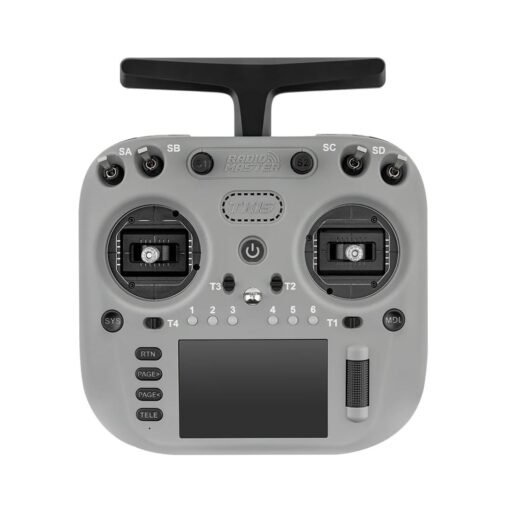

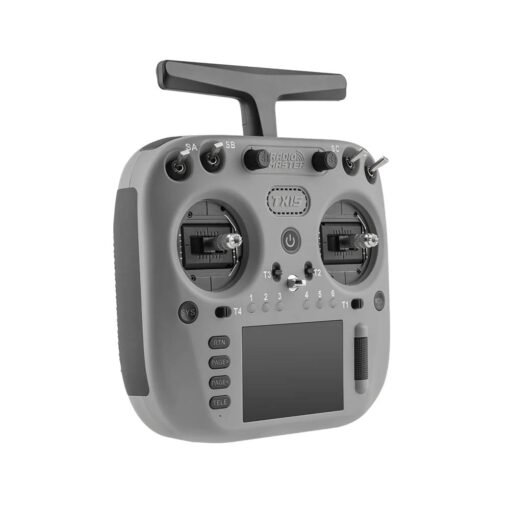

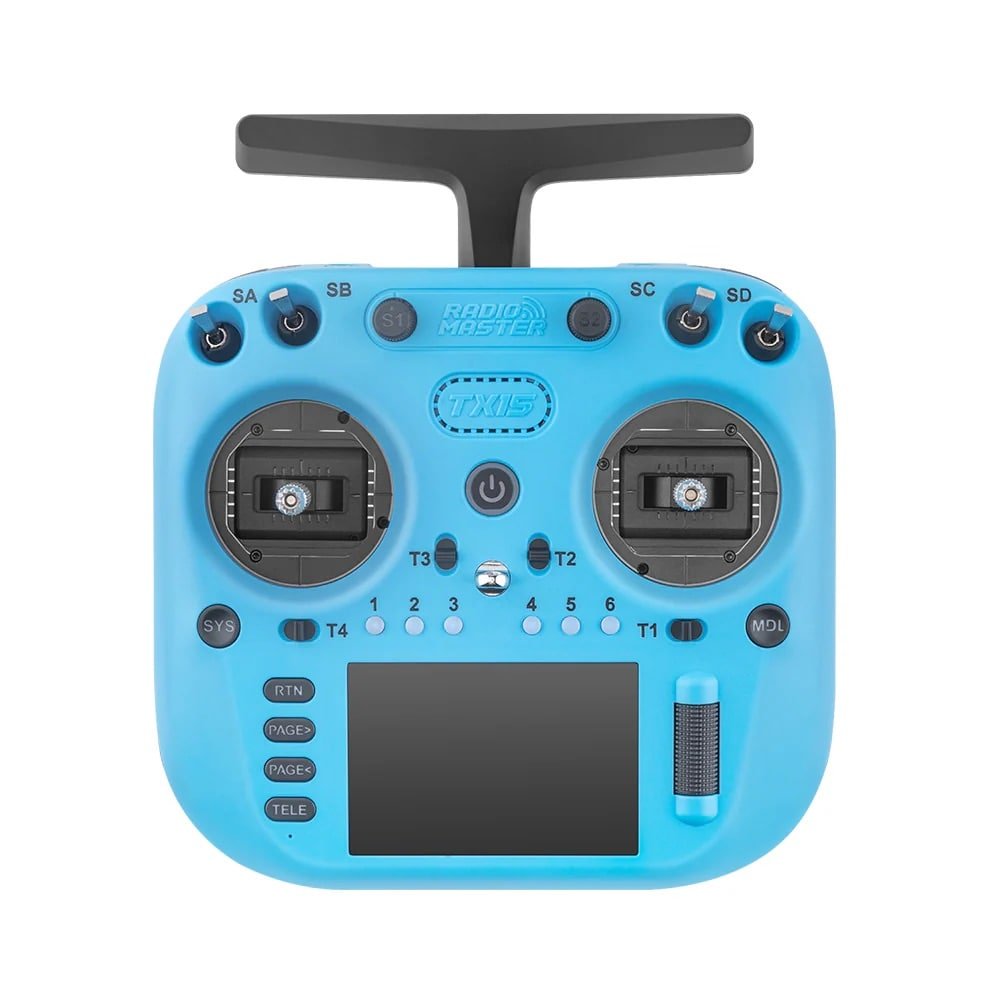

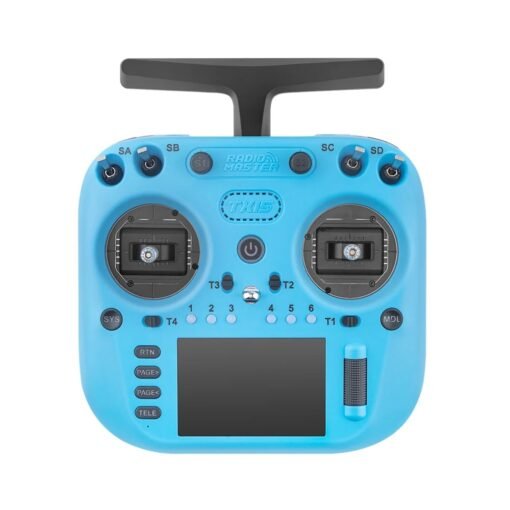

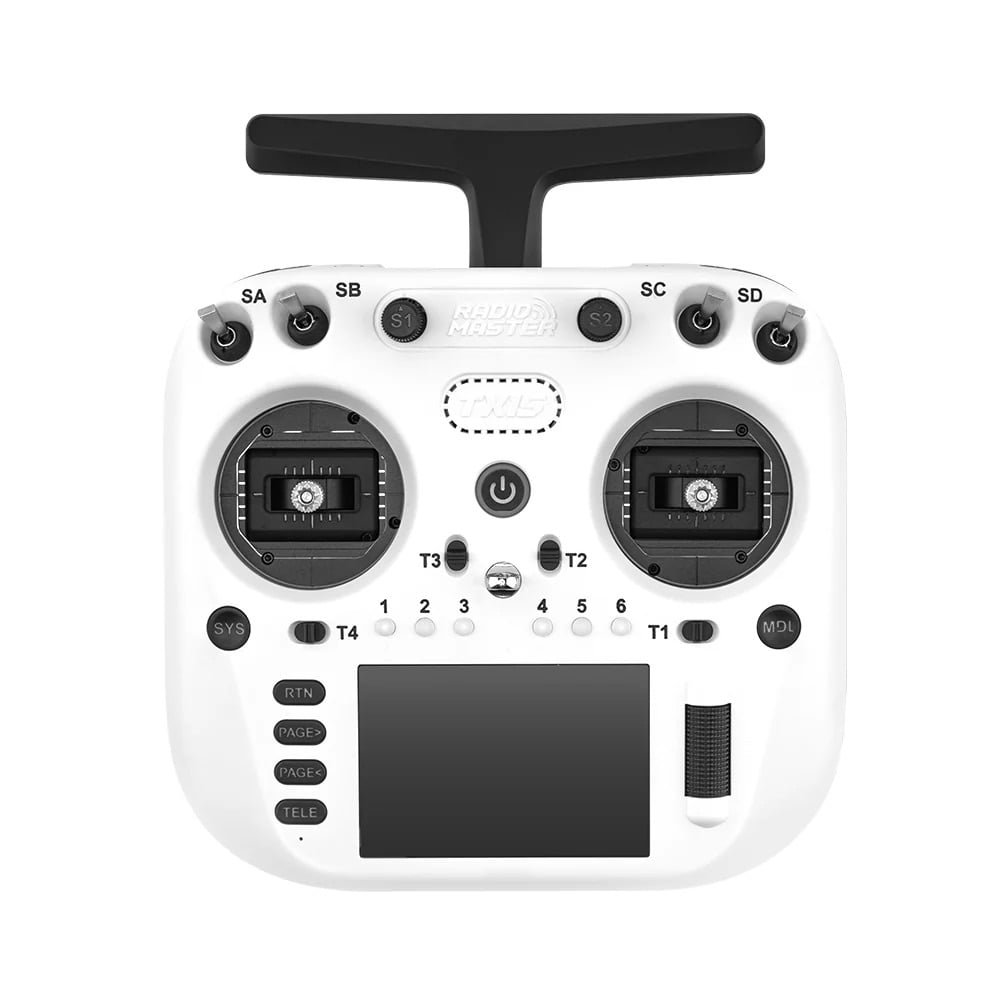

RadioMaster TX15 Radio Controller ELRS (Mode 2)

RadioMaster TX15 is an advanced open source remote control powered by the powerful STM32 H7 chip, ensuring smooth EdgeTX operation, fast model switching and scripting. The device supports 2.4 GHz and 900 MHz ExpressLRS (ELRS) communication, has a smart battery balancing system, a foldable antenna and an integrated gyroscope with TiltX/TiltY functions. The 3.5-inch IPS touch screen ensures a clear view even in sunlight. Additionally, interchangeable switches are added, and the device is equipped with USB-C, SIM connectivity and software updates.

Features:

• The STM32 H7 chip provides the fastest transmitter we have ever created;
• 3.5-inch, 480 x 320 IPS display with bright colors and clear images;

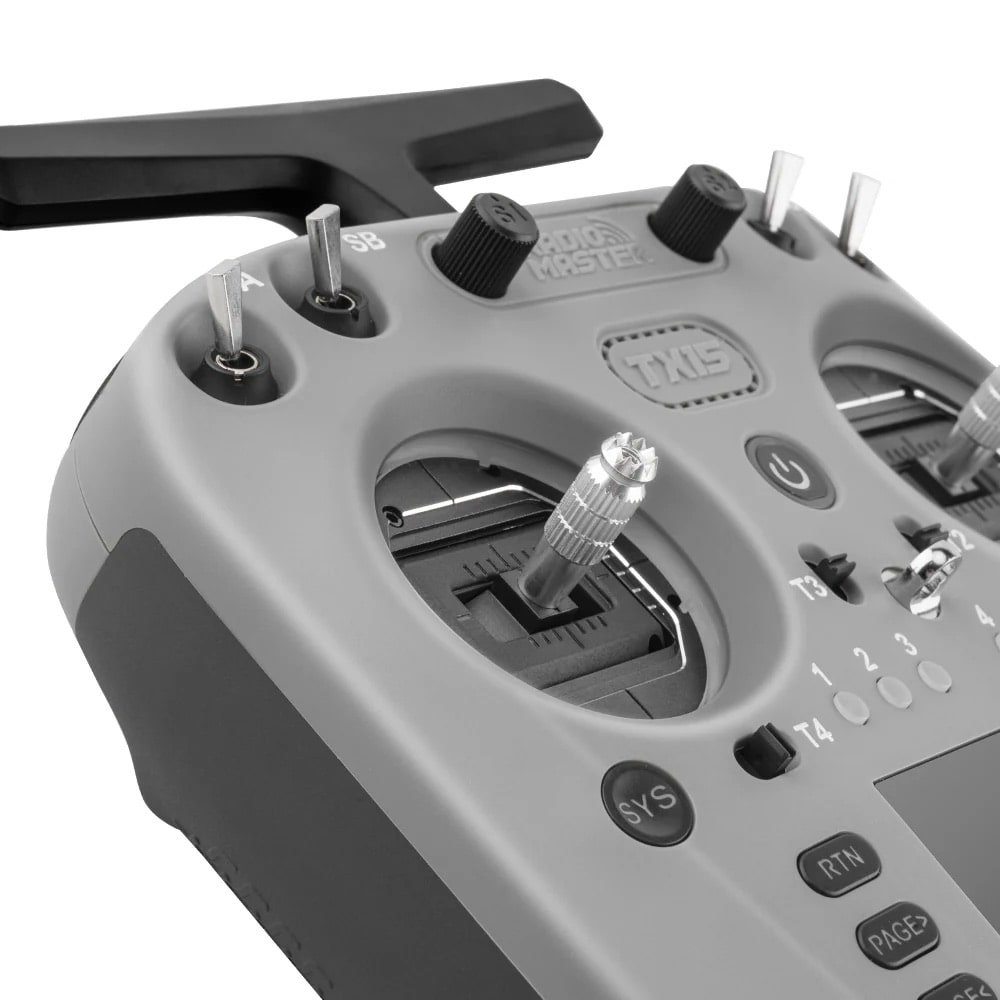

• V5.0 Hall sensor gimbals;
• Integrated ExpressLRS: 2.4 GHz / Sub-G 900 MHz;
• Smart battery balancing module;
• Powerful and efficient cooling system;

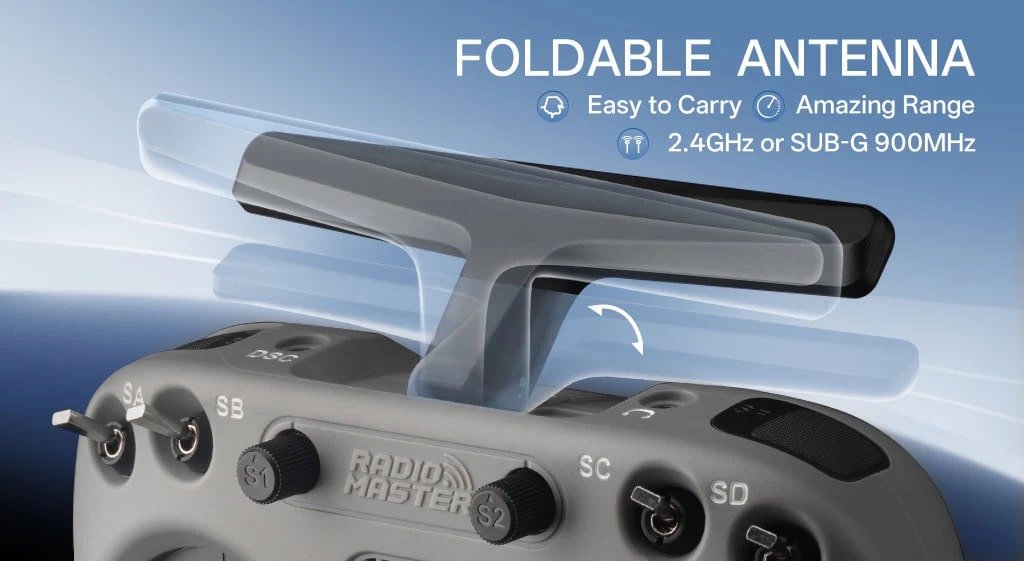

• Foldable antenna;
• Built-in microphone;
• Integrated gyroscope;
• Integrated 4 GB internal memory and external MicroSD card support;
• Ability to customize controls to suit your flying style;

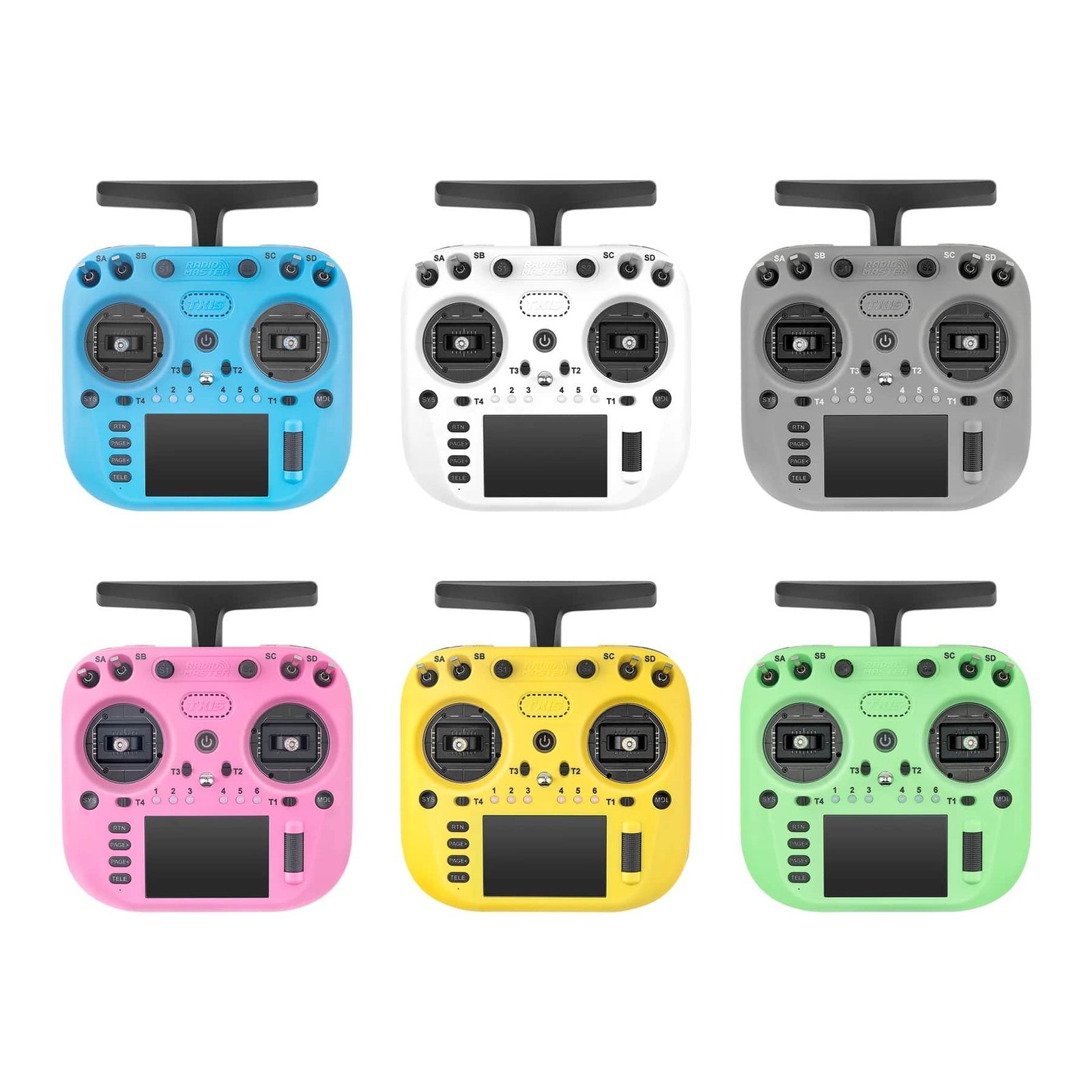

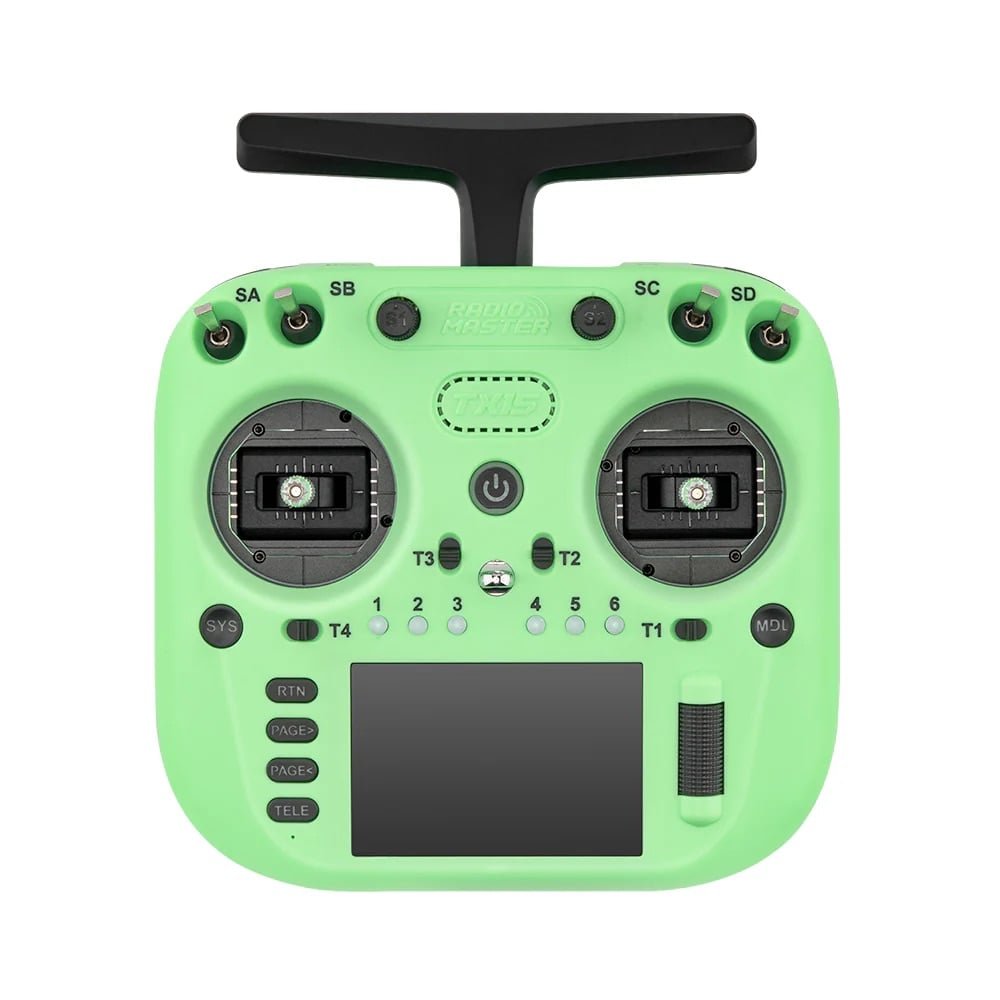

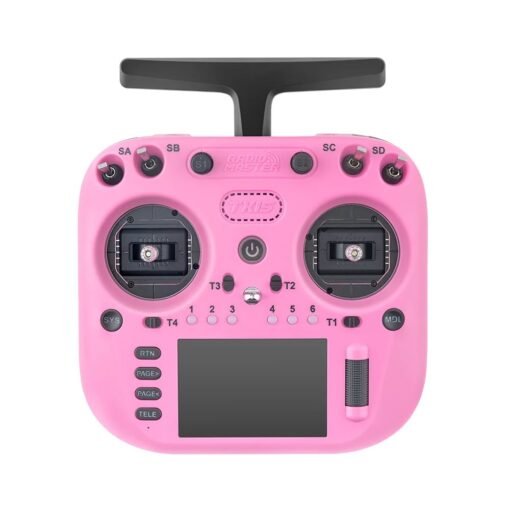

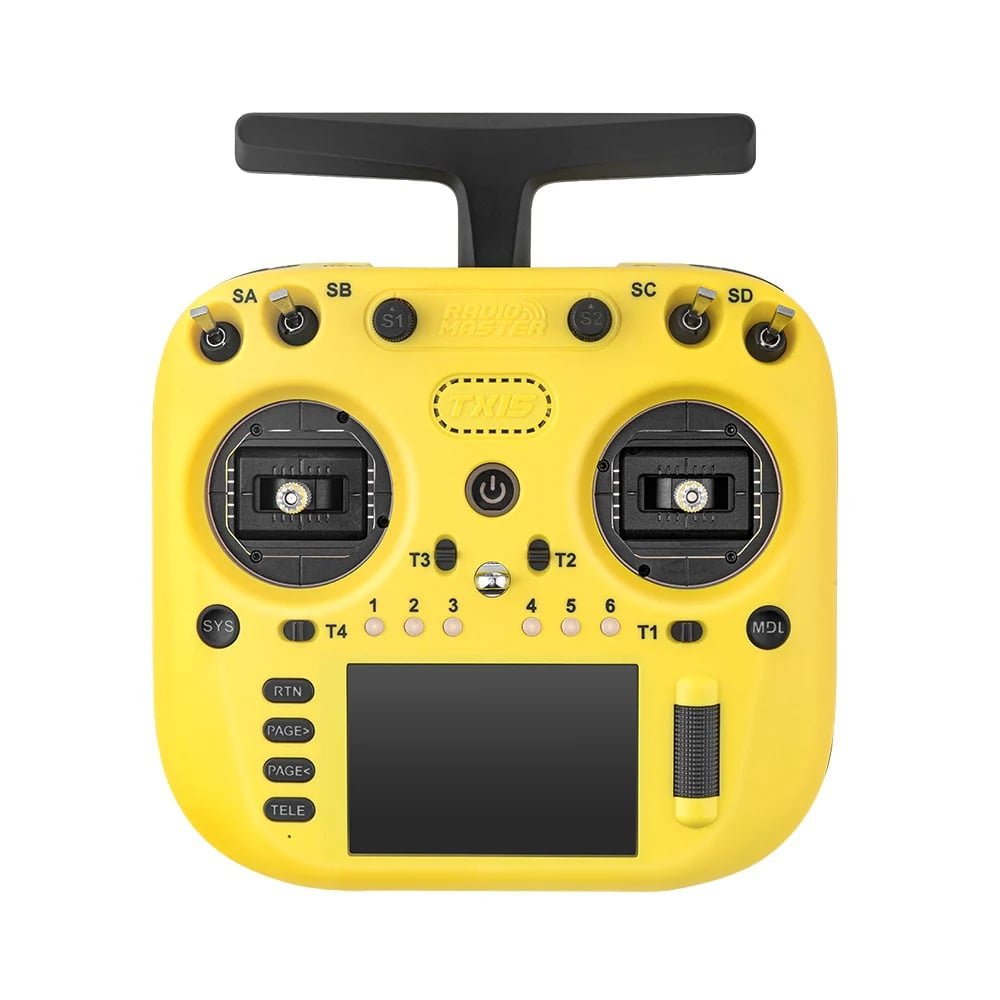

• Choice of colors.

Specification:

• Model: TX15 remote control;
• Dimensions: 178 × 168 × 81 mm;
• Weight: 605 g (without battery);
• Frequency: 2.400 GHz OR Sub-G 900 MHz;
• Internal RF module: ELRS 2.4 GHz / Sub-G 900 MHz;
• Supported protocols: ExpressLRS;
• Cooling fan: Yes;
• Transmitter module: Integrated ELRS;
• Internal memory: 4 GB;
• Built-in microphone: Yes;
• Integrated gyroscope: Yes (ICM-42607-C);
• MicroSD card support (not included): up to 32 GB / FAT32 (internal memory is disabled when a MicroSD card is inserted);
• Antenna: 2 dB (transmission power adjustable);
• Current consumption: 875 mA in maximum power mode;
• Voltage range: 6.6 – 8.4 V DC;
• Radio software: EdgeTX (from version 3.0.0);
• Module software: ExpressLRS;
• Channels: Max. 16 (depending on receiver);
• Display: 3.5-inch IPS touch (480 × 320 resolution);

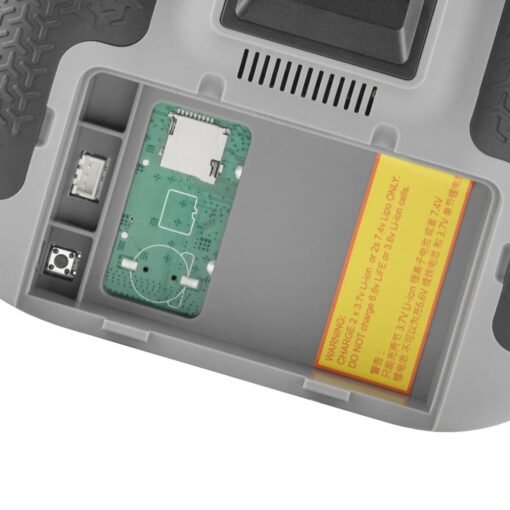

• Batteries: 7.4V 2-cell Li-Po / two 3.7V 18650 Li-Ion cells / 21700 5000mAh battery (batteries not included);
• Connectors: USB-C;
• Gimbals: V5.0 Hall sensor gimbals (standard);
• Gimbal arms: M4;
• Update method: USB-C (UF2);
• Module slot: JR compatible slot for additional modules.

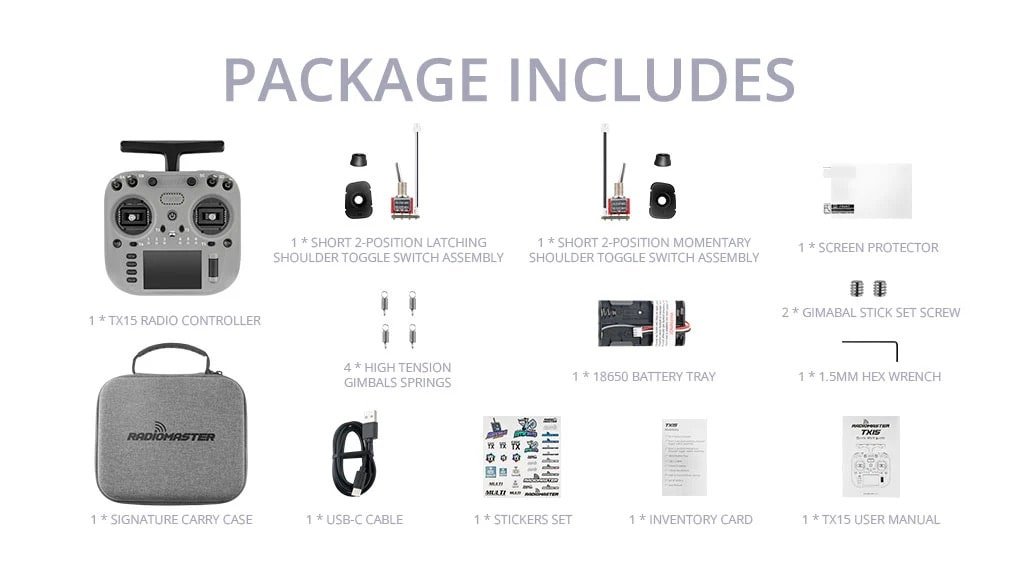

Package:

1x TX15 remote control;

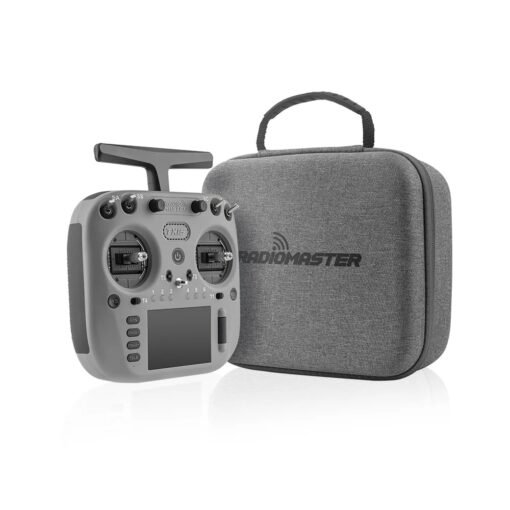

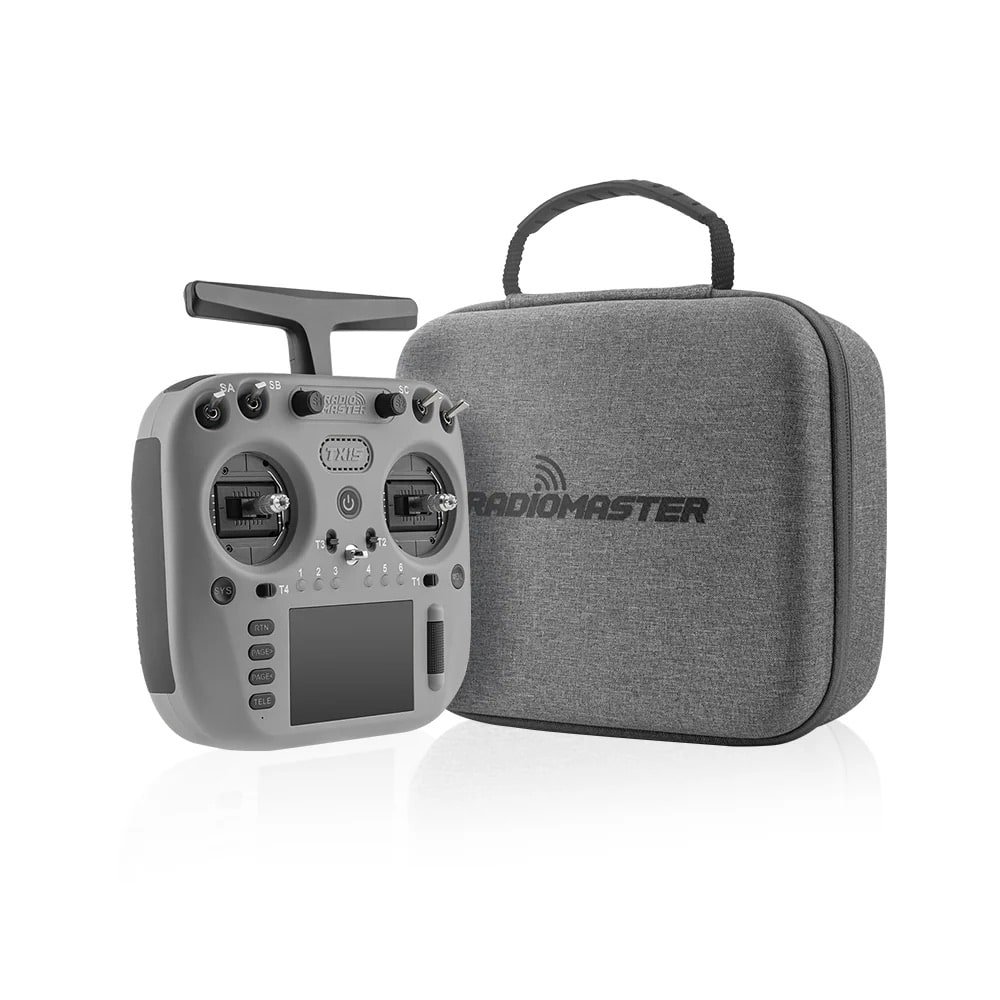

1x branded carrying case;
1x short 2-position latching top switch;
1x short 2-position momentary top switch;
1x 18650 battery holder;
1x USB-C cable;
1x screen protector;
1x 1.5 mm hex key;
4x high tension gimbal springs;
2x gimbal arm mounting screws;
1x sticker set;
1x user manual;
1x equipment card.

Batteries for the remote control are not included.
