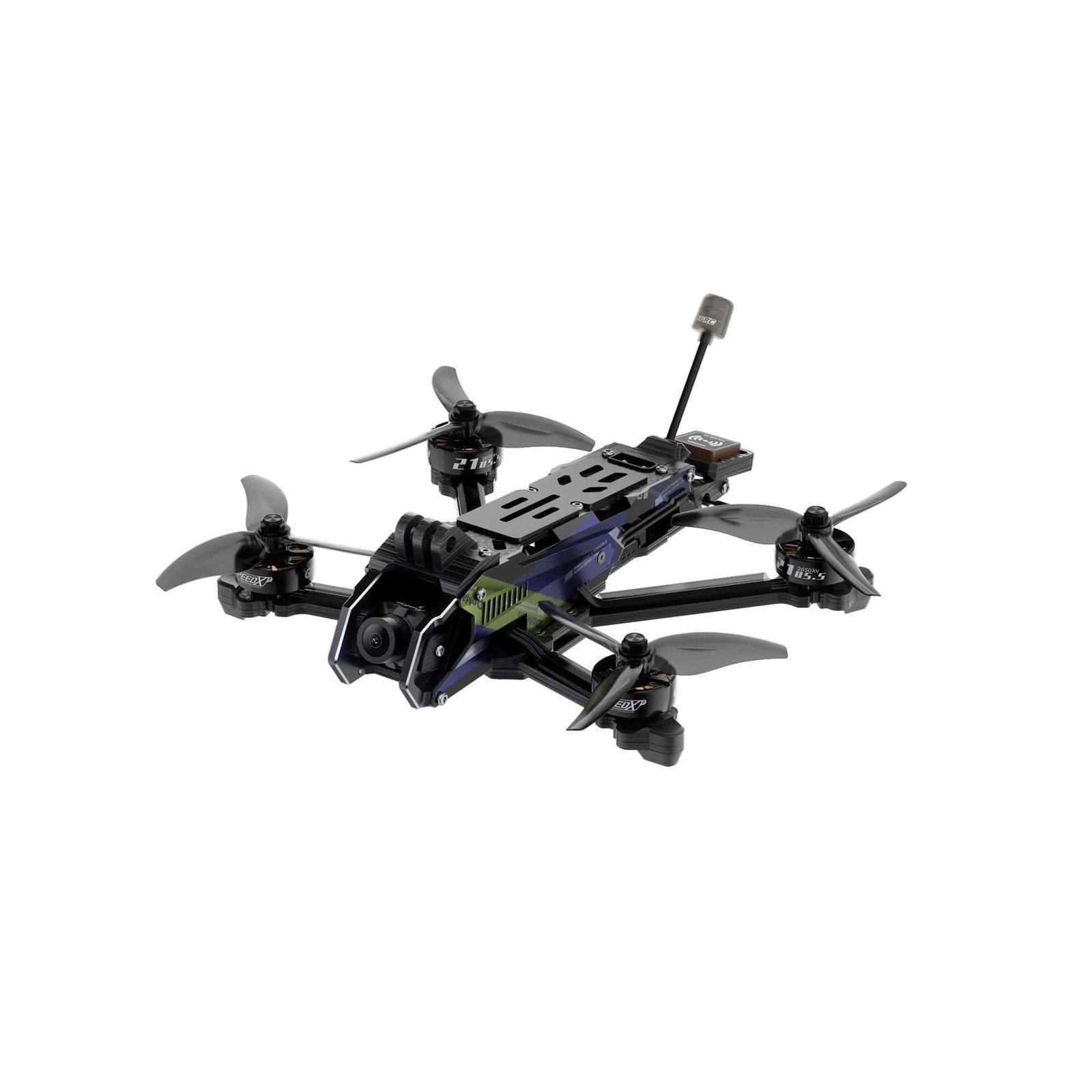

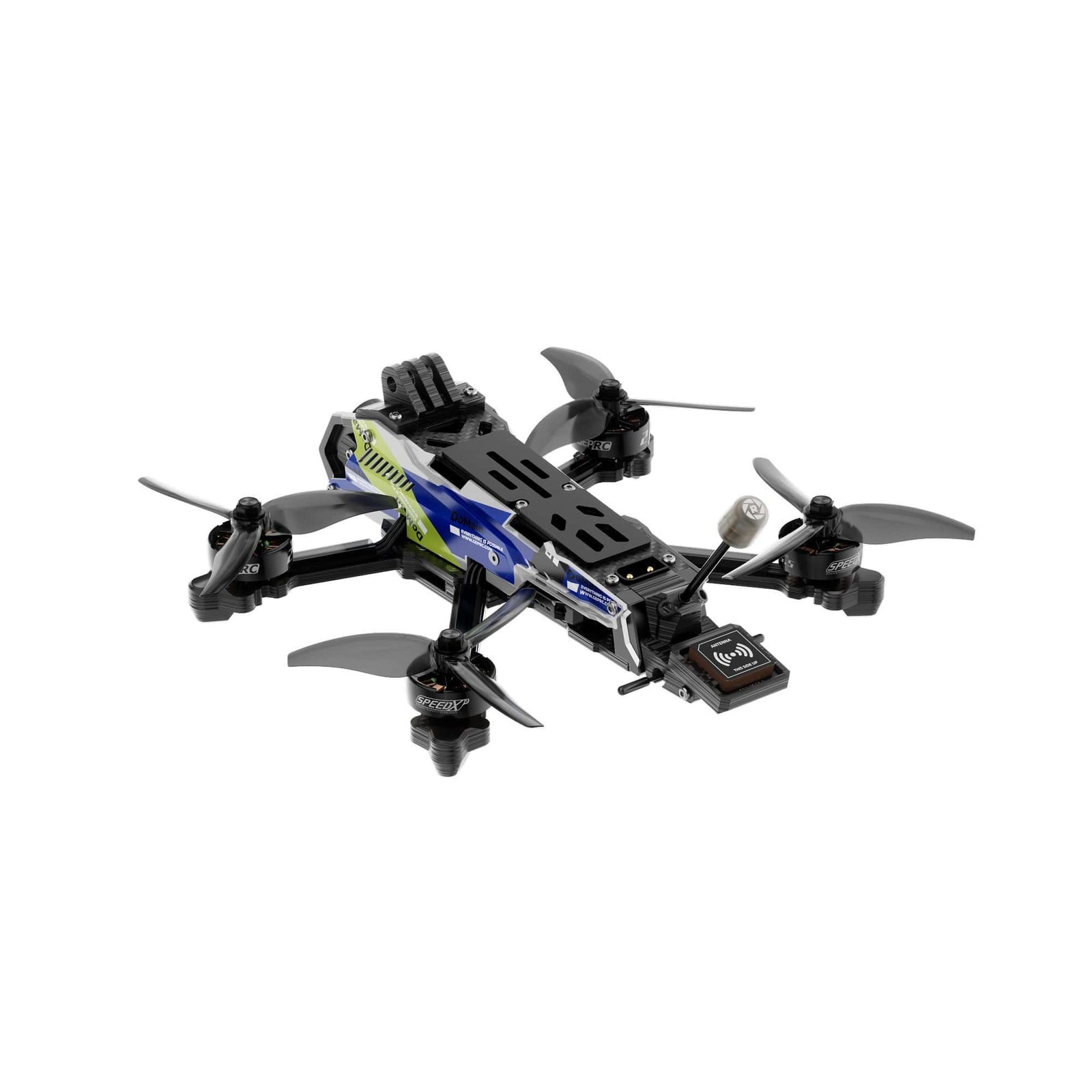

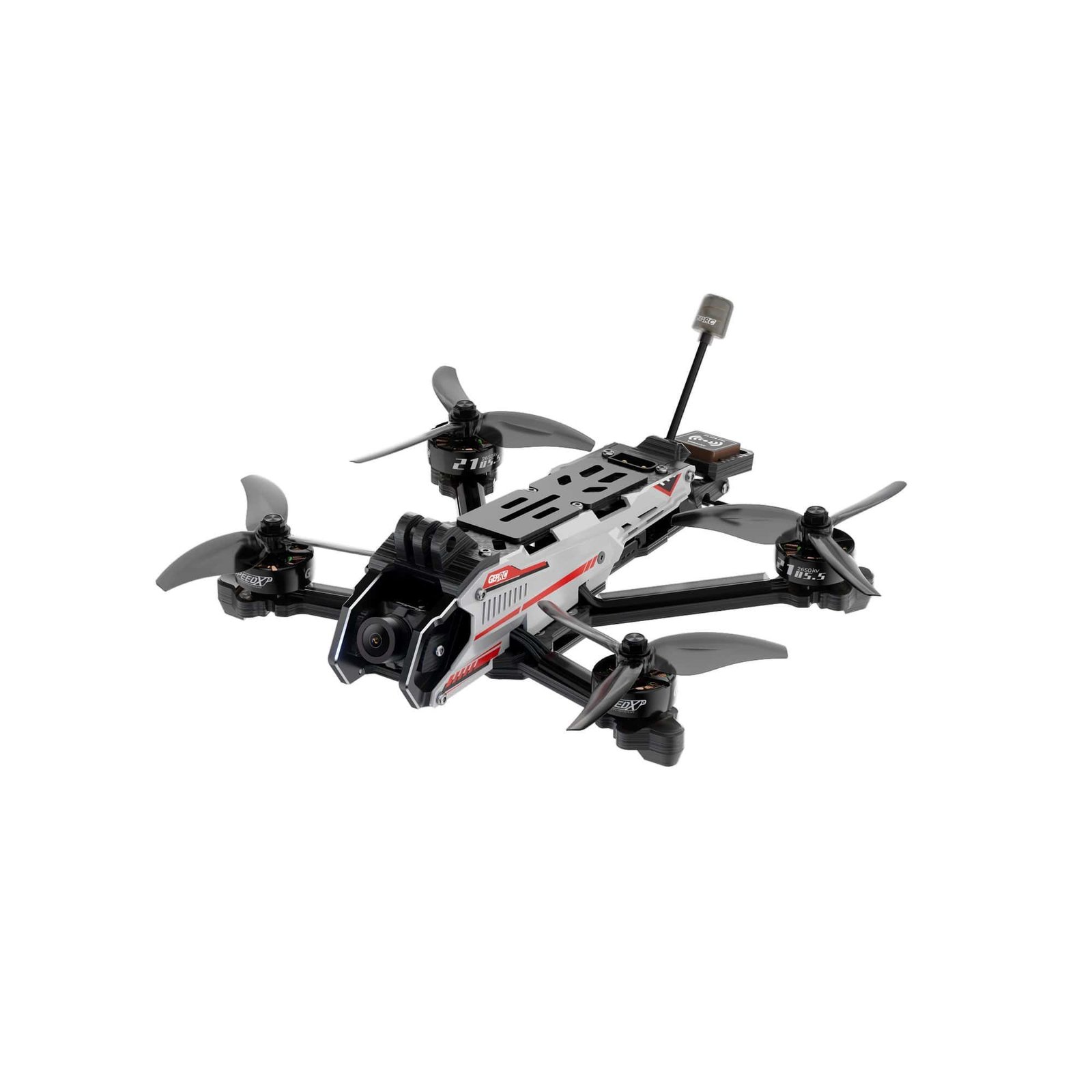

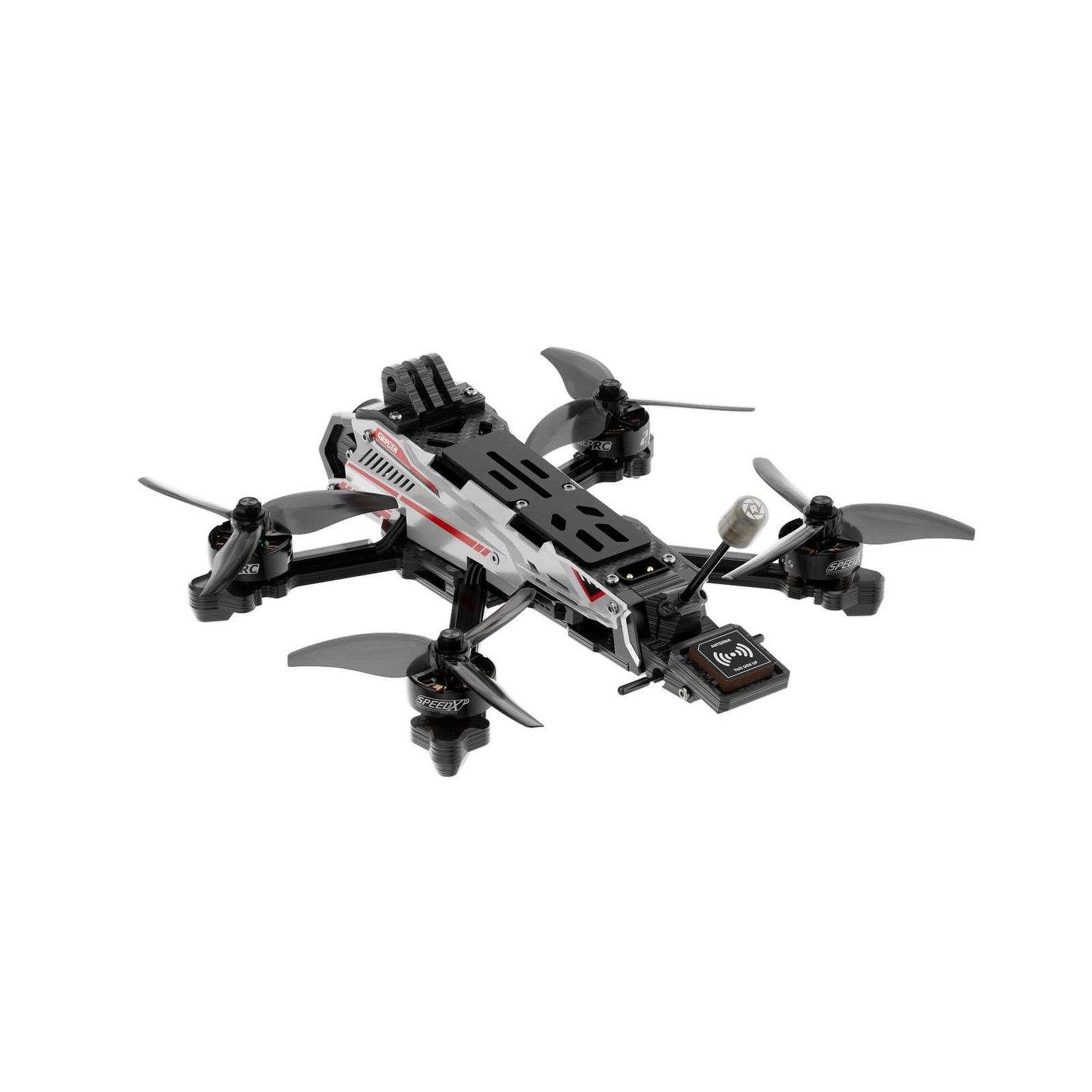

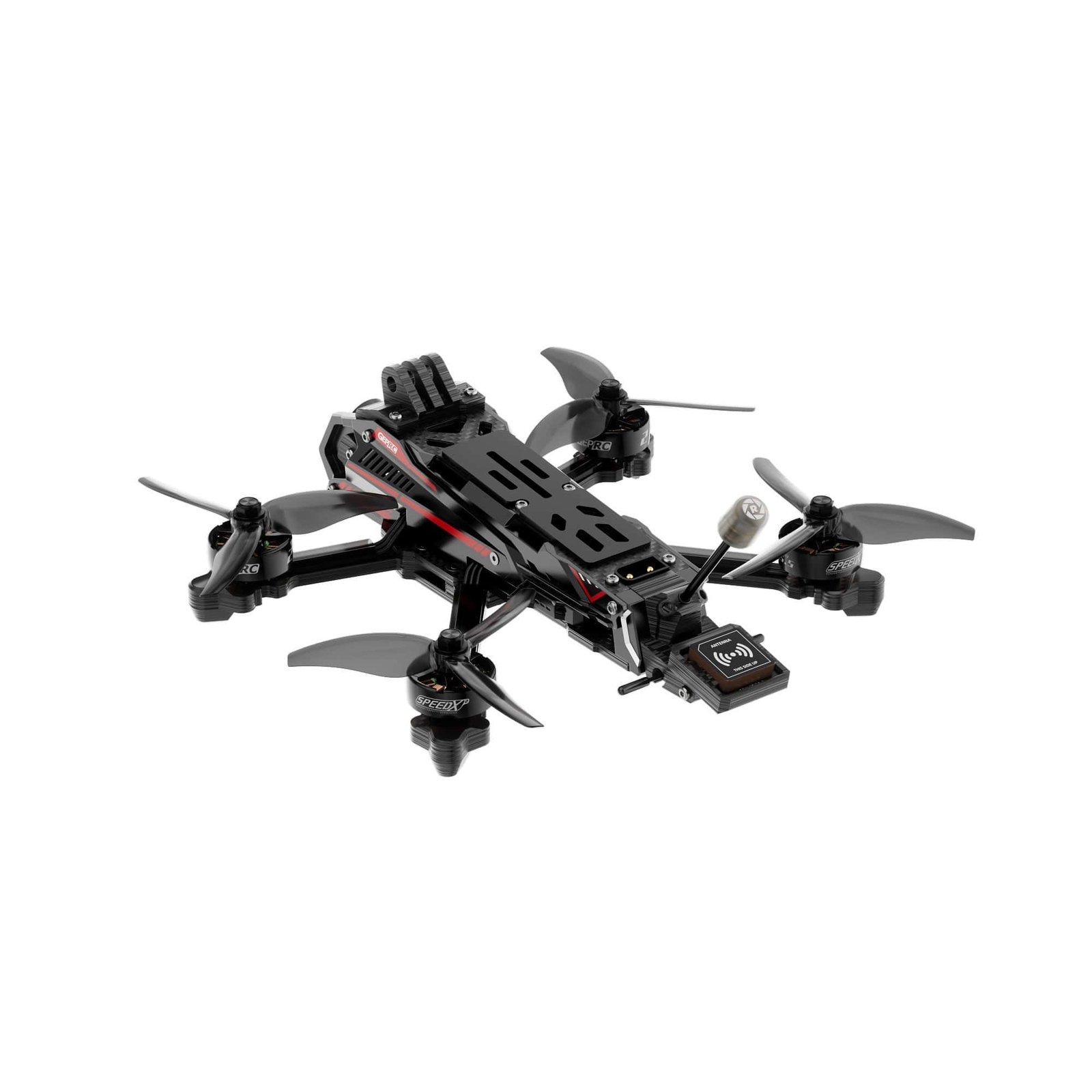

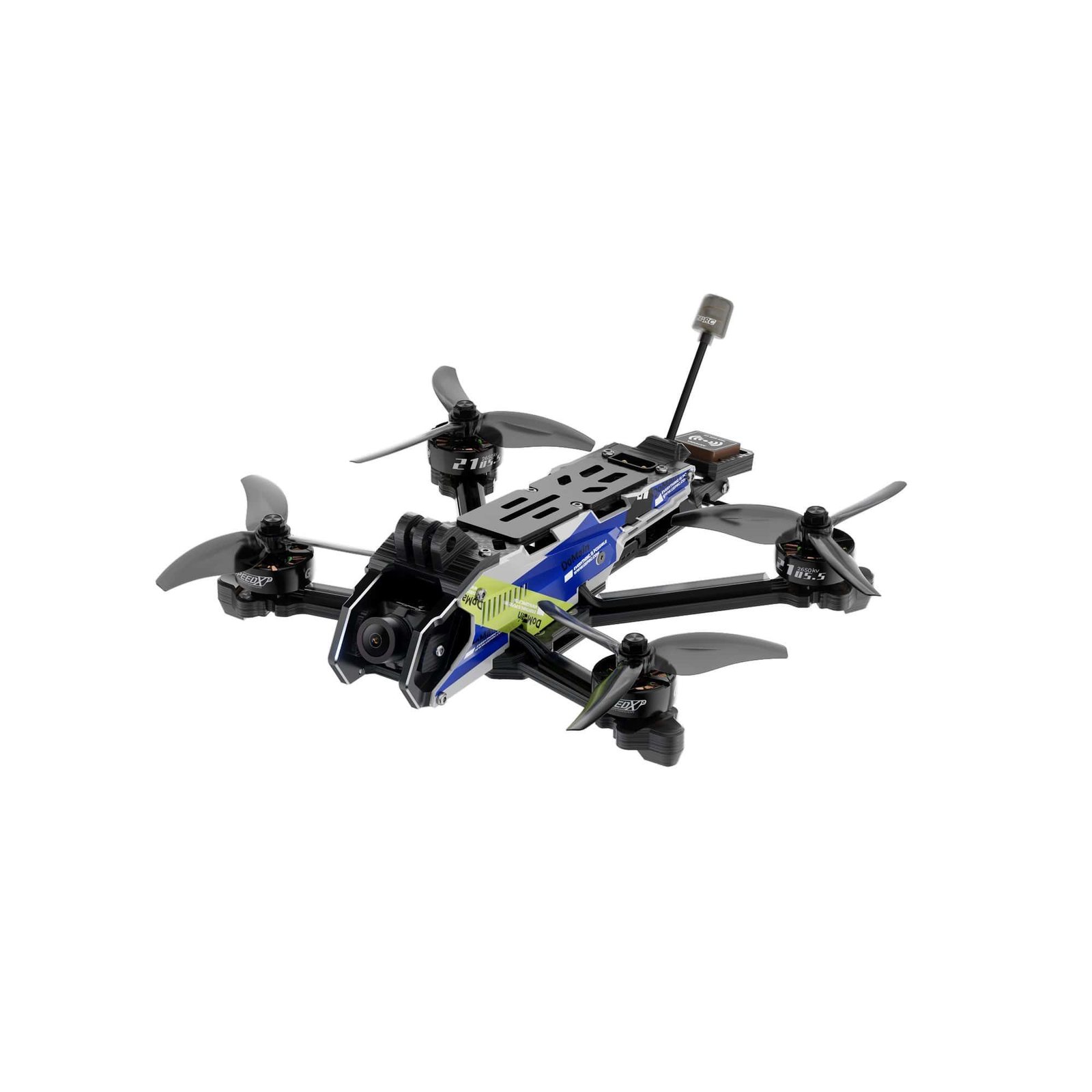

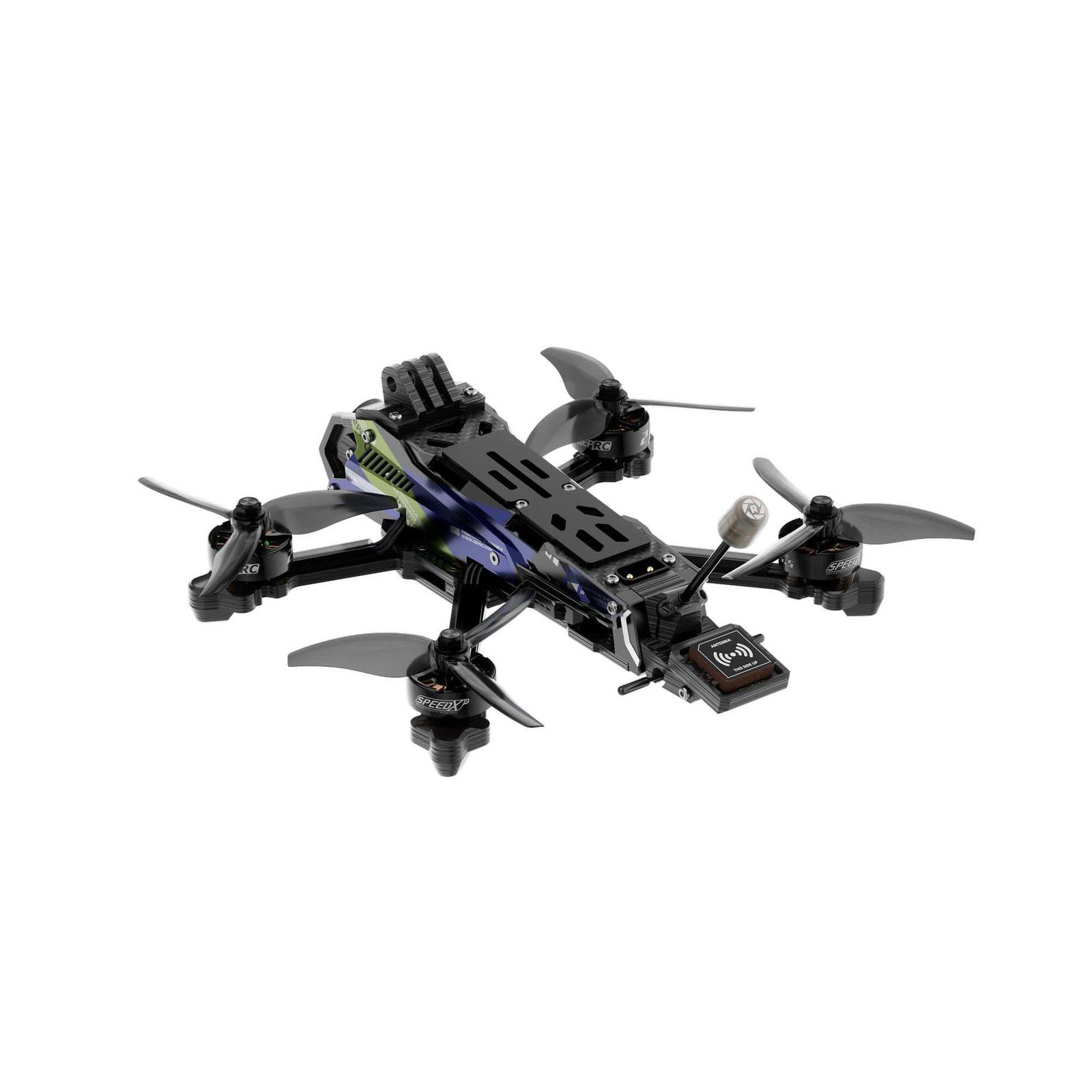

GEPRC DoMain3.6 6S Analog Freestyle ELRS 2.4GHz + GPS

Features:

• Unique reinforced construction, stable even during intensive maneuvering;
• Newly designed side panels support DIY decals, opening up possibilities for creativity;
• Enough power to perform complex freestyle tricks;
• Compatible with full-size GoPro or naked GoPro;
• DC type frame design – compact, clean looking, no screws in the frame – just a clean, aesthetic look;
• The M10's integrated GPS module ensures safety during every flight - including the "rescue mode" function.

Specification:

• Model: 3.6 DoMain FPV;
• Frame: GEP-DoMain;
• Wheelbase: 170 mm;
• Top plate thickness: 2 mm;
• Bottom plate thickness: 2.5 mm;
• Lever thickness: 4 mm;
• Middle plate thickness: 3 mm;
• Flight controller (FC): TAKER F722 SE;
• ESC: TAKER E55A 32bit 4-in-1;
• Microcontroller (MCU): STM32F722RET6;
• Gyroscope: MPU6000;
• OSD: AT7456E;
• Video Transmitter (VTX): GEPRC RAD MINI 1W;
• Camera: Runcam Phoenix2P;
• Antenna: Momoda MMCX90 (right-handed polarization, 100 mm, elbow, black background with red lettering);
• Motors: SPEEDX2 2105.5 2650KV (M5 mount);
• Propellers: Gemfan 3630-3;
• Weight: 279g (±5g);
• Receiver:ELRS 2.4G;
• Recommended battery: LiPo 6S 1050–1300 mAh;
• Connector: XT60.

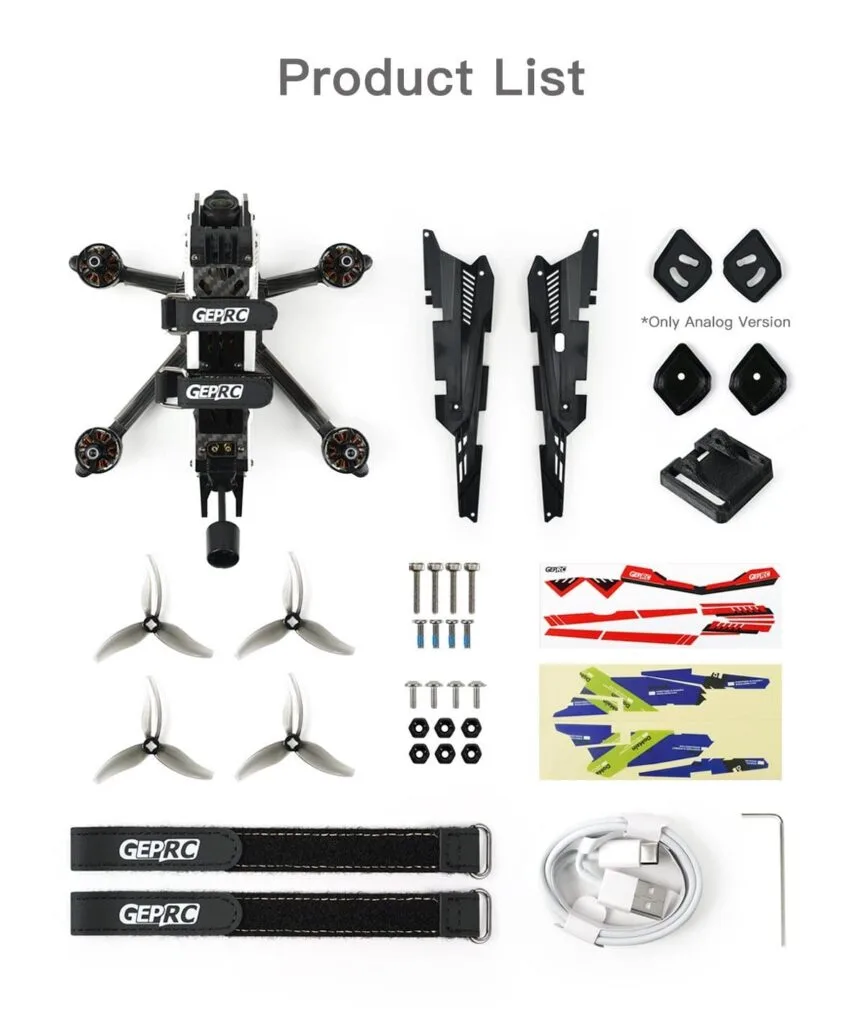

Package:

1x DoMain drone;
2x Gemfan 3630-3 screws (pair);
2x M15*200 mm battery mounting straps;
1x Spare screw set;
1x L-shaped screwdriver (1.5 mm);
1x L-shaped screwdriver (2 mm);
1x M8 wrench;
1x Left and right side panels;
