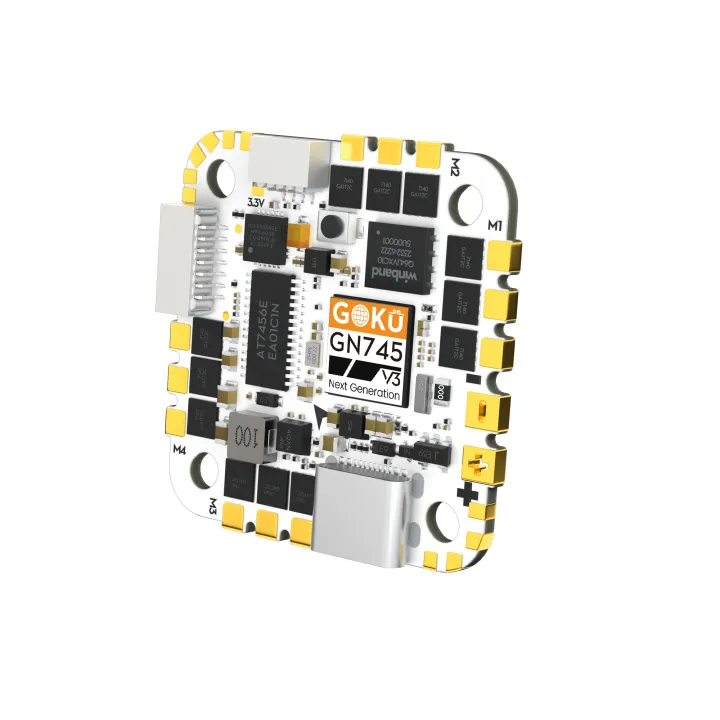

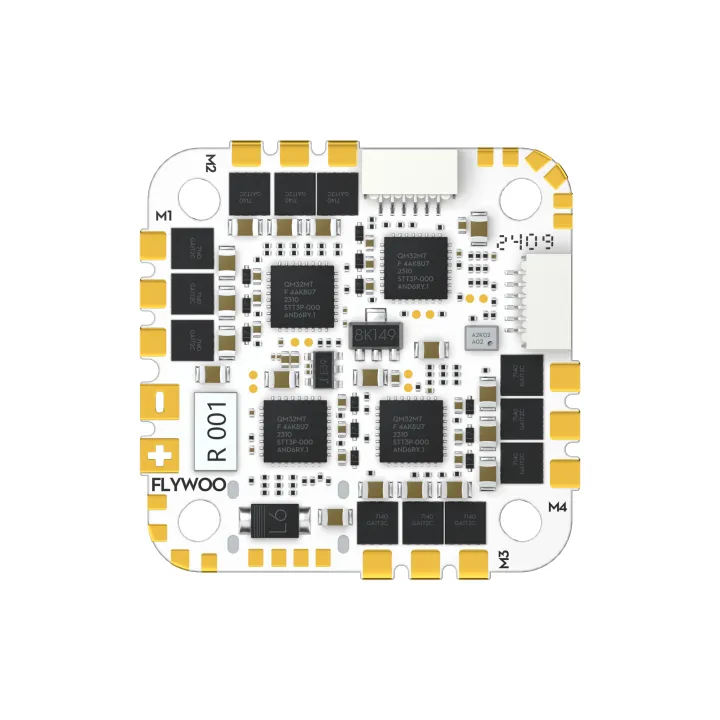

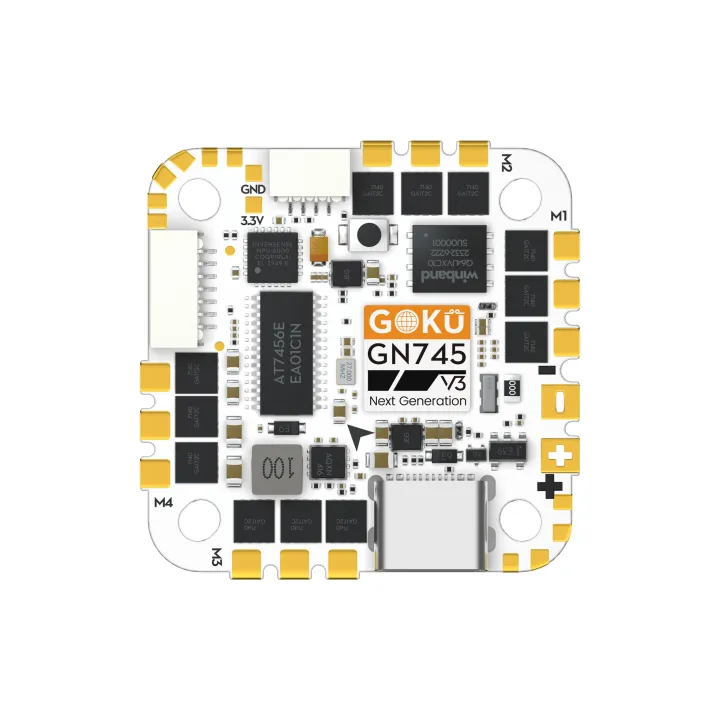

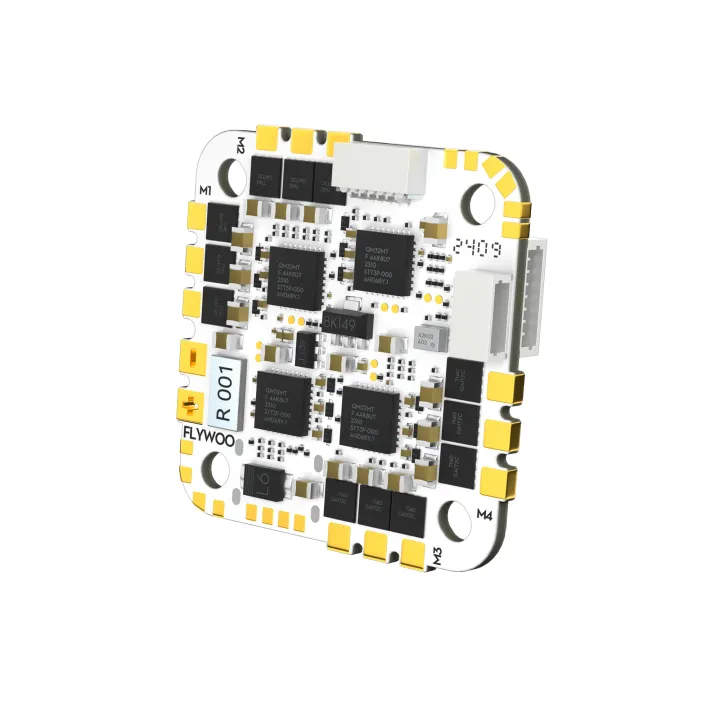

Flywoo GOKU GN 745 45A AIO 32bit V3 Plug&Play O4 / O4 Pro

Since its launch, GOKU GN745 AIO has been Flywoo’s top-of-the-line AIO product, widely acclaimed by Betaflight, INAV and Ardupilot users. Now, the latest version of this series, V3, is introduced, which uses a new dual-channel ESC controller solution, increasing the DC load capacity to 45A and improving the overcurrent protection of the motor terminals, thus improving the overall system power and reliability. In addition, V3 has improved usability by introducing 4 new direct-connect UART ports and using a USB Type-C connector for easier and more convenient connection.

Features:

• STM32F745 processor, AM32 firmware and MPU6000 gyroscope are used. Two BEC power converters, a barometer and a Black Box data logger are integrated, and 7 serial (UART) ports and an I2C interface are supported;
• Compatible with O4 system, GPS module, camera, analog VTX transmitter and receiver without soldering;
• Equipped with a USB Type-C connector for better compatibility and more convenient connection;
• Supports Betaflight, INAV and Ardupilot platforms;
• A new dual-channel ESC controller solution is used, providing up to 45 A continuous current;
• Increased motor contact area and improved overcurrent protection.

Specification:

• Betaflight software: FLYWOOF745AIOV2;
• INAV software: FLYWOOF745;
• Ardupilot software: FLYWOOF745;
• MCU: STM32F745 32-bit processor, 216 MHz, 1 MB Flash memory;
• Barometer: SPL06;
• USB VCP: all UART ports can be used simultaneously, USB does not occupy the UART port;
• 7 hardware UART ports: UART1, UART2, UART3, UART4, UART5, UART6 and UART7;
• Supports only serial receivers (SBUS, iBus, Spektrum, Crossfire);
• PPM and PWM receivers are not supported;
• Integrated 16 MB Blackbox data logging memory;
• 5 V output: up to 2.0 A;
• 3.3 V output: up to 0.5 A;
• Dimensions: 33.5 x 33.5 mm;
• Mounting hole arrangement: standard 25.5 x 26.5 mm;
• Weight: 9.4 g;
• Integrated 4-in-1 ESC speed controller;
• Supports AM32 software;
• Supported protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600 and DShot1200;
• Input voltage: 2-6S LiPo;
• Direct current: up to 45 A;
• Software: AM32_F4A_4IN1_F421.

DJI O4 Lite supports a maximum power supply voltage of 1-3S. If you use a battery with a voltage of 4-6S or higher, an additional 5V BEC power converter is required to ensure safe and stable power supply to the device.

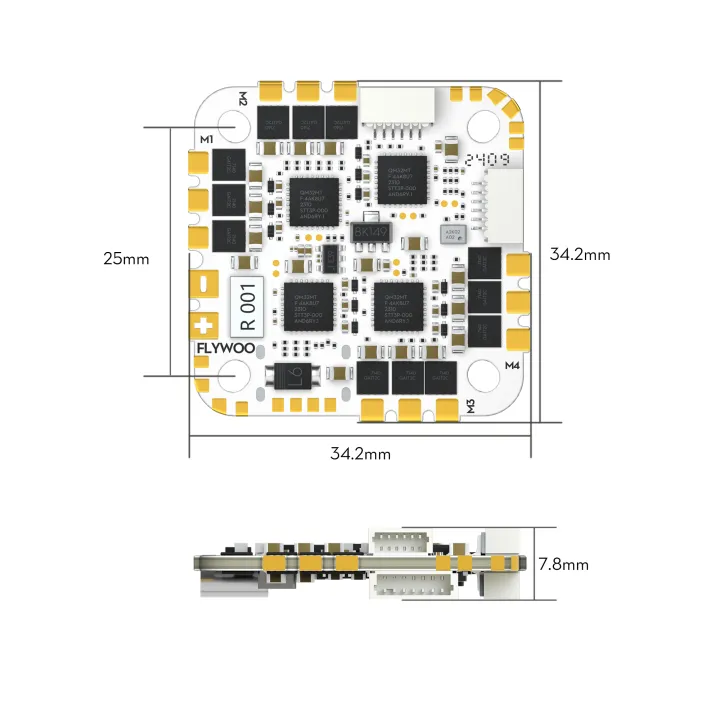

Measurements:

Package:

1x Flywoo GOKU GN 745 45A AIO 32bit V3 Plug&Play O4 / O4 Pro;
1x UNICON UPL capacitor (25 V, 470 µF);
4x M2 x 6.6 mm vibration-damping shock absorber balls;
4x M2 rubber rings;
1x XT30 power cable;
1x VTX and camera connection cable;
1x Receiver connection cable;
1x GPS compass connection cable.

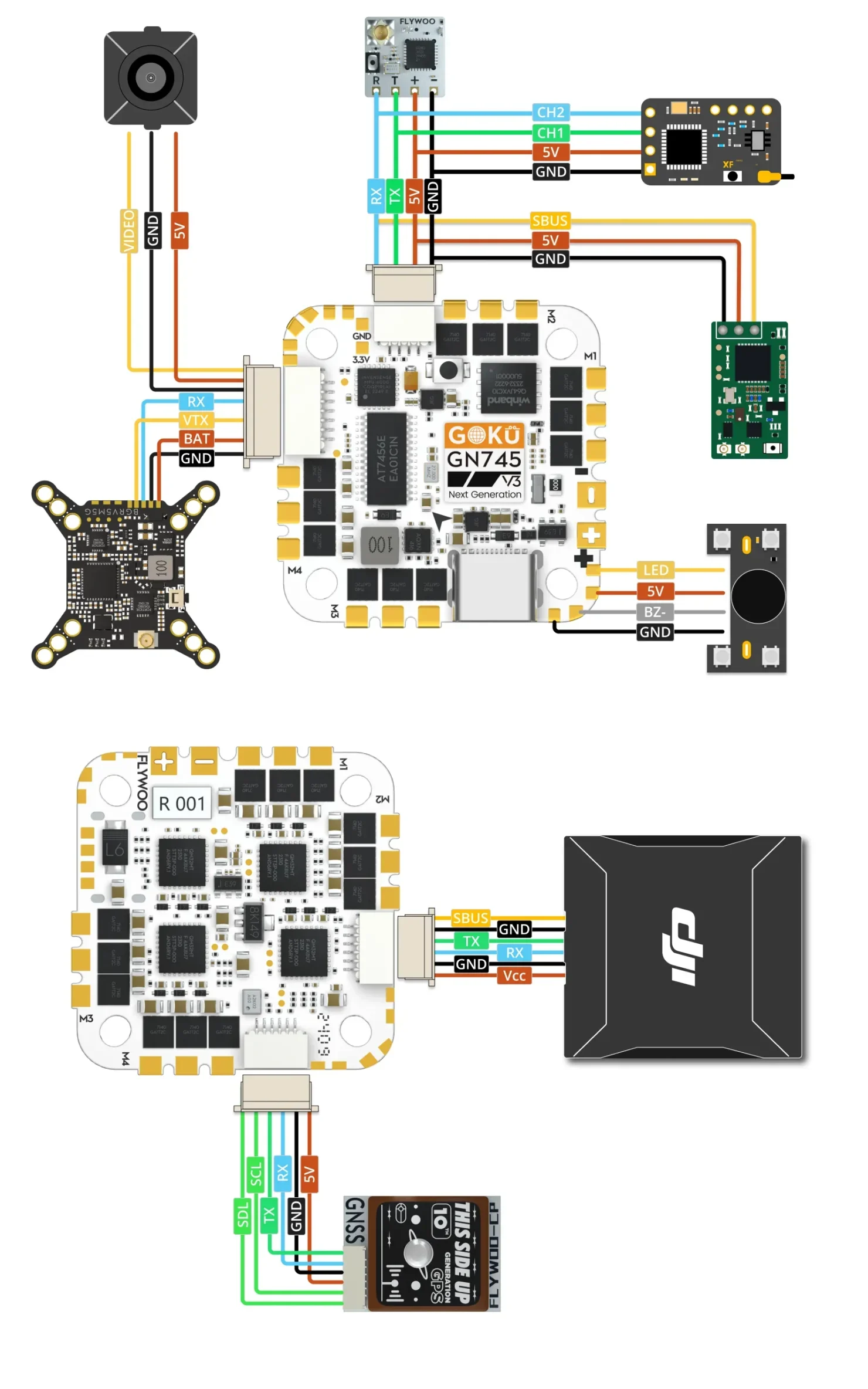

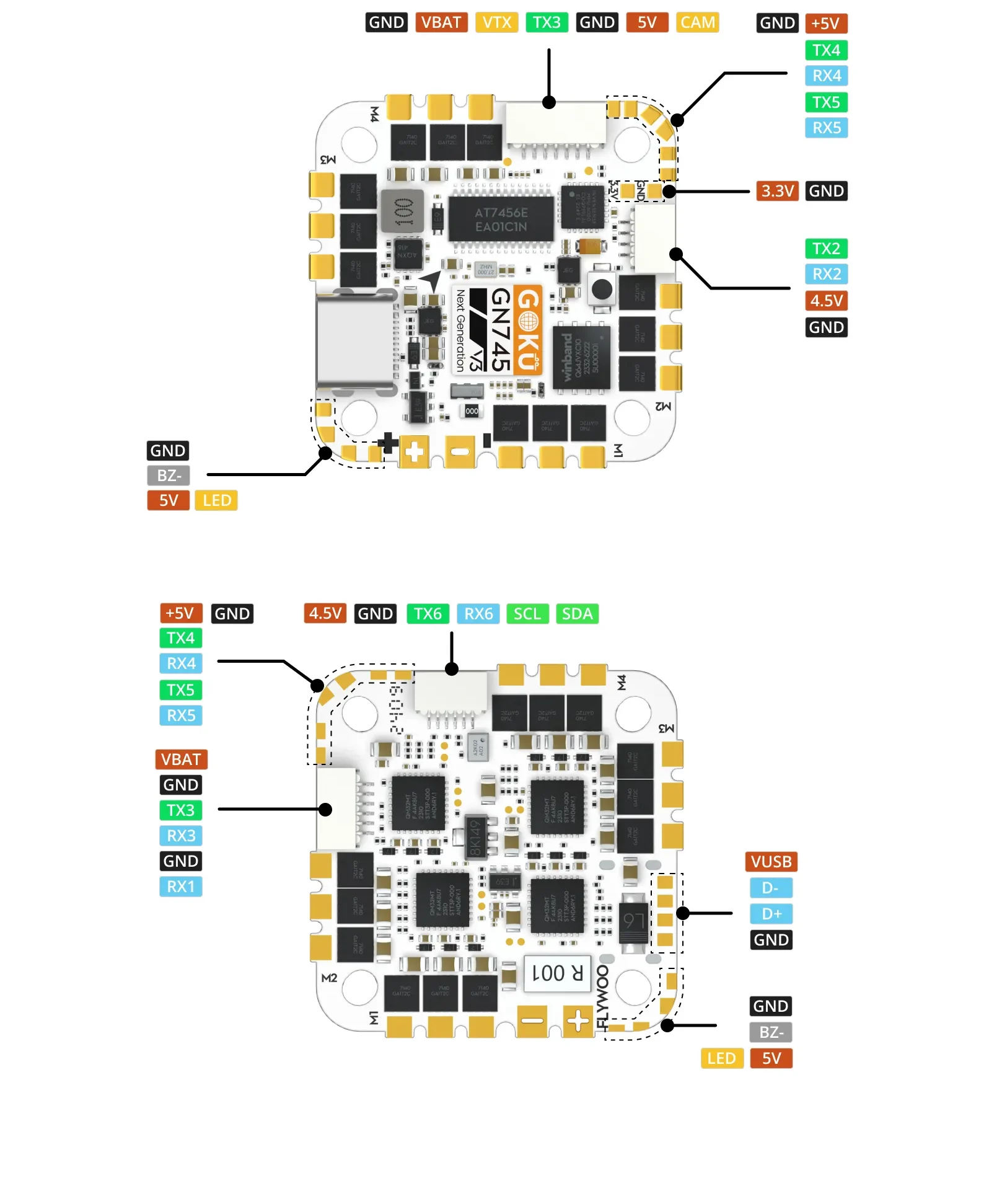

Scheme:
