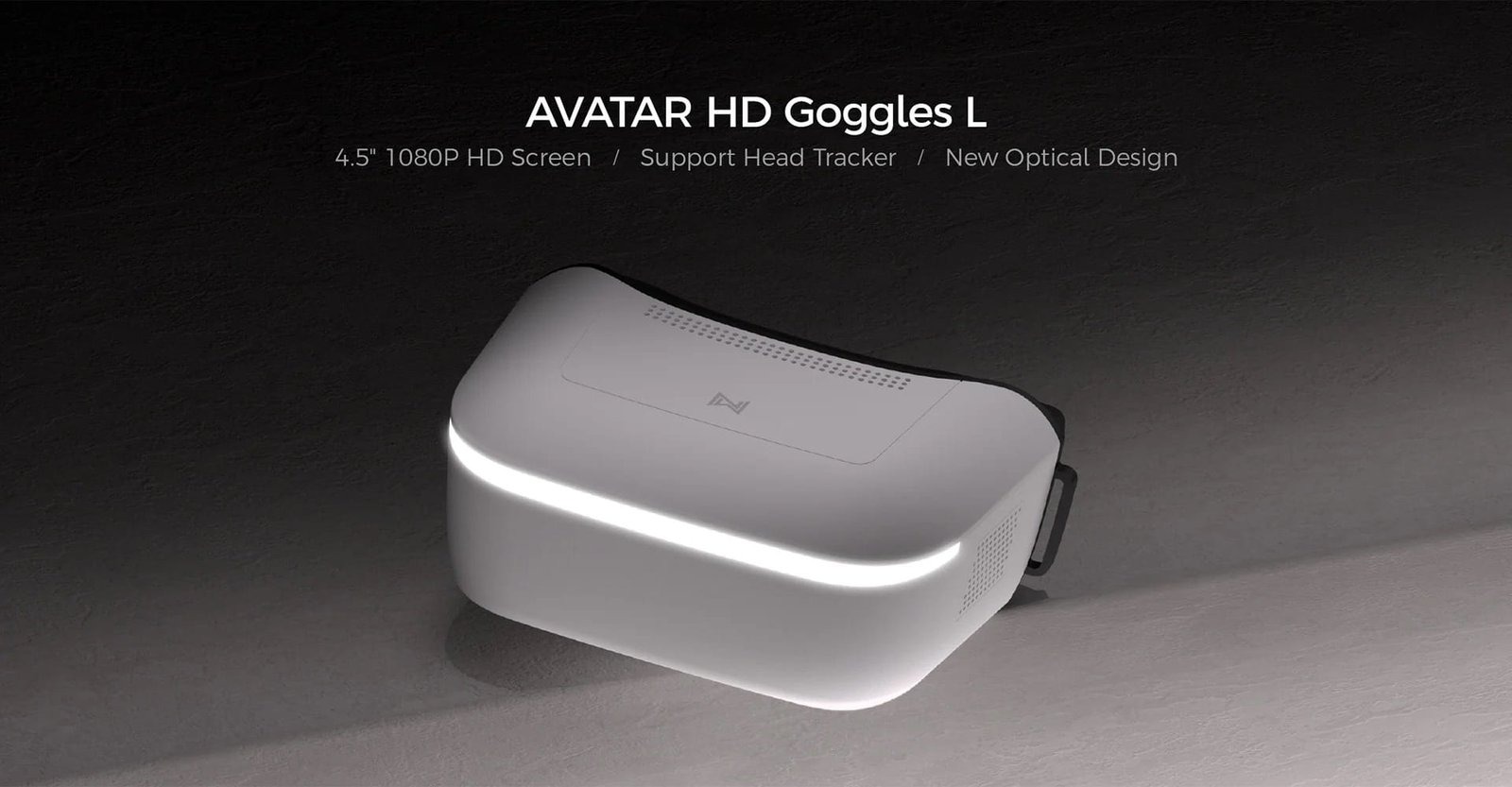

CaddxFPV Walksnail Avatar HD L Goggles

In order to use the head tracking system function in the glasses, you must additionally purchase a GM series camera.

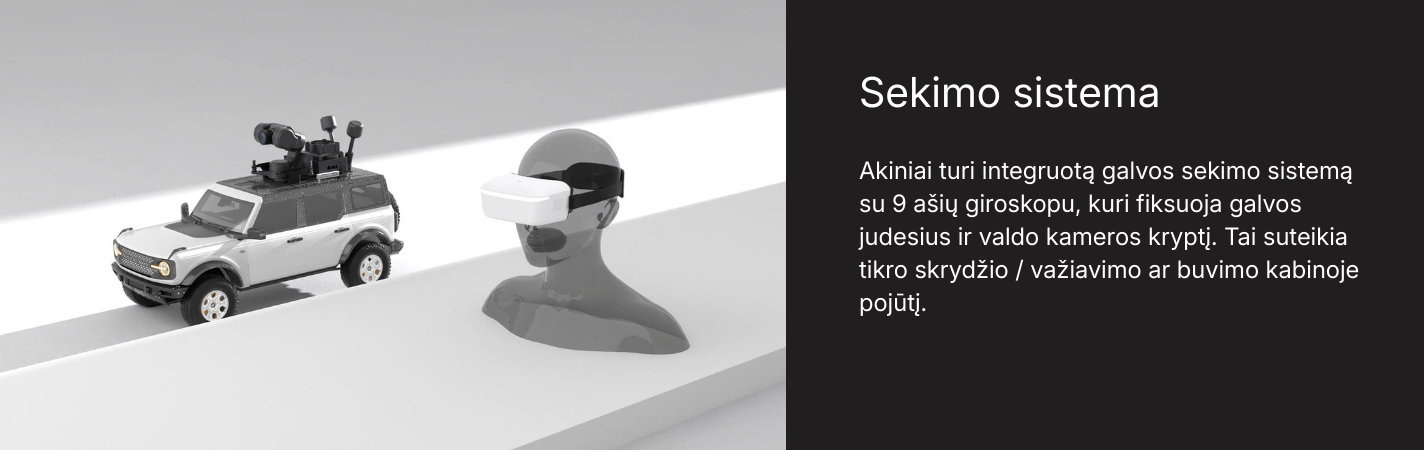

CaddxFPV aims to offer an affordable and great experience by creating the first single-screen HD FPV goggles with head tracking. This innovative solution allows you to enjoy a sharp HD image and an even more immersive flight experience, as the image follows your head movements.

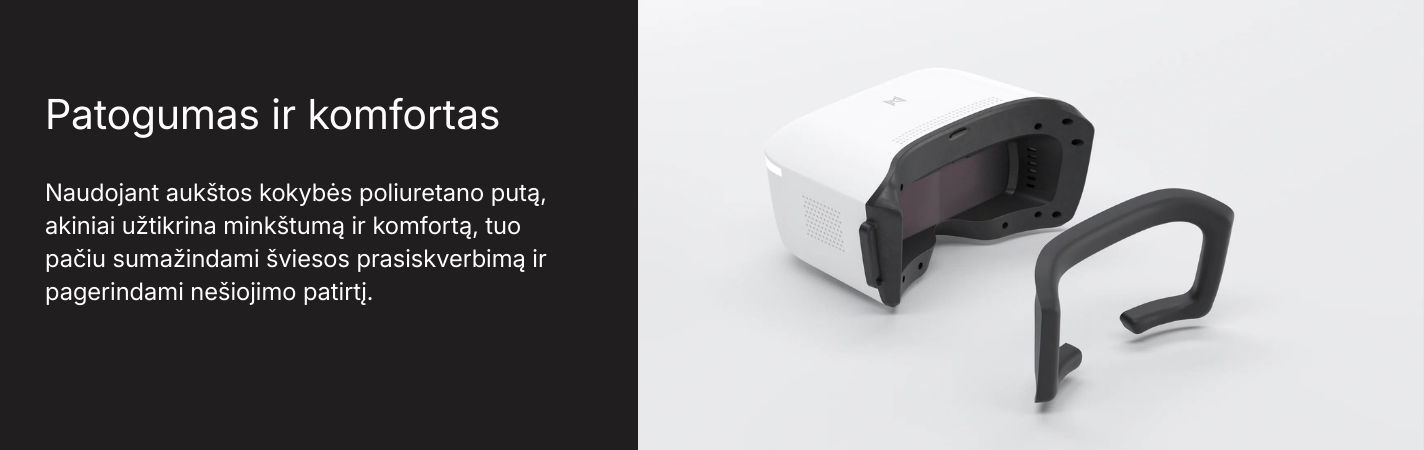

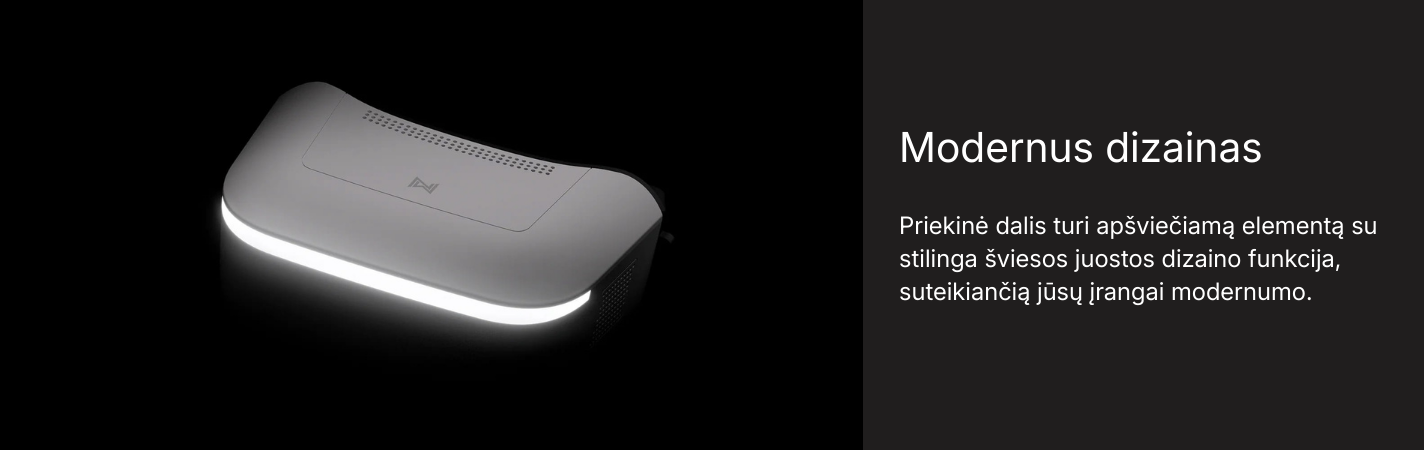

Innovative design and features

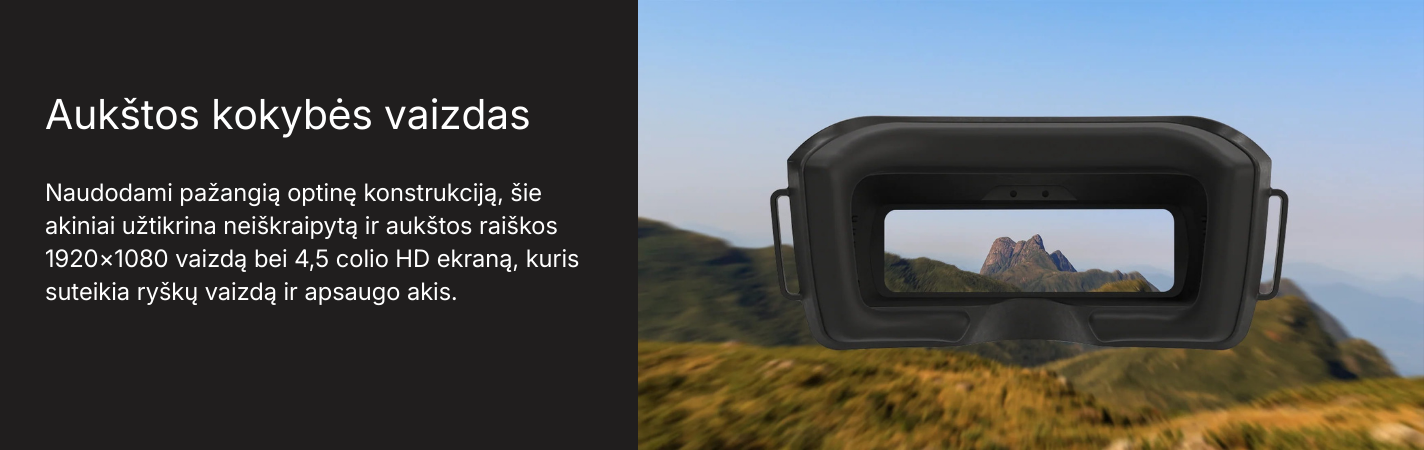

High quality image

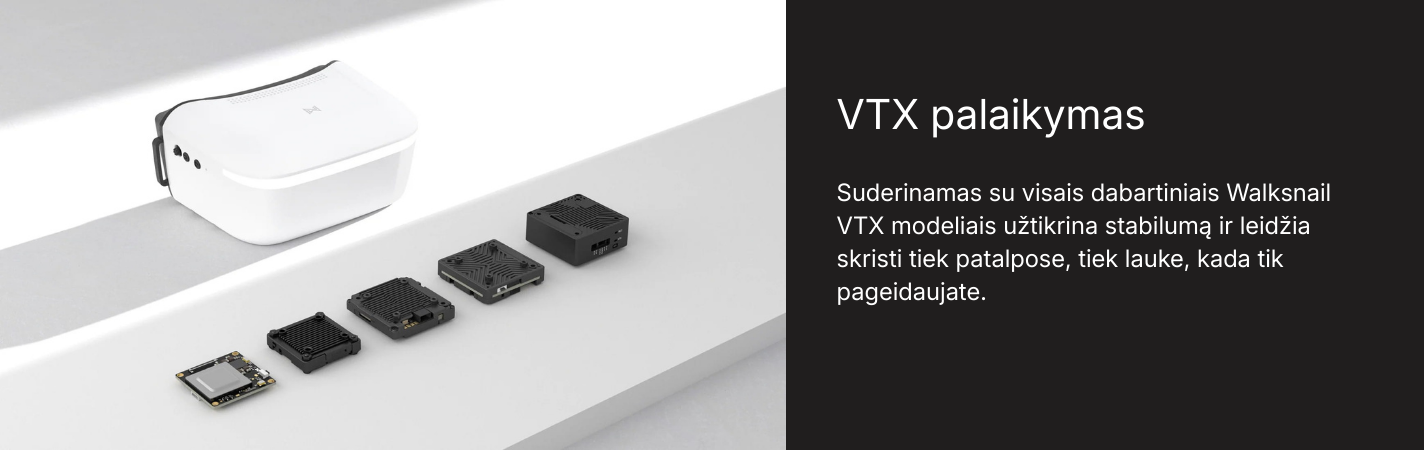

Equipment support

Goggles L is suitable for RC cars, FPV drones and fixed-wing models. With a very competitive price, Goggles L allows you to experience a true digital HD FPV image, providing clarity and immersing you in your FPV adventure.

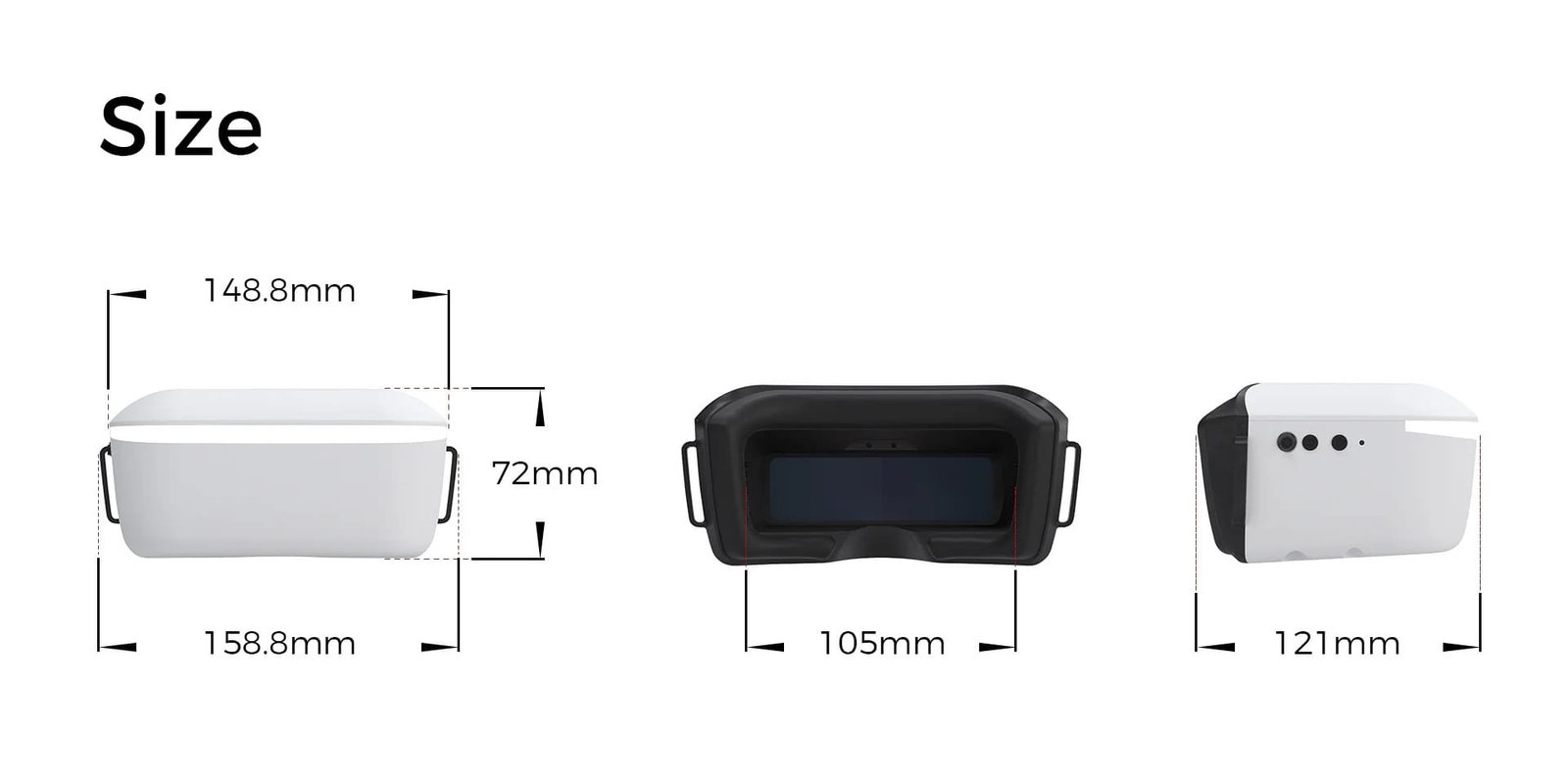

Measurements:

Specification:

• Model: Avatar HD Goggles L;
• Communication frequency: 5.725–5.850 GHz;
• Transmitter power (EIRP): FCC: <30 dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm;

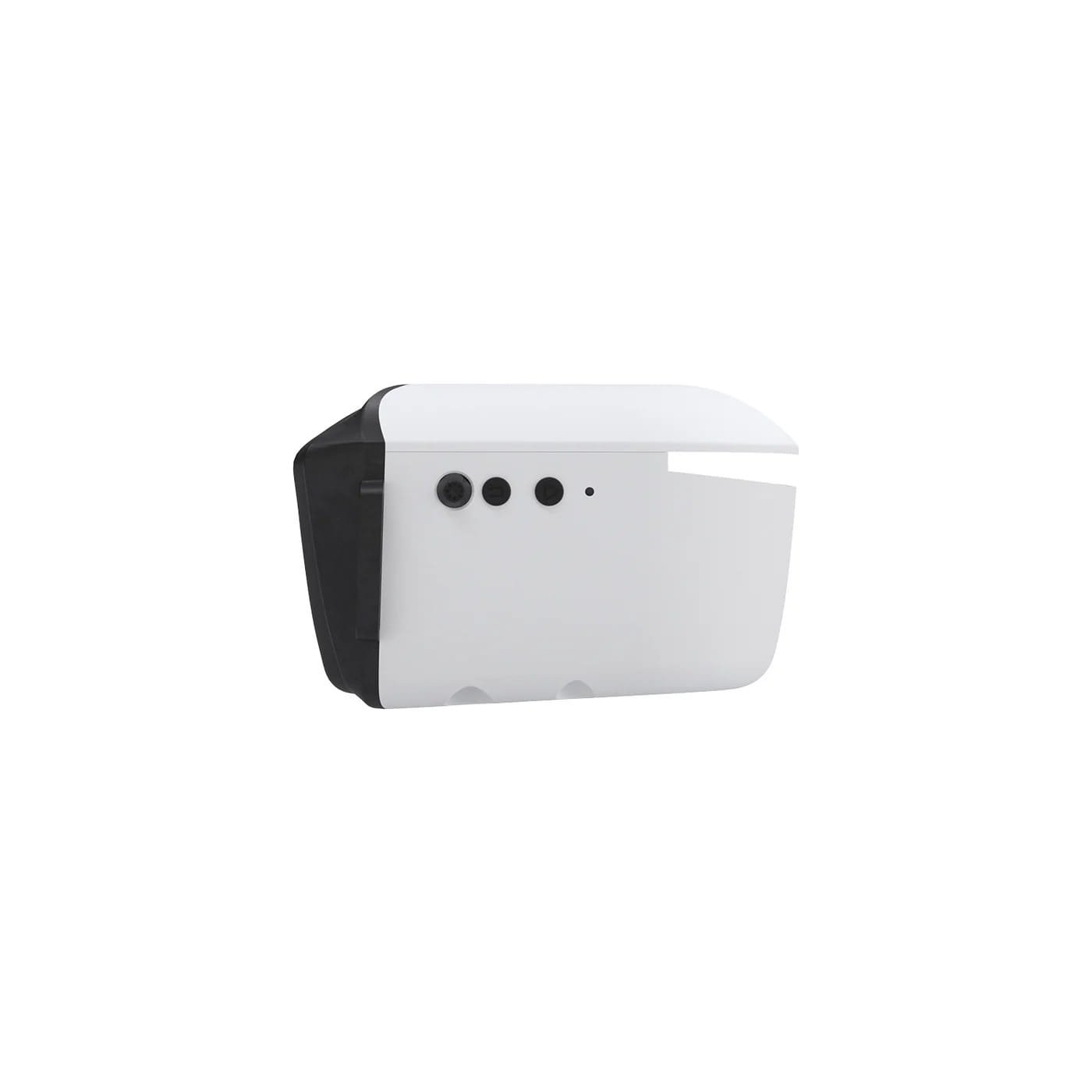

• I/O interface: 4-pin 3.5 mm jack, DC 5.5×2.1 mm, Micro SD card slot;
• Gyroscope: nine-axis gyroscope;
• Transmission resolution: 1080p60fps, 720p60fps;
• Code rate: Max. 50 Mbps;
• Minimum latency: 32 ms on average;

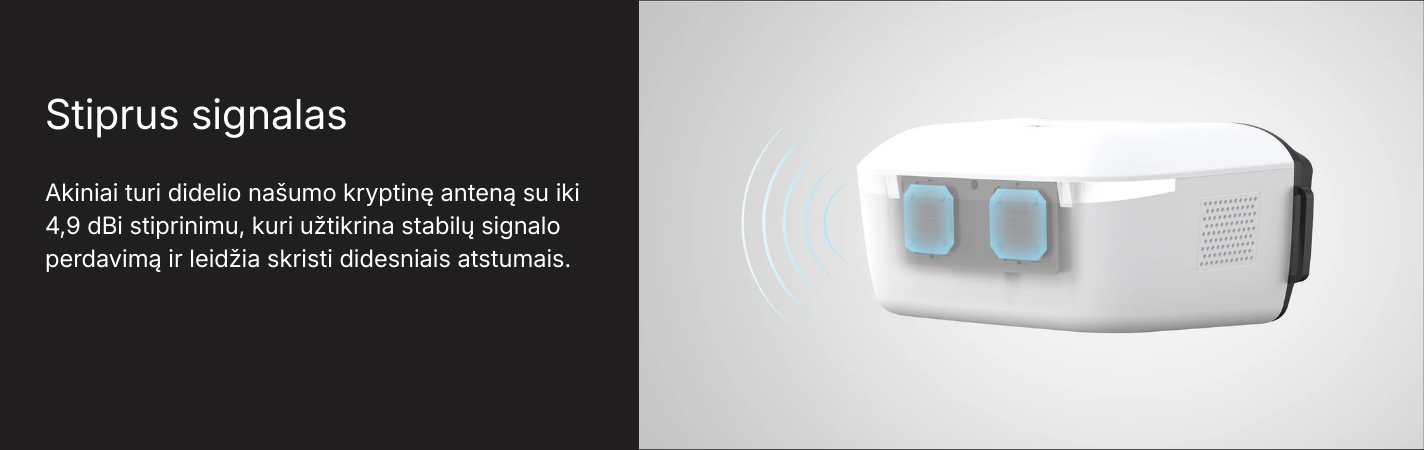

• Average gain: 4.9 dBi;
• Polarization: LHCP;
• Transmission distance: >4 km;
• Number of channels: 8;
• Screen resolution: 1920×1080 / 60 Hz;
• Screen material: LCD;
• Field of View (FOV): 58°;
• Screen size: 4.5 inches;

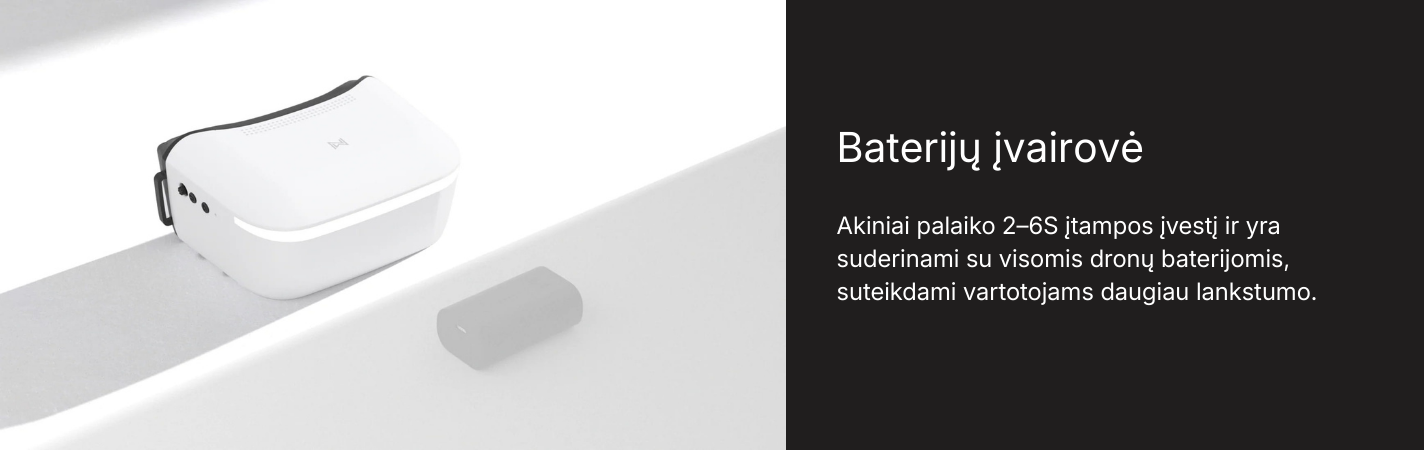

• Supply voltage: 6V–25.2V (2S–6S);

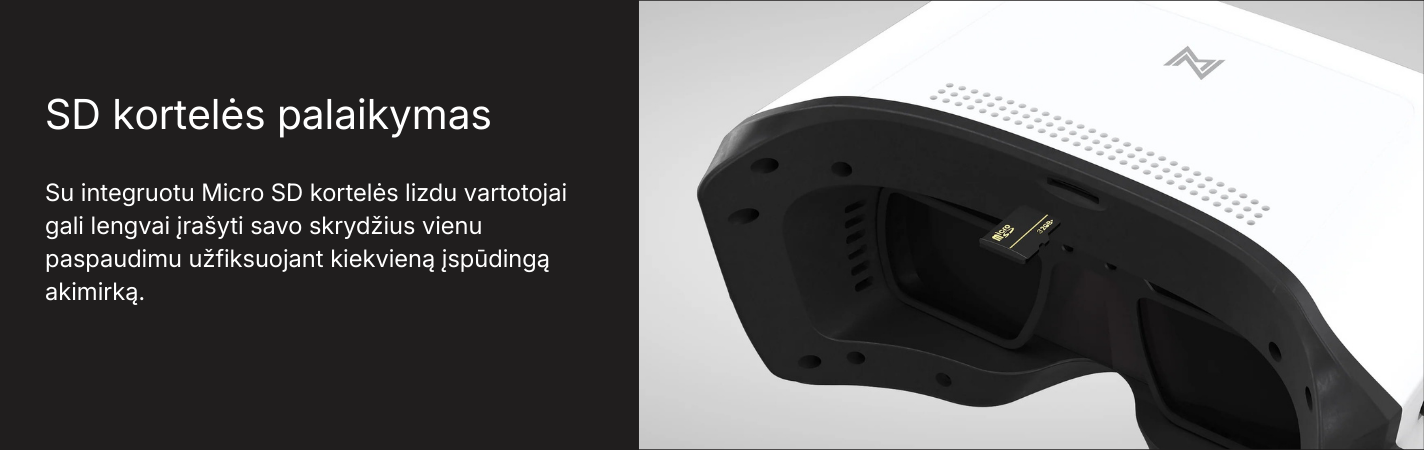

• SD card: supports up to 256 GB;
• Net weight: 350 ±10 g;
• System: Avatar HD System.

Package:

1x CaddxFPV Walksnail Avatar HD L goggles;
1x Straight DC5.5-XT60 power cable;
1x Storage bag;
1x Lens cleaning cloth.

In order to use the head tracking system function in the glasses, you must additionally purchase a GM series camera.
