Battery BETFPV LAVA 2S 550mAh 75C – XT30 (2pcs)

With Z-folding technology, this battery has 5 % more energy density than traditional coiled batteries, allowing for longer flight times and reducing the need to replace batteries frequently. An increased discharge rate of up to 75C delivers more explosive power for improved flight performance, maneuverability, and unmatched control. A longer number of charge cycles ensures long-lasting power and reliable operation.

Specification:

• Model: LAVA 2S 550mAh 75C battery;
• Capacity: 550 mAh;
• Dimensions: 2S: 67 × 15.5 × 13.5 mm;

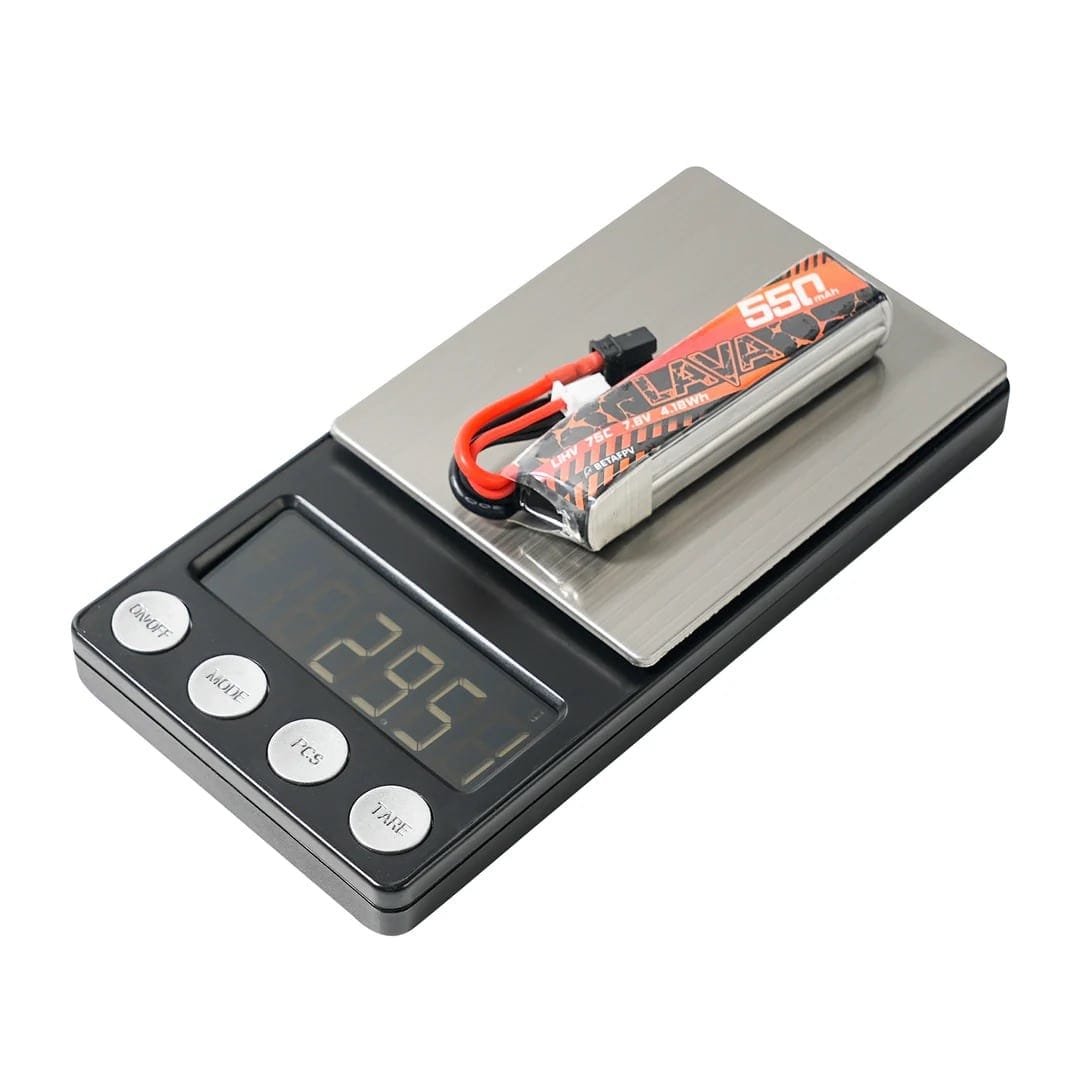

• Weight: 2S: 29.5g;
• Power: 2S: 4.18 Wh;
• Discharge rate (C-rating): 75C;
• Battery type: LiHV;
• Voltage: 2S: 7.6V;
• Charging connector: JST-XH2.54;
• Connection connector: XT30 with 16AWG silicone wire.

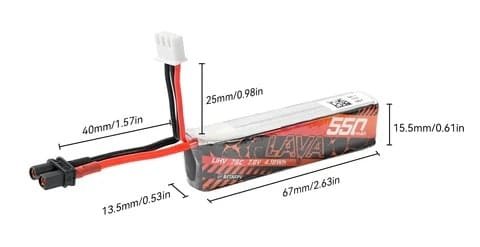

The following image shows the dimensions of the battery.

Z-Folding process

The Z-Folding Process battery demonstrates impressive performance and versatility. By taking advantage of low internal resistance, it enables efficient discharge of a high-current battery in a shorter time. Compared to the Winding Process battery, it achieves a 0.2V higher discharge at equivalent loads, ensuring consistent and reliable power, and also has a 5 % higher energy density in the same volume and longer cycle life. The Z-Folding Process allows for precise electrode sizes to be tailored to the dimensions of the lithium battery, optimizing control over the size and shape of the battery. The battery performance is improved, and there is a wider range of appearance and shape options, and its application possibilities are also wider compared to a battery made using the winding process.

Package:

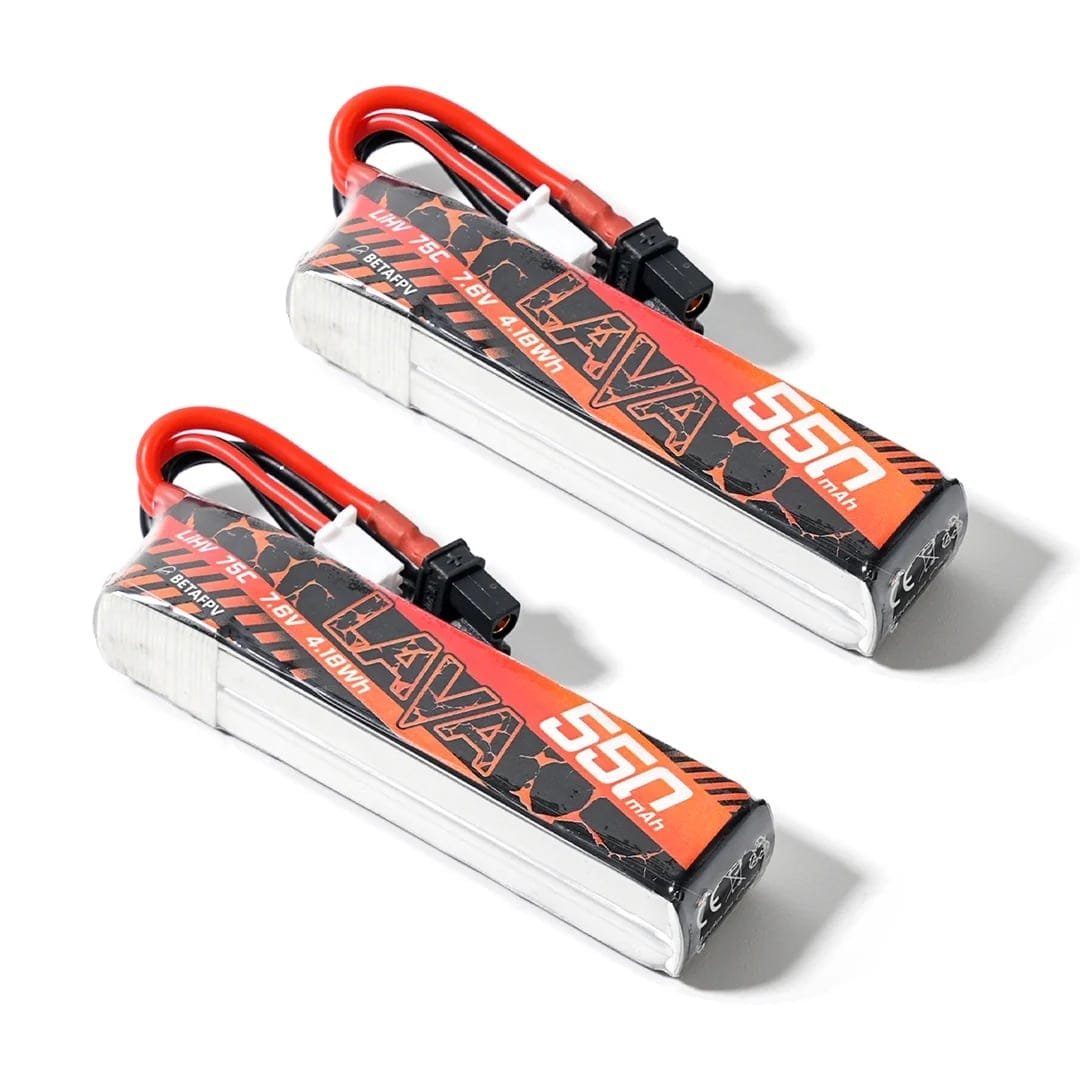

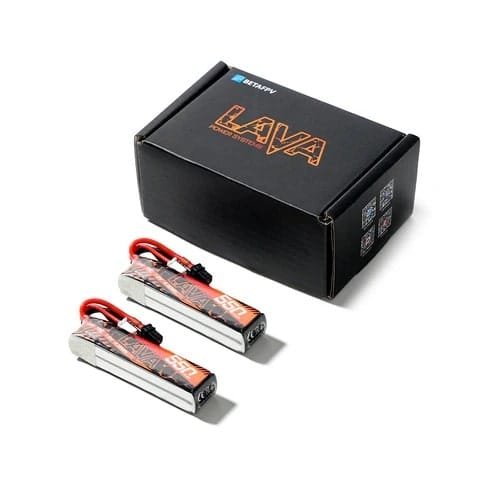

2x LAVA 2S 550mAh 75C batteries.

Important:

* Do not overcharge or leave batteries discharged for long periods of time;
* Do not store batteries near high temperatures;
* Do not throw batteries into fire;
* Do not throw batteries into water.
