Battery BETAFPV LAVA 1S 260mAh 80C – BT2.0 (5pcs)

The Ultralight LAVA 1S 260mAh 80C battery, due to its compact size, gives racing drones a more concentrated center of gravity, which ensures more precise control, faster acceleration and better maneuverability. It is a powerful LiHV battery with advanced “Z-Folding” technology, which surpasses the traditional “Winding” process in both capacity and discharge limits. The impressive 80C discharge rate allows you to reach a new level of performance. The newly designed battery symbolizes explosive power, reminiscent of erupting lava, making it an ideal choice for drone racing. It gives the “Air65” flights exceptional traction and dynamics.

Features:

• Compared to the LAVA 1S 300mAh 75C battery, this battery is 1.1g lighter and smaller, giving the drone a more concentrated center of gravity. This ensures more precise response, faster acceleration, 3 % less takeoff throttle, and better indoor maneuverability.
• Using Z-Folding technology, the energy density increases by 5 % compared to the traditional Winding process, which extends flight time and reduces the need for frequent battery replacement.
• The increased discharge rate of up to 80C provides even more instantaneous power, ensuring exceptional flight performance and maneuverability, as well as unparalleled control.
• The longer battery cycle life ensures long-term power support, providing reliable performance to the user.
• The all-new LAVA series battery features a design that symbolizes explosive power, comparable to the hot lava element.

Specification:

• Item: LAVA 1S 260mAh 80C battery;
• Capacity: 260mAh;
• Dimensions: 54 x 11 x 6.5mm;

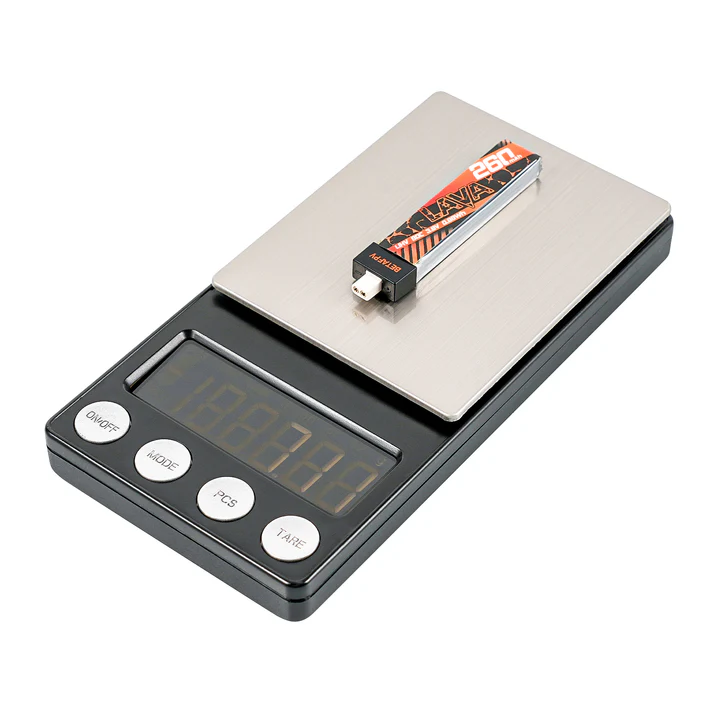

• Weight: 7.11g;
• Power: 0.98Wh;
• Discharge rate: 80C;
• Battery type: LiHV;
• Voltage: 3.8V;
• Connector: BT2.

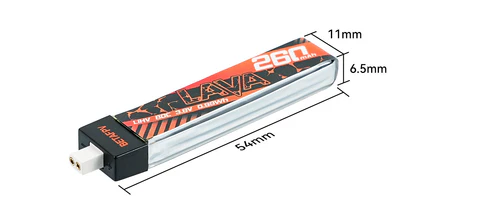

The following image shows the dimensions of the battery.

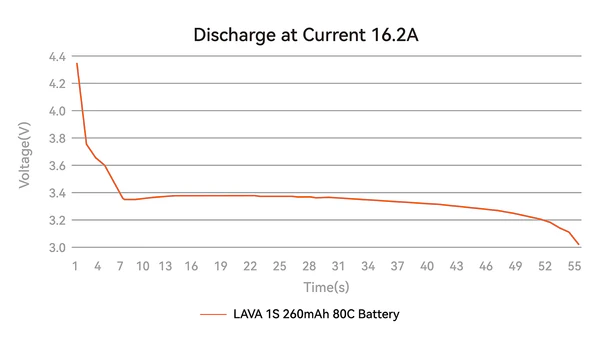

The following image shows battery discharge information.

Z-Folding process

The Z-Folding Process battery demonstrates impressive performance and versatility. By taking advantage of low internal resistance, it enables efficient discharge of a high-current battery in a shorter time. Compared to the Winding Process battery, it achieves a 0.2V higher discharge at equivalent loads, ensuring consistent and reliable power, and also has a 5 % higher energy density in the same volume and longer cycle life. The Z-Folding Process allows for precise electrode sizes to be tailored to the dimensions of the lithium battery, optimizing control over the size and shape of the battery. The battery performance is improved, and there is a wider range of appearance and shape options, and its application possibilities are also wider compared to a battery made using the winding process.

Warning

• Fully charge a new battery before use.
• Only use a charger designed for lithium polymer/lithium ion batteries and never leave the battery unattended while charging.
• Always keep the battery away from flammable and explosive materials while charging.
• Never overcharge a battery. The maximum voltage for a LiPo battery is 4.2 V per cell and for a LiHV battery it is 4.35 V per cell.
• Never discharge the battery to a voltage below 3 V per cell under load.
• Do not store fully charged batteries for more than 3 days. For long-term storage, maintain a voltage of 3.8-3.9 V.
• Do not disassemble, crush, crush, expose to flame or other sources of ignition.
• Do not use deformed or swollen batteries.

Package:

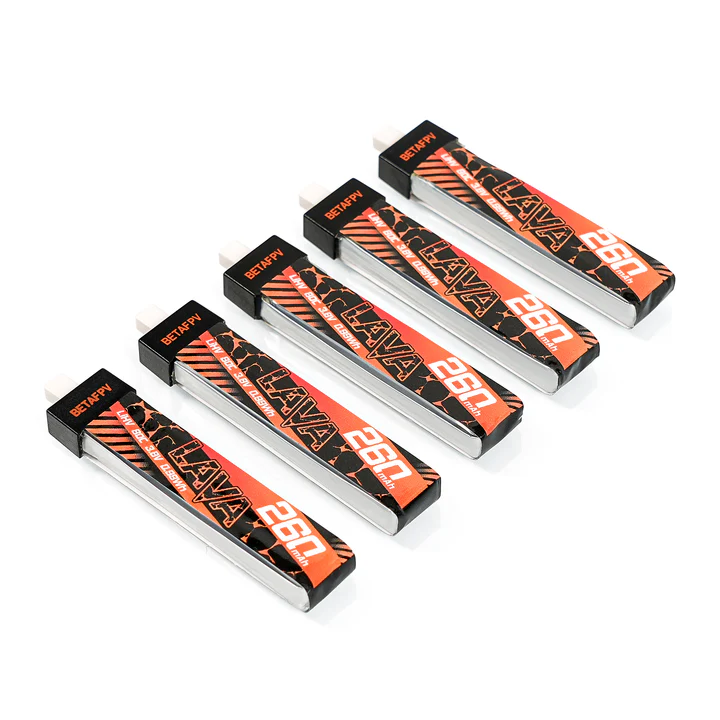

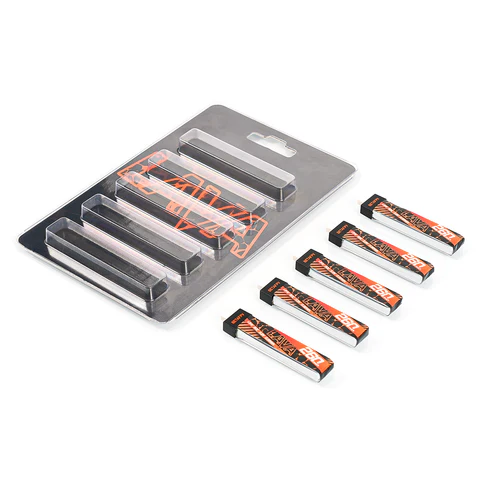

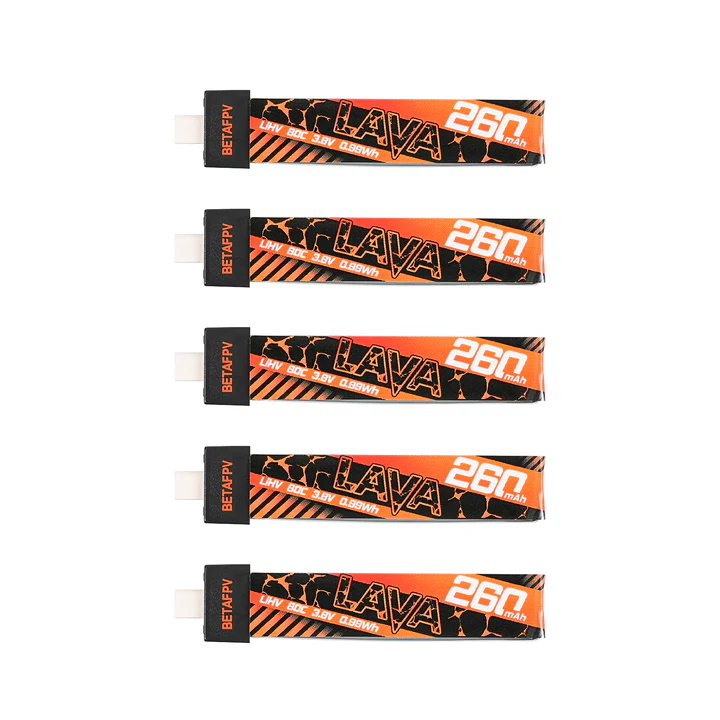

5 x LAVA 1S 260mAh 80C batteries.
