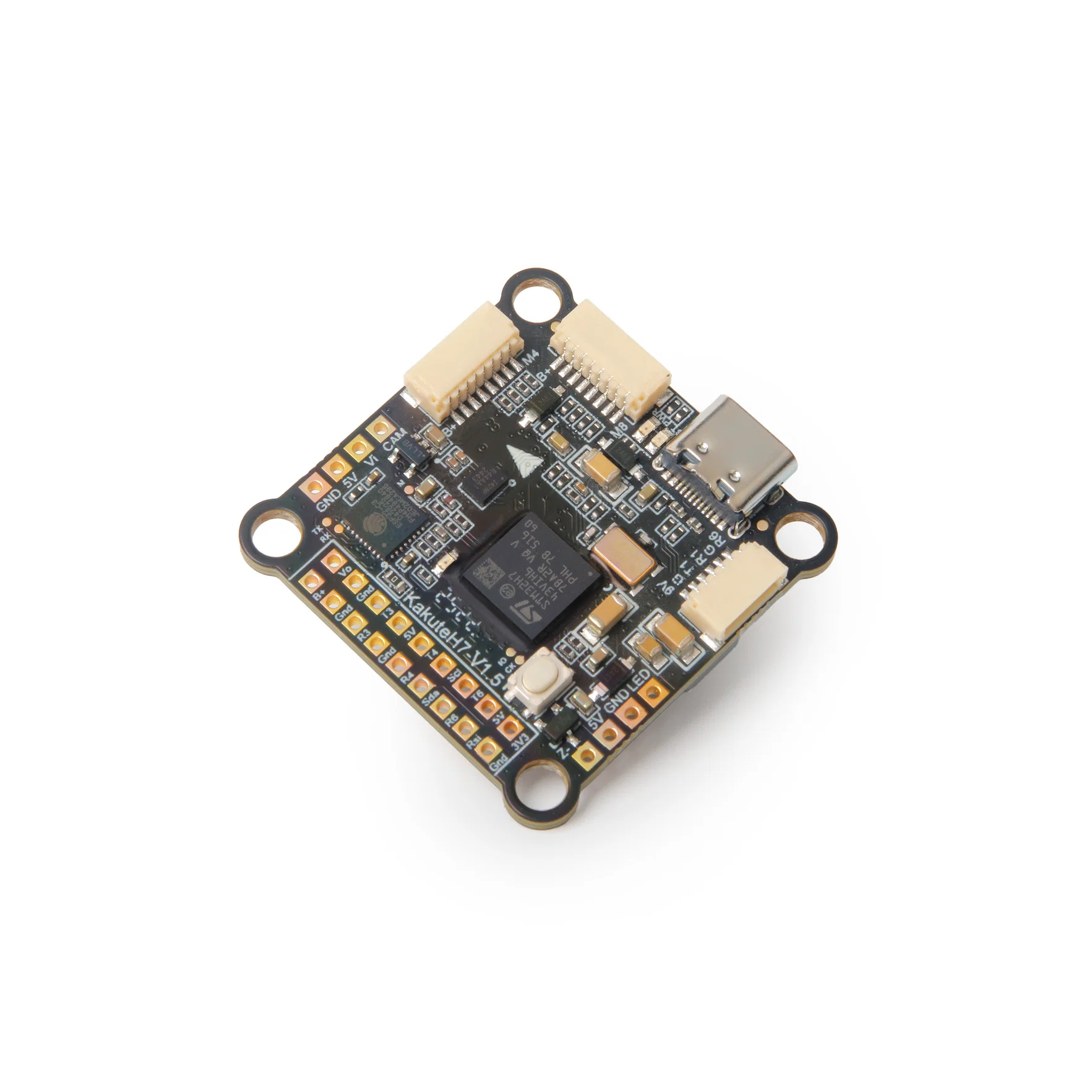

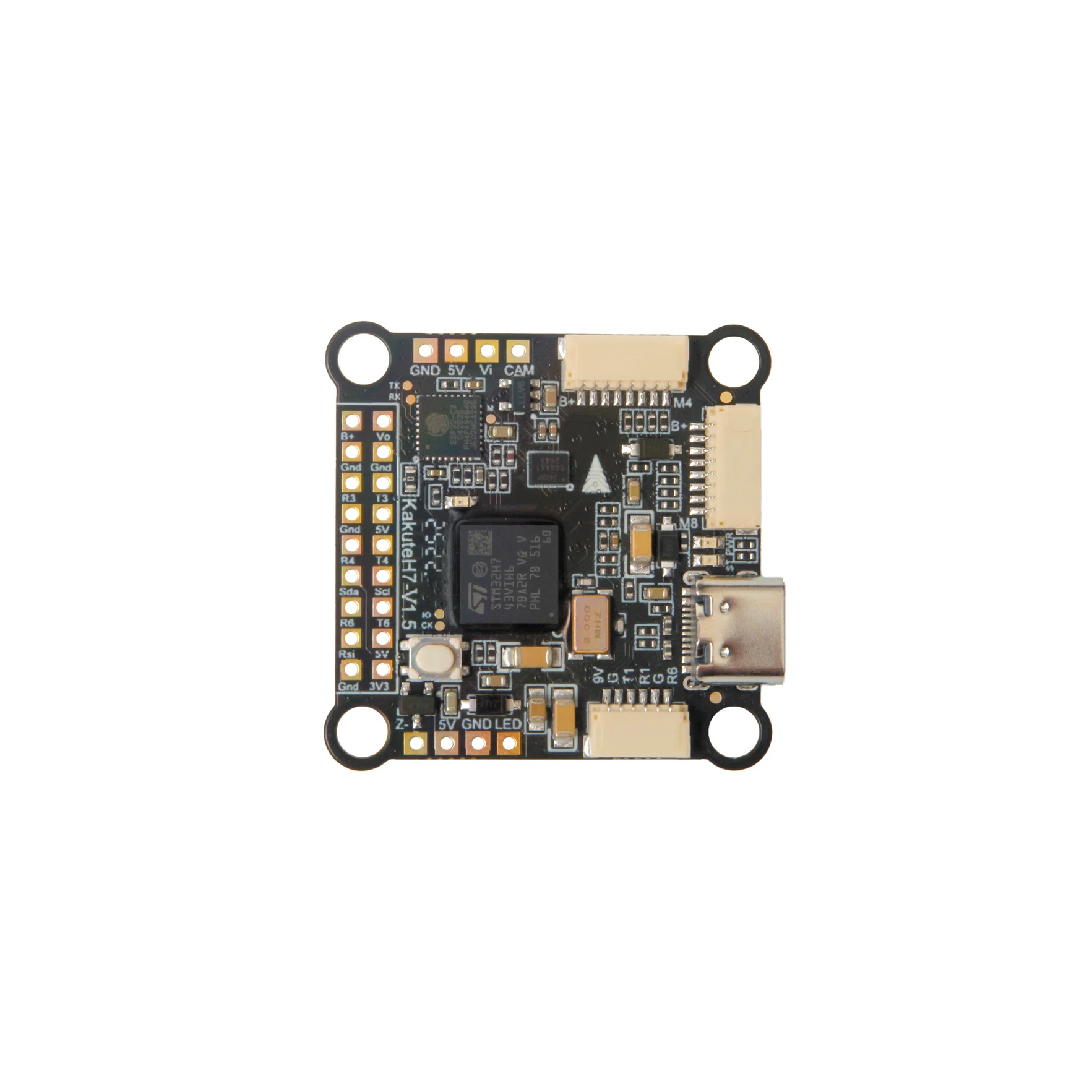

Holybro Kakute H7 Flight Controller

The Holybro Kakute H7 flight controller features advanced functionality: DJI HD support, 6 UART ports, MicroSD Blackbox slot, integrated barometer, Betaflight OSD, 5V and 9V/3A BEC, two Plug & Play 4in1 ESC slots, and a convenient component layout that makes assembly easy. The controller supports analog and digital video systems, and LED, buzzer, and I2C ports allow for easy connection of GPS, magnetometer, and other external devices.

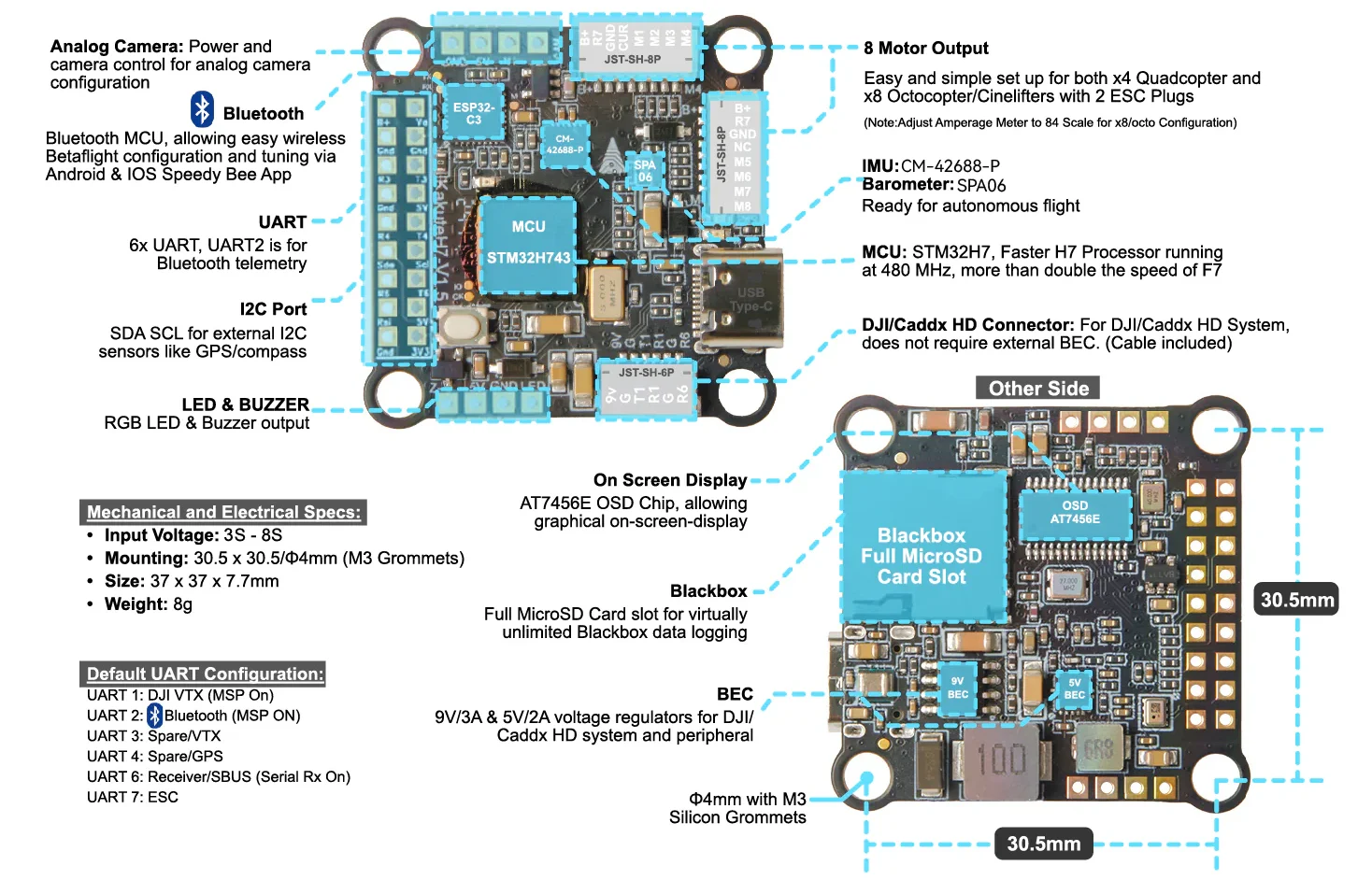

Specification:

• MCU: STM32H743 32-bit processor operating at 480 MHz;
• IMU (V1.5): ICM-42688-P;
• Barometer: SPA06;
• OSD: AT7456E;
• UART connectors: 6 (UART1, UART2, UART3, UART4, UART6, UART7);
• PWM outputs: 9 (8 for motors + 1 LED);
• ESC connectors: 2 × JST-SH1.0 8-pin (4in1 ESC, supports connecting two 4in1 ESCs for 8-motor configurations);
• VTX connector: 1 × JST-SH1.0 6-pin (for HD systems such as Caddx Vista and DJI Air Unit);
• Supported battery: 3S–8S LiPo;
• BEC output: 5 V / 2 A;
• BEC output: 9 V / 3 A;
• USB connector: USB Type-C;
• Mounting dimensions: 30.5 x 30.5 mm (Ø4 mm holes with Ø3 mm silicone sleeves);
• Board dimensions: 35 x 35 mm;
• Weight: 8 g.

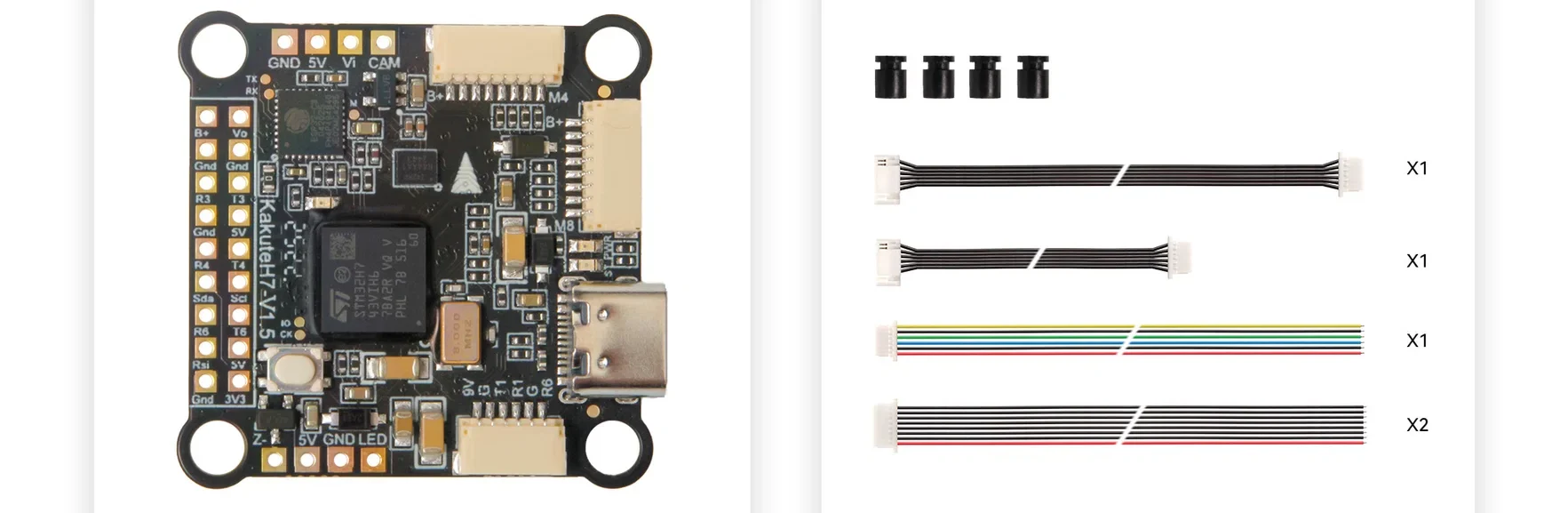

Package:

1x Holybro Kakute H7 V1.5 flight controller;
4x M3 silicone anti-vibration bushings;
2x JST-SH1.0 8-pin 150 mm wires (for ESC connection);
1x JST-SH1.0 6-pin to GHR 10-pin 80 mm and 150 mm cable (for connecting DJI Air Unit);
1x JST-SH1.0 6-pin colored silicone 150mm cable (for Caddx HD systems and other video transmitters (VTX)).
