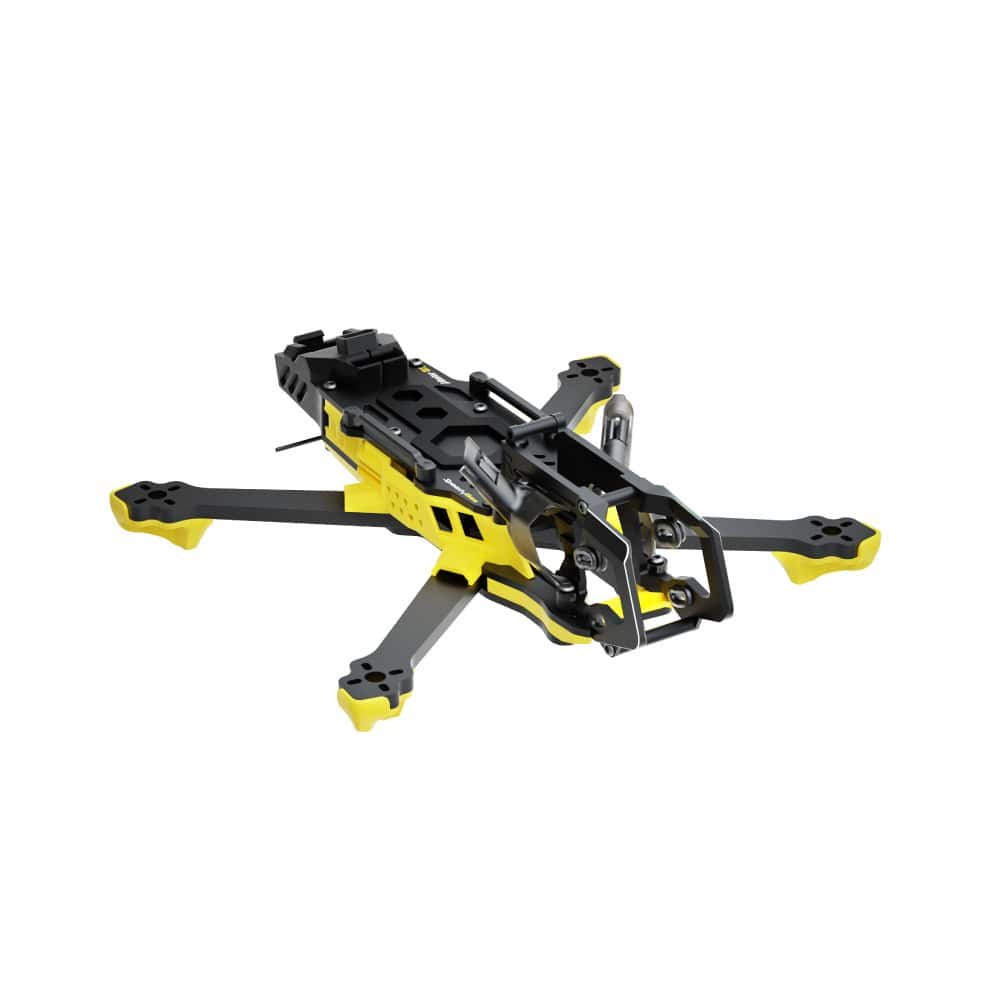

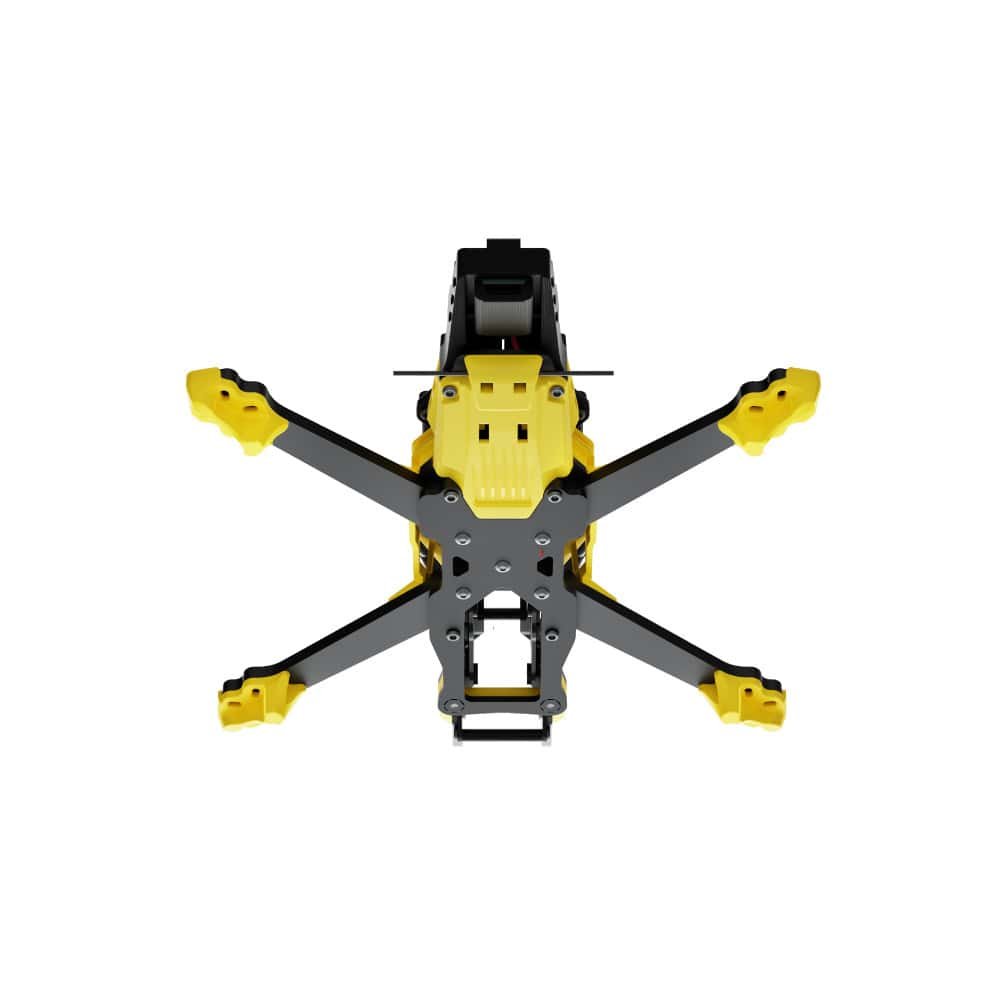

SpeedyBee Master3X Modular FPV Racing Drone Freestyle O4P Frame

SpeedyBee Master 3X Frame O4P (Aluminum Alloy Head) is a durable and versatile FPV drone frame system made of strong 3K carbon fiber. The modular design allows you to easily adapt the frame to the flight system you use, such as the DJI O4 Pro Air Unit, or change the heads as needed.

Features:

• Modular design – possibility to change heads and accessories;
• Aluminum alloy head O4P – stronger than plastic;
• Compatible with DJI O4 Pro Air Unit;
• Carbon fiber construction – lightweight and vibration resistant;
• Quick-change arm system.

Specification:

• Frame: SpeedyBee Master3X;
• Head: Aluminum alloy O4P;
• Wheelbase: 171.3 mm;
• Top plate thickness: 2.0 mm;
• Middle plate thickness: 2.0 mm;
• Bottom plate thickness: 2.0 mm;
• Arm thickness: 4.0 mm;
• Camera (pitch): 19/20 mm;
• Compatible propellers: 3-3.6 inches;
• Flight controller (FC) supported height: 11 mm;
• Flight controller (FC) mounting holes: 25.5 × 25.5 mm;
• Motor mounting holes: 9–12 mm;
• Recommended engines: 1507 / 1804 / 2004 / 2006 / 2105.5;
• Recommended KV: 4S: 3000–3600 KV; 6S: 2200–2750 KV;
• Maximum battery size: 67×31×40 mm;
• Recommended battery: 4S LiPo / LiHv 750–1100 mAh; 6S 650–850 mAh;
• Standard GPS base dimensions: 18.1×18.1 mm
• Frame material: 3K carbon fiber + aluminum head;
• Frame weight: ~87–103 g (without head).

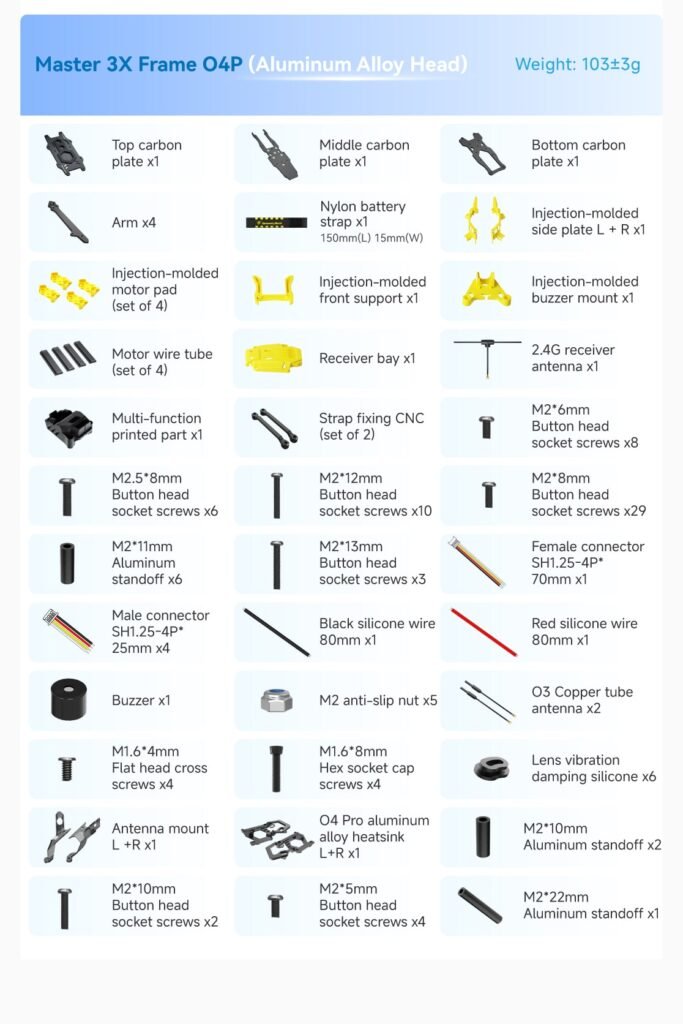

Package:

1× Carbon fiber top plate;
1× Middle carbon fiber plate;
1× Bottom carbon fiber plate;
4× Frame arms;
1× Battery strap (150 × 15 mm);
1× Front injection support;
1× Receiver holder;
1× Multifunctional printed part;
1× CNC strap mounting kit (2 pcs.);
1× O4 Pro aluminum alloy radiator set (left + right).

3D Printed Parts:

1× Multifunctional 3D printed part;
1× Receiver bay;

Other parts:

1× Side panels (left + right);
1× Engine mounting pads set (4 pcs.);
4× Engine wiring tubes;
1× Buzzer holder;
1× Signal sound signal (buzzer);
1× 2.4G receiver antenna;
2× O3 copper antennas;
1× Antenna holder (left + right);
6× Camera lens vibration damping silicones;
1× Red silicone cable (80 mm);
1× Black silicone cable (80 mm);
4× SH1.25-4P male connectors (25 mm);
1× SH1.25-4P female connector (70 mm);

Screws and fasteners:

6× M2.5×8 mm button head screws;
8× M2×6 mm button head screws;
29× M2×8 mm button head screws;
2× M2×10 mm button head screws;
4× M2×5 mm button head screws;
10× M2×12 mm button head screws;
3× M2×13 mm button head screws;
4× M1.6×4 mm flat head cross screws;
4× M1.6×8 mm hex screws;
5× M2 anti-slip nuts;
6× M2×11 mm aluminum spacers;
2× M2×10 mm aluminum spacers;
1× M2×22 mm aluminum spacer.
