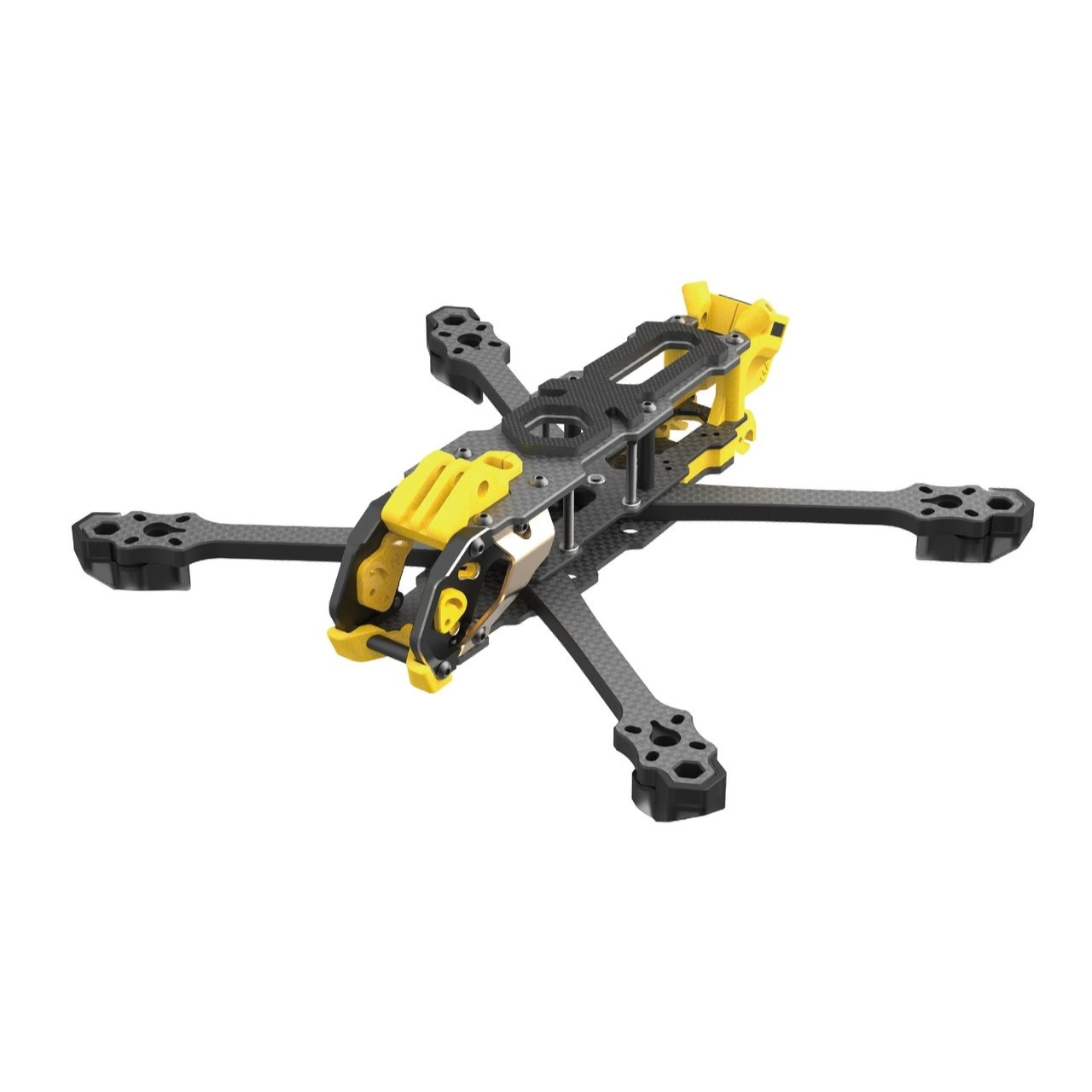

SpeedyBee Mario 5 – XH O4 Advanced frame

Experience agile freestyle and smooth cinematic flight with the SpeedyBee Mario 5 XH O4 Frame Kit. Designed for the DJI O4 system, this 5-inch XH frame features a sturdy carbon fiber construction, smart wiring, and pro-grade compatibility, making it the perfect choice for pilots who strive for the ultimate.

Features:

• Supports DJI O4 system;
• Professional-level compatibility;
• Sturdy carbon fiber construction;
• Smart cable routing;
• XH frame construction;
• 5 inch size.

Specification:

• Motor mounting: hole position Φ8 mm, mounting distance 16–19 mm;
• Standoff material: 7075 aluminum (D5×23 mm / D46×22 mm);
• Weight: XH – 126 ±5 g (without 3D printed parts), 167 ±5 g (with 3D parts);
• Supported camera size: 20 mm;
• Front head material: aviation aluminum alloy;
• Internal installation height: 23–31 mm;
• Battery tray: 3 mm silicone non-slip coating;
• GPS mount size: 18 × 18 × 7 mm;
• Propeller compatibility: up to 5.1 inches;
• Wheelbase (Mario 5 XH): 226 mm;
• Flight controller (FC) mounting: 30.5 × 30.5 mm (M3);
• VTX mounting: 20 × 20 mm (M2);
• Receiver location: 25 × 13 × 6 mm;
• Capacitor location: Φ10 × 20 mm;
• Bottom plate: 2.5 mm (T300 3K carbon fiber);
• Middle plate: 2.0 mm (T300 3K);
• Top plate: 2.5 mm (T300 3K);
• 3D printed parts: yellow TPU;
• Camera mounting screw: 7 mm;
• Arms: 6 mm (T300 3K carbon fiber).

Package:

1x Top frame plate;
1x Middle frame plate;
1x Bottom frame plate;
2x Support frame plates;
2x Front frame arms;
2x Rear frame arms;
1x Left front part of the head;
1x Right front part of the head;
4x Engine protection pads;
1x Receiver protective cover;
1x 3 mm silicone non-slip battery pad;
2x Silicone camera holders;
3x 22 mm aluminum spacers (D46);
6x 23 mm aluminum spacers (D5);
1x XT60EW-M power connector;
1x SMA/UFL antenna connector;
1x 250 mm battery strap.

3D printed (TPU) parts

1x GoPro mount;
1x XT60 / SMA antenna holder;
1x Receiver holder;
1x CNC module holder.

CNC Aluminum Parts

1x Left air intake part;
1x Right air intake part.

Screws and fasteners

4x M3×16mm screws;
4x M3×25mm screws;
1x M5×22mm screw;
1x M5 metal nut;
4x M2×10 mm hex screws;
4x M2×4mm screws;
6x M2×7mm screws;
14x M3×6mm screws;
8x M3×12mm screws;
4x M1.6×8 mm hex screws.
