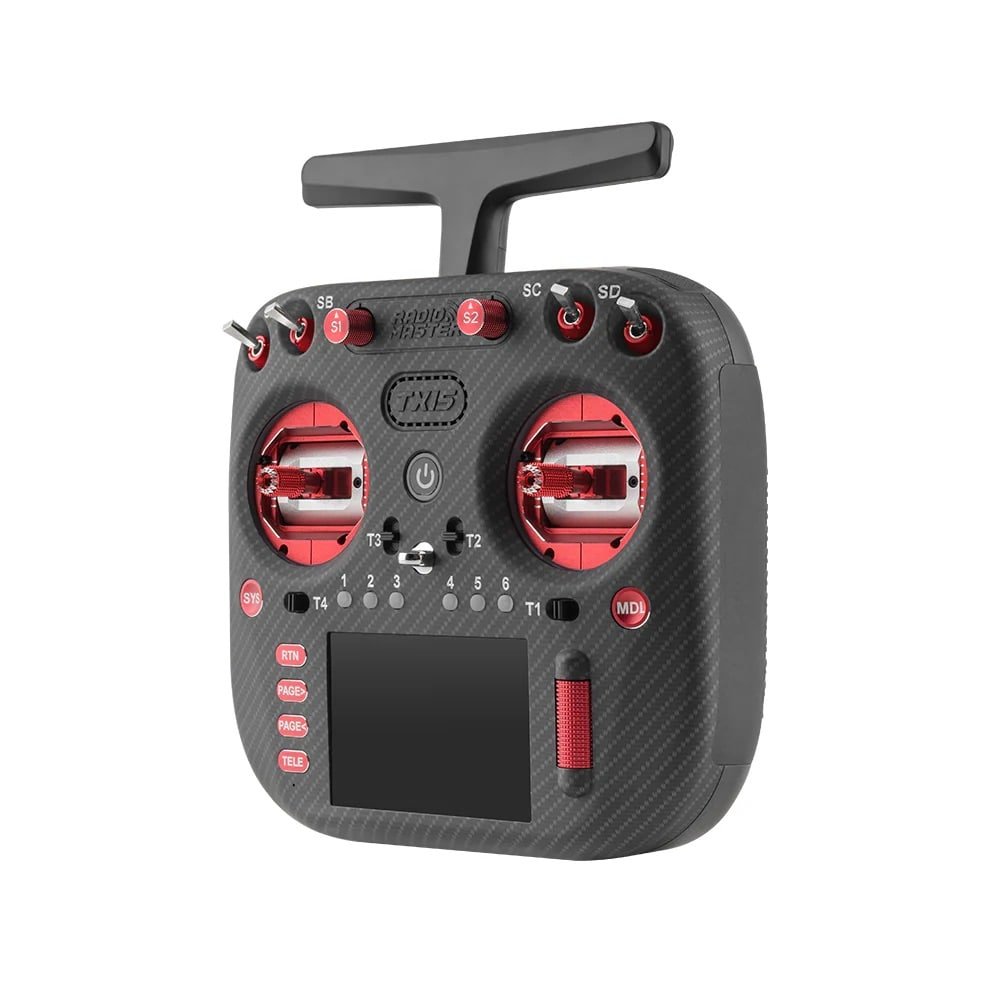

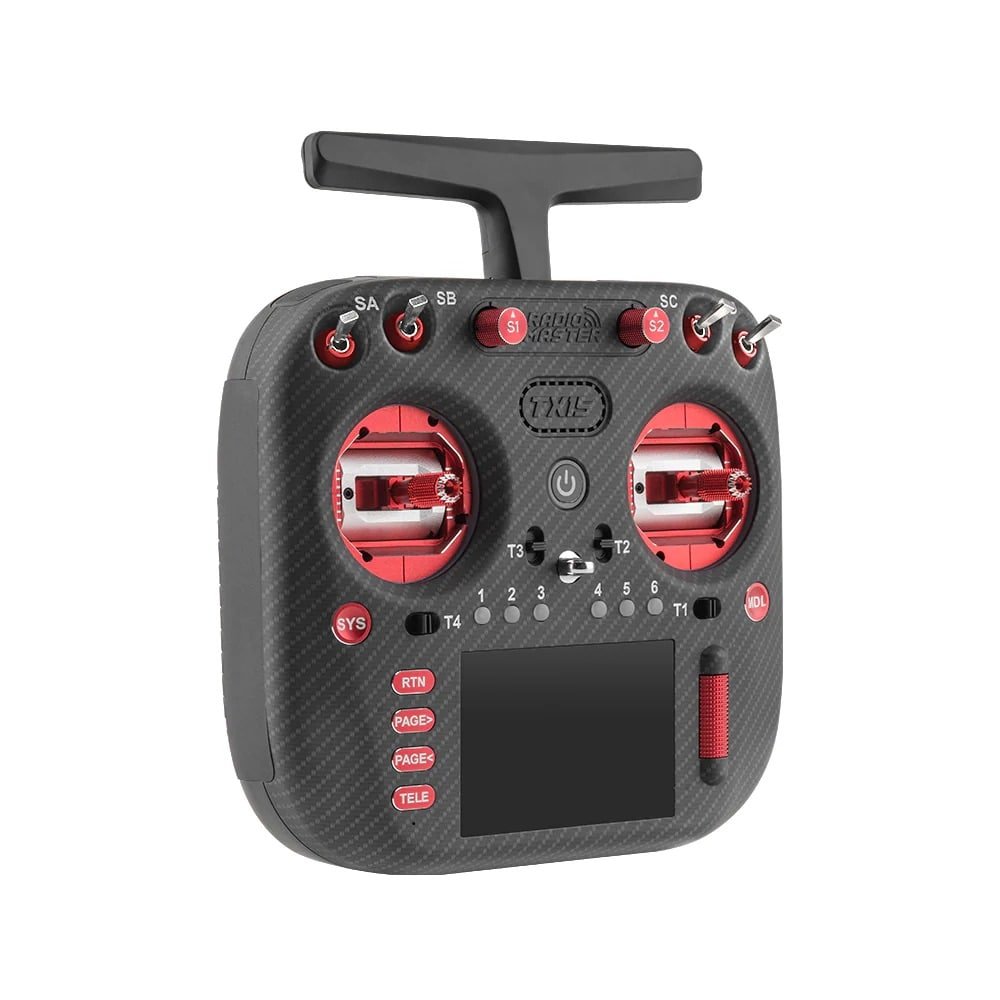

RadioMaster – TX15 MAX Radio Controller ELRS (Mode 2)

RadioMaster TX15 is an advanced open source remote control powered by the powerful STM32 H7 chip, ensuring smooth EdgeTX operation, fast model switching and scripting. The device supports 2.4 GHz and 900 MHz ExpressLRS (ELRS) communication, has a smart battery balancing system, a foldable antenna and an integrated gyroscope with TiltX/TiltY functions. The 3.5-inch IPS touch screen ensures a clear view even in sunlight. AG02 CNC aluminum levers, RGB lighting and carbon fiber imitation body give a professional, luxurious feel. TX15 MAX also features USB-C charging, SIM connectivity, fast memory access and replaceable switches.

Features:

• Extremely fast operation;
• 3.5-inch, 480 x 320 resolution IPS touch screen with vivid colors;
• Supports 2.4 GHz / 900 MHz ExpressLRS connection;
• Smart battery balancing system;
• Powerful cooling system;
• AG02 joysticks;
• Adjustable RGB lighting ring: RGB LED lights are integrated around the levers, the lighting of which can be controlled via LUA scripts;
• Foldable antenna;
• Built-in microphone;
• Integrated gyroscope;
• Iintegrated 4 GB internal flash memory;
• Switches are being replaced.

Specification:

• Item: TX15 Max remote control;
• Dimensions: 178 × 168 × 81 mm;
• Weight: 672 g (without battery);

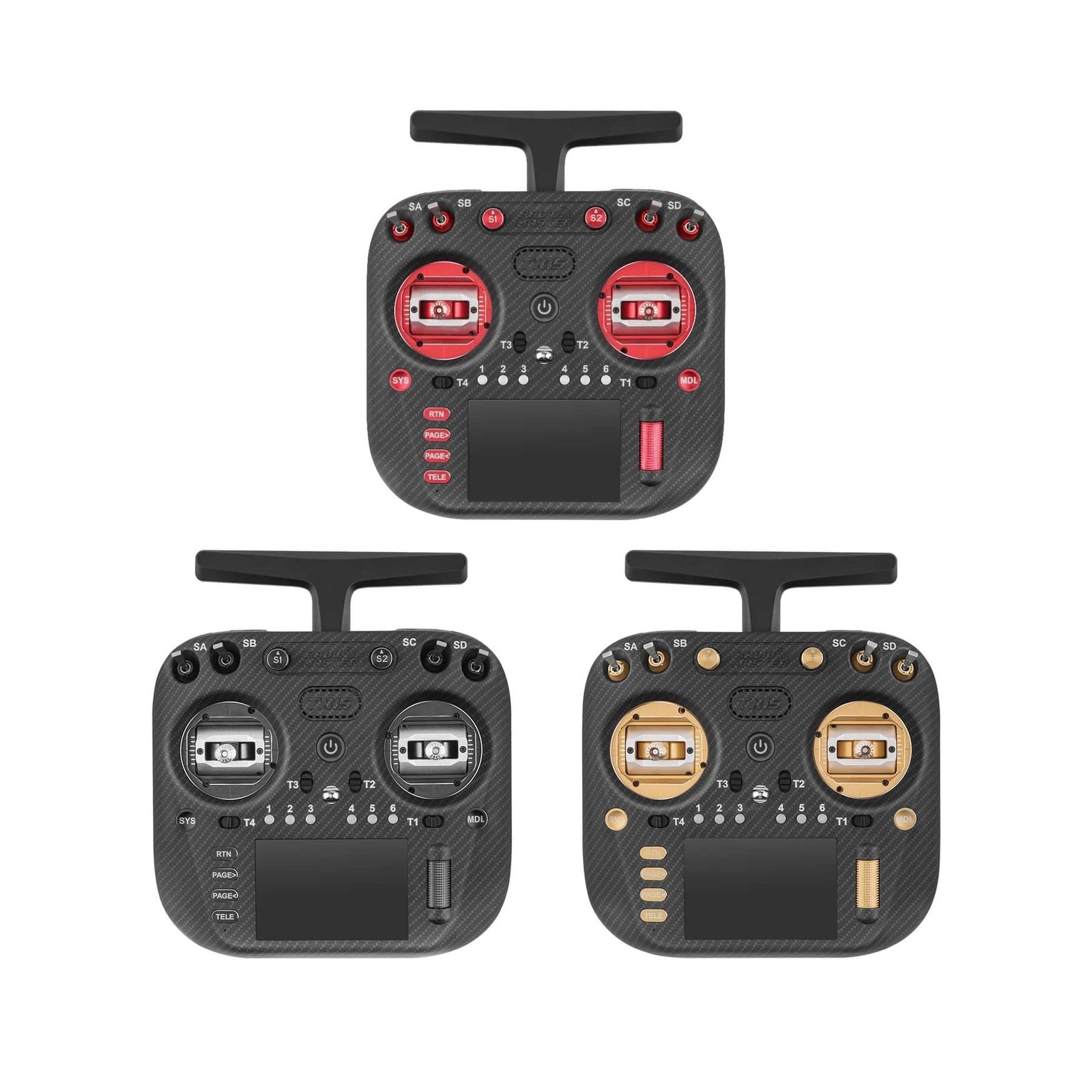

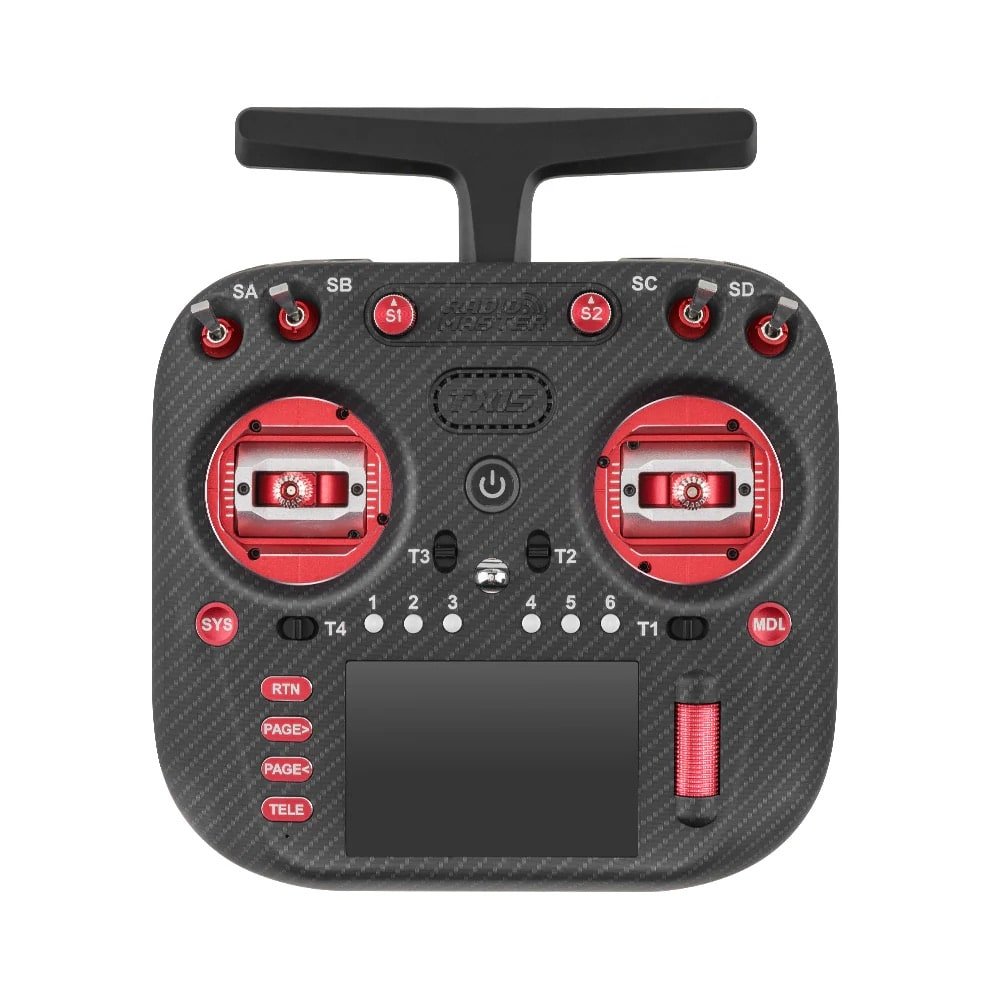

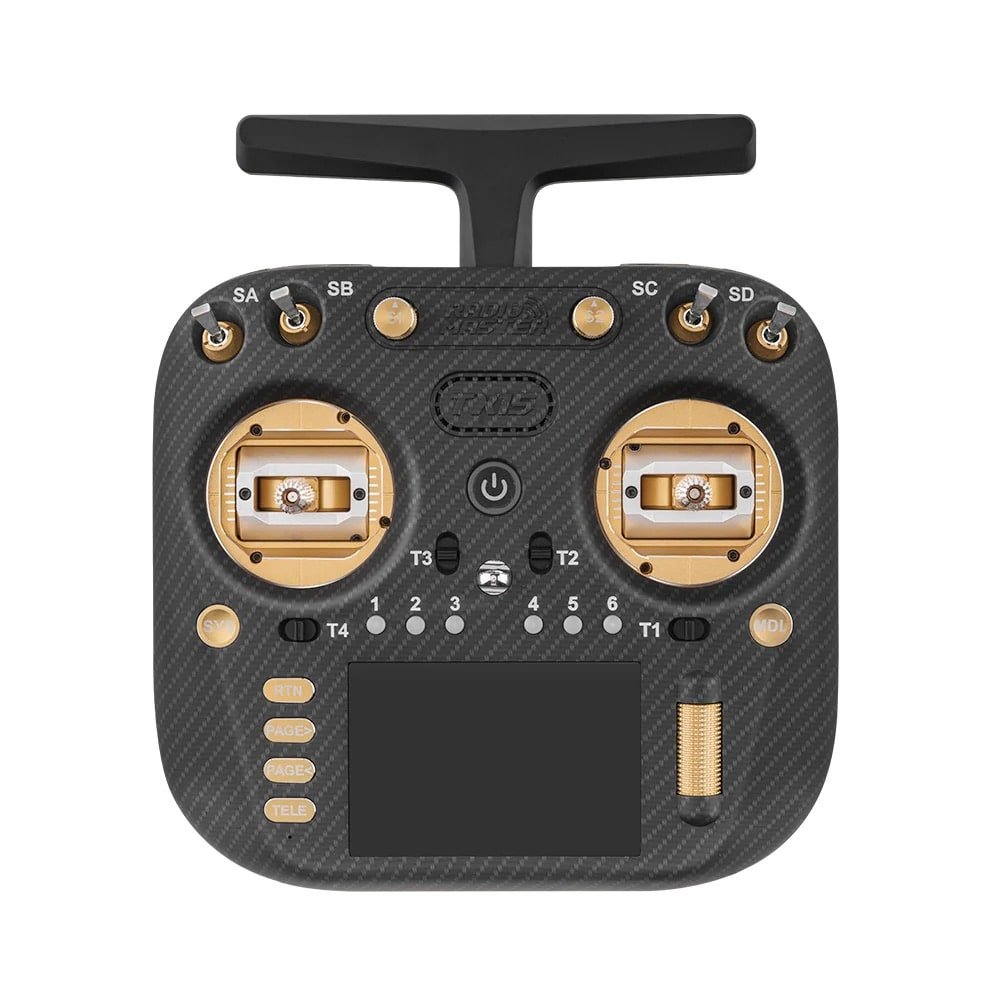

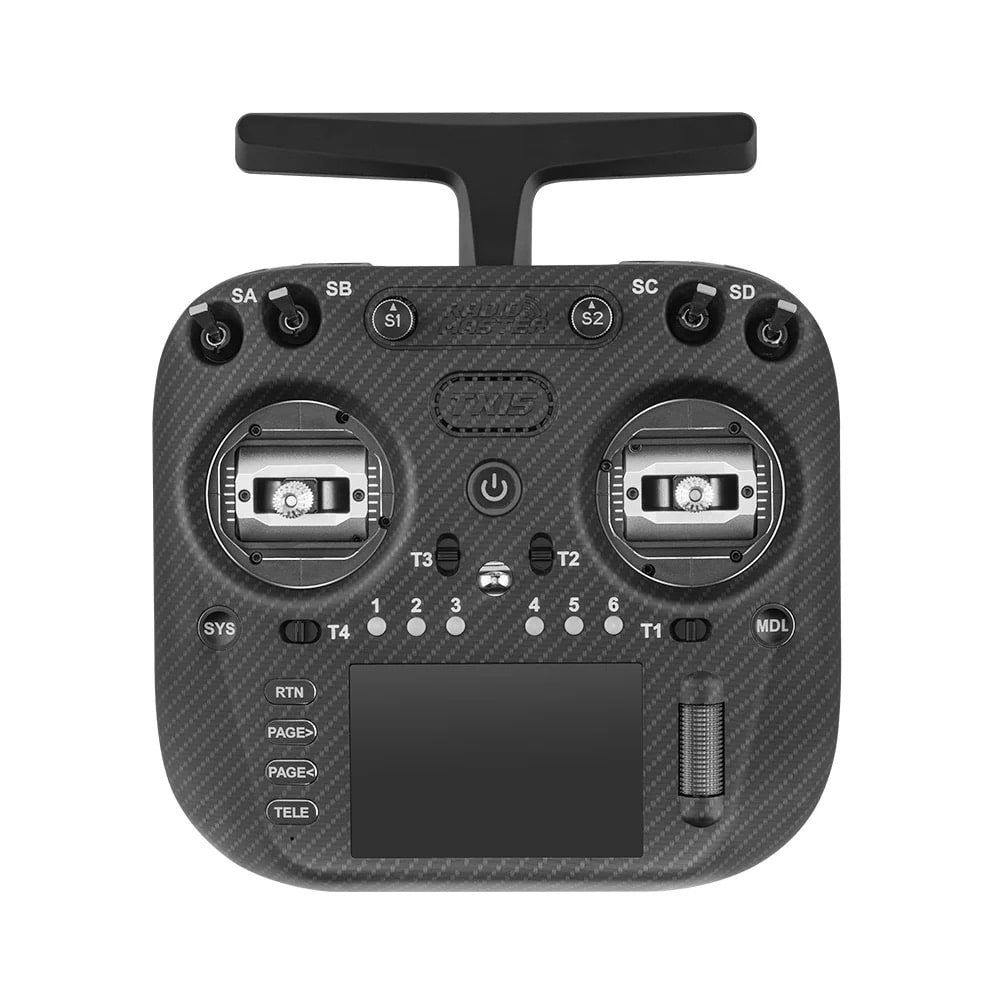

• Color (optional): red/black/gold;
• Frequency: 2.400 GHz or Sub-G 900 MHz;
• Internal RF module: ELRS 2.4 GHz / Sub-G 900 MHz;
• Supported protocols: ExpressLRS;
• Cooling fan: yes;
• Transmitter module: built-in ELRS;
• Internal memory: 4 GB Flash;
• Built-in microphone: yes;
• Integrated gyroscope: yes (ICM-42607-C);
• MicroSD card (not included): up to 32 GB / FAT32 (inserting the card disables internal memory);
• Antenna gain: 2 dB (transmission power adjustable);
• Current: 875 mA at maximum output power;
• Voltage range: 6.6 – 8.4 V DC;
• Radio software: EdgeTX;
• Module software: ExpressLRS;
• Channels: up to 16 (depending on receiver);
• Display: 3.5-inch IPS touchscreen (480 × 320 resolution);

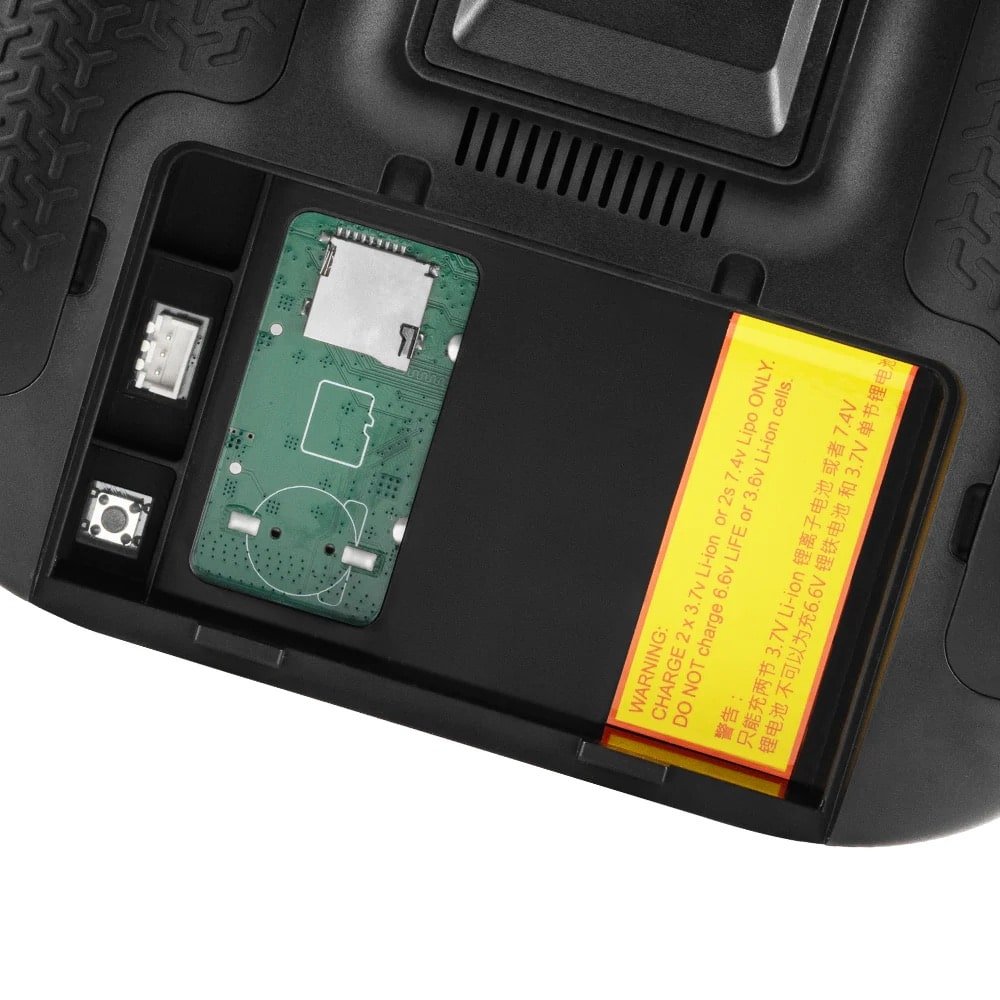

• Battery: 7.4V 2-cell lithium polymer / two 3.7V 18650 lithium-ion cells / 21700 5000mAh battery (not included);
• Connectors: USB-C;
• Levers: AG02 CNC Hall sensor levers;
• Lever rods: M4;
• Update method: via USB-C (UF2);
• Module connector: JR compatible connector for additional modules.

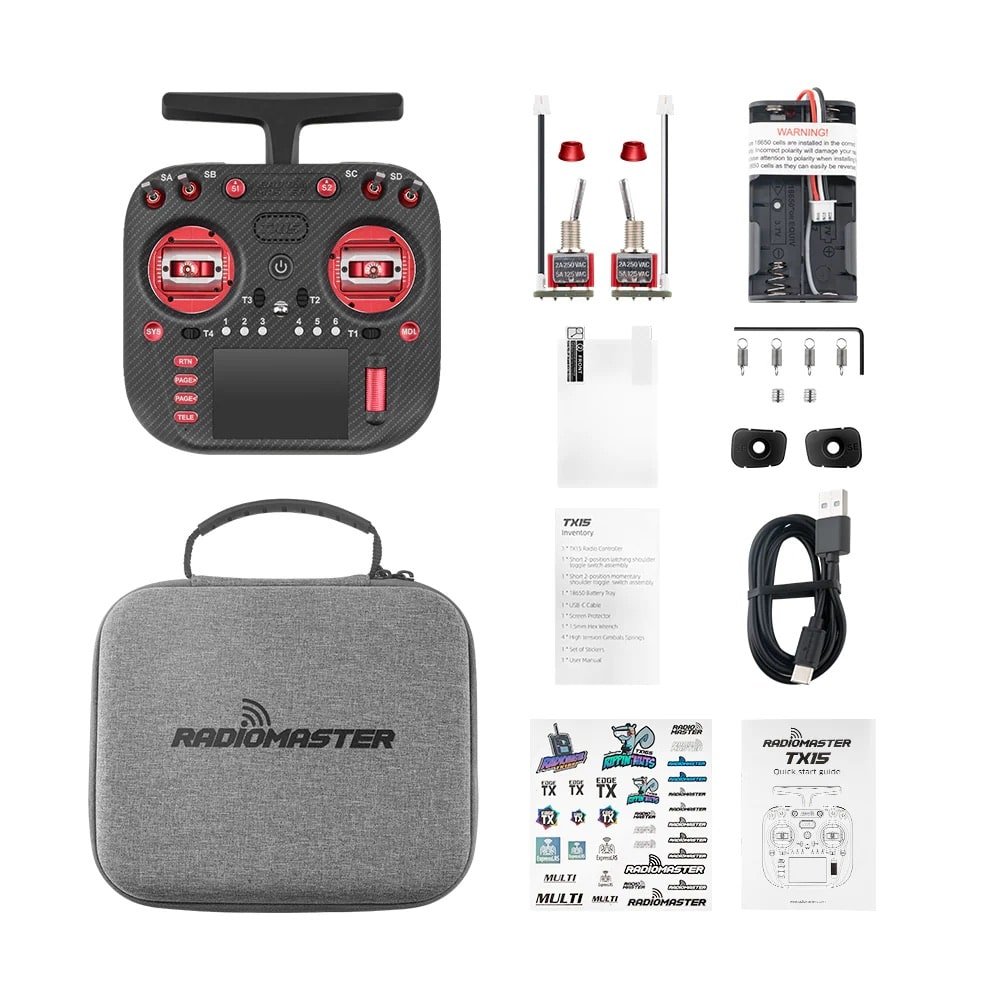

Package:

1x TX15 Max remote control;
1x branded carrying case;
1× short 2-position latching top switch;
1× short 2-position momentary top switch;
1x 18650 battery holder;
1x USB-C cable;
1x screen protector;
1x 1.5 mm hex key;
4x high tension lever springs;
2x lever locking screws
1x sticker set;
1x user manual;
1x equipment card.

Batteries for the remote control are not included.
