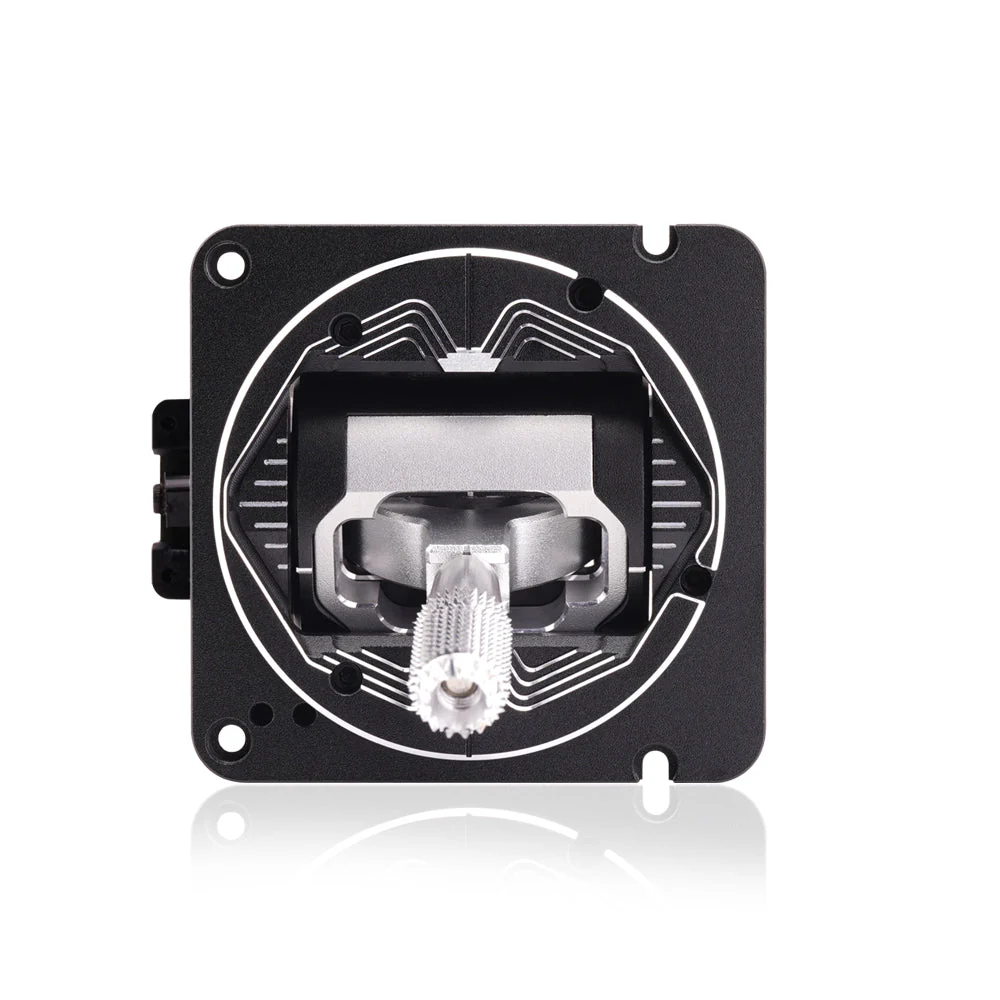

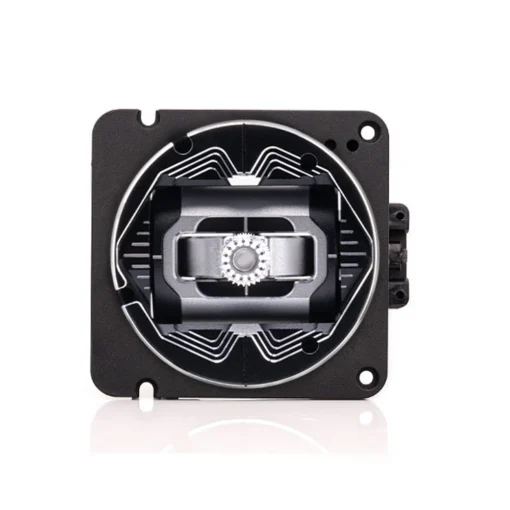

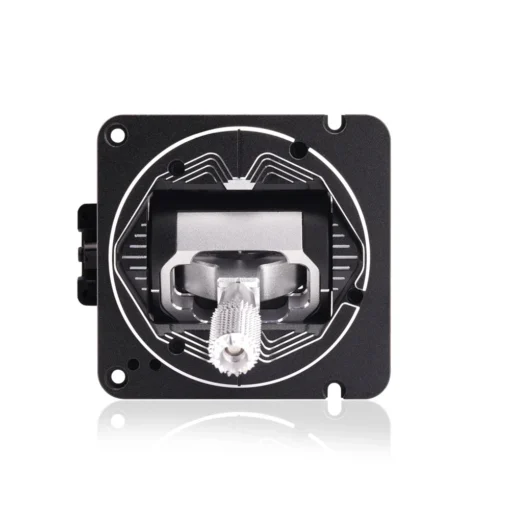

RadioMaster AG01 CNC Hall Gimbals for TX16S & Boxer

Developed and tested for over a year, the Radiomaster AG01 gimbals were developed in collaboration with the company's engineers and world-class professional pilots - MCK, Alex Campbell, Noical, Veysi.FPV, AZFPV, Xiao Zheng and Long XL - to meet the strictest requirements of the most competitive racing championships.

The AG01 gimbals are fully CNC milled for maximum precision and quality. Four ball bearings provide a smooth and precise feel, while the front-mounted tension and travel adjustment system allows for easy fine-tuning to suit the pilot's needs.

The Radiomaster AG01 is a gimbal that takes the TX16S console to a whole new level.

Features:

• Made from CNC machined, aircraft-grade aluminum.

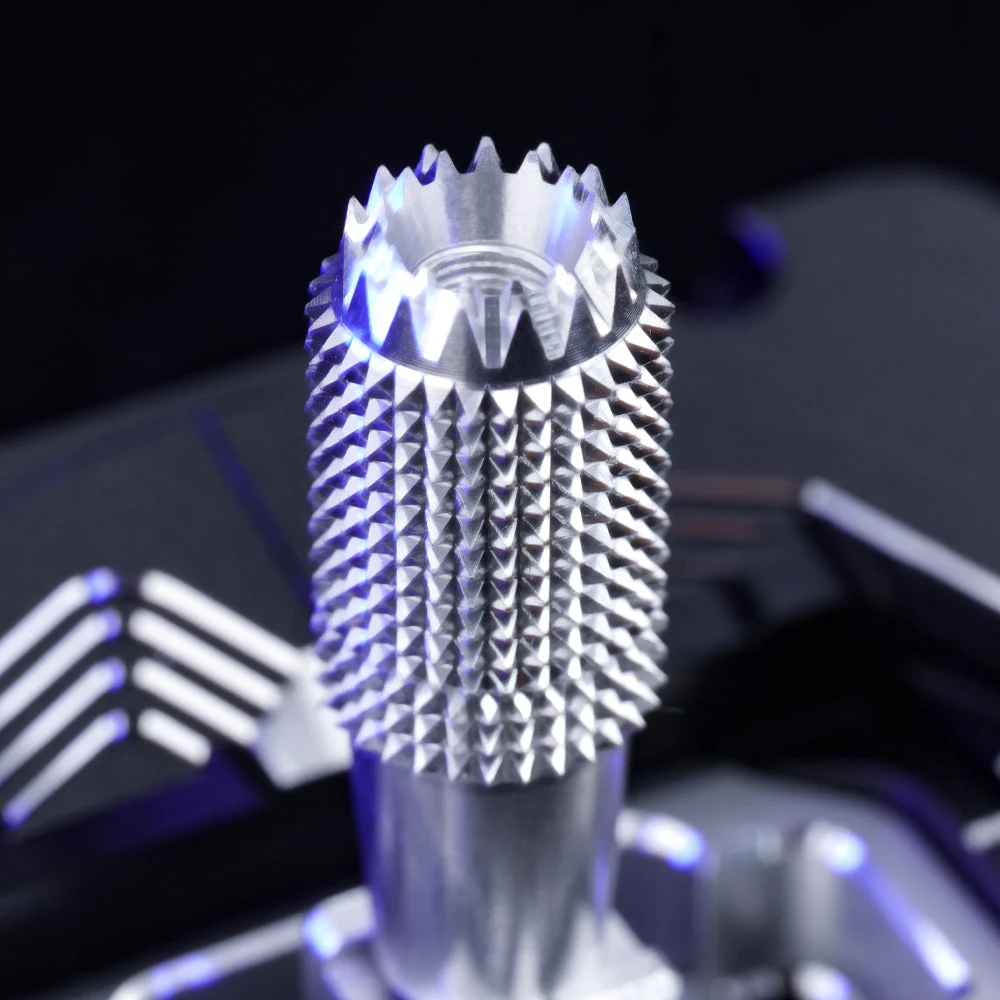

• Ergonomic joystick tips – for comfortable and precise control.
• Non-contact Hall sensors – ensure extremely accurate control signals and precise centering.
• Four precision bearings for an unparalleled smooth feel.

Specification:

• Item: AG01 CNC Hall Gimbal Set;
• Sensor type: Hall;
• Operating voltage: DC 3.3 V;
• Linearity: real-time (no delay);
• Adjustable travel angle: 38°–54°;
• Adjustable operating mode: Yes;
• Adjustable tension: Yes;
• Four bearings: Yes;
• Operating temperature range: –20 °C to +85 °C;
• Dimensions: 60 x 53 x 56 mm;
• Weight: 125 g/pc.

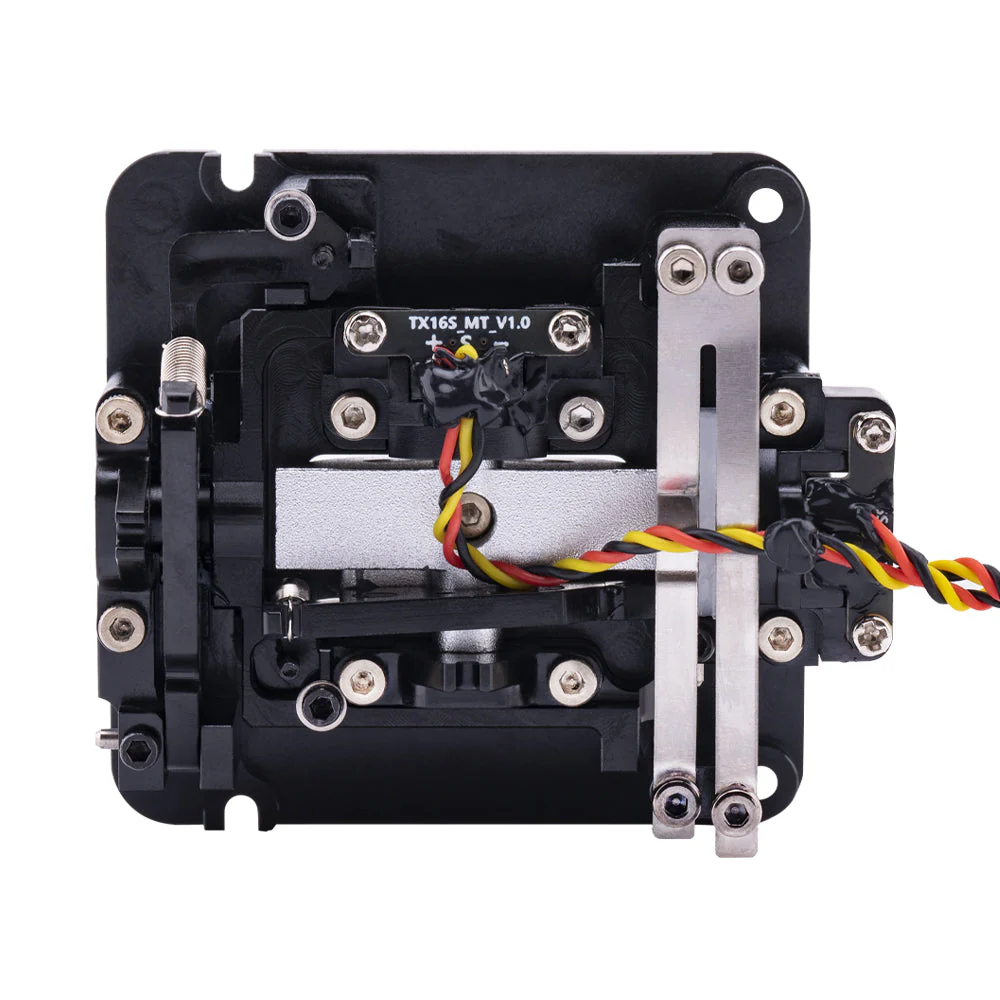

Externally adjustable

• ① Setting the lower travel limit:
Turn the screw clockwise to decrease the stroke amplitude.
Turn counterclockwise to increase the stroke amplitude.
Travel range: 38–54°
• ② Setting the upper travel limit:
Turn the screw clockwise to decrease the stroke amplitude.
Turn counterclockwise to increase the stroke amplitude.
Travel range: 38–54°
• ③ Vertical (up/down) spring tension adjustment:
Turn the screw clockwise to increase the spring tension.
Turn counterclockwise to decrease spring tension.
• ④ Centering and operating mode adjustment:
When the screw is turned clockwise all the way down, the gimbal no longer centers on the vertical axis when the joystick is released.
When the screw is turned counterclockwise all the way up, the gimbal centers on the vertical axis when the joystick is released.
• ⑤ Horizontal (left/right) spring tension adjustment:
Turn the screw clockwise to increase the spring tension.
Turn counterclockwise to decrease spring tension.
• ⑥ Throttle tension adjustment:
When there is no tension on the vertical axis,
⑥ screw adjusts the tension strength, and
The ⑦ screw adjusts the stiffness of the resistance scale.

Size:

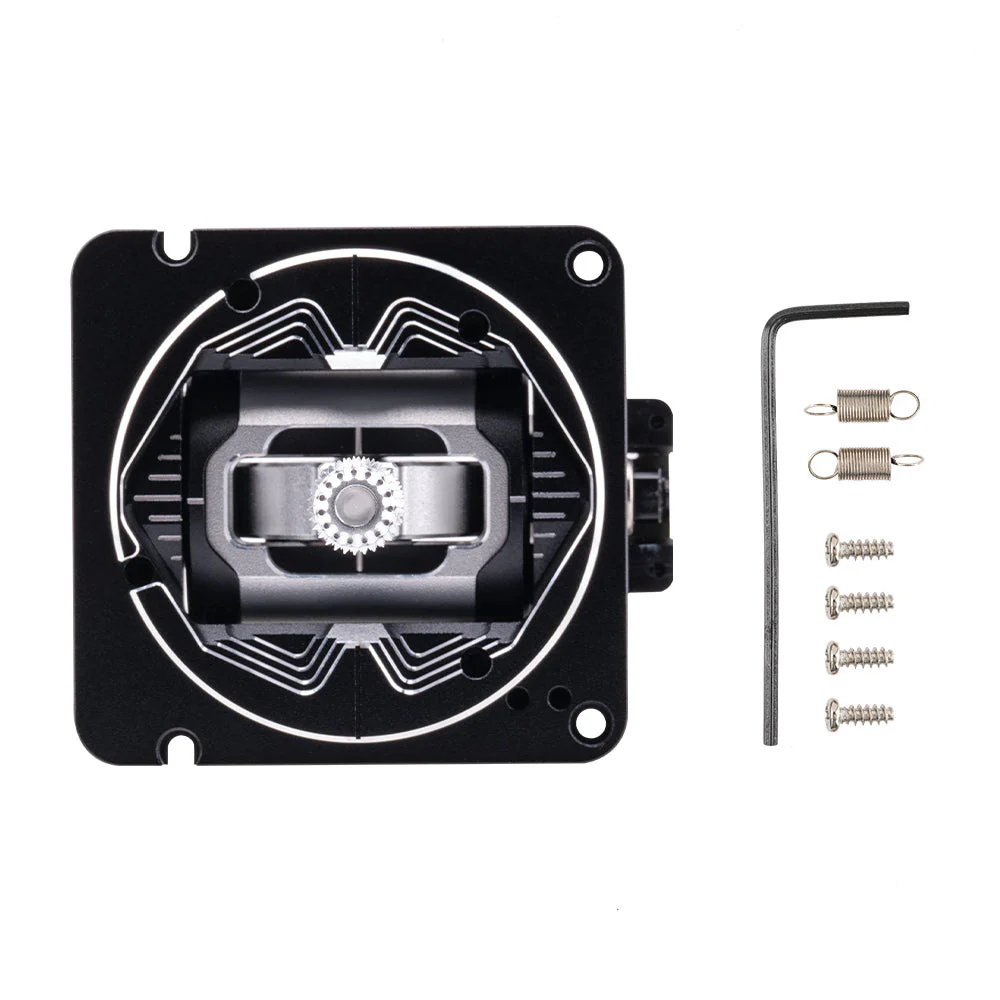

Package:

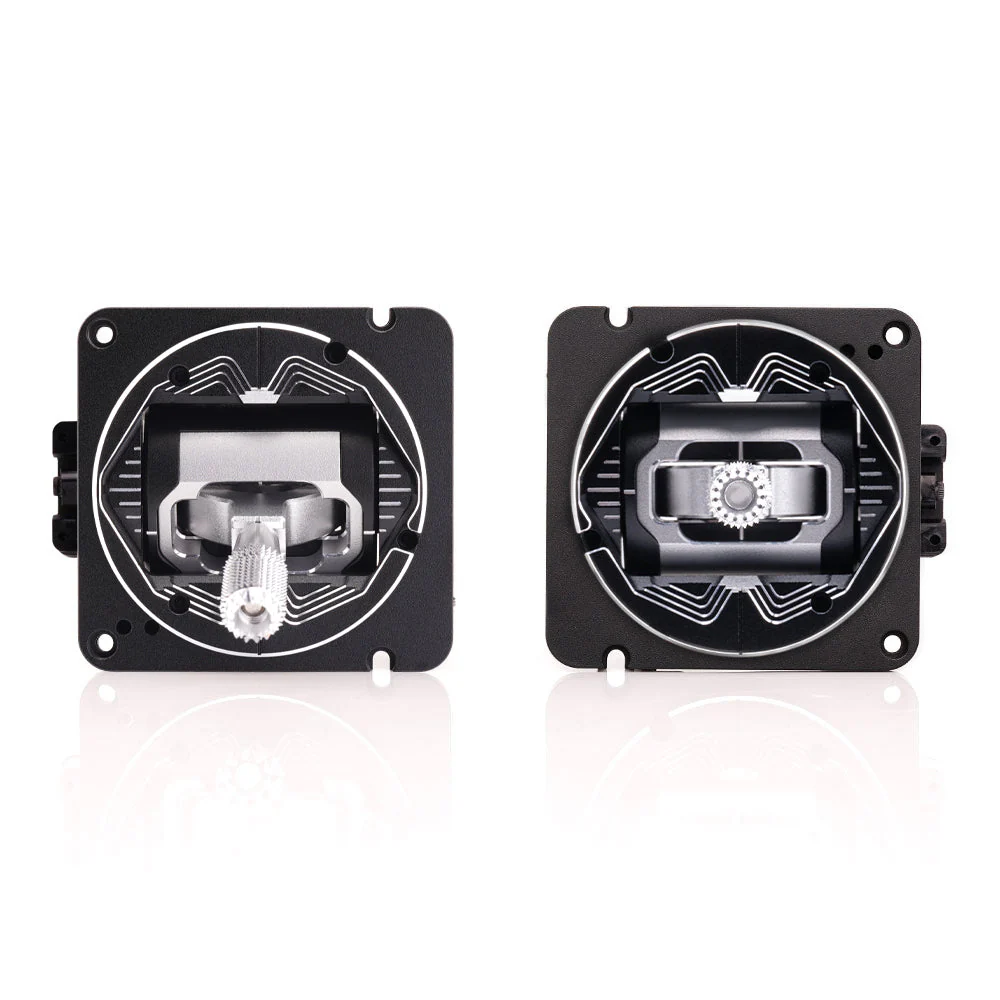

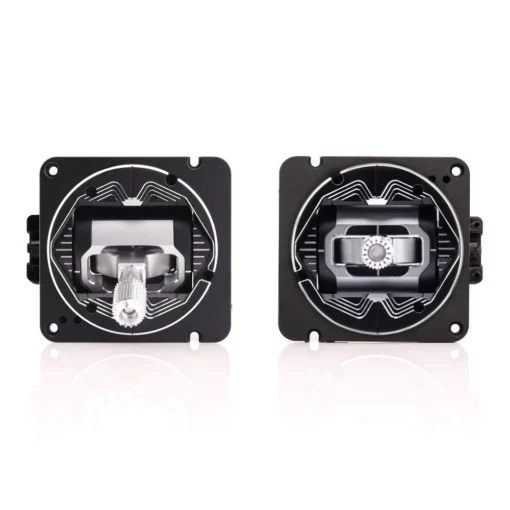

1 x AG01 CNC Hall gimbal (Throttle axis);
1 x AG01 CNC Hall gimbal (Centering axis);
2 x TX16S softer spring sets;
2 x Hex screwdrivers;
1 x User manual.
