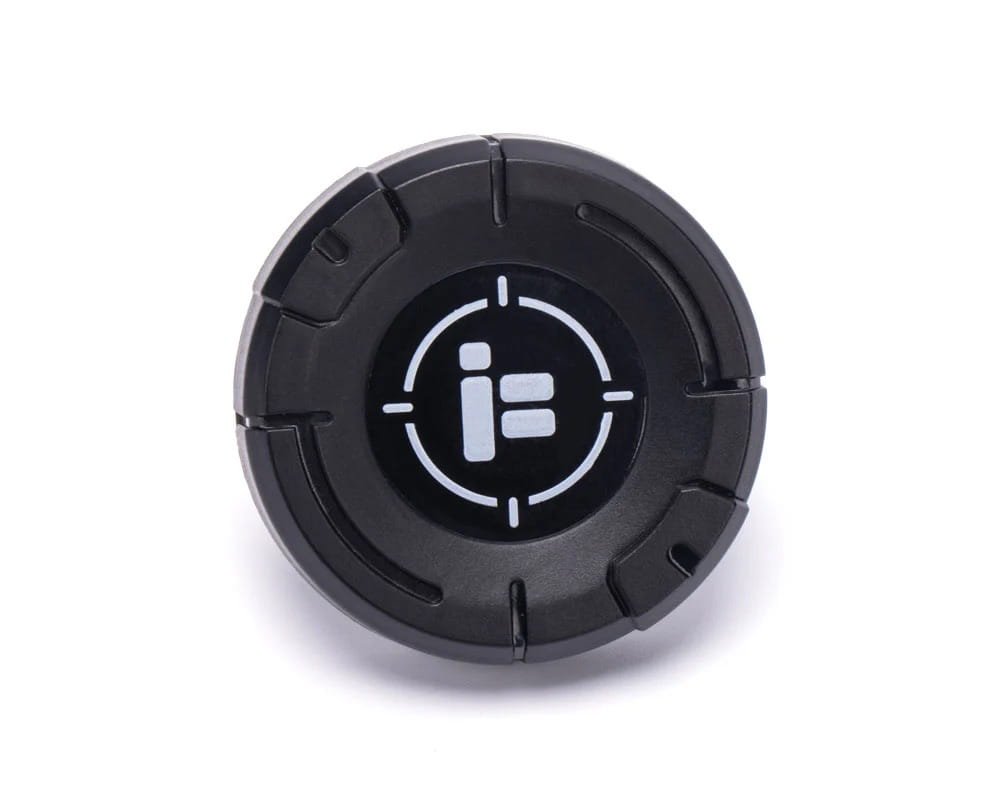

iFlight Pigeon Directional antenna RHCP/LHCP

The iFlight Pigeon directional FPV antenna is a 5.8 GHz directional antenna with 9 dBi gain for more stable and longer range video transmission. It is available in RHCP and LHCP versions, making it easy to adapt to different FPV systems. The directional design focuses the signal in one direction, while the wide ~75° operating angle and sturdy, compact construction ensure reliable operation in both analog and digital FPV systems.

Features:

• Directional antenna – greater range and more stable signal;
• 9 dBi gain – clearer image and less interference;
• RHCP and LHCP versions available;
• Wide operating angle (~75°);
• Designed for 5.8 GHz FPV systems;
• Suitable for glasses, receivers and base stations;
• Sturdy, lightweight construction.

Specification:

• Frequency band: 5.4 – 5.9 GHz;
• Operating frequency: ~5.65 GHz;
• Gain: 9 dBi;
• Polarization: RHCP or LHCP;
• Directivity: directional antenna;
• Operating angle: ~75° (horizontally and vertically);
• Impedance: 50 Ω;
• Connector: SMA;
• Dimensions: ~49 × 13 mm;
• Weight: ~25 g.

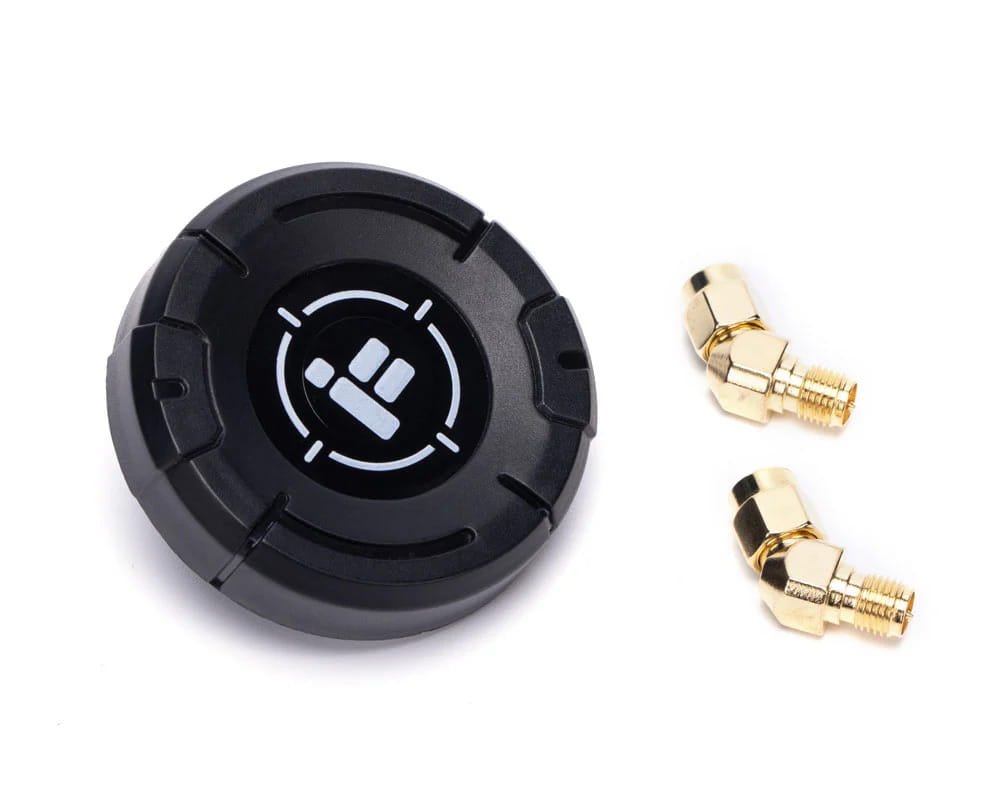

Package:

1x iFlight Pigeon directional antenna;

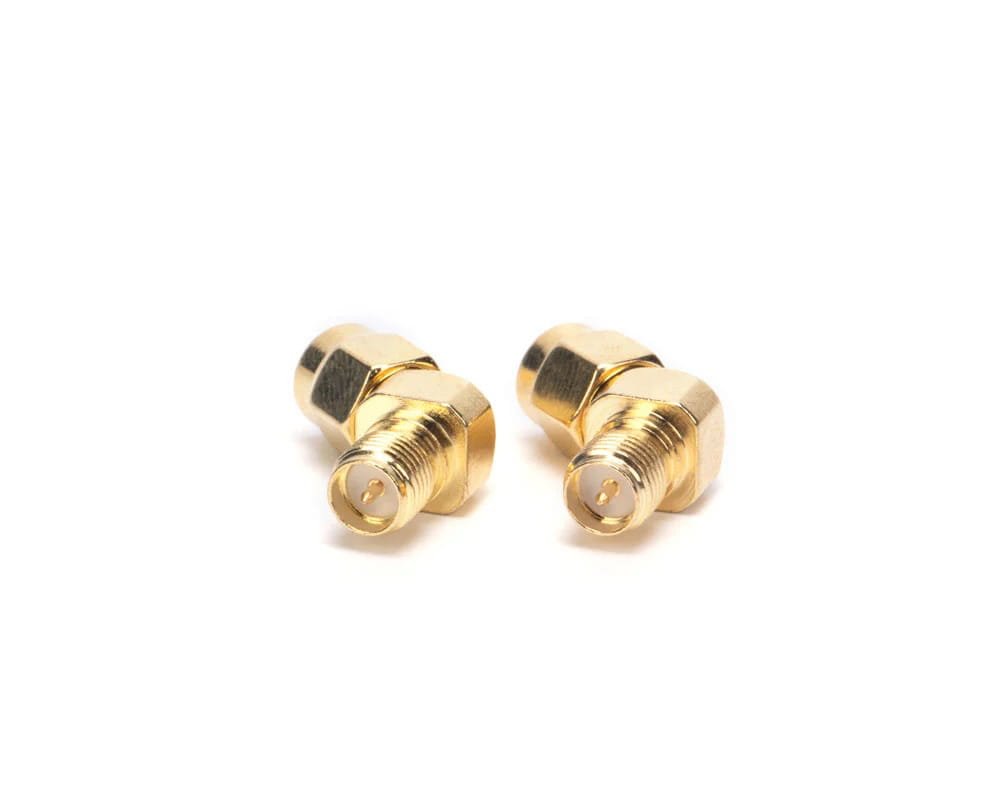

1x Adapter.
