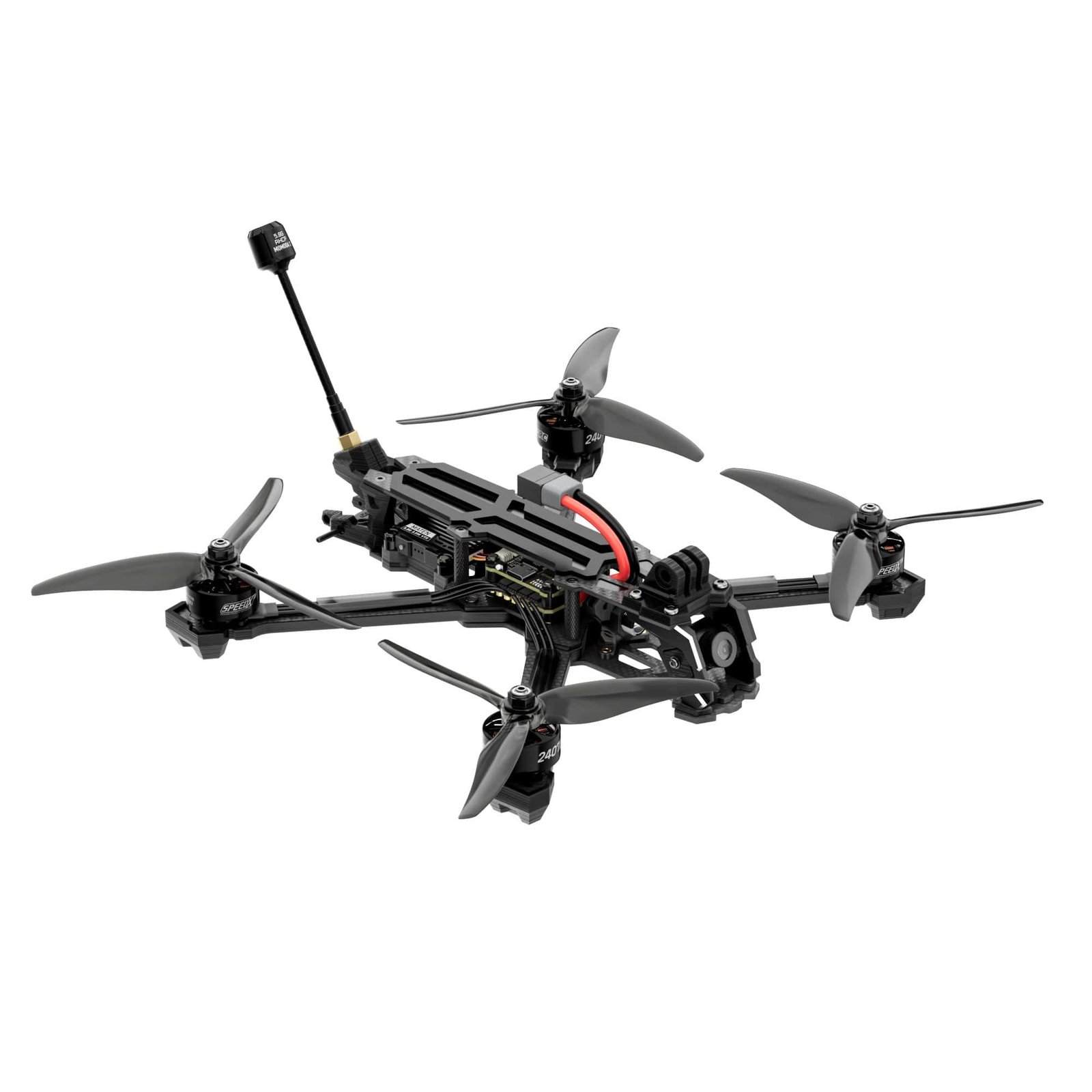

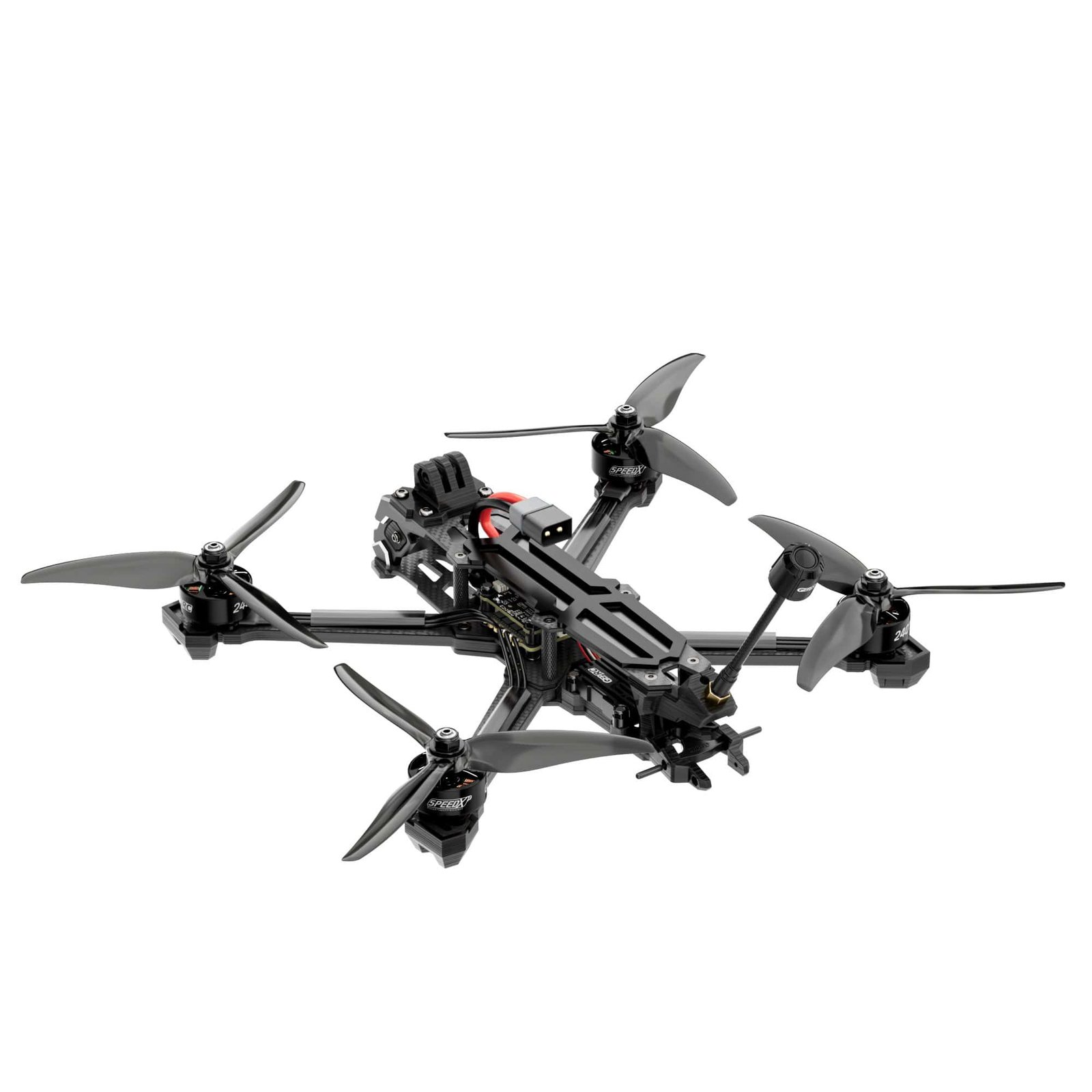

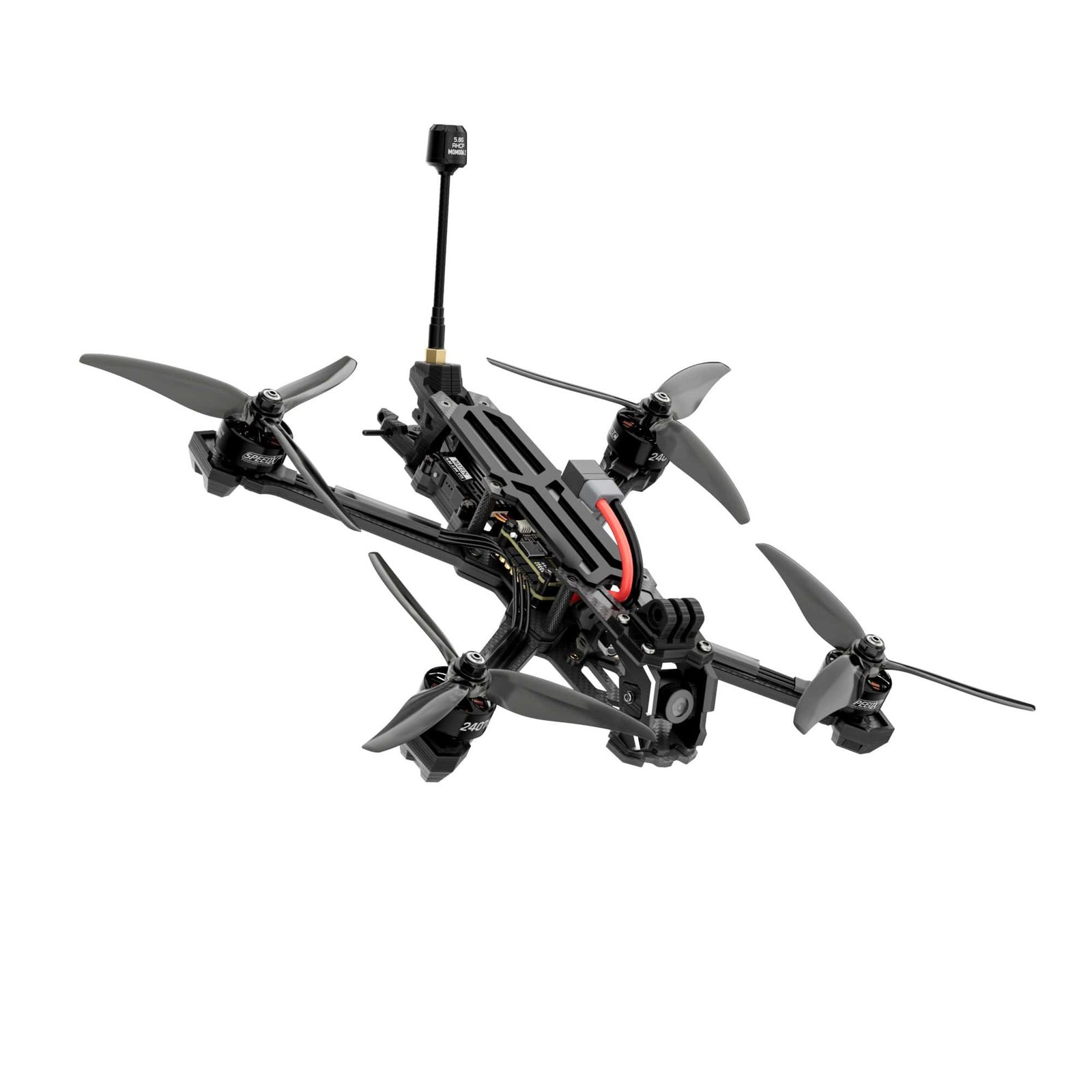

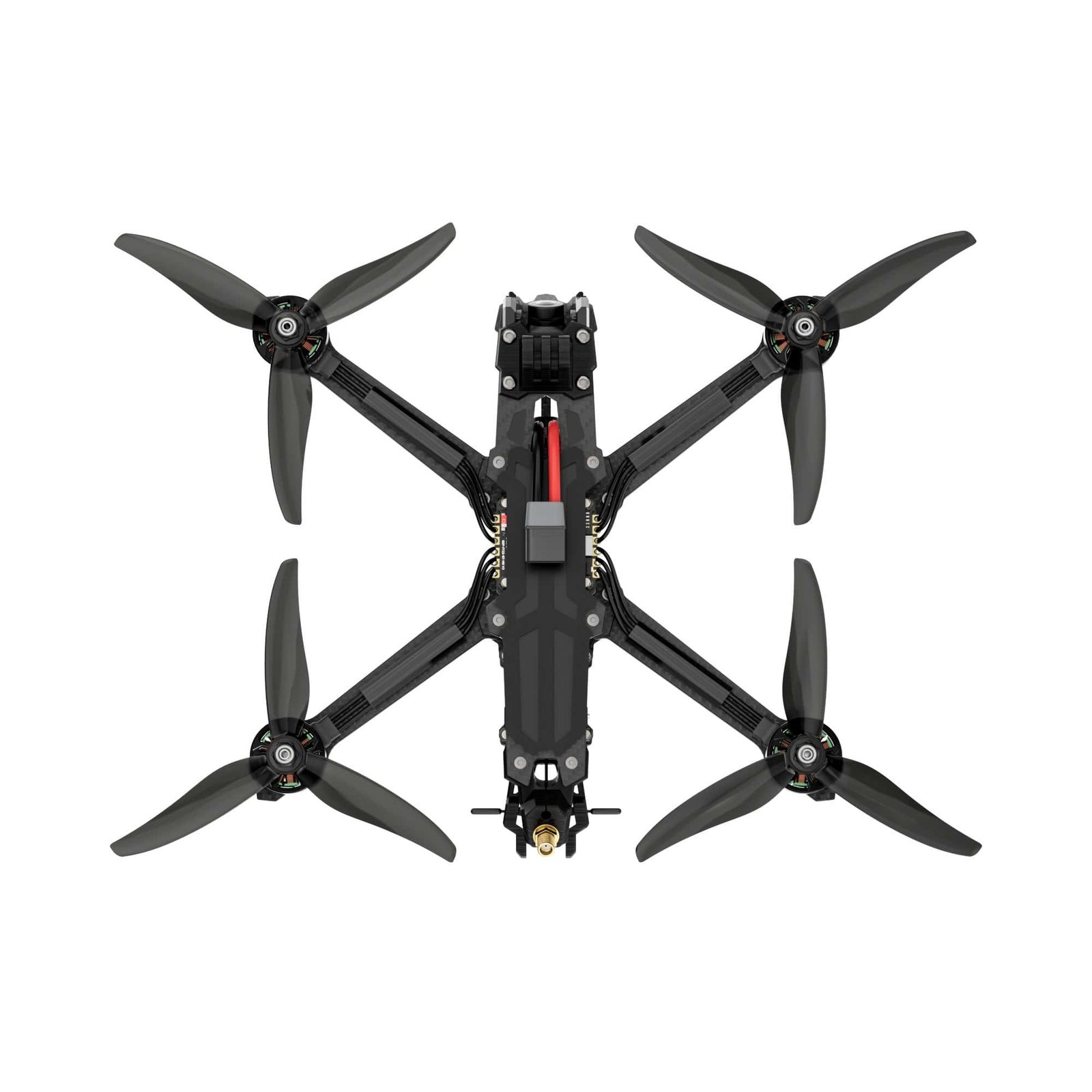

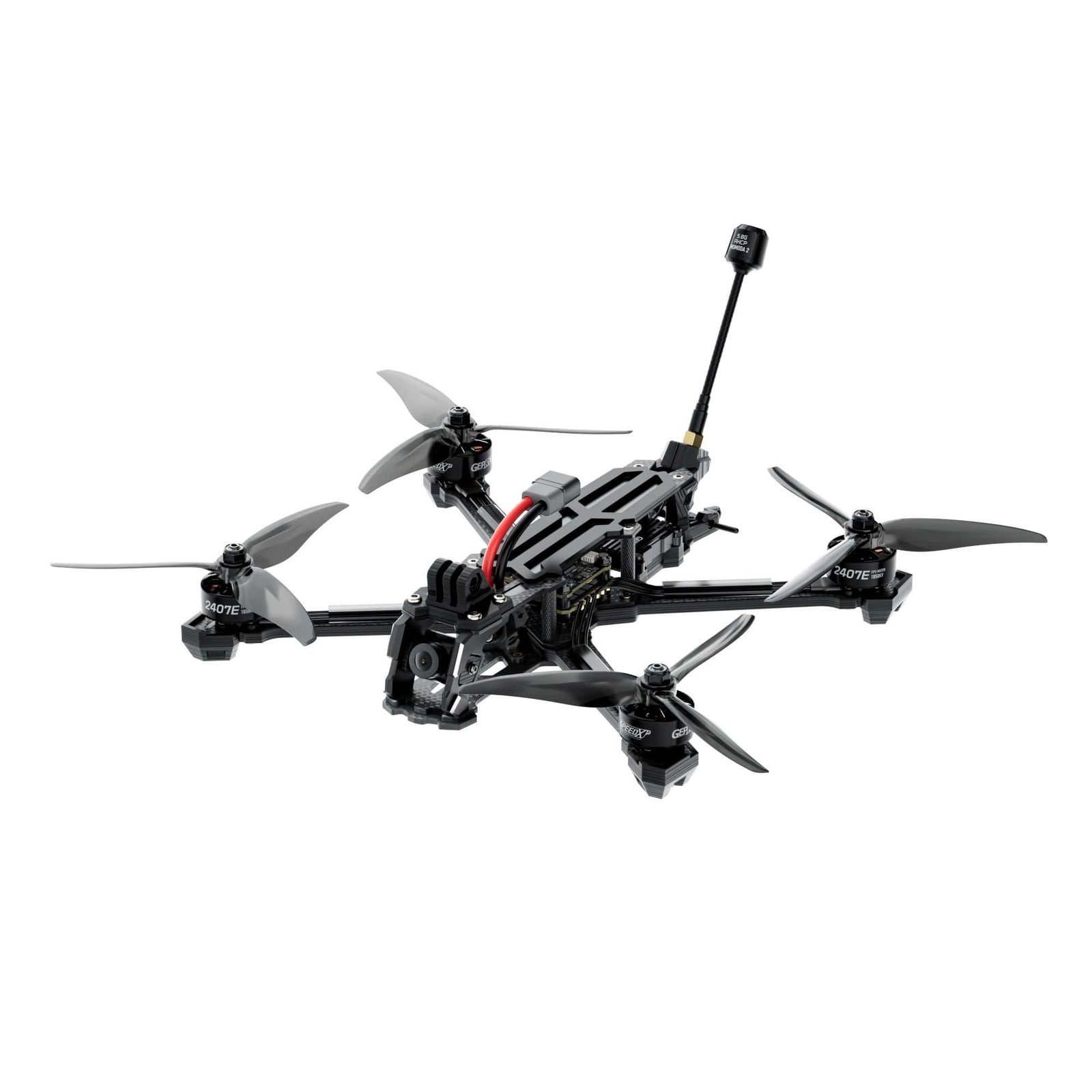

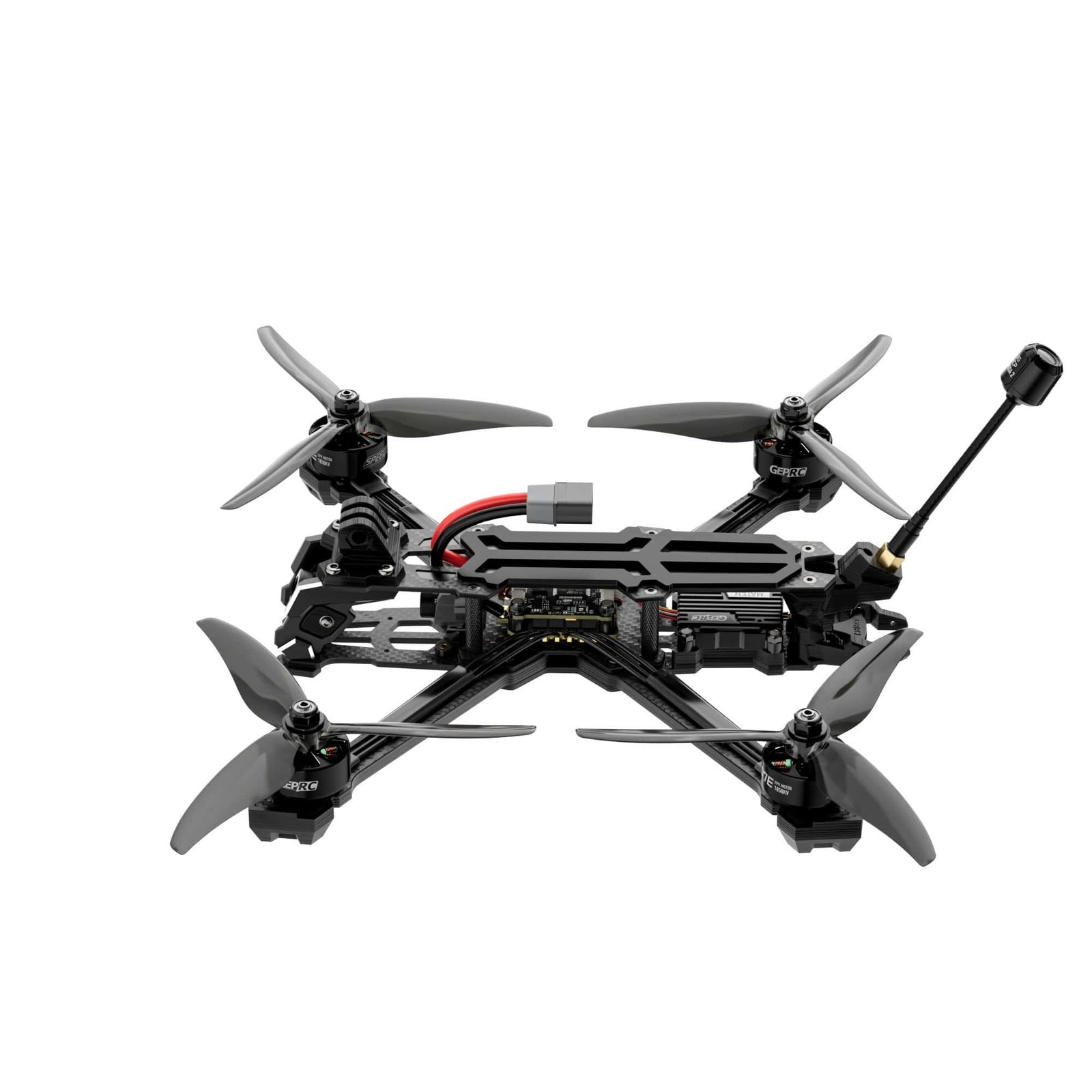

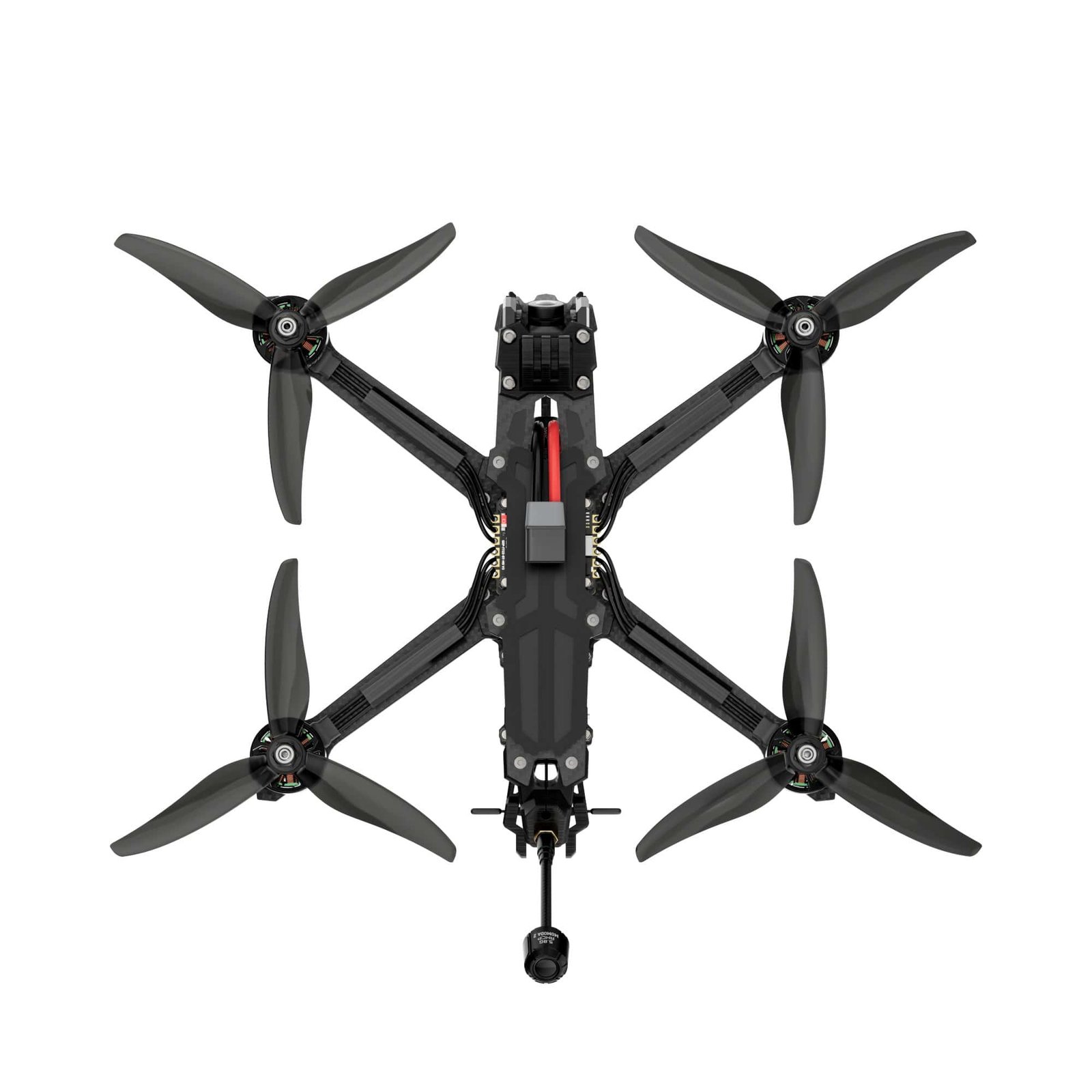

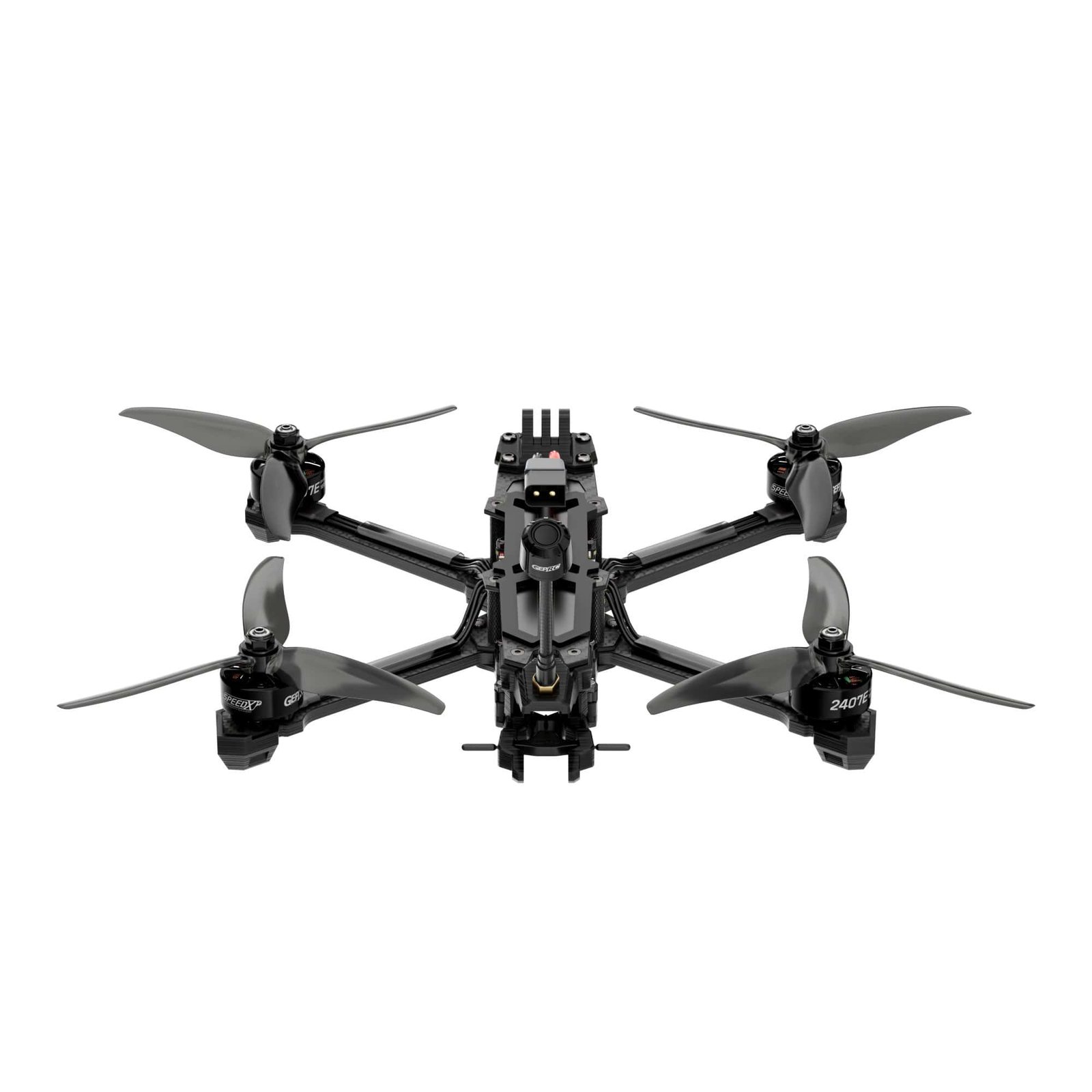

GEPRC Vapor-X6 Analog 6S GPS ELRS 2.4GHz

The Vapor-X is a rugged and maneuverable FPV drone designed for freestyle flying with a distinctive wide X-shaped design. It uses the TAKER H60_BLS 60A 4IN1 ESC and GEP-F722-HD v2 flight controller for extremely smooth control, while CNC aluminum alloy camera guards provide additional durability and a solid appearance.

Features:

• The X-structure combined with the TAKER H60_BLS 60A 4-in-1 ESC and GEP-F722-HD V2 FC ensures stable flight and excellent filming quality;
• GEPRC SPEEDX2 E-series motors provide more maneuverability and power for impressive aerial shots;
• Sleek CNC aluminum alloy side panels provide stylish and durable camera protection;
• Front camera protection reliably protects the camera during flight;
• Increased width of 5mm carbon fiber arms increases the aesthetics and strength of the frame.

Specification:

• Model: Vapor-X6 Analog;
• Frame: GEP-Vapor-X6;
• Wheelbase: 254.5 mm;
• Top plate: 2.0 mm;
• Middle plate: 2.0 mm;
• Bottom plate: 2.5 mm;
• Lever thickness: 5.0 mm;
• Flight Controller (FC): GEP-F722-HD v2;
• MCU: STM32F722;
• Gyroscope: ICM42688-P (SPI);
• Barometer: BMP280;
• OSD: Betaflight OSD with AT7456E;
• ESC: TAKER H60_BLS 60A 4IN1;
• VTX: MATEN 5.8G 1.6W VTX;
• Camera: Caddx Ratel2;
• Antenna: GEPRC Momoda2 5.8G Antenna RHCP SMA 120 mm;
• Connector: XT60;
• GPS: GEP-M10 GPS;
• Motors: GEPRC SPEEDX2 2407E 1750KV;
• Propellers: HQprop 6X3.5X3;
• Weight: 444g ±5g;
• Receiver: GEPRC ELRS24;
• Flight time: ~14–19 min.

Package:

1x Vapor-X6 Analog;
2x HQprop 6X3.5X3;
2x Non-slip battery pads;
1x Spare set of screws;
2x M20*250 mm battery straps;
1x L-shaped screwdriver 1.5 mm;
1x L-shaped screwdriver 2.0 mm;
1x GoPro mount.
