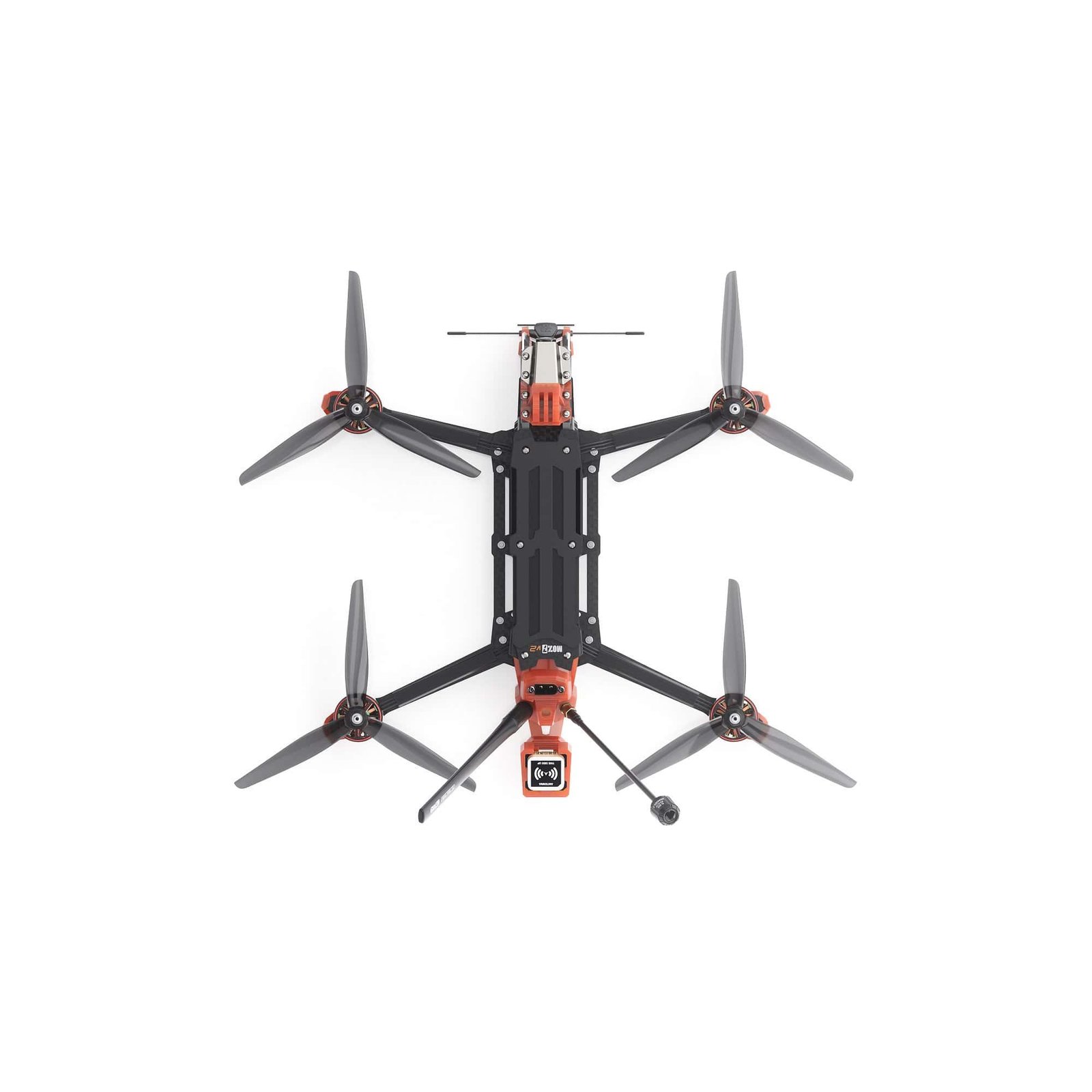

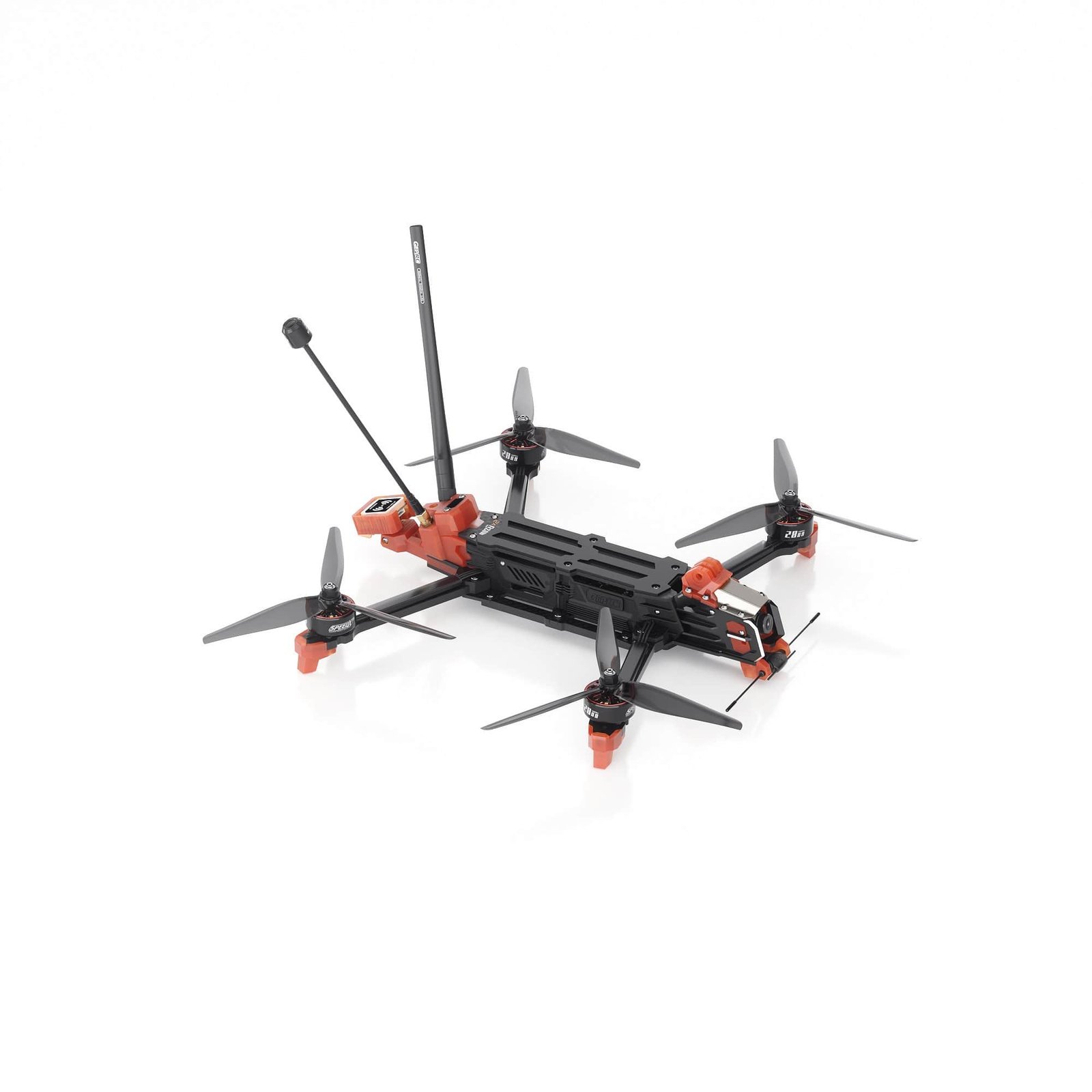

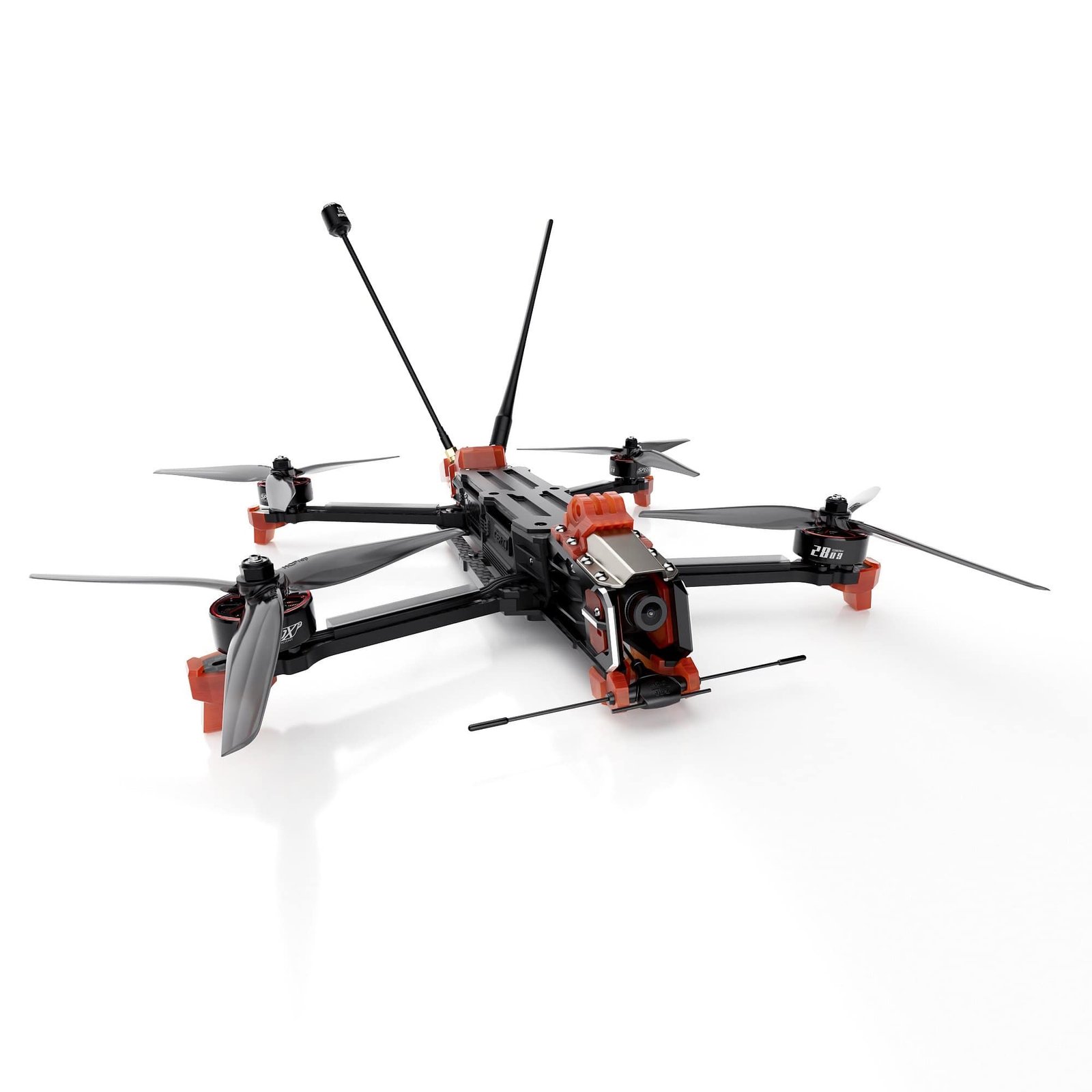

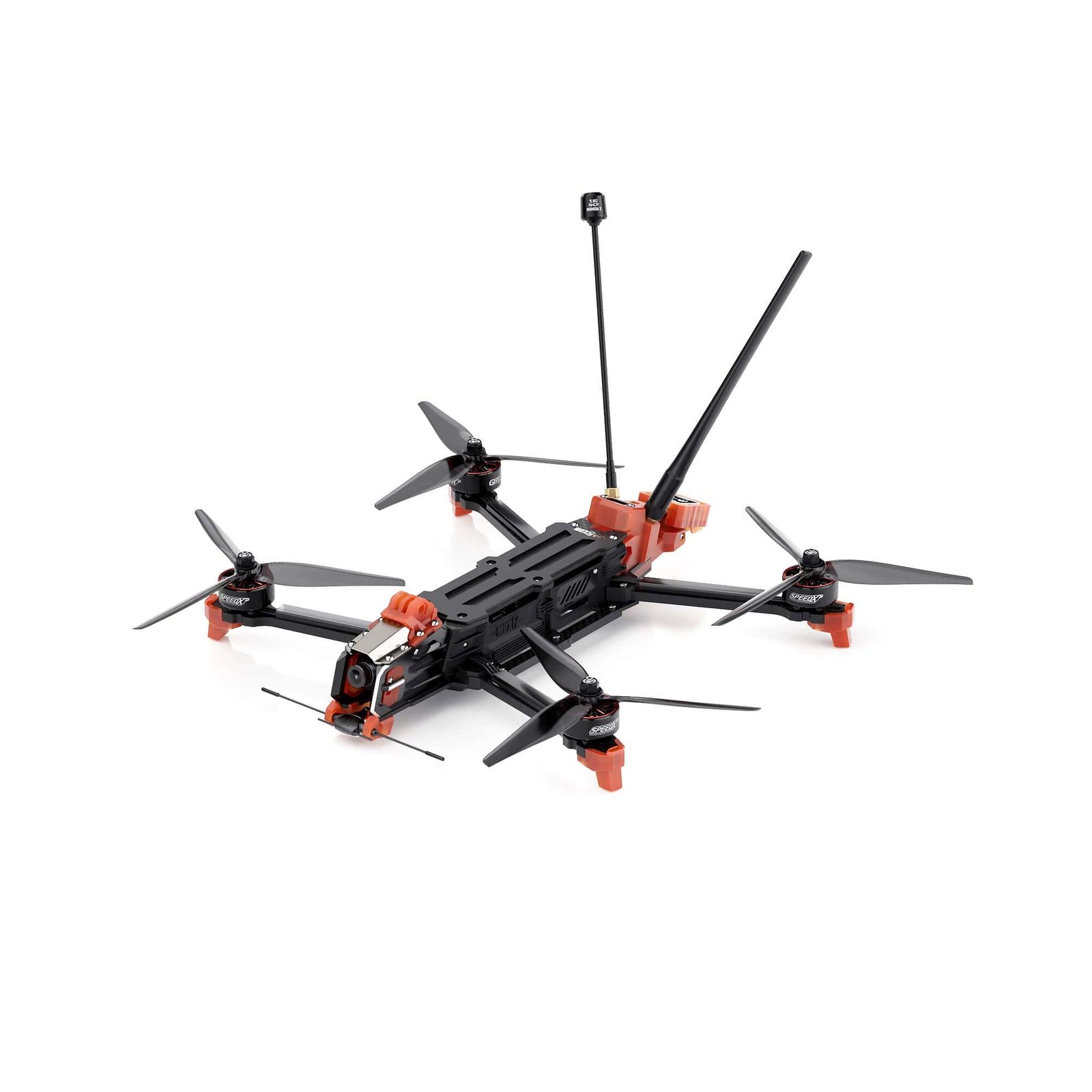

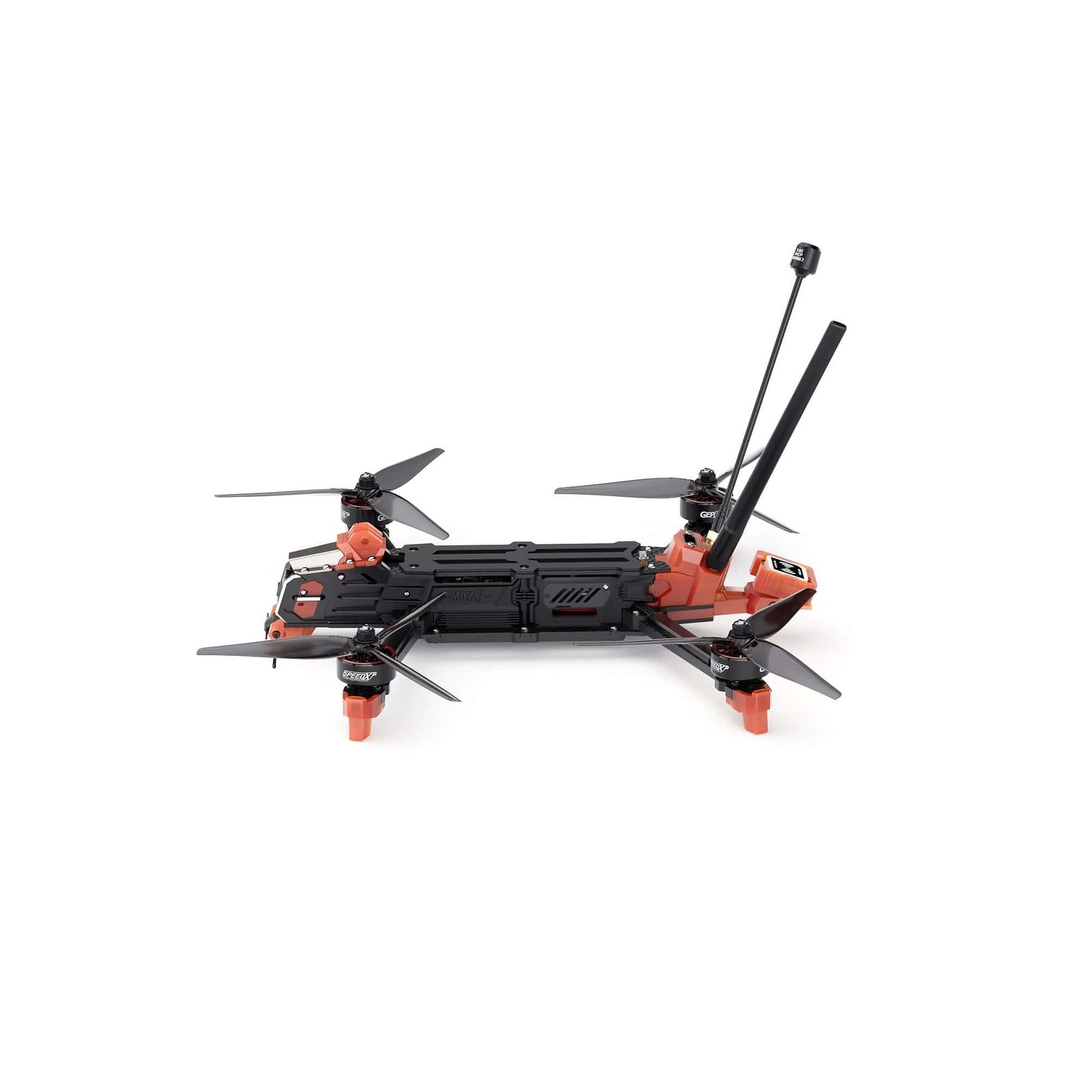

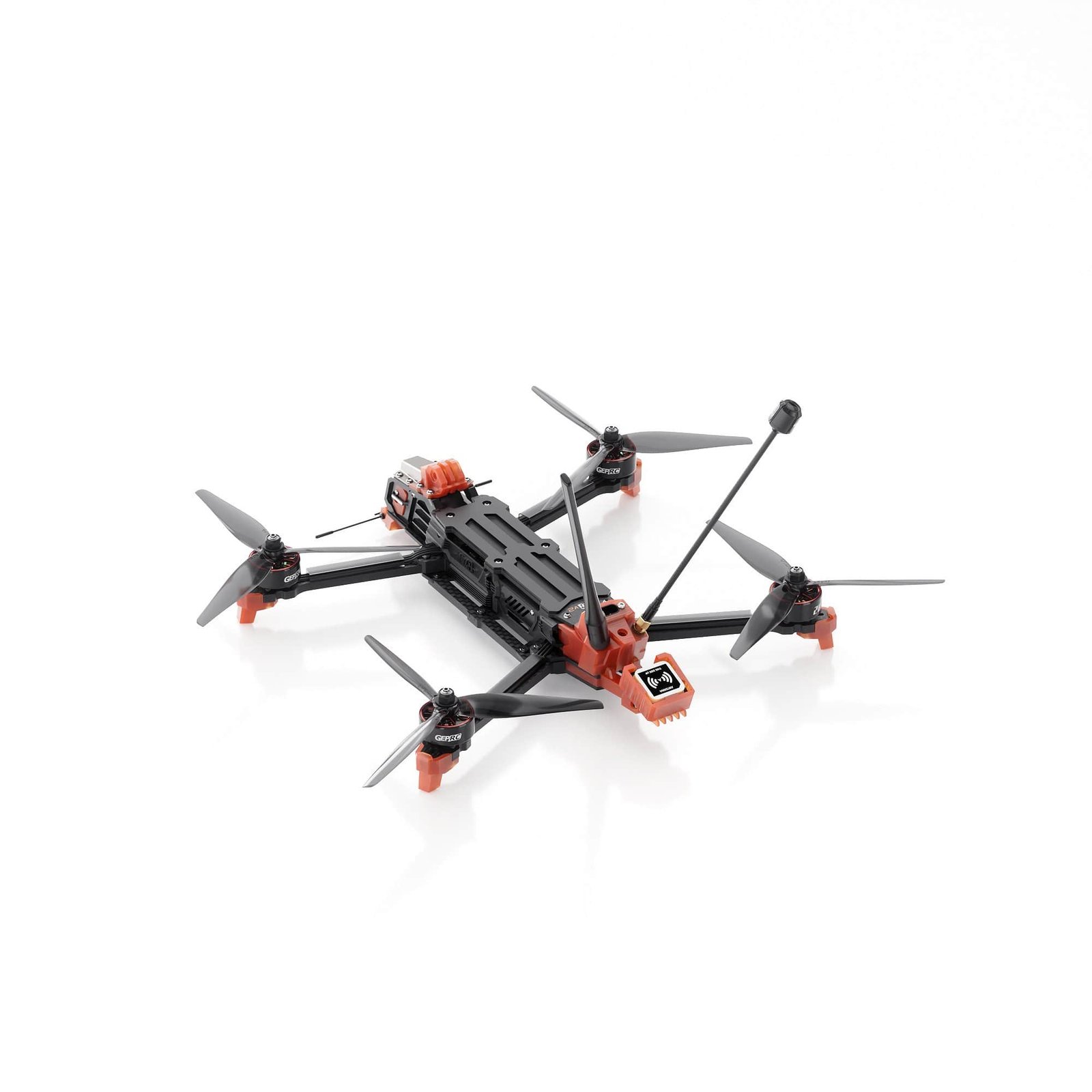

GEPRC MOZ7 V2 Analog 6S GPS ELRS 915MHz/2.4GHz GemX

With the H743 flight controller, GEP-M1025 GPS and ELRS dual-band receiver, the drone is suitable for reliable long-distance flights, with a range of up to 15 km, and the D-Log M color profile provides better image processing capabilities. The mounting position of the action camera and battery can also be changed.

Features

• Reinforced frame for better stability;
• Updated V1.1 version 2809 1280KV motors provide up to 25 minutes of flight time;
• ELRS 915M/2.4G Gemx dual-band receiver reduces signal dropout zones due to the front horizontal and rear vertical antenna positions;
• GEP-M1025 GPS offers fast and stable satellite connection;
• Reinforced side plates ensure a balanced center of gravity;
• Replaceable action camera mounting system;
• Two battery mounting options.

Specification:

• Model: GEPRC MOZ7 V2 Analog;
• Frame: GEP-MOZ7 V2;
• Wheelbase: 336 mm
• Top plate thickness: 2.5 mm;
• Bottom plate thickness: 2.5 mm;
• Mounting plate thickness: 3 mm;
• Lever thickness: 6 mm;
• Flight controller: TAKER H743 BT;
• Microcontroller: STM32H743;
• Gyroscope: MPU6000 & 42688-P (dual);
• Barometer: yes;
• GPS: GEP-M1025;
• OSD: BetaFlight OSD with AT7456E chip;
• ESC: TAKER H65_8S_32Bit 65A 4IN1 ESC;
• Video Transmitter (VTX): MATEN 5.8G 2.5W;
• Camera: CADDX RATEL2;
• Antenna: Momoda2-SMA-RHCP-170mm-Female;
• Power connector: XT60E-M;
• Motor: SPEEDX2 2809 1280KV V1.1;
• Screws: HQ 7.53.73, three-bladed, transparent gray;
• Weight: 782 ± 10 g;
• Receiver: ELRS 915M/2.4G GemX;
• Recommended battery: LiPo 6S 3300mAh / Li-ion 8000mAh;
• Flight time: ~25 minutes (based on slow flight tests; actual results may vary depending on product, software version, flight style, and environment).

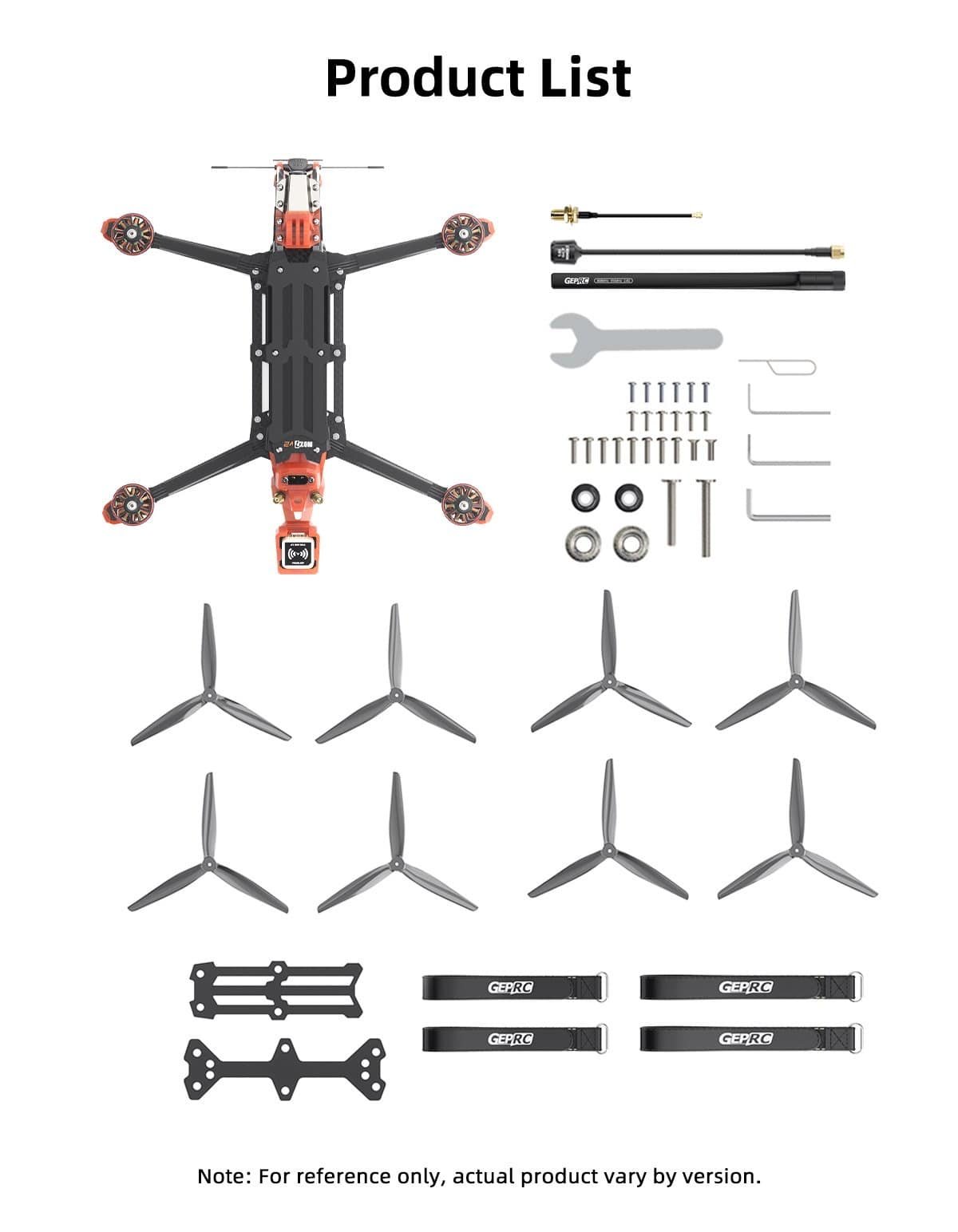

Package:

1x GEPRC MOZ7 V2 FPV;
2x HQ 7.53.73 (2 CW + 2 CCW);
2x 15*250 mm battery straps;
1x L-shaped screwdriver 1.5 mm;
1x L-shaped screwdriver 2.0 mm;
1x L-shaped screwdriver 3.0 mm;
1x set of spare screws;
2x battery non-slip pads;
1x frequency coupling pin;
1x VTX antenna;
1x tri-band rod antenna.
