GEPRC MARK5 O4 Pro 6S GPS DC FPV Drone ELRS 2.4GHz

The GEPRC MARK5 O4 Pro is an advanced drone designed specifically for the DJI O4 Air Unit Pro VTX system, featuring high-definition video transmission and recording. Thanks to the integrated 1/1.3-inch image sensor, the O4 system supports up to 4K 120fps recording and real-time streaming up to 1080P 100fps, ensuring extremely sharp and detailed images even in low light.

The MARK5 O4 Pro is designed for maximum stability. Flight performance is ensured by the TAKER F722 BT 32Bit 50A control system and powerful 2107.5 1960KV motors, allowing for extremely smooth, precise and dynamic flight with the highest quality image stability.

Features:

• Equipped with the DJI O4 Air Unit Pro module, it ensures clear and reliable video transmission;
• The TAKER F722 BT 32Bit 50A control system together with the 2107.5 1960KV motors provides enough power for smooth and dynamic flight;
• The Bluetooth interface allows you to conveniently adjust the drone's parameters via a mobile app;
• Quick-release levers with two-bolt fastening allow for easy and fast maintenance;
• The aluminum camera mount with silicone damping effectively reduces vibrations, improving the stability of the O4 Pro camera;
• A special compartment for the capacitor and the buzzer ensures stable operation without interference;

Specification:

• Model: MARK5 O4 Pro DC FPV;
• Wheelbase: 230 mm;
• Video transmission system: DJI O4 Air Unit Pro VTX module;
• Camera: DJI O4 Air Unit Pro;
• Antenna: DJI O4 Air Unit Pro;
• Motors: SPEEDX2 2107.5 1960KV;
• Propellers: Gemfan 5136;
• Flight Controller (FC): GEP-F722-BT-HD V3;
• Microcontroller (MCU): STM32F722;
• IMU (motion sensor): ICM42688-P (SPI interface);
• OSD: BetaFlight OSD with AT7456E chip;
• ESC (Electronic Speed Controller): GEP-BL32 50A 96K 4IN1 ESC;
• Power connector: XT60EW-M;
• GPS: GEP-M10 GPS;
• Receiver:ELRS 2.4G;
• Recommended battery: LiPo 6S 1050mAh – 1550mAh;
• Printed details color: emerald green;
• Weight: 433.4g ± 5g;
• Flight time: ~6-8 minutes (based on slow glide tests - may vary depending on product variation, software version, flight style, and environmental conditions.)

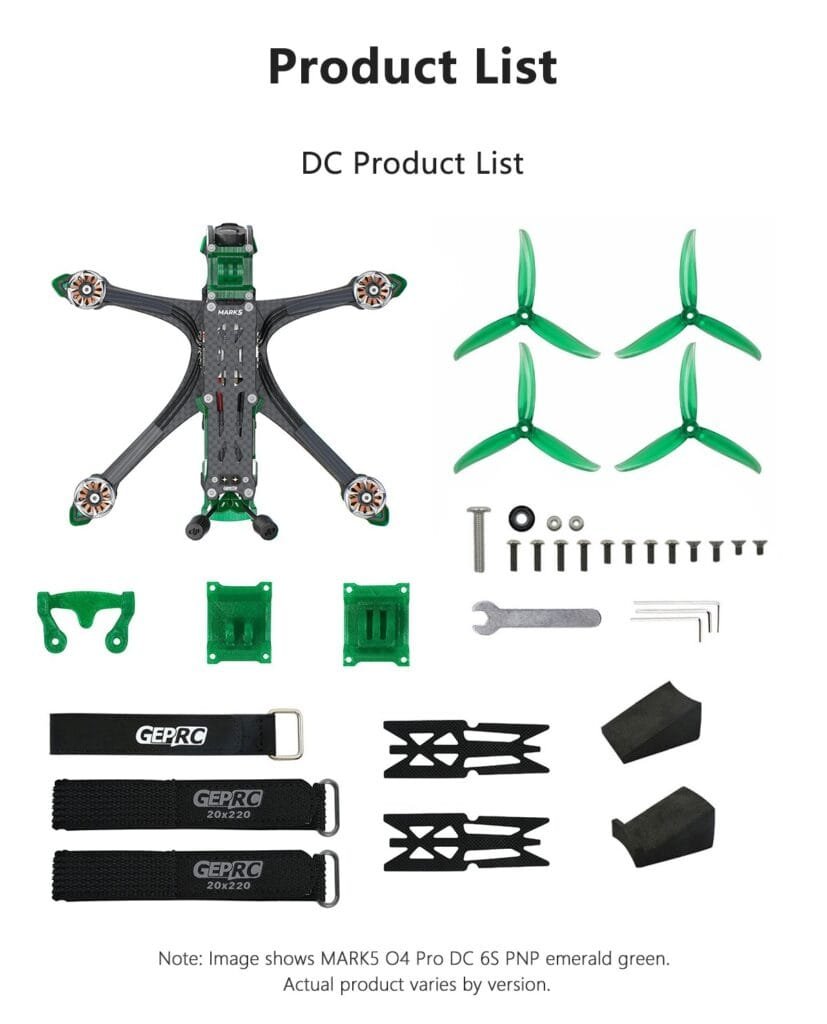

Package:

1x GEPRC MARK5 O4 Pro FPV;
1x Gemfan 5136 propeller set (2 CW, 2 CCW);
1x Strap 15×250 mm;
2x Straps 20×250 mm;
2x Non-slip battery pads;
1x set of 3D printed parts;
1x Spare screw set;
1x L-shaped screwdriver 1.5 mm;
1x L-shaped screwdriver 2 mm;
1x L-shaped screwdriver 3 mm;
1x M8 wrench.

Spare screws included:

1x M5 nylon knurl nut;
2x M2 stainless steel press-in nuts;
1x M5×25 stainless steel hexagon bolt;
4x M3×10 hex screws;
4x M3×8 hexagon screws;
2x M3×8 hex socket head screws;
2x M3×5 hex socket head screws.
