GEPRC Cinelog30 V2 Analog ELRS 2.4GHz

The Cinelog30 V2 is a 3-inch FPV drone designed for both cinematic shots and recreational flying. It features an advanced protective frame and inherits the best features of the Cinelog series - excellent control and stability. By improving the existing design, this model gains even better filming and flight capabilities.

Features:

• The one-piece frame made of advanced materials is lightweight yet strong;
• With a LiPo 4S 720mAh battery, the weight is only 249g, making it FAA compliant;
• Shock-absorbing gimbal ensures smooth filming;
• Rear USB port allows convenient parameter adjustment;
• The drone operates quietly, and the protective frame reduces the risk of injury in the event of a collision.
• The GEPRC team's improved model ensures smooth flight. Up to ~8 min. 30 sec.

Specification:

• Model: Cinelog30 V2 Analog Quadcopter;
• Frame: GEP-CL30 V2;
• Carbon plate thickness: 2.5 mm;
• Wheelbase: 124 mm;
• Flight controller: TAKER F722 45A 32Bit AIO;
• MCU: STM32F722RET6;
• Gyroscope: ICM 42688-P;
• Flight controller software: GEPRC_F722_AIO;
• Memory: 16MB;
• ESC: 32Bit 45A;
• Motors: SPEEDX2 1404 3850KV;
• Screws: HQprop DT76mmx3 V2;
• Battery connector: XT30;
• VTX: GEPRC RAD mini 5.8G 1W;
• Camera: Caddx Ratel2;
• Antenna: GEPRC Momoda2 5.8G UFL;
• Receiver:ELRS2.4G;
• Recommended battery: LiHV 4S 660mAh–720mAh;
• Flight duration: 6 – 8 min. 30 sec. (depends on flight style).

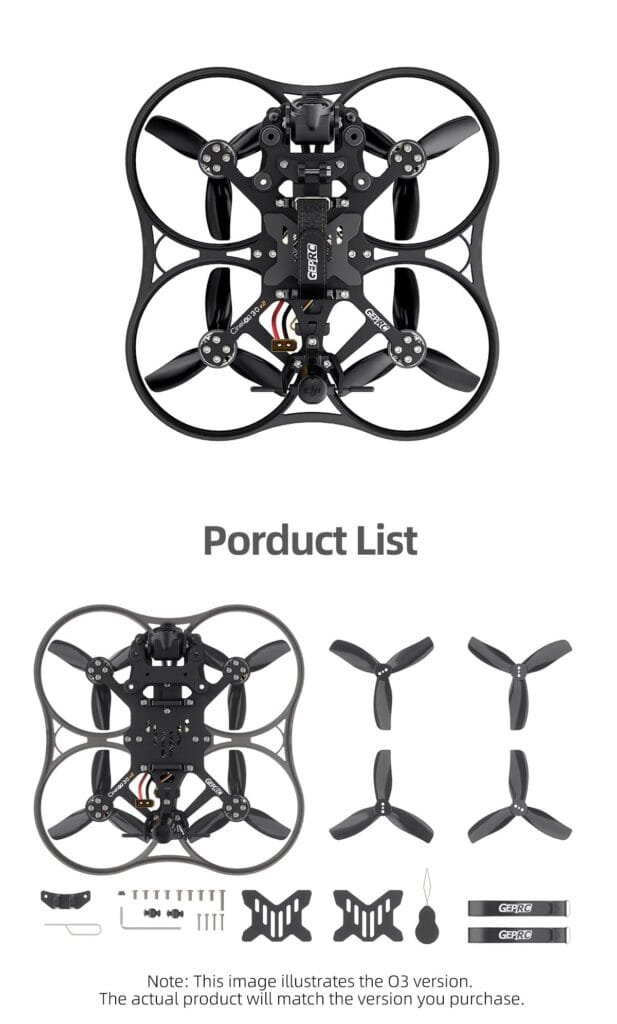

Package:

1x Cinelog30 V2 drone;
1x HQprop DT76mmx3 V2 propeller set;
2x 15*150 mm battery straps;
1x L-shaped 1.5 mm screwdriver;
1x Spare screw set;
2x Non-slip battery mats;
1x Shock absorber ball tool;
1x Stud;
1x Mount for Naked GoPro camera.

Spare screws included:

4x M2*5 mm pan head screws;
1x Swage nut;
4x M2*4 mm pan head screws;
4x 1.6*10mm screws;
2x O3 shock absorbing balls.
