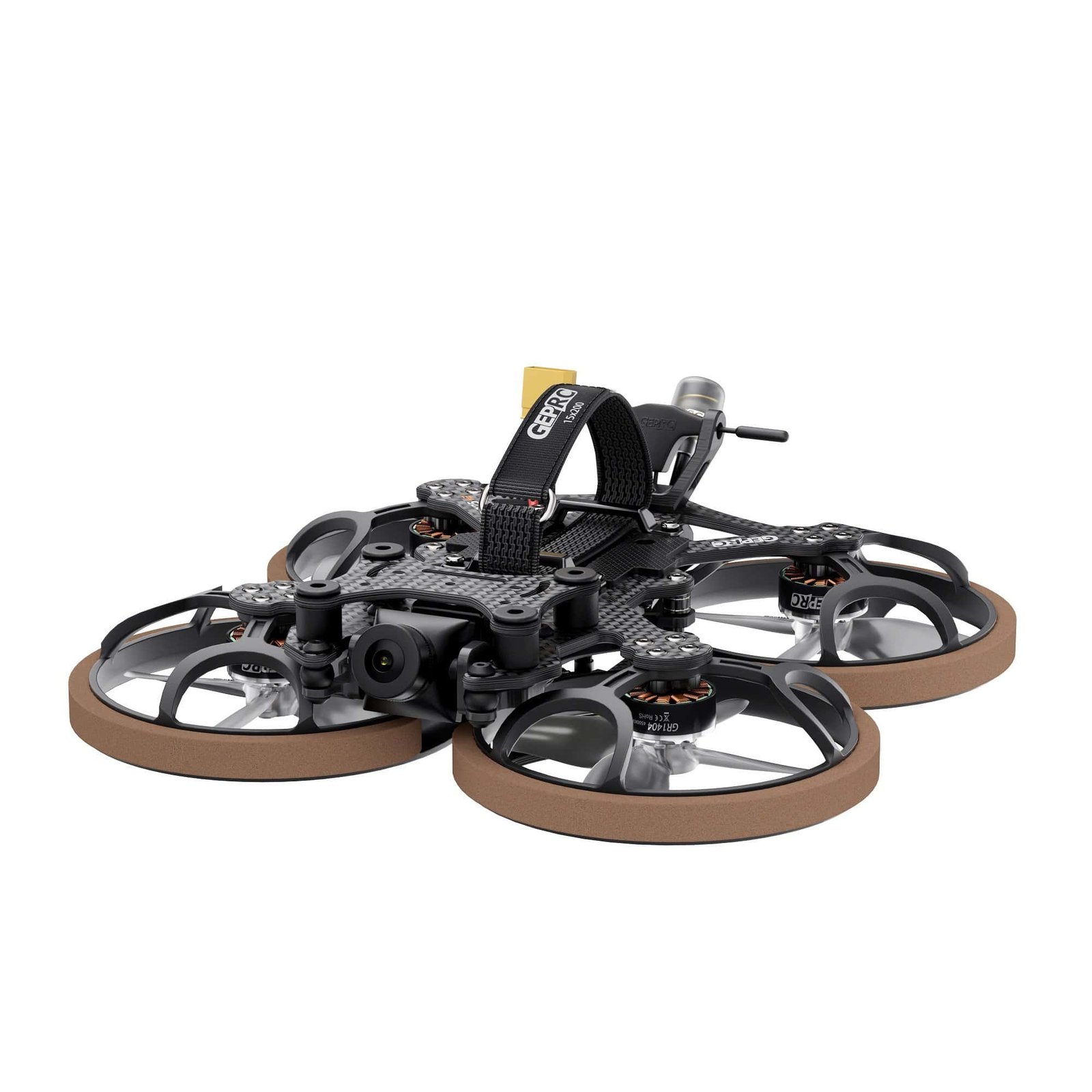

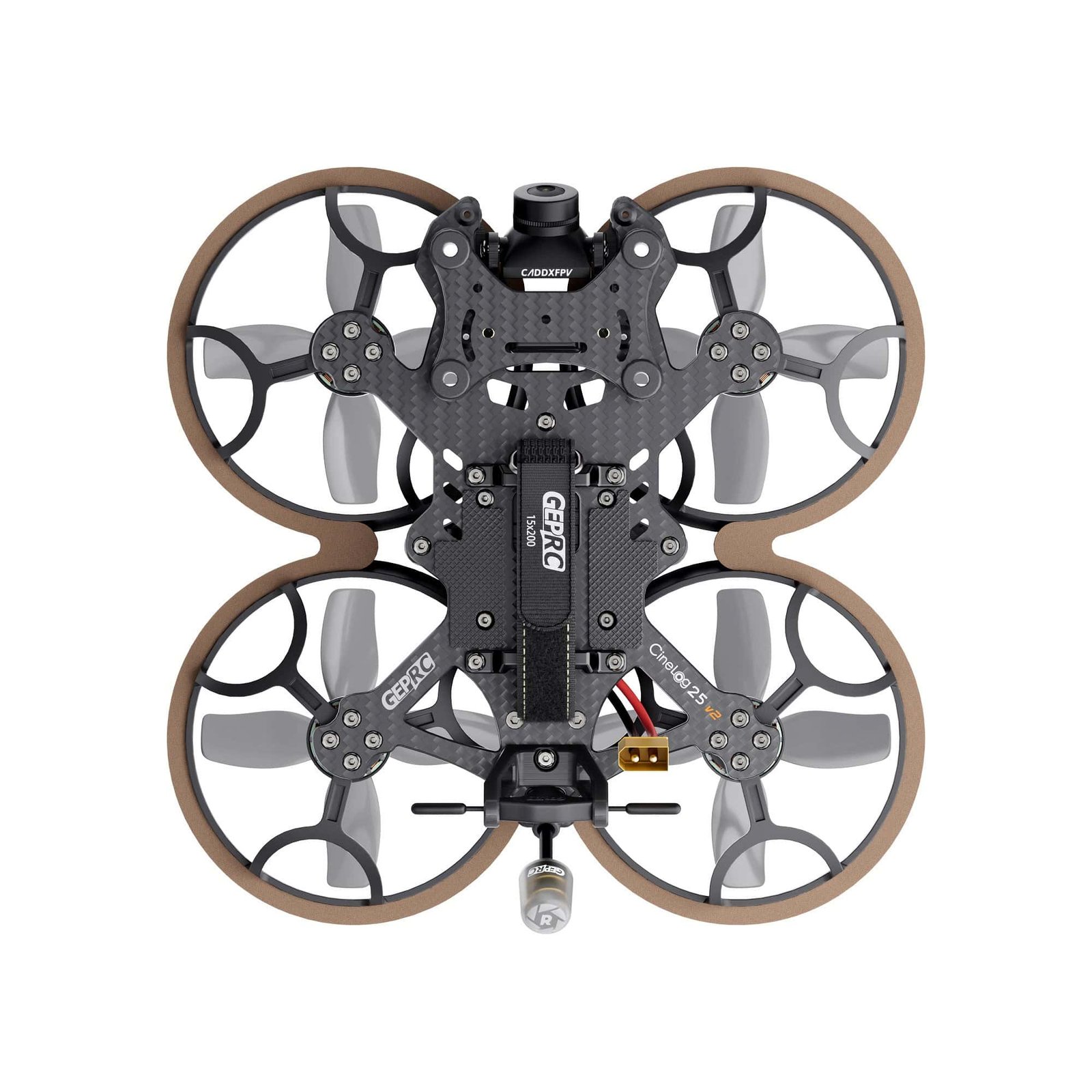

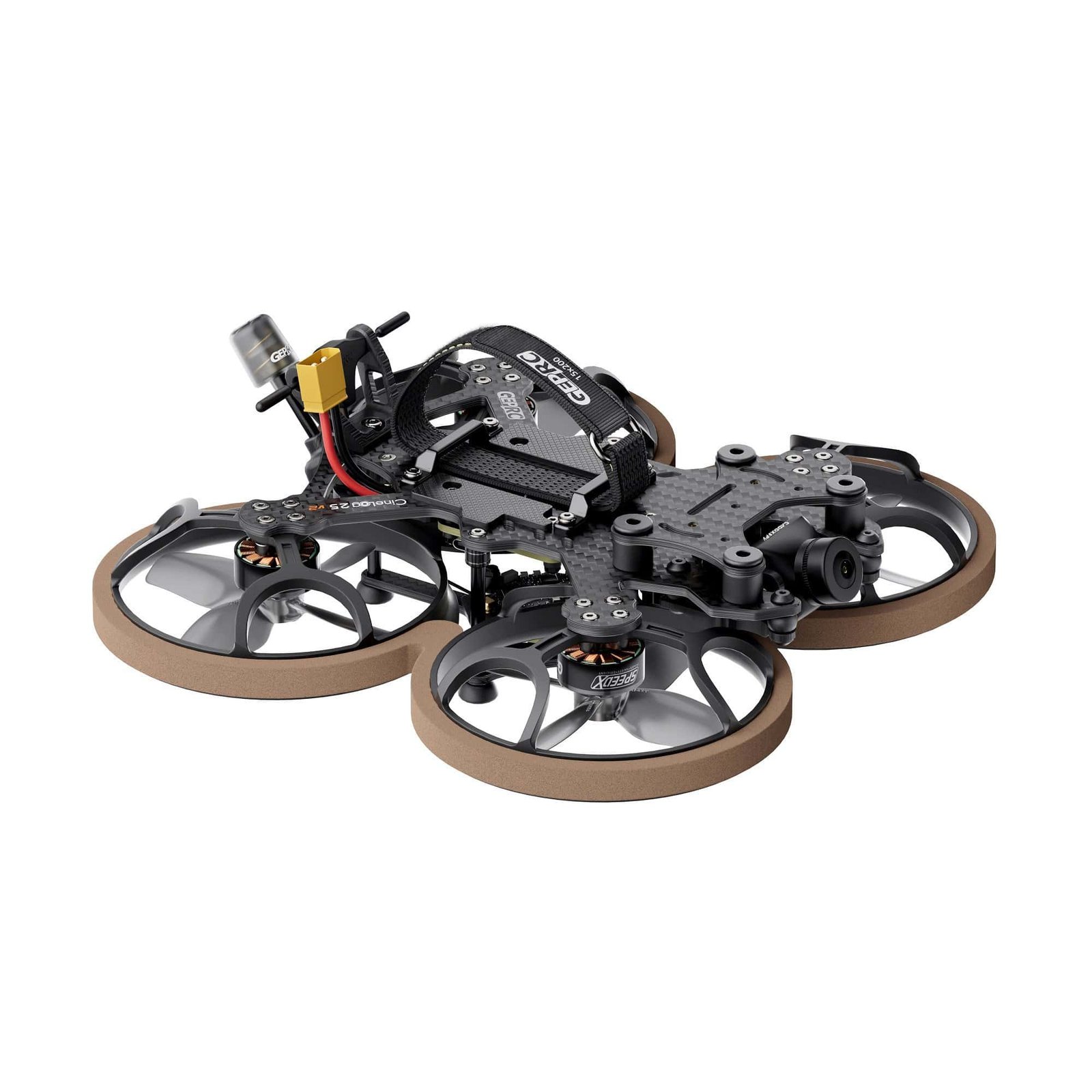

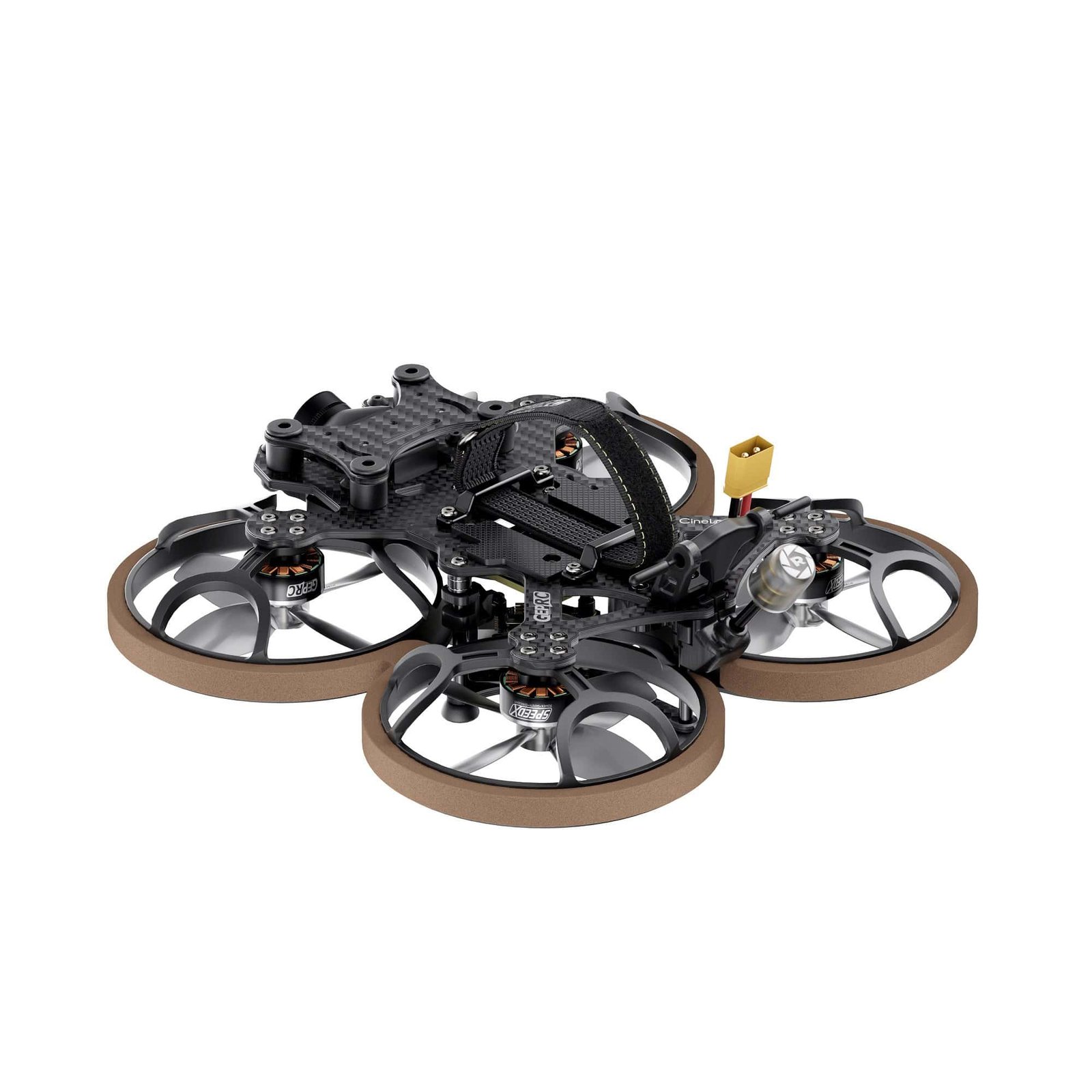

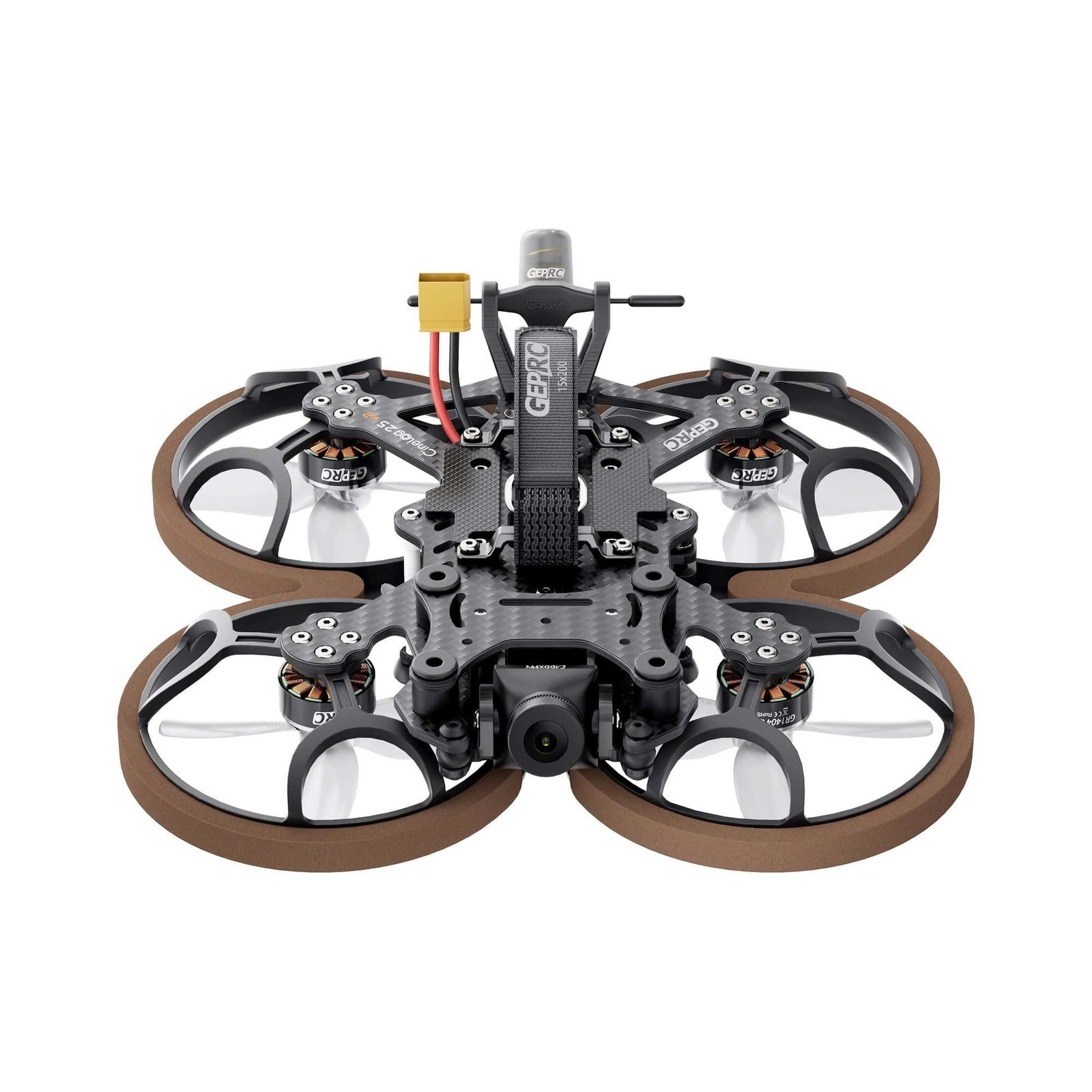

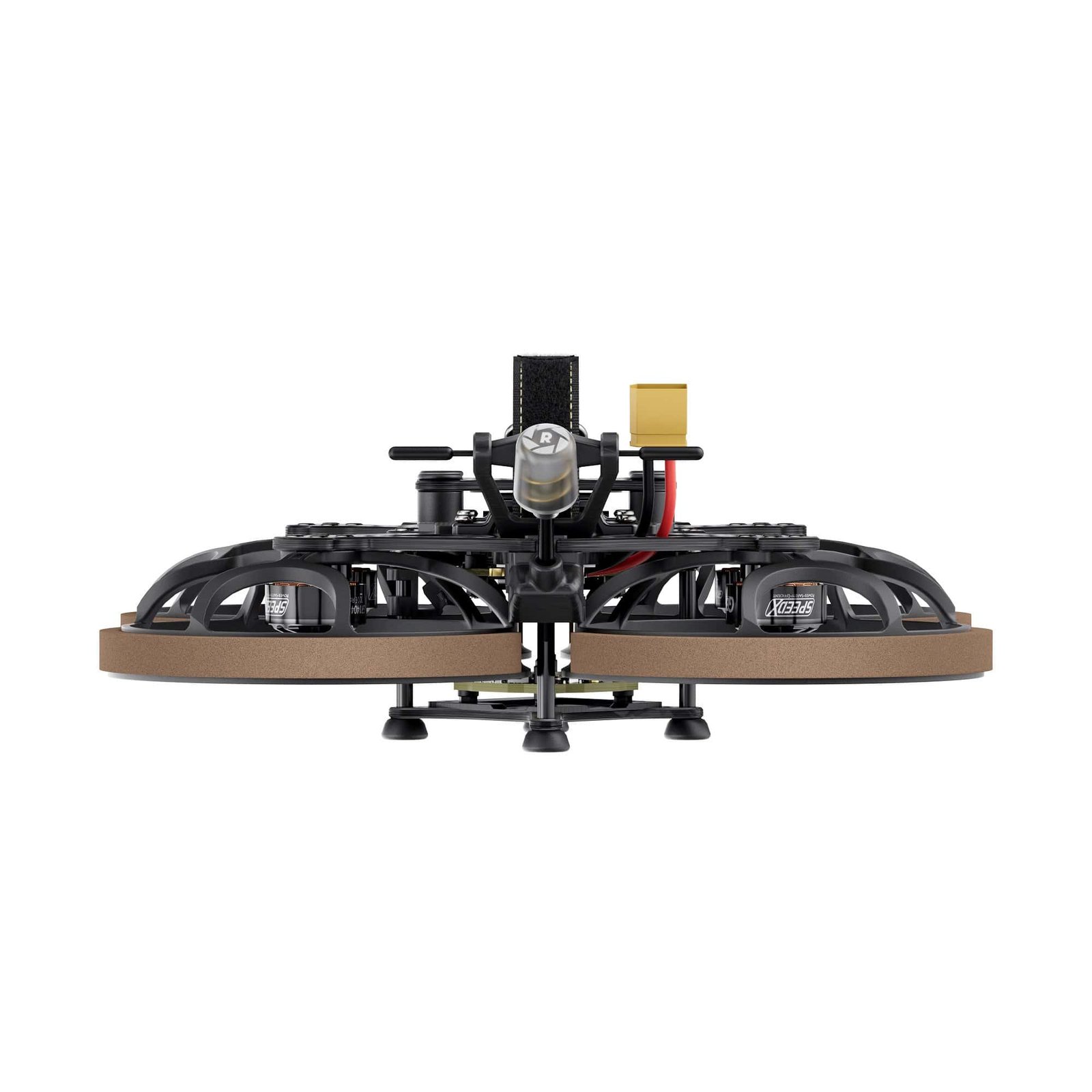

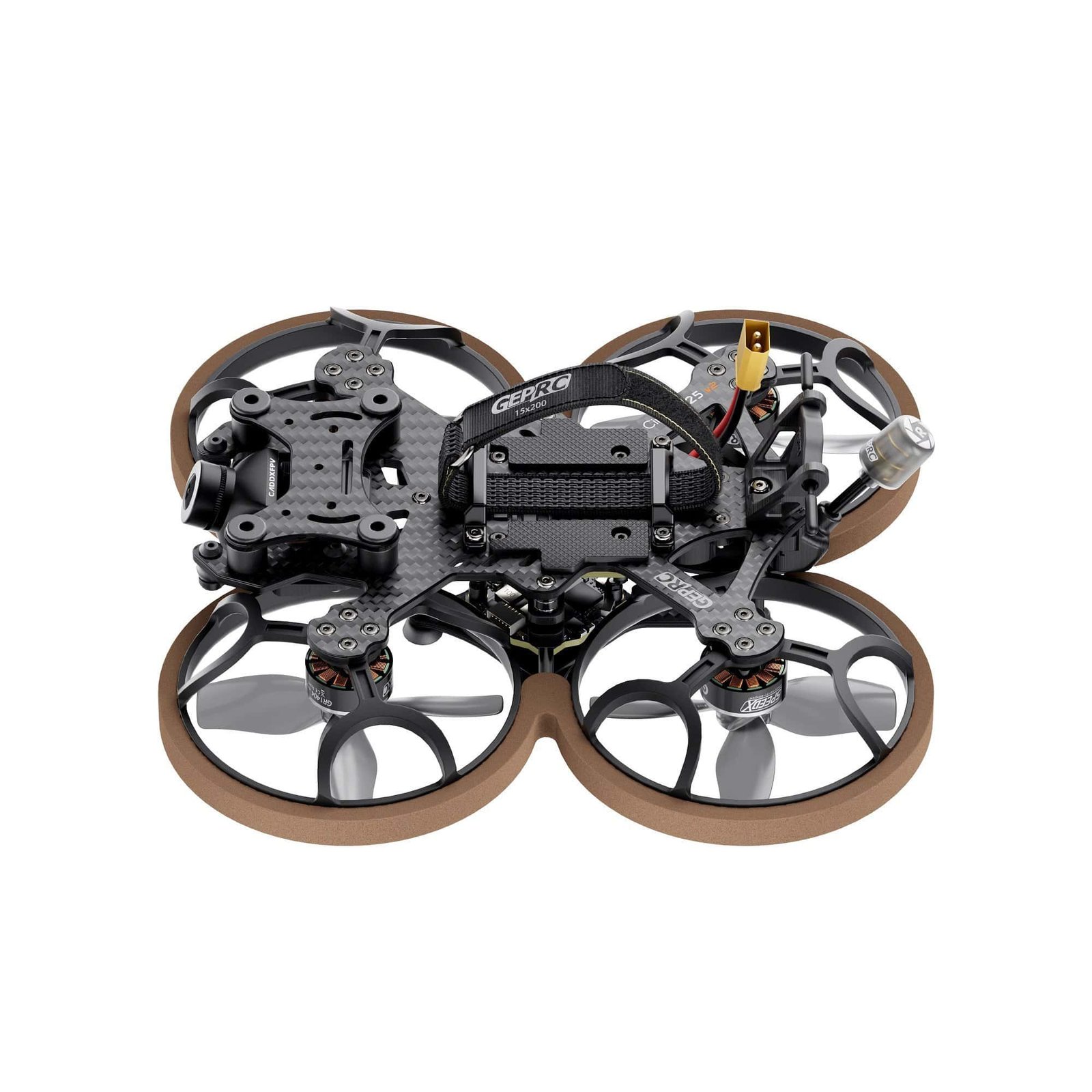

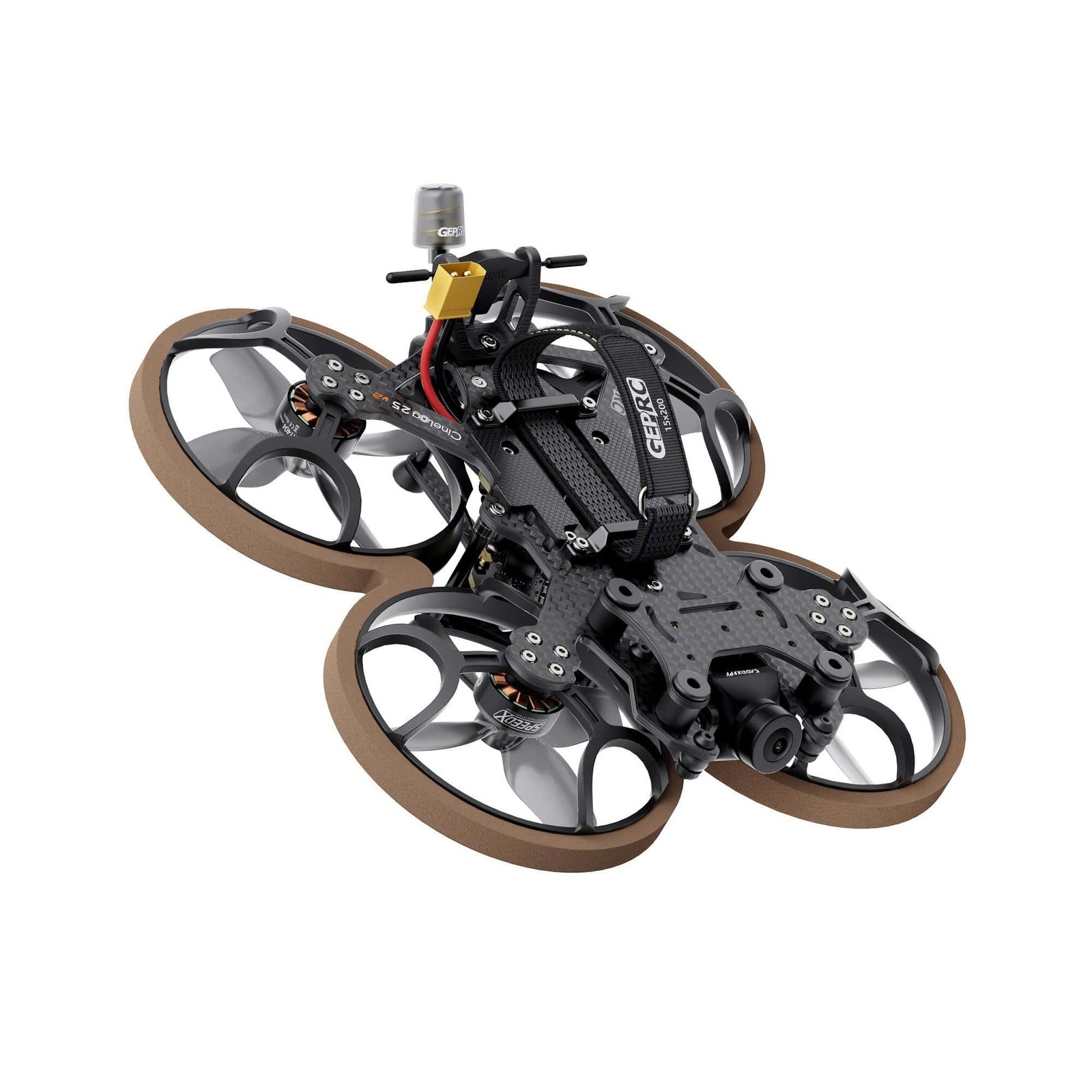

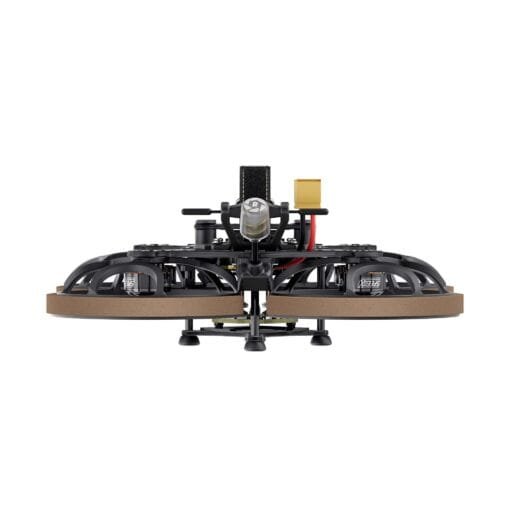

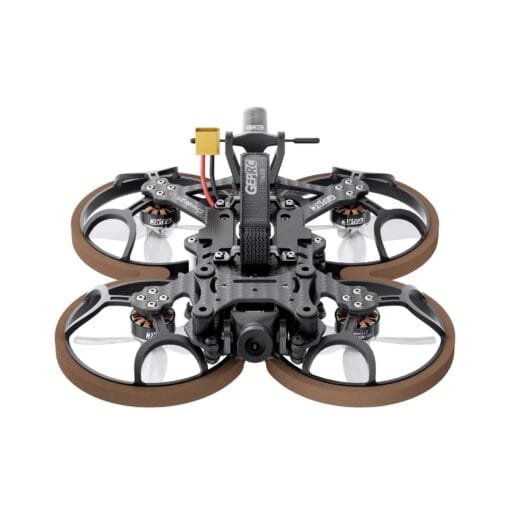

GEPRC Cinelog25 V2 Analog TBS / ELRS 2.4GHz

The model has been redesigned to make battery replacement as convenient as possible - the batteries are attached using aluminum parts and plastic straps. The flight system consists of the new TAKER G4 35A AIO control board, along with 1404 4500KV motors and HQ DT63mmX4 propellers, ensuring excellent control and dynamic flight. Built-in protective propeller covers reduce the risk of injury or damage due to pilot error.

Features:

• The camera is mounted separately to an anti-vibration gimbal, which effectively eliminates IMU resonances and improves image stability;
• Aluminum mounts and straps allow for quick and convenient battery replacement;
• Compact design, suitable for both indoor and outdoor use, can mount a naked GoPro8 camera for high-quality video recording.

Specification:

• Model: Cinelog25 V2 Analog Quadcopter;
• Frame: GEP-CL25 V2;
• Wheelbase: 114 mm;
• Gimbal plate: 2.0 mm;
• Top plate: 2.5 mm;
• Bottom plate: 2.0 mm;
• Flight Control System (FC): TAKER G4 35A AIO;
• Processor (MCU): STM32G473CEU6;
• Gyroscope: ICM 42688-P;
• OSD: Betaflight OSD with AT7456E;
• ESC: 8Bit 35A;
• Video Transmitter (VTX): GEPRC RAD 5.8G 1W (UFL);
• Camera: Caddx Ratel2;
• Antennas: GEPRC Peano 5.8G RHCP UFL;
• Motors: SPEEDX 1404 4500KV;
• Propellers: HQProp DT63mm*4
• Weight: ~148g ±5g (Analog ELRS 2.4GHz version);
• Receiver: TBS Nano RX/ELRS 2.4GHz (optional);
• Recommended battery: LiPo 4S 660–850 mAh;
• Flight duration: ~4–6 minutes.

Package:

1x Cinelog25 V2 Analog FPV drone;
2x HQProp DT63mm*4 (2 pairs);
1x Battery strap M15*200 mm;
1x Battery strap M15*150 mm;
2x Silicone battery pads;
1x Screw set;
1x L-shaped screwdriver 1.5 mm;
1x Keychain;
1x Naked GoPro8 mounting base;
1x T-shaped antenna bracket.
