GEPRC CineLog20 Analog ELRS 2.4GHz

Considering the complex needs of filming indoor spaces, GEPRC manufacturer has introduced the 2-inch Cinewhoop drone CineLog20.

The CineLog20 continues the tradition of the CineLog series with its lightweight pusher design.

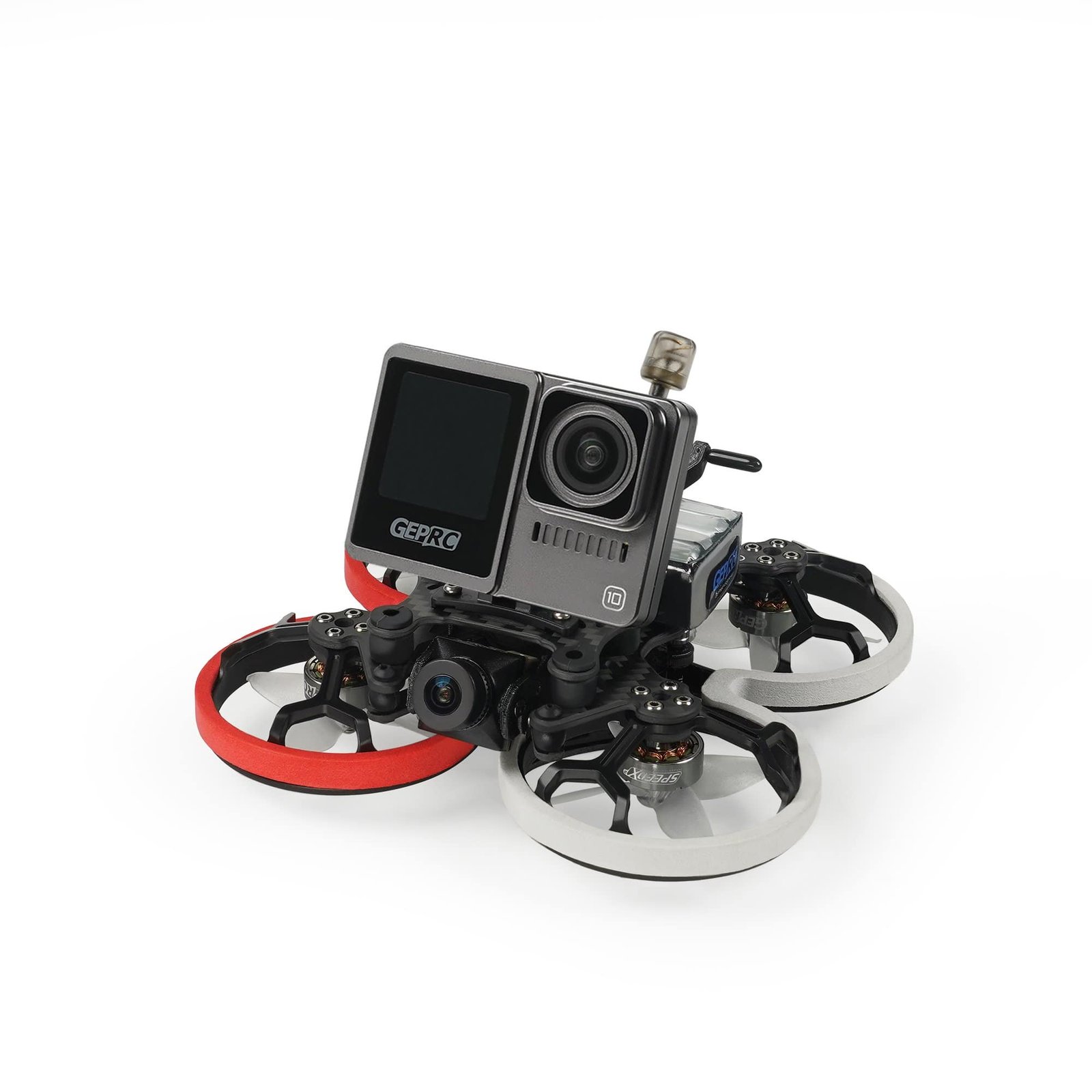

The model uses GEPRC SPEEDX2 1303.5 5500KV motors and TAKER G4 35A AIO flight controller. Equipped with Emax four-blade propellers - a powerful and efficient system allows the CineLog20 to fly quietly and save battery power, making your flight and filming safer and more reliable. Using the integrally molded camera mounting bracket, you can quickly attach GEPRC Naked GoPro 8/9/10/11, Action2, Insta360 Go2, Peanut and other lightweight action cameras.

Features:

• All the most popular systems are supported: Link Wasp, O3 Air Unit, Bind-N-Fly – so you don't have to worry about installation or tuning;
• 2-inch pusher design – compact, lightweight, especially suitable for difficult and narrow indoor filming conditions;
• SPEEDX2 1303.5 5500KV motors combined with Emax four-blade propellers ensure smooth and stable flight;
• Continues the CineLog series' vibration-damping structure, effectively eliminating jello when mounting a Naked GoPro camera;
• The GEPRC team's precision-tuned system makes the flight feel responsive, light, and maneuverable.

Specification:

• Model: CineLog20 Analog;
• Frame: GEP-CL20;
• Axle distance: 100 mm;
• Gimbal plate: 2.0 mm;
• Top plate: 2.5 mm;
• Bottom plate: 1.5 mm;
• Flight controller (FC): TAKER G4 35A AIO;
• Processor (MCU): STM32F411CEU6;
• Gyrometer: ICM 42688-P;
• OSD: Betaflight OSD with AT7456E chip;
• ESC: 8Bit 35A;
• Video Transmitter (VTX): RAD Mini 1W VTX;
• Camera: Caddx Ratel2;
• Antenna: GEPRC Peano 5.8G RHCP MMCX;
• Motors: GR1303.5 5500KV;
• Propellers: EMAX Avan Micro 2×2.4×4;
• Receiver: ELRS 2.4G;
• Recommended battery: LiHv 4S 450–660 mAh;
• Flight time: ~4–6 min.

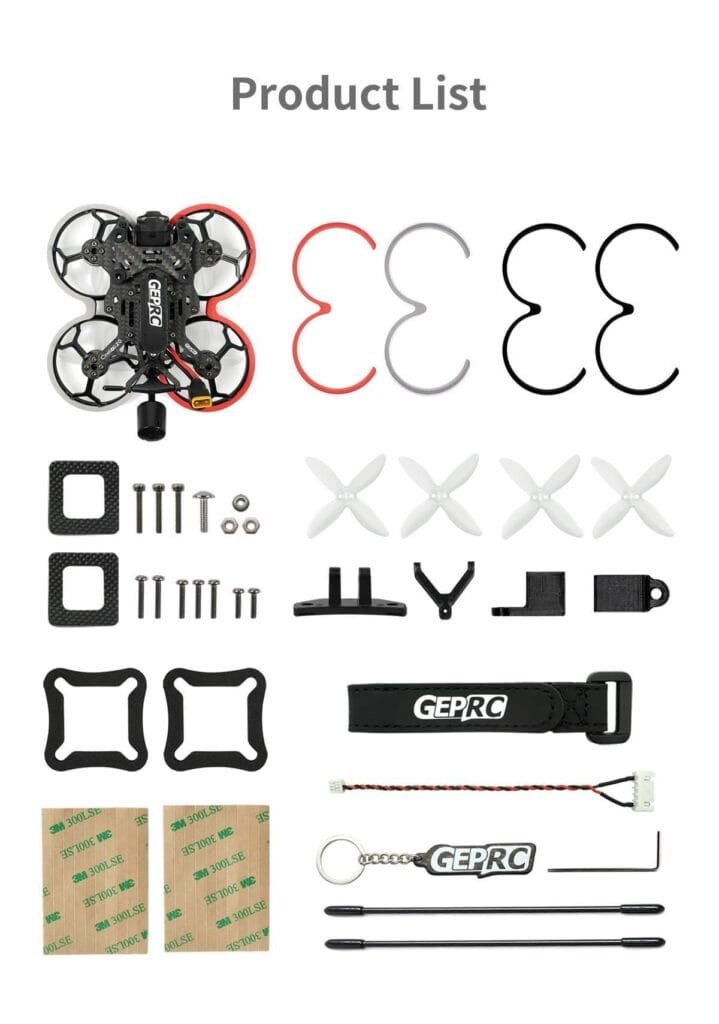

Package:

1× CineLog20 Analog;
2× sets of propellers;
1× Naked GoPro camera mount;
2× M15*150 mm battery straps;
2× Silicone battery mats;
2× EVA landing pads;
1× Screw set;
1× L-shaped screwdriver (1.5 mm);
1× Antenna mounting tube;
1× 4S Naked GP camera power cable (with balanced connector end);
2× EVA shock-absorbing rings for protection;
1× TBS antenna holder (vertical);
1× TBS antenna holder (horizontal);
1× TBS antenna printed parts.

Spare screws included:

3× M2*12mm screws;
2× M2*5mm screws;
1× M2*8 mm screw with washer;
3× M2*7mm screws;
2× M2*8mm screws;
2× M2 iron nuts;
1× Self-locking nut.
