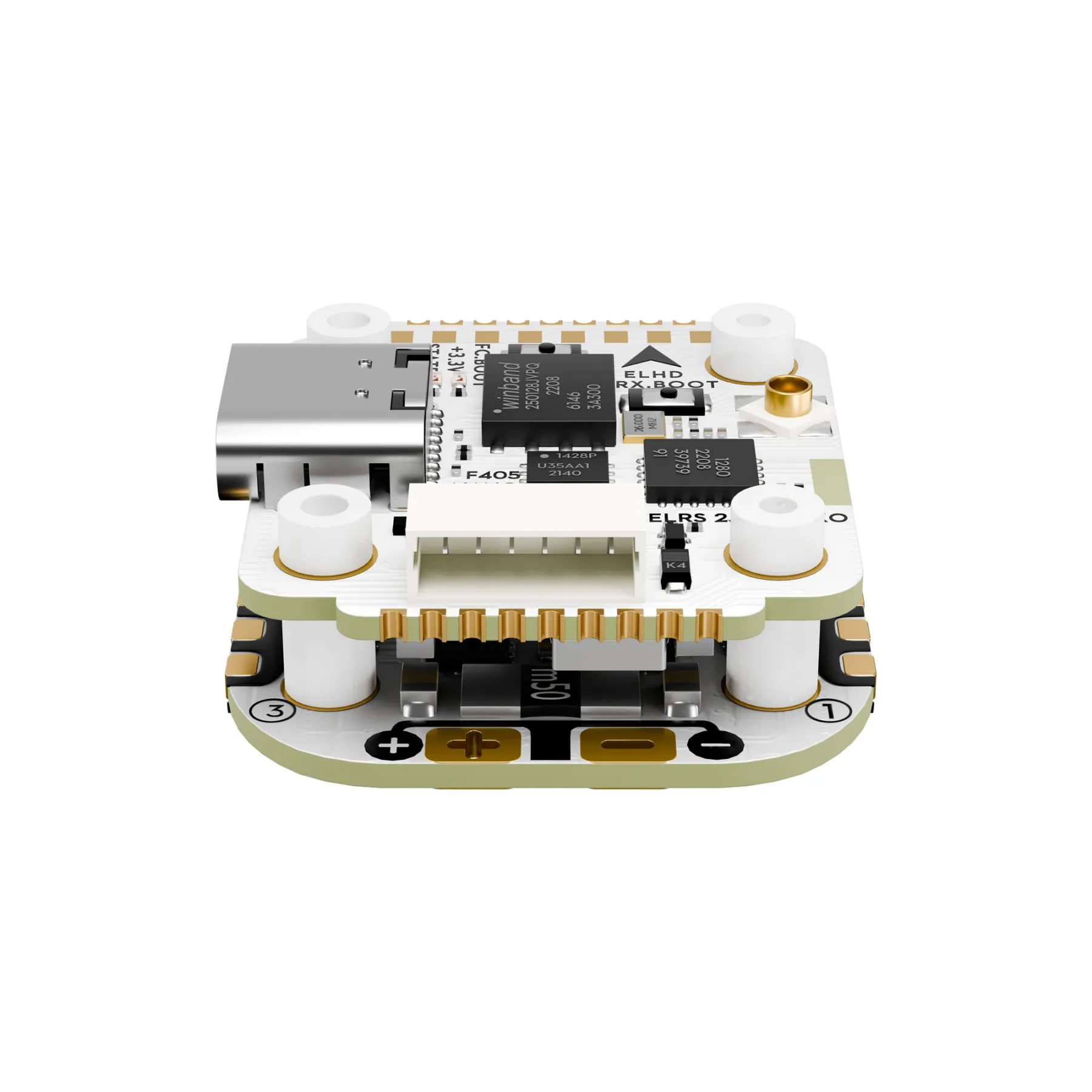

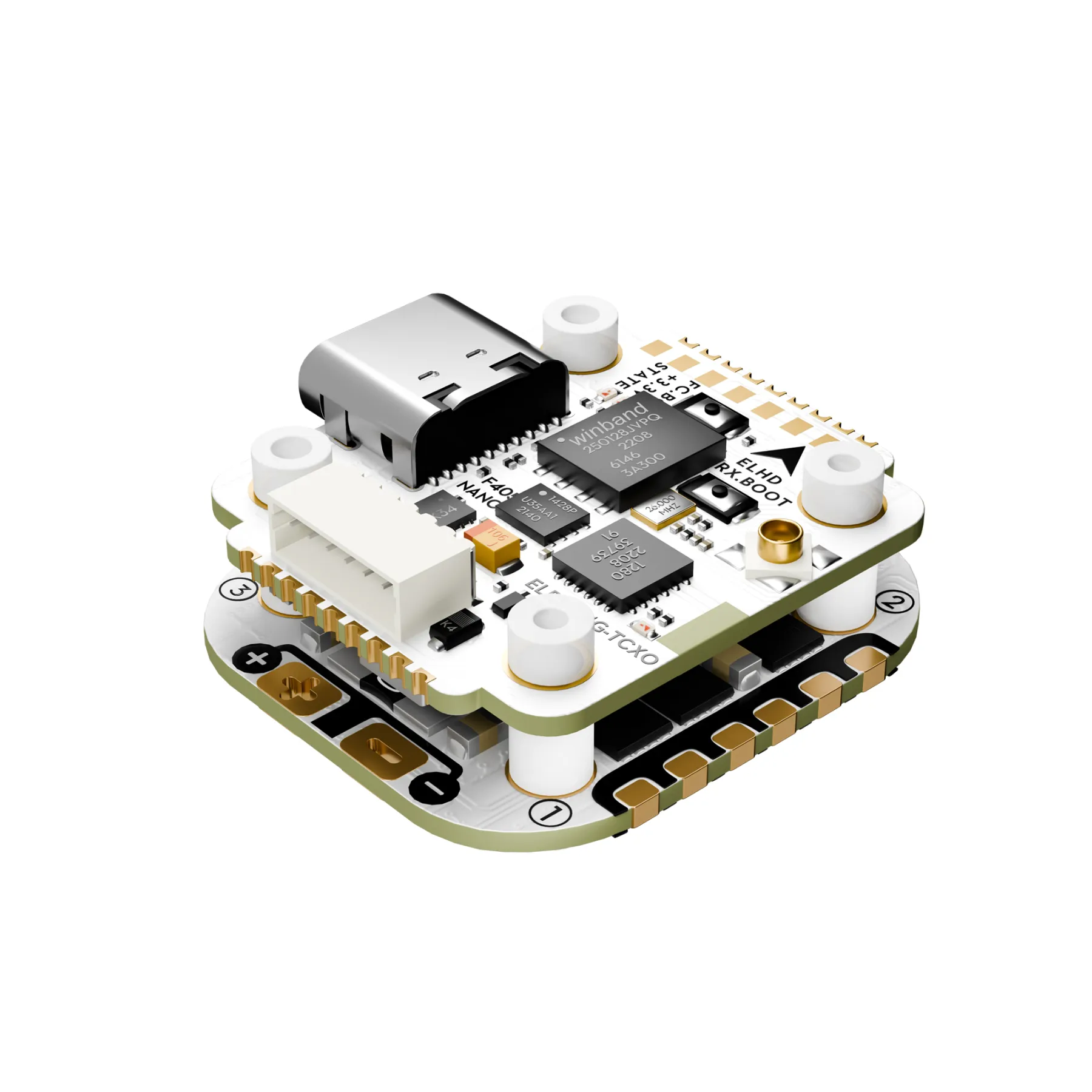

Flywoo GOKU GN405 Nano HD 35A Stack V3 W/ TXCO ELRS 2.4g

Flywoo GOKU GN405 Nano FC V3 with ELRS 2.4G is an updated and even more compact flight controller designed for micro FPV drones. It has an integrated high-precision TCXO ELRS 2.4G receiver, USB-C connector. The controller is compatible with both QUAD and HEX type drones, and thanks to several supported ESC options, it is easily adaptable to different configurations. Due to its small dimensions, wide functionality and reliable connection, it is a great choice for those who want to save space without losing capabilities.

Features:

• 16 x16 mm mounting hole arrangement and compact design;
• Integrated TCXO ELRS receiver;
• Direct connection to the DJI O3/O4 Air Unit module;
• FC/ESC connector interface compatible with QUAD and HEX configurations;
• Integrated barometer;
• Integrated 16 MB „Black Box“ memory for recording flight data;
• Universal USB-C connector.

Specification:

FC:

• Model: Flywoo GOKU GN405 Nano HD FC V3 with ELRS 2.4G (16 x16 mm);
• Microcontroller (MCU): STM32F405 BGA;
• Gyroscope (IMU): ICM-42688P (SPI);
• OSD: None;
• Barometer: DP310;
• Black Box memory: 16 MB;
• USB connector: USB Type-C;
• UART ports: UART1, UART2, UART3, UART4, UART5 (SBUS), UART6 (ELRS);
• Supply voltage: 7.4-24 V (2-6S LiPo);
• BEC: 5 V / 2 A, 3.3 V / 0.5 A;
• Dimensions: 25 x 23 x 8 mm;
• Mounting holes: M2, 16 x 16 mm;
• Weight: 3 g.

ESC:

• Model: GOKU BS 35A ESC V3 (QUAD, 16 x16 mm);
• ESC microcontroller (MCU): BB21F16G;
• Power LED: None;
• Continuous current: 35 A;
• Power supply: 2–4S LiPo;
• Supported protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600;
• Dimensions: 27 x 33 mm
• Mounting holes: 16 x 16 mm (M2);
• Weight: 3.6 g.

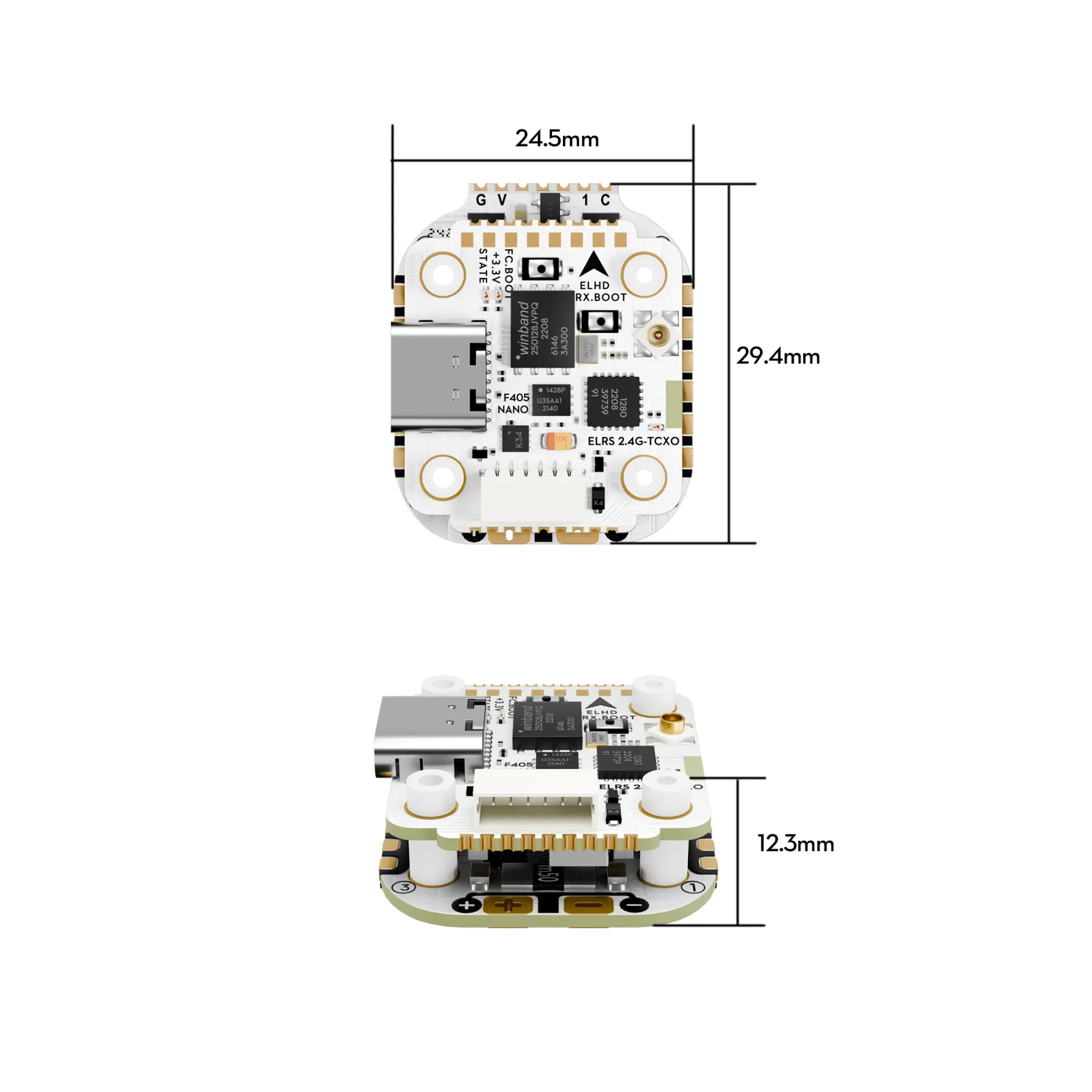

Measurements:

Package:

1x Flywoo GOKU GN405 Nano HD FC V3 flight controller with ELRS 2.4G;
1x GOKU BS 35A 4-in-1 ESC V3 speed controller;
1x FC to ESC connection cables;
1x Mounting kit.

Scheme:
