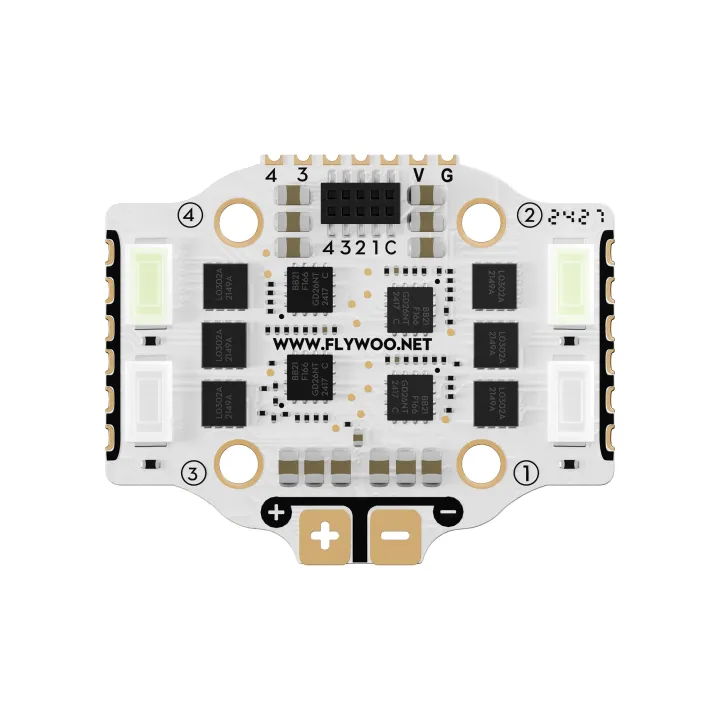

Flywoo GOKU HEX BS 20A ESC V3 is a compact electronic speed controller for micro and mini FPV drones. This version is designed for HEX (6 motors) configuration, making it ideal for small-sized drones. The board supports modern protocols such as DShot150, DShot300 and DShot600, ensuring fast and stable communication between FC and motors. The FC works with 2-4S LiPo batteries and can deliver up to 20A of continuous current.
Features:
• 20A DC current – suitable for small and medium FPV drones;
• HEX configuration – supports 6-motor drones;
• 2-4S LiPo battery support;
• Fast ESC protocols – DShot150, DShot300, DShot600;
• BB21F16G ESC processor for stable motor control;
• 16×16 mm mounting standard;
• BLHeli_S software – reliable and widely used in the FPV ecosystem;
• LED indicator.
Specification:
• Model: GOKU HEX BS 6-IN-1 20A ESC with LED V3;
• ESC microcontroller: BB21F16G;
• Power LED: No;
• Continuous current: 20 A;
• Input: 2-4S LiPo;
• Supported protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600;
• Size: 33 × 35 mm plate, 16 mm mounting holes (M3);
• Weight: 6.4 g.
Measurements:


GOKU HEX BS 6-IN-1 20A ESC V3 is a compact electronic speed controller for small FPV drones. It supports 2-4S LiPo batteries, provides up to 20A of continuous current, and supports PWM, Oneshot, and DShot protocols. The 16×16 mm mounting standard allows for easy integration of the ESC into compact drone frames.
Package:
1x Flywoo GOKU HEX V3 F4 20A 2-4S 6-in-1;
1x Anti-vibration rubber (Shock-Absorbing Ball);
1x XT30U power cable;
1x Capacitor.
