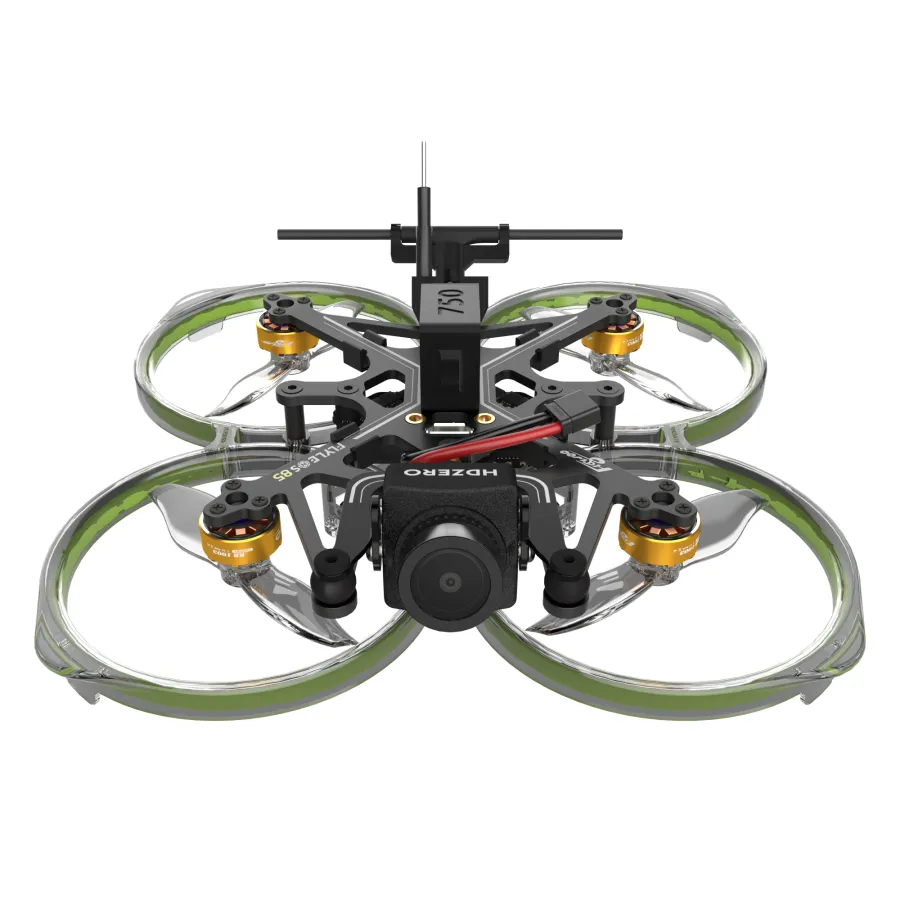

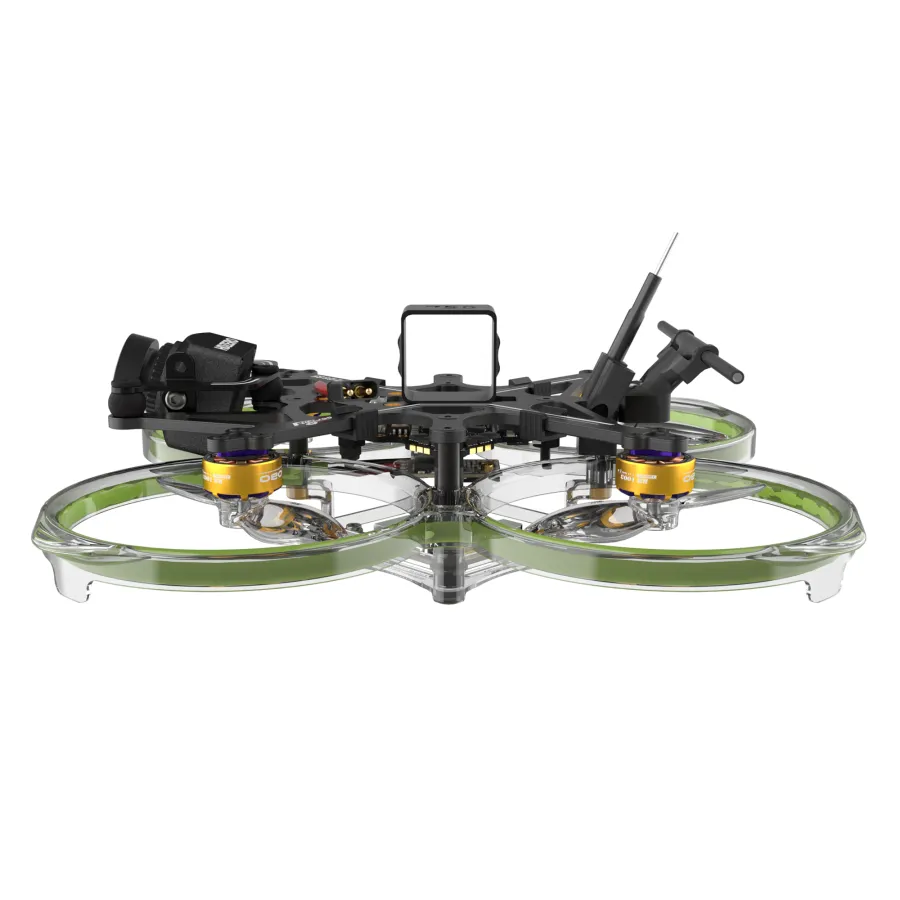

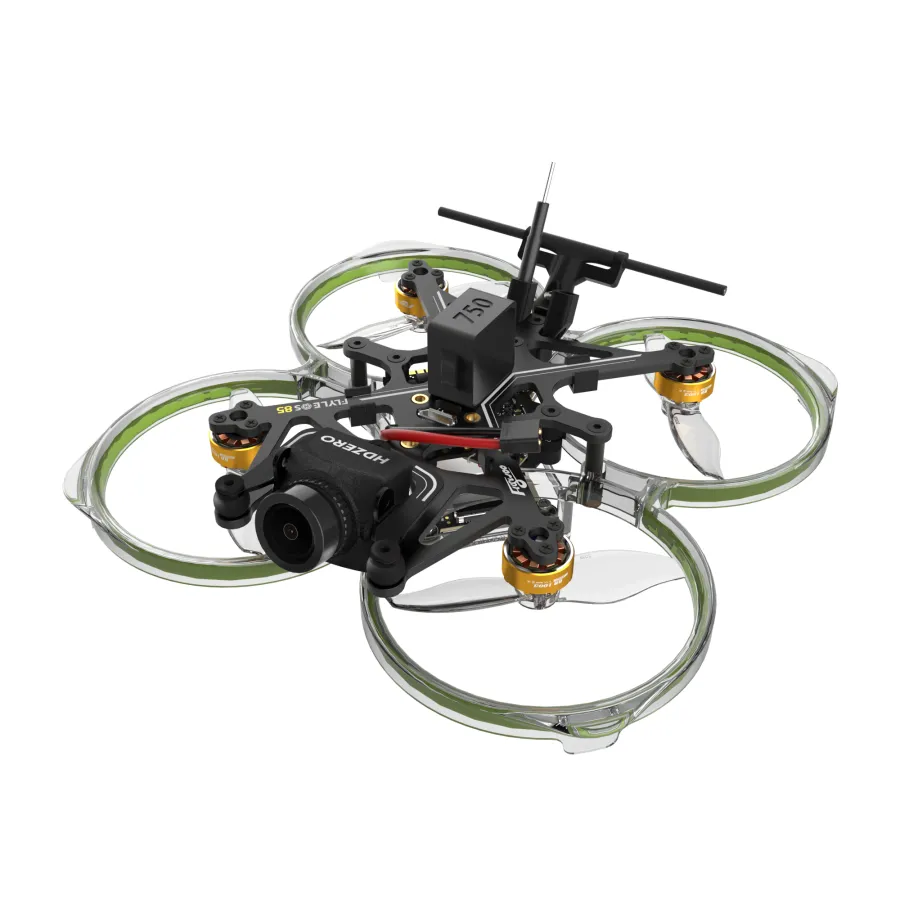

Flywoo FlyLens 85 HDZero 2S ELRS V1.3 Drone

FLYLENS 85 Brushless Whoop is a compact and lightweight FPV drone developed by Flywoo that meets international requirements. It is equipped with an HDZero Whoop Lite VTX video transmitter and a Runcam HDZero Micro V2 camera, providing a clear 720p/60fps image and a great flight experience. The drone has a sturdy carbon fiber frame, a protective propeller ring, a vibration-damping camera mounting system, and a quick-release design. The 2S battery, 1003 motors, and 2-inch propellers provide enough power, lower noise, and longer flight time, making this model perfect for both beginners and experienced FPV pilots.

Features:

• Compact 2-inch drone weighing less than 100g;
• A durable PC plastic protective ring, made by injection molding, increases the drone's impact resistance;
• The lower part is equipped with a video transmitter (VTX) compartment made of PC plastic - better protection and more efficient cooling;
• Quick-detachable frame that allows for easy separation and replacement of components;
• Pusher propeller system ensures more stable flight and longer flight time;
• Comes with remote-controlled neon LED lighting;
• Possibility to attach additional external accessories or equipment.

Specification:

• Model: FlyLens 85 HD HDZero 2S Brushless Whoop FPV Drone;
• Frame: FlyLens 85 standard frame set;
• Flight controller: GOKU F405 HD 1-2S ELRS AIO V2 (42688);
• Video transmission system: HDZero Whoop Lite VTX with 80 mm MIPI cable;
• Camera: RunCam HDZero Micro Camera V2;
• Propellers: 2015 two-blade propellers;
• Motors: ROBO 1003 14800KV;
• Antenna: Flywoo 5.8G Light 5.8 GHz, 3 dBi UFL brass antenna;
• LED lighting: Flywoo flexible LED strip with 3.3V BEC (2.7mm).

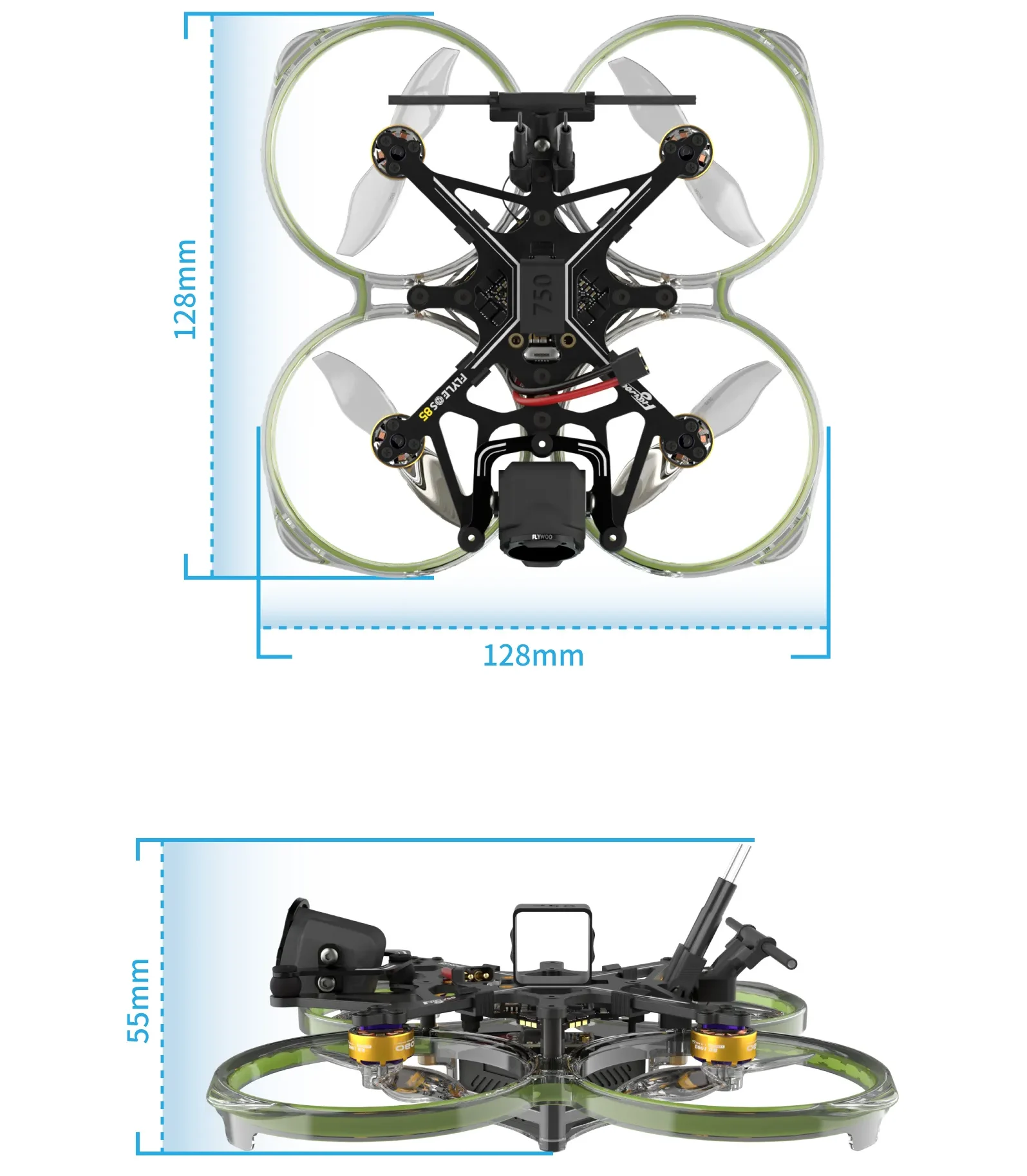

Measurements:

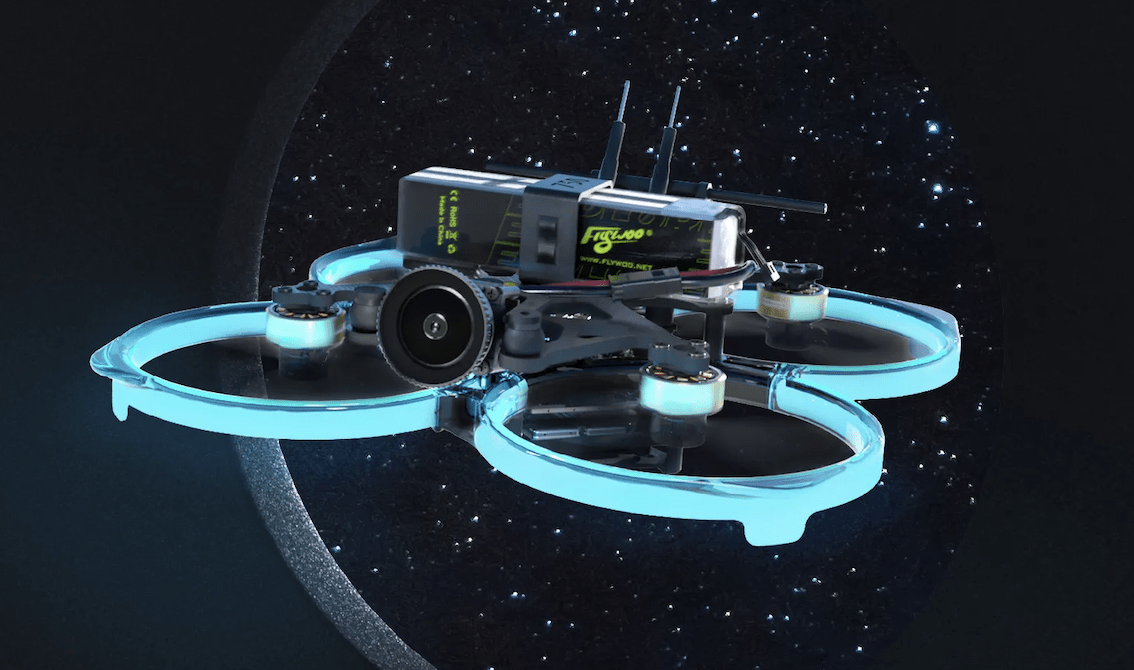

FlyLens 85 HDZero is a lightweight and compact FPV drone with HDZero digital video transmission system, which ensures high-definition images and extremely low latency. A sturdy PC protective frame, camera damping system and lower thrust motor design provide stable and efficient flight. The quick-disassembly design and convenient battery compartment facilitate maintenance, and the integrated neon LED lighting provides a distinctive appearance and better visibility during flight.

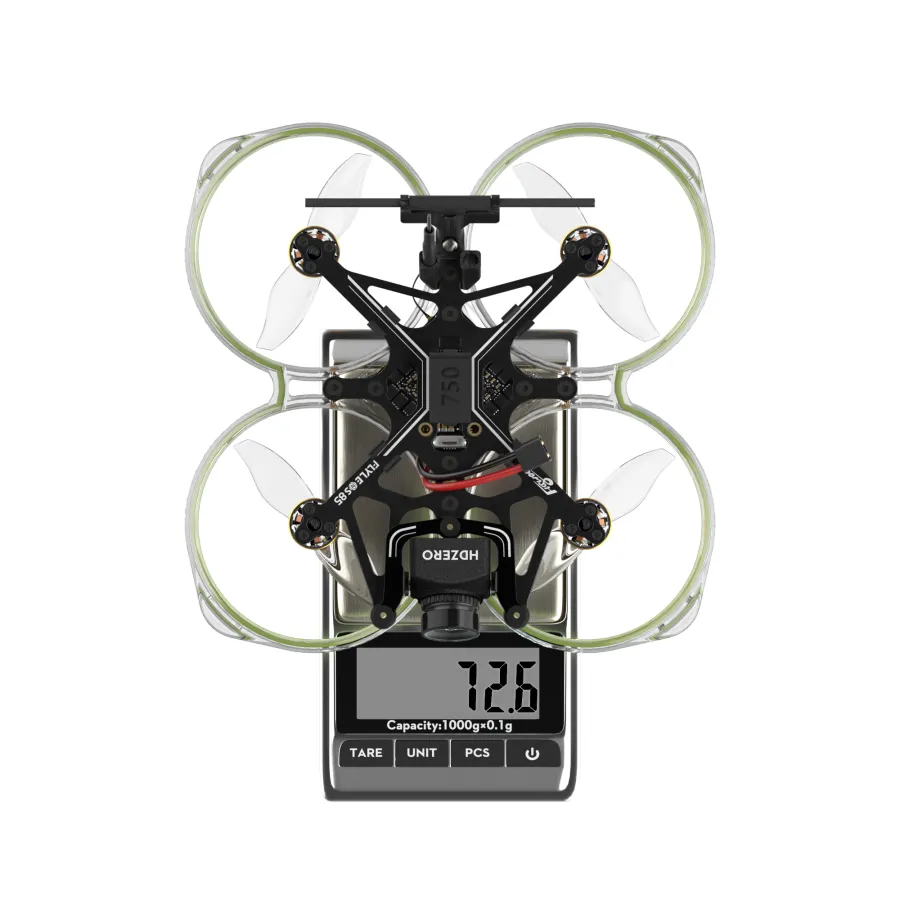

An extremely lightweight and compact FPV drone with a take-off weight of just 80-130 g, depending on the configuration. Its small dimensions make it easy to transport and store, and its lightweight design ensures excellent maneuverability and efficient flight. This is a great choice for pilots looking for a lightweight, reliable and versatile FPV drone for everyday flights and filming.

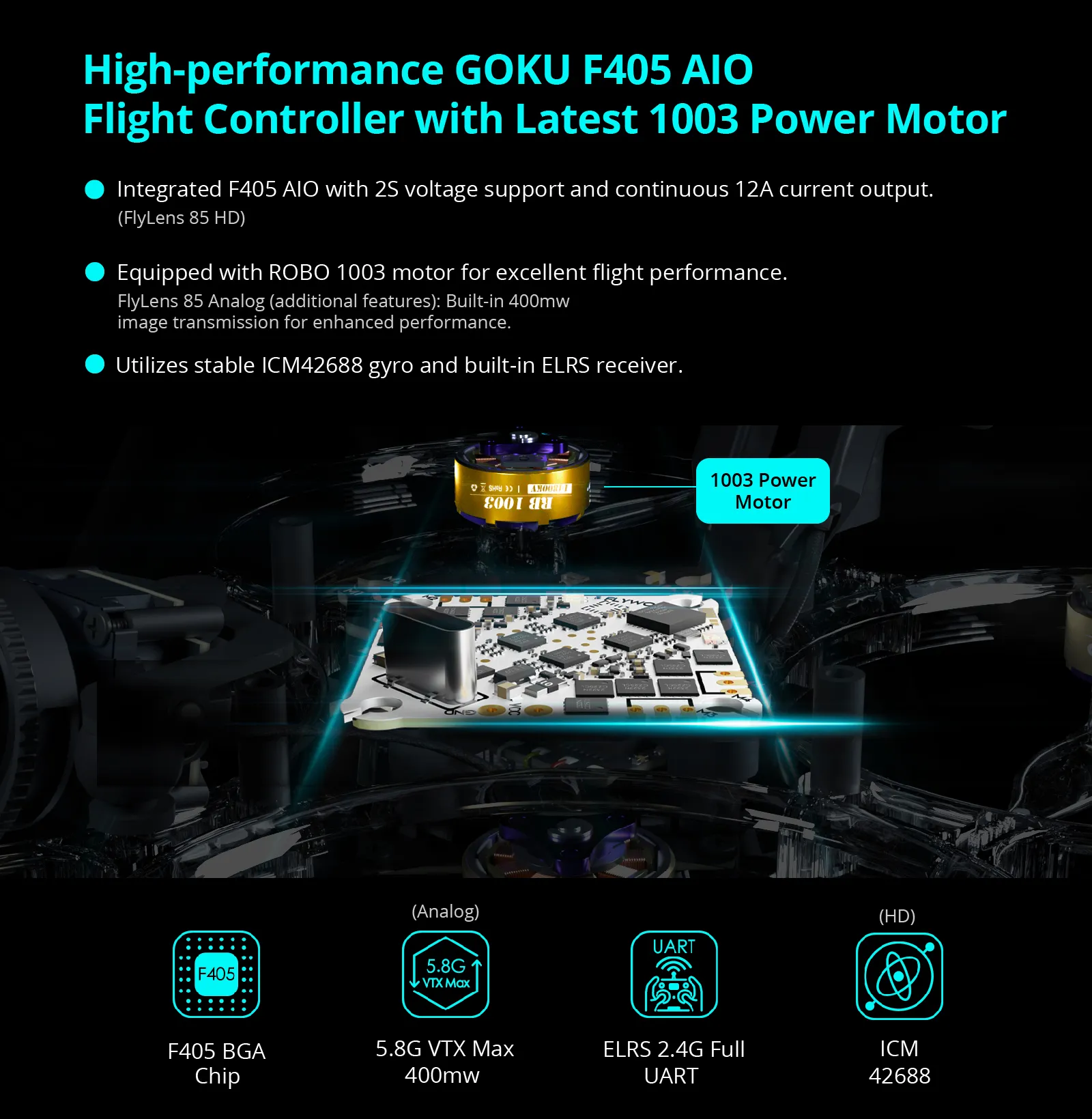

The FlyLens 85 is equipped with a high-performance GOKU F405 AIO flight controller and next-generation ROBO 1003 motors, providing excellent flight performance and fast response. The integrated F405 AIO controller supports 2S power supply and 12A continuous current, while the precision ICM42688 gyroscope and integrated ELRS 2.4 GHz receiver guarantee stable communication and precise control. This combination of electronics provides smooth, reliable and dynamic flight for both beginners and experienced FPV pilots.

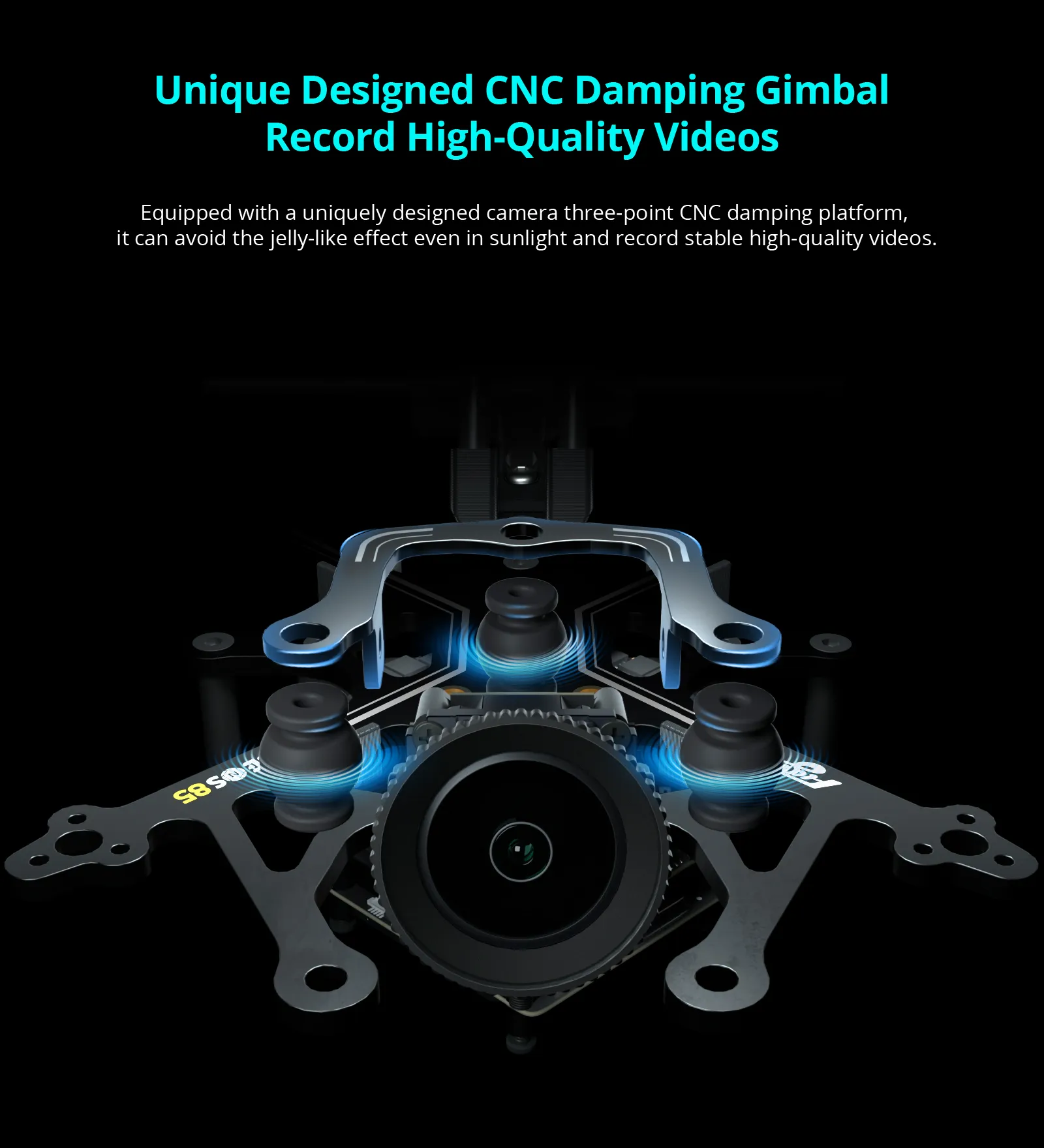

FlyLens 85 features a unique CNC-machined three-point camera shock absorption system that effectively dampens vibrations and reduces unwanted "jelly" effects while filming. This solution allows you to capture smooth, stable, and high-quality videos.

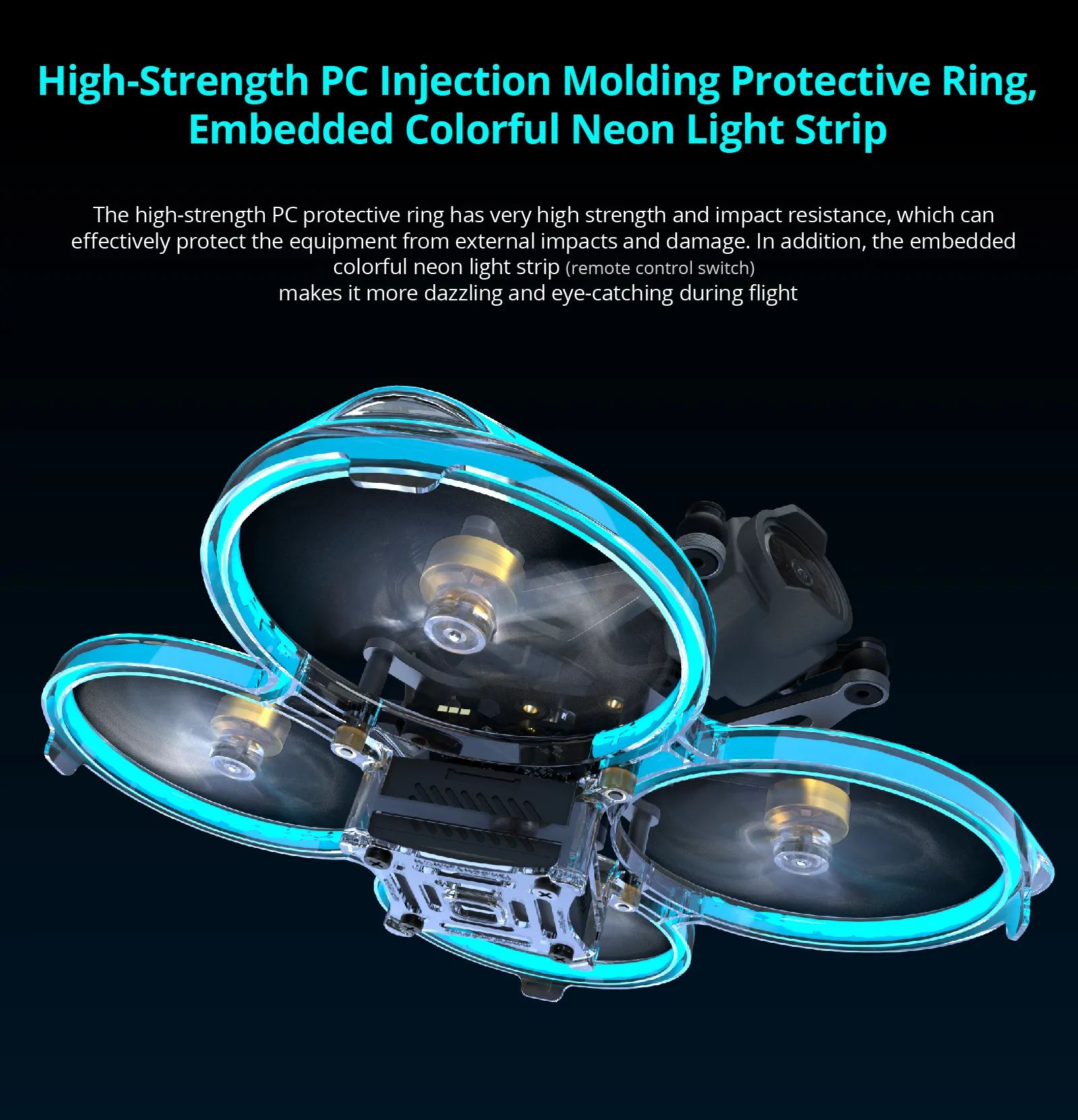

FlyLens 85 features durable PC plastic protective rings, made by injection molding, which effectively protect the propellers and other components from impacts and damage. The drone is perfect for both indoor and outdoor flights. The integrated colorful neon LED strip, controlled by remote control, gives the drone a unique look and improves its visibility during flight.

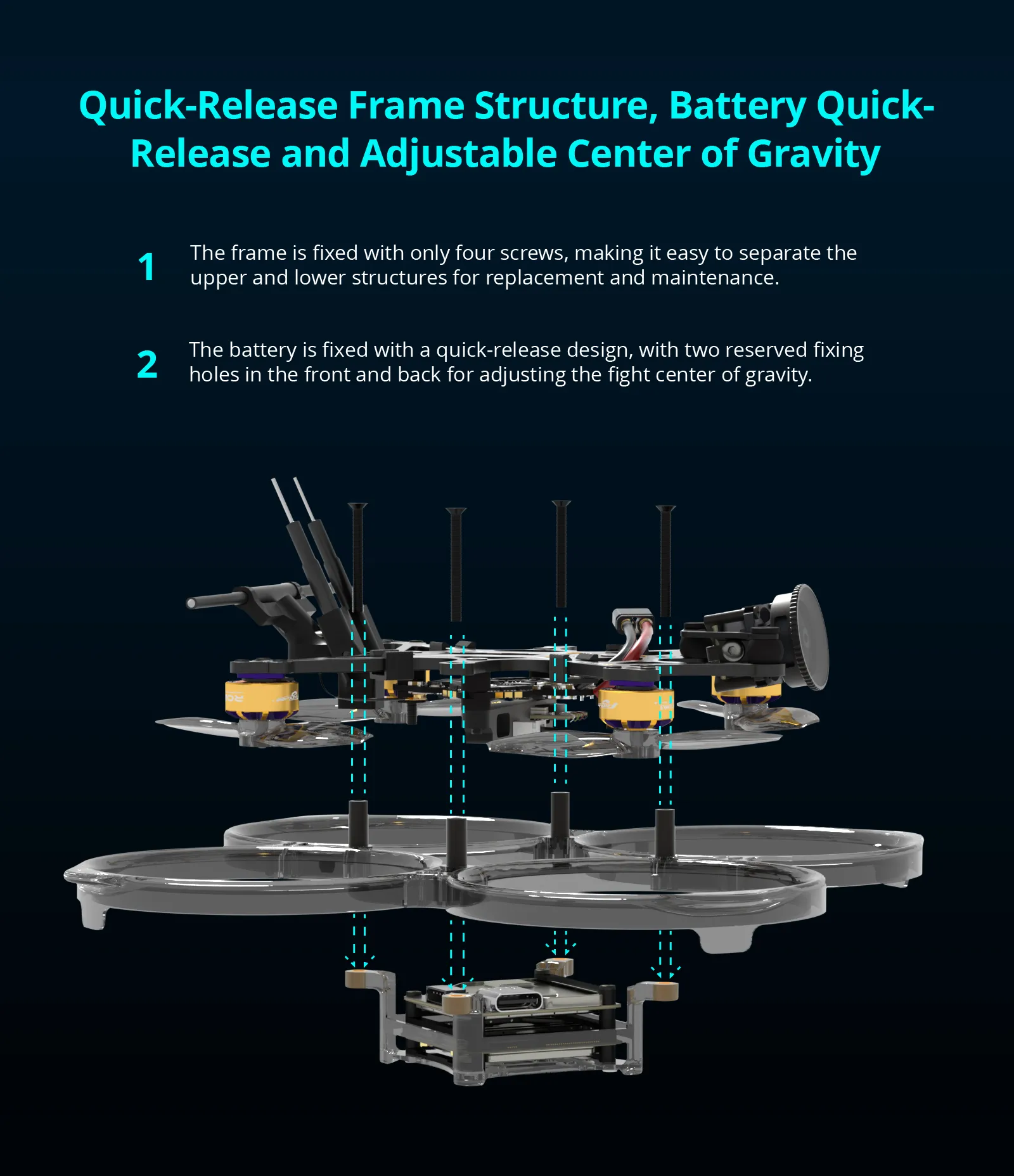

The FlyLens 85 features a quick-detachable frame design that uses just four mounting screws. This solution allows for quick separation of the upper and lower parts of the drone, making maintenance, repairs, or component replacement easier and faster. The drone also features a quick-release battery mounting system that allows for easy battery replacement and adjusts the center of gravity to suit the size of the battery used and flight needs, ensuring optimal stability in the air.

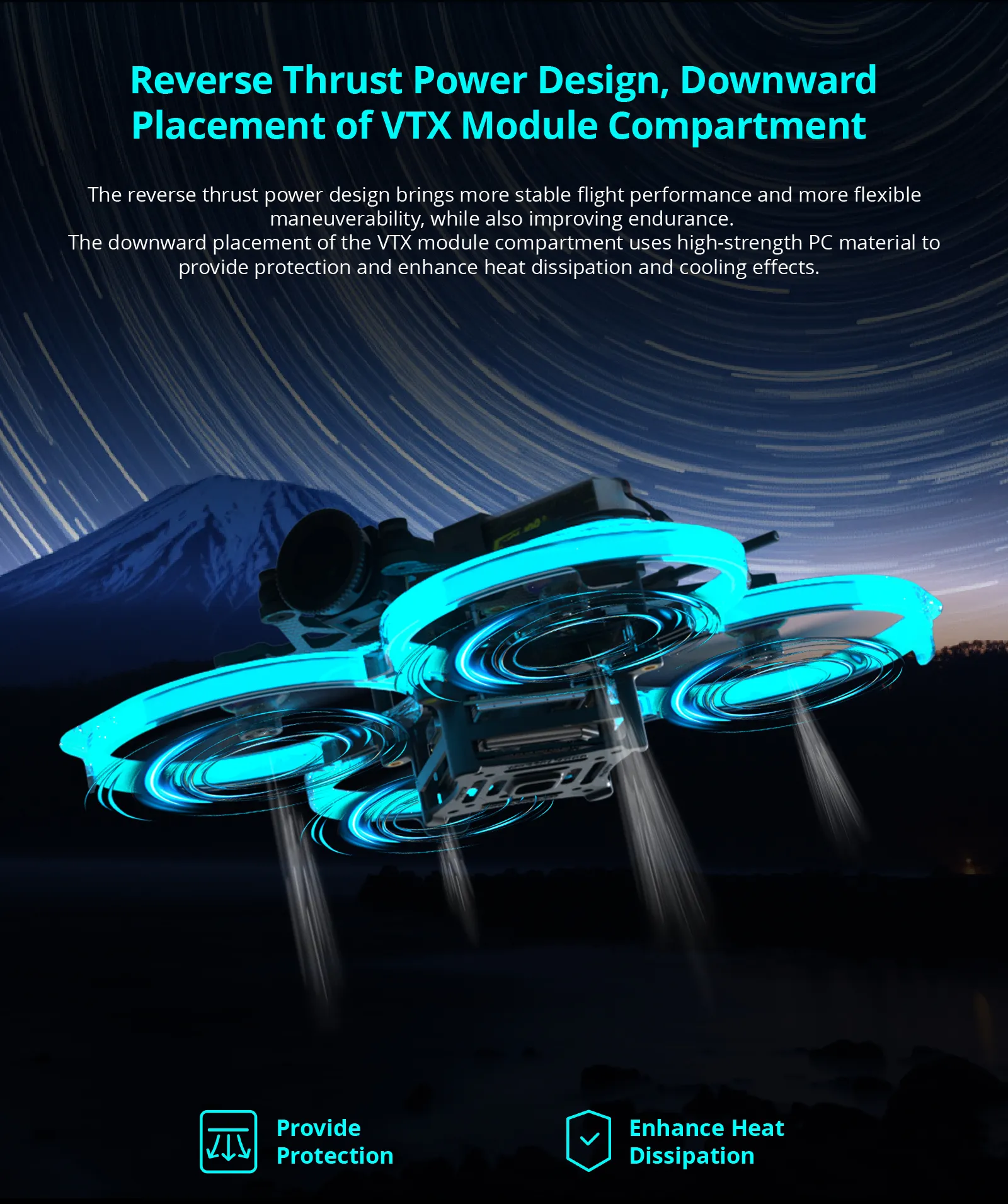

The reverse thrust (Pusher) motor design is used, which ensures more stable flight, better maneuverability and greater efficiency. This arrangement also helps to extend the flight time and improve the overall flight characteristics of the drone. The VTX module compartment, made of durable PC plastic, is integrated in the lower part, protecting the video transmission equipment from damage and ensuring more effective heat dissipation, thus increasing the reliability of the system during long flights.

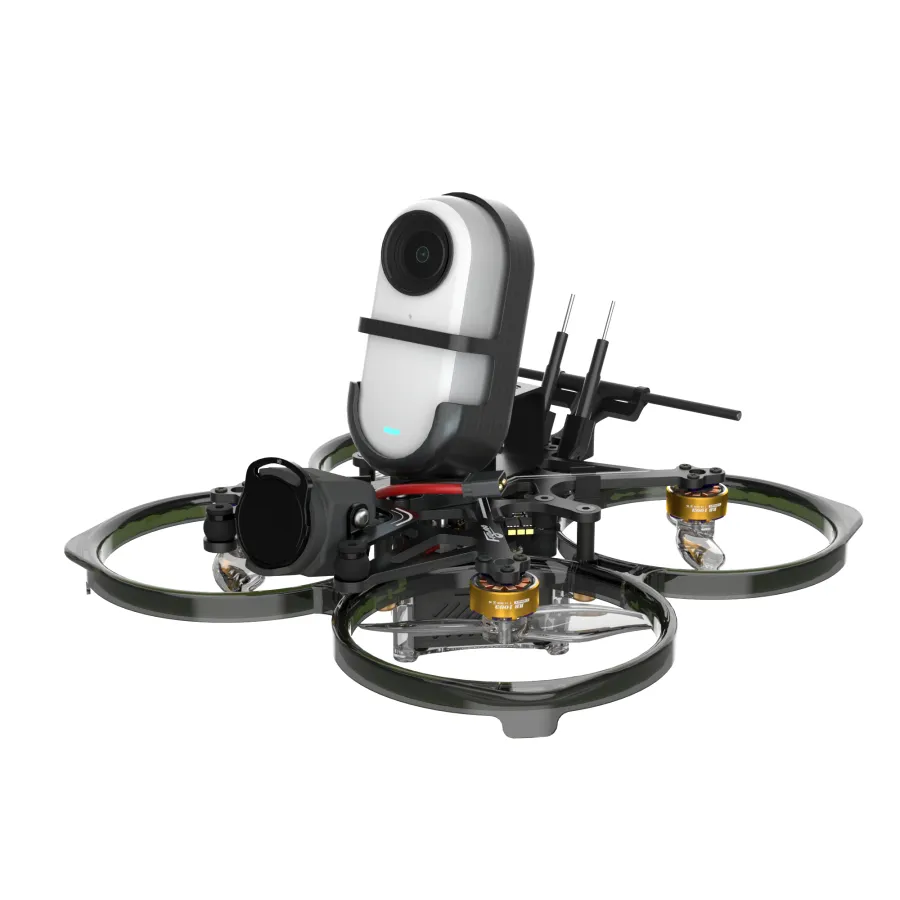

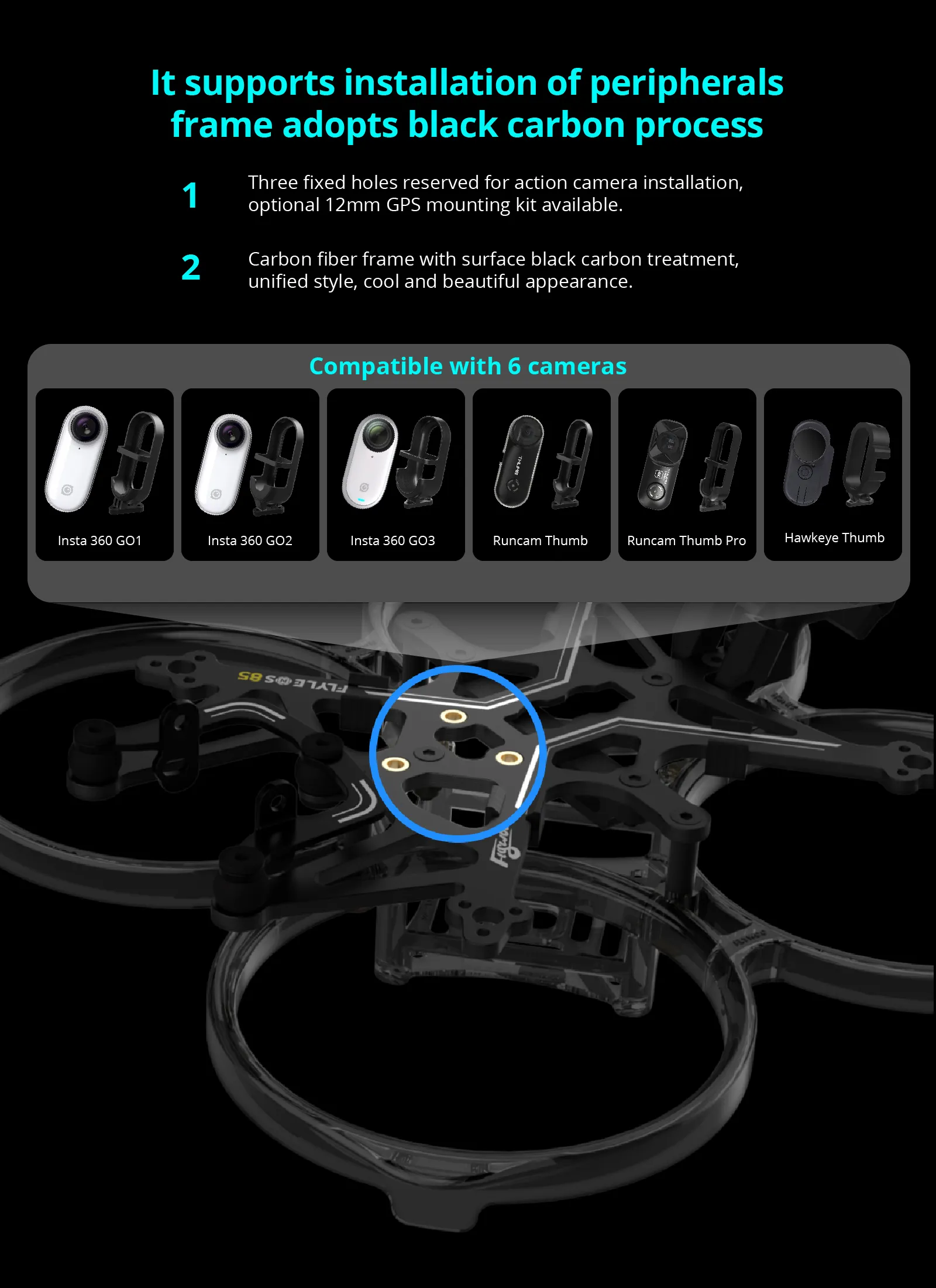

Designed to be easily adaptable to additional equipment. Special mounting points integrated into the frame allow you to mount action cameras and other accessories, and an optional 12mm GPS module mount can be installed. The drone is compatible with popular lightweight cameras such as Insta360 GO 1/2/3, RunCam Thumb, RunCam Thumb Pro and Hawkeye Thumb.

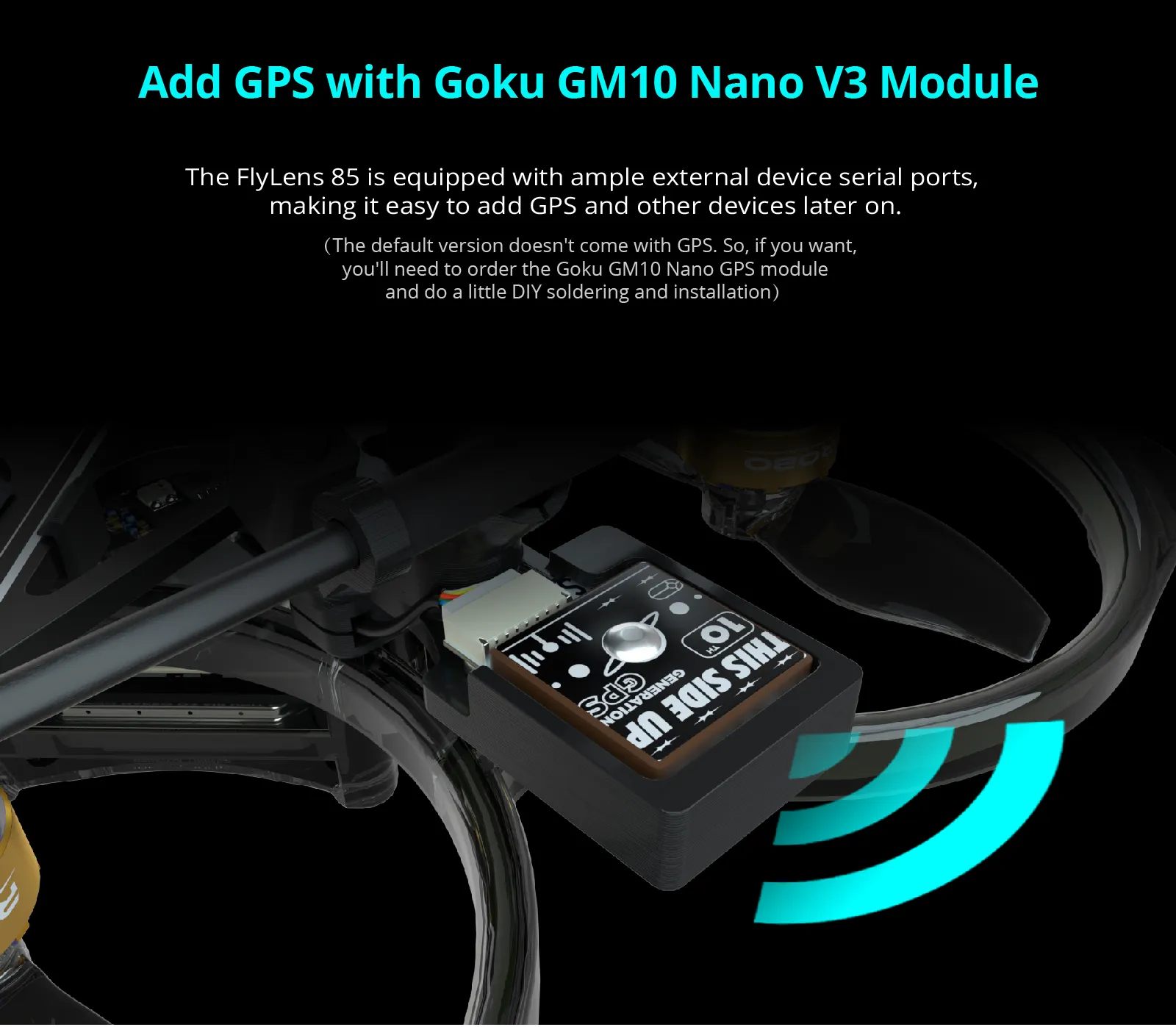

FlyLens 85 has ports for additional devices, so its functionality can be easily expanded if necessary. The drone supports GPS module integration, so users can additionally install the GOKU GM10 Nano V3 GPS module and use more accurate positioning and other GPS functions. The GPS module is not included in the standard package, but the design is designed to make its installation simple and convenient.

Package:

1x FlyLens 85 drone;
1x 2S 750 mAh TPU battery holder;
1x 2S 1000 mAh battery holder;
4x Propellers;
2x Gaskets;
2x Self-locking nuts;
2x Shock-absorbing silicone balls;
4x Mounting clips;
2x Hexagon nuts;
2x Hexagonal spacers/columns;
12x M1.4 × 3.5 mm screws;
4x M1.6 × 6mm screws;
2x M2 × 3 mm screws (RHS);
1x M2 × 6 mm screw (RHS);
2x M2 × 10 mm countersunk head screws;
2x M2 × 10 mm screws (RHS);
2x M2 × 12 mm countersunk head screws;
2x M2 × 18 mm countersunk head screws.
