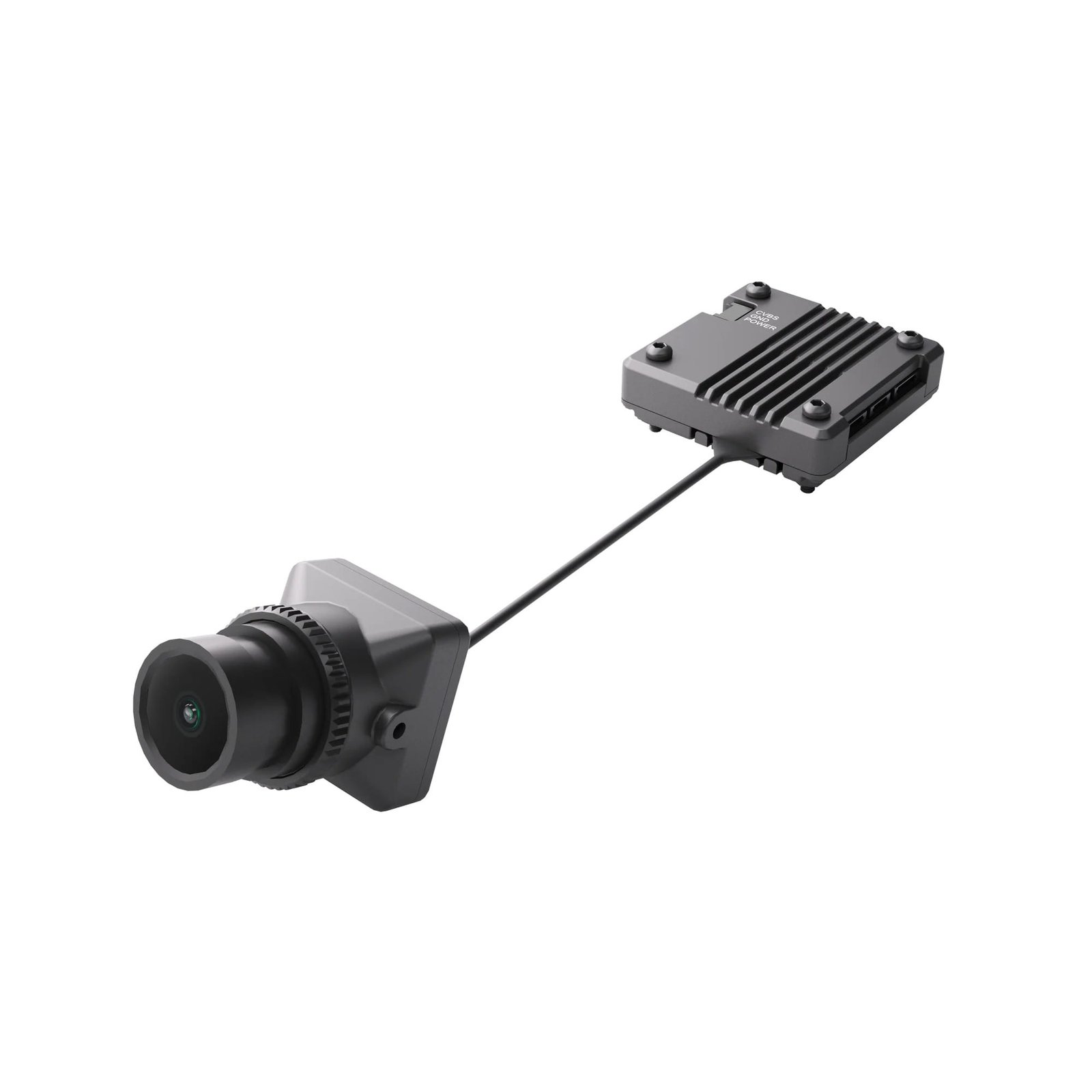

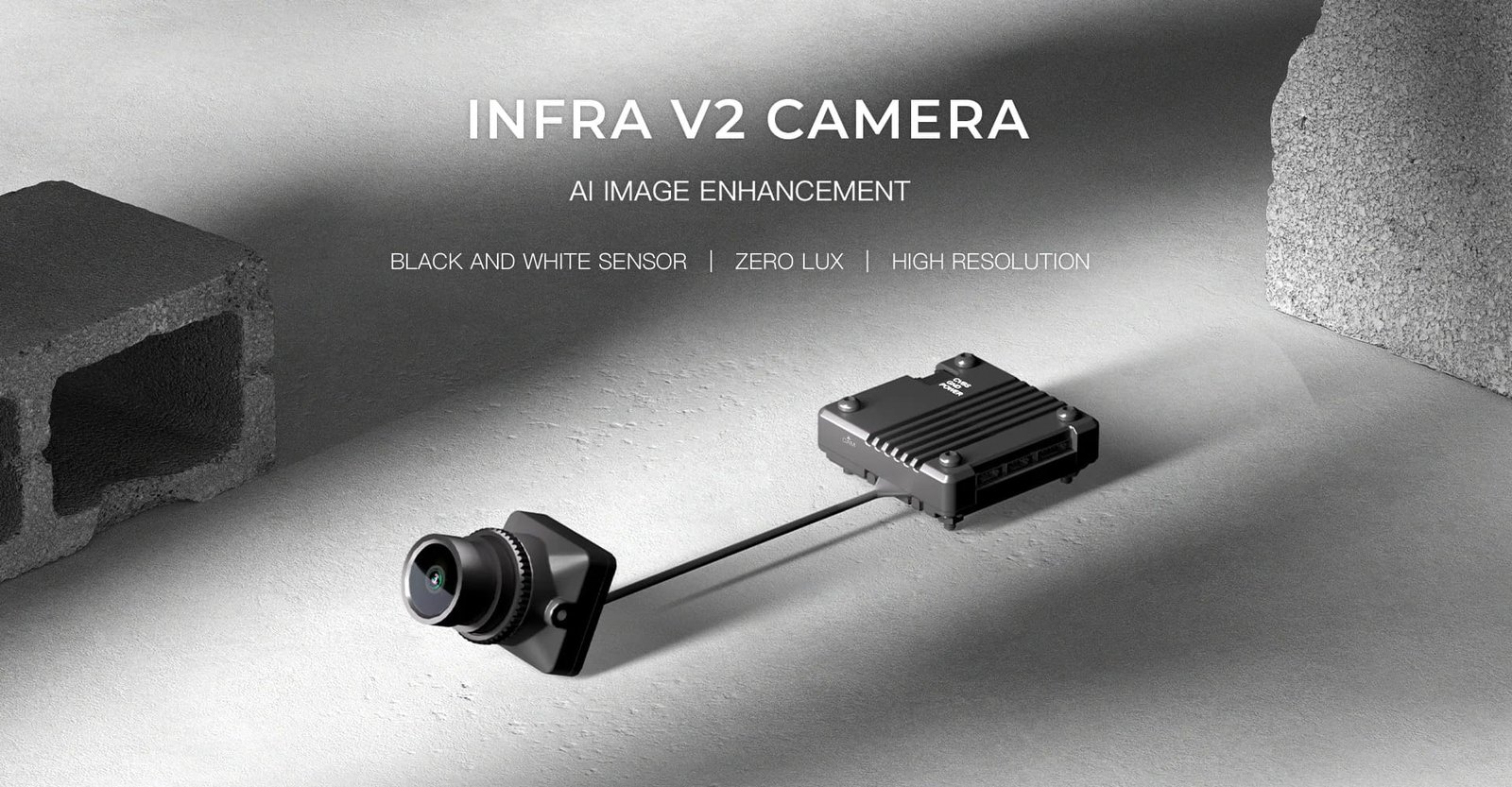

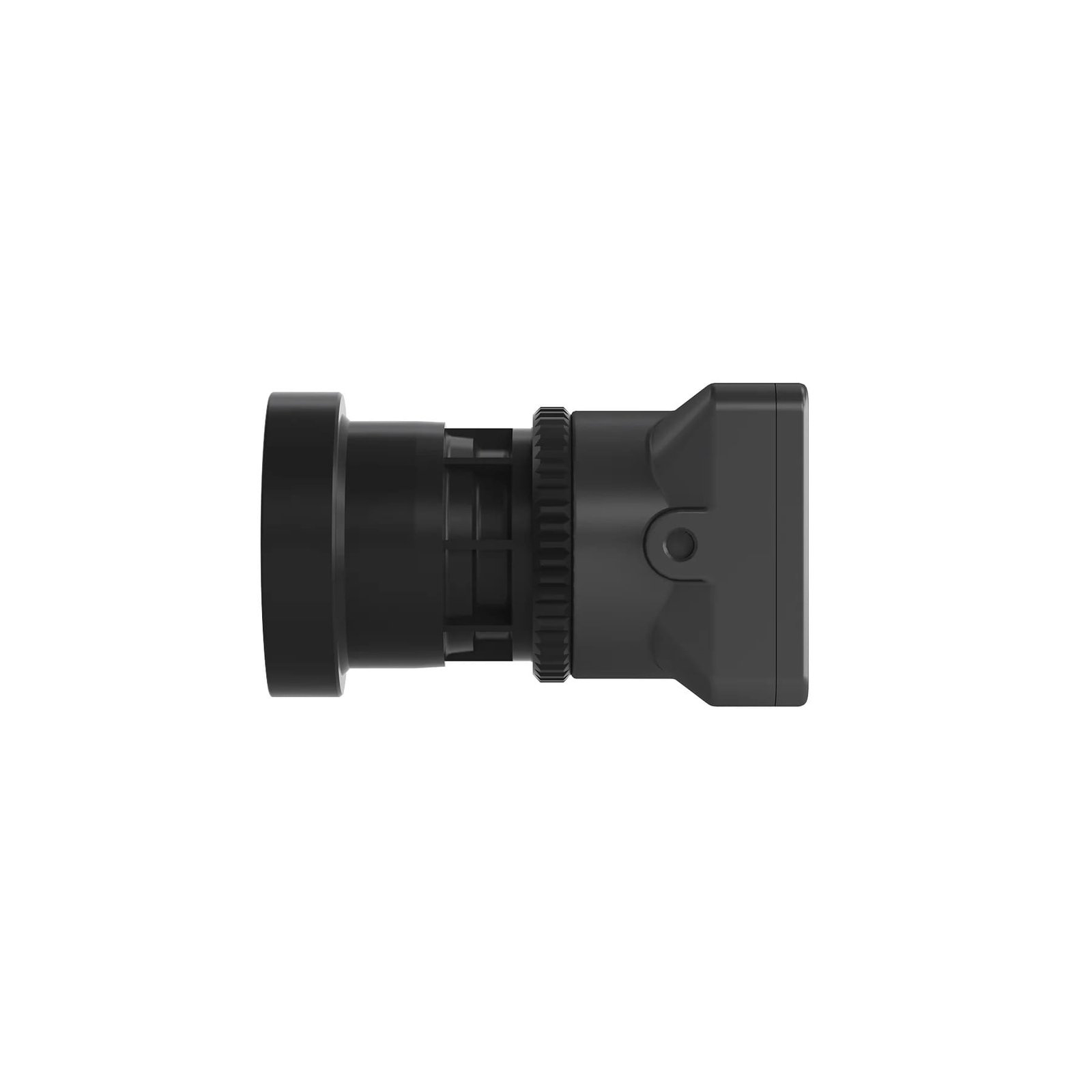

CaddxFPV Infra V2 camera

Using the new Infra V2 AI night vision algorithm, the camera significantly improves image clarity - even more than 30 nits in low light. The improved AI processor has allowed the module size to be reduced, making the device thinner and lighter than ever before

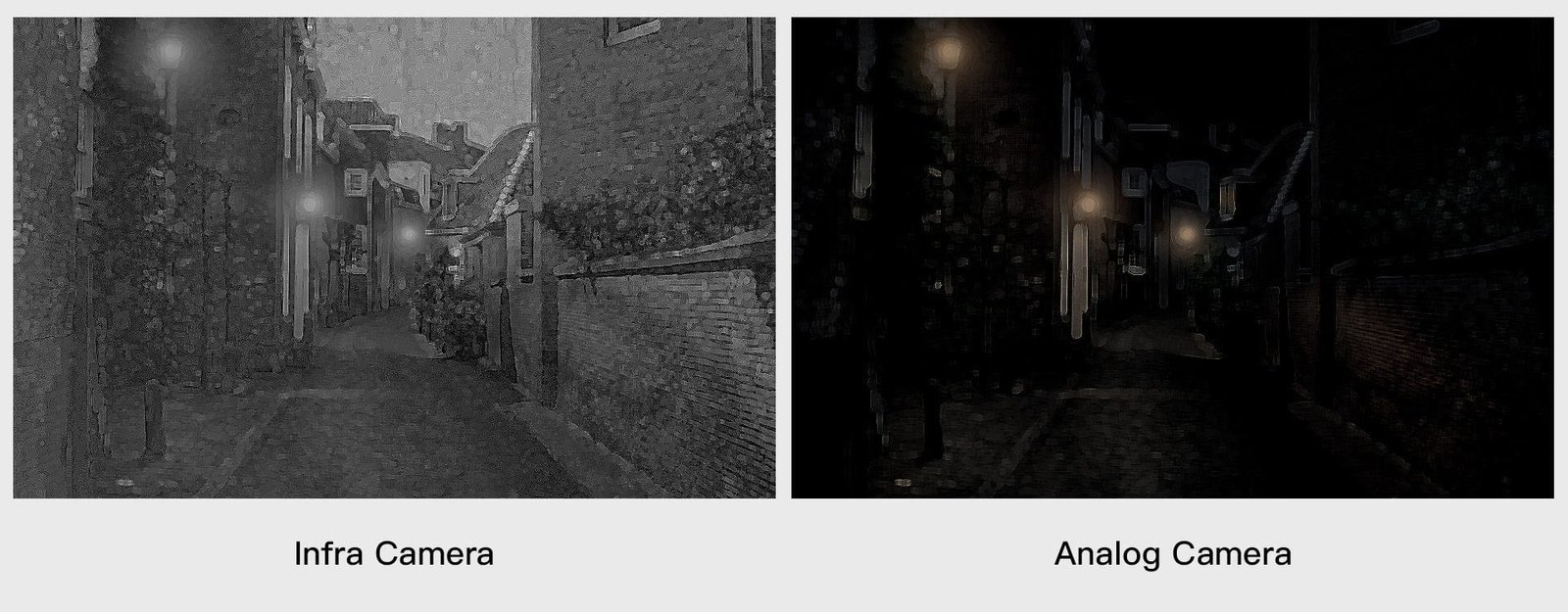

AI algorithms improve dynamic range in night mode. Compared to traditional color cameras, sensitivity is significantly higher, allowing for better capture of object shapes and contours.

The image sensor provides a native 4:3 aspect ratio, so you get a full, uncropped image with sharp pixels, allowing you to fully immerse yourself in every moment of your flight.

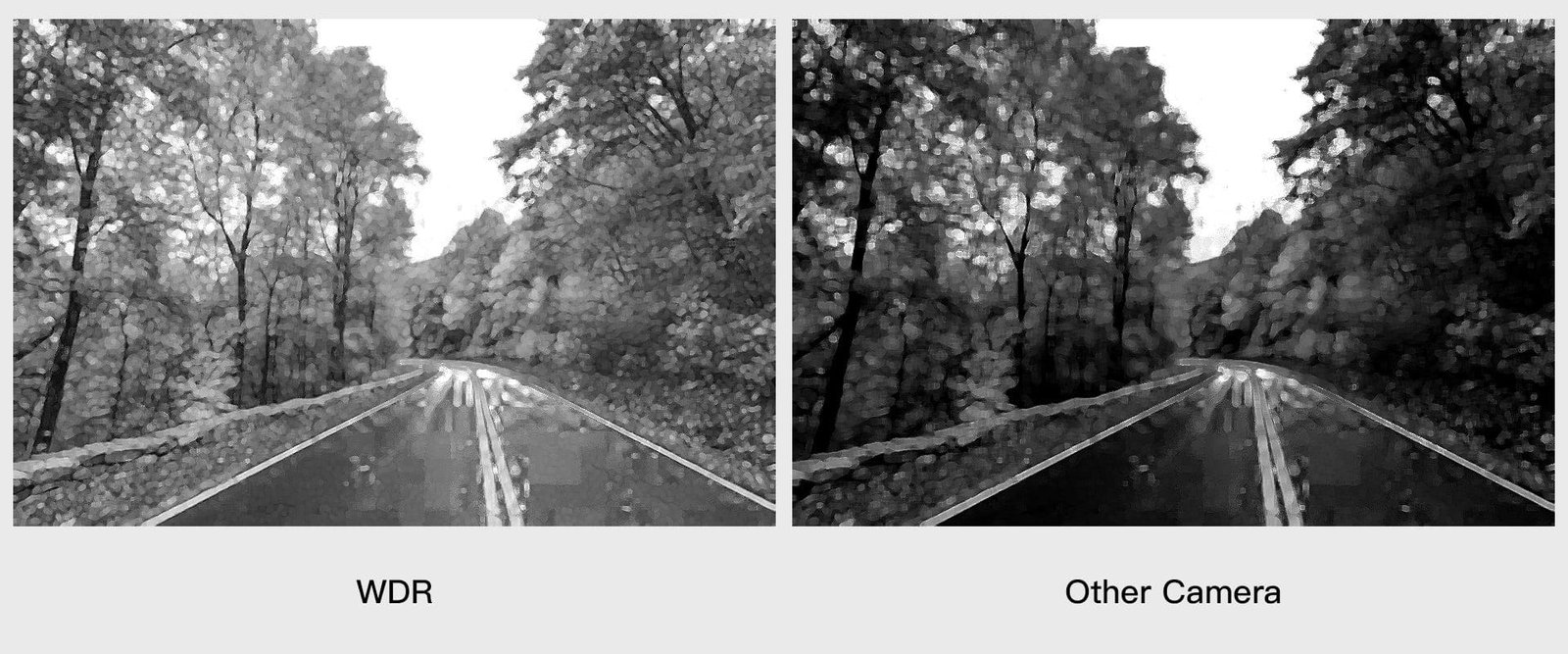

The camera supports WDR, making it perfect for capturing details in dark environments.

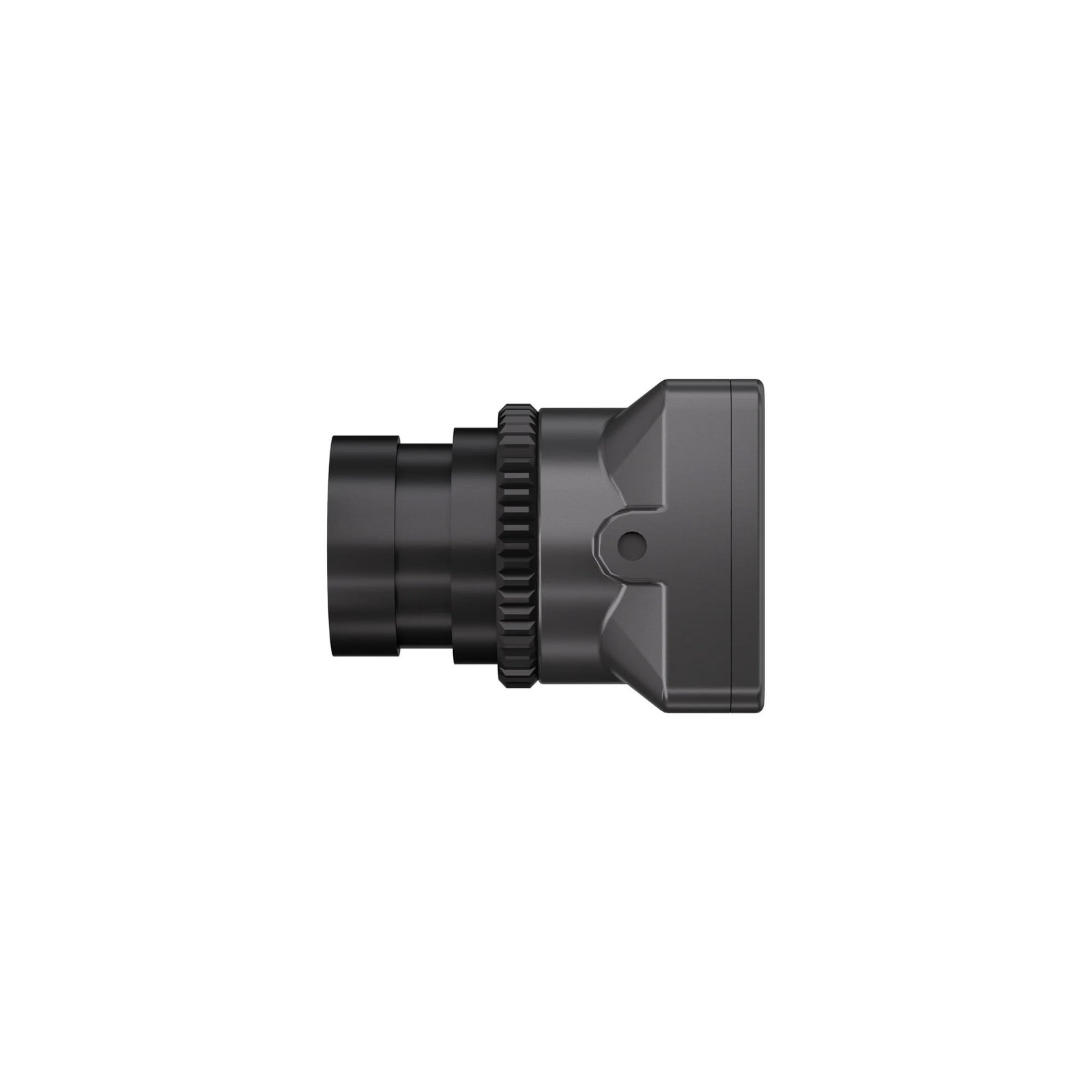

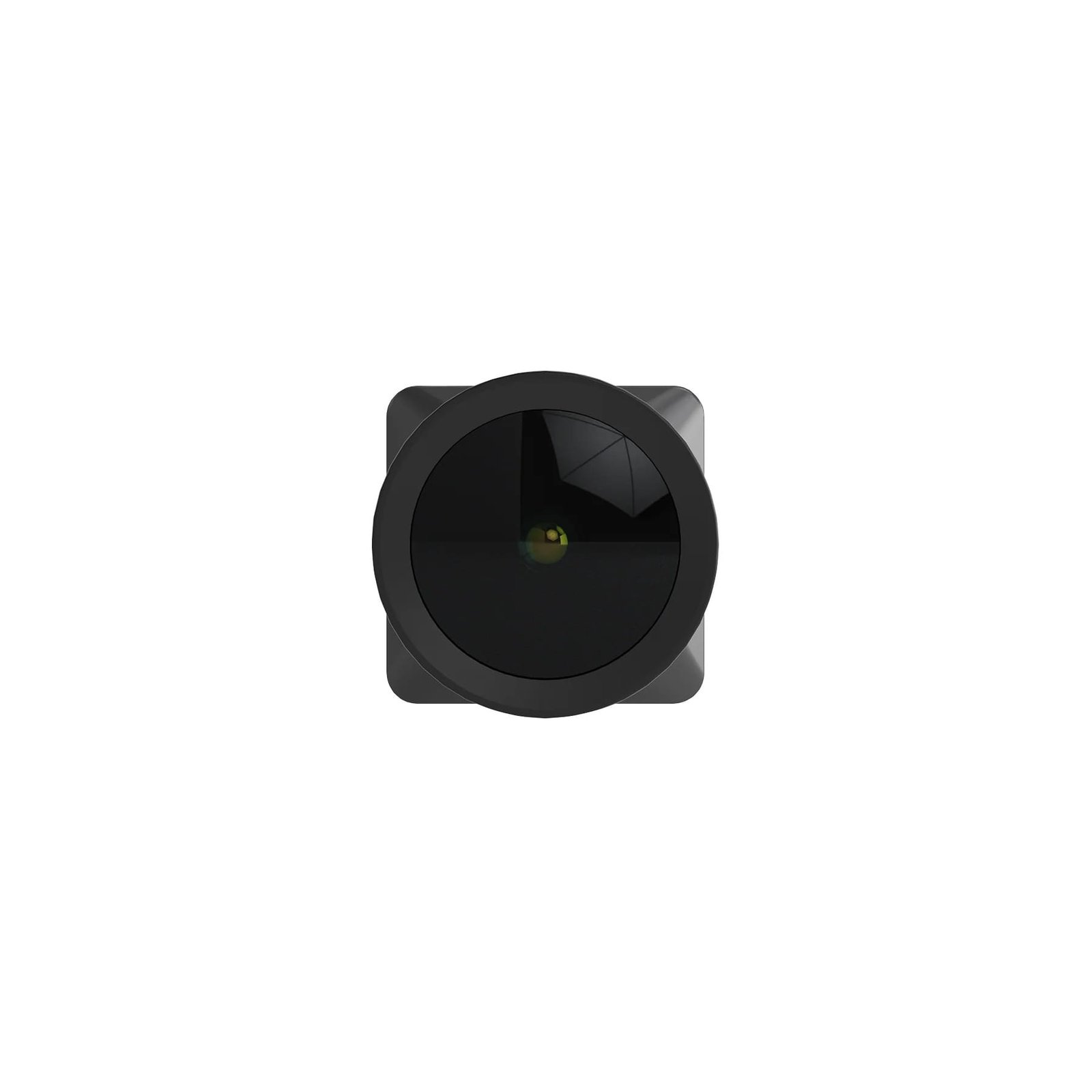

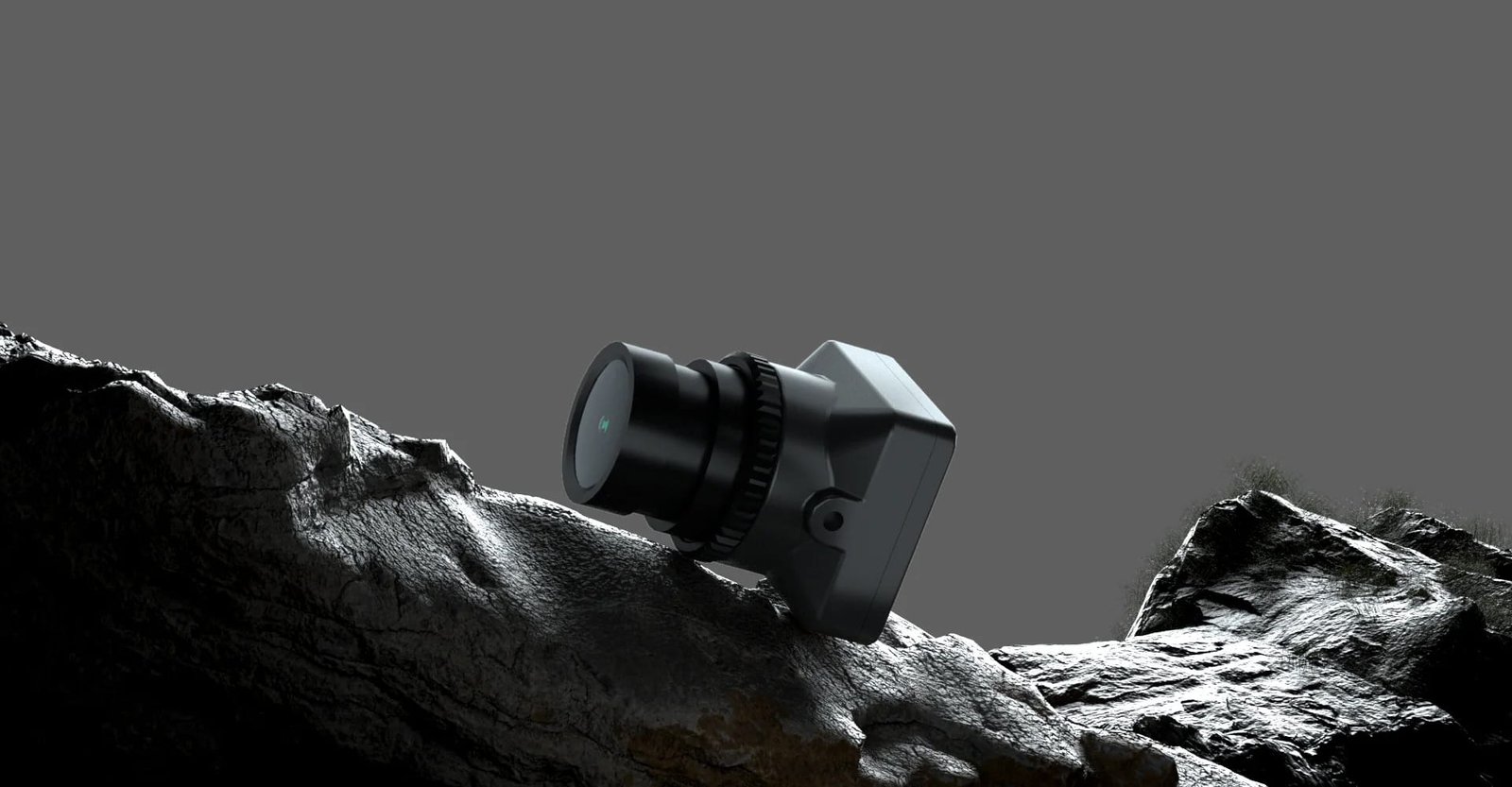

The metal body construction combined with a new design improves impact resistance and heat dissipation. The new optical system reduces the size of the lens but maintains the same light transmission as the Infra V1, making installation easier.

Measurements:

Specification:

• Model: Caddx Infra V2;
• Image sensor: 1/1.8 inch;
• Pixel size: 8 μm;
• Horizontal resolution: 1500 TVL;
• Focus distance: 2.8 mm;
• Aperture: F1.0;
• Field of View (FOV): 131.6° (D);
• Output format: CVBS PAL;
• Frame rate: 50 fps;
• Image quality: black and white;
• Video interface: 1x PAL;
• Supply voltage: 9–24 V;
• Typical power consumption: <1.2 W;
• Aspect ratio: 4:3;
• Operating temperature: -20℃~60℃;
• Dimensions: Camera – 20.5 × 20.5 × 26.9 mm; AI controller – 34 × 34 × 13.2 mm.

Package:

1x Caddx Infra V2 camera;

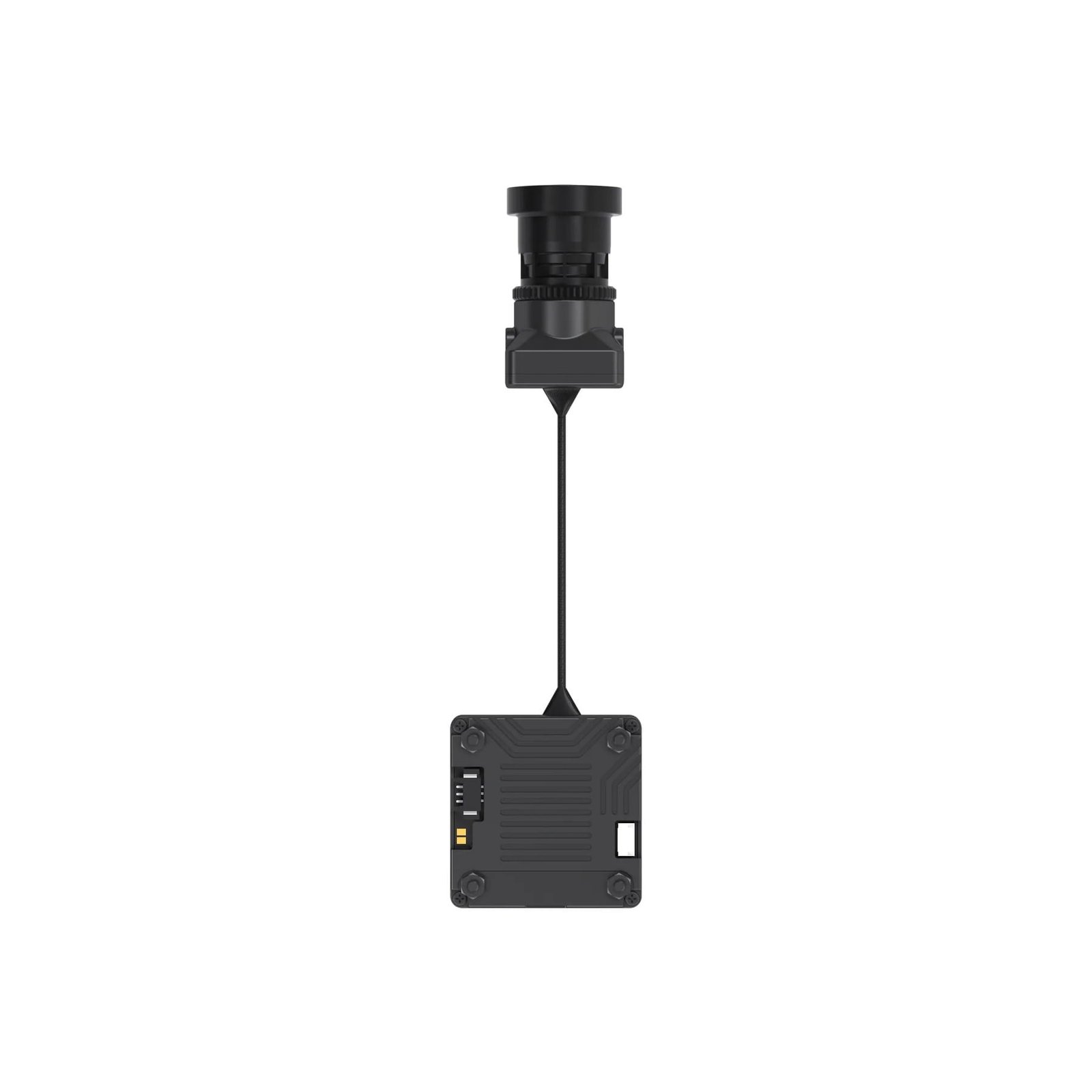

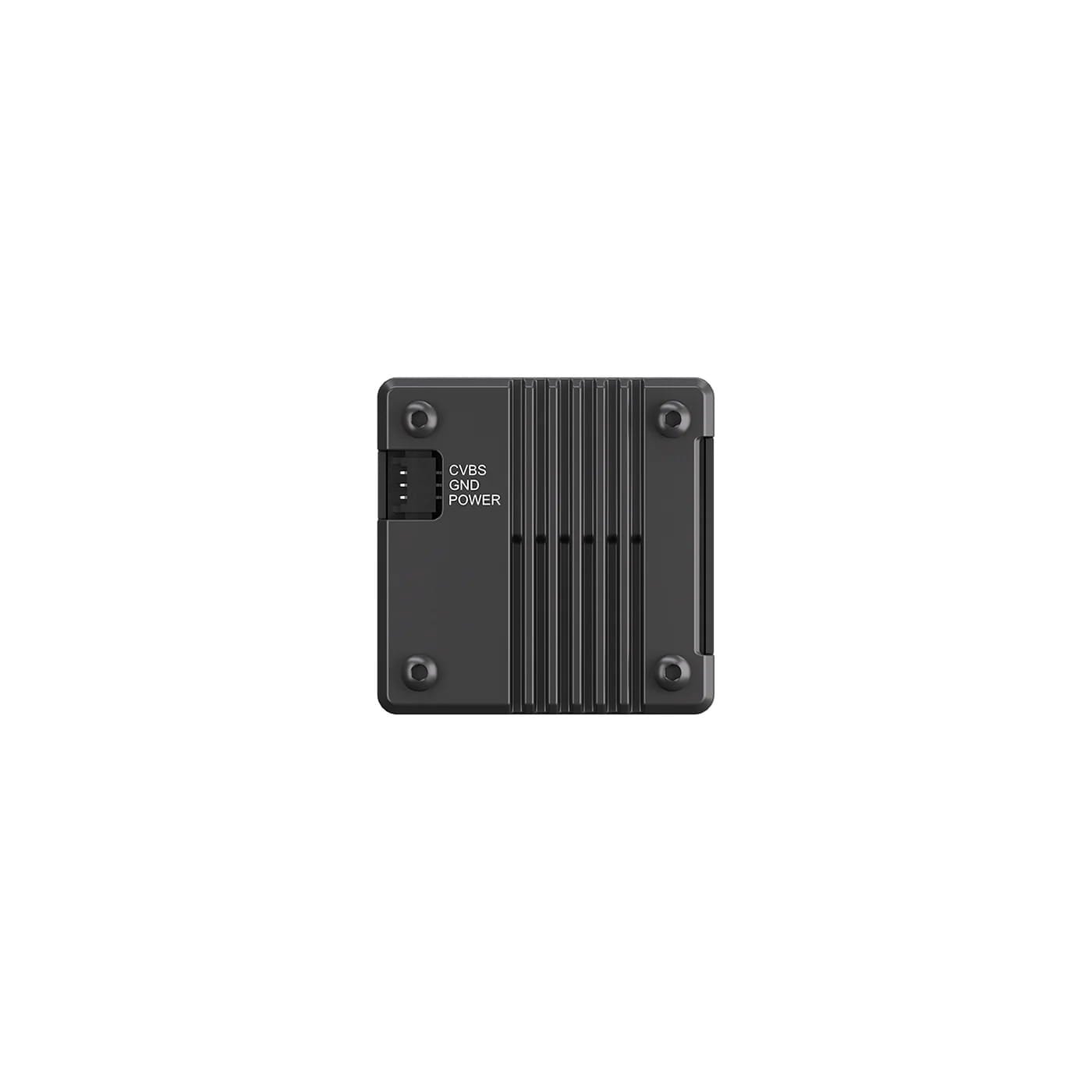

1x AI controller;
1x Mounting brackets;
1x wiring kit;
1x User manual.
