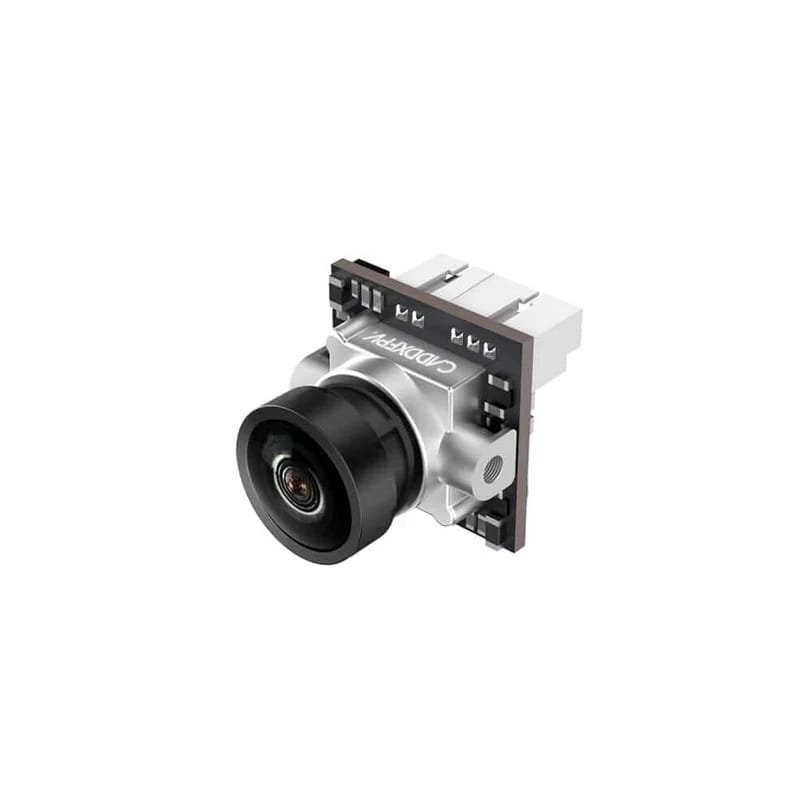

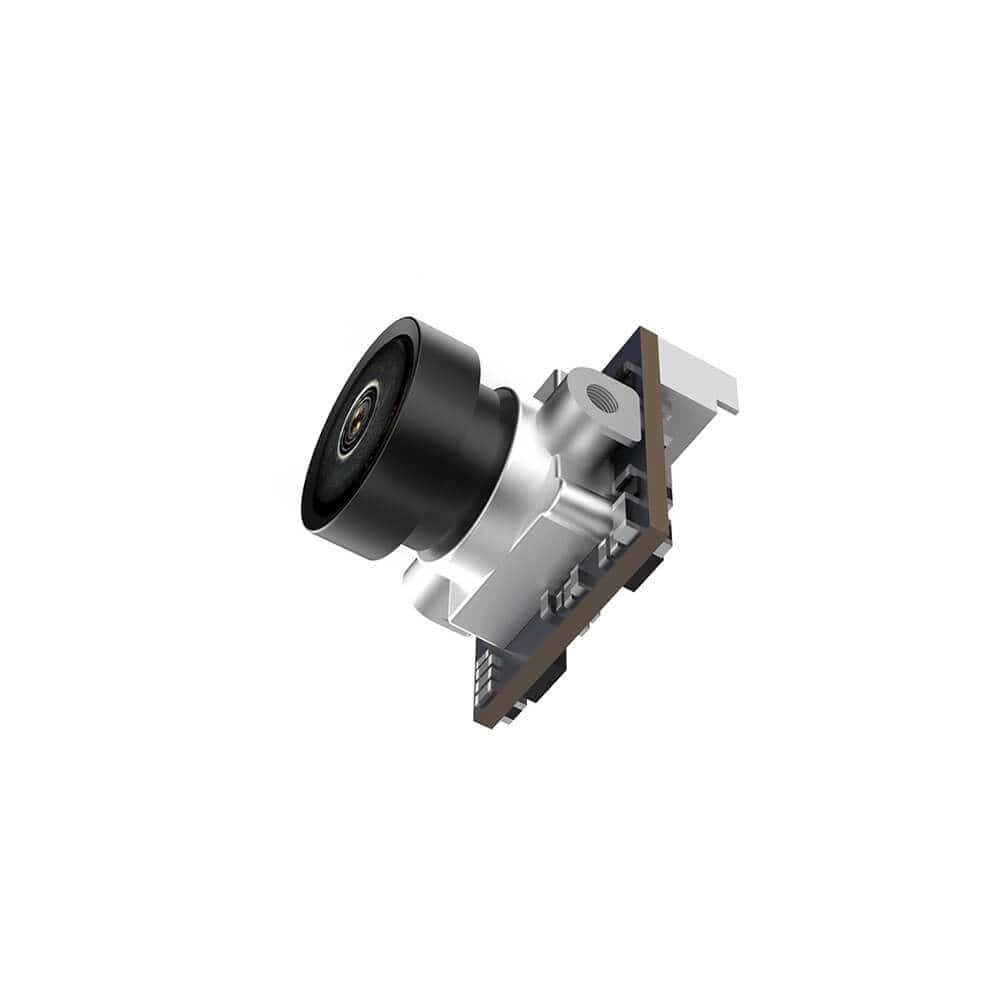

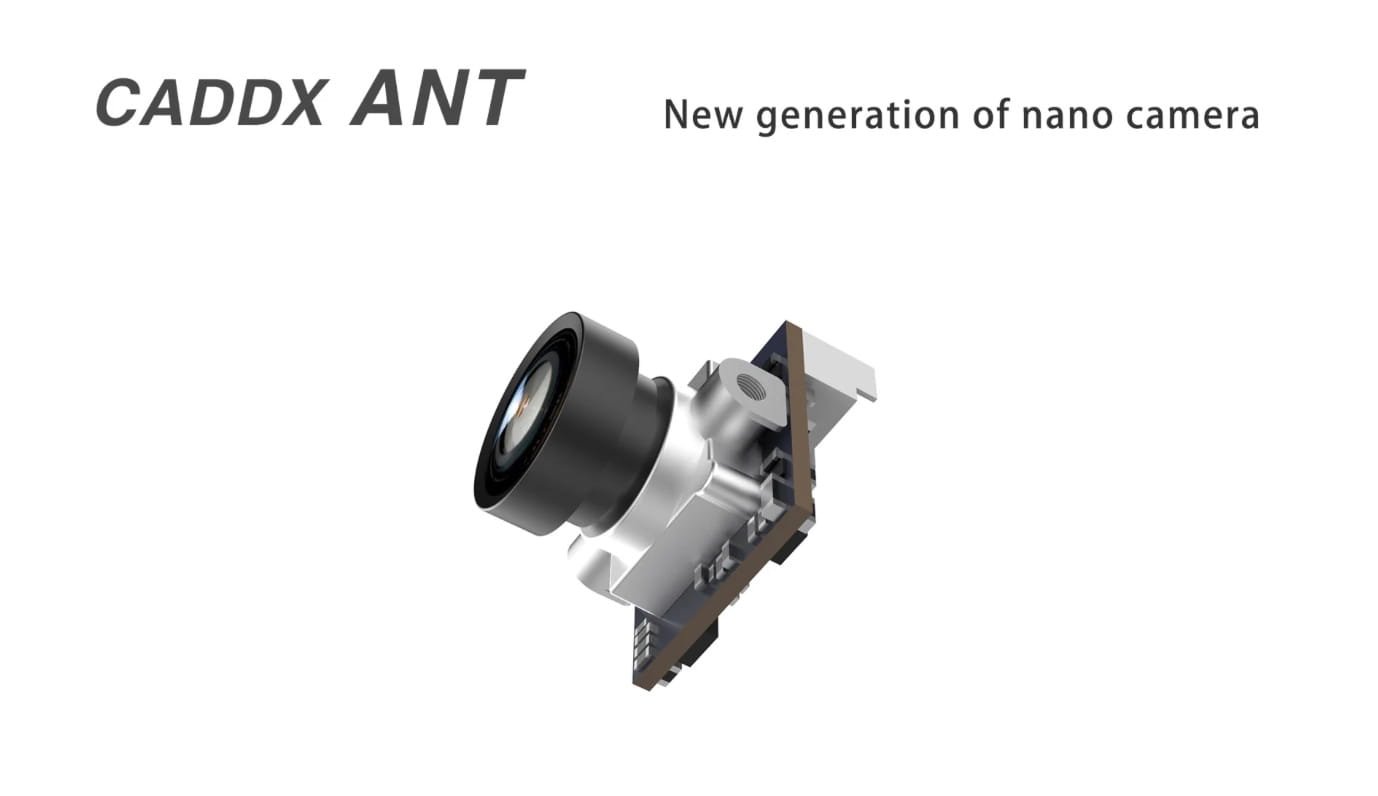

CaddxFPV Ant Analog 16:9 camera

Features:

• High quality analog image;
• Compact and simple design;
• Wide viewing angle;
• Low latency;
• Suitable for racing and freestyle FPV drones;
• Stable video transmission in analog FPV systems;
• Easy-to-install micro-sized camera.

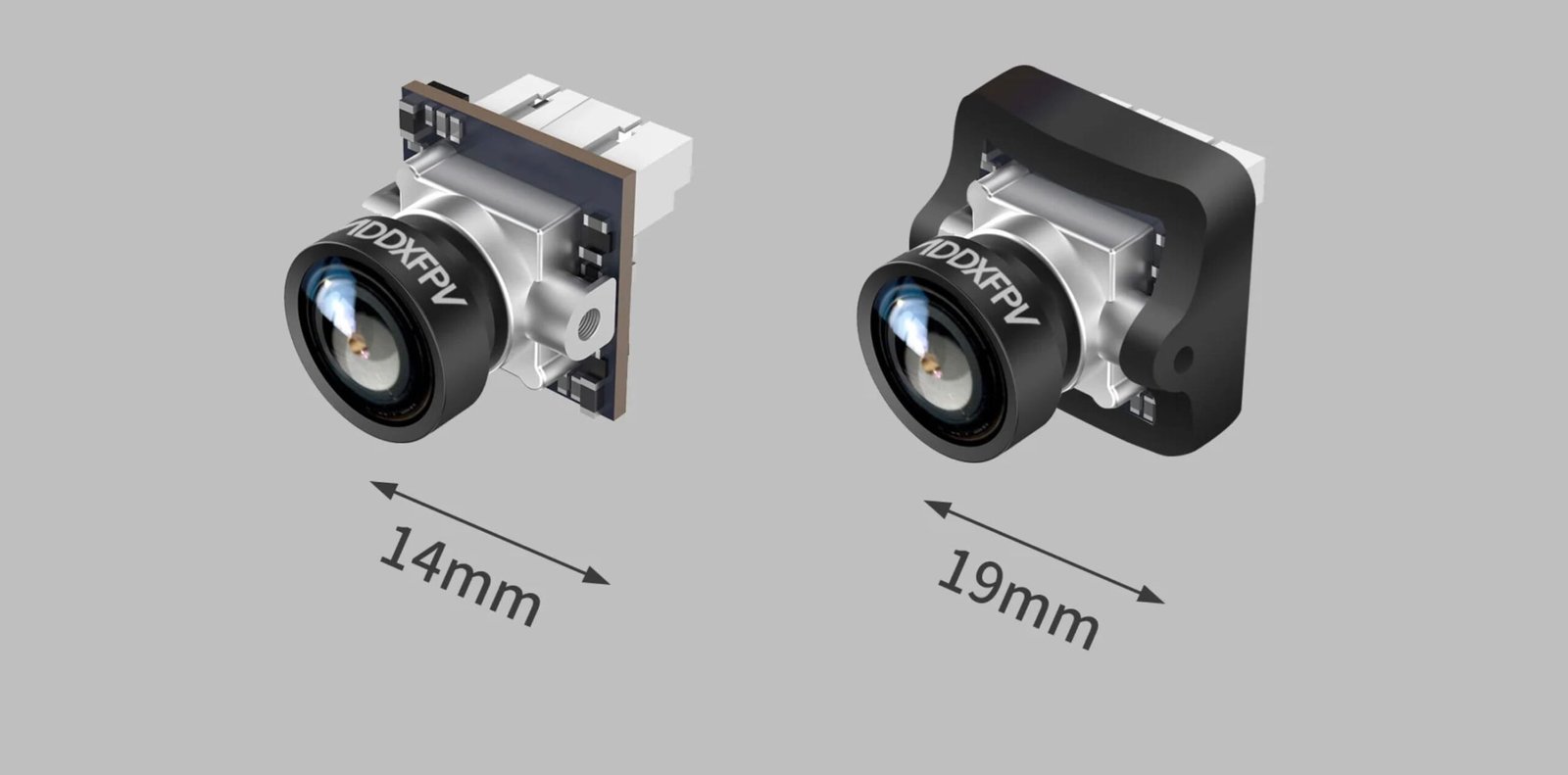

Measurements:

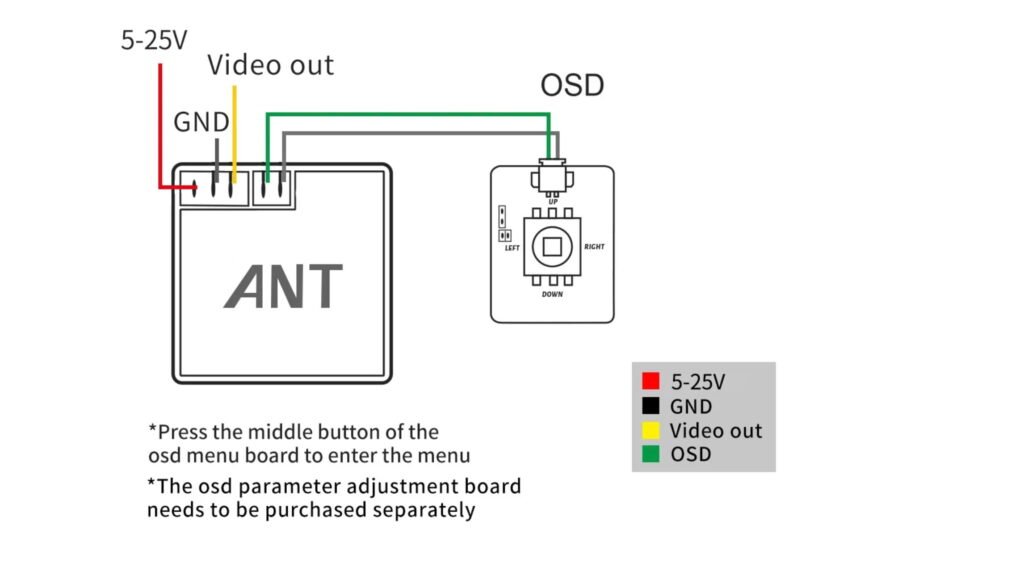

Connection:

Specification:

• Model: Caddx ANT;
• Camera type: Nano-sized analog FPV camera;
• Image sensor: 1/3″ CMOS;
• Resolution: 1200 TVL;
• System: NTSC and PAL (switchable);
• Image format: 16:9;
• Video output: CVBS (analog);
• Field of view (FOV): 165°;
• Lens: 1.8 mm;
• WDR: Global WDR;
• Noise reduction: 3D DNA;
• Minimum illumination: 0.001 Lux @ F1.2;
• Automatic Gain Control (AGC): Yes;
• Shutter speed: PAL: 1/50-100,000 s, NTSC: 1/60-100,000 s;
• Menu (OSD): Supported;
• Synchronization: Internal;
• Supply voltage: DC 5–25 V (wide voltage range);
• Operating temperature: –20 °C ~ +60 °C;
• Operating humidity: 20–80 %;
• Dimensions: 14 × 14 mm (without holder), 19 × 19 mm (with holder);
• Weight: ~2 g.

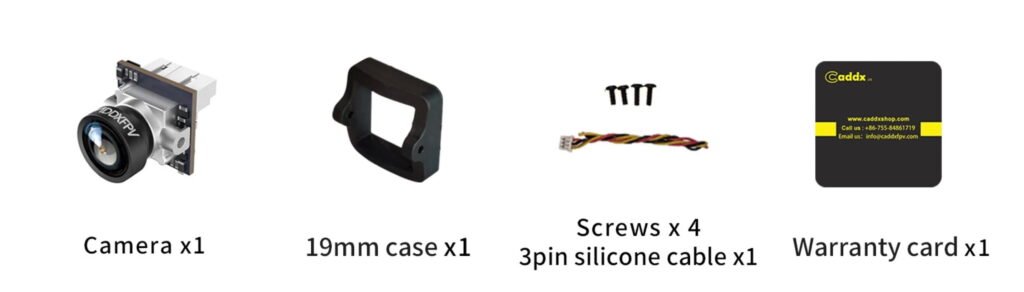

Package:

1x CaddxFPV Ant Analog 4:3 camera;
1x 19 mm camera mount;
1x 3-pin silicone cable;
4x Screws;
1x Warranty card.
