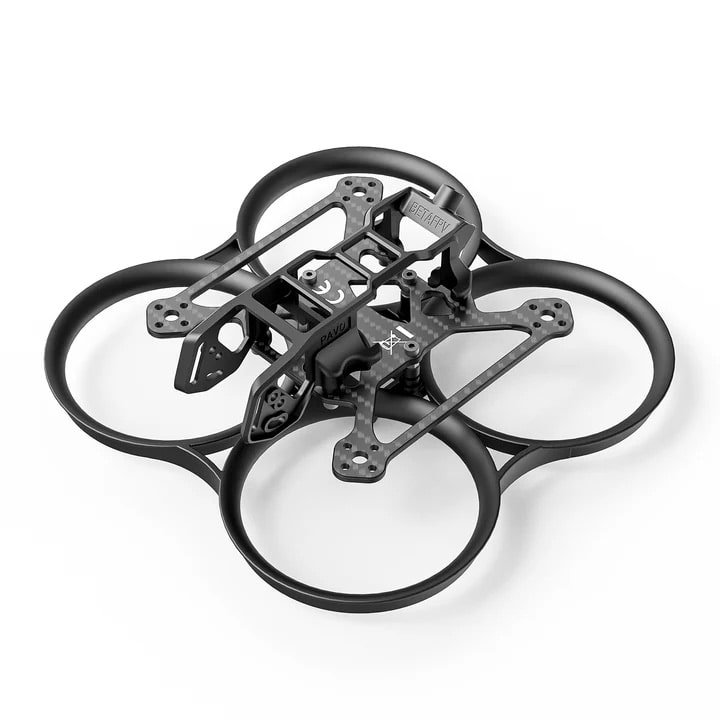

BETAFPV Pavo20 Pro Brushless Whoop Frame

The Pavo20 Pro cinewhoop drone is compatible with DJI O3, DJI O4 Air Unit Pro, Caddx Vista and RunCam Link systems. The 93.7 mm wheelbase frame is made of impact-resistant PA12 plastic, which ensures high strength and good aerodynamic properties, allowing you to achieve 8-11 % more thrust. The frame is adapted to the powerful 3S system, making it perfect for both freestyle flights and filming. Dual camera mounting holes and rubber shock absorbers ensure stable, smooth and high-quality HD images.

Features:

• Ultra-strong PA12 thickened duct – impact-resistant construction ensures high strength and durability;
• Improved aerodynamic drag – optimized airflow provides 8–11 %;
• Updated camera and lens protection;
• DJI O3 Air Unit holder;
• Convenient HD VTX mounting system – integrated die-cast bracket allows for quick installation using only 8 screws;
• Pavo series rubber shock absorbers – a special vibration damping system guarantees extremely smooth, jitter-free HD images in all flight modes;
• Universal battery mounting system – open strap slot and side latches allow for secure attachment of batteries of various sizes and prevent them from moving during complex maneuvers.

Specification:

• Wheelbase: 93.7 mm;
• Material: PA12/PP;
• Top plate thickness: 2 mm;
• Frame weight: 33.3 g (with O3 Air Unit holder);
• Whoop duct weight: 17.8 g
• Holder weight: 4.6 g (O3 Air Unit holder);
• Color: black;
• Camera mounting distance: 19 mm / 20 mm;
• FC mounting hole size: 26 × 26 mm;
• Motor mounting hole size: 4-M2-φ9 mm;
• Battery slot width: 20 mm.

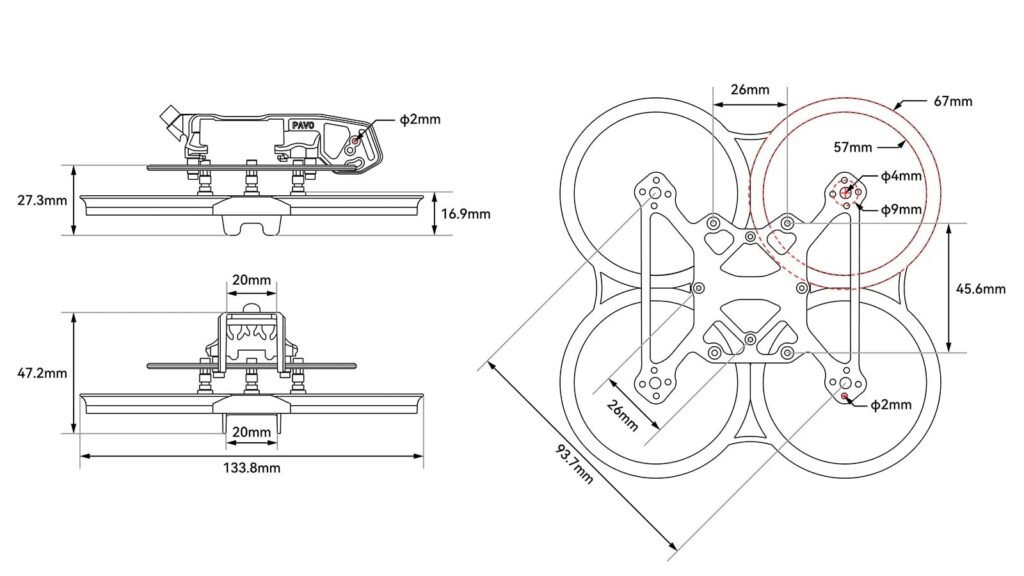

Pavo20 Pro Brushless Whoop Frame with O3 Air Unit Mount Diagram:

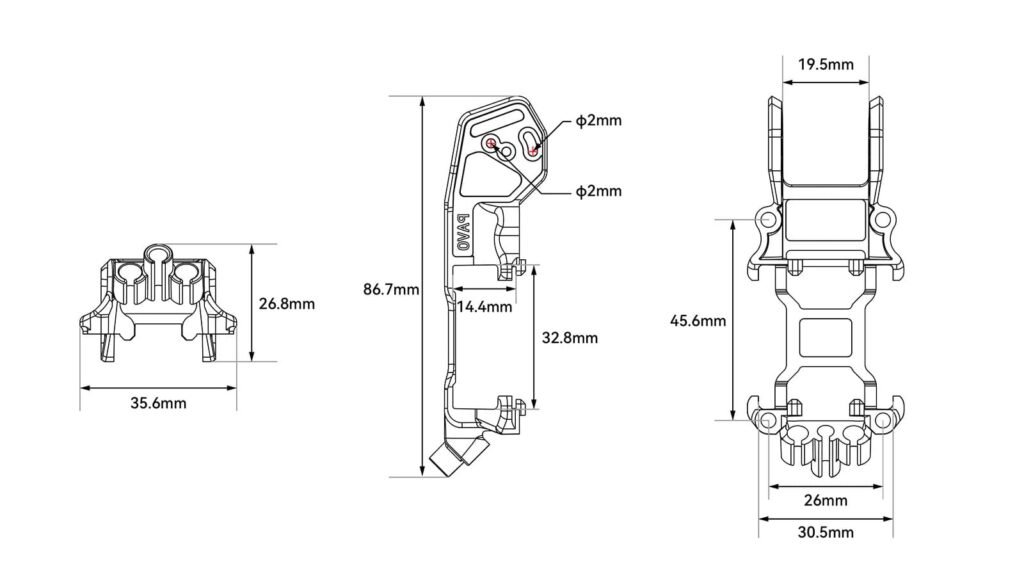

O3 Air Unit bracket diagram:

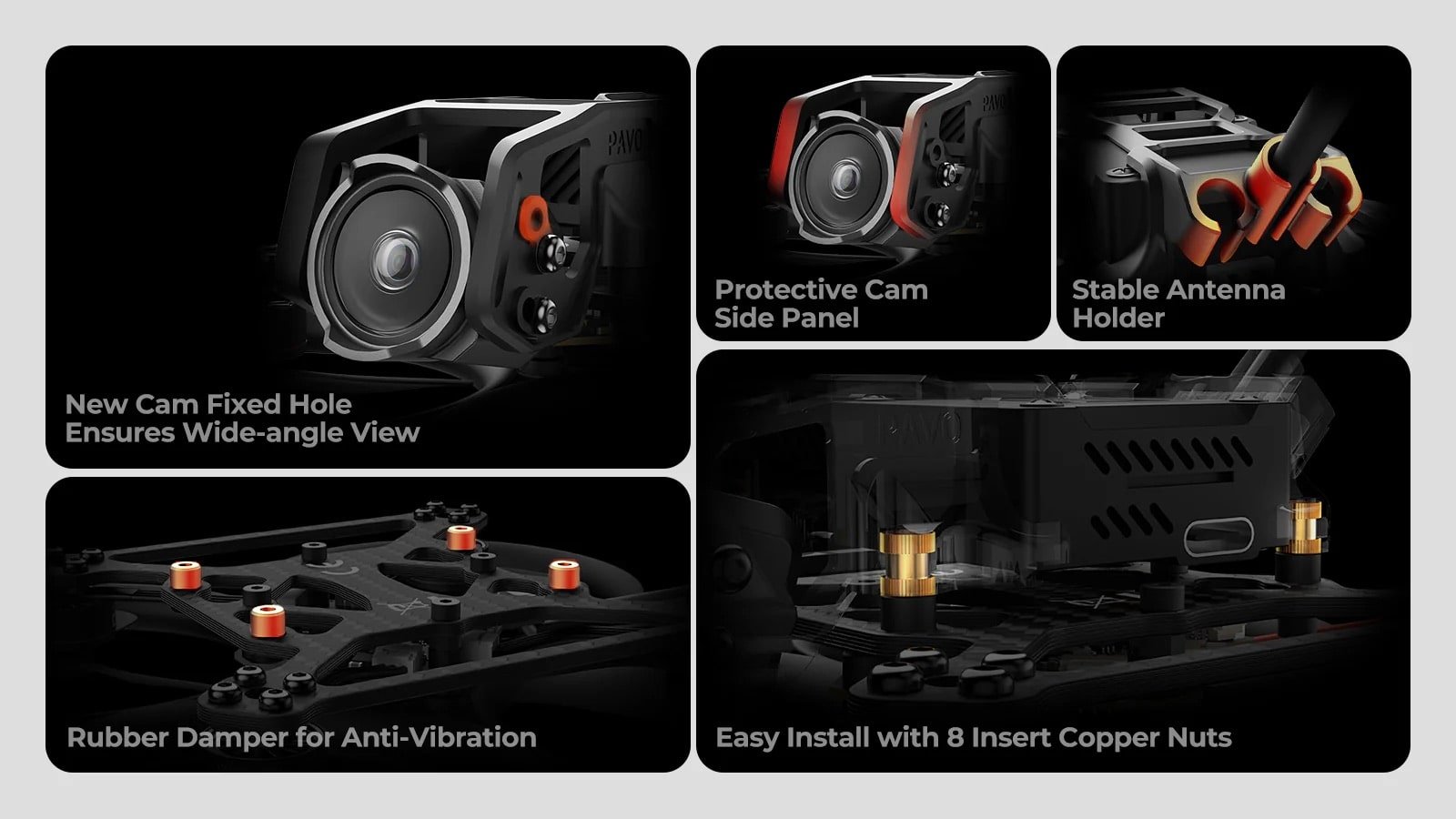

The Pavo20 Pro frame is universal and supports VTX mounts: DJI O3 Air Unit, Caddx Vista, RunCam Link and DJI O4 Air Unit Pro. The modular design allows you to easily change O3 and O4 Pro mounts without changing the frame. Installation is very simple - the HD VTX mount with embedded copper nuts allows you to assemble the entire frame with just 8 screws. This not only saves time, but also improves vibration resistance and ensures stable, smooth HD images.

The frame has 6 camera mounting holes, including wide-angle locations, for a clear field of view. Reinforced sides protect lenses and allow for tool-free ND filter changes. A sturdy antenna mount secures cables, while rubber shock absorbers eliminate vibrations for smooth HD images.

Package:

1× Pavo20 Pro top plate;
1× 20 × 20 mm VTX mounting plate;

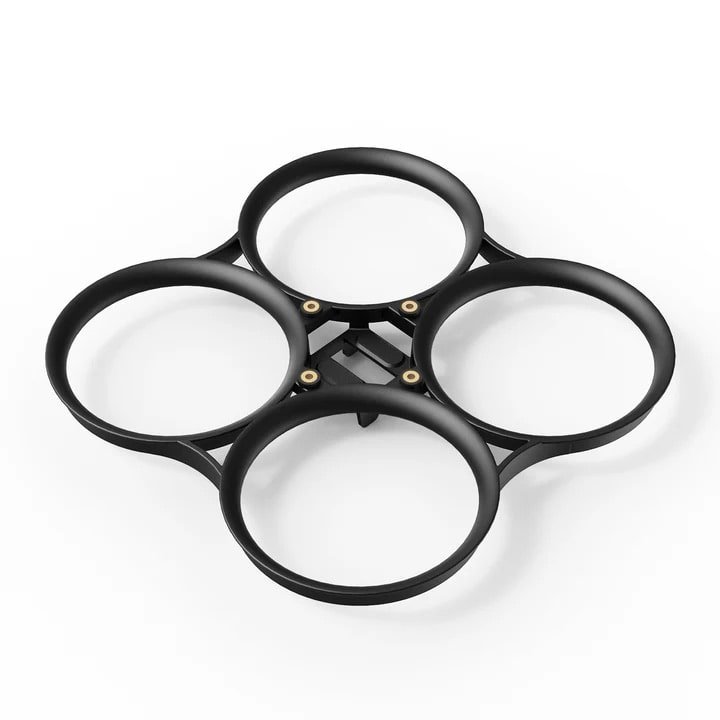

1× Pavo20 Whoop duct;

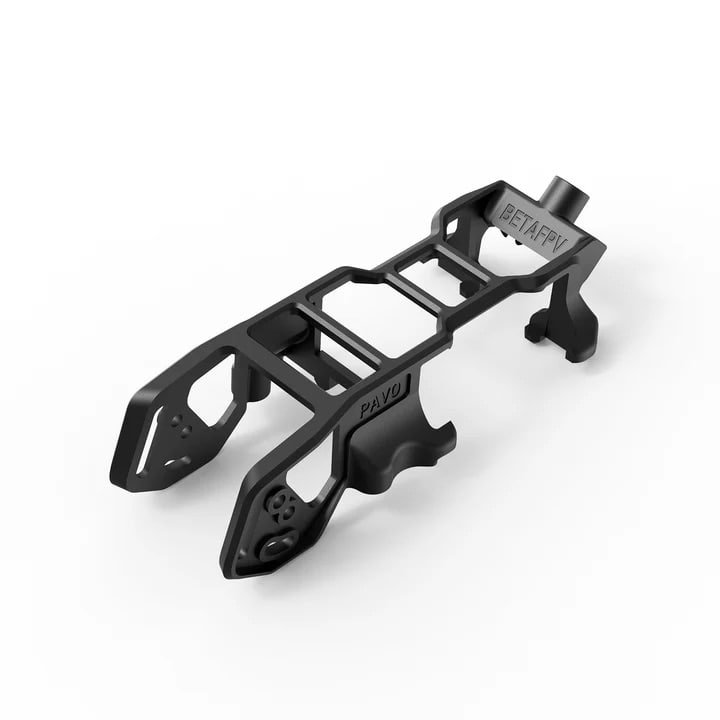

1× O3 Air Unit holder;
1× 130 mm battery strap;
2× battery non-slip mats;
2× 5.8G antennas;
8× M2 nuts;
10× rubber shock absorbers;
6× M2×10 screws;
6× M2×4 screws;
4× M2×14 screws;
4× M2×15 screws.
