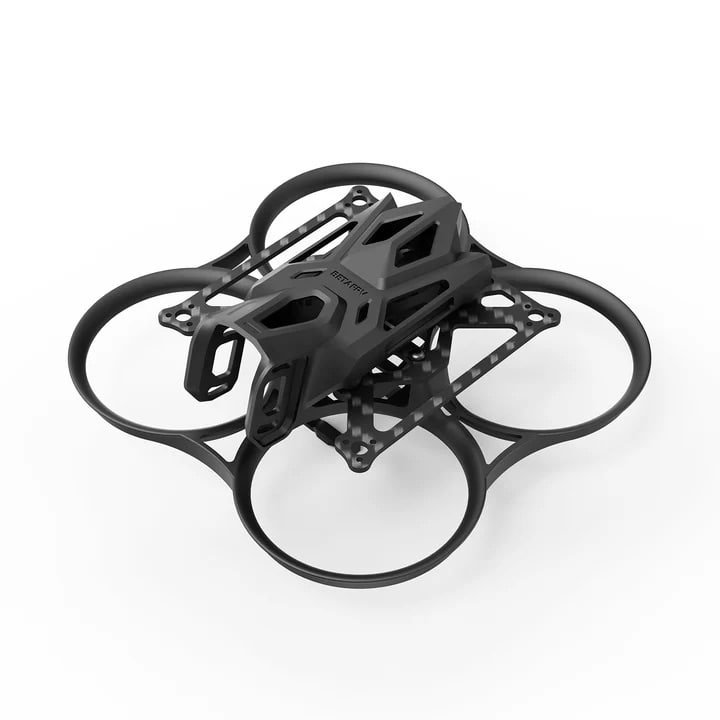

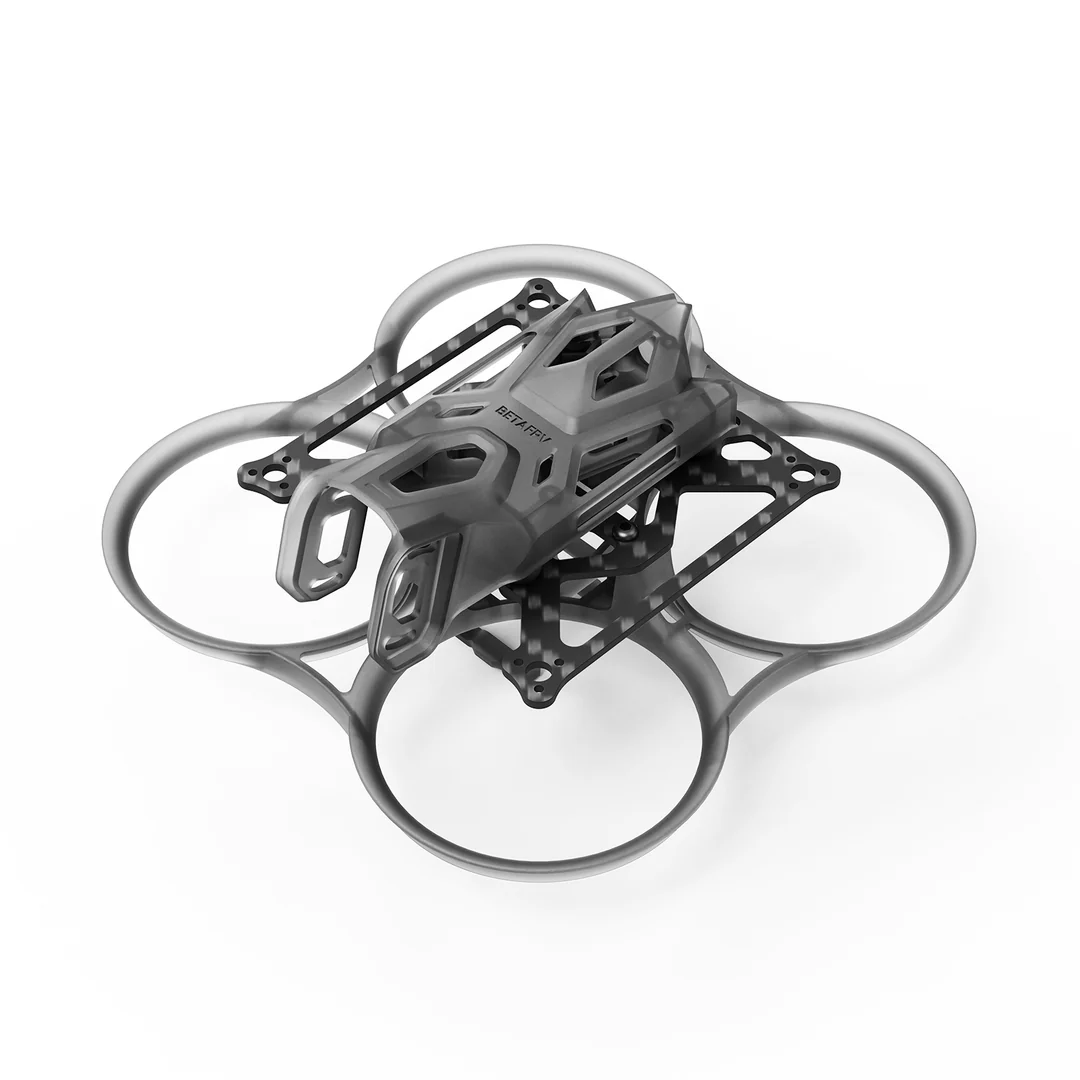

BETAFPV Pavo Pico II Frame

The Pavo Pico II Brushless Whoop Frame is designed for the DJI O4 system. Assembly is extremely simple - only four screws are required, and the sturdy construction with guide mounting points guarantees rigidity. The newly designed carbon plate is compatible with the DJI O4 and O4 Pro. Together with the vibration-damping O4 Bracket II, the frame helps eliminate the "jello" effect and ensures an ultra-smooth professional-quality image.

Features:

• Integrated mount with four shock-absorbing balls eliminates the "jello" effect and ensures an ultra-smooth image;
• Reinforced construction with guide mounting points and a four-bolt system allows for quick and secure assembly;
• Newly designed carbon plate is compatible with DJI O4 and O4 Pro.

Specification:

• Item: Pavo Pico II Brushless Whoop Frame;
• Material: PA12/PP;

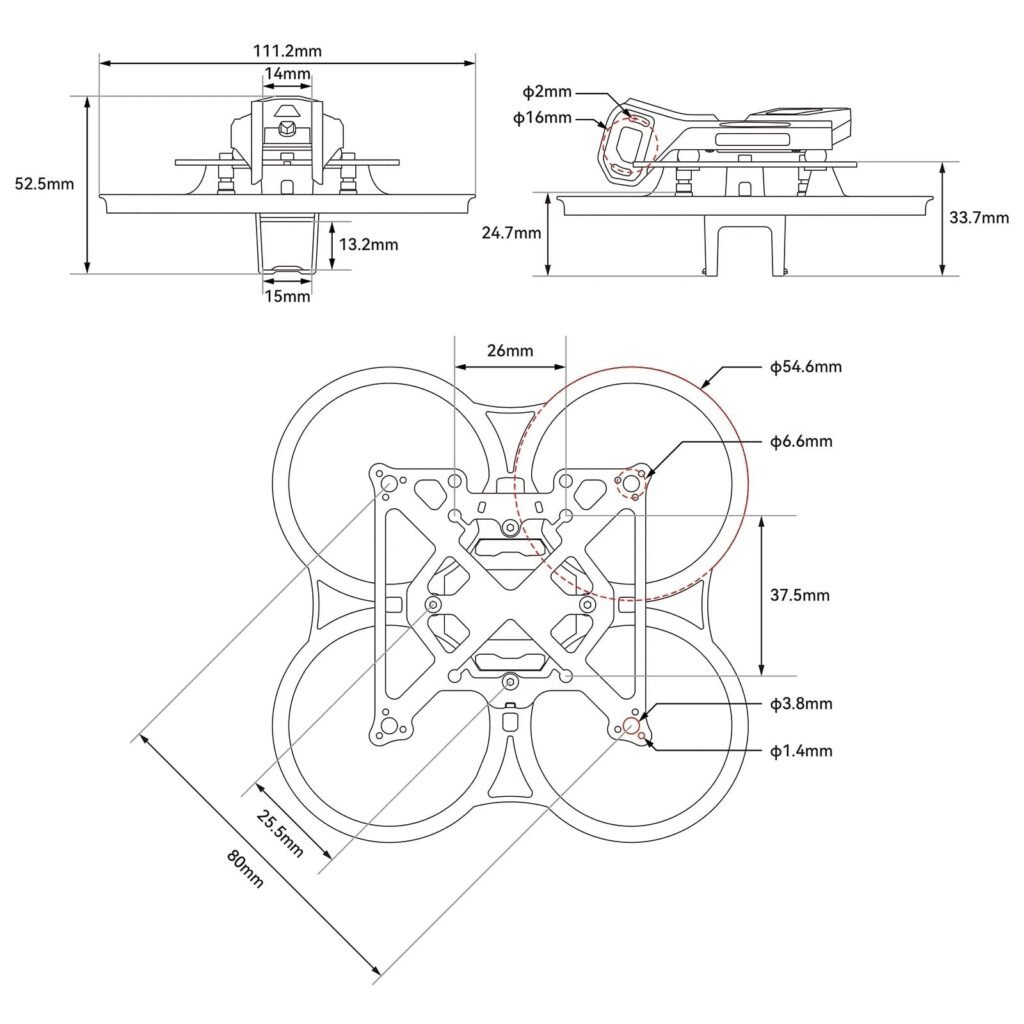

• Wheelbase: 80 mm;
• Color: black;
• Carbon plate thickness: 1.5 mm;
• Camera mounting gap: 14 mm;
• Flight controller mounting holes: 25.5 × 25.5 mm, compatible with standard whoop type controllers;
• Motor mounting holes: 3 × M1.4 – φ6.6 mm;
• Battery slot size: 16 × 12.7 mm;

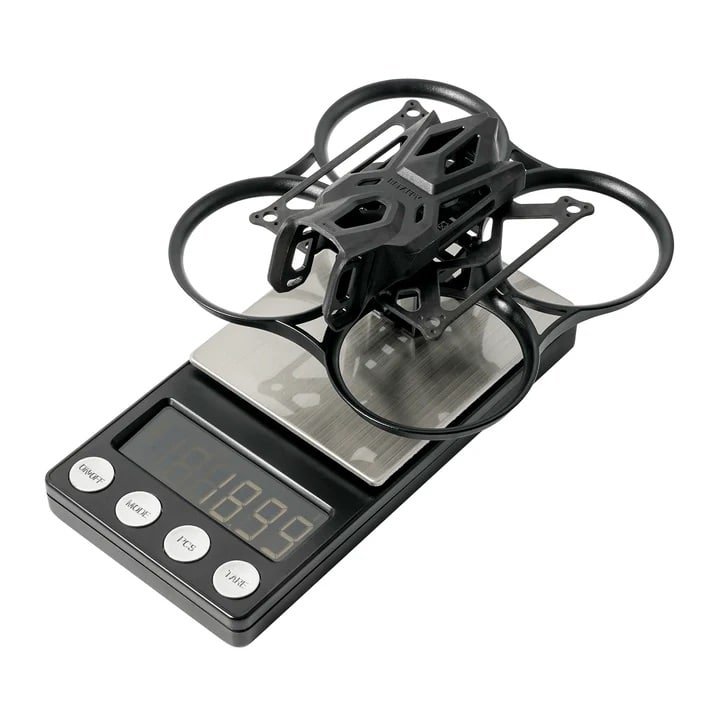

• Weight: 19 g (O4 frame), 9 g (duct).

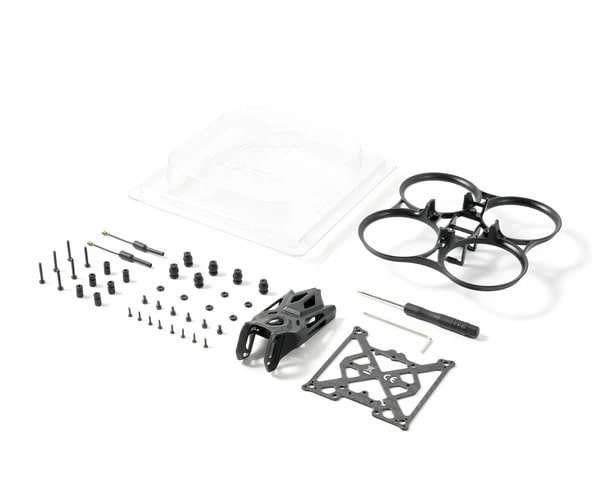

Package:

1x Pavo Pico II carbon plate;

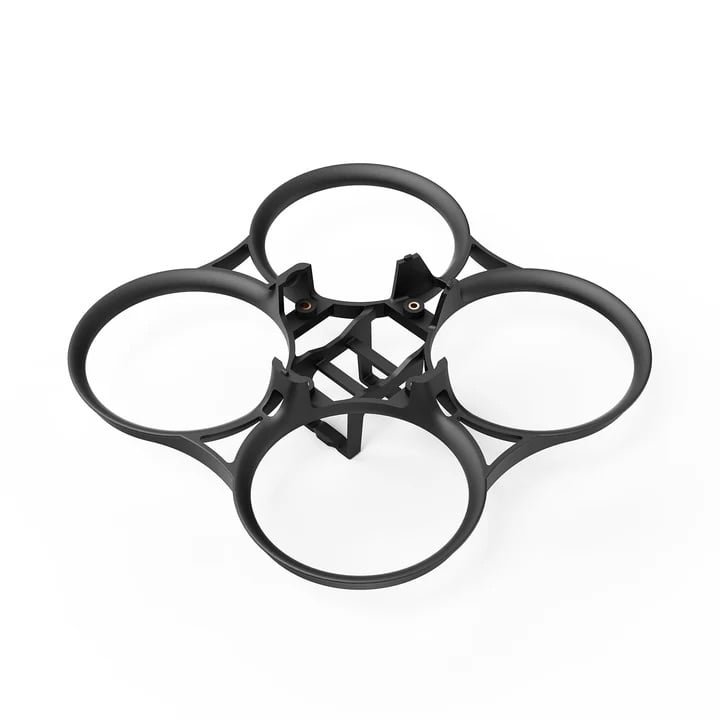

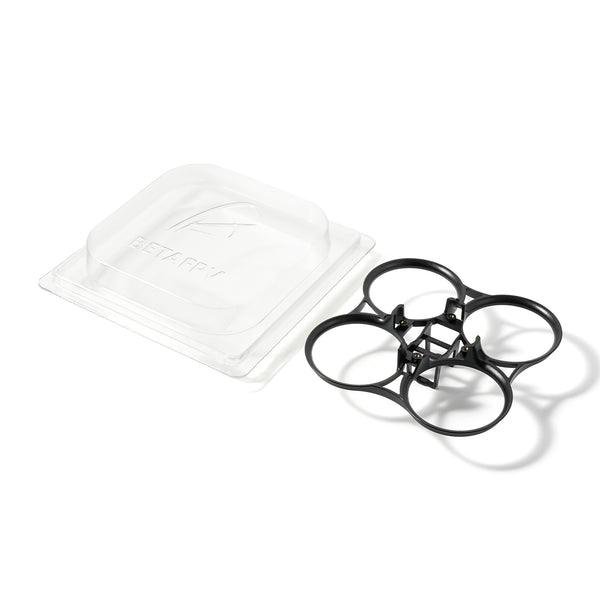

1x Pavo Pico II protective duct;
1x Top plate for O4 Air Unit Bracket II;
1x Bottom plate for O4 Air Unit Bracket II;
2x 5.8G VTX antennas;
6x Shock absorbing balls for flight controller (8 mm);
6x Shock absorbing balls for O4 Air Unit Bracket II (8 mm);
6x Shock absorbing pads for O4 Air Unit Bracket II (1.5 mm);
6x M2×14 flat head screws;
6x M2×4 self-tapping screws with cylindrical head;
8x M1.4×6 self-tapping screws with undercut and cross head;
1x Phillips screwdriver;
1x H1.5 hex screwdriver.
