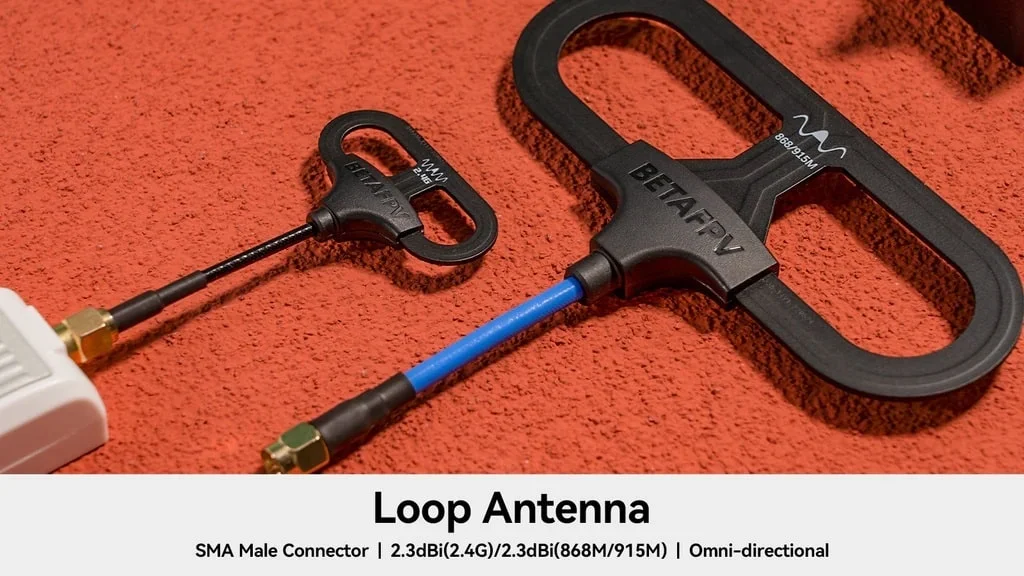

BETAFPV Loop 2.4G antenna

The Loop antenna designed and manufactured by BETAFPV is used for 2.4G/868MHz/915MHz TX modules or radio receivers. The antenna provides 360 degrees horizontal dispersion and its gain is 2.3 dBi, so it covers a wider range. In addition, the cable is soldered to the antenna, so the antenna has lower signal transmission losses.

Specification:

• Cable length: 65 mm (2.4G)/90 mm (868 MHz/915 MHz);
• Connector: SMA Male;
• Gain: 2.3dBi (2.4G)/2.3dBi (868MHz/915MHz);
• VSWR: <1.5 (2.4G)/<2.0 (868MHz/915MHz);
• Polarization type: Linear polarization;
• Suggested use: BETAFPV Nano TX module/BETAFPV Micro TX module, any 2.4G/868MHz/915MHz TX module or radio receivers.

Package:

1x BETAFPV Loop 2.4G antenna
