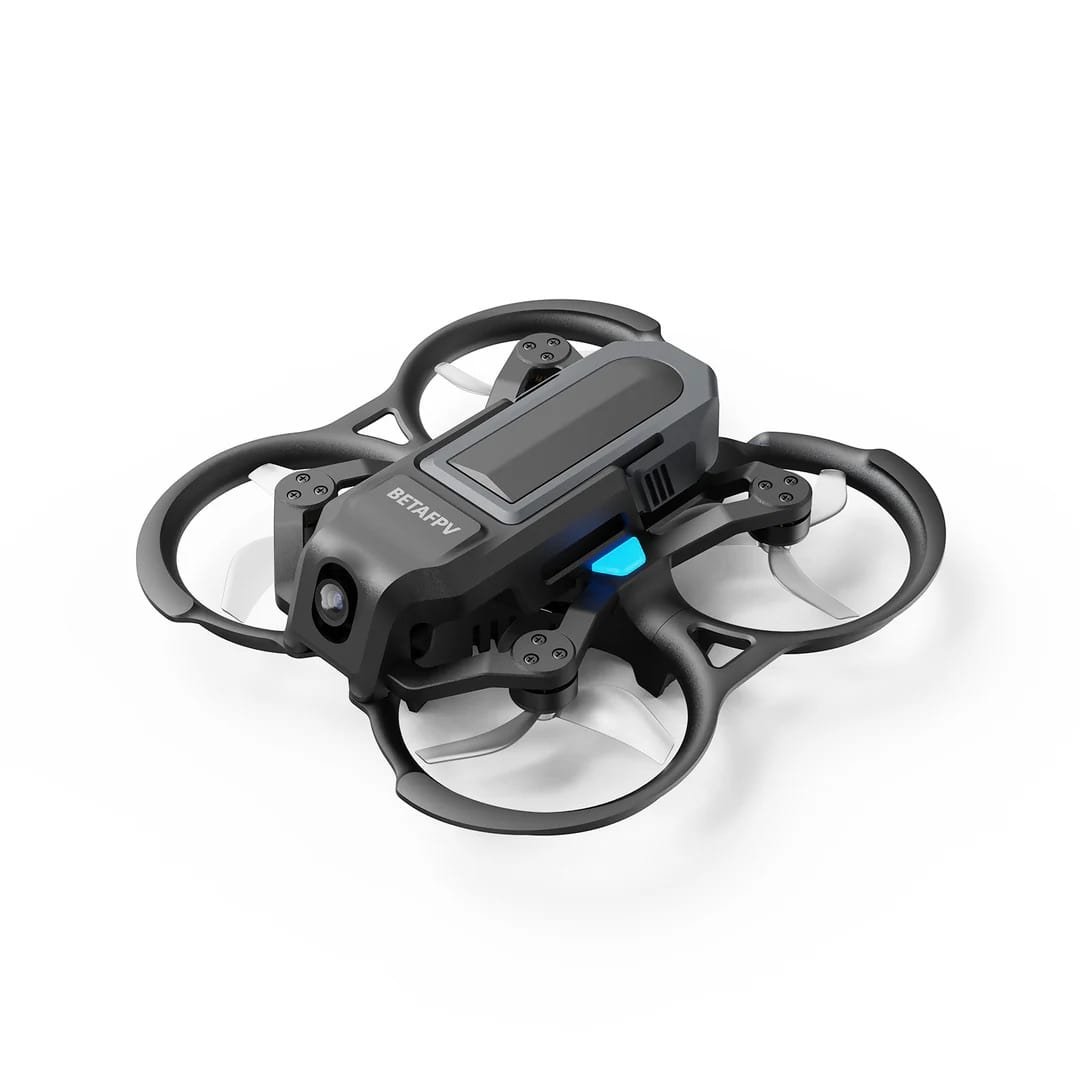

BETAFPV Aquila20 FPV Kit

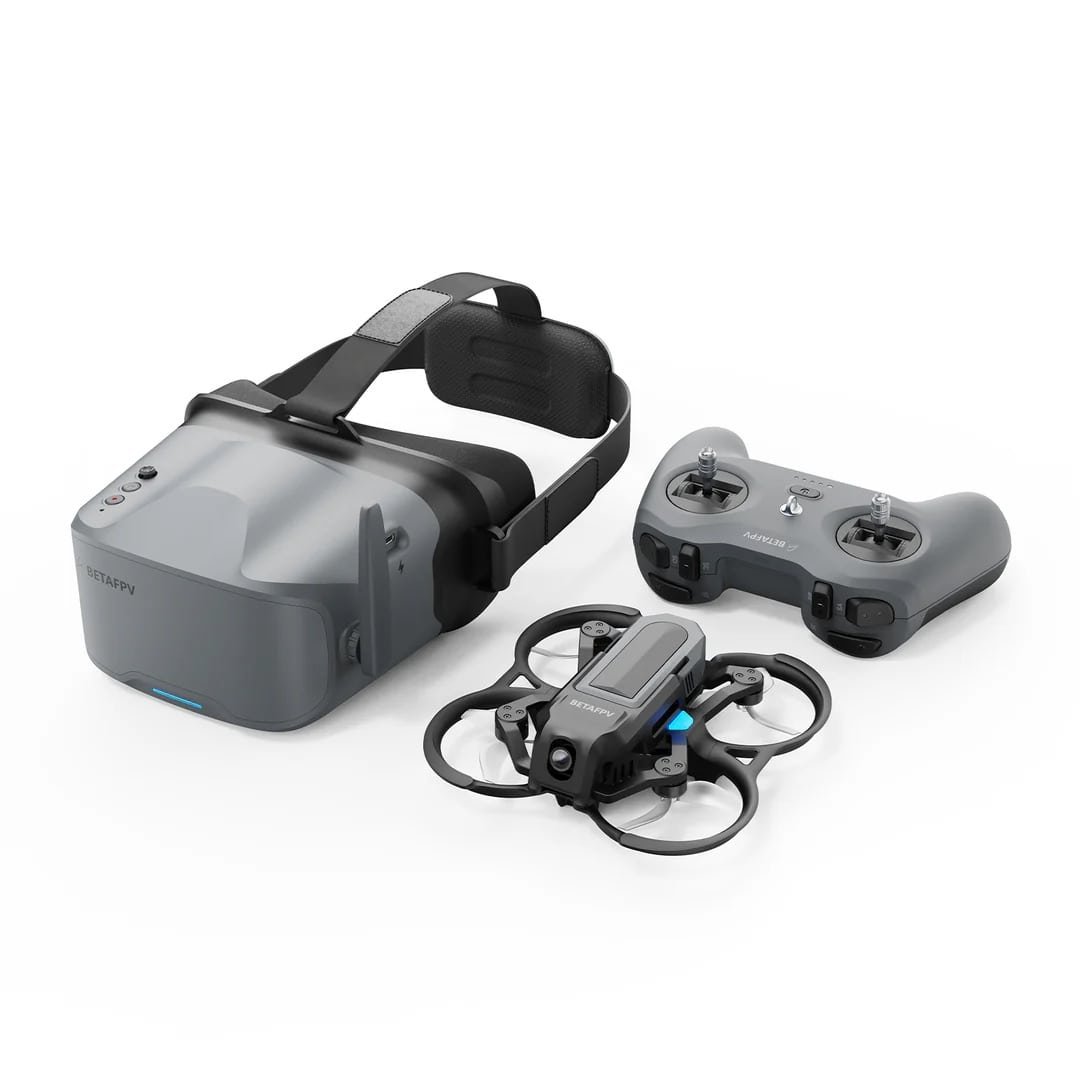

The Aquila20 FPV kit will ensure an unforgettable flight experience. The kit includes: Aquila20 whoop drone, LiteRadio 4 SE remote control and VR04 FPV goggles. The sturdy frame, 2S propulsion system and 10 min. flight time ensure a perfect balance between power and durability. 3 flight modes will help you easily improve your skills. Start your adventure now.

Features:

• The drone, goggles, and remote are ready to use right out of the box. From unpacking to engaging flight, it only takes a few minutes.
• The 2S propulsion system provides stable control and allows you to enjoy dynamic flight;
• Longer flight time, up to 10 minutes – the smart battery allows you to stay in the air longer, practice and explore the environment;
• The VR04 glasses are comfortable to wear, and with the push of a button you can capture video directly into the glasses;
• The drone's frame is shockproof, so you can feel at ease while learning.

Flight modes:

• N mode (Altitude Hold & Stable Hover): the drone automatically maintains altitude and hovers stably in the air - a great safe mode for beginners and for safe landings;
• S and M modes (Pro Modes): all auxiliary functions are disabled, giving experienced pilots full control for precise maneuvers.
• Turtle Mode: If the drone tips over, a single press of a button on the remote returns it to the correct position so you can take off again immediately.

Specification:

• Item: Aquila20 FPV kit (Analog VTX);
• Goggles: VR04 FPV goggles;
• Radio transmitter: LiteRadio 4 SE radio transmitter;
• Video transmission power and distance: 350 mW, distance over 200 m;
• Remote control protocol: ExpressLRS 2.4G V3;
• Camera angle adjustment: 10° – 30°;
• Flight controller: Aquila20 V1.0;
• Propellers: Gemfan 2218, 3-blade;
• Motors: 1103 | 10500KV;
• Battery: Aquila20 2S HV 1100 mAh;
• Charger: 2S HV battery charger with voltage tester and BT3.0 connector;
• Wheelbase: 100 mm;
• Frame material: PA;
• Flight modes: N/S/M modes;
• Flight time: ~10 minutes;

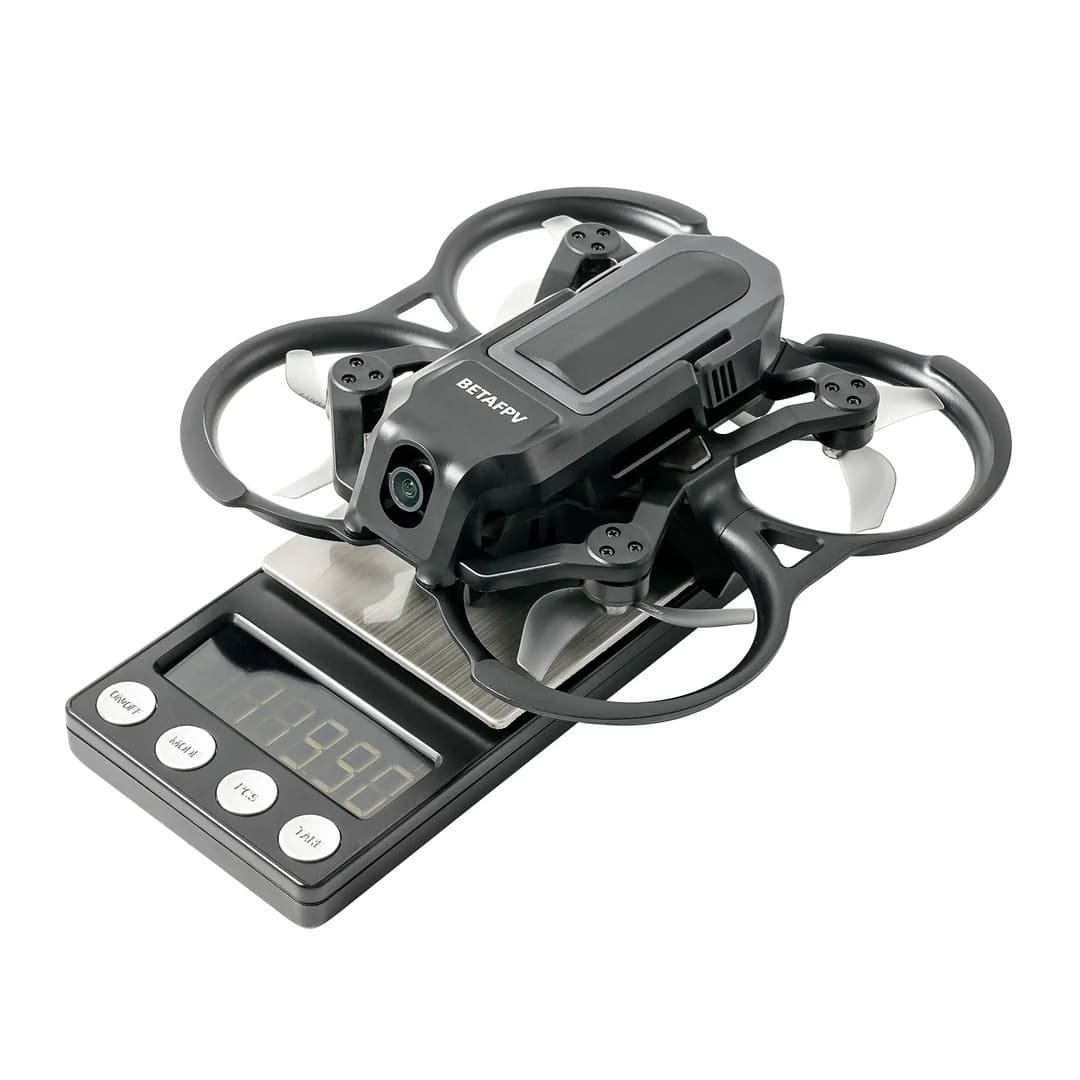

• Take-off weight: 119 g.

Immerse yourself in the flight experience

Experience the thrill of FPV flight with the Aquila20 FPV kit. The upgraded VTX ensures reliable video transmission, and the adjustable power from 25mW to 350mW allows you to adapt the signal to any environment. With a solid 200m range, enjoy a stable view.

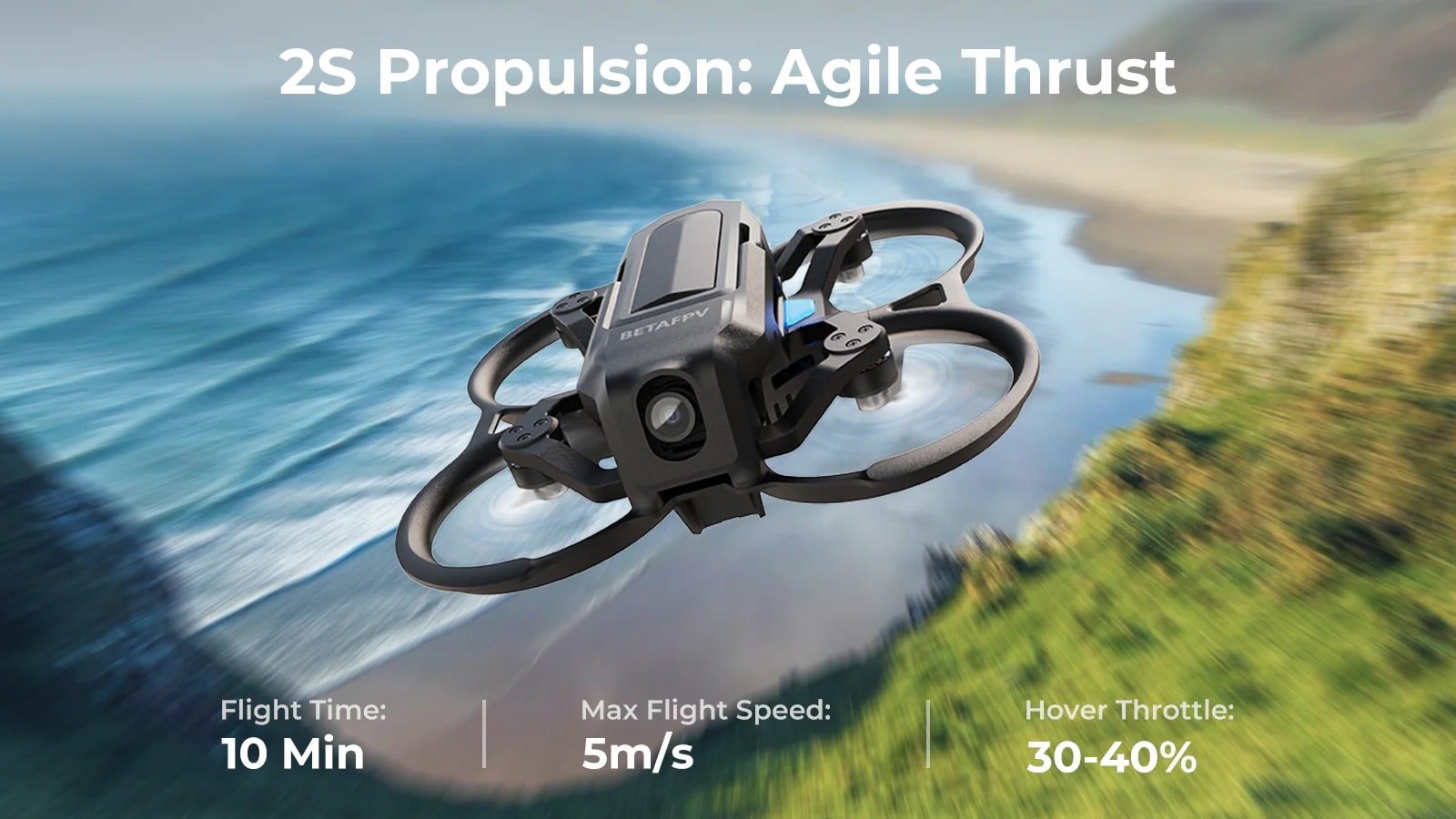

10 minutes of flight and powerful 2S propulsion system

The improved 2S propulsion system provides more power and a longer flight time of 10 minutes. The innovative design increases thrust and ensures flight stability, while keeping the controls comfortable for beginners.

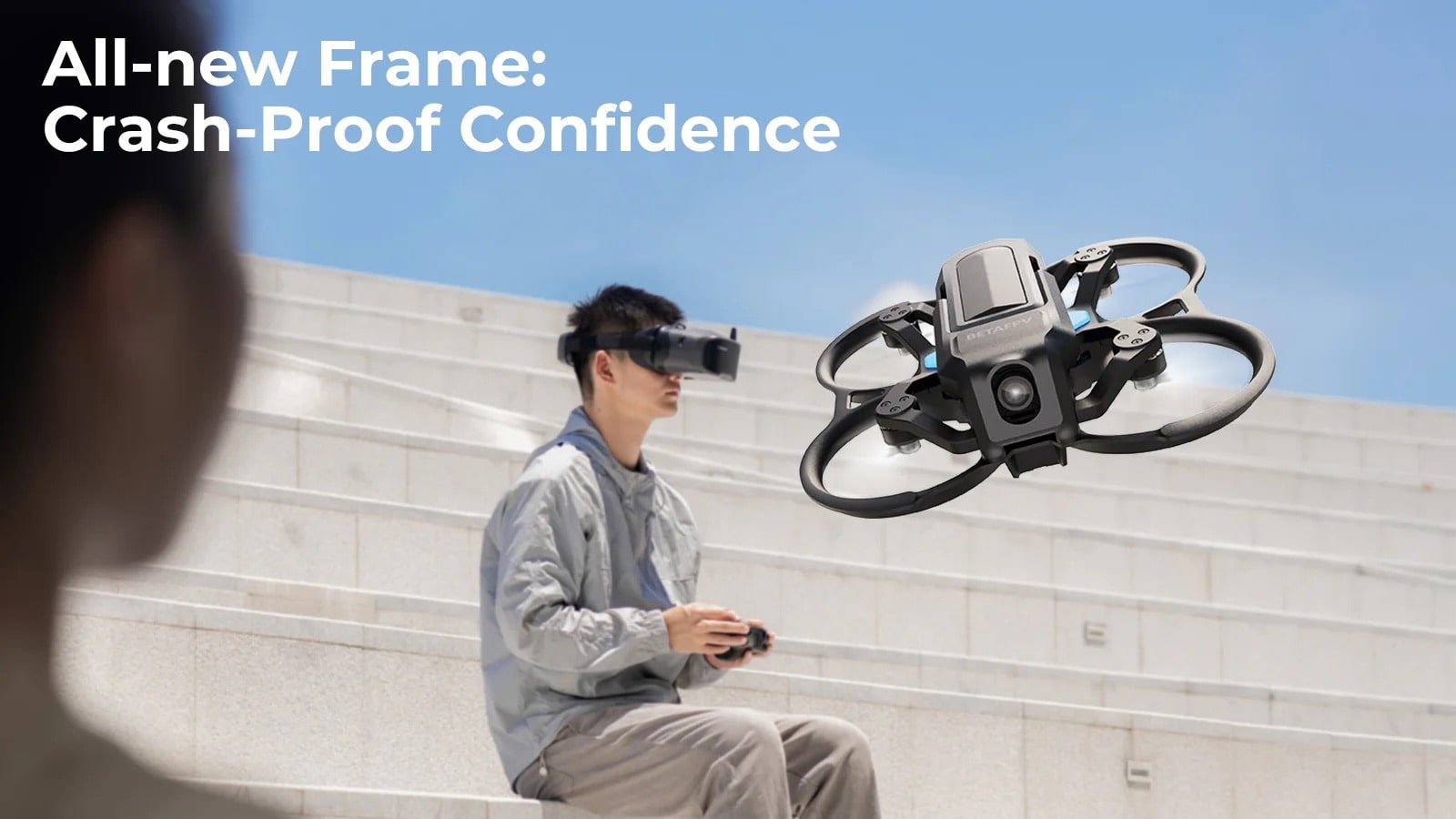

Built to withstand impact

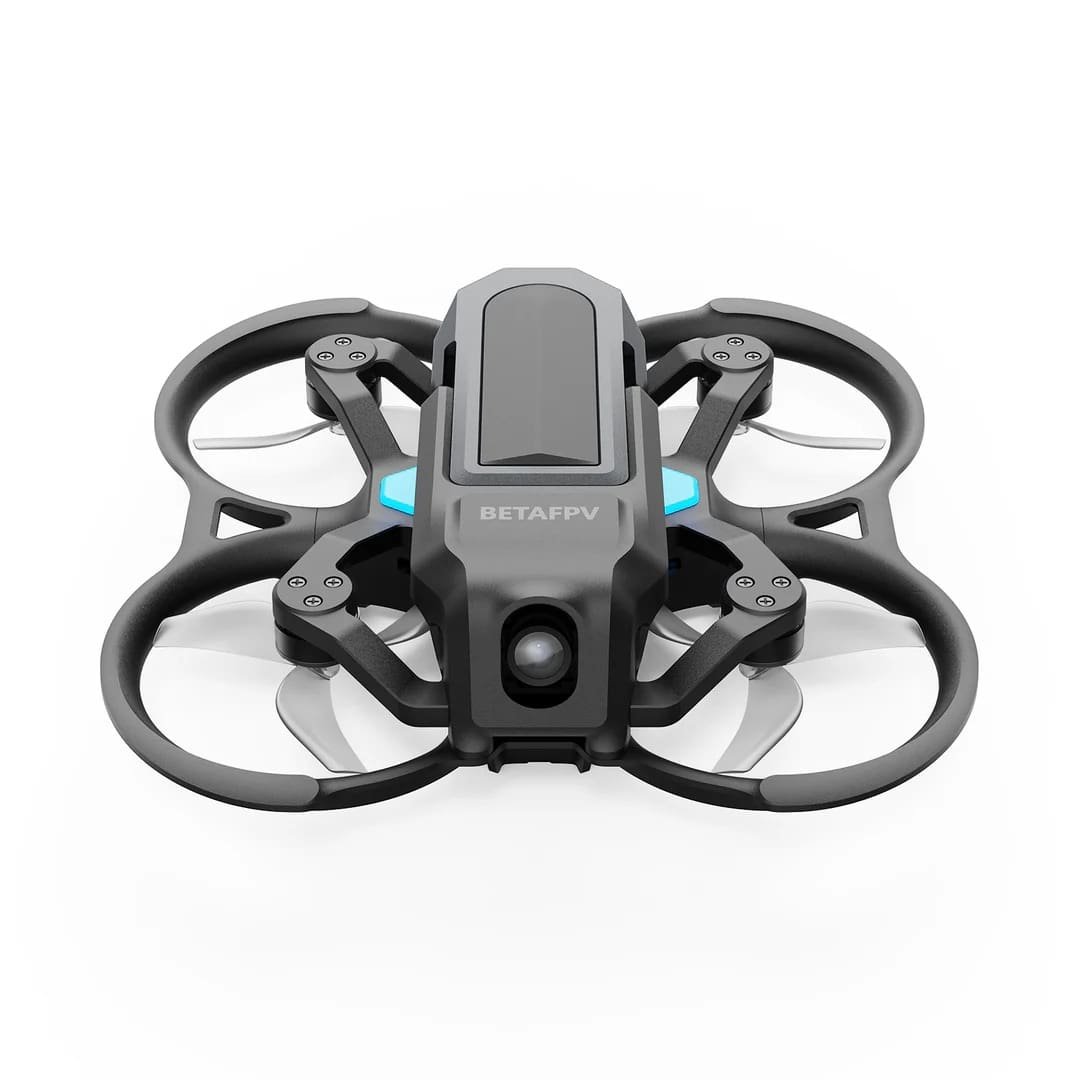

The Aquila20 is extremely resistant to drops. The sturdy PA410 frame absorbs and distributes shock energy, making the drone less vulnerable even if it does fall. The cleverly designed housing protects the camera and important internal components.

Smart battery – smart flight

The Aquila20 uses an advanced Smart Battery that optimizes flight performance and has an integrated control chip that ensures efficient power delivery and protection. Clear LED indicators and low battery notifications make you feel safe throughout the flight.

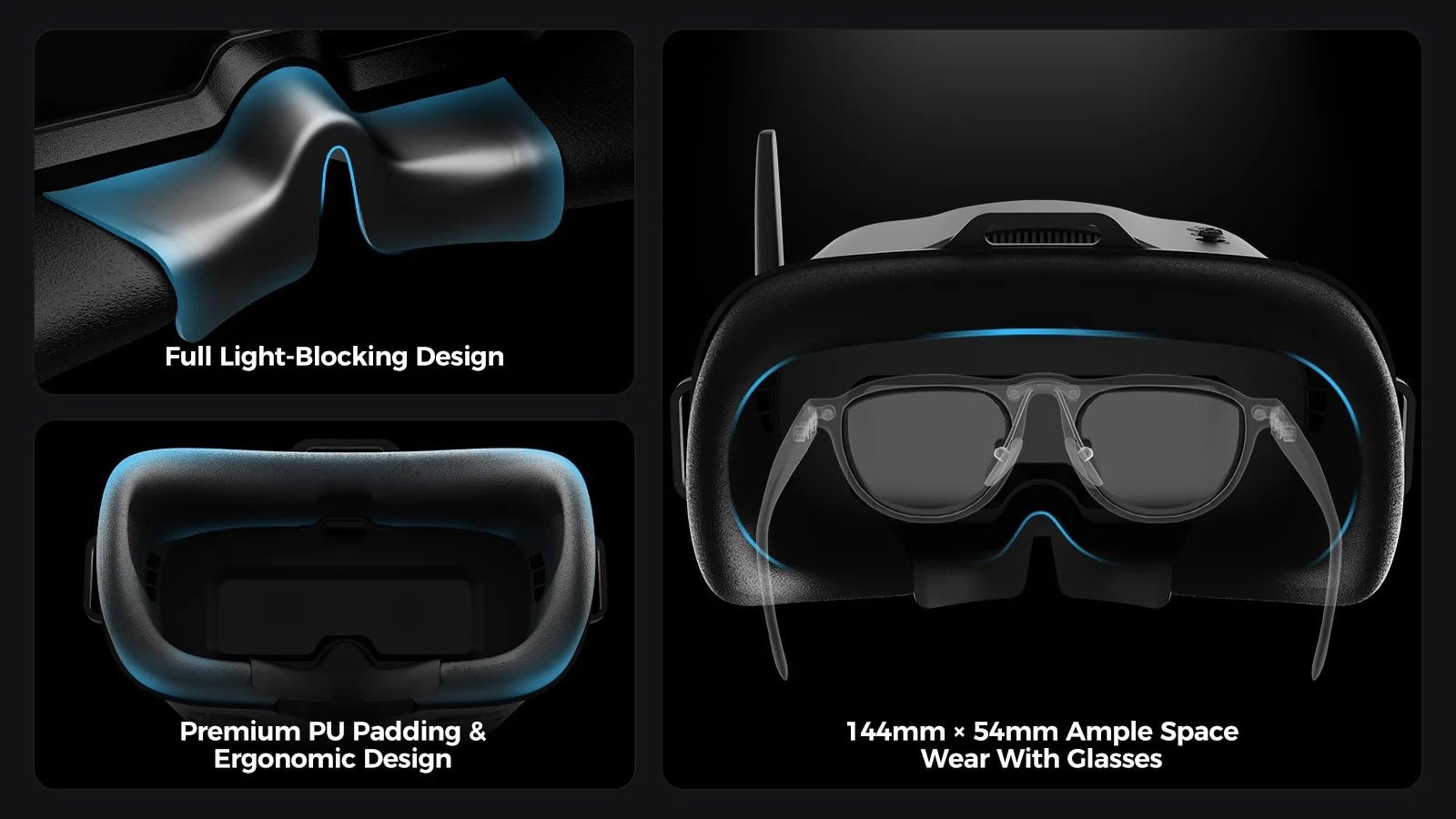

VR04 FPV Goggles

VR04 glasses are designed to ensure comfort and are suitable for wearing with glasses frames. The ergonomic face cushion and soft rubber nose pad effectively block external light and ensure a comfortable fit. The built-in 2000 mAh battery allows you to use the glasses for up to 2 hours, and with the press of a button you can record the image directly to a microSD card.

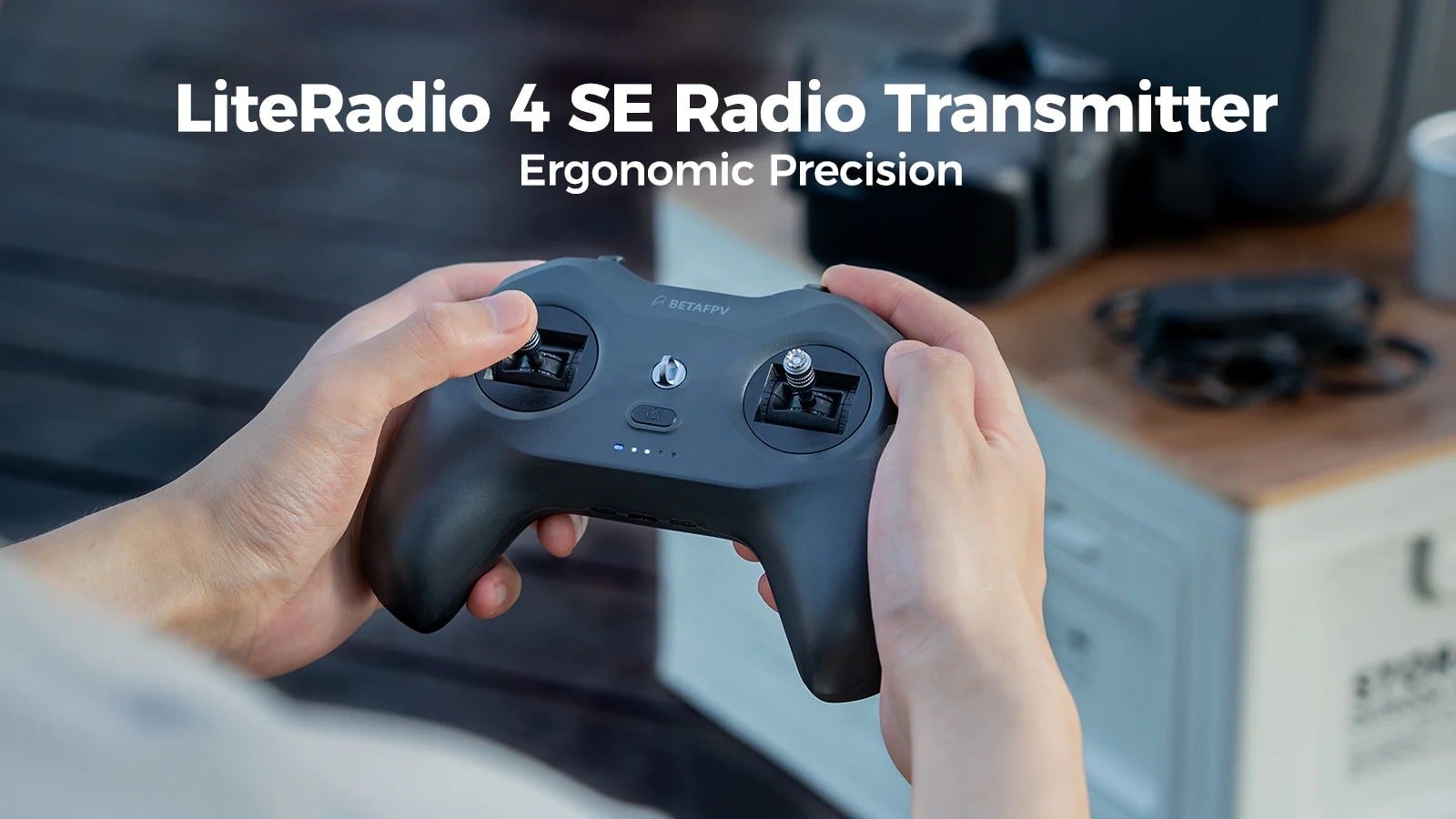

LiteRadio 4 SE remote control

The LiteRadio 4 SE transmitter with 10-channel control provides precise drone control and is perfect for beginners. Advanced gimbals work smoothly and stably, and Bluetooth mode allows you to practice in the simulator on computers, tablets or mobile devices. The 2000 mAh battery provides more than 8 hours of use, and fully charges in 40 minutes.

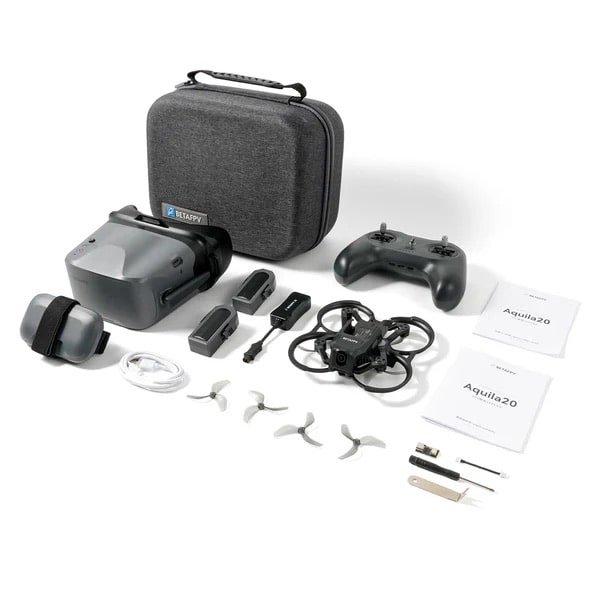

Package:

1x Aquila20 brushless Whoop drone;
1x LiteRadio 4 SE radio transmitter;
1x VR04 FPV goggles;
2x Aquila20 2S HV 1100 mAh batteries;
1x 2S HV battery charger with voltage tester and BT3.0 connector;
1x Gemfan 2218 3-blade propellers (4 pcs.);
1x USB-C cable;
1x Propeller removal tool;
1x Phillips screwdriver;
1x 4-pin adapter cable;
1x USB Type-C adapter board;
1x Carrying case;
1x User Manual;
1x Quick Start Guide.
