BETAFPV 2S Whoop Cable Pigtail (BT2.0)

This BT2.0 dual connector cable is designed for 2S whoop drones such as Beta65X HD, Beta65X FPV, Cetus X. Using BT2.0 connector solves the voltage drop problem, making the 1S lipo battery discharge more efficiently. Pilots can enjoy longer flight time without the hassle of low voltage warning.

Features:

• Designed specifically for 2S whoop drones such as the Beta65X HD and Beta65X FPV.
• Lightweight and specially designed 22AWG wire is used, making the drone even lighter.
• The cable is manufactured according to the US standard: 0.08mm × 60 cores.
• The diameter of the silicone sheath is only 1.5 mm, which is 0.2 mm thinner than a standard 22AWG wire.
• The BT2.0 connector effectively reduces the internal resistance of the connector as the terminals have been upgraded to 1.0 mm banana connectors, thereby increasing the cross-sectional area.
• The BT2.0 connector supports 9 A continuous current and 15 A burst, while the PH2.0 connector only supports 4.5 A.
• It provides a better flight experience with 1S brushless whoop drones.
• Using BT2.0 connectivity solves the voltage drop problem - 1S lipo battery discharge becomes more efficient, so pilots can enjoy longer flight without low voltage warning.

Specification:

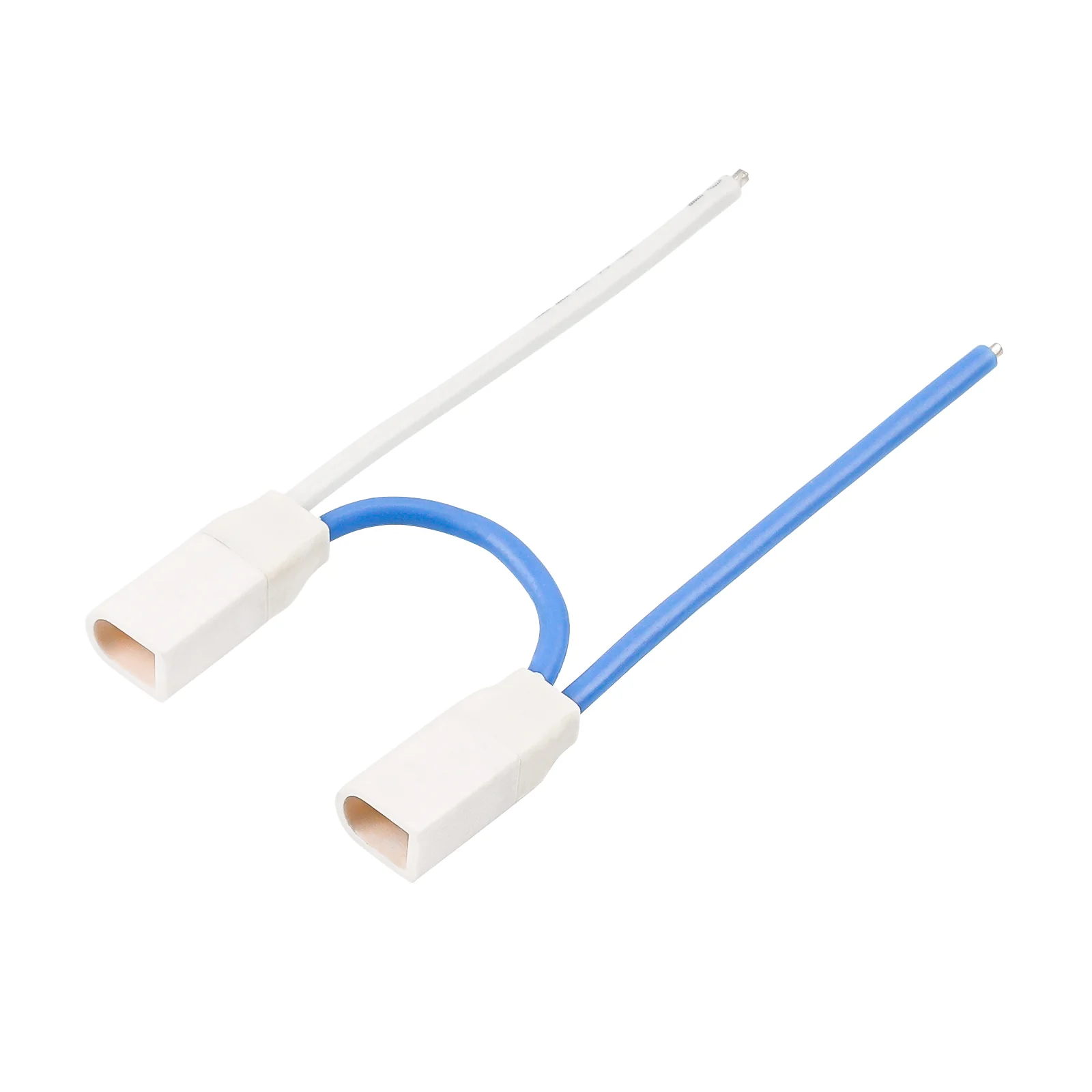

• Item: 2S Whoop Cable Pigtail (BT2.0);
• Connection: BT2.0;
• Wire: 22AWG;

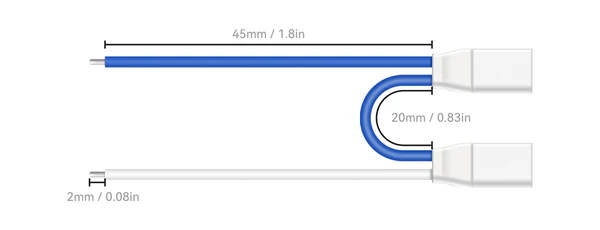

• Length: 45 mm (without connector);

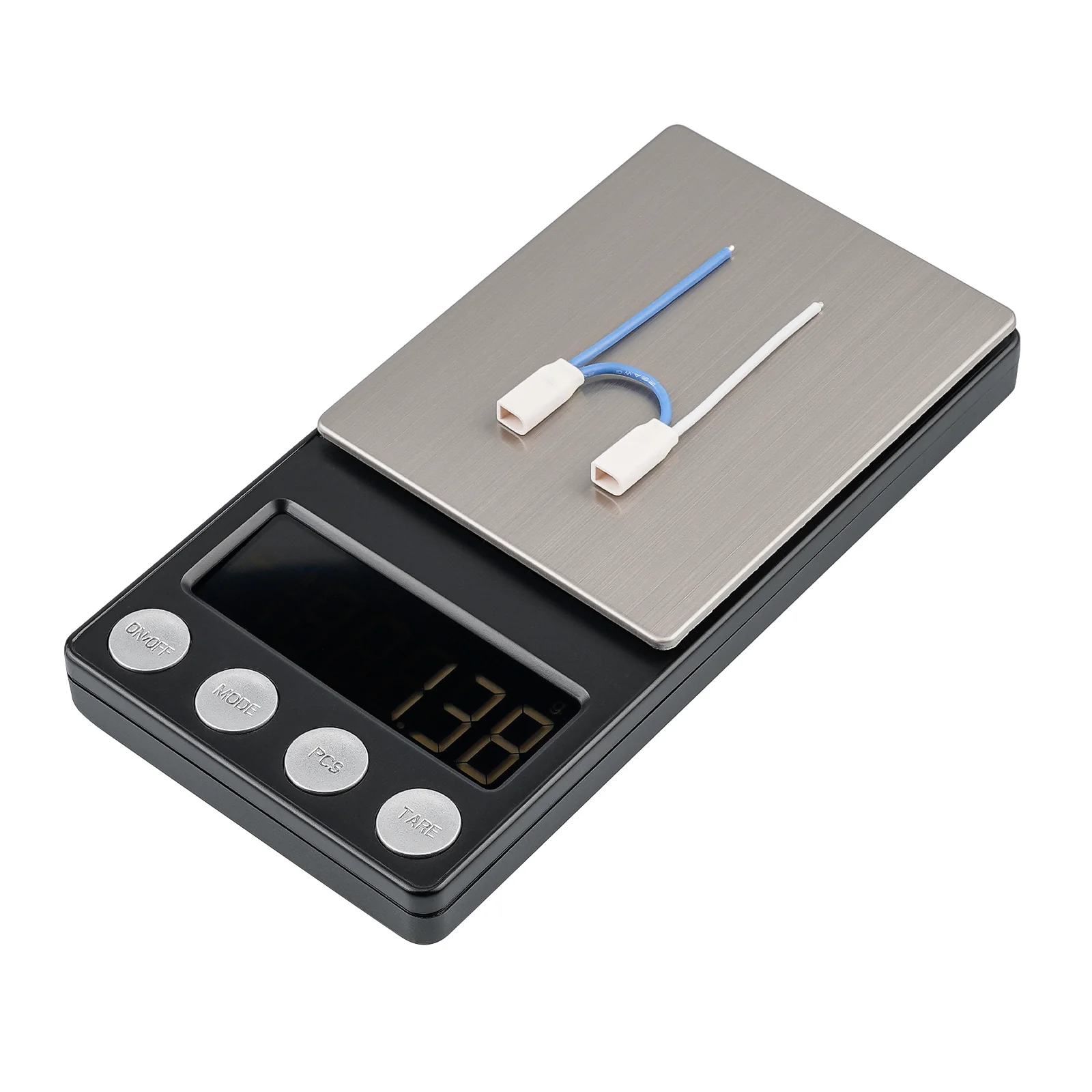

• Weight: 1.5 g;
• Note: Blue color – positive pole (+), white color – negative pole (–).

BT2.0 connection

BETAFPV's specially designed BT2.0 connector has surpassed the capabilities of the PH2.0 connector. The BT2.0 connector has effectively reduced the internal resistance, allowing for more current to be transmitted, supporting 9A continuous current and 15A instantaneous current. This provides more power and longer flight time for 1S brushless drones, while the PH2.0 connector only supports 4.5A. With BT2.0, you can enjoy longer flights without low voltage warnings, as the voltage drop problem is solved.

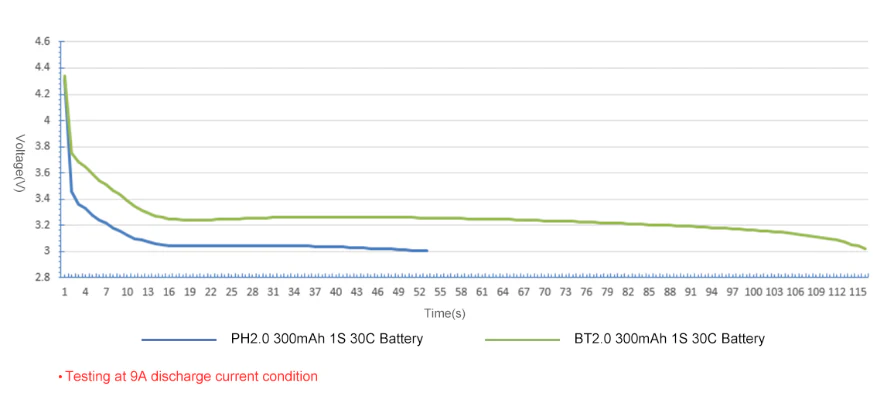

BETAFPV provides a graph comparing BT2.0 and PH2.0 (with hard contacts) connections using the BETAFPV 1S 300mAh battery.
In the test, the current reaches 9A, and the results show that the BT2.0 connection provides twice as long flight time (about 2 minutes).

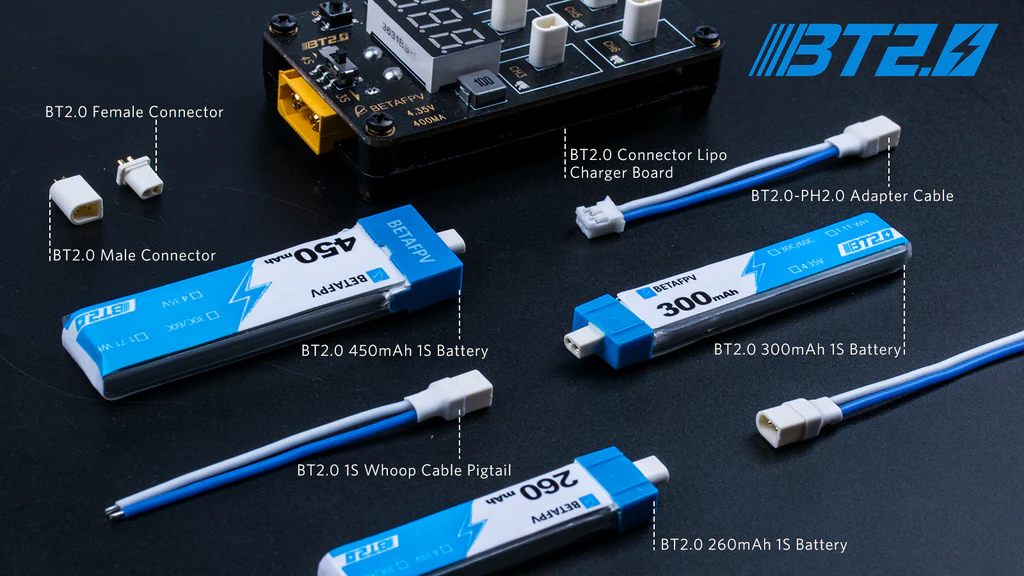

More BT2.0 series accessories

We know that some pilots may be wondering what to do with their old PH2.0 1S batteries.
Therefore, we offer various accessories that allow you to convert a PH2.0 connector to a BT2.0 connector:

Package:

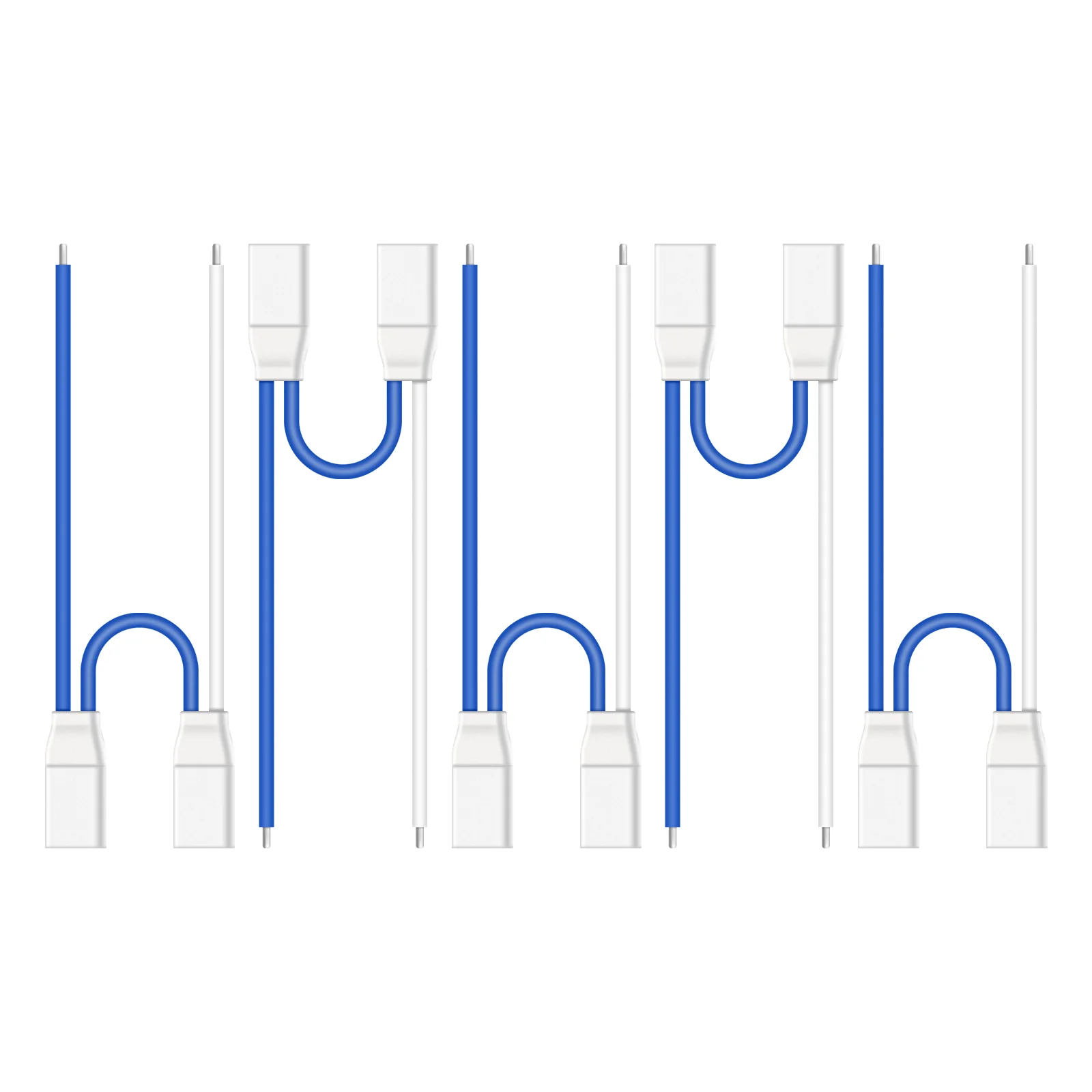

5 x 2S Whoop Cable Pigtail (BT2.0)
