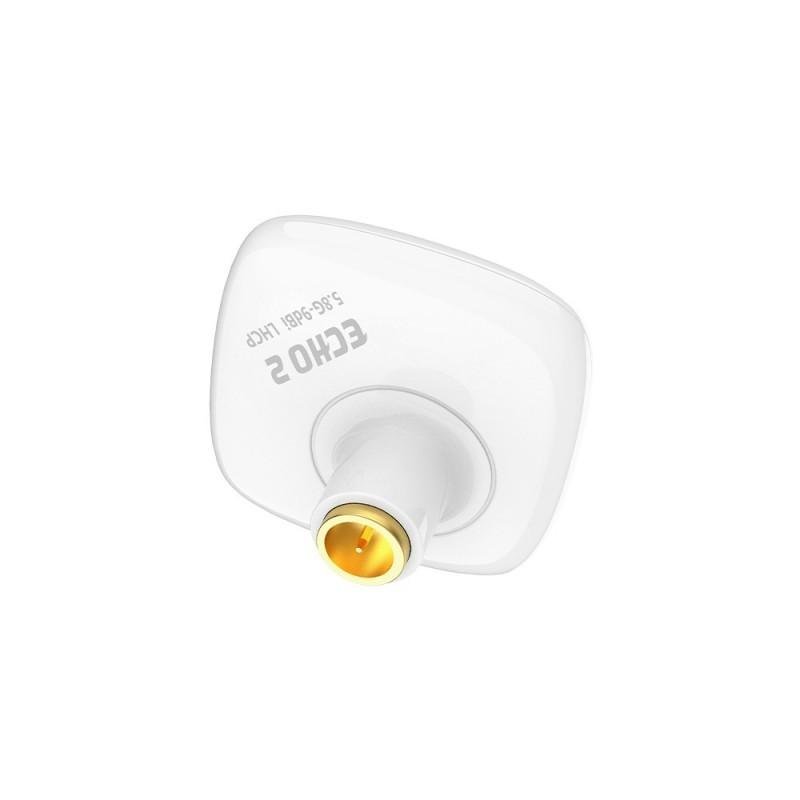

Foxeer Echo 2 5.8G 9dBi Patch RHCP antenna

Specification:

• Center frequency: 5.8 GHz;
• Gain: 9 dBi;
• Axial Ratio: close to 1;
• Frequency band: 5.5–6.0 GHz;
• Beam angle: 84.7°;
• Radiant efficiency: 98 %;
• Impedance: 50 Ω;
• VSWR: < 1.25 (at center frequency);
• Connector: SMA;

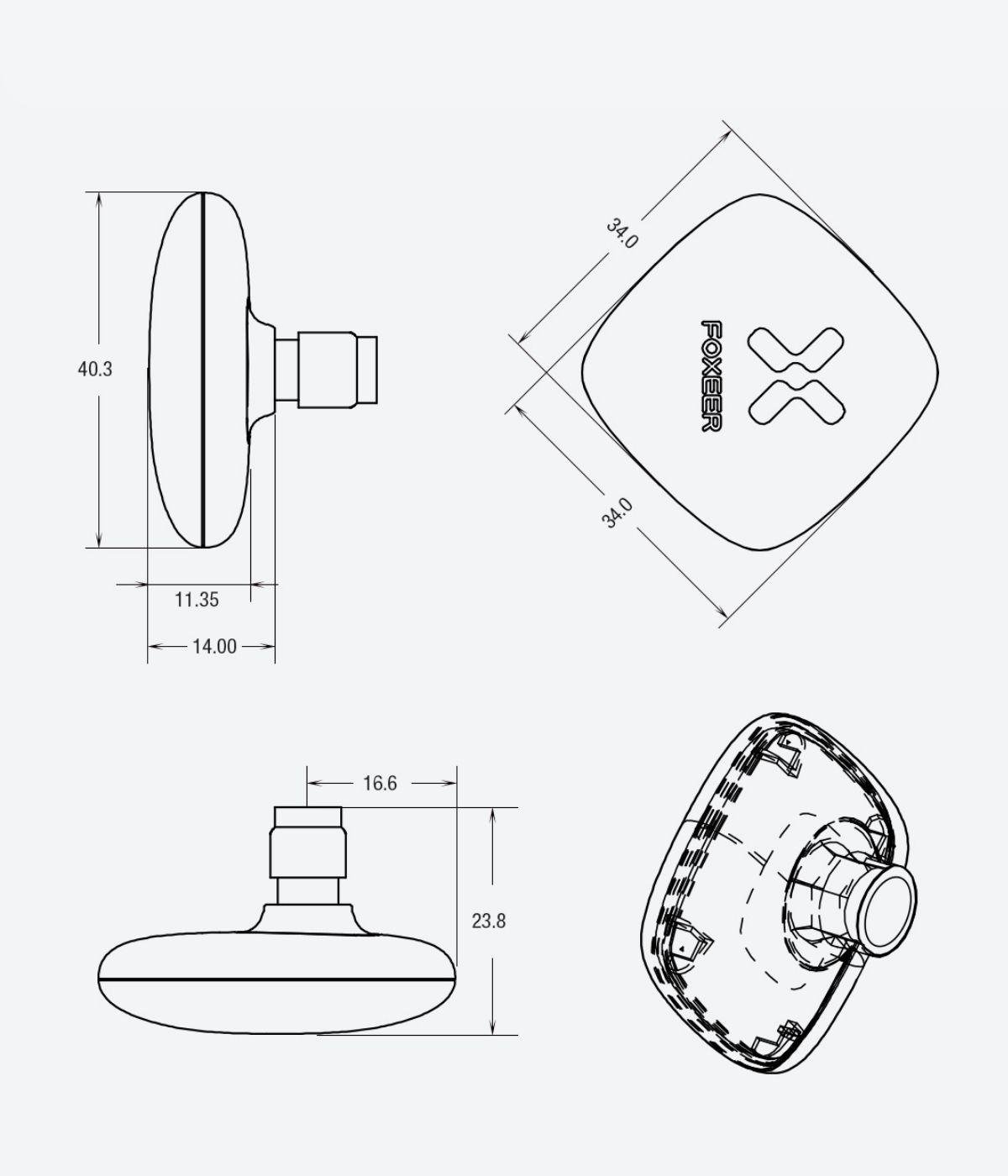

• Dimensions: 40 × 22 mm;
• Polarization: RHCP;
• Housing material: PC plastic;
• Weight: 8 g;

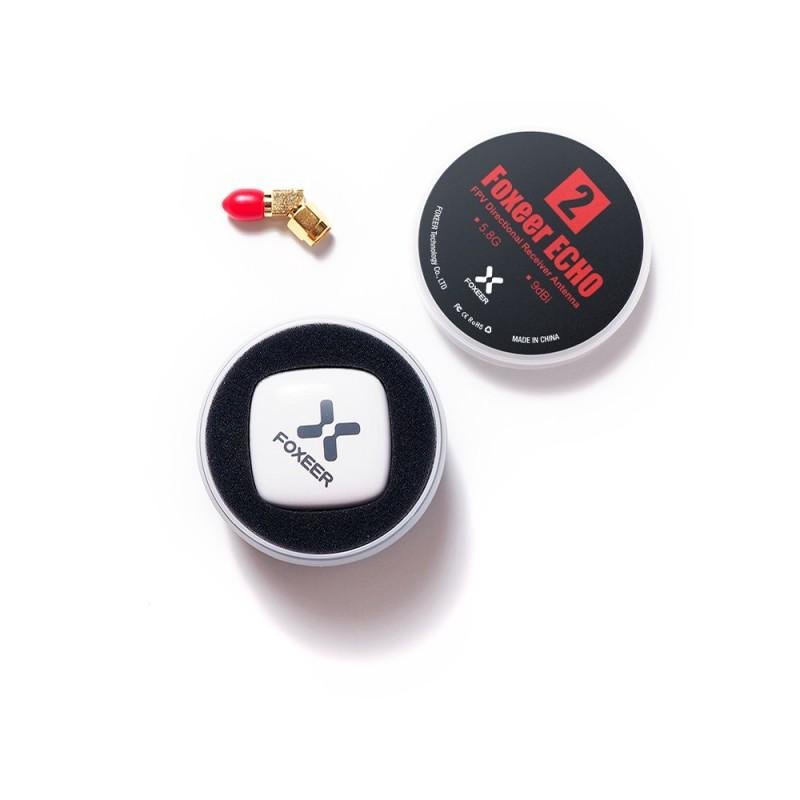

Equipment:

1 x Foxeer Echo 2 5.8G 9dBi Patch RHCP antenna

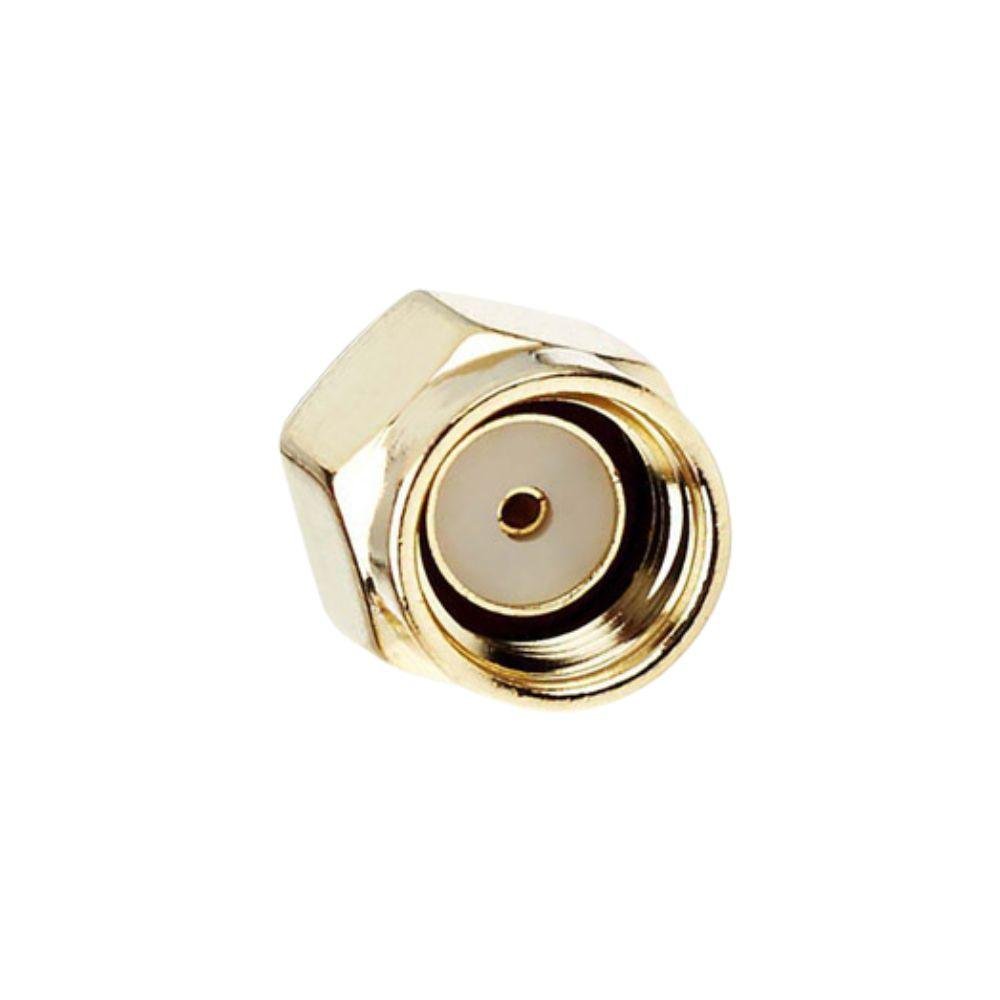

1 x 45° SMA adapter
