Emax Tinyhawk II

Specification:

• Engines:
Manufacturer: Emax;
Model: 0802 16000KV brushless motors;
Input voltage: 1S;
KV: 16000KV.

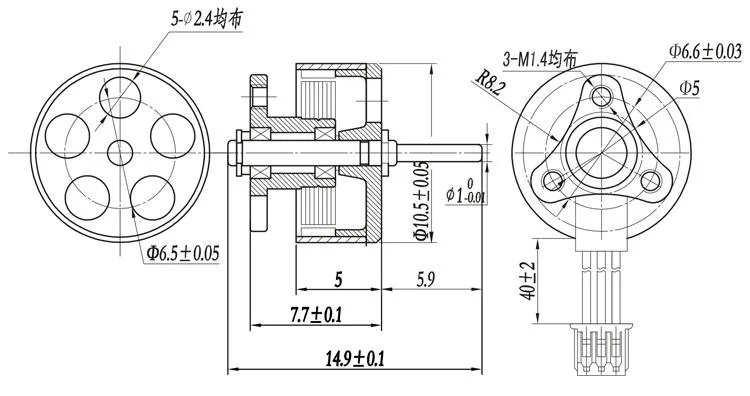

Measurements

• RX:
Model: EMAX SPI Receiver.

• ESC/VTX/FC (all in one):
Manufacturer: Emax;
Input: 1-2s Lipo;
FC: MATEKF411RX;
ESC: 4-in-1 5A Blheli_S;
VTX: 0-25-100-200mW Adjustable Frequency 37CH. Support SmartAudio.

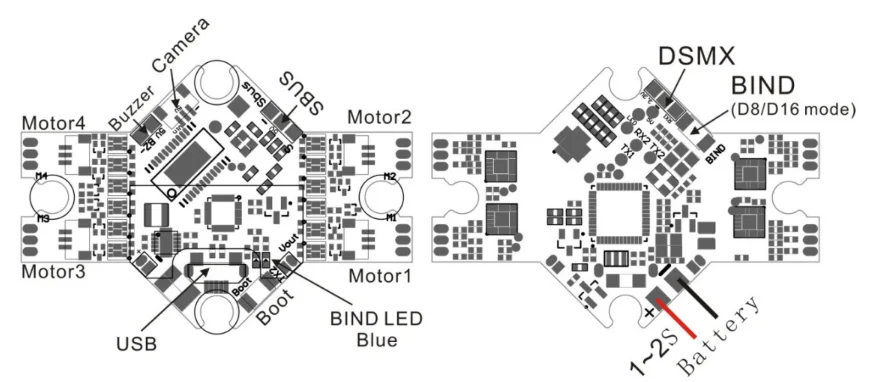

Scheme

• Camera:
RunCam Nano 2 Camera.

• Propellers:
Model: AVAN Turtle mode;
Material: PC;
Blades: 4.

Package:

1x drone;
1x EMAX 450mAh 1S HV;
1x EMAX 300mAh 2S HV;
2x CCW + 2x CW spare propellers;
1x 1S-2S USB LiPo charger;
1x screwdriver.

Important:
* Do not overcharge or leave batteries discharged for long periods of time;
* Do not store batteries near high temperatures;
* Do not throw batteries into fire;
* Do not throw batteries into water.
